  1. Coasts

  2. Coasts can be • active or passive • erosional or depositional

  3. Parts of a beach

  4. Wave refraction along a straight coast

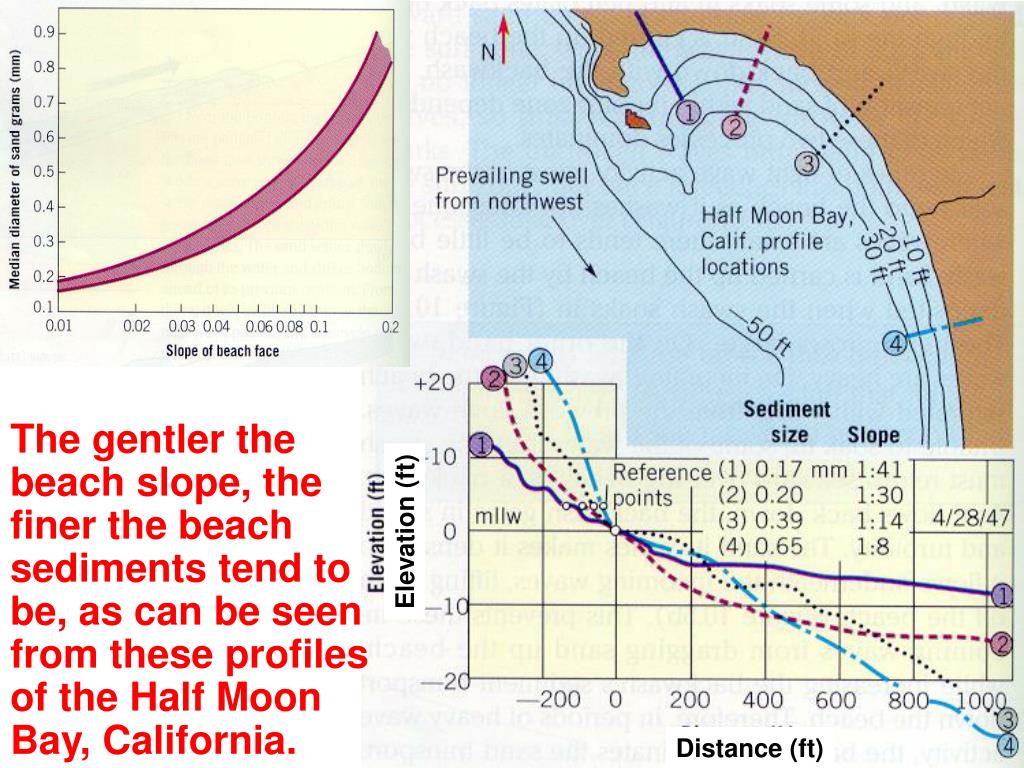

  5. The gentler the beach slope, the finer the beach sediments tend to be, as can be seen from these profiles of the Half Moon Bay, California. Elevation (ft) Distance (ft)

  6. Seawater temperature (°C) 2 4 6 8 10 12 14 0 June 20 March September 40 May August Depth from sea-surface (m) 60 Thermocline at the Carmel Beach is seasonal ... November 80 January 100

  7. … and so is the beach profile. 6 August August April 3 Height above mean low water (m) September July February December June May 0 0 30 60 90 120 150 Distance from the sea cliff (m)

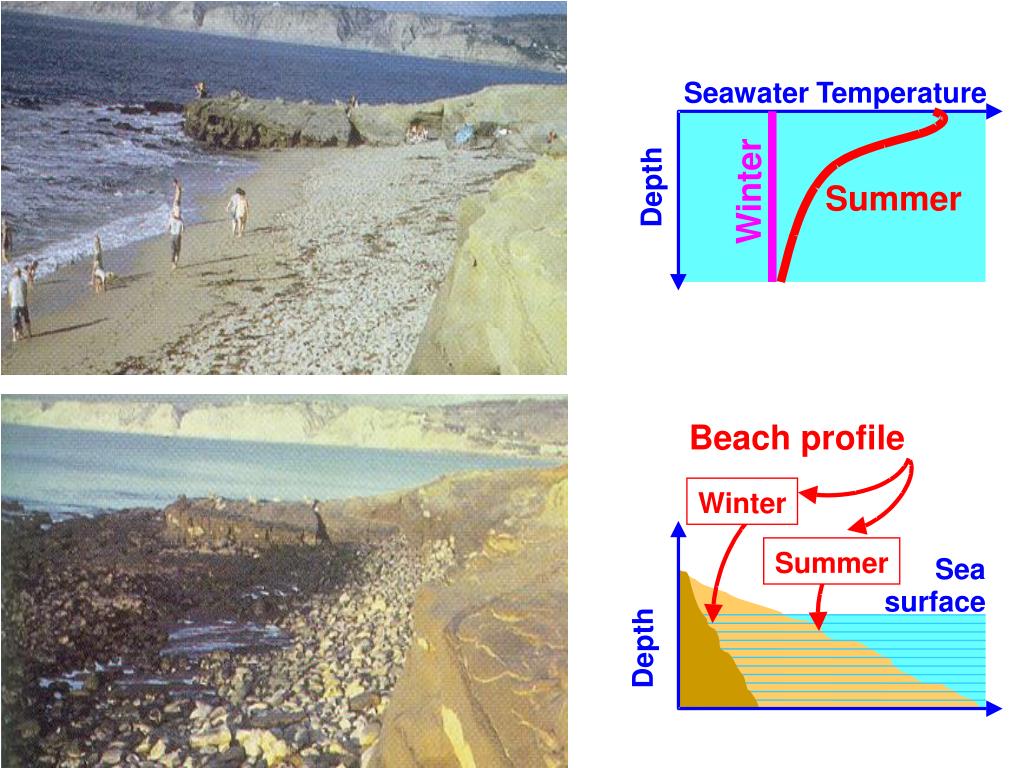

  8. Seawater Temperature Winter Depth Summer Beach profile Winter Summer Sea surface Depth

  9. Longshore current and littoral drift

  10. These two pictures are of the same beach at Barnes Bay, Anguilla. Theone on the left was taken in 1994 …. … and the one on the right was taken sometime in 1995.

  11. How baymouth bars and spits form

  12. Formation of a tambolo

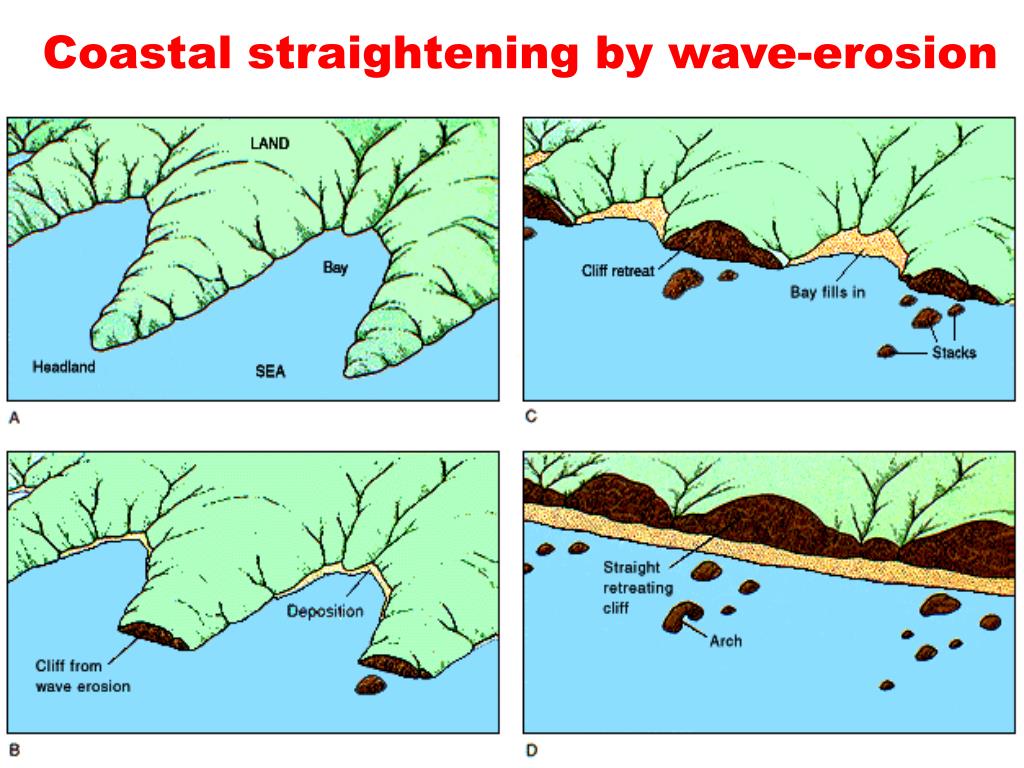

  13. Coastal straightening by wave-erosion

  14. The development of a wave-cut platform

  15. Deltas can be 1. tide-dominated, river dominated, and wave-dominated

  16. Continental shelf, slope, and submarine canyon

  17. A submarine canyon is a collapsed river channel

  18. How construction modifies the shoreline: • The constructing a groin or a pier, i.e., a structure perpendicular to the shoreline

  19. How construction modifies the shoreline: • Constructing a breakwater wall means sand pile-up right behind the breakwater wall and erosion downstream

  20. Santa Barbara Harbor
