  1. OpenLDAP: Administration CNS 4650 Fall 2004 Rev. 2

  2. Creating Containers and Manager Account • Create containers for users, printers, computers, etc. • Usually use “o” and “ou”, you can create more “dc” objects if needed • Create an actual user entry in the directory for the Manager • Authenticate with the Manager account defined in slapd.conf • Created with an LDIF

  3. Sample LDIF dn: dc=uvsc,dc=edu objectclass: dcObject objectclass: organization o: uvsc dc: uvsc dn: cn=Manager,dc=uvsc,dc=edu objectclass: organizationalRole cn: Manager

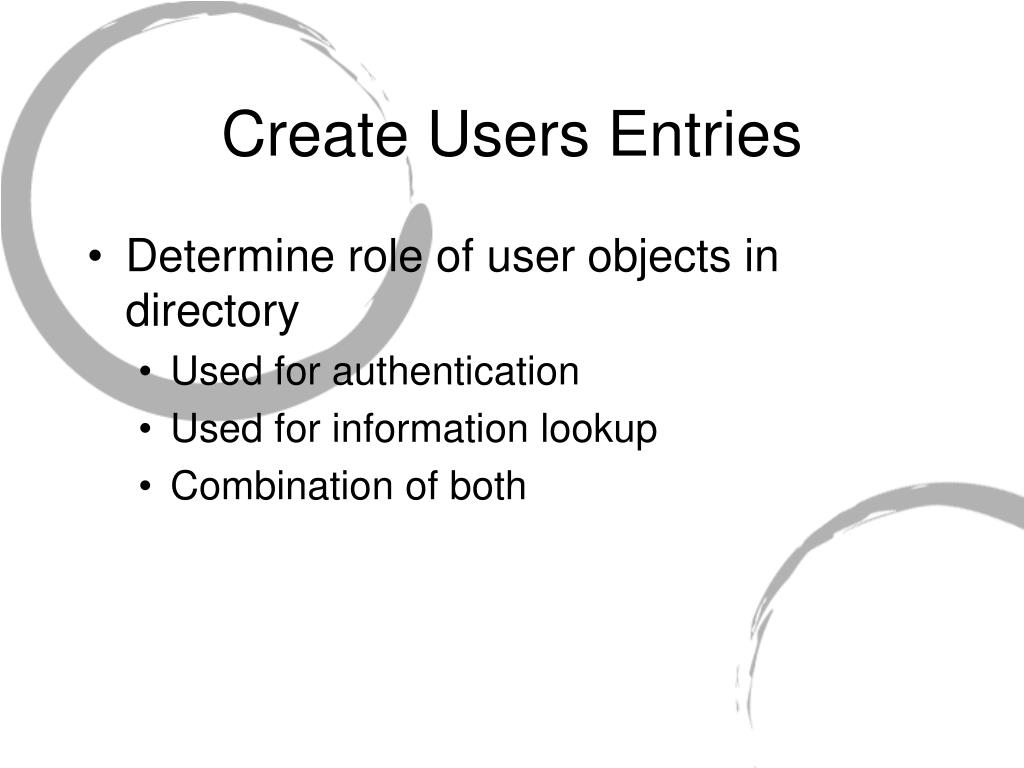

  4. Create Users Entries • Determine role of user objects in directory • Used for authentication • Used for information lookup • Combination of both

  5. Users Entries for Authentication • Allows for workstations to authenticate users from LDAP • Users will need to be of object class types • person/inetOrgPerson • posixAccount/shadowAccount • posixAccount requires • uid - example: dsinema • uidNumber - example: 10001 • gidNumber - example: 20 • homeDirectory - example: /home/dsinema • The userPassword should also be set

  6. User Authentication LDIF dn: uid=bullwinkle,ou=cns4650,dc=uvsc,dc=edu objectClass: top objectClass: person objectClass: inetorgperson objectClass: posixAccount objectClass: shadowAccount uidNumber: 1028 loginShell: /bin/bash homeDirectory: /dev/null gidNumber: 20 uid: bullwinkle cn: Bullwinkle sn: Moose mail: bullwinkle@uvsc.edu userPassword: {SSHA}2KsnBb5hjm/hJK04I6oIk7bVVN8gNeKu

  7. userPassword • Use slappasswd to create hash • slappasswd -s <password string> • Can use scripting language to automate automatic password generation

  8. Users Entries for Information Lookup • Used for email address books • Web based white/yellow pages • Users will need to be of object class types • person/inetOrgPerson • person requires • sn - example: Sinema • cn - example: Dan

  9. User Information LDIF dn: uid=bullwinkle,ou=cns4650,dc=uvsc,dc=edu objectClass: top objectClass: person objectClass: inetorgperson cn: Bullwinkle sn: Moose mail: bullwinkle@uvsc.edu
