New Developments in AERONET aerosol retrievals

Oleg Dubovik (Code 614.4 ). New Developments in AERONET aerosol retrievals. Outlines: Improving operational retrieval software Aerosol particle non-sphericity Inversion of combined AERONET/satellite observations. INPUT of Forward Model. Aerosol characterization form AERONET retrievals.

courtney-mclean
Télécharger la présentation

New Developments in AERONET aerosol retrievals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Oleg Dubovik(Code 614.4) New Developments in AERONET aerosol retrievals Outlines: • Improving operational retrieval software • Aerosol particle non-sphericity • Inversion of combined AERONET/satellite observations

  2. INPUT of Forward Model Aerosol characterization form AERONET retrievals Complex Refractive Index at l = 0.44; 0.67; 0.87; 1.02 mm Particle Size Distribution: 0.05 mm ≤ R (22 bins) ≤ 15 mm Desert Dust Maritime Smoke

  3. AERONET Inversion 2 • Flexibility and refinements of the algorithm: - any number of spectral channel (from 0.34 to 1.64 mm) - any measurements geometry (almucantar, principle plane, etc.) - dynamic error estimates for all retrieval products - improved assumptions about surface reflectance (Moody et al. 2005) - utilizing measurements of polarization (not operational yet) • New products from retrievals: - particle non-sphericity - direct aerosol radiative forcing computations - degree of polarization, phase function, etc. • New concepts in the retrieval: - non-spherical aerosols - using co-incident satellite observations in the retrievals

  4. AERONET model of aerosol AERONET model of aerosol spherical: Randomly oriented spheroids : (Mishchenko et al., 1997)

  5. Single Scattering using spheroids spheroidkernels data basefor operational modeling !!! Input:wp(Np =11), V(ri) (Ni =22 -26) K- pre-computed kernel matrices: Input: n and k • Basic Model by Mishchenko et al. 1997: • randomly oriented homogeneous spheroids • w(e) - size independent shape distribution Time: < one sec. Accuracy: < 1-3 % Range of applicability: 0.15 ≤ 2pr/l ≤ 280 (26 bins) 0.4 ≤ e ≤ 2.4 (11 bins) 1.33 ≤ n ≤ 1.6 0.0005 ≤ k ≤ 0.5 Output:t(l), w0(l), F11(Q), F12(Q),F22(Q), F33(Q),F34(Q),F44(Q)

  6. NEW CONCEPT - retrieving degree of non-sphericity as an additional parameter The retrieval is possible for aerosols with pronounced coarse fraction, i. e. desert dust and maritime (a < ~ 1.2) Retrieved aspect ratio Non- spheres spheres

  7. AERONET-MSP(multispectral polarization) • Spectral Percent linear Polarization hourly • Standard Products • L(nm): 340, 380, 440, 500, 675, 870, 940, 1020, 1640 • AERONET testing (Feb. to May 2006) • Operational products: June 2006 Dual filter wheel, top for polarizers bottom for IAD filters B.N. Holben

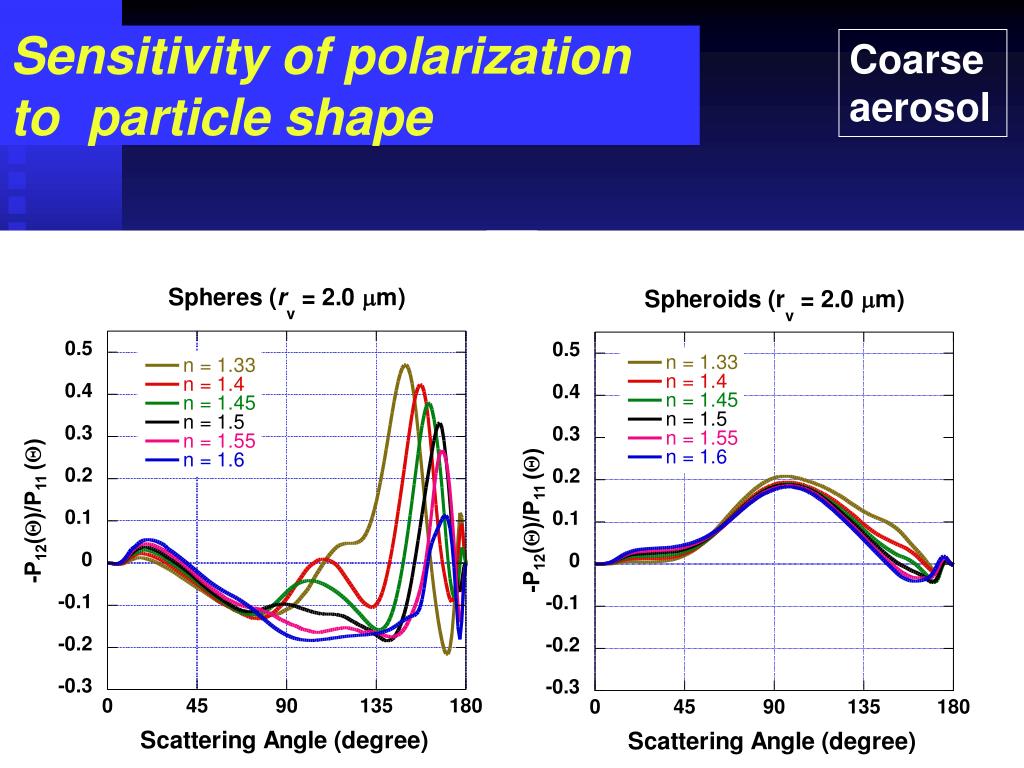

  8. Coarse aerosol Sensitivity of polarization to particle shape -P12(Q)/P11 (Q) -P12(Q)/P11 (Q)

  9. e(spheroids)~ 5%;e(spheres)~ 10% e(spheroids) < 0.01;e(spheres)~ 0.05

  10. Simultaneous Inversion of intensity and Polarization measured in principle plane at 5 channels (0.44; 0.5; 067; 0.87; 1.02) Maarco, August 8, 2004

  11. Combining of observations: satellite, ground-based and aircraft CALIPSO CALIPSO Retrieved: • AEROSOL: • Size Distribution • - Real Refractive Index • Absorption • Vertical variability concentration size altitude concentration • SURFACE : • Albedo • - Bi-directional reflectance LIDAR LIDAR

  12. August 9, 2003 t(0.44) ~ 0.3 Simultaneous fitting AERONET MISR-MODIS MODIS

  13. Comparisons of Surface Retrievals (with improved vertical profile) Surface Albedo: Surface BRDF:

  14. Surface Effect on Retrievals of the fine mode aerosols (low aerosol loading) POLDER: June 24, 2003 t(0.44) ~ 0.26 , SZA=470

  15. Version 2 operational retrieval • More robust, more accurate and better characterized results • Utilize new types of measurements (polarization, principle plane, etc) • Provide new retrieval products: particle shape, forcing, etc. Plans: • Using co-incident observations of MODIS, MISR and POLDER • Including Lidar information into retrievals
