  1. Chapter One Introduction to Pipelined Processors

  2. Principle of Designing Pipeline Processors (Design Problems of Pipeline Processors)

  3. Job Sequencing and Collision Prevention

  4. Job Sequencing and Collision Prevention • Consider reservation table given below at t=0

  5. Job Sequencing and Collision Prevention • Consider next initiation made at t=1 • The second initiation easily fits in the reservation table

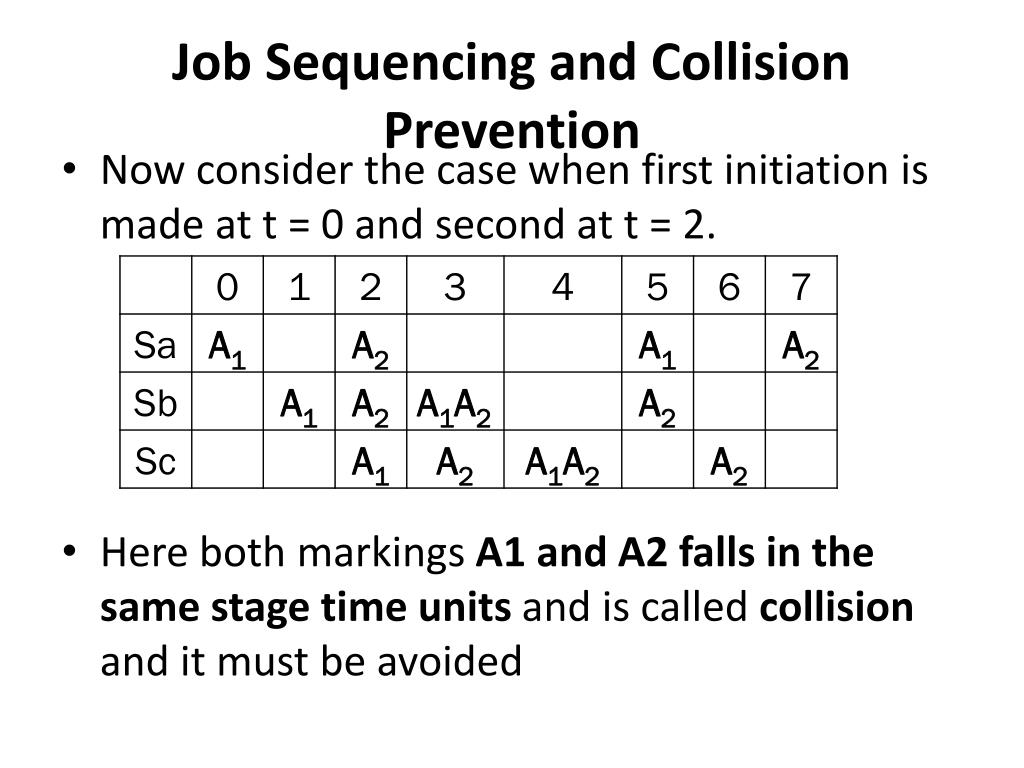

  6. Job Sequencing and Collision Prevention • Now consider the case when first initiation is made at t = 0 and second at t = 2. • Here both markings A1 and A2 falls in the same stage time units and is called collision and it must be avoided

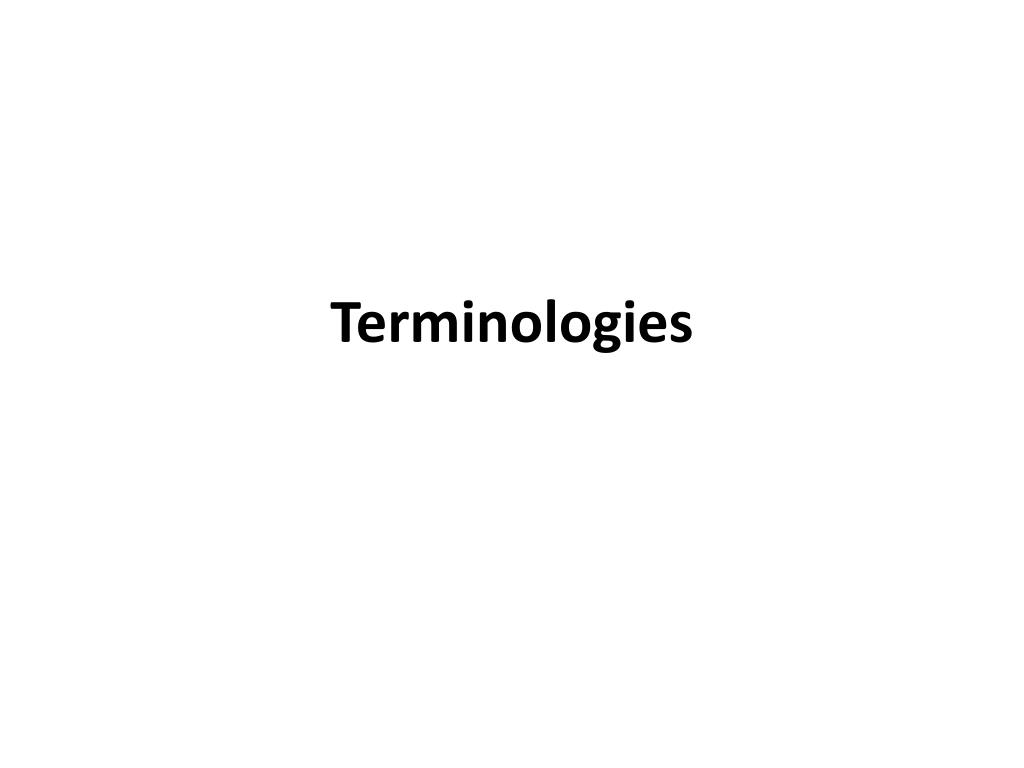

  7. Terminologies

  8. Terminologies • Latency: Time difference between two initiations in units of clock period • Forbidden Latency: Latencies resulting in collision • Forbidden Latency Set: Set of all forbidden latencies

  9. General Method of finding Latency Considering all initiations: • Forbidden Latencies are 2 and 5

  10. Shortcut Method of finding Latency • Forbidden Latency Set = {0,5} U {0,2} U {0,2} = { 0, 2, 5 }

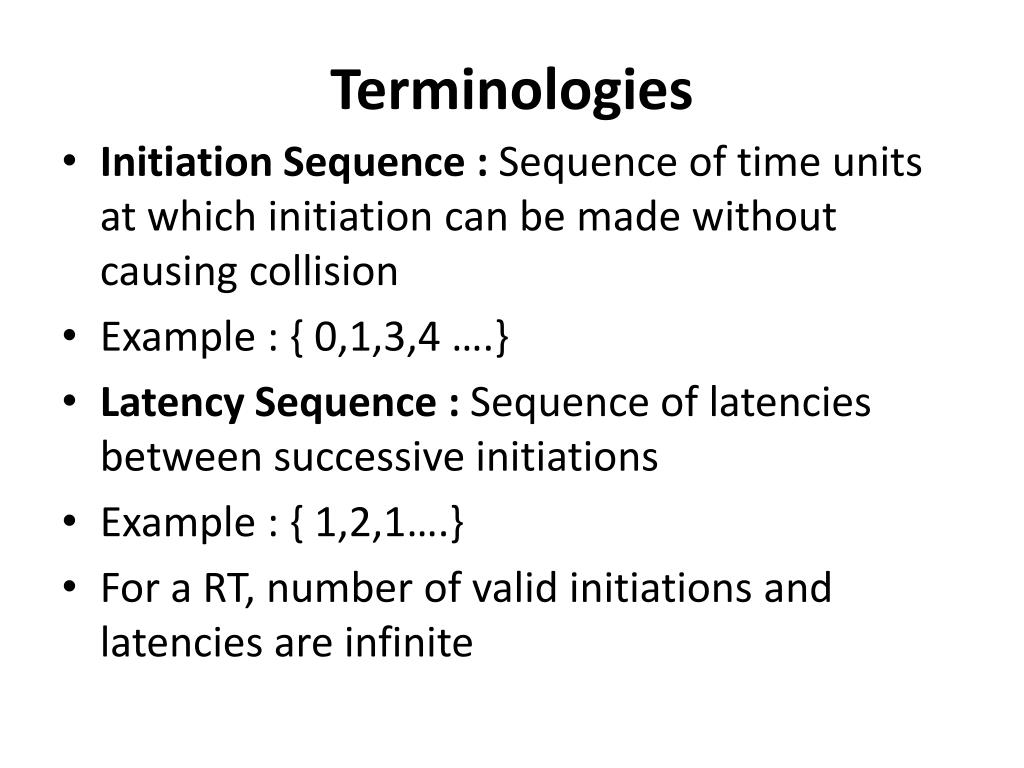

  11. Terminologies • Initiation Sequence : Sequence of time units at which initiation can be made without causing collision • Example : { 0,1,3,4 ….} • Latency Sequence : Sequence of latencies between successive initiations • Example : { 1,2,1….} • For a RT, number of valid initiations and latencies are infinite

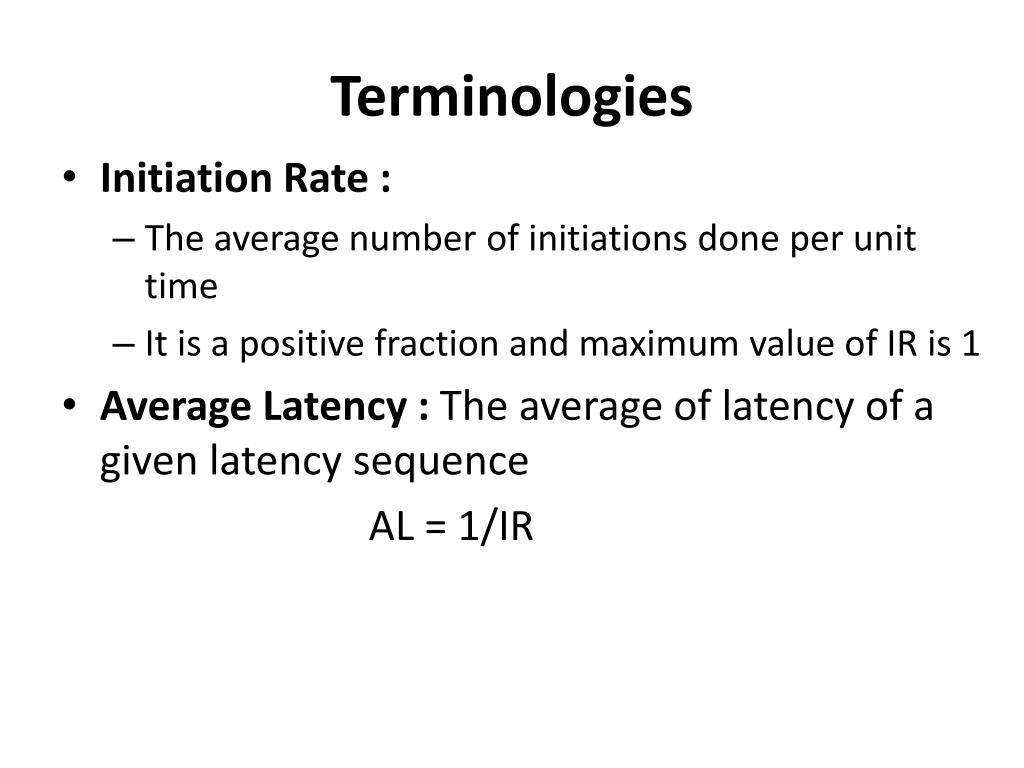

  12. Terminologies • Initiation Rate : • The average number of initiations done per unit time • It is a positive fraction and maximum value of IR is 1 • Average Latency : Theaverage of latency of a given latency sequence AL = 1/IR

  13. Terminologies • Latency Cycle: • Among the infinite possible latency sequence, the periodic ones are significant. E.g. { 1, 3, 3, 1, 3, 3,… } • The subsequence that repeats itself is called latency cycle. E.g. {1, 3, 3}

  14. Terminologies • Period of cycle: The sum of latencies in a latency cycle (1+3+3=7) • Average Latency: The average taken over its latency cycle (AL=7/3=2.33) • To design a pipeline, we need a control strategy that maximize the throughput (no. of results per unit time) • Maximizing throughput is minimizing AL

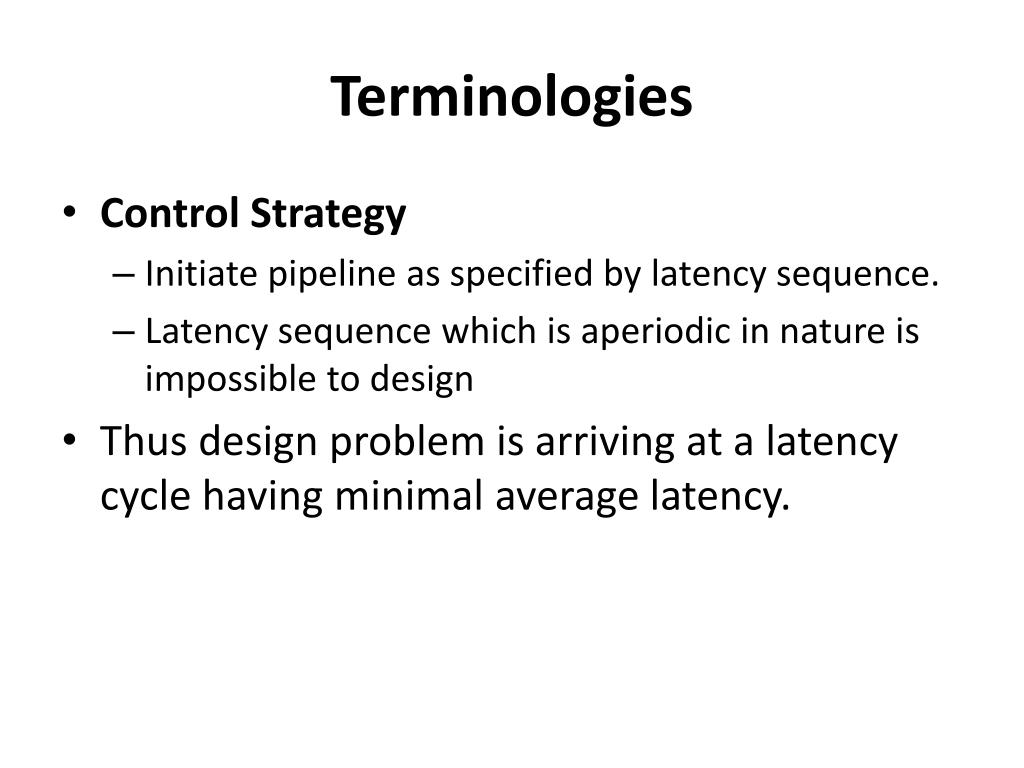

  15. Terminologies • Control Strategy • Initiate pipeline as specified by latency sequence. • Latency sequence which is aperiodic in nature is impossible to design • Thus design problem is arriving at a latency cycle having minimal average latency.

  16. Terminologies • Stage Utilization Factor (SUF): • SUF of a particular stage is the fraction of time units the stage used while following a latency sequence. • Example: Consider 5 initiations of function A as below

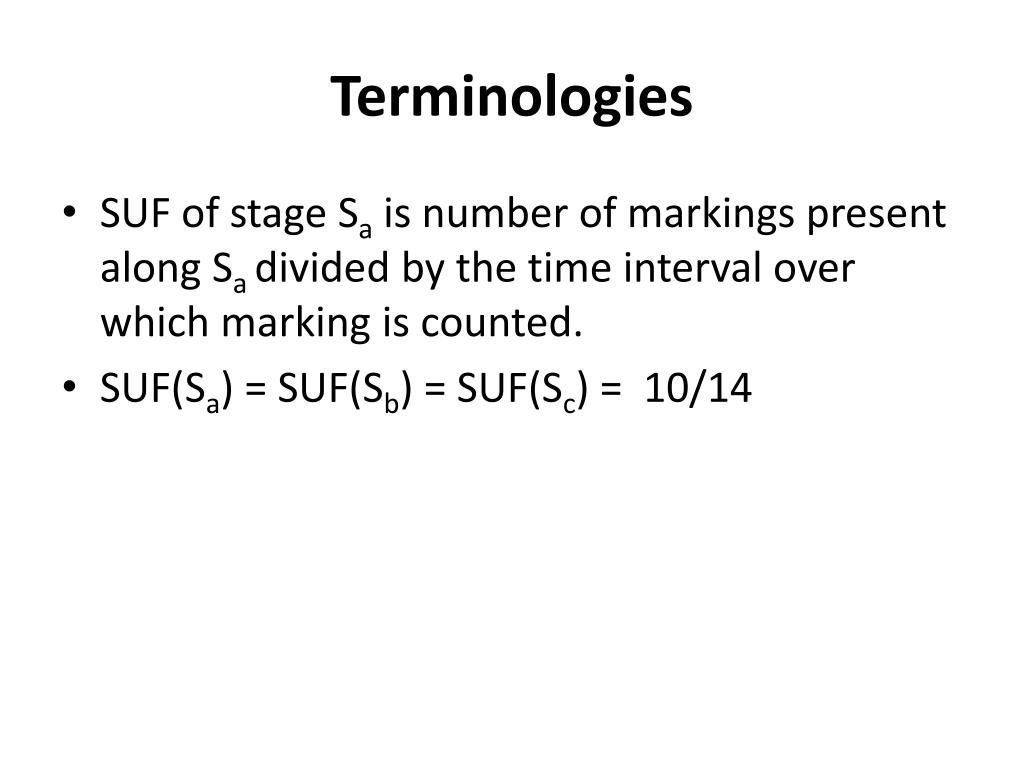

  17. Terminologies • SUF of stage Sa is number of markings present along Sa divided by the time interval over which marking is counted. • SUF(Sa) = SUF(Sb) = SUF(Sc) = 10/14

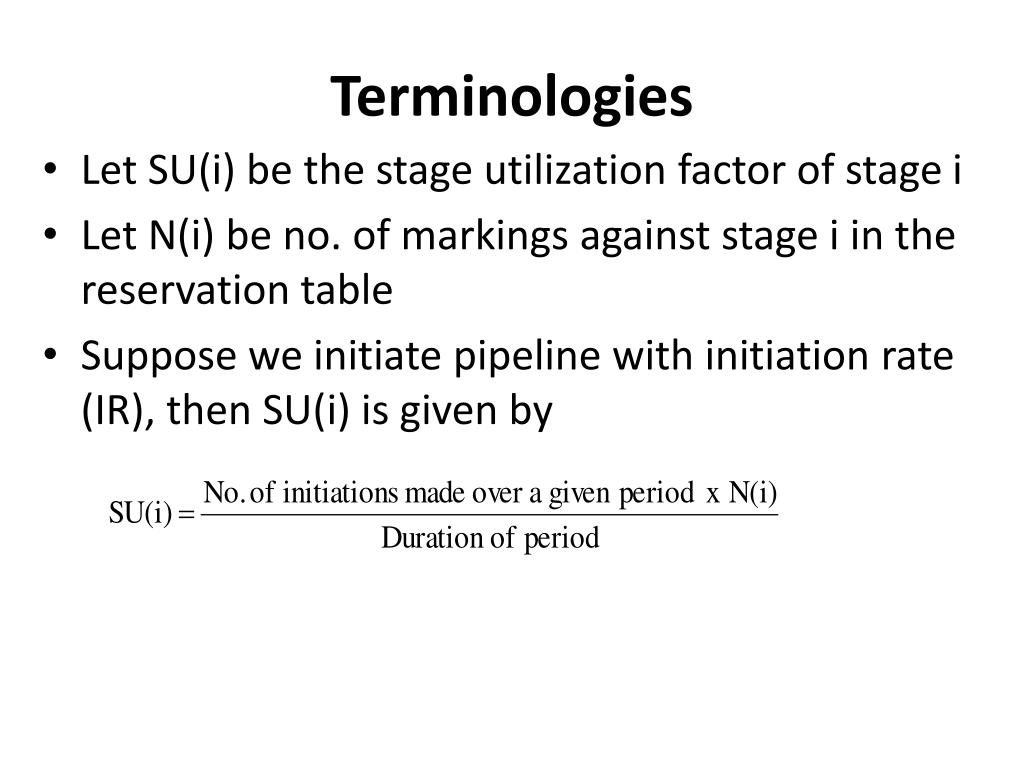

  18. Terminologies • Let SU(i) be the stage utilization factor of stage i • Let N(i) be no. of markings against stage i in the reservation table • Suppose we initiate pipeline with initiation rate (IR), then SU(i) is given by

  19. SUF

  20. Terminologies • Minimum Average Latency (MAL) • Thus SU(i) = IR x N(i) • SU(i) ≤ 1  IR x N(i) ≤ 1 N(i) ≤ 1/IR  N(i) ≤ AL • Therefore

  21. State Diagram • Suppose a pipeline is initially empty and make an initiation at t = 0. • Now we need to check whether an initiation possible at t=i for i > 0. • bi is used to note possibility of initiation • bi = 1  initiation not possible • bi = 0  initiation possible

  22. State Diagram bi 1 0 1 0 0 1

  23. State Diagram • The above binary representation (binary vector) is called collision vector(CV) • The collision vector obtained after making first initiation is called initial collision vector(ICV) ICVA = (101001) • The graphical representation of states (CVs) that a pipeline can reach and the relation is given by state diagram

  24. State Diagram • States (CVs) are denoted by nodes • The node representing CVt-1 is connected to CVt by a directed graph from CVt-1 to CVt and similarly for CVt* with a * on arc

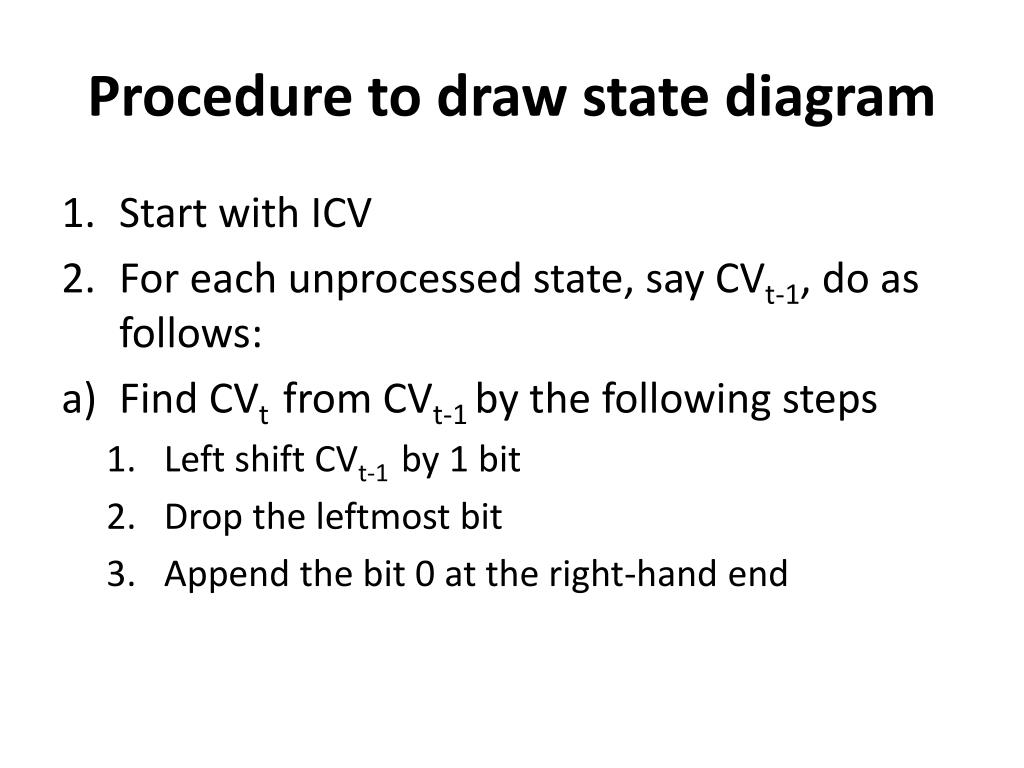

  25. Procedure to draw state diagram • Start with ICV • For each unprocessed state, say CVt-1, do as follows: • Find CVt from CVt-1 by the following steps • Left shift CVt-1 by 1 bit • Drop the leftmost bit • Append the bit 0 at the right-hand end

  26. Procedure to draw state diagram • If the 0th bit of CVt is 0, then obtain CV* by logically ORing CVt with ICV. • Make a new node for CVt and join with CVt-1 with an arc if the state CVt does not already exist. • If CV* exists, repeat step (c), but mark the arc with a *.

  27. State Diagram 1 0 1 0 0 1

  28. State Diagram 1 0 1 0 0 1 Left Shift 0 1 0 0 1 0

  29. State Diagram 1 0 1 0 0 1 Zero  CV* exists 01 0 0 1 0

  30. State Diagram 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 ICV – 101001 OR CVi – 010010 CV* 111011

  31. State Diagram 1 0 1 0 0 1 * Left Shift 0 1 0 0 1 0 1 1 1 0 1 1 Left Shift No CV* No CV* 1 0 0 1 0 0 1 1 0 1 1 0

  32. State Diagram 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 Left Shift * 1 0 0 1 0 0 1 1 0 1 1 0 Left Shift Zero  CV* exists No CV* 1 0 1 1 0 0 0 0 1 0 0 0 ICV – 101001 OR CVi – 001000 CV* 101001

  33. State Diagram 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 * 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 Zero  CV* exists * 0 1 0 0 0 0 1 1 1 0 0 1 ICV – 101001 CVi – 010000 CV* 111001

  34. 1 0 1 0 0 1 * * 0 1 0 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 Zero  CV* exists 0 0 1 0 0 0 * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 ICV – 101001 CVi – 011000 CV* 111001

  35. 1 0 1 0 0 1 * * 0 1 0 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 No CV*

  36. 1 0 1 0 0 1 * * 0 1 0 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 0 0 0 0 0 No CV*

  37. 1 0 1 0 0 1 * * 0 1 0 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  38. 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  39. 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  40. 1 0 1 0 0 1 * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  41. State Diagram • From the above diagram, closed loops can be identified as latency cycles. • To find the latency corresponding to a loop, start with any initial * count the number of states before we encounter another * and reach back to initial *.

  42. 1 0 1 0 0 1 Latency = (3) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  43. 1 0 1 0 0 1 Latency = (1,3,3) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  44. 1 0 1 0 0 1 Latency = (4,3) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  45. 1 0 1 0 0 1 Latency = (1,6) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  46. 1 0 1 0 0 1 Latency = (1,7) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  47. 1 0 1 0 0 1 Latency = (4) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  48. 1 0 1 0 0 1 Latency = (6) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

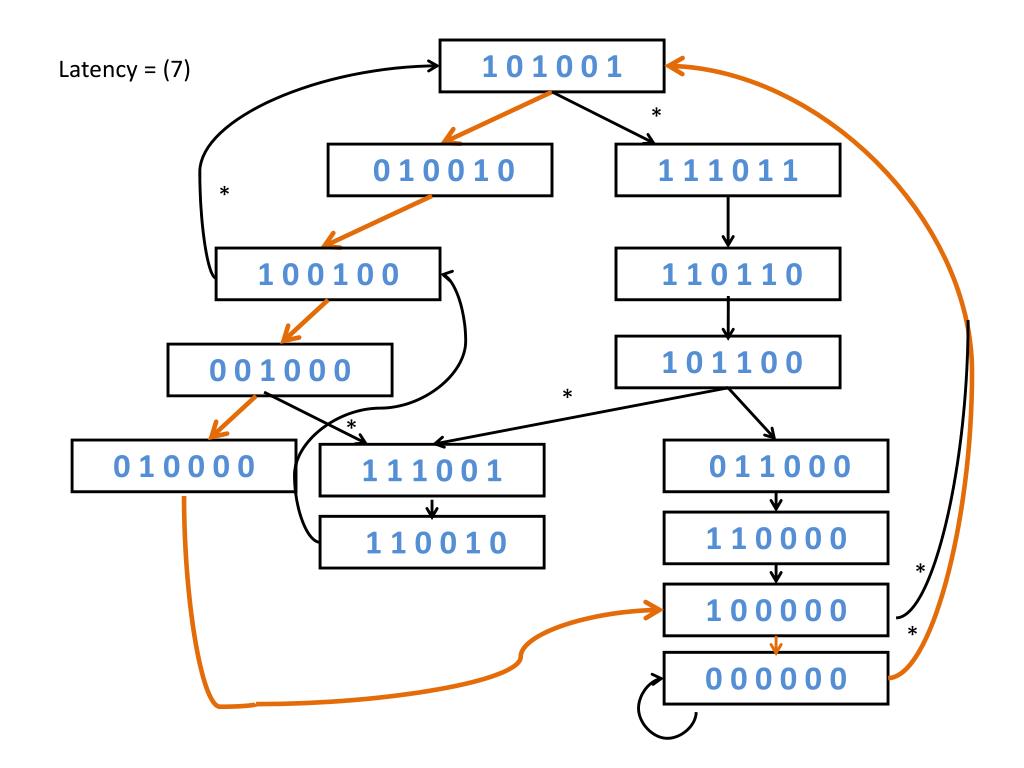

  49. 1 0 1 0 0 1 Latency = (7) * 0 1 0 0 1 0 1 1 1 0 1 1 * 10 0 1 0 0 1 1 0 1 1 0 1 0 1 1 0 0 0 0 1 0 0 0 * * 0 1 0 0 0 0 0 1 1 0 0 0 1 1 1 0 0 1 1 1 0 0 0 0 1 1 0 0 1 0 * 1 0 0 0 0 0 * 0 0 0 0 0 0

  50. State Diagram • The state with all zeros has a self-loop which corresponds to empty pipeline and it is possible to wait for indefinite number of latency cycles of the form (1,8), (1,9),(1,10) etc. • Simple Cycle: latency cycle in which each state is encountered only once. • Complex Cycle: consists of more than one simple cycle in it. • It is enough to look for simple cycles
