Heat and Temperature

Heat and Temperature Heat: The amount of energy transferred from one body to another by virtue of a temperature difference between them. Heat is not the energy content of a body although it is frequently used that way. The proper term is thermal energy. Unit of heat is: Joule

csilla
Télécharger la présentation

Heat and Temperature

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ISNS 3371 - Phenomena of Nature • Heat and Temperature • Heat: The amount of energy transferred from one body to another by virtue of a temperature difference between them. • Heat is not the energy content of a body although it is frequently used that way. The proper term is thermal energy. • Unit of heat is: Joule • Temperature: A measure of the average kinetic energy of the molecules of a substance. • That property of a body of matter that gives rise to sensations of hot and cold.

  2. ISNS 3371 - Phenomena of Nature Temperature and Thermal Energy Temperature - measure of the average kinetic energy of the particles in a substance - particles in box on right have higher temperature - higher velocity = more KE = higher temperature Both boxes have same temperature - particles have same average velocity/KE - box on right has more thermal energy - energy contained in a substance - more particles Why does water burn your skin so much quicker than air? Why is falling into a 32º F lake more dangerous than standing outside naked on a 32º F?

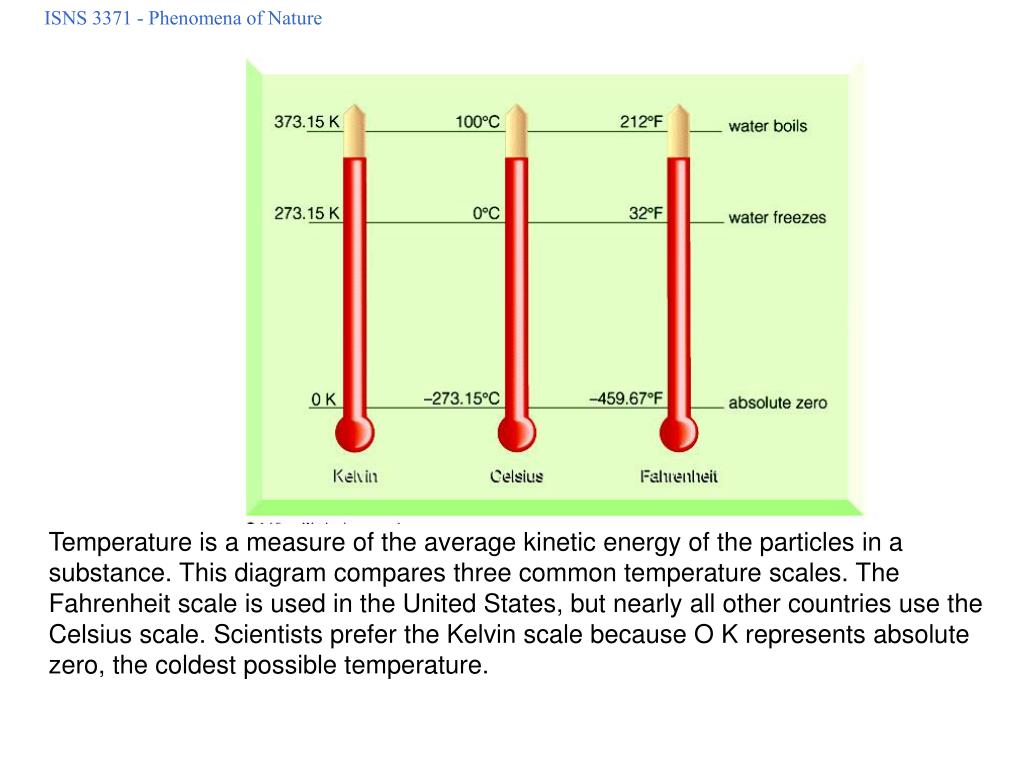

  3. ISNS 3371 - Phenomena of Nature Temperature is a measure of the average kinetic energy of the particles in a substance. This diagram compares three common temperature scales. The Fahrenheit scale is used in the United States, but nearly all other countries use the Celsius scale. Scientists prefer the Kelvin scale because O K represents absolute zero, the coldest possible temperature.

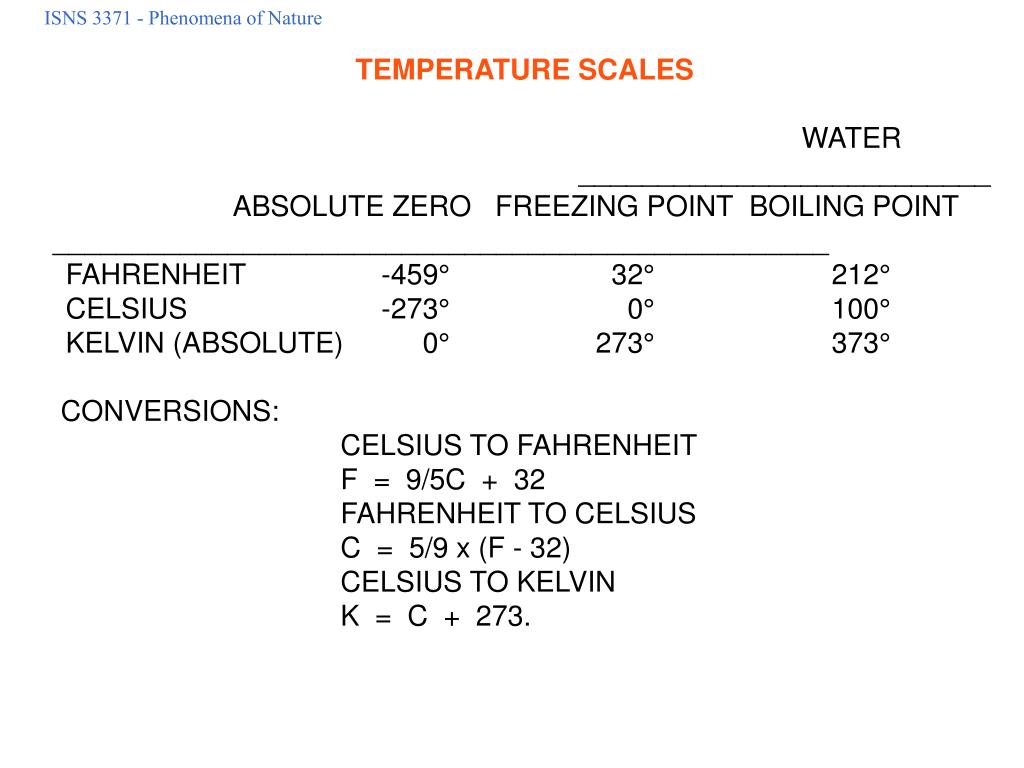

  4. ISNS 3371 - Phenomena of Nature • TEMPERATURE SCALES • WATER __________________________ • ABSOLUTE ZERO FREEZING POINT BOILING POINT • _________________________________________________ • FAHRENHEIT -459° 32° 212° • CELSIUS -273° 0° 100° • KELVIN (ABSOLUTE) 0° 273° 373° • CONVERSIONS: • CELSIUS TO FAHRENHEIT • F = 9/5C + 32 • FAHRENHEIT TO CELSIUS • C = 5/9 x (F - 32) • CELSIUS TO KELVIN • K = C + 273.

  5. ISNS 3371 - Phenomena of Nature • Thermal Energy • Thermal Energy: Total of all energies, kinetic plus potential, internal to a substance. • Quantity of Heat: Calorie or Joule • 1 calorie = Amount of thermal energy required to change the temperature of 1 gram of water 1°C. • 1 joule = 0.239 calories (1 Calorie = 4.187 joules) • 1 kilocalorie = 1,000 calories (usually spelled with a capital C)

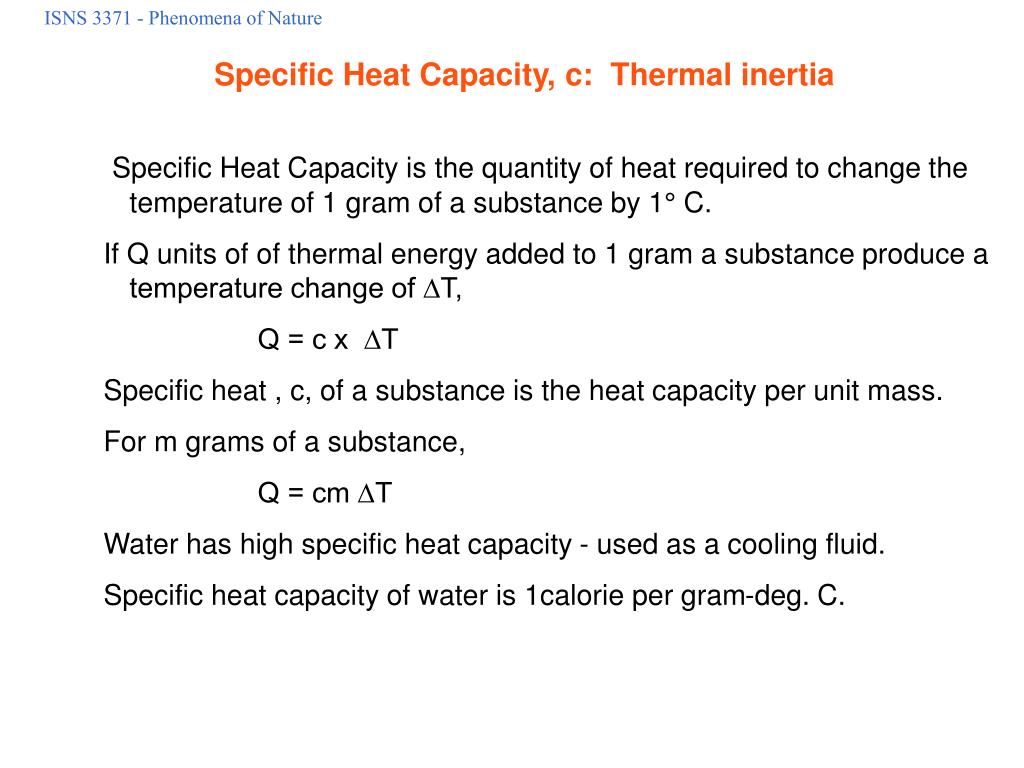

  6. ISNS 3371 - Phenomena of Nature • Specific Heat Capacity, c: Thermal inertia • Specific Heat Capacity is the quantity of heat required to change the temperature of 1 gram of a substance by 1° C. • If Q units of of thermal energy added to 1 gram a substance produce a temperature change of ∆T, • Q = c x ∆T • Specific heat , c, of a substance is the heat capacity per unit mass. • For m grams of a substance, • Q = cm ∆T • Water has high specific heat capacity - used as a cooling fluid. • Specific heat capacity of water is 1calorie per gram-deg. C.

  7. ISNS 3371 - Phenomena of Nature • Heat Transfer Processes • Conduction – transfer of heat from a region of higher temperature to a region of lower temperature by increased kinetic energy moving from molecule to molecule through collisions between molecules. Occurs in solids. • Convection – transfer of heat from a region of higher temperature to a region of lower temperature by the flow of higher energy molecules. Occurs in gases and liquids. • Radiation – transfer of heat by emission and absorption of radiant energy (energy that can travel through space as electromagnetic radiation, like visible light).

  8. ISNS 3371 - Phenomena of Nature The Laws of Thermodynamics First Law: Whenever heat flows in or out of a system, the gain or lass of thermal energy equals the amount of heat transferred. Second Law: Heat never spontaneously flows from a cold substance to a hot substance. Third law: No system can reach absolute zero.

  9. ISNS 3371 - Phenomena of Nature The state or phase of matter is determined by its temperature. Consider water: Below 32º F - ice - relatively low KE - each molecule tightly bound to it neighbors - solid At 32º F molecules have enough energy to break solid bonds of ice - remain together but move relatively freely - liquid At 212º F water boils and turns to gas - molecules break free of all bonds with neighbors - move independently of other molecules - gas

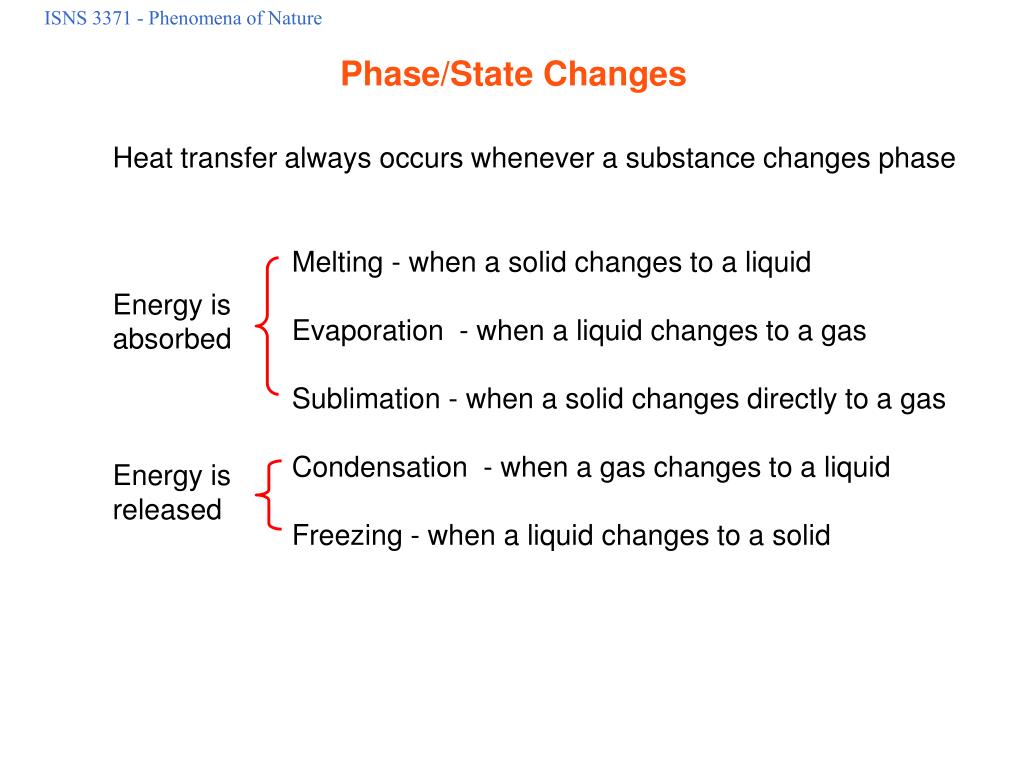

  10. ISNS 3371 - Phenomena of Nature Phase/State Changes Heat transfer always occurs whenever a substance changes phase Melting - when a solid changes to a liquid Evaporation - when a liquid changes to a gas Sublimation - when a solid changes directly to a gas Condensation - when a gas changes to a liquid Freezing - when a liquid changes to a solid Energy is absorbed Energy is released
