Chart recorders for Compressed air and Gas systems

Chart recorders are tools for continuously monitoring recorded data such as temperature, pressure, or flow over time. Such data are the basis for being graphically represented visually on paper, thus aiding persons to track trends and spot problems. In an industrial atmosphere, chart recorders help in analysis, compliance, and optimization of systems.<br>visit : https://www.cs-instruments.com/za/chart-recorder/

csinstruments
Télécharger la présentation

Chart recorders for Compressed air and Gas systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

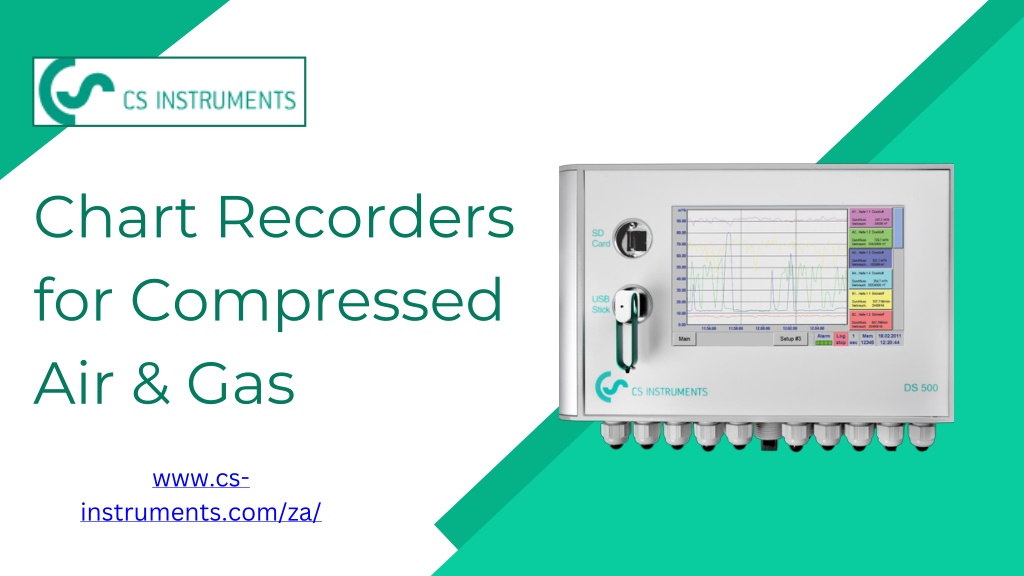

  1. Chart Recorders for Compressed Air & Gas www.cs-instruments.com/za/

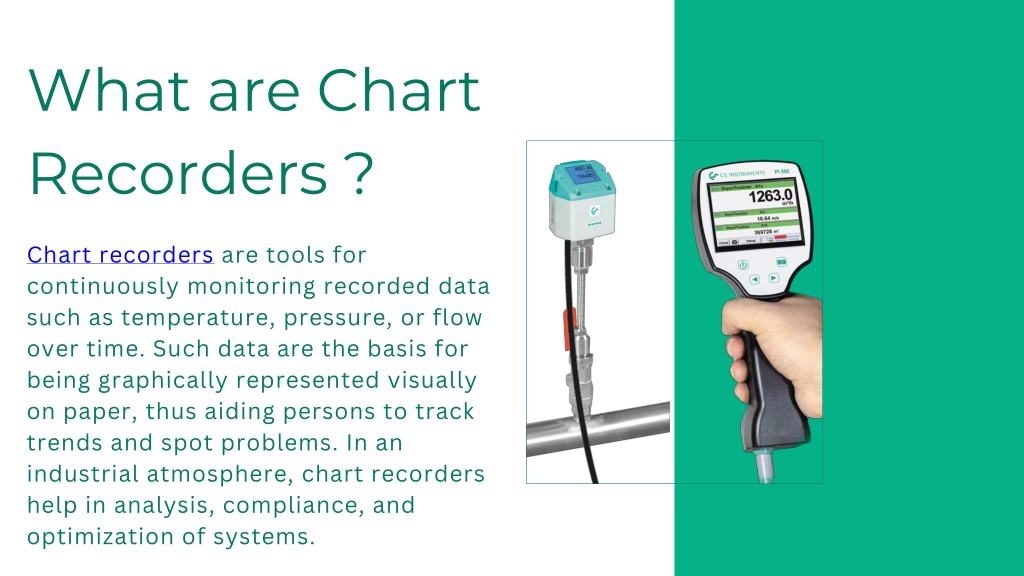

  2. What are Chart Recorders ? Chart recorders are tools for continuously monitoring recorded data such as temperature, pressure, or flow over time. Such data are the basis for being graphically represented visually on paper, thus aiding persons to track trends and spot problems. In an industrial atmosphere, chart recorders help in analysis, compliance, and optimization of systems.

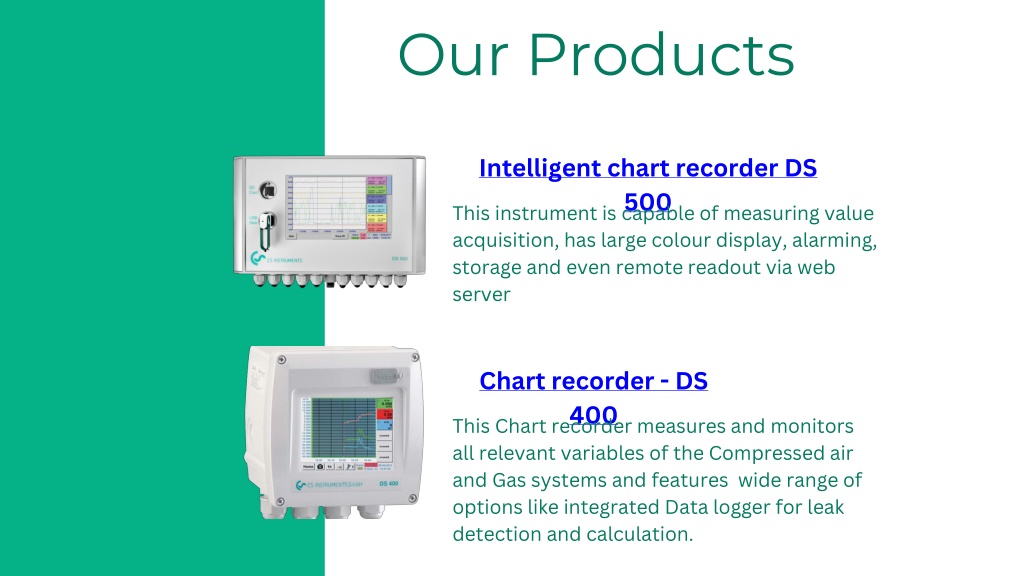

  3. Our Products Intelligent chart recorder DS 500 This instrument is capable of measuring value acquisition, has large colour display, alarming, storage and even remote readout via web server Chart recorder - DS 400 This Chart recorder measures and monitors all relevant variables of the Compressed air and Gas systems and features wide range of options like integrated Data logger for leak detection and calculation.

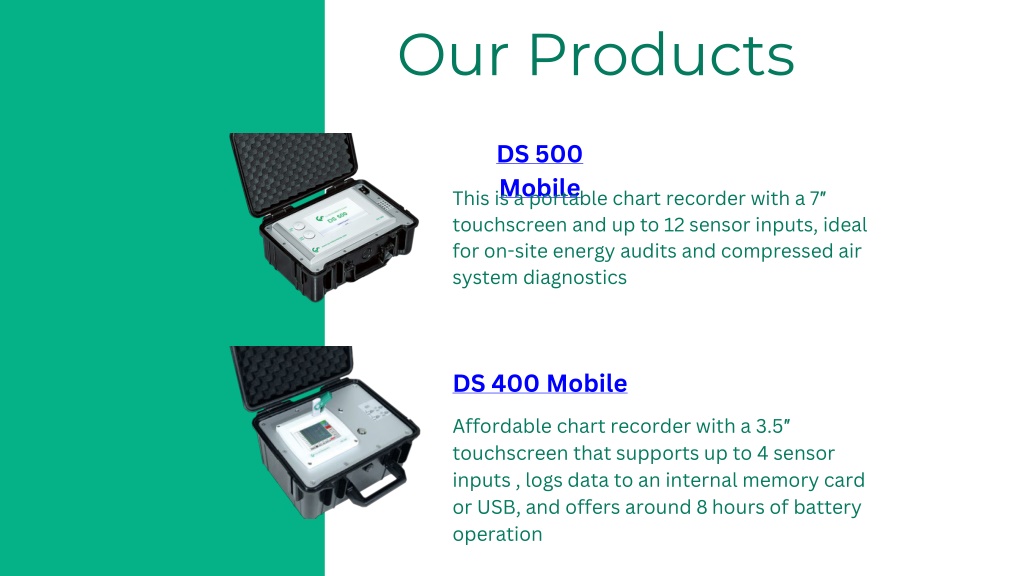

  4. Our Products DS 500 Mobile This is a portable chart recorder with a 7″ touchscreen and up to 12 sensor inputs, ideal for on‑site energy audits and compressed air system diagnostics DS 400 Mobile Affordable chart recorder with a 3.5″ touchscreen that supports up to 4 sensor inputs , logs data to an internal memory card or USB, and offers around 8 hours of battery operation

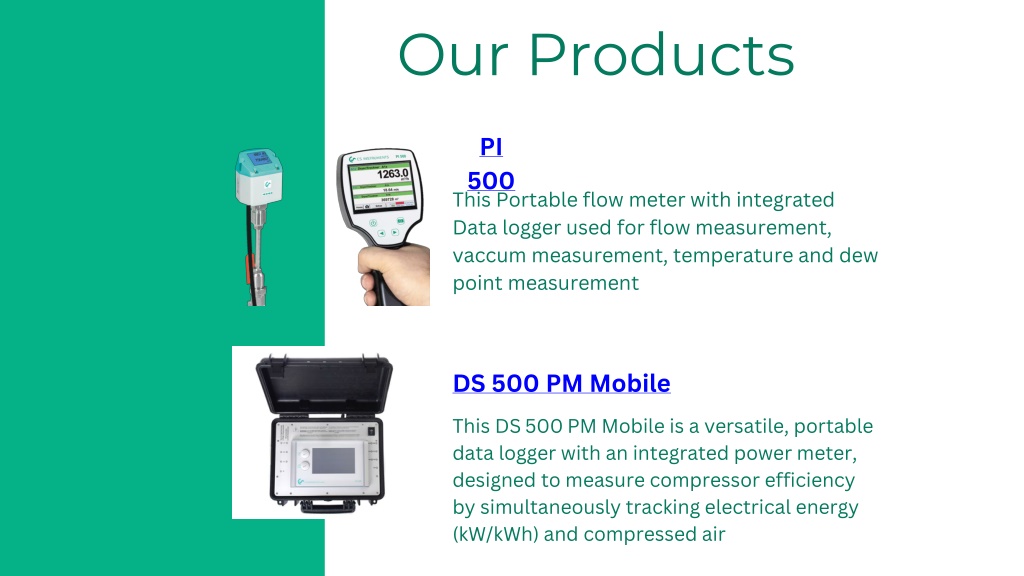

  5. Our Products PI 500 This Portable flow meter with integrated Data logger used for flow measurement, vaccum measurement, temperature and dew point measurement DS 500 PM Mobile This DS 500 PM Mobile is a versatile, portable data logger with an integrated power meter, designed to measure compressor efficiency by simultaneously tracking electrical energy (kW/kWh) and compressed air

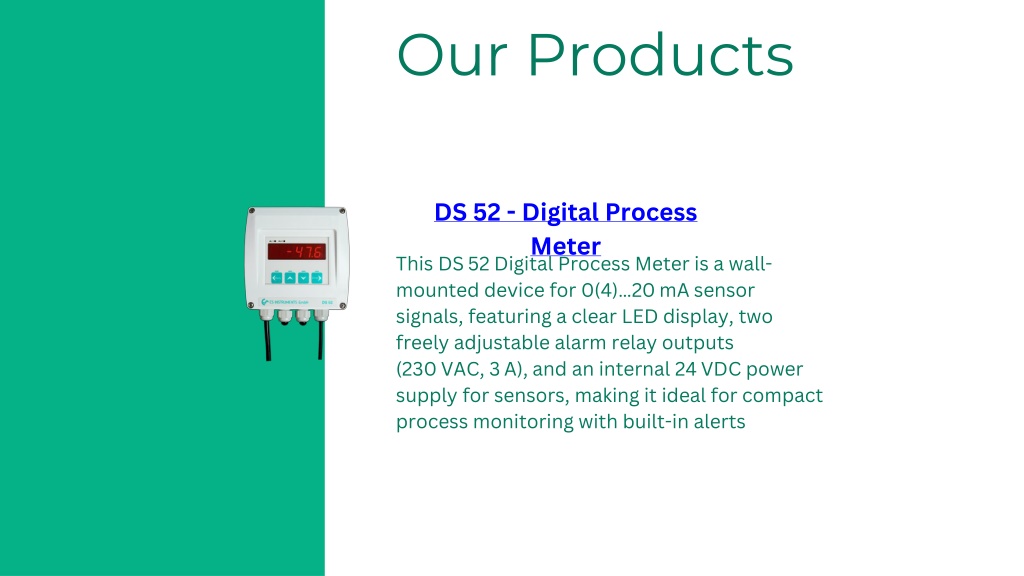

  6. Our Products DS 52 - Digital Process Meter This DS 52 Digital Process Meter is a wall-mounted device for 0(4)…20 mA sensor signals, featuring a clear LED display, two freely adjustable alarm relay outputs (230 VAC, 3 A), and an internal 24 VDC power supply for sensors, making it ideal for compact process monitoring with built-in alerts

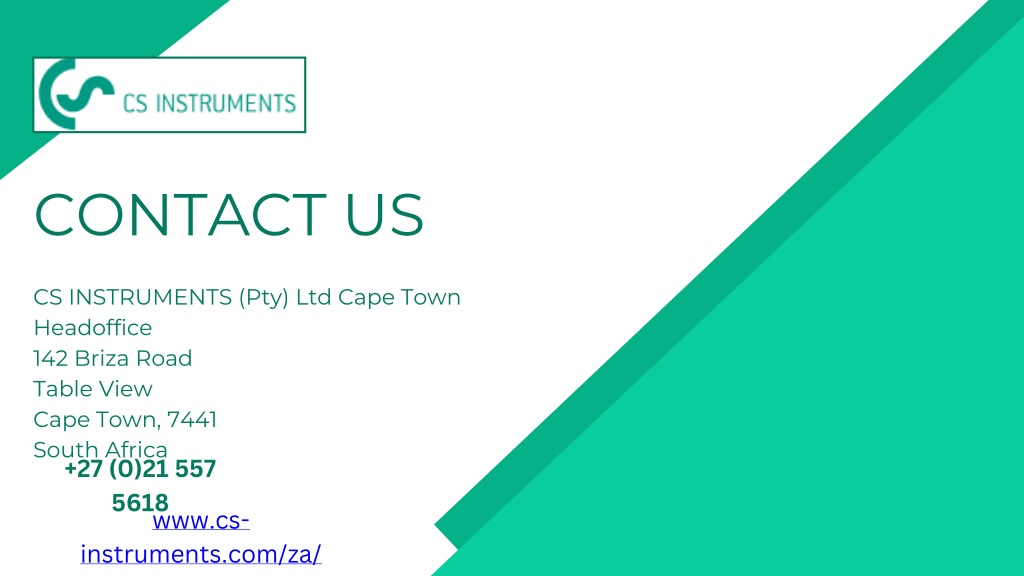

  7. CONTACT US CS INSTRUMENTS (Pty) Ltd Cape Town Headoffice 142 Briza Road Table View Cape Town, 7441 South Africa +27 (0)21 557 5618 www.cs-instruments.com/za/
