  1. Lecture 7 Homework Due Friday, October 3, 2014 TYU Ch 6: 1,2,5,7,11,14,17,18,20; TYPSS Ch 6: 2 TYU Ch 7: 1,5,10,11,13,14,15,18,20; TYPSS Ch 7: 1 TYU Ch 8: 1,2,6,7,12,14,15,18,20; TYPSS Ch 8: 2 High and Low Pressure Systems

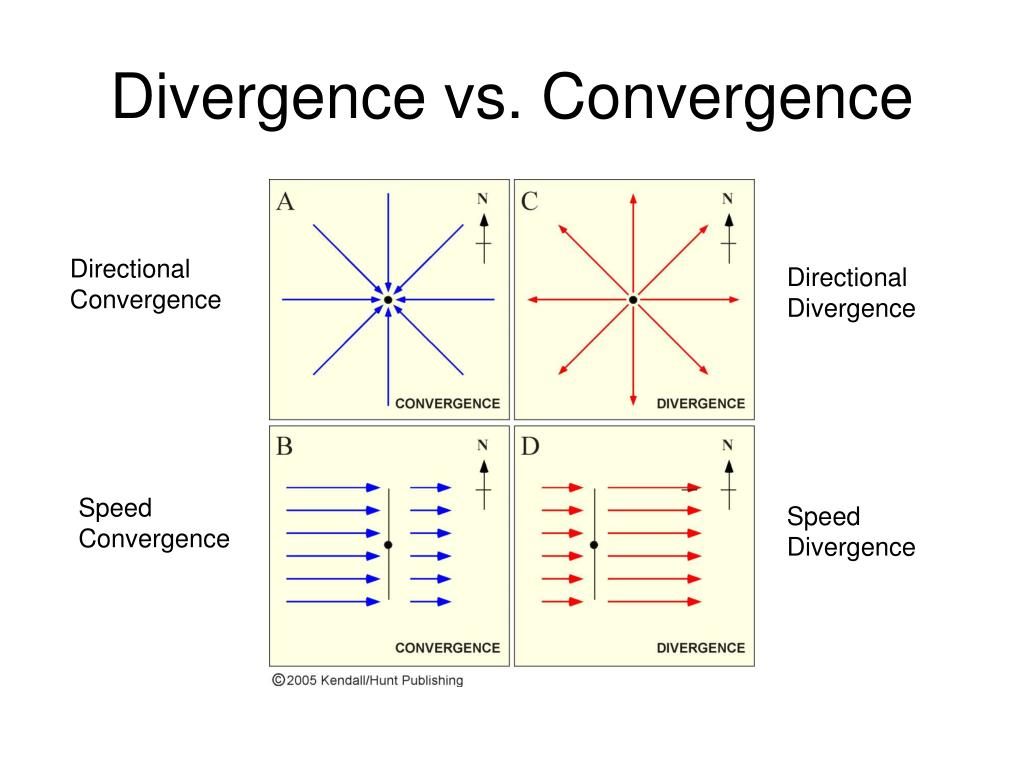

  2. Divergence vs. Convergence Directional Convergence Directional Divergence Speed Convergence Speed Divergence

  3. Divergence (Convergence) vs. Diffluence (confluence) • Diffluence is the spreading of height contours on an upper air map. • Speed slows => convergence • Direction is divergent => divergence • Convergence or divergence? • Uncertain • Numerical calculation necessary to tell

  4. Convergence at one height tends to be balanced by divergence at another…but not completely!

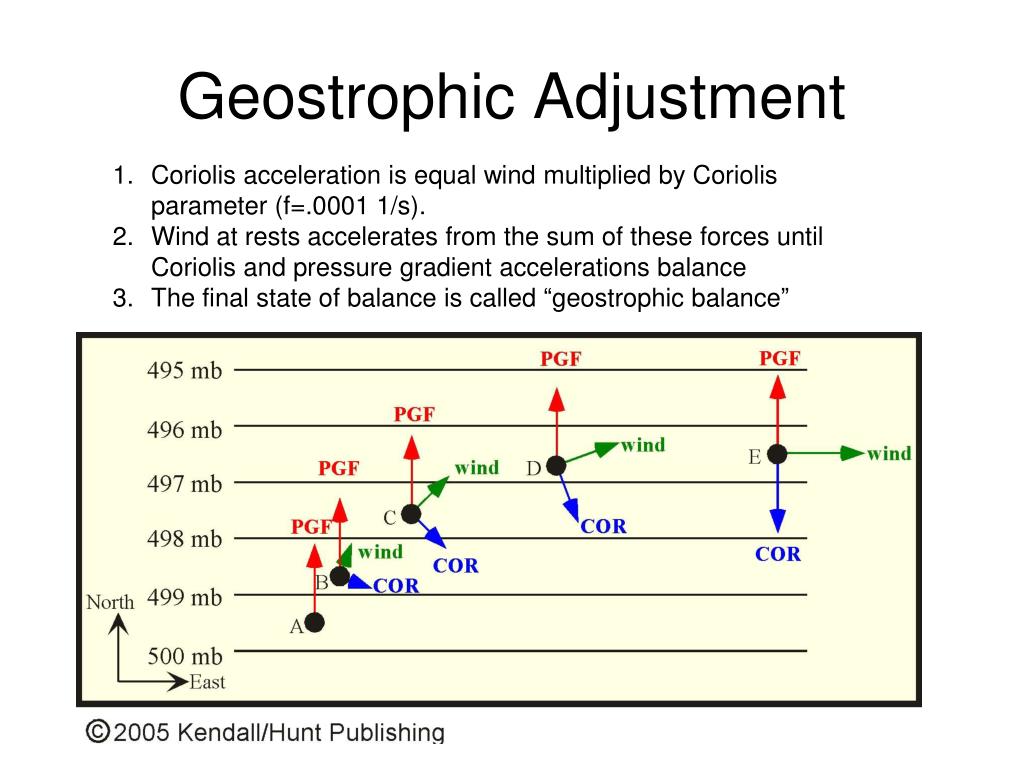

  5. Geostrophic Adjustment • Coriolis acceleration is equal wind multiplied by Coriolis parameter (f=.0001 1/s). • Wind at rests accelerates from the sum of these forces until Coriolis and pressure gradient accelerations balance • The final state of balance is called “geostrophic balance”

  6. Eulerian vs. Lagrangian Framework • Eulerian framework is when we stand in one place and the wind blows by us. • Lagrangian framework, is when we are riding on a parcel • Consider flow moving at a constant speed in a circle around a low pressure center • Lagrangian framework • parcel is continuously accelerating, i.e. its velocity (speed and direction) is constantly changing • The pressure gradient force is the only real force acting on the parcel and is responsible for its acceleration • Eulerian framework, • the wind is blowing at a constant speed and direction • Inertia advectsthe upstream wind which has a radial component outward, hence an inertial acceleration outward (centrifugal acceleration) . This advection is countered by the PGF L CF PGF

  7. Gradient Wind Balance takes centrifugal force* into account Winds moving around a cyclone tend to be sub-geostrophic because centrifugal acceleration (relative to the curved flow) opposes the pressure gradient acceleration Winds moving around a synoptic-scale anticyclone tend to be super-geostrophic because centrifugal acceleration (relative to the curved flow) adds to the pressure gradient acceleration

  8. In a wave pattern, winds spped up and slow down from curvature of flow

  9. Jet Streak has a 4 celled patternof convergence and divergence Jet Streak Jet Streak

  10. Curvature vs. Speed convergence

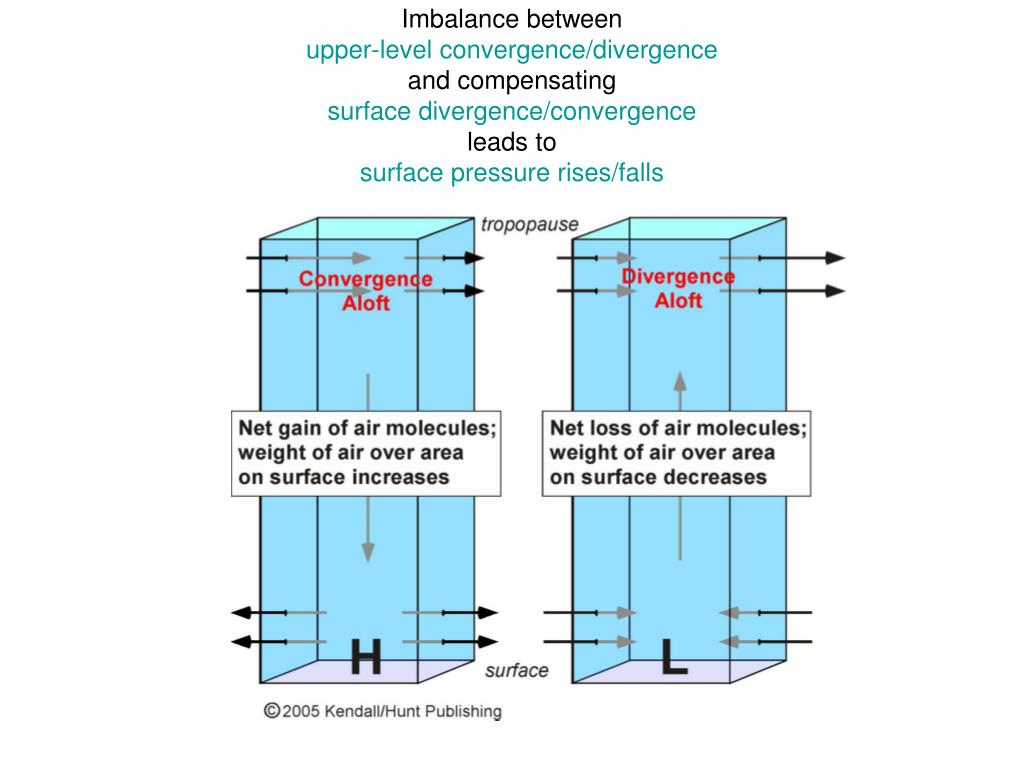

  11. Imbalance between upper-level convergence/divergenceand compensating surface divergence/convergenceleads to surface pressure rises/falls

  12. Surface Friction forces upward motion in low and sinking motion in high

  13. How surface heating affects pressure

  14. Formation of surface pressure low and highs as a result of jet movement
