  1. Luminescent Dissolved Oxygen (LDO) Measurements for Wastewater Applications Edward C. Craig, Ph.D.* Cary B. Jackson, Ph.D. Christopher P. Fair Hach Company Loveland, CO

  2. Purpose of this Talk… • Discuss our effort to add Luminescence (LDO) to the List of EPA Approved Methods for Dissolved Oxygen Measurements Proposed EPA Method 360.3

  3. Specifically… • Discuss our In-House Preparation for a External Nationwide Validation Study run as Part of a Tier 3 EPA Approval Process for the Luminescence Method • Also share some of the results from the External Validation Study

  4. Current EPA Approved Methods for Measuring Dissolved Oxygen Conc. • Winkler Titration (1888) • EPA Method 360.2 • Membrane Electrodes (1959) • EPA Method 360.1

  5. Winkler Titration • L.W. Winkler, “The Determination of Dissolved Oxygen in Water”, Ber. Deut. Chem. Ges., 21, 2843 (1888) • EPA “Reference Method” for Dissolved Oxygen Measurement

  6. Winkler Titration – Reactions

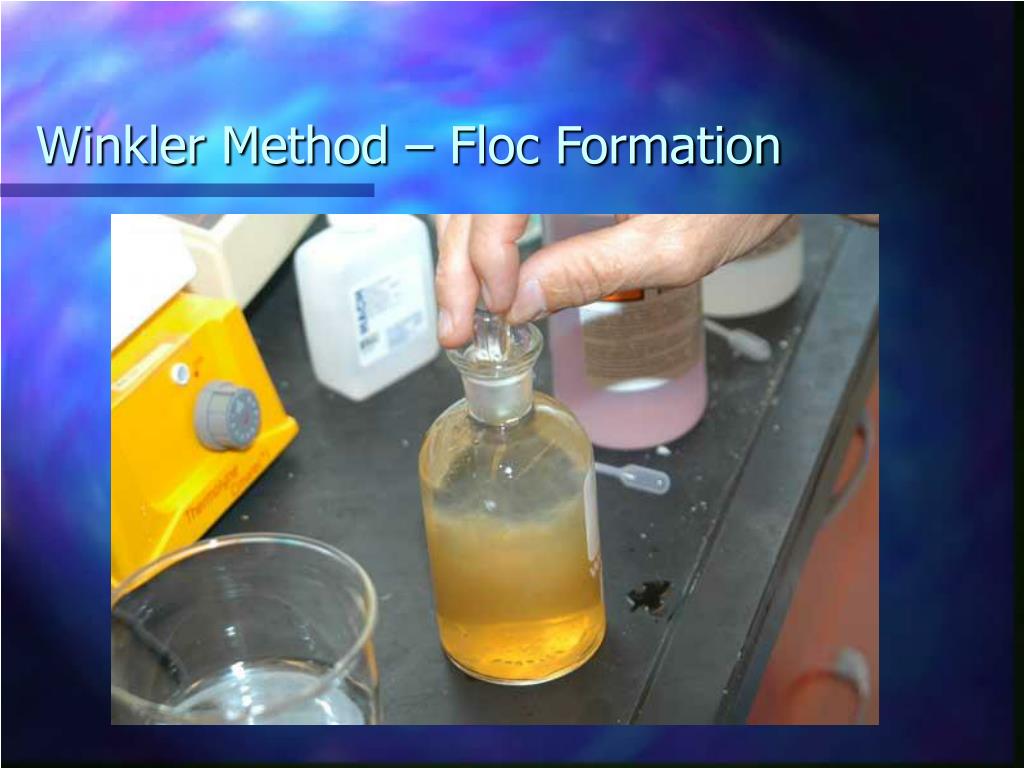

  7. Winkler Method – Floc Formation

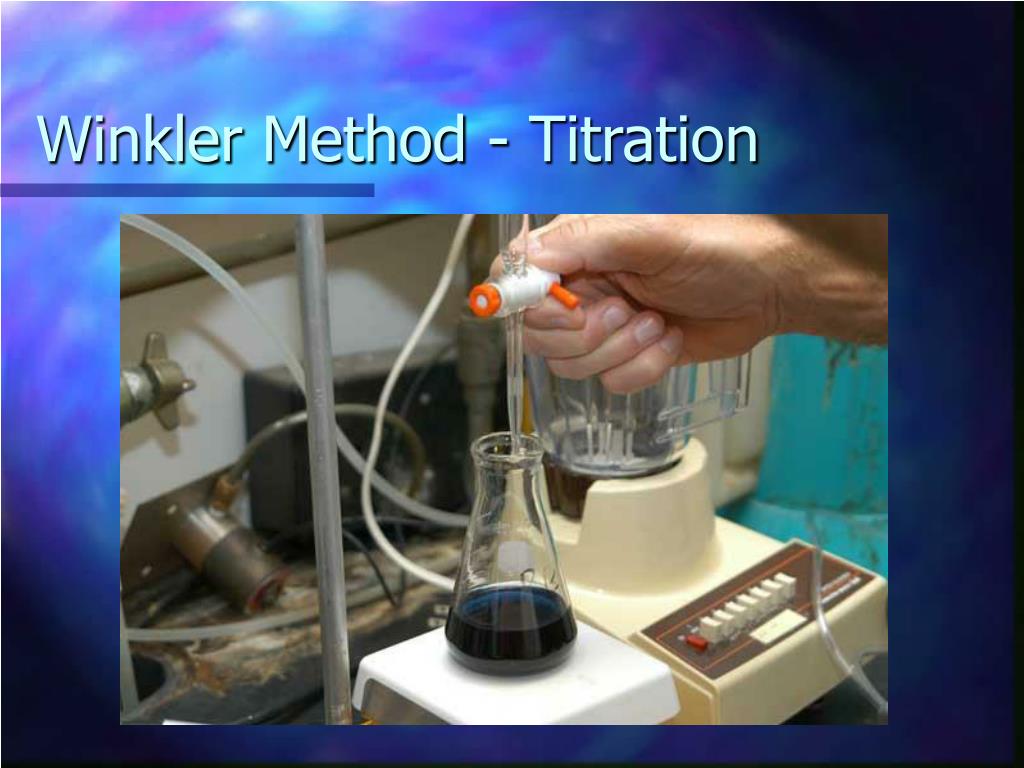

  8. Winkler Method - Titration

  9. Winkler Titration • Pros • Direct DO Measurement • Easy Clean-up • Cons • Samples must be Analyzed in a Laboratory • Subject to Several Chemical Interferences • Very Technique Sensitive

  10. Membrane Electrode • L.C. Clark • “Clark Cell” • Patent Nov. 19, 1959

  11. Membrane Electrode • Pros • In-situ Measurements Possible • Easy to Make Measurements • Cons • Frequent Maintenance Required • Must be Polarized Before Use • Must be Calibrated Before Use • Consumes Oxygen • Very Sensitive to Sample Flow

  12. Luminescent Dissolve Oxygen (LDO) • Completely New Technology • Measures the Quenching of a Luminescent Reaction caused by Oxygen

  13. Luminescent Dissolved Oxygen (LDO) - Probe

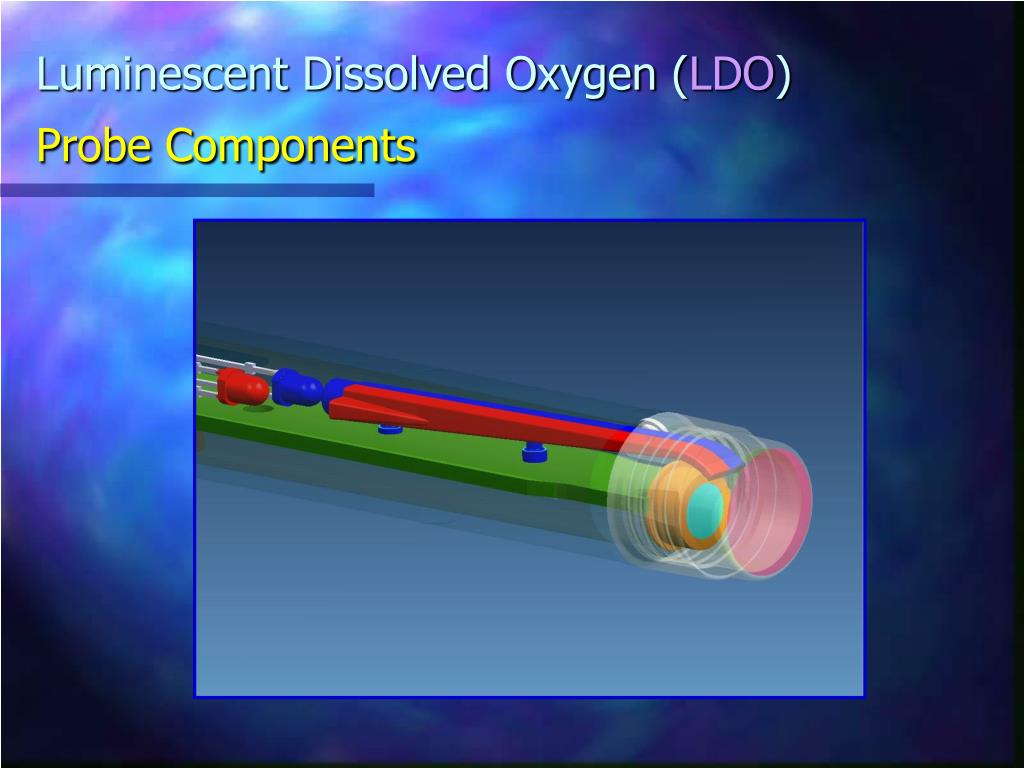

  14. Luminescent Dissolved Oxygen (LDO) Probe Components

  15. Luminescent Dissolved Oxygen (LDO) Probe Photo Diode LED LED

  16. Luminescent Dissolved Oxygen (LDO) Probe Sensor Photo Diode LED LED

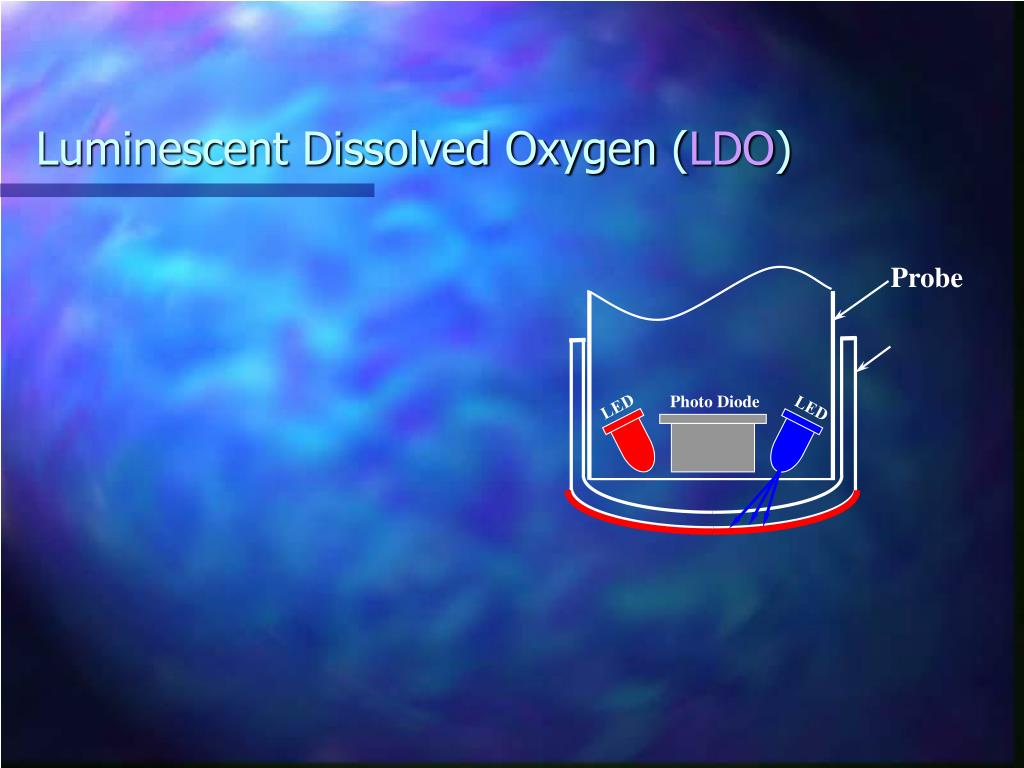

  17. Probe Sensor Photo Diode LED LED Clear, Gas Impermeable Substrate Luminescent Indicator Molecules Gas Permeable Polymer Matrix Oxygen Luminescent Dissolved Oxygen (LDO)

  18. Luminescent Dissolved Oxygen (LDO) • Pros • No Maintenance • Field Measurements Possible • No Polarization • Insensitive to Sample Flow • Rugged

  19. Luminescent Dissolved Oxygen (LDO) • Pros (cont.) • Accurate • Precise • Very Stable Calibrations • No Chemical Interferrents • Lower Day-to-Day Cost than Winkler Titration

  20. Luminescent Dissolved Oxygen (LDO) • Cons • Higher Initial Cost than Winkler Titration • Not Currently EPA Approved

  21. External Validation Study… • 12 Wastewater Laboratories Nationwide • Accuracy & Precision (IPR) • Method Detection Limit (MDL) Determn. • 5 Day BOD • Side-by-side Comparisons with Other DO Methods

  22. In-House Preparation for External Validation Study… • Preparation of Replicate DO Standards • Shelf-Life Experiment • Shipping Experiment • Ruggedness Testing • Use Model Comparisons • Accuracy & Precision Determinations • MDL Determination • BOD5 Demonstration • Side-by-side Comparison with Other Methods

  23. Accuracy & Precision Determinations

  24. Percent Recovery at 1.69 mg/L

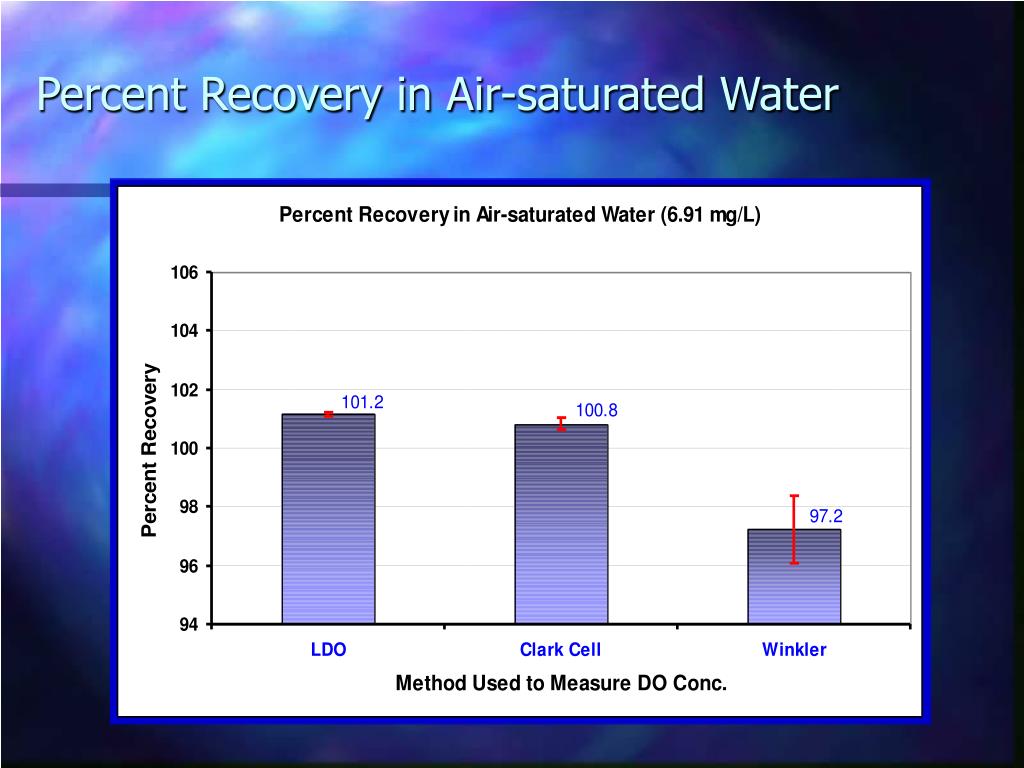

  25. Percent Recovery in Air-saturated Water

  26. MDL Determination

  27. LDO – In-House Method Detection Limit

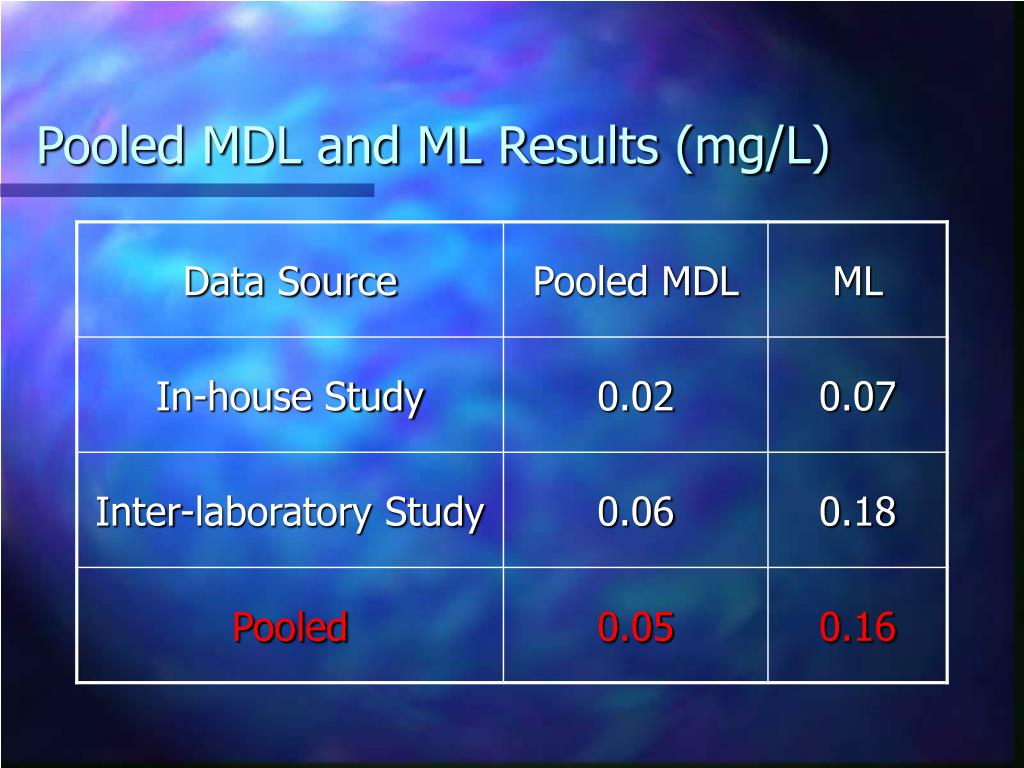

  28. Pooled MDL and ML Results (mg/L)

  29. BOD5 Demonstration

  30. BOD5 Comparison

  31. Method Comparison – DO Measurements Influent and Effluent Samples from 12 Different Wastewater Facilities

  32. What’s Next? • Report for External Validation Study has been submitted to EPA • Next the results are opened to the public for Review and Comments (~ 3 mo.) • Expect Full EPA Approval in 12 to 18 months • Currently Partitioning EPA for Provisional Approval (6 to 12 mo.) • Soliciting/Helping WW Labs seeking Tier 1 Approvals
