  1. Tabla Strokes Recognition Mihir Sarkar

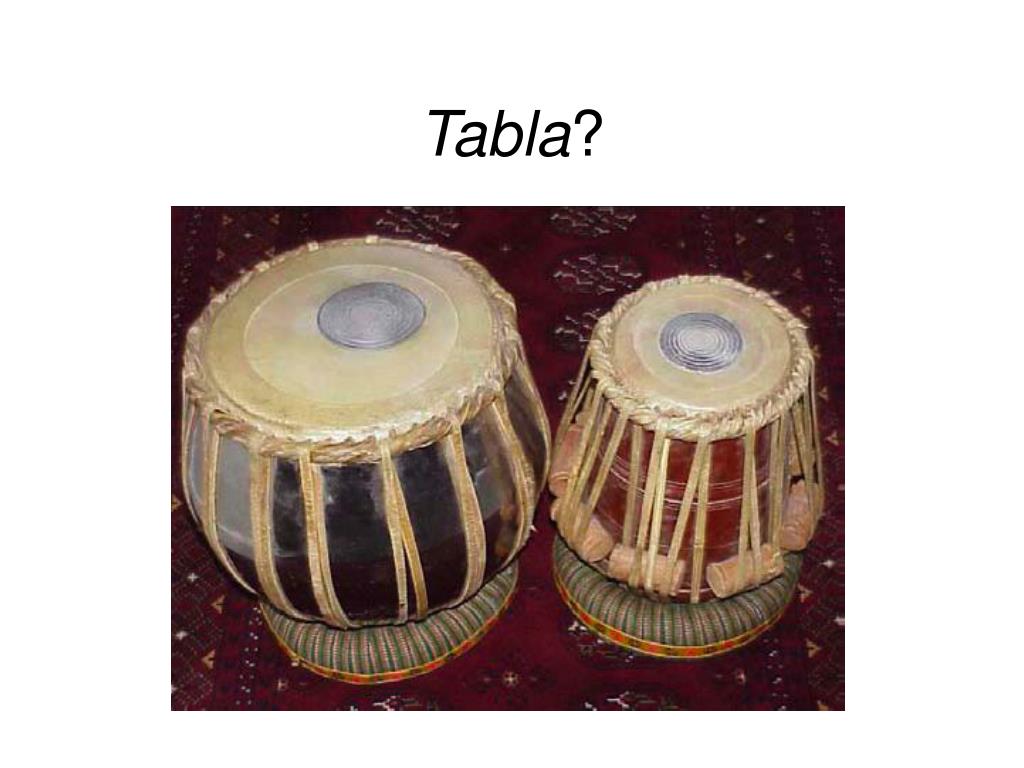

  2. Tabla?

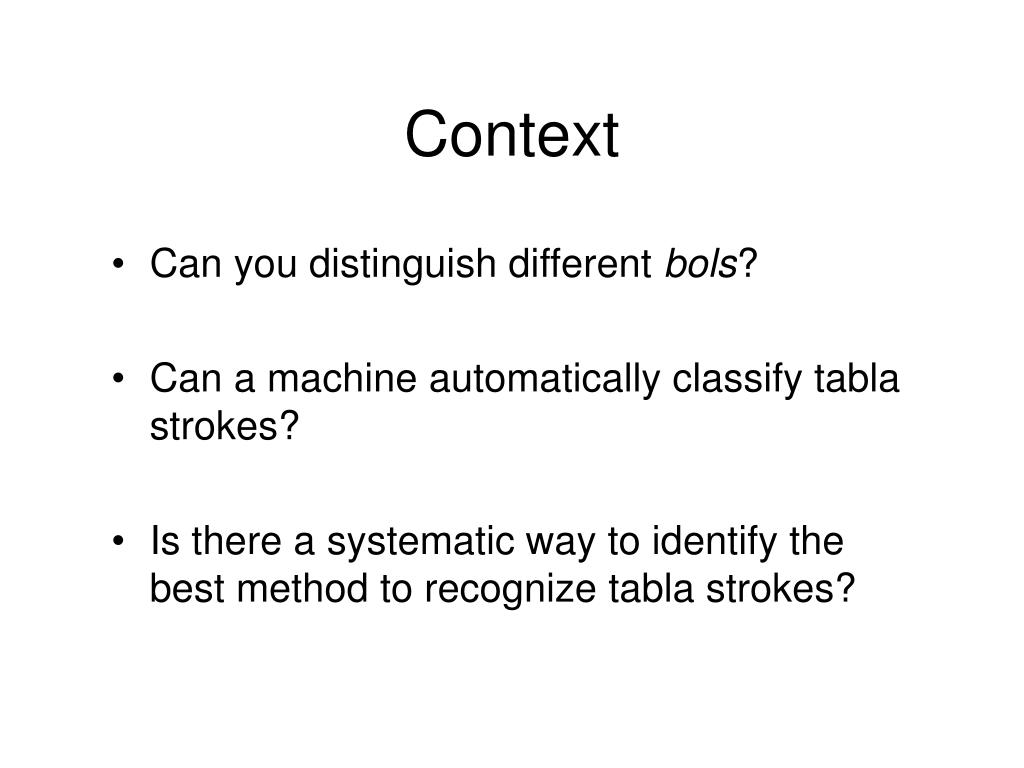

  3. Context • Can you distinguish different bols? • Can a machine automatically classify tabla strokes? • Is there a systematic way to identify the best method to recognize tabla strokes?

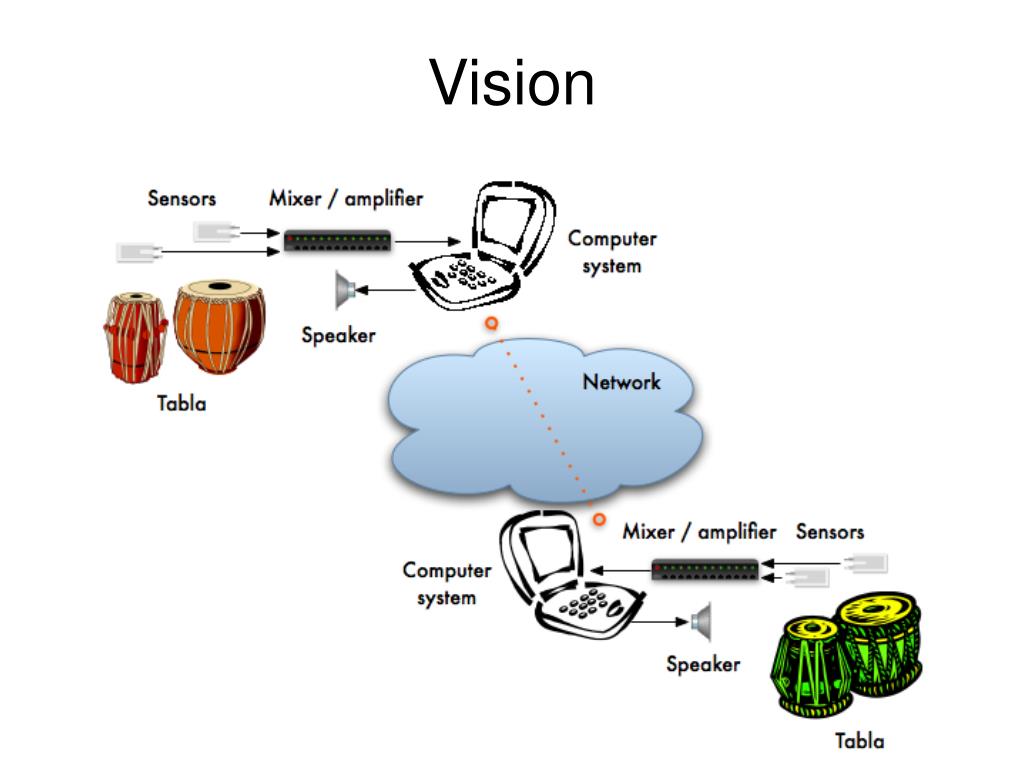

  4. Vision

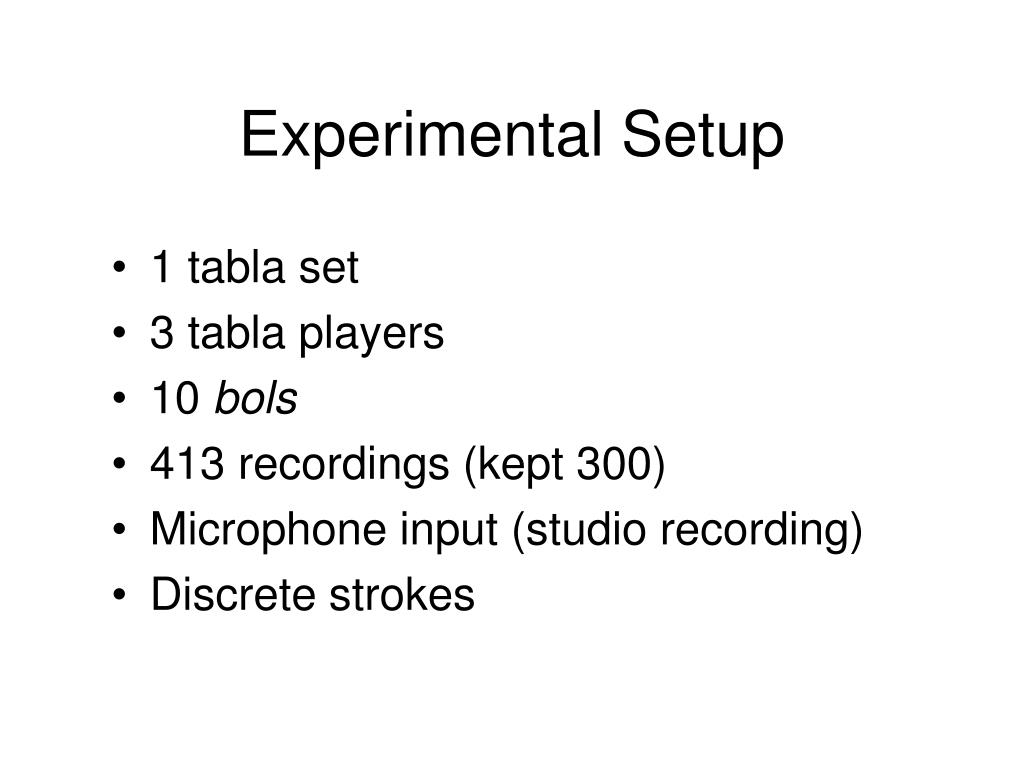

  5. Experimental Setup • 1 tabla set • 3 tabla players • 10 bols • 413 recordings (kept 300) • Microphone input (studio recording) • Discrete strokes

  6. Raw data

  7. Spectrogram

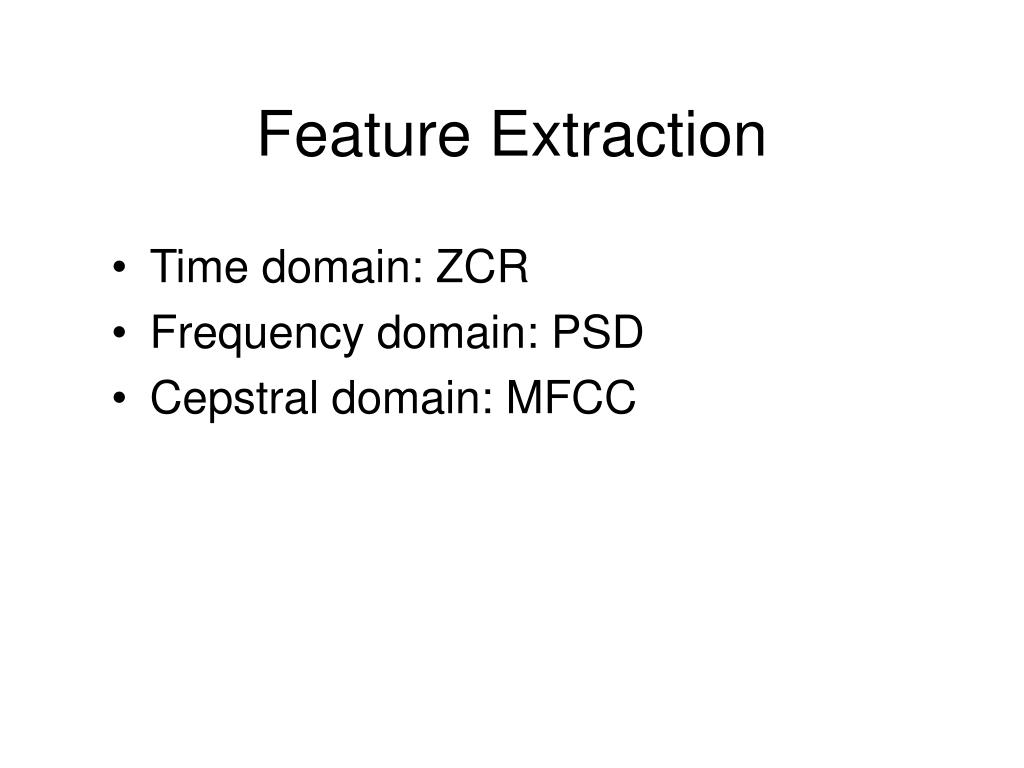

  8. Feature Extraction • Time domain: ZCR • Frequency domain: PSD • Cepstral domain: MFCC

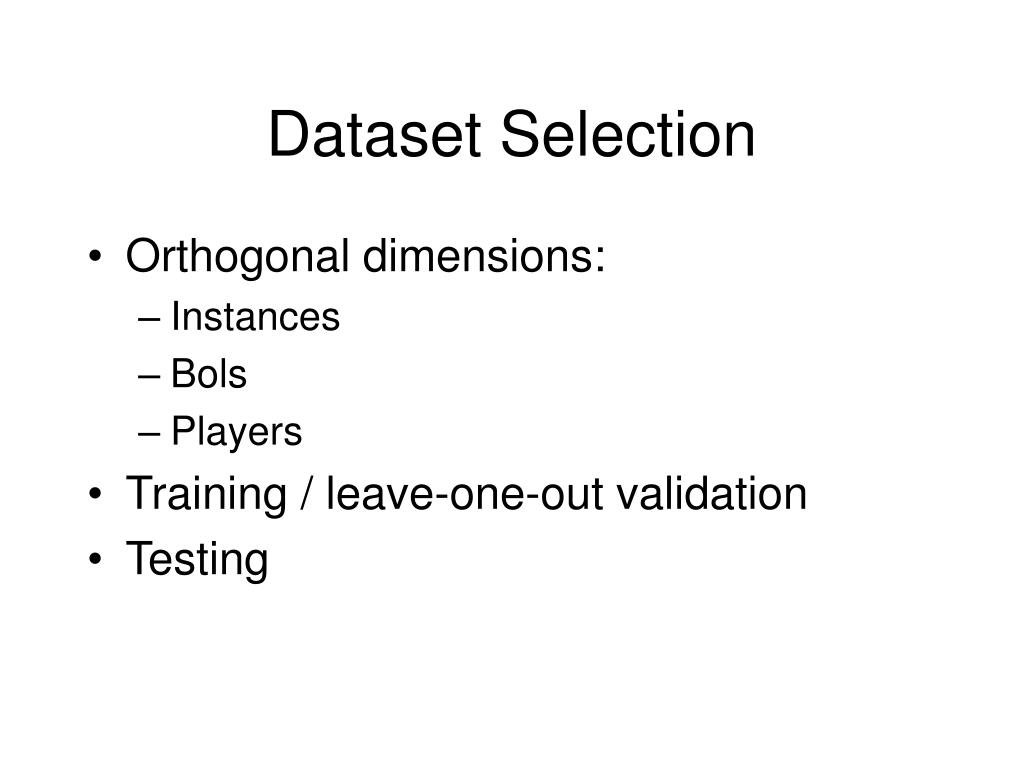

  9. Dataset Selection • Orthogonal dimensions: • Instances • Bols • Players • Training / leave-one-out validation • Testing

  10. Baseline • Random: 10% • Human: 87% • Initial k-NN: 18%(Welch’s PSD, NFFT = 16, k = 1)

  11. k-NN

  12. k-NN

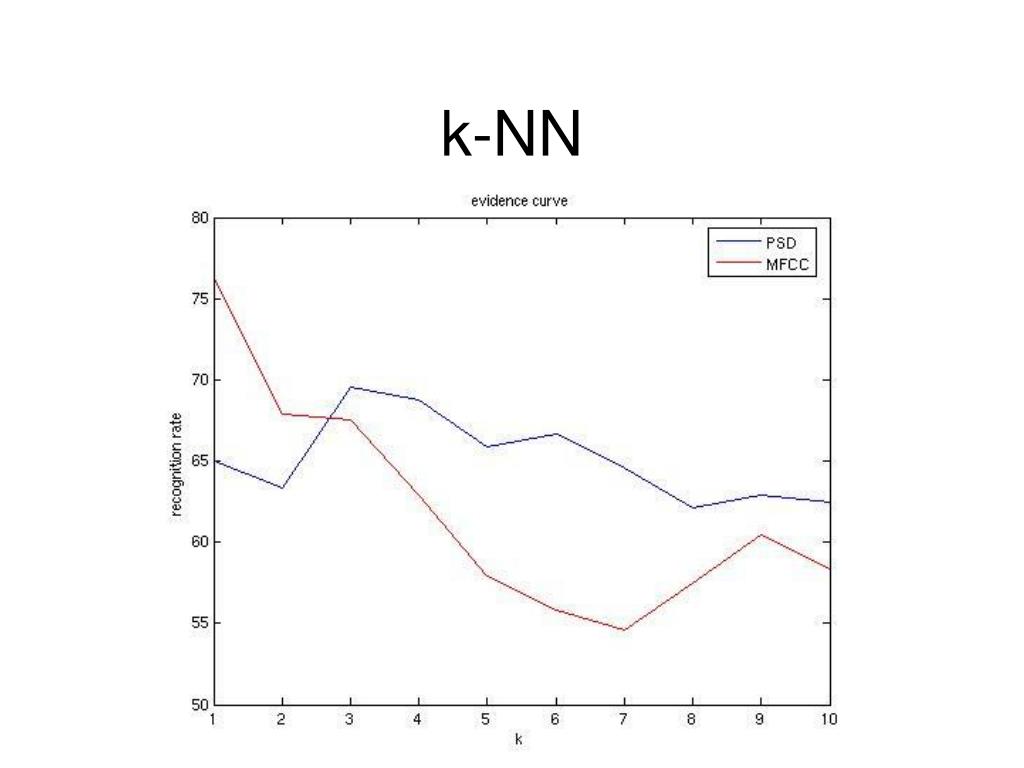

  13. k-NN

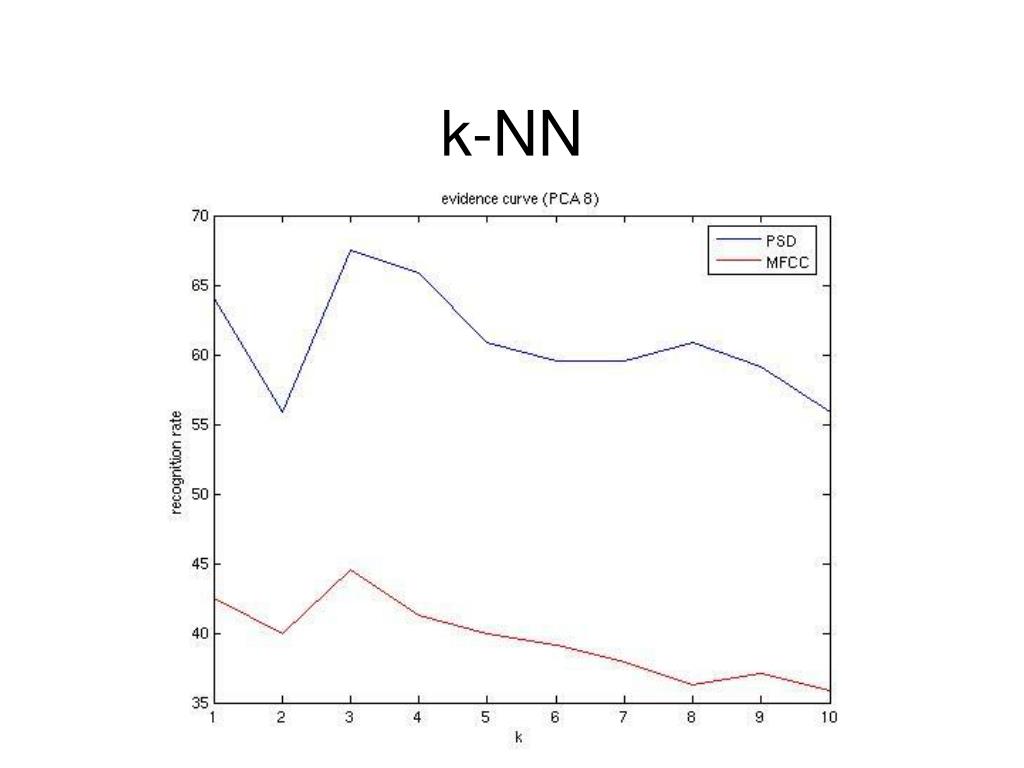

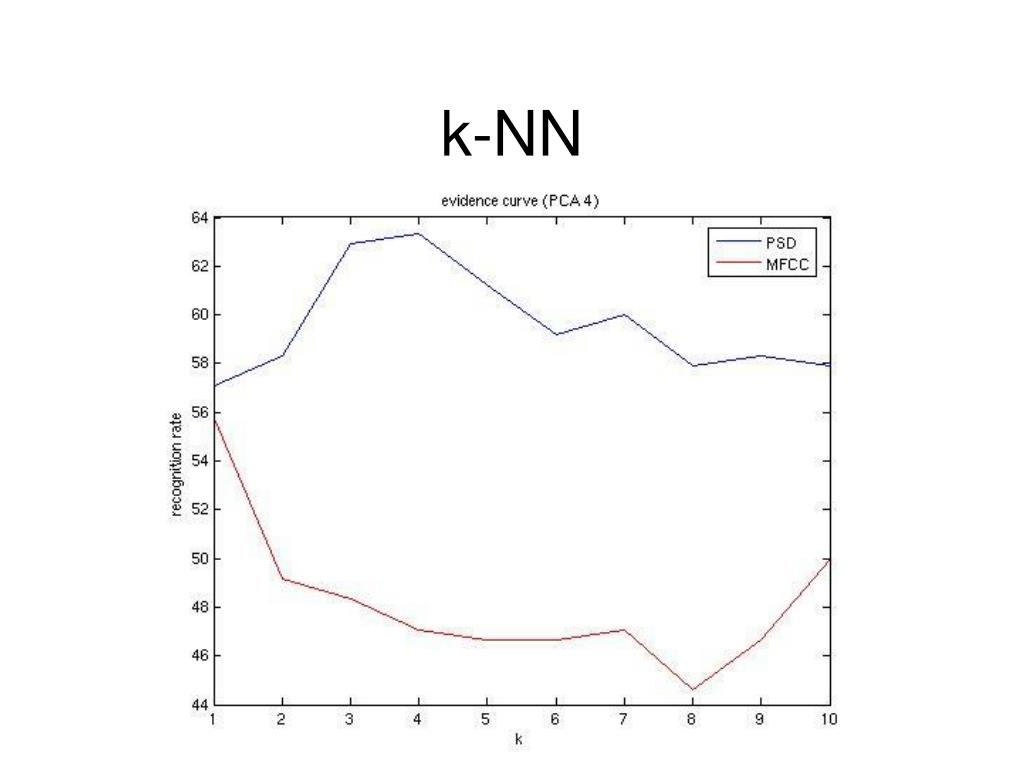

  14. k-NN

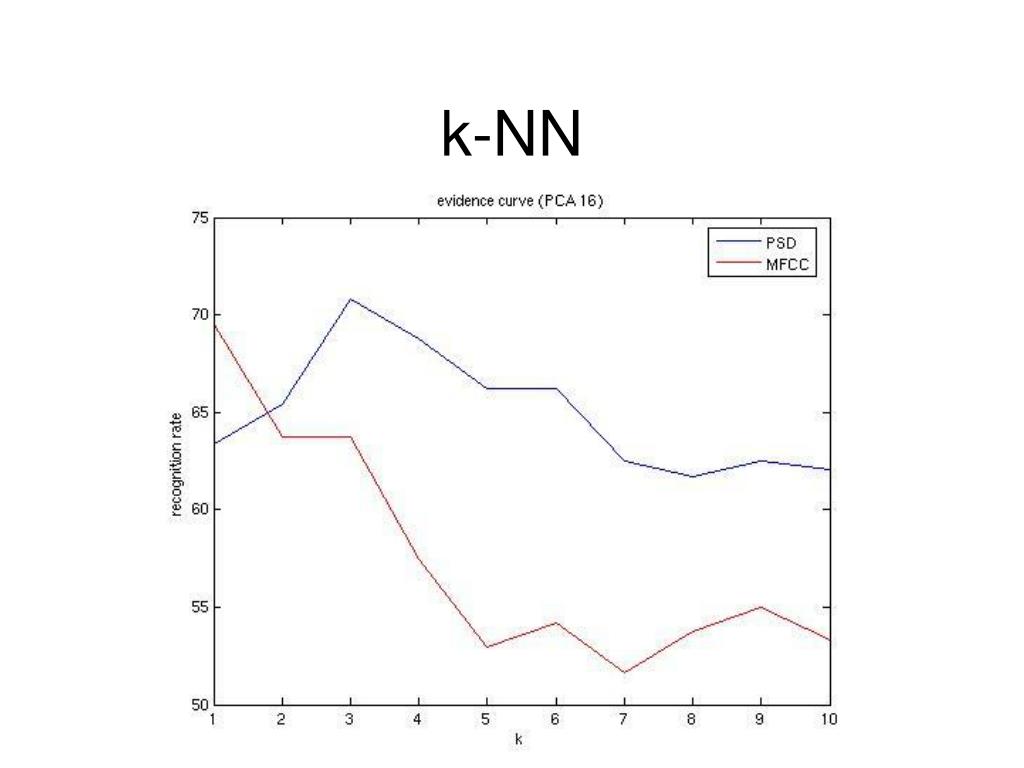

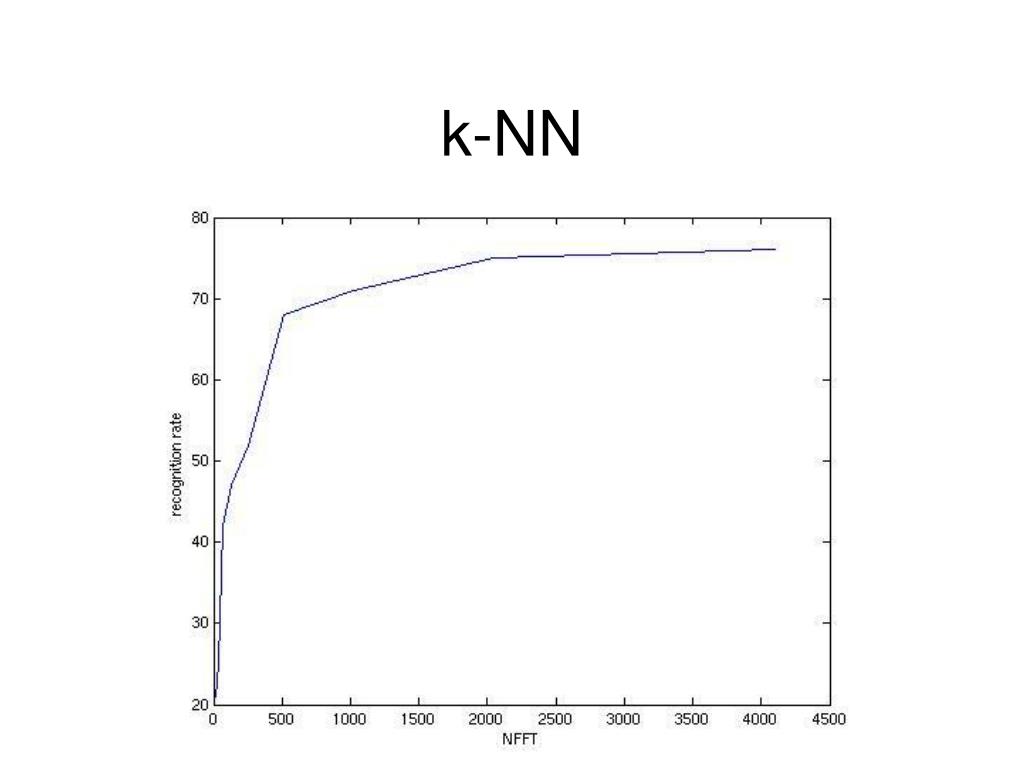

  15. k-NN

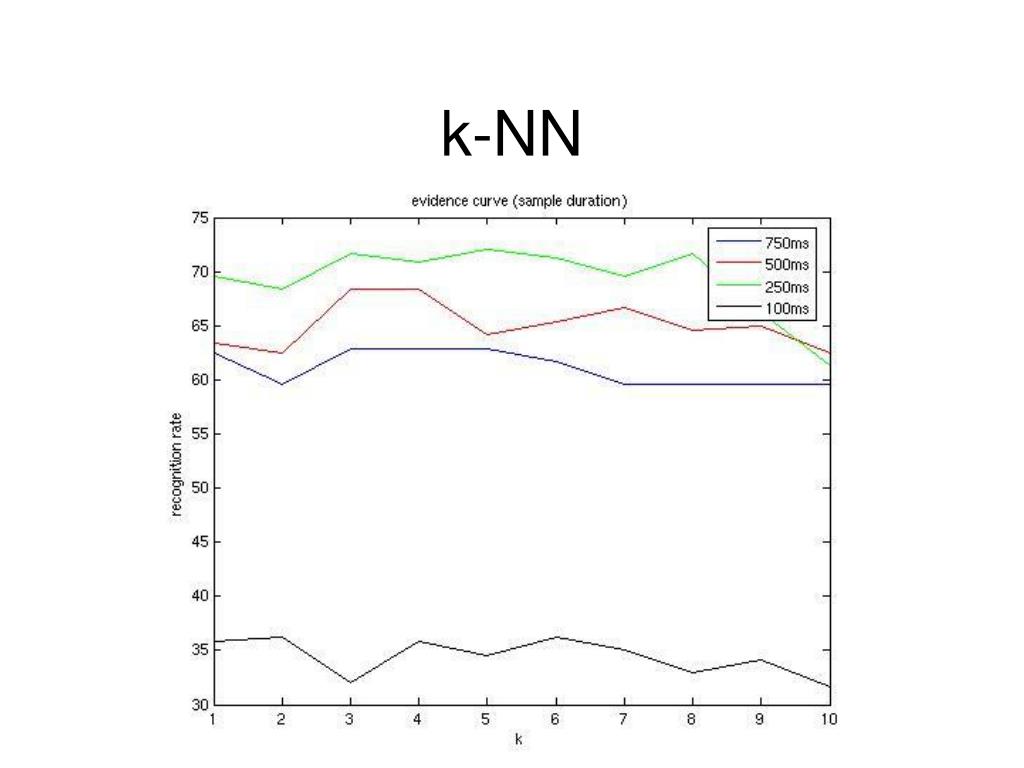

  16. k-NN

  17. Confusion Matrix

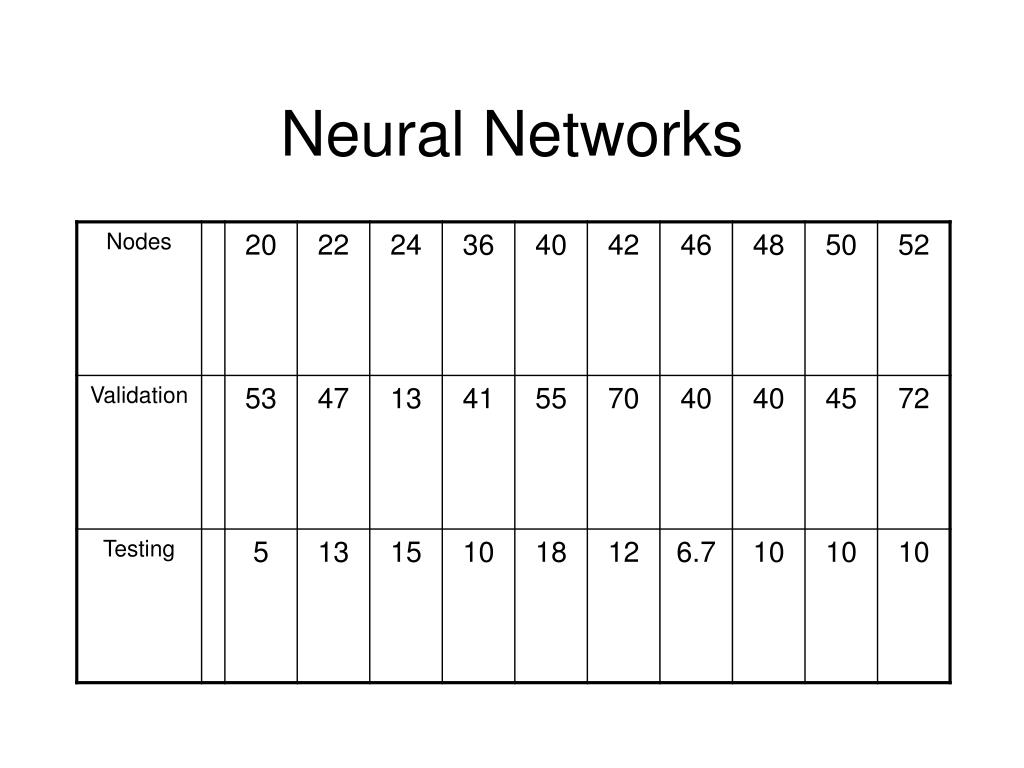

  18. Neural Networks

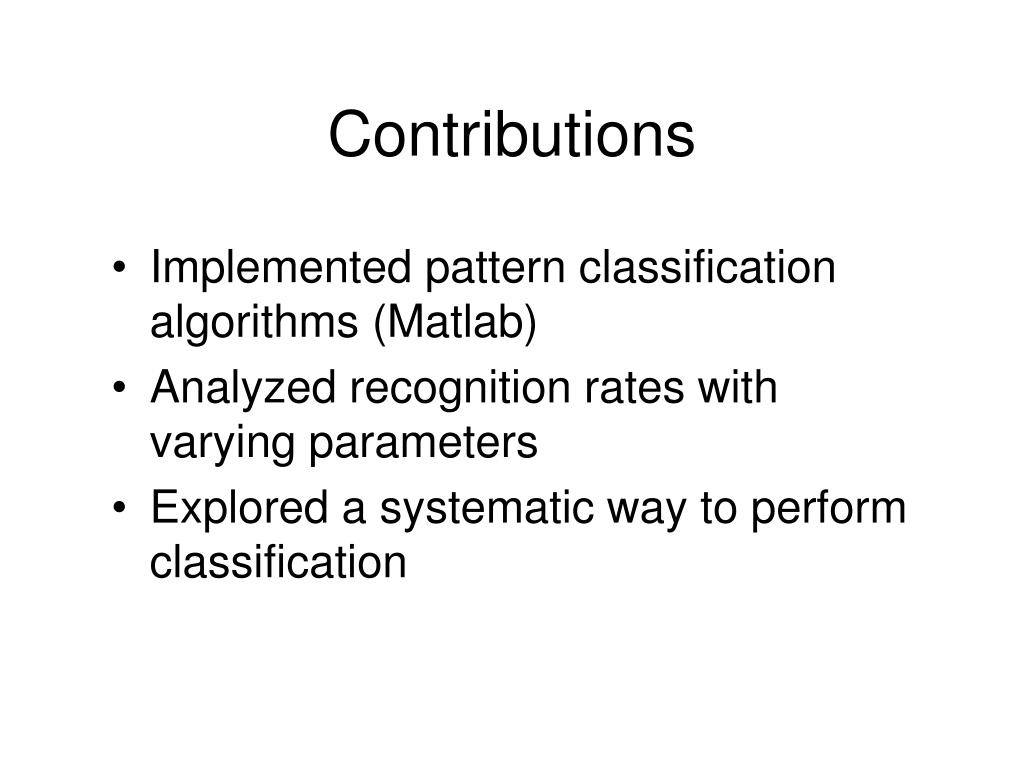

  19. Contributions • Implemented pattern classification algorithms (Matlab) • Analyzed recognition rates with varying parameters • Explored a systematic way to perform classification

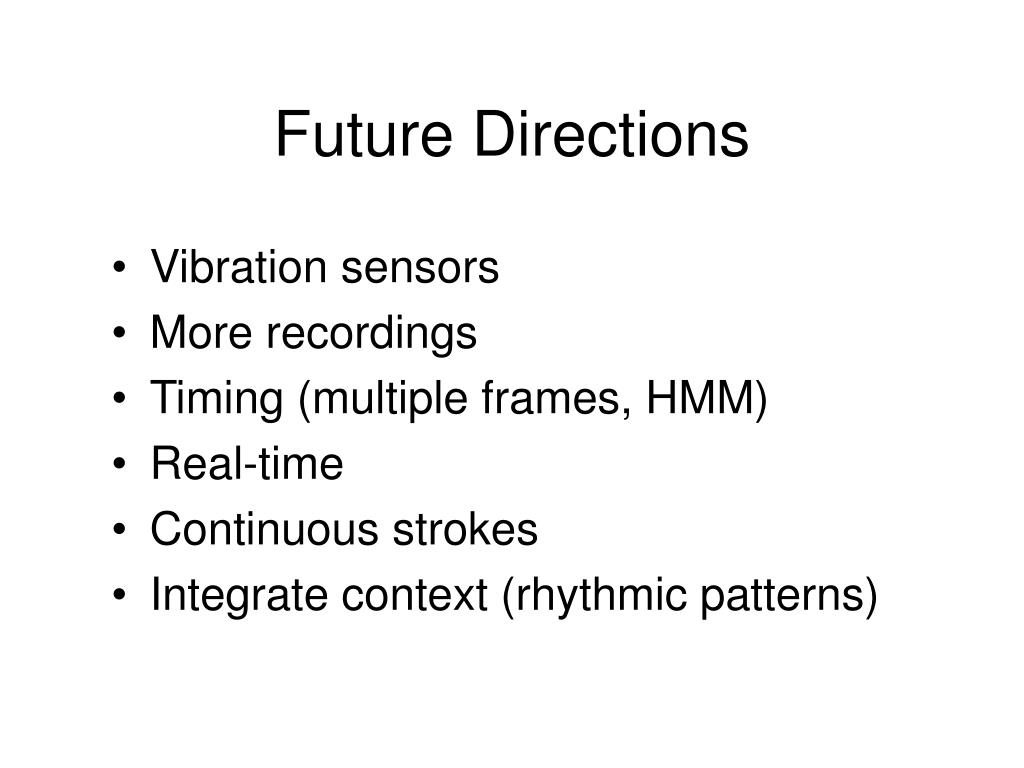

  20. Future Directions • Vibration sensors • More recordings • Timing (multiple frames, HMM) • Real-time • Continuous strokes • Integrate context (rhythmic patterns)
