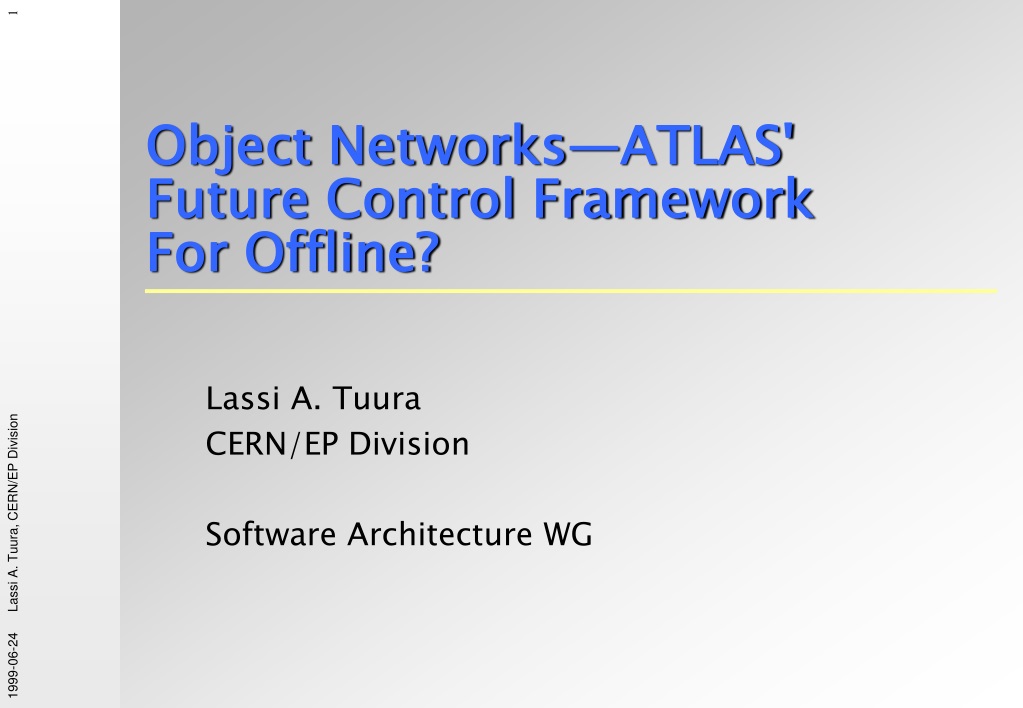

  1. Object Networks—ATLAS'Future Control FrameworkFor Offline? Lassi A. Tuura CERN/EP Division Software Architecture WG Lassi A. Tuura, CERN/EP Division

  2. Presentation Overview • What Is It? • Strategic Design Decisions • Other Design Goals • Example Network • Implementation Details Lassi A. Tuura, CERN/EP Division

  3. What Is It? The control framework is the part of the infrastructure that makes sure that • the right piece of software • runs • at the right time • with the right inputs and • the outputs go to the right place Lassi A. Tuura, CERN/EP Division

  4. Strategic Design Decisions #1 • Fully object-oriented design, mainly in C++ • Modular core infrastructural domains • Mutually independent (orthogonal) in design • As toolkits—collections of co-operating classes for app or app framework construction • Will not try to take over and dominate application design, data or execution • Code movability among analysis, offline reconstruction and event filter Lassi A. Tuura, CERN/EP Division

  5. Strategic Design Decisions #2 • Separation of computational and data objects • Use a component model • Package computational units (algorithms) as replaceable components • Components have well-defined interfaces • Communication across component boundaries only in ways provided by the control framework • Recognise data-flow nature of the problem Lassi A. Tuura, CERN/EP Division

  6. Strategic Design Decisions #3 • Event is not a scratch pad storage • Global knowledge ("everybody knows that…") gets quickly out of hand—no different from global variables or COMMON blocks • Components name true data dependencies • Framework reasons about the dependencies • When accompanied by wise component design, significantly improves reusability Lassi A. Tuura, CERN/EP Division

  7. Strategic Design Decisions #4 • Treat all data types the same • Attach no meaning to any type • Event is not special to the framework • Note: Code reuse is not limited to component reuse—code can be shared across components in non-component form Lassi A. Tuura, CERN/EP Division

  8. Other Design Goals • Instant gratification • Framework separate from the components • Dynamically load and unload components • Visual feedback in interactive environment • Spy on data as it "flies by"—components will not notice anything, spies are components too • Allow application to be described as a script that is read, verified, components loaded, initialisation carried out, and network executed Lassi A. Tuura, CERN/EP Division

  9. ExampleNetwork • Colors = data types • Modules = behaviour • Whole network = component • Input-Output dependency Lassi A. Tuura, CERN/EP Division

  10. Implementation Details #1 • Framework holds onto data objects via facets • Kind of a handle that can reduce to a pointer • A type can have any number of facets: transient, reference counting, database, … • Data does not flow anywhere • Outputs hold objects • Inputs observe the outputs they are connected to, methods observe their inputs • Notifications are sent when data changes Lassi A. Tuura, CERN/EP Division

  11. Implementation Details #2 • Notifications do not result in immediate execution, only an action is scheduled for execution • Action queue ordered by data dependencies • Actions pulled from the queue and executed • More actions may be queued as a result of executing the most recently chosen action • Spontaneously generated actions can be queued by GUIs, network components • Queues can be stacked loops, recursion Lassi A. Tuura, CERN/EP Division

  12. Implementation Details #3 • Methods are notified if their inputs have changed • Only if the inputs have changed • If any of the inputs have changed • Required inputs must have values when the call is delivered • Networks can be packaged as components • Reuse as-is in a larger application • Reconfigure: alter parameters but do not change the network • Tear apart and reconfigure: reuse constituents Lassi A. Tuura, CERN/EP Division

  13. Implementation Details #4 • Networks can execute in any context • A normal method can be internally a network • A network can run inside another network • Runs till no more actions to execute and then returns to the caller Lassi A. Tuura, CERN/EP Division
