Understanding Converse Theorems in Angles and Linear Pairs

This guide delves into the application of Converse Theorems in geometric proofs involving angles created by parallel lines and a transversal. Starting with Linear Pair Postulate or the Vertical Angles Theorem, the process utilizes substitution and properties of equality to establish angle congruence and relationships. Key concepts such as linear pairs and alternate exterior angles are explored with examples illustrating the importance of theorems in geometric proofs. Mastering these fundamental concepts is essential for success in geometry.

dai-townsend
Télécharger la présentation

Understanding Converse Theorems in Angles and Linear Pairs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

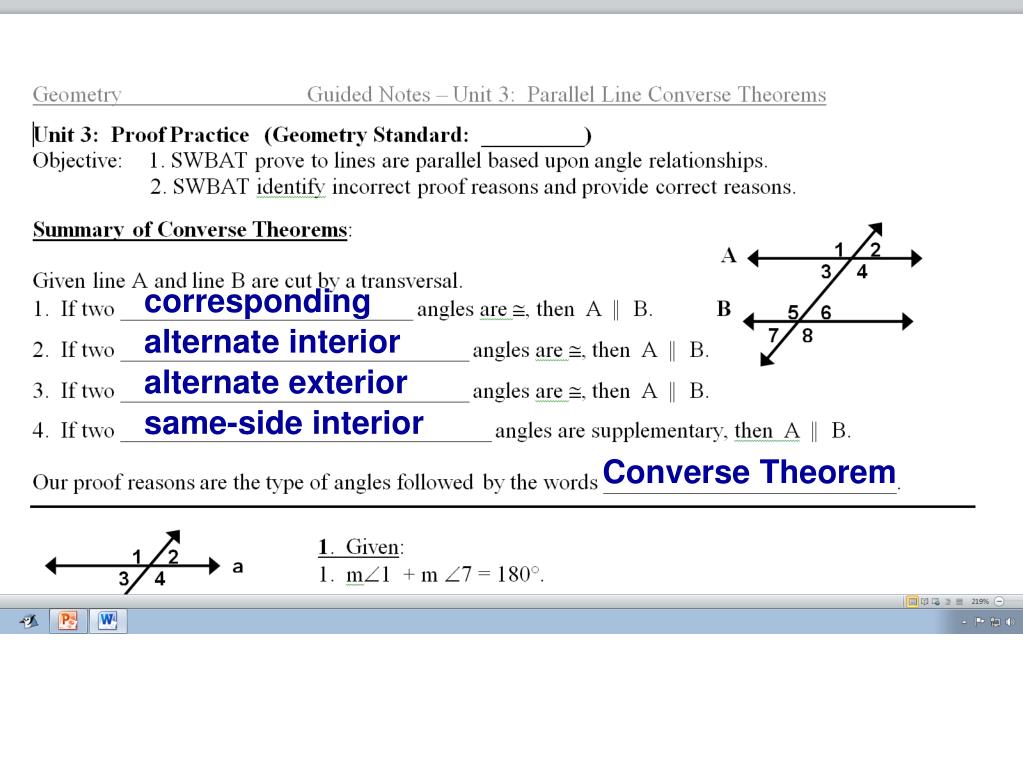

  1. corresponding alternate interior alternate exterior same-side interior Converse Theorem

  2. After the given, you may ONLY start with the Linear Pair Post. or the Vertical Angles Thm! Use one of the CONVERSE Thms. as the very last step! m1 + m7 = 180° Given m1 + m2 = 180° Linear Pair Post. Use 1 of the given angles … m1 + m7 = m1 + m2 Substitution Prop. of = m7 = m2 Subtraction Prop. of = 7  2 Def. of  (congruence) NOT the Alt. Exter. Thm! 6. Line a || Line b6. Alter. EXterior. ’s CONVERSE Thm!

  3. 4  8 Given 1  4 Vertical ’s Thm. 1  8 Substitution Prop. Of . Line a || Line b Alter. EXterior. ’s CONVERSE Thm!
