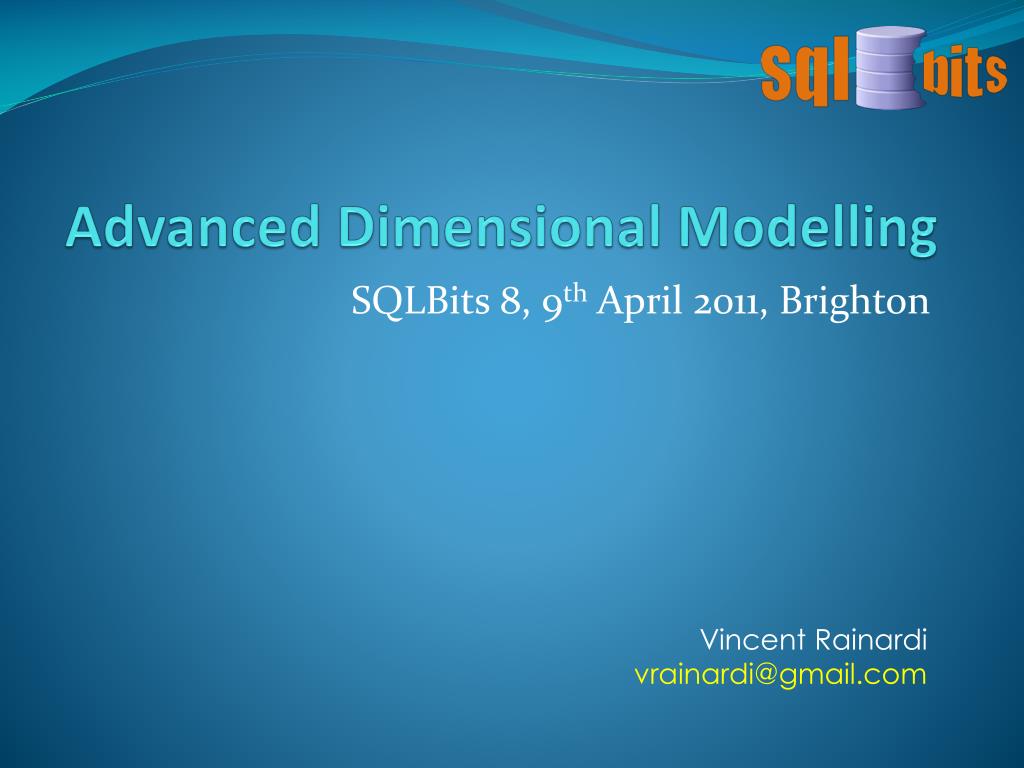

  1. Advanced Dimensional Modelling SQLBits 8, 9th April 2011, Brighton Vincent Rainardi vrainardi@gmail.com

  2. Advanced Dimensional Modelling • 1. Dimensions - Structure • SCD Type 6 • 1 or 2 Dimensions • When To Snowflake • A Dimension with Only 1 Attribute • Transaction Level Dimension • 2. Fact Tables • Fact Table Primary Key • Snapshotting Transaction Fact Tables • Aggregate Fact Tables • Vertical Fact Tables • 3. Dimensions - Behavior • Rapidly Changing Dimension • Very Large Dimensions • Banding Dimension Rows • Stamping Dimension Rows • Dimensions with Multi Valued Attributes • 4. Combinations • Real Time Fact Table • Dealing with Currency Rates • Dealing with Status 4 sections, lots of material, may not able to finish. Some pages we may have to touch lightly. Questions between sections, available after.

  3. SCD Type 6 • SCD Type 6 is a combination of Type 1, 2 & 3 • e.g. type 2 + type 1 : (telco example) • 6 = 1 + 2 + 3 (Ref: Ross/Kimball, Wikipedia) http://www.rkimball.com/html/articles_search/articles%202005/0503IE.html http://en.wikipedia.org/wiki/Slowly_changing_dimension

  4. SCD Type 6 • Used for “As Was” reporting • e.g. balances by tariff (price plan) at the end of last year,had the customers were on today’s tariff.

  5. 1 or 2 dimensions • We can get the customer attributes without knowing the account key • Disadvantage: can’t go from account to customer without going through the fact table - performance • Simplicity, customer attributes in dim account • Hierarchy from customer attribute &account attribute • Use when we don’t have fact tables requiring customer grain.

  6. 1 or 2 dimensions • Modular: we have 2 separate dim tables but we can combine them easily to create a bigger dimension • To get the breakdown of a measure by a customer attribute is a bit more complicated than a) select c.cust_attribute, sum(f.measure1)from fact1 finner join dim_account a on f.account_key = a.account_keyinner join dim_customer c on a.customer_key = c.customer_keygroup by c.cust_attribute

  7. 1 or 2 dimensions • Try to fix weakness on b and c: • We can “go” from account dim to customer dim • We can access dim customer directly from the fact table. Weakness: maintain customer key in 2 places: fact table and dim account. a.k.a. “Star with a Back Door”

  8. 1 or 2 dimensions Try to fix weakness of a: unable to build a fact table with grain = customer. Add a column in dim account: customer key Not as popular as c) and d) in solving DimCustomer issue. It is “undecisive” : trying to create DimCustomer but doesn’t want to create DimCustomer. DimCustomeris hidden inside dim_account, making it: a) more difficult to maintain (especially for a type 2), and b) less modular/flexible which are the main disadvantages of this approach.

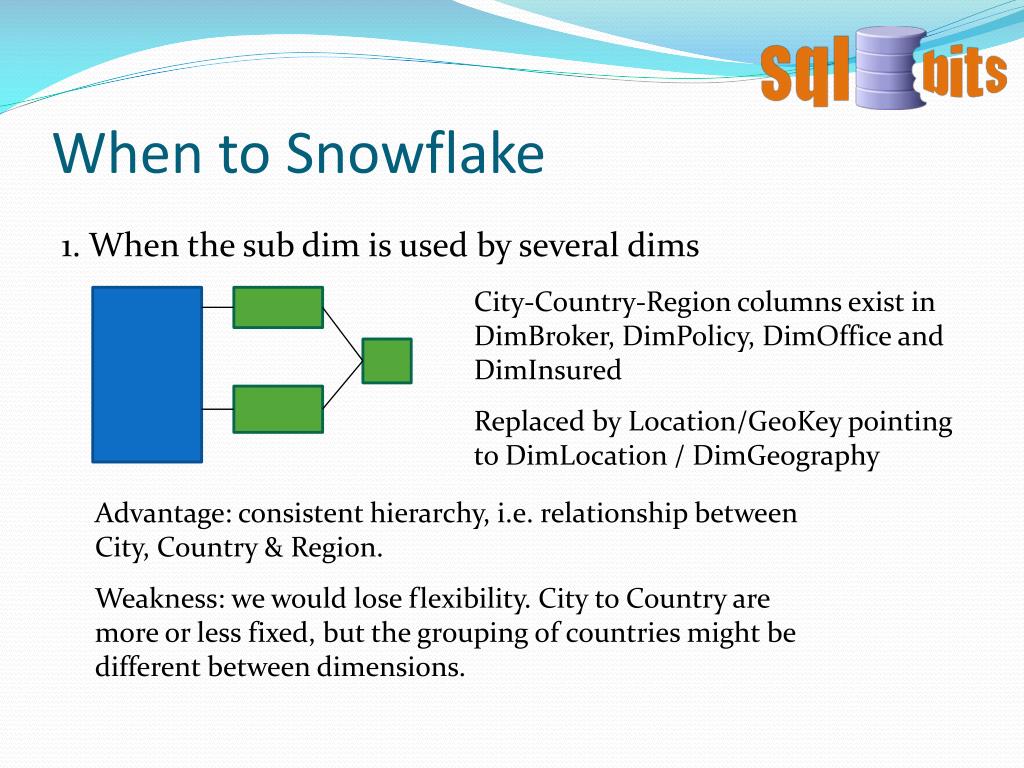

  9. When to Snowflake 1. When the sub dim is used by several dims City-Country-Region columns exist in DimBroker, DimPolicy, DimOffice and DimInsured Replaced by Location/GeoKey pointing to DimLocation / DimGeography Advantage: consistent hierarchy, i.e. relationship between City, Country & Region. Weakness: we would lose flexibility. City to Country are more or less fixed, but the grouping of countries might be different between dimensions.

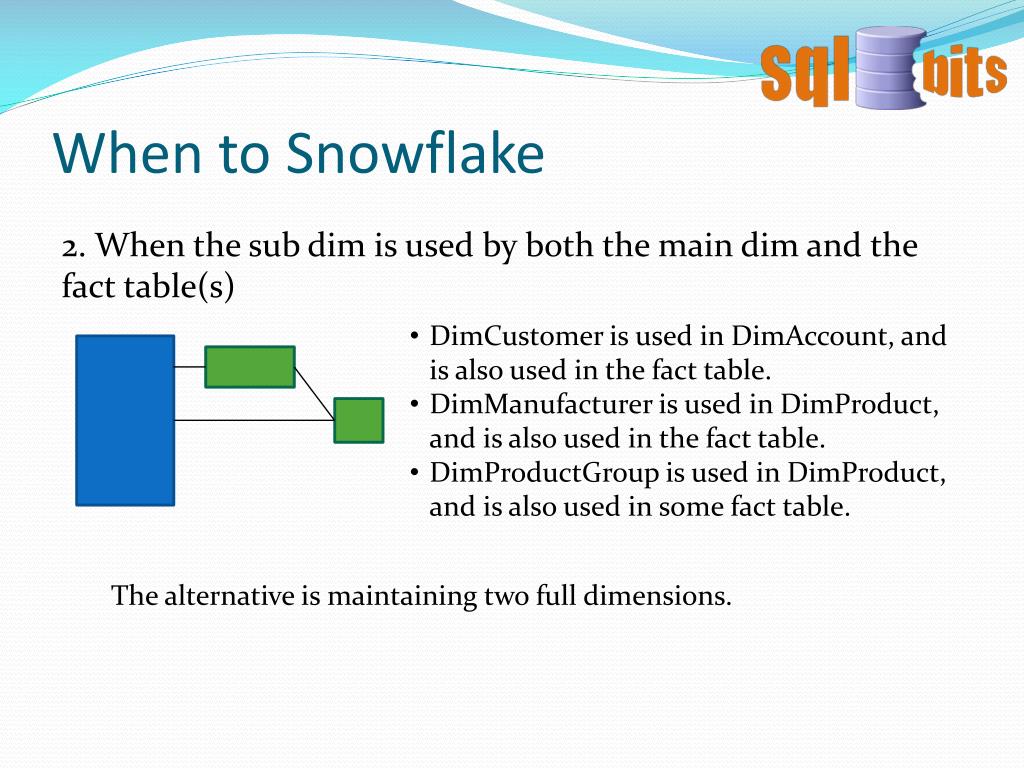

  10. When to Snowflake 2. When the sub dim is used by both the main dim and the fact table(s) • DimCustomer is used in DimAccount, and is also used in the fact table. • DimManufacturer is used in DimProduct, and is also used in the fact table. • DimProductGroup is used in DimProduct, and is also used in some fact table. The alternative is maintaining two full dimensions.

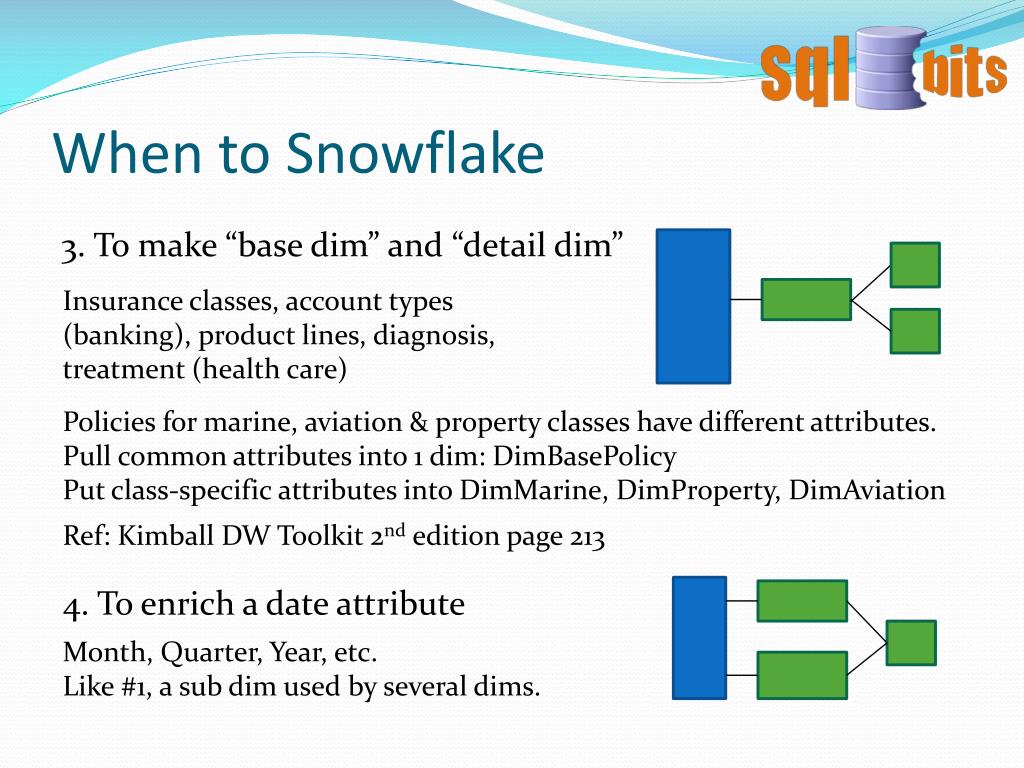

  11. When to Snowflake 4. To enrich a date attribute 3. To make “base dim” and “detail dim” Insurance classes, account types (banking), product lines, diagnosis, treatment (health care) Policies for marine, aviation & property classes have different attributes. Pull common attributes into 1 dim: DimBasePolicy Put class-specific attributes into DimMarine, DimProperty, DimAviation Ref: Kimball DW Toolkit 2nd edition page 213 Month, Quarter, Year, etc. Like #1, a sub dim used by several dims.

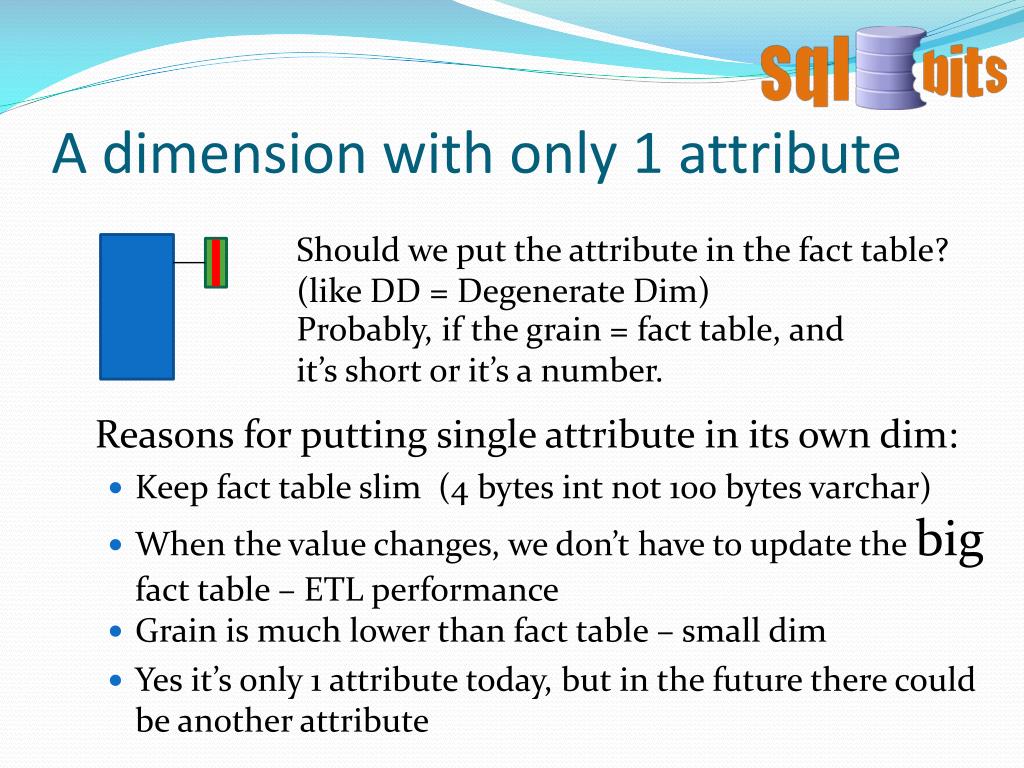

  12. A dimension with only 1 attribute Reasons for putting single attribute in its own dim: • Keep fact table slim  (4 bytes int not 100 bytes varchar) • When the value changes, we don’t have to update the big fact table – ETL performance • Grain is much lower than fact table – small dim • Yes it’s only 1 attribute today, but in the future there could be another attribute Should we put the attribute in the fact table? (like DD = Degenerate Dim) Probably, if the grain = fact table,and it’s short or it’s a number.

  13. A dimension with only 1 attribute Exception: snapshot month Snapshot month is used in periodic snapshot fact table. Snapshot month is in the form of an integer (201104 for April 2011). Doesn’t violate the 3 points above. • It is an integer, not char(6). • The value never changes, April 2011 will be April 2011 forever • There will not be other attributes in the dim

  14. Transaction Level Dimension A dim with grain = the transaction fact table Transaction, not accumulative or periodic snapshot Examples: • IT Helpdesk DW: Dim Ticket • Telco DW: Dim Call • Banking/Asset MgtDW: Dim Trade • Insurance DW: Dim Premium TransactionLevel Dim

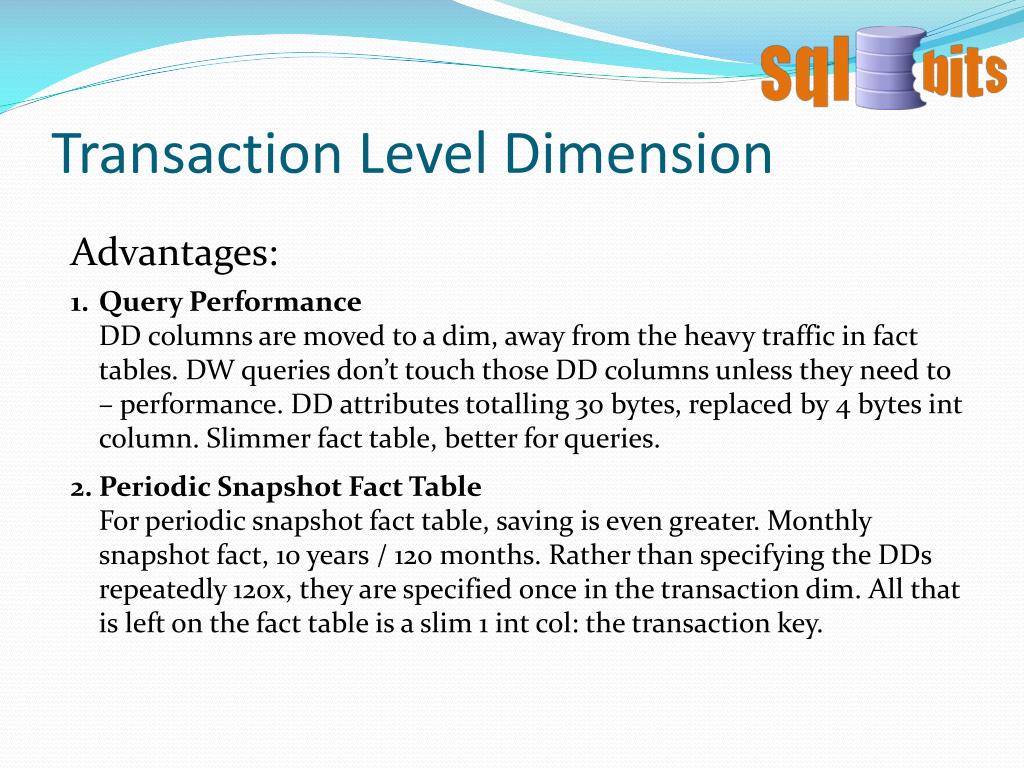

  15. Transaction Level Dimension Advantages: Query PerformanceDD columns are moved to a dim, away from the heavy traffic in fact tables. DW queries don’t touch those DD columns unless they need to– performance. DD attributes totalling 30 bytes, replaced by 4 bytes int column. Slimmer fact table, better for queries. Periodic Snapshot Fact TableFor periodic snapshot fact table, saving is even greater. Monthly snapshot fact, 10 years / 120 months. Rather than specifying the DDs repeatedly 120x, they are specified once in the transaction dim. All that is left on the fact table is a slim 1 intcol: the transaction key.

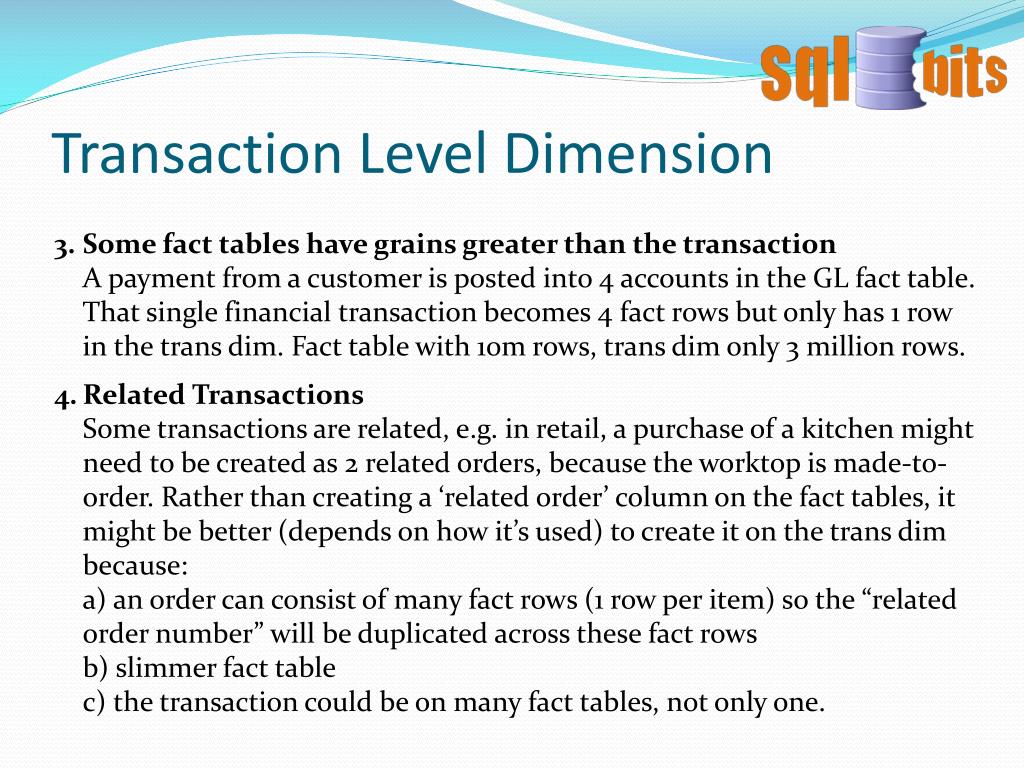

  16. Transaction Level Dimension Some fact tables have grains greater than the transactionA payment from a customer is posted into 4 accounts in the GL fact table. That single financial transaction becomes 4 fact rows but only has 1 row in the trans dim. Fact table with 10m rows, trans dim only 3 million rows. Related TransactionsSome transactions are related, e.g. in retail, a purchase of a kitchen might need to be created as 2 related orders, because the worktop is made-to-order. Rather than creating a ‘related order’ column on the fact tables, it might be better (depends on how it’s used) to create it on the trans dim because: a) an order can consist of many fact rows (1 row per item) so the “related order number” will be duplicated across these fact rowsb) slimmer fact tablec) the transaction could be on many fact tables, not only one.

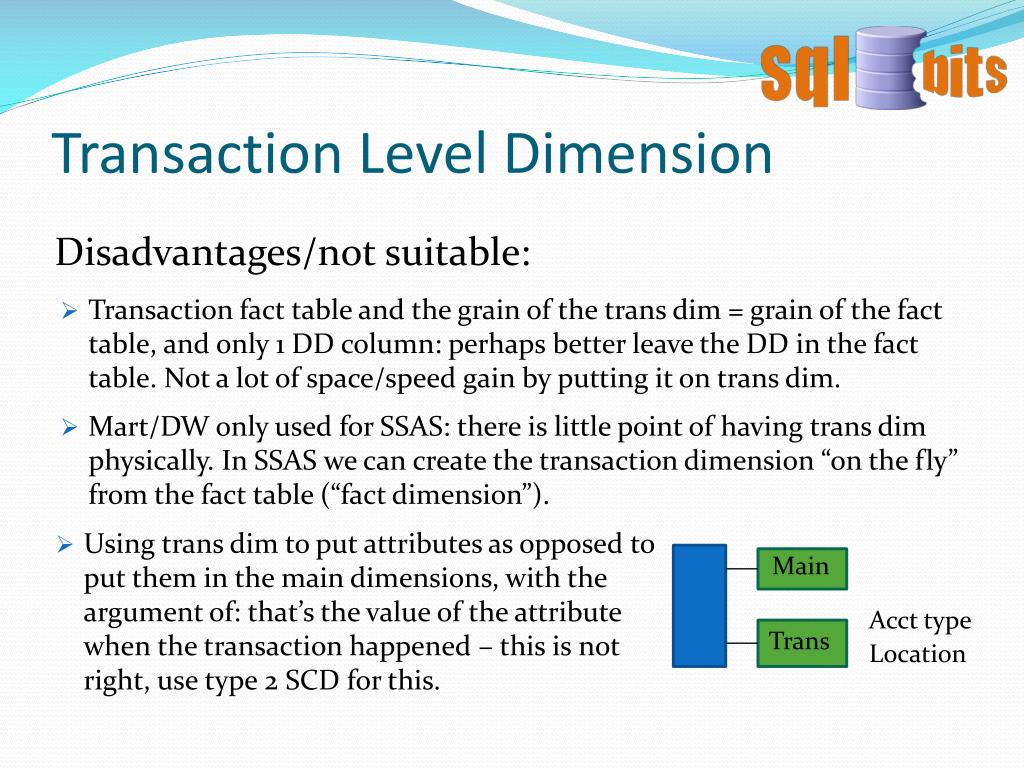

  17. Transaction Level Dimension • Transaction fact table and the grain of the trans dim = grain of the fact table, and only 1 DD column: perhaps better leave the DD in the fact table. Not a lot of space/speed gain by putting it on trans dim. • Mart/DW only used for SSAS: there is little point of having trans dim physically. In SSAS we can create the transaction dimension “on the fly” from the fact table (“fact dimension”). Disadvantages/not suitable: • Using trans dim to put attributes as opposed to put them in the main dimensions, with the argument of: that’s the value of the attribute when the transaction happened – this is not right, use type 2 SCD for this. Main Acct type Trans Location

  18. Transaction Level Dimension • Any dim with grain = fact table (like trans dim) is questionableDo we really need this dim at this grain? Perhaps it should be divided into several dims instead? • A dim with grain = fact table - potential performance issue (unless the fact table is small). e.g. fact table = 10m rows, trans dim = 10m rows. Joining 10m to 10m potentially slow, especially if the physical ordering of the trans dim is not the joining column. Disadvantages/not suitable:

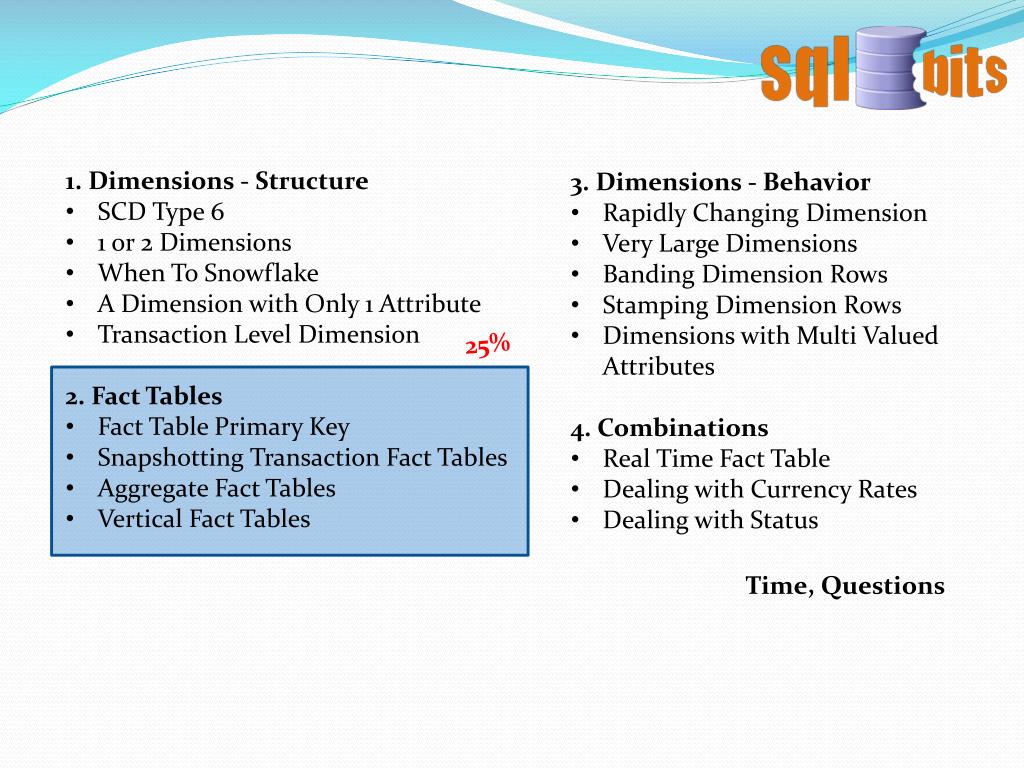

  19. 1. Dimensions - Structure • SCD Type 6 • 1 or 2 Dimensions • When To Snowflake • A Dimension with Only 1 Attribute • Transaction Level Dimension • 2. Fact Tables • Fact Table Primary Key • Snapshotting Transaction Fact Tables • Aggregate Fact Tables • Vertical Fact Tables • 3. Dimensions - Behavior • Rapidly Changing Dimension • Very Large Dimensions • Banding Dimension Rows • Stamping Dimension Rows • Dimensions with Multi Valued Attributes • 4. Combinations • Real Time Fact Table • Dealing with Currency Rates • Dealing with Status 25% Time, Questions

  20. Fact Table Primary Key Should we have a PK? Yes if we need to be able to identify each fact row • Need to refer to a fact row from another fact row e.g. chain of events • Many identical fact rows and we need to update/delete only one • To link the fact table to another fact table Example of not having a PK If duplicate fact rows are allowed. e.g. retail DW: Store Key, Date Key, Product Key, Customer Key Same customer buying the same milk in the same shop on the same day twice --- Order Line ID as DD to make it unique (not all EPOS has it)

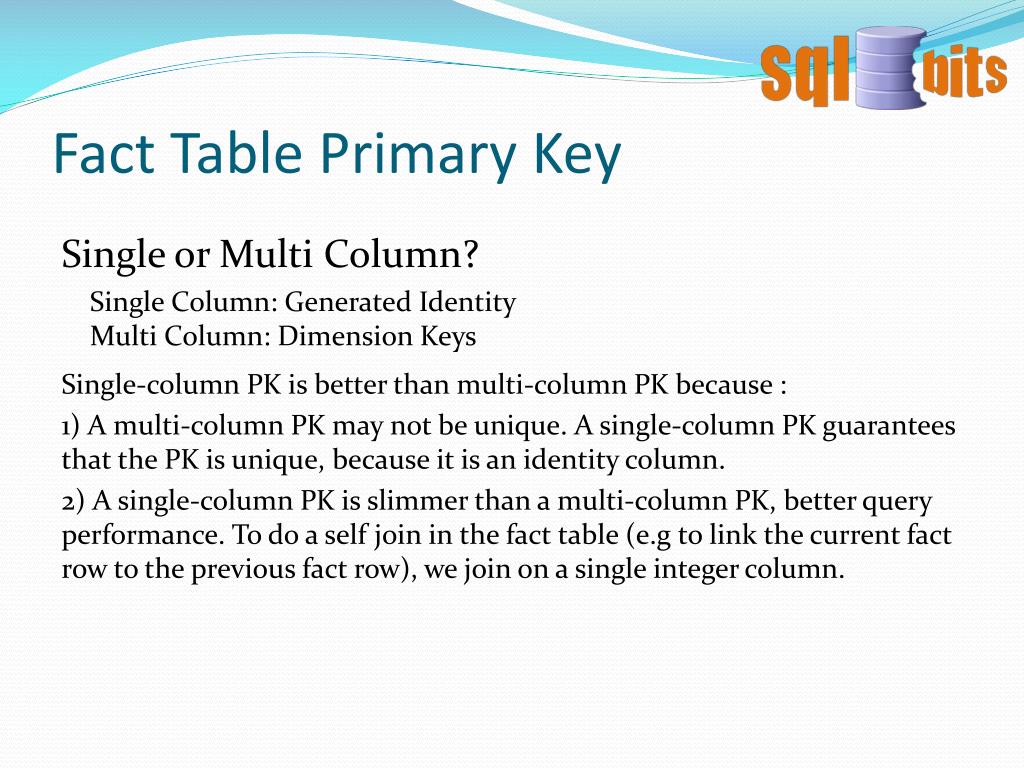

  21. Fact Table Primary Key Single or Multi Column? Single Column: Generated Identity Multi Column: Dimension Keys Single-column PK is better than multi-column PK because : 1) A multi-column PK may not be unique. A single-column PK guarantees that the PK is unique, because it is an identity column. 2) A single-column PK is slimmer than a multi-column PK, better query performance. To do a self join in the fact table (e.g to link the current fact row to the previous fact row), we join on a single integer column.

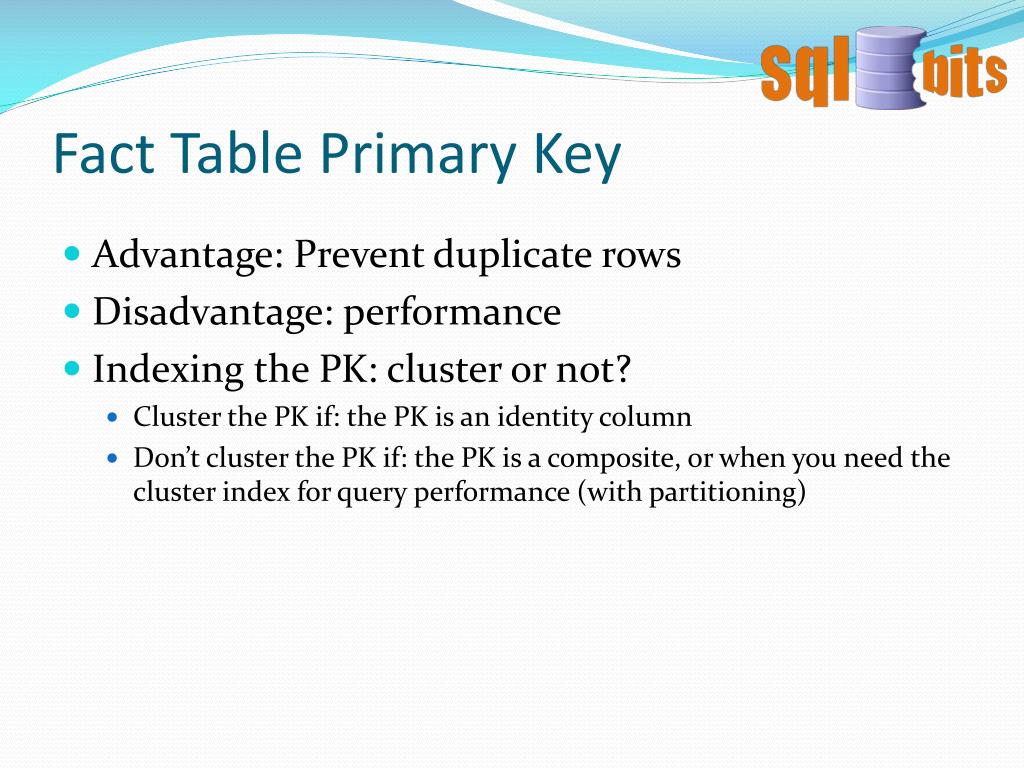

  22. Fact Table Primary Key • Advantage: Prevent duplicate rows • Disadvantage: performance • Indexing the PK: cluster or not? • Cluster the PK if: the PK is an identity column • Don’t cluster the PK if: the PK is a composite, or when you need the cluster index for query performance (with partitioning)

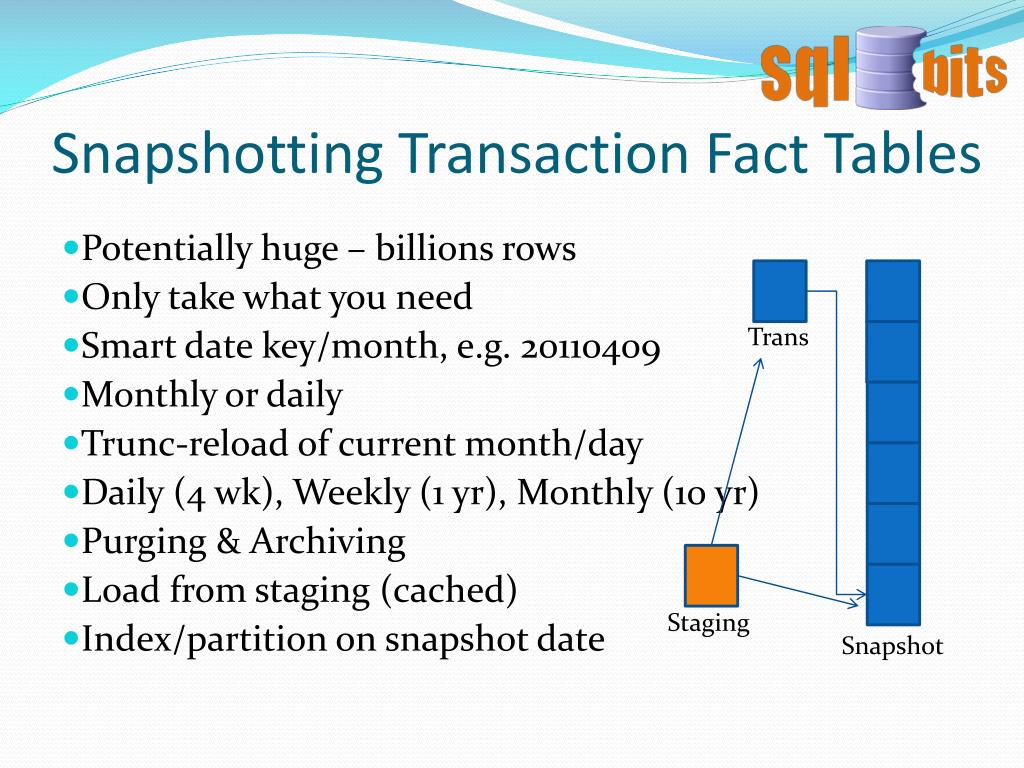

  23. Snapshotting Transaction Fact Tables • Potentially huge – billions rows • Only take what you need • Smart date key/month, e.g. 20110409 • Monthly or daily • Trunc-reload of current month/day • Daily (4 wk), Weekly (1 yr), Monthly (10 yr) • Purging & Archiving • Load from staging (cached) • Index/partition on snapshot date Trans Staging Snapshot

  24. Aggregate Fact Tables What are they? • High level aggregation of base fact tables • A “select group by” query on a 2 billion rows fact table can take 30 mins if it joins with two big fact tables, even with indexes in place • So we do this query in advance as part of the DW load and store it as an Aggregate Fact Table • The report only takes 1 second to run. Base Fact Tables 30 mins Aggregate Fact Table 1 sec Report

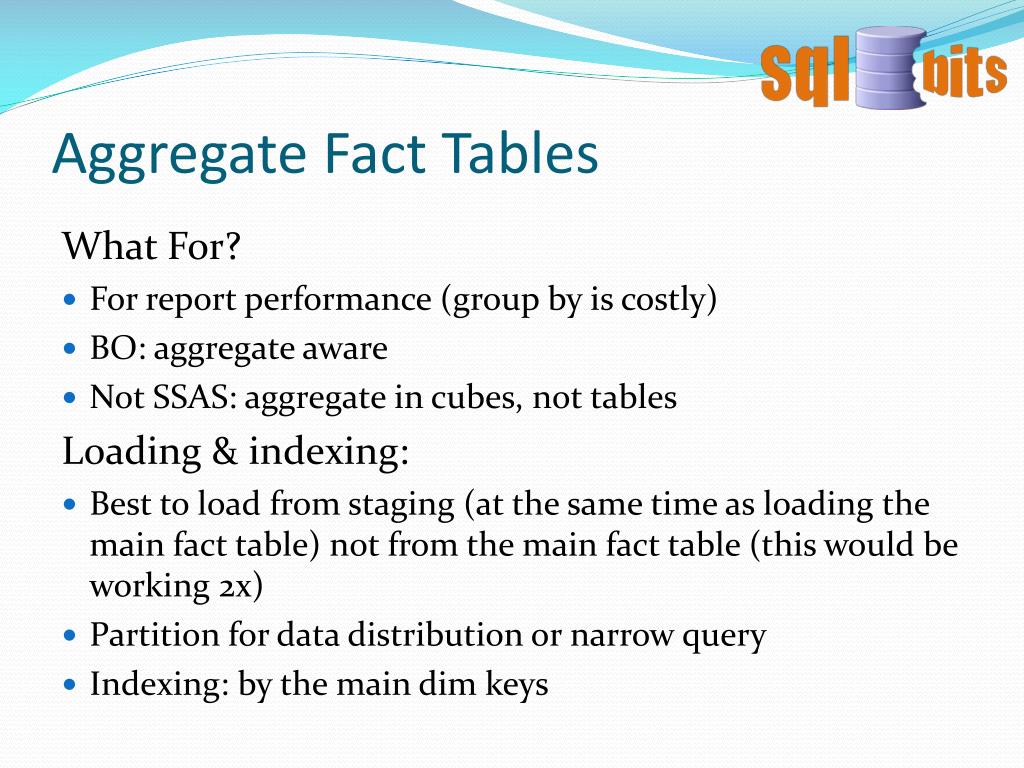

  25. Aggregate Fact Tables What For? • For report performance (group by is costly) • BO: aggregate aware • Not SSAS: aggregate in cubes, not tables Loading & indexing: • Best to load from staging (at the same time as loading the main fact table) not from the main fact table (this would be working 2x) • Partition for data distribution or narrow query • Indexing: by the main dim keys

  26. Vertical Fact Tables • Normalised • 1 measure column • The meaning of that measure column depends on “measure type” column • Used for Finance/GL mart • Advantage: flexibility: using accounts, balance, Dr Cr • Disadvantage: non additive “Normal” Fact Table many measures Vertical Fact Table 1 measure

  27. 1. Dimensions - Structure • SCD Type 6 • 1 or 2 Dimensions • When To Snowflake • A Dimension with Only 1 Attribute • Transaction Level Dimension • 2. Fact Tables • Fact Table Primary Key • Snapshotting Transaction Fact Tables • Aggregate Fact Tables • Vertical Fact Tables • 3. Dimensions - Behavior • Rapidly Changing Dimension • Very Large Dimensions • Banding Dimension Rows • Stamping Dimension Rows • Dimensions with Multi Valued Attributes • 4. Combinations • Real Time Fact Table • Dealing with Currency Rates • Dealing with Status 50% Time, Questions

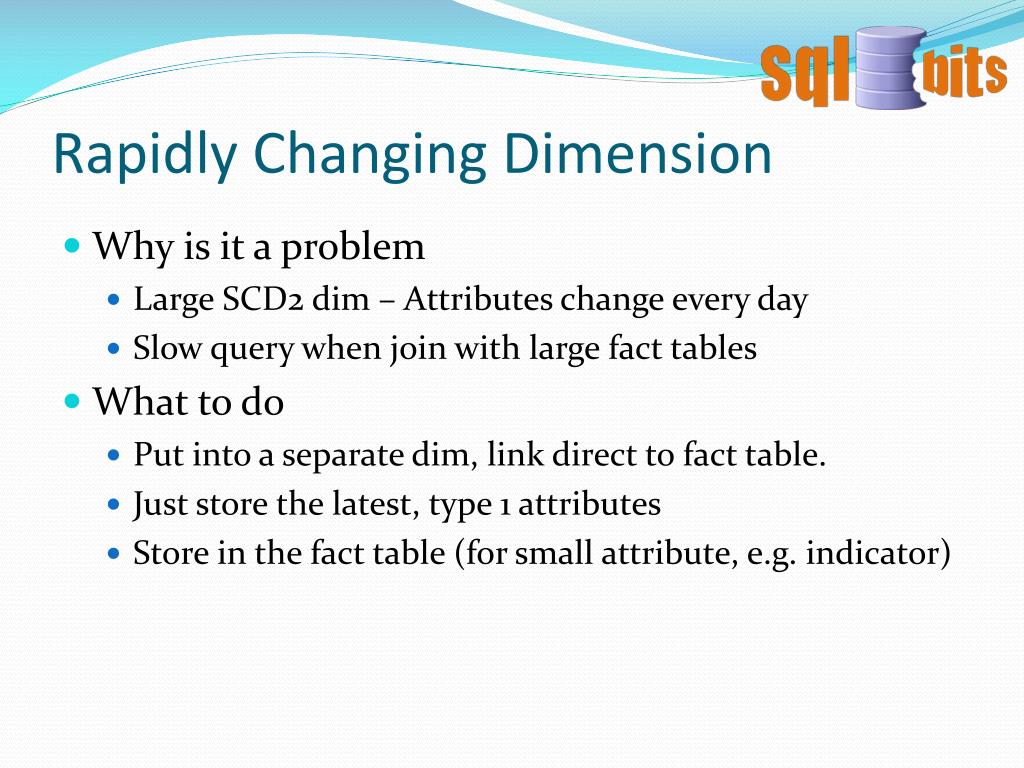

  28. Rapidly Changing Dimension • Why is it a problem • Large SCD2 dim – Attributes change every day • Slow query when join with large fact tables • What to do • Put into a separate dim, link direct to fact table. • Just store the latest, type 1 attributes • Store in the fact table (for small attribute, e.g. indicator)

  29. Very Large Dimension Why is it a problem • SSAS: 4 GB string store limit for dimension • SSAS: dim is select distinct on each attribute – long processing time • “Valid date” join on SCD2 for as was • Usually customer dim where the “quality stamp” keep changing, or number of distinct values • Difficult to browse high cardinality attribute • Join with fact tables – performance

  30. Very Large Dimension What to do • Split into 2 dims, same grain. Always cut vertically. • Remove SCD2, or at least only certain columns. • Most common: separate the attributes with high cardinality/change frequency • Bucketing/banding, group values into ranges VLD

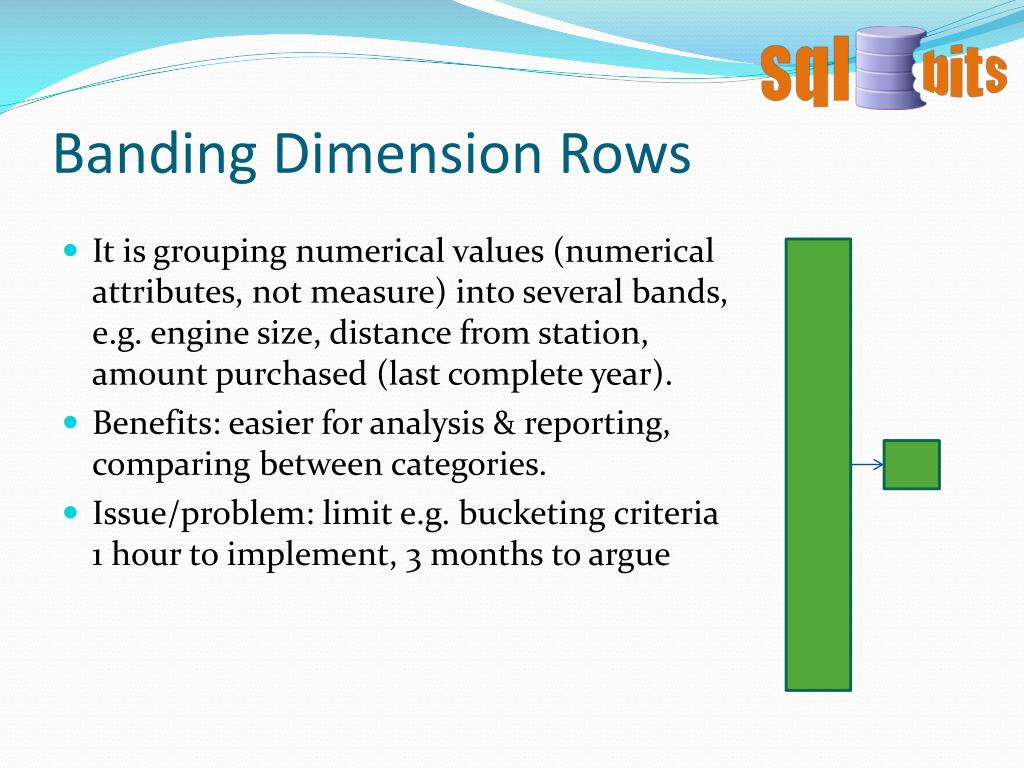

  31. Banding Dimension Rows • It is grouping numerical values (numerical attributes, not measure) into several bands, e.g. engine size, distance from station, amount purchased (last complete year). • Benefits: easier for analysis & reporting, comparing between categories. • Issue/problem: limit e.g. bucketing criteria1 hour to implement, 3 months to argue

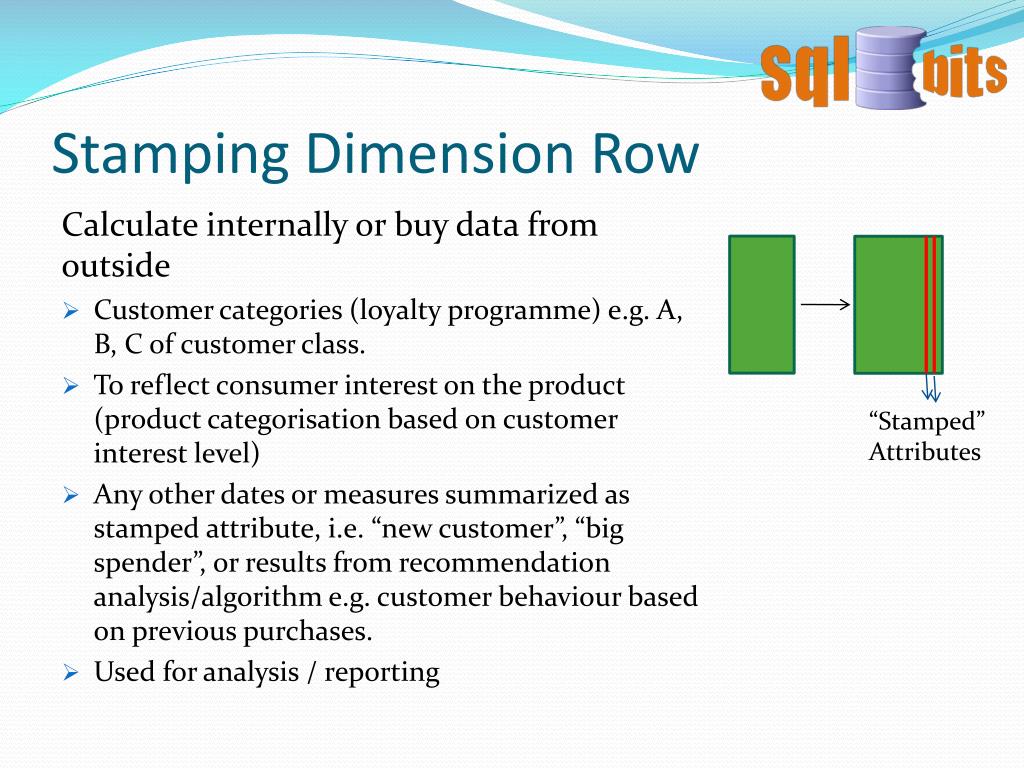

  32. Stamping Dimension Row Calculate internally or buy data from outside • Customer categories (loyalty programme) e.g. A, B, C of customer class. • To reflect c0nsumer interest on the product (product categorisation based on customer interest level) • Any other dates or measures summarized as stamped attribute, i.e. “new customer”, “big spender”, or results from recommendation analysis/algorithm e.g. customer behaviour based on previous purchases. • Used for analysis / reporting “Stamped” Attributes

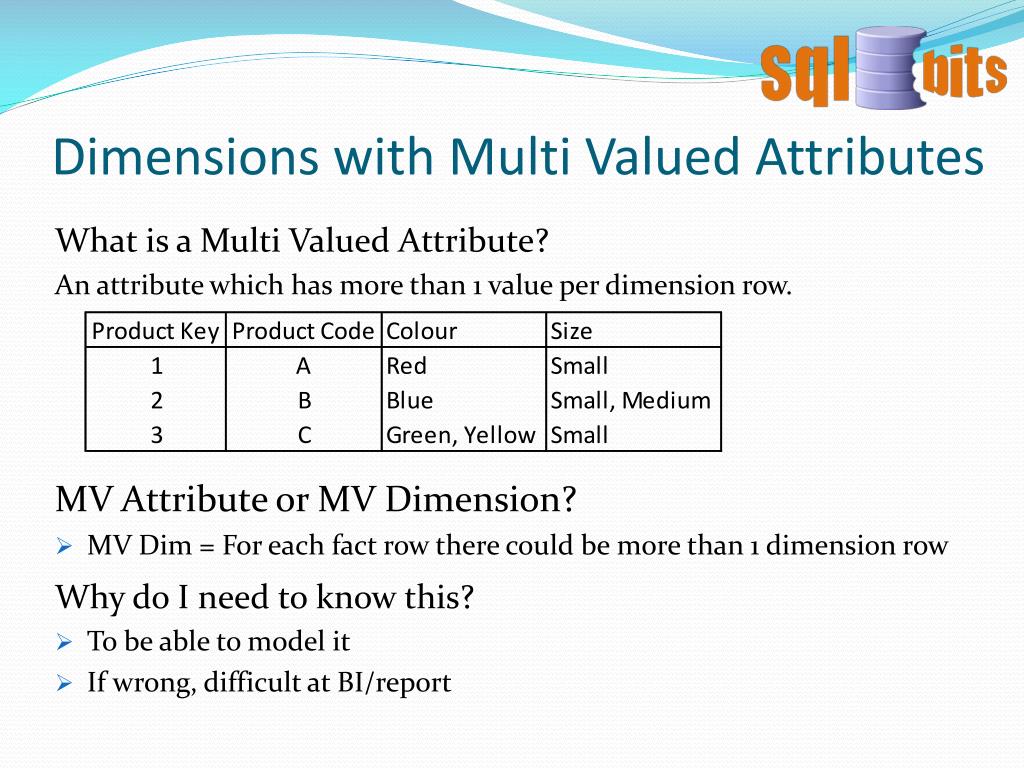

  33. Dimensions with Multi Valued Attributes What is a Multi Valued Attribute? An attribute which has more than 1 value per dimension row. MV Attribute or MV Dimension? • MV Dim = For each fact row there could be more than 1 dimension row Why do I need to know this? • To be able to model it • If wrong, difficult at BI/report

  34. Dimensions with Multi Valued Attributes Approaches to deal with MV Attributes 1. Lower the grain of the dim After Before Fact table requires that the product dimension is at Product Code grain, e.g. no sales info per size, but only per product code. 2. Put the MV attributes in a separate dim, link direct to the fact table Before After Often we don’t have the allocation information e.g. 50-50 or 30-70, we only know that product1has 2 sizes

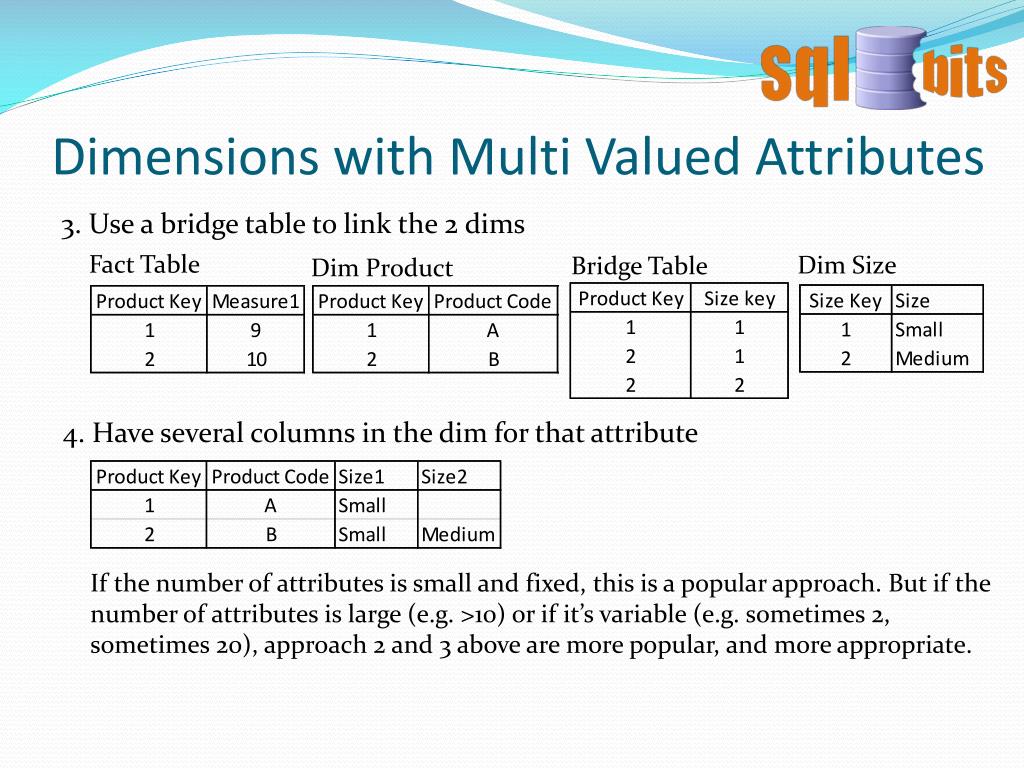

  35. Dimensions with Multi Valued Attributes 3. Use a bridge table to link the 2 dims Fact Table Dim Size Bridge Table Dim Product 4. Have several columns in the dim for that attribute If the number of attributes is small and fixed, this is a popular approach. But if the number of attributes is large (e.g. >10) or if it’s variable (e.g. sometimes 2, sometimes 20), approach 2 and 3 above are more popular, and more appropriate.

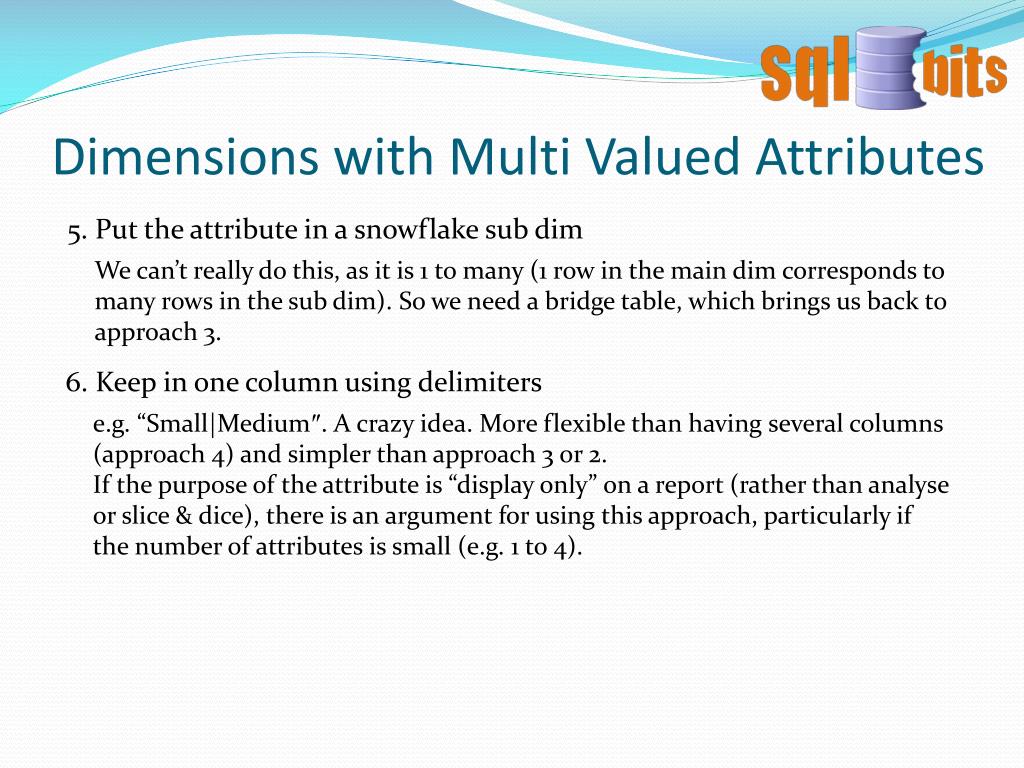

  36. Dimensions with Multi Valued Attributes 5. Put the attribute in a snowflake sub dim We can’t really do this, as it is 1 to many (1 row in the main dim corresponds to many rows in the sub dim). So we need a bridge table, which brings us back to approach 3. 6. Keep in one column using delimiters e.g. “Small|Medium″. A crazy idea. More flexible than having several columns (approach 4) and simpler than approach 3 or 2. If the purpose of the attribute is “display only” on a report (rather than analyse or slice & dice), there is an argument for using this approach, particularly if the number of attributes is small (e.g. 1 to 4).

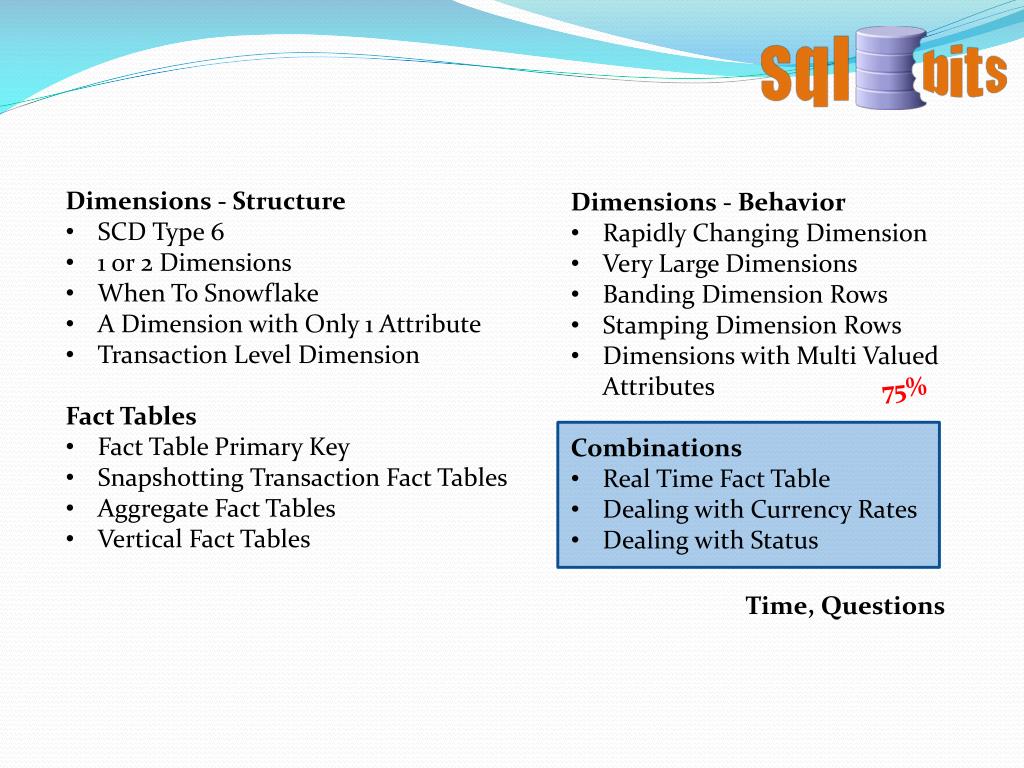

  37. Dimensions - Structure • SCD Type 6 • 1 or 2 Dimensions • When To Snowflake • A Dimension with Only 1 Attribute • Transaction Level Dimension • Fact Tables • Fact Table Primary Key • Snapshotting Transaction Fact Tables • Aggregate Fact Tables • Vertical Fact Tables • Dimensions - Behavior • Rapidly Changing Dimension • Very Large Dimensions • Banding Dimension Rows • Stamping Dimension Rows • Dimensions with Multi Valued Attributes • Combinations • Real Time Fact Table • Dealing with Currency Rates • Dealing with Status 75% Time, Questions

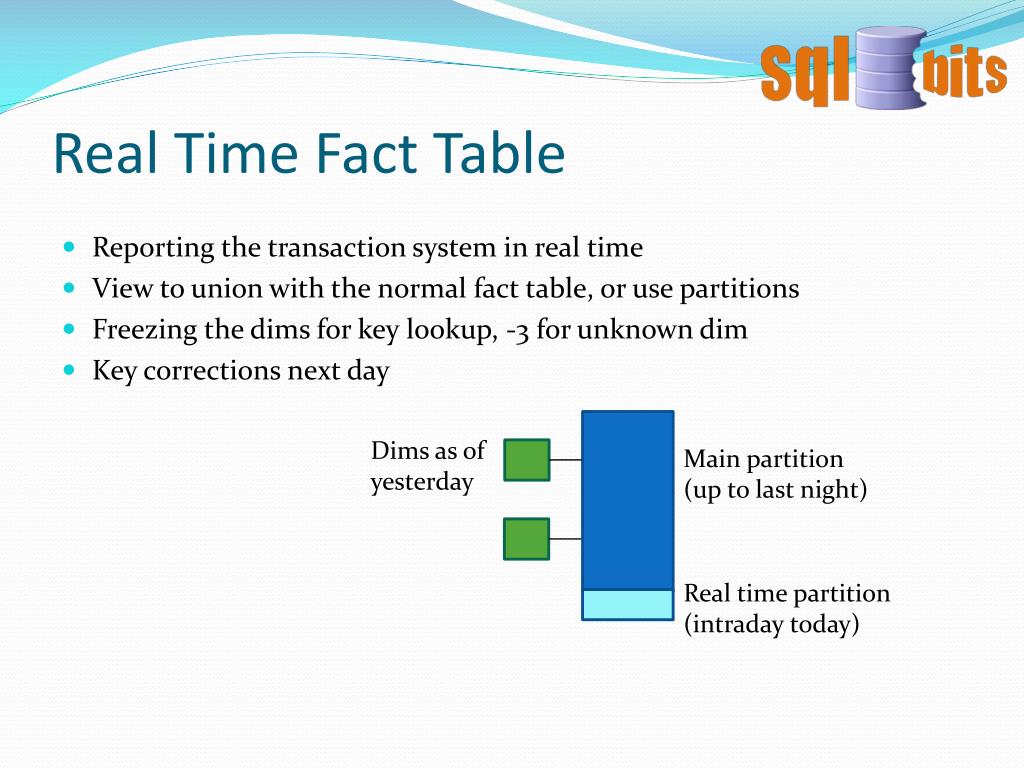

  38. Real Time Fact Table • Reporting the transaction system in real time • View to union with the normal fact table, or use partitions • Freezing the dims for key lookup, -3 for unknown dim • Key corrections next day Dims as of yesterday Main partition (up to last night) Real time partition (intraday today)

  39. Dealing with Currency Rates What for/background/requirements • Report in 3 reporting currencies, using today rates or past • Analyse over time without the impact of currency rates (using fixed currency rates, e.g. 2010 EOY rates) • Had the transactions happened today • FX historical analysis Reporting Currency DW Currency Transaction Currency Transaction Rates Reporting Rates 100 countries 40 currencies 3-4 currencies GBP, USD, EUR, Original 1 currency (many transaction dates) ( 1 reporting date)

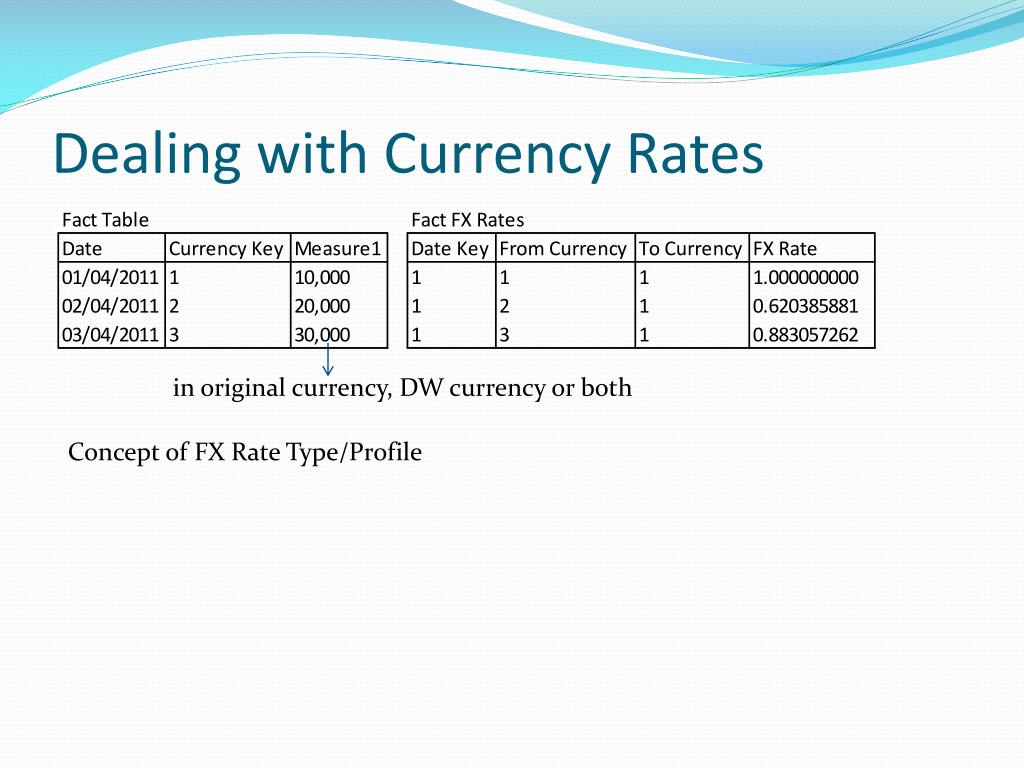

  40. Dealing with Currency Rates Approaches • Store in original currencies, convert to DW currency at runtime.Or convert at load, store in DW currency – inaccuracy. Or store in both original and DW currency • Currency rate fact table (date, currency, rate)Or store rates in the fact table • On report/cube: date input at run time (default = today) Fact Tables FX Fact Table

  41. Dealing with Currency Rates in original currency, DW currency or both Concept of FX Rate Type/Profile

  42. Dealing with Status What/background • Workflow (policies, contracts, documents) • Bottleneck analysis (no of days between stages) • How many on each stage Status 1 Status 2 Status 4 Status 6 date2 date3 date4 date1 Status 3 Status 5

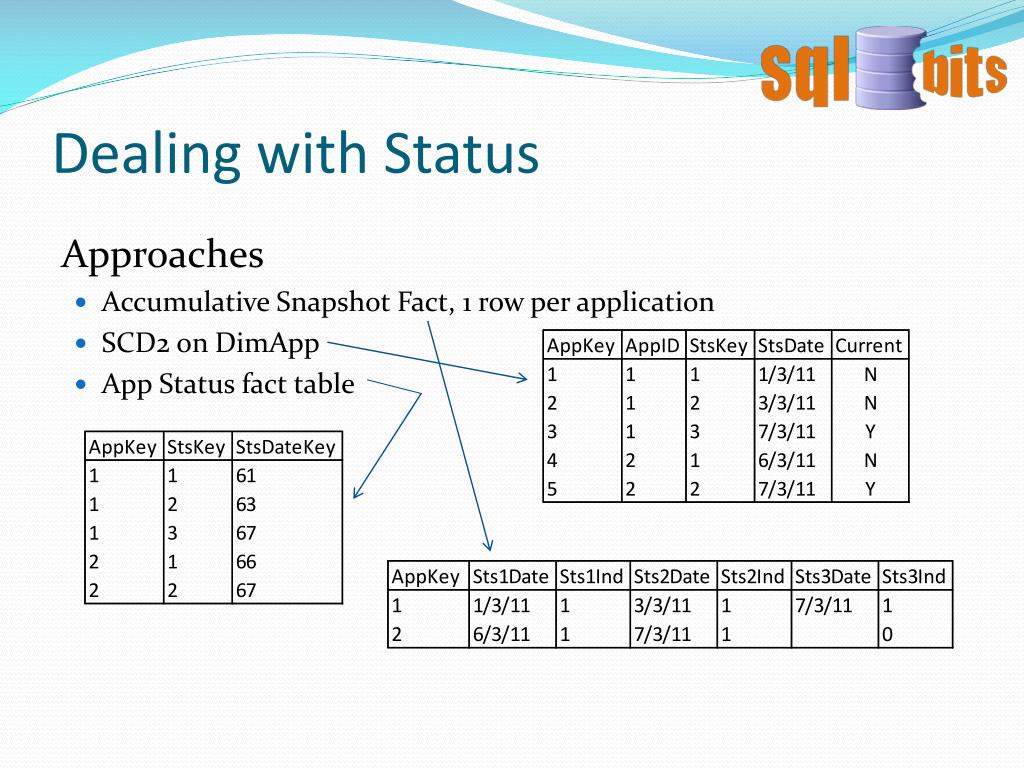

  43. Dealing with Status Approaches • Accumulative Snapshot Fact, 1 row per application • SCD2 on DimApp • App Status fact table

  44. Thanks • Email: vrainardi@gmail.com • Blog: http://dwbi1.wordpress.com • Special thanks to Guang Ming Xing and Simon Jensen who helped reviewing this presentation and provided useful comments.
