NET 424: REAL-TIME SYSTEMS ( Practical Part)

NET 424: REAL-TIME SYSTEMS ( Practical Part). Tutorial 5 : on lecture 4. Question 1. Assume there are 6 jobs given the following execution time and Absolute Deadline find the following for each job: 1. Latency 2. Tardiness 3. Average Latency L. Answer. 1-Latency = E(J) – D(J) :.

dakota
Télécharger la présentation

NET 424: REAL-TIME SYSTEMS ( Practical Part)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NET 424: REAL-TIME SYSTEMS (Practical Part) Tutorial 5 : on lecture 4 Networks and Communication Department

  2. Question 1 • Assume there are 6 jobs given the following execution time and Absolute Deadline find the following for each job: 1. Latency 2. Tardiness 3. Average Latency L Networks and Communication Department

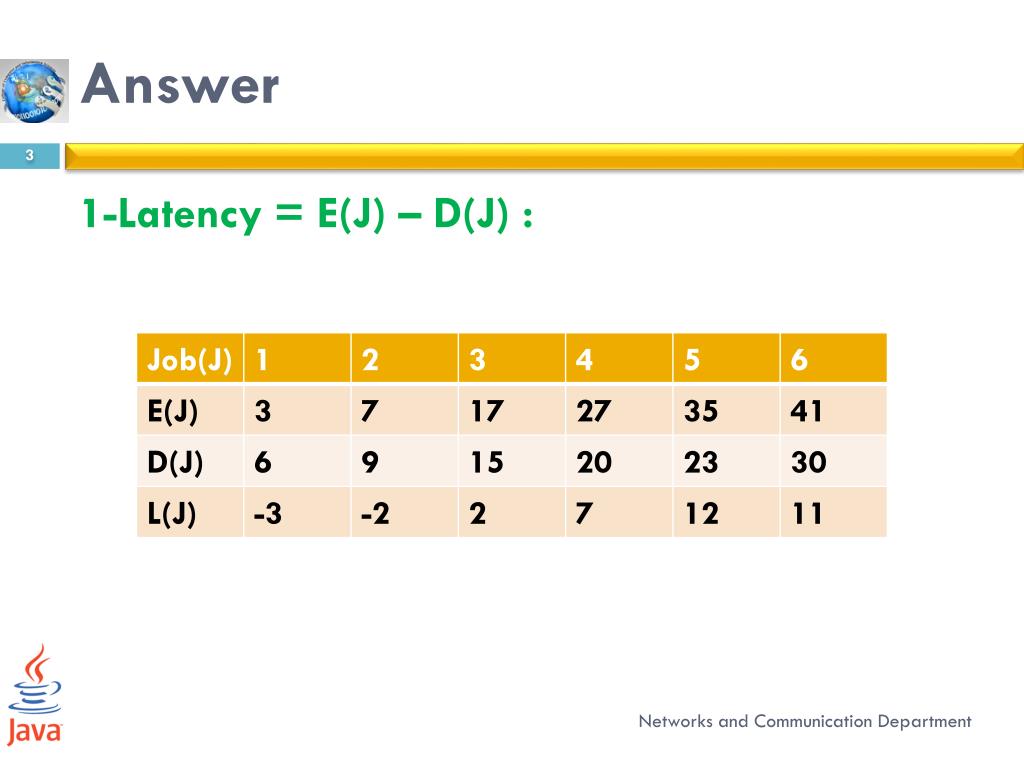

  3. Answer 1-Latency = E(J) – D(J) : Networks and Communication Department

  4. Answer (Cont.) 2. Tardiness (J) = Max [ 0, L(J) ] Networks and Communication Department

  5. Answer (Cont.) 3- Average(L)=L = sum( |L| ) / # of jobs L = ( 3 + 2 + 2 + 7+12+11) / 6 = 37 /6 = 6.16 Networks and Communication Department

  6. Question 2 By given 7 the tasks : A, B, C, D, E, F, G Construct the precedence graph A<C B<C C<E D<F B<D C<F D<G Networks and Communication Department

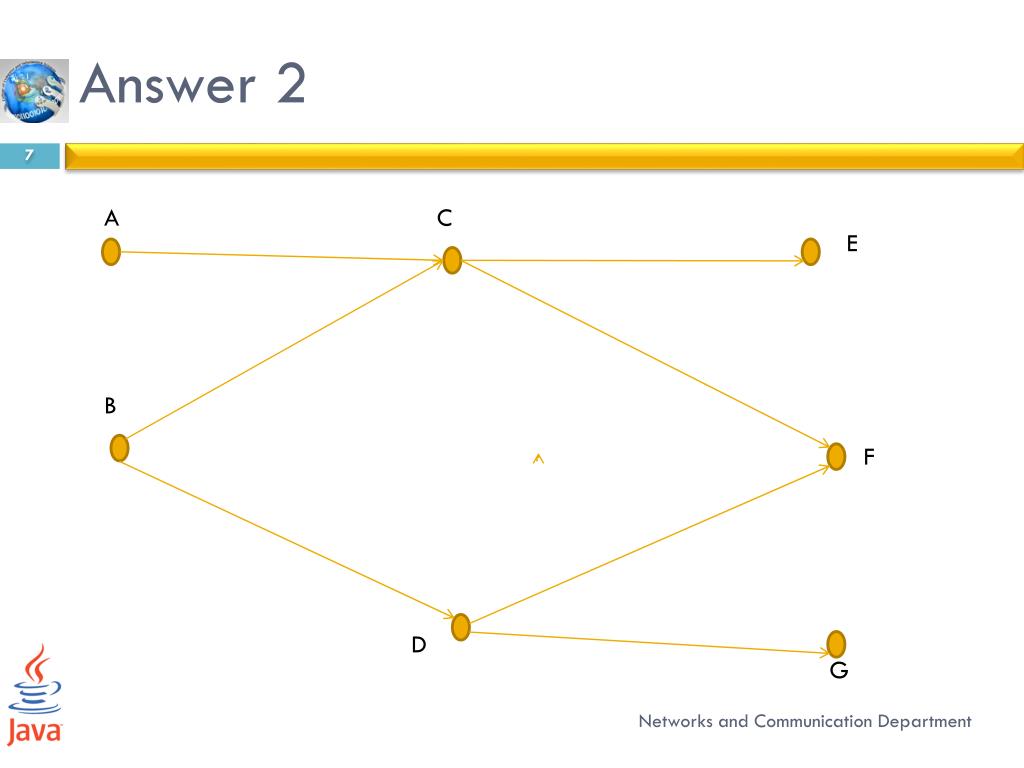

  7. Answer 2 A C E B F D G Networks and Communication Department
