Chapter 19 Real-Time Systems

1. Chapter 19 Real-Time Systems CS 540 Advanced Operating systems Instructor: Dr. Behzad Perviz Fall 2010 Presented By: Monali Bhavsar Amee Joshi

2. Real-Time Systems • System Characteristics • Features of Real-Time Systems • Implementing Real-Time Operating Systems • Real-Time CPU Scheduling • An Example: VxWorks 5.x

3. Objectives • To explain the timing requirements of real-time systems • To distinguish between hard and soft real-time systems • To discuss the defining characteristics of real-time systems • To describe scheduling algorithms for hard real-time systems

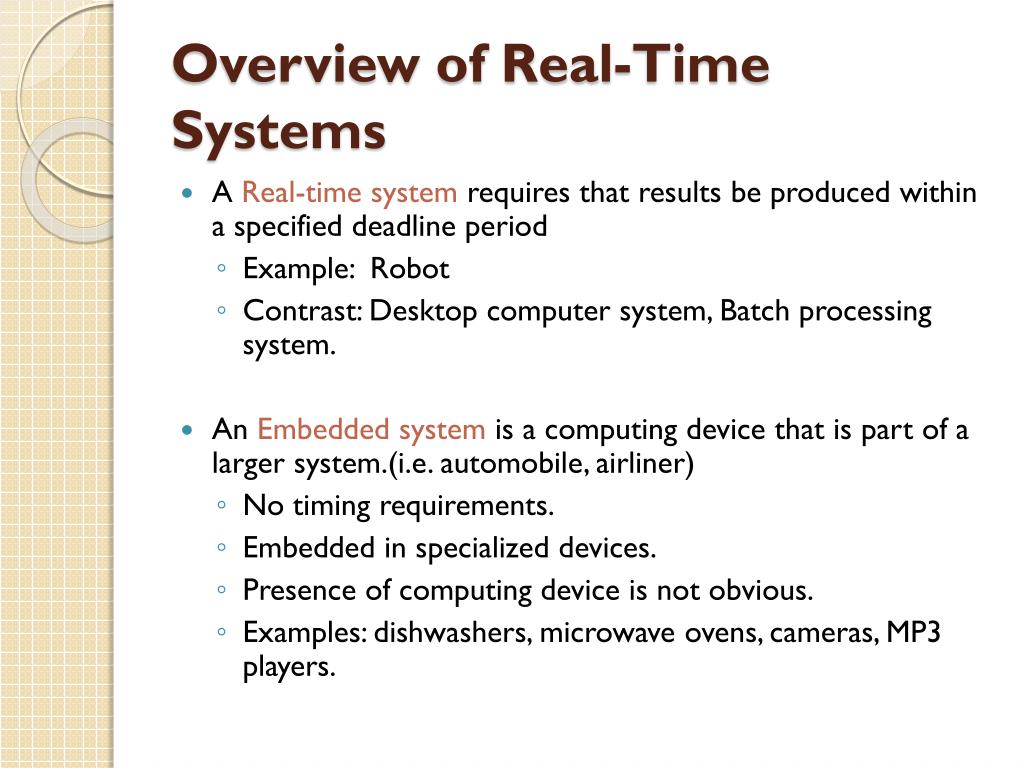

4. Overview of Real-Time Systems • A Real-time system requires that results be produced within a specified deadline period • Example: Robot • Contrast: Desktop computer system, Batch processing system. • An Embedded system is a computing device that is part of a larger system.(i.e. automobile, airliner) • No timing requirements. • Embedded in specialized devices. • Presence of computing device is not obvious. • Examples: dishwashers, microwave ovens, cameras, MP3 players.

5. Continue… • A Safety-critical system is a real-time system with catastrophic results in case of failure. • Weapons systems, antilock brake system, flight management system & health related systems. • System must respond to events by specific deadline period. • A Hard real-time system guarantees that real-time tasks be completed within their required deadlines. • Critical real time tasks be completed within their deadlines. • Safety critical systems are typically hard real time systems. • A Soft real-time system provides priority of real-time tasks over non real-time tasks. • Priority retain until task completed. • Linux and many OS provide soft real time system.

6. System Characteristics • Single purpose • Small size • Inexpensively mass-produced • Specific timing requirements

7. System Characteristics • Single purpose • Unlike PC’s real time systems serves single purpose. Design of it reflects single purpose and its simple. • Small size • Existing environment is constrained in physical space so CPU power and memory available is less then standard pc’s. • Real time systems run on 8- or 16- bit processors and less then megabytes of memory. • Footprint: amount of memory required to run the OS and its applications. • Real time systems must have small footprints. • Specific timing requirements • Real time operating systems meet timing requirements by using scheduling algorithms that gives real-time processes the highest scheduling priorities. • Priority of scheduling tasks does not degrade over time. • Technique for addressing timing requirements: minimize response time to events such as Interrupts.

8. System Characteristics • Inexpensively mass-produced • Real time systems are used in home appliances and consumer devices which are cost conscious environment, so microprocessors for real time systems must inexpensively mass produced. • Example: SOC. Bus Oriented System

9. System-on-a-Chip • Many real-time systems are designed using system-on-a-chip (SOC)strategy • SOC allows the CPU, memory, memory-management unit, and attached peripheral ports (I.e. USB) to be contained in a single integrated circuit. • Less expensive then bus oriented organization.

10. System-on-a-Chip

11. Features of Real-Time Kernels • Features provided by many operating systems are: • Support variety of peripheral devices • Protection and security mechanism • Multiple users Supporting these features results in large kernel. Example, Windows XP. • Most real-time systems do not provide the features found in a standard desktop system as above. • Reasons include • Real-time systems are typically single-purpose • Real-time systems often do not require interfacing with a user • Features found in a desktop PC require more substantial hardware that what is typically unavailable in a real-time system due to lack of memory and fast processors. • Both of these are unavailable in real time systems due to space constraints. • Addition to that many systems lack sufficient space to provide graphical displays or disk drives, they support file systems using NVRAM(Non Volatile RAM). • Features of desktop PC increase the cost of real time systems which makes systems economically impractical.

12. Virtual Memory in Real-Time Systems • Providing virtual memory features requires that the system include a Memory Management Unit(MMU). • MMUs increase the cost and power consumption. • Time required to translate logical address to physical address especially in case of Translation Look aside Buffer(TLB) miss – may be prohibited in hard real time systems. • Address translation may occur via: • Real-addressing mode where programs generate actual addresses • Relocation register mode • Implementing full virtual memory

13. Address Translation

14. Address Translation • Real-addressing mode: • CPU generates logical address L which must be mapped to physical address P. • Bypass the logical address and directly generate physical address. • Not employ virtual memory techniques so P equals L. • Problem: no memory protection between processes and programmers need to specify physical location of memory load. • Benefits: fast, no time spent on address translation. • Used in embedded systems with hard real time constraints.

15. Address Translation • Relocation register mode: • Same as Dynamic relocation register. • Relocation register R is set to memory location where a program is loaded. • Physical address P is generated by adding the contents of relocation register R to L. • Real time systems are configure the MMU to perform this way because MMU can easily translate logical addresses to physical addresses using P=L+R. • This system will also not provide memory protection between processes.

16. Address Translation • Implementing full virtual memory: • Address translation take place via page table and Translation Look aside buffer(TLB). • This strategy provides program to be loaded at any memory location & memory protection between two processes. • Without attaching disk drives not possible to provide all virtual memory features like Demand Paging and Swapping. • Contrast to that some system provides that using NVRAM. • Examples: LynxOS and OnCore Systems.

17. Implementing Real-Time Systems • In general, real-time operating systems must provide: • Preemptive, priority-based scheduling • Preemptive kernels • Latency must be minimized

18. Implementing Real-Time Systems • Preemptive, priority-based scheduling: • Important feature: must respond immediately to a real time process so system must support Priority-based algorithm with Preemption. • Priority based scheduling algorithms assign priority based on their importance. • If scheduler supports preemption, a process currently running on CPU will be preempted if a higher priority process will available to run. • Solaris, Windows XP & Linux systems assign highest scheduling priority to real time processes. • This will provide only soft real time functionality. For hard real time functionalities we need additional scheduling features to meet timing requirements.

19. Windows XP priorities: Windows XP has 32 different priority levels, the highest priority level values 16-31 are reserved for real time processes.

20. Implementing Real-Time Systems • Preemptive kernels: • Allows the Preemption of a task running in kernel mode. • Designing preemptive kernel is difficult so if quick response is not require its not implemented. Ex. Windows XP is non-Preemptive. • In Hard real time systems preemptive kernels are mandatory. • There are two strategies to make kernel preemptible: • First: Insert Preemption points in long duration system calls. • Preemption points can be placed at safe locations in kernel that is where kernel data structure is not modified. • Second: Use of synchronization mechanisms. • Any kernel data being updated are protected from modification by the high priority process so kernel will always preemptible.

21. Minimizing Latency • Event latency is the amount of time from when an event occurs to when it is serviced.

22. Interrupt Latency • Interrupt latency is the period of time from when an interrupt arrives at the CPU to when it is serviced.

23. Interrupt Latency • Important factor contributing to interrupt latency is the amount of time interrupts may be disabled while kernel data structures are being updated. • Real time operating systems required that interrupts be disabled for very short period of time. • In hard real time systems it must not only be minimized, it must in fact bounded to guarantee the deterministic behavior of hard real time systems.

24. Dispatch Latency • Dispatch latency is the amount of time required for the scheduler to stop one Process and start another

25. Dispatch Latency • If we want to provide real time tasks with immediate access to CPU mandates that operating system should minimize Dispatch latency. To keep Dispatch latency low, provide Preemptive kernels. • The Conflict phase of dispatch latency has two components: • Preemption of any process running in the kernel • Release by low priority processes of resources needed by a high-priority process. • Ex. Solaris. • One issue that can affect the dispatch latency arises when a higher priority process needs to read or modify kernel data that are currently being accessed by a lower priority process. Or a chain of lower priority processes. • Problem: Priority inversion. • Solved by: Priority-inheritance protocol.

26. Priority Inversion

27. Priority Inversion & Priority Inheritance

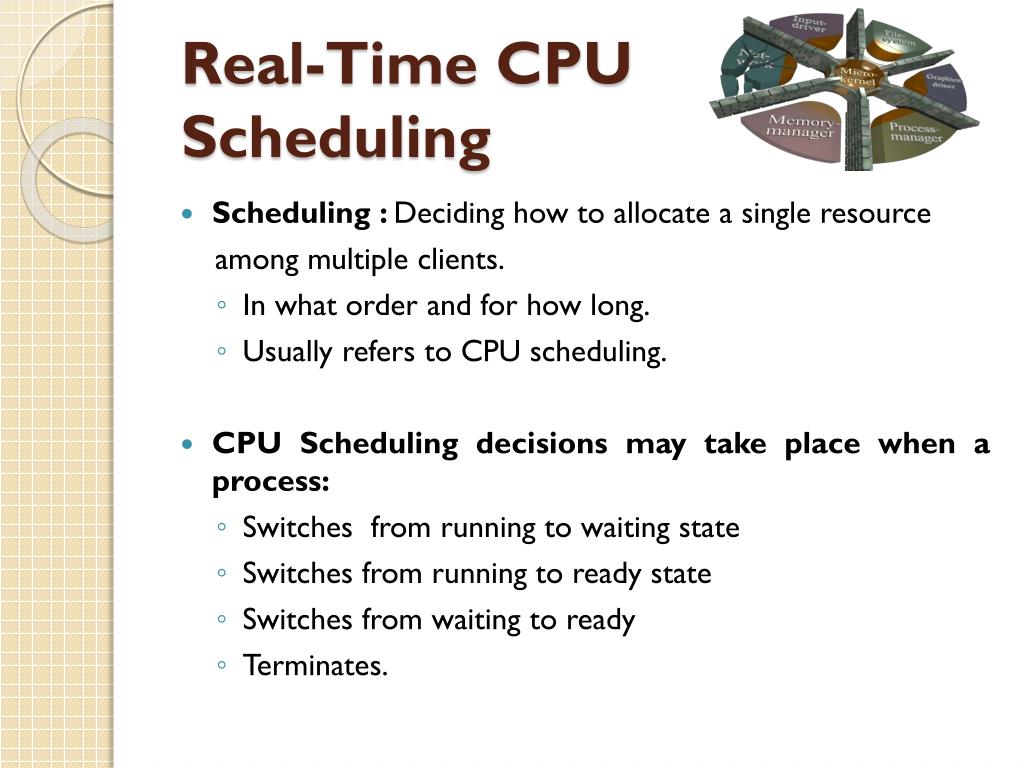

28. Real-Time CPU Scheduling • Scheduling : Deciding how to allocate a single resource among multiple clients. • In what order and for how long. • Usually refers to CPU scheduling. • CPU Scheduling decisions may take place when a process: • Switches from running to waiting state • Switches from running to ready state • Switches from waiting to ready • Terminates.

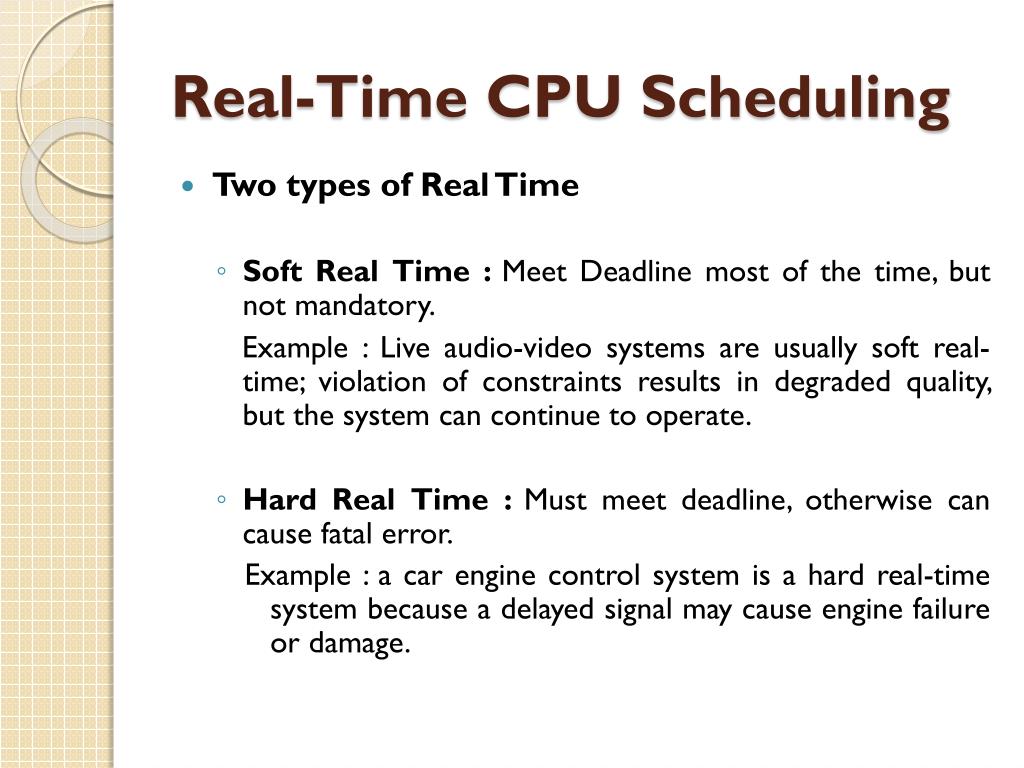

29. Real-Time CPU Scheduling • Two types of Real Time • Soft Real Time : Meet Deadline most of the time, but not mandatory. Example : Live audio-video systems are usually soft real-time; violation of constraints results in degraded quality, but the system can continue to operate. • Hard Real Time : Must meet deadline, otherwise can cause fatal error. Example : a car engine control system is a hard real-time system because a delayed signal may cause engine failure or damage.

30. Real-Time CPU Scheduling • Periodic processes require the CPU at specified intervals (periods) • p is the duration of the period • d is the deadline by when the process must be serviced • t is the processing time

31. Real-Time CPU Scheduling • Unusual about this scheduling is that a process may have to announce its deadline requirements to the scheduler. • Using Technique an Admission Control algorithm the scheduler • either admits the process, guaranteeing that the process will complete on time, • or rejects the request as impossible if it cannot guarantee that task will be serviced by its deadline.

32. Real Time CPU Scheduling Algorithms • Rate Monotonic Scheduling • Earliest Deadline First Scheduling • Proportional Share Scheduling • Pthread Scheduling

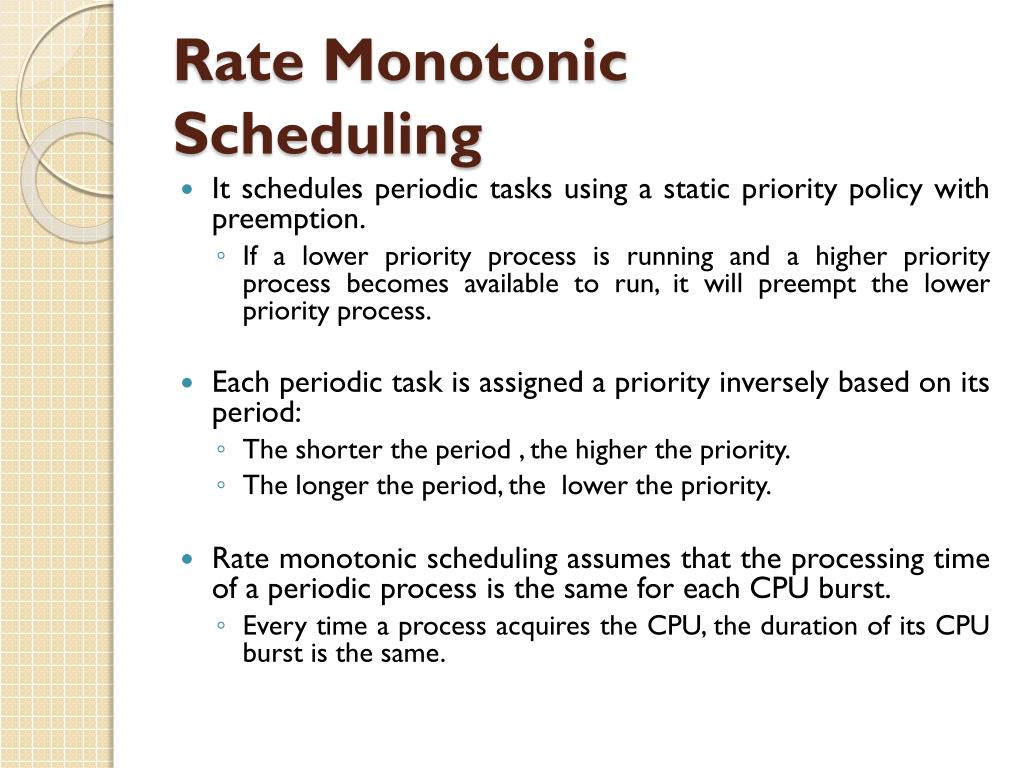

33. Rate Monotonic Scheduling • It schedules periodic tasks using a static priority policy with preemption. • If a lower priority process is running and a higher priority process becomes available to run, it will preempt the lower priority process. • Each periodic task is assigned a priority inversely based on its period: • The shorter the period , the higher the priority. • The longer the period, the lower the priority. • Rate monotonic scheduling assumes that the processing time of a periodic process is the same for each CPU burst. • Every time a process acquires the CPU, the duration of its CPU burst is the same.

34. Example • Two Processes P1 and P2. • The periods for p1 = 50 and p2 = 100. • The Processing times are t1 = 20 for P1 and t2 = 35 for P2. • The deadline for each process requires that it complete its CPU burst by the start of its next period. • The CPU utilization of a process Pi as the ratio of its burst to its period – ti/pi so, for P1 it is 20/50 = 0.40 and for P2 it is 35/100 = 0.35. so total CPU utilization of 75 percent. • First, suppose we assign P2 a higher priority than P1.

35. Example - continue • Now suppose we use rate monotonic scheduling, in which we assign P1 a higher priority than P2.

36. Missing Deadline with rate monotonic scheduling • Assume that Process P1 has a period of p1 = 50 and CPU burst of t1 = 25. • For P2, the corresponding values are p2 = 80 and t2 = 35. • The total CPU utilization of the two processes is (25/50) + (35/80) = 0.94.

37. Limitation • CPU utilization is bounded. • The worst case CPU utilization for scheduling N processes is 2(2^(1/n)-1). • With one process in the system, CPU utilization is 100 percent, but it falls to approximately 69 percent as the number of processes approaches infinity. • With two processes, CPU utilization is bounded at about 83 percent.

38. Earliest Deadline First Scheduling • It dynamically assigns priorities according to deadline. • The earlier the deadline, the higher the priority. • The later the deadline, the lower the priority. • If two tasks have the same absolute deadlines, chose one of the two at random (ties can be broken arbitrarily).

39. Example • Suppose we have two Process P1 and P2. • P1 has values of p1 = 50 and t1 = 25. • P2 has values of p2 = 80 and t2 = 35.

40. Unlike the rate monotonic algorithm, EDF scheduling does not require that processes be periodic, nor must a process require a constant amount of CPU time per burst.. • The only requirement is that a process announce its deadline to the scheduler when it becomes runnable. • The appeal of EDF scheduling is that, theoretically it can schedule processes so that each process can meet its deadline requirements and CPU utilization will be 100 percent. • It’s impossible due to the cost of context switching between processes and interrupt handling.

41. Proportional Share Scheduling • Associate a weight with each application and allocate CPU bandwidth proportional to weight • T shares are allocated among all processes in the system • An application receives N shares where N < T • This ensures each application will receive N / T of the total processor time Wt=2 Wt=1 Applications 2/3 1/3 CPU bandwidth

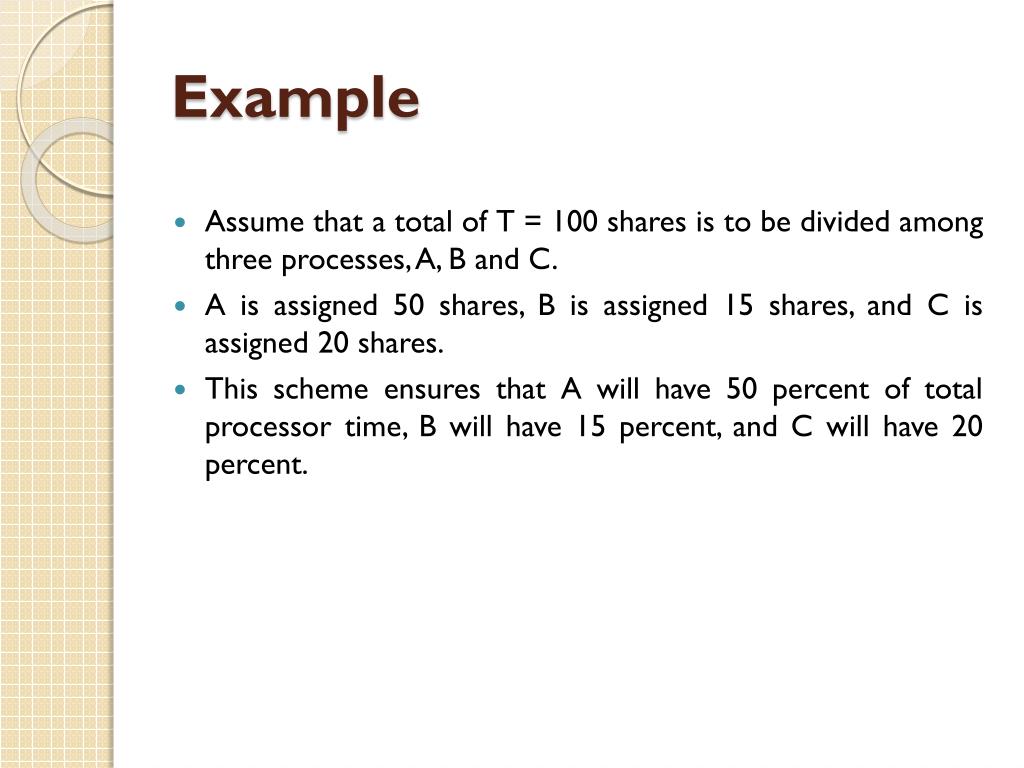

42. Example • Assume that a total of T = 100 shares is to be divided among three processes, A, B and C. • A is assigned 50 shares, B is assigned 15 shares, and C is assigned 20 shares. • This scheme ensures that A will have 50 percent of total processor time, B will have 15 percent, and C will have 20 percent.

43. Proportional Share Scheduling • Proportional Share Schedulers must work in conjunction with an admission control policy to guarantee that an application receives its allocated shares of time. • An admission control policy will only admit a client requesting a particular number of shares if there are sufficient shares available.

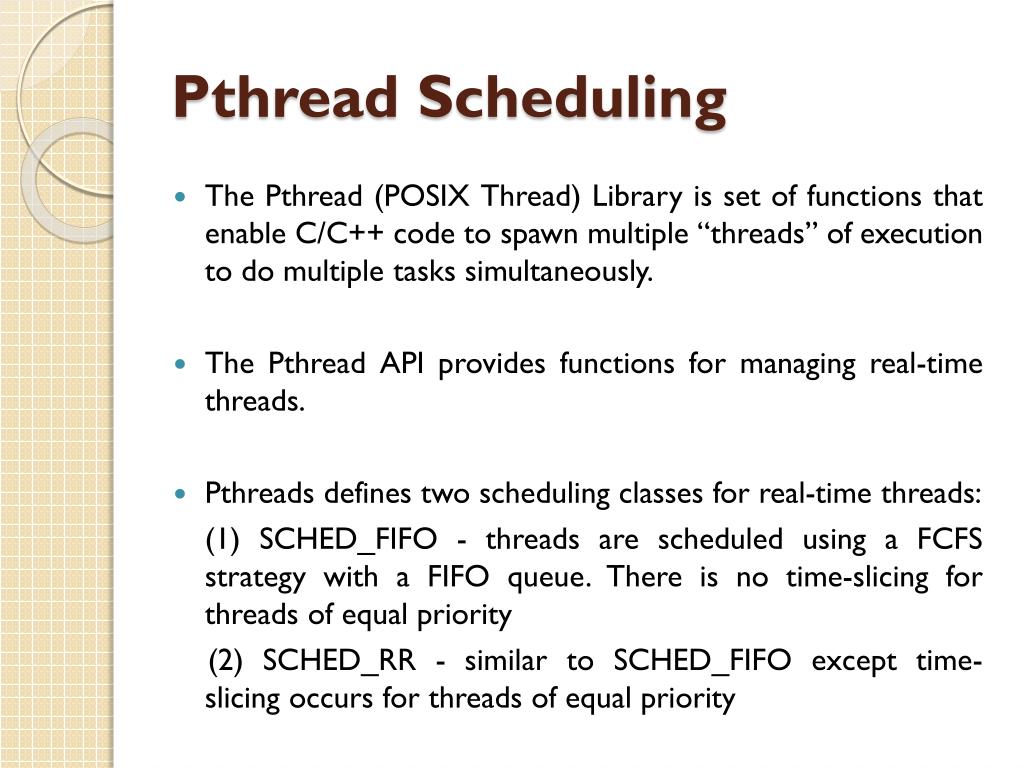

44. Pthread Scheduling • The Pthread (POSIX Thread) Library is set of functions that enable C/C++ code to spawn multiple “threads” of execution to do multiple tasks simultaneously. • The Pthread API provides functions for managing real-time threads. • Pthreads defines two scheduling classes for real-time threads: (1) SCHED_FIFO - threads are scheduled using a FCFS strategy with a FIFO queue. There is no time-slicing for threads of equal priority (2) SCHED_RR - similar to SCHED_FIFO except time-slicing occurs for threads of equal priority

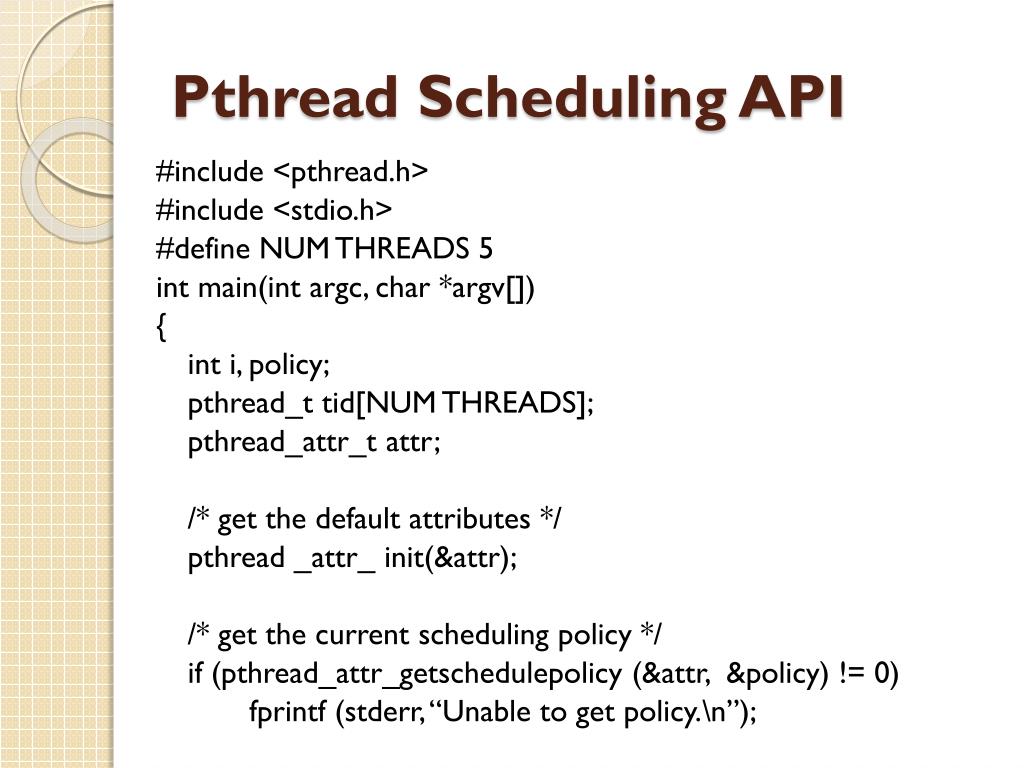

45. Pthread Scheduling API #include <pthread.h> #include <stdio.h> #define NUM THREADS 5 int main(int argc, char *argv[]) { int i, policy; pthread_t tid[NUM THREADS]; pthread_attr_t attr; /* get the default attributes */ pthread _attr_ init(&attr); /* get the current scheduling policy */ if (pthread_attr_getschedulepolicy (&attr, &policy) != 0) fprintf (stderr, “Unable to get policy.\n”);

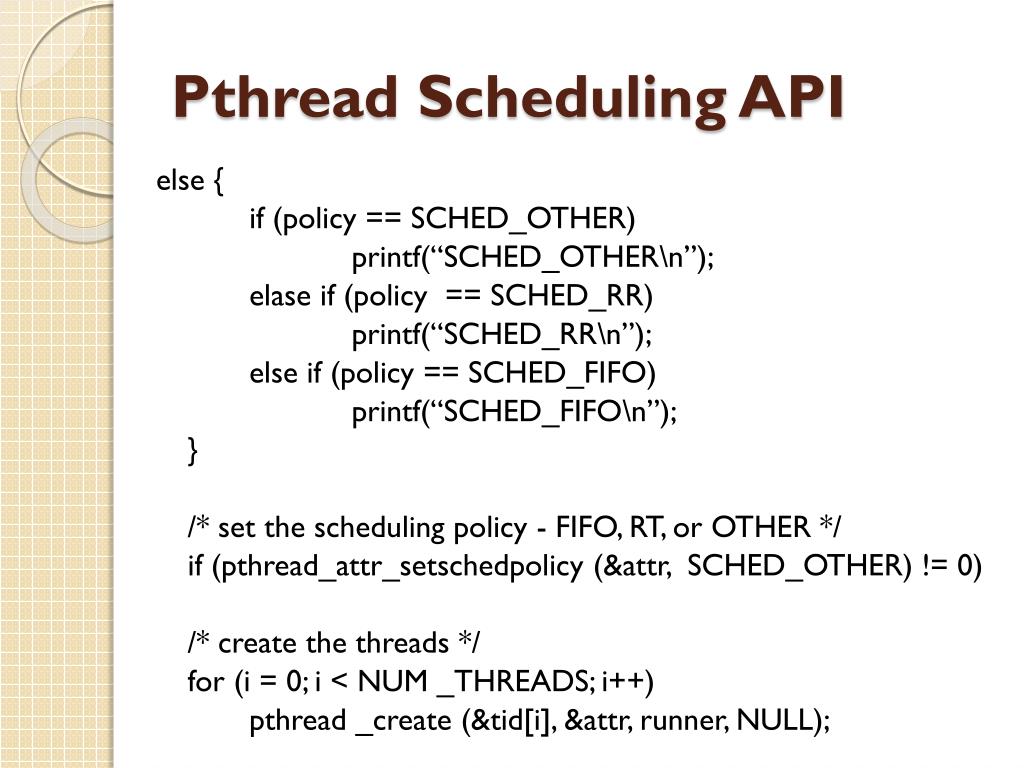

46. Pthread Scheduling API else { if (policy == SCHED_OTHER) printf(“SCHED_OTHER\n”); elase if (policy == SCHED_RR) printf(“SCHED_RR\n”); else if (policy == SCHED_FIFO) printf(“SCHED_FIFO\n”); } /* set the scheduling policy - FIFO, RT, or OTHER */ if (pthread_attr_setschedpolicy (&attr, SCHED_OTHER) != 0) /* create the threads */ for (i = 0; i < NUM _THREADS; i++) pthread _create (&tid[i], &attr, runner, NULL);

47. Pthread Scheduling API /* now join on each thread */ for (i = 0; i < NUM _THREADS; i++) pthread _join (tid[i], NULL); } /* Each thread will begin control in this function */ void *runner(void *param) { /* do some work … */ pthread _exit(0); }

48. An Example: VxWorks 5.x • A popular real-time operating system providing hard real-time support. • Commercially developed by Wind River Systems. • It is widely used in automobiles, consumer and industrial devices, and networking equipment such as switches and routers. • It is also used to control the two rovers – Spirit and Opportunity – that began exploring the planet Mars in 2004.

49. The Organization of VxWorks

50. Wind Microkernel • The Wind microkernel provides support for the following: (1) Processes and threads using Pthread API; (2) preemptive and non-preemptive round-robin scheduling; (3) manages interrupts (with bounded interrupt and dispatch latency times); (4) shared memory and message passing as communication between separate tasks. Also allows tasks to communicate using a technique known as pipes. Also provides semaphores and mutex locks with a priority inheritance protocol to prevent priority inversion.
