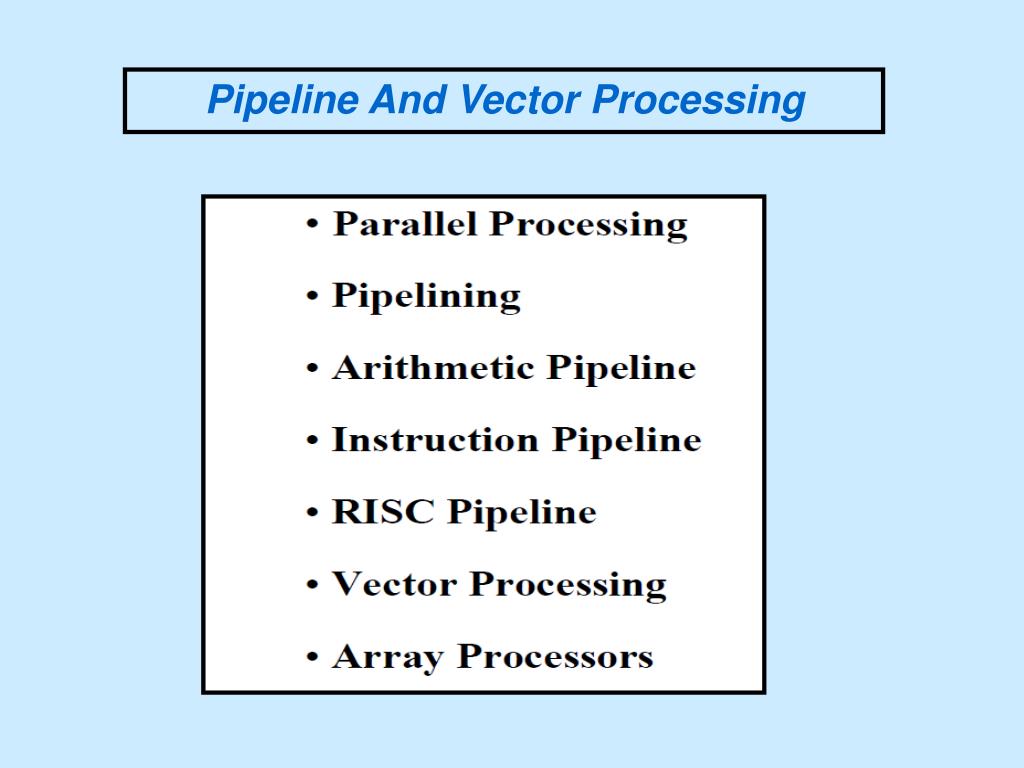

  1. Pipeline And Vector Processing

  2. Parallel Processing Execution of Concurrent Events in the computing process to achieve faster Computational Speed The purpose of parallel processing is to speed up the computer processing capability and increase its throughput, that is, the amount of processing that can be accomplished during a given interval of time. The amount of hardware increases with parallel processing, and with it, the cost of the system increases. However, technological developments have reduced hardware costs to the point where parallel processing techniques are economically feasible.

  3. Parallel processing according to levels of complexity At the lower level Serial Shift register VS parallel load registers At the higher level Multiplicity of functional units that performer identical or different operations simultaneously.

  4. Parallel Computers

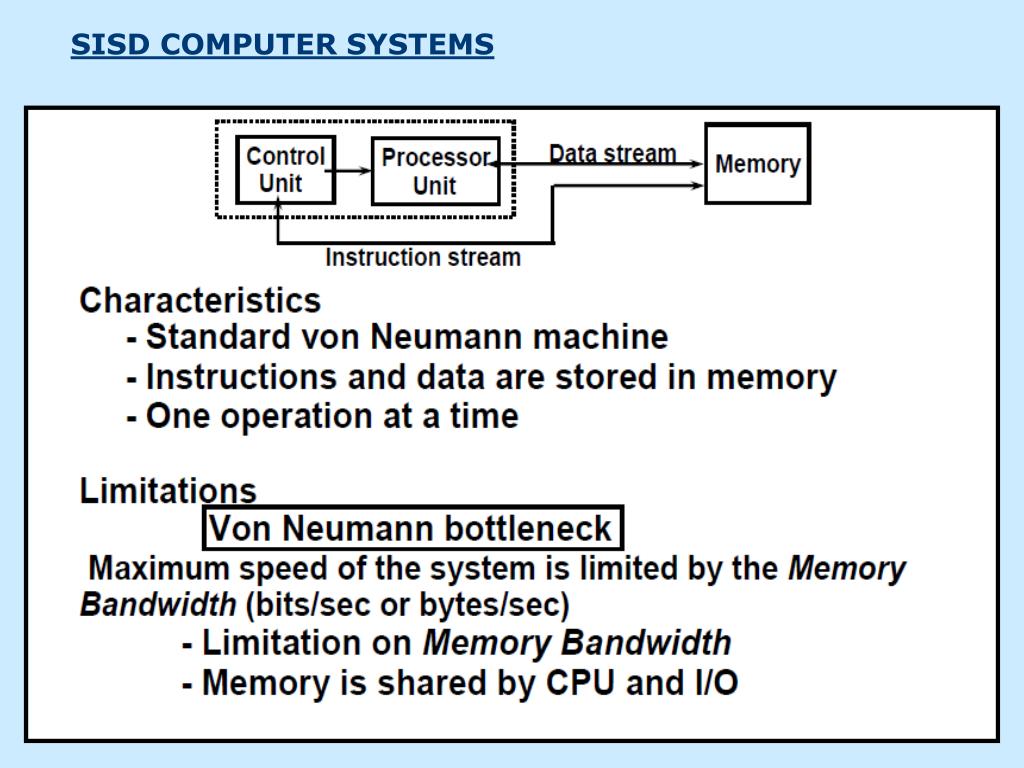

  5. SISD COMPUTER SYSTEMS

  6. Von Neumann Architecture

  7. MISD COMPUTER SYSTEMS

  8. SIMD COMPUTER SYSTEMS

  9. MIMD COMPUTER SYSTEMS

  10. PIPELINING A technique of decomposing a sequential process into suboperations, with each subprocess being executed in a partial dedicated segment that operates concurrently with all other segments. A pipeline can be visualized as a collection of processing segments through which binary information flows. The name “pipeline” implies a flow of information analogous to an industrial assembly line.

  11. Example of the Pipeline Organization

  12. OPERATIONS IN EACH PIPELINE STAGE

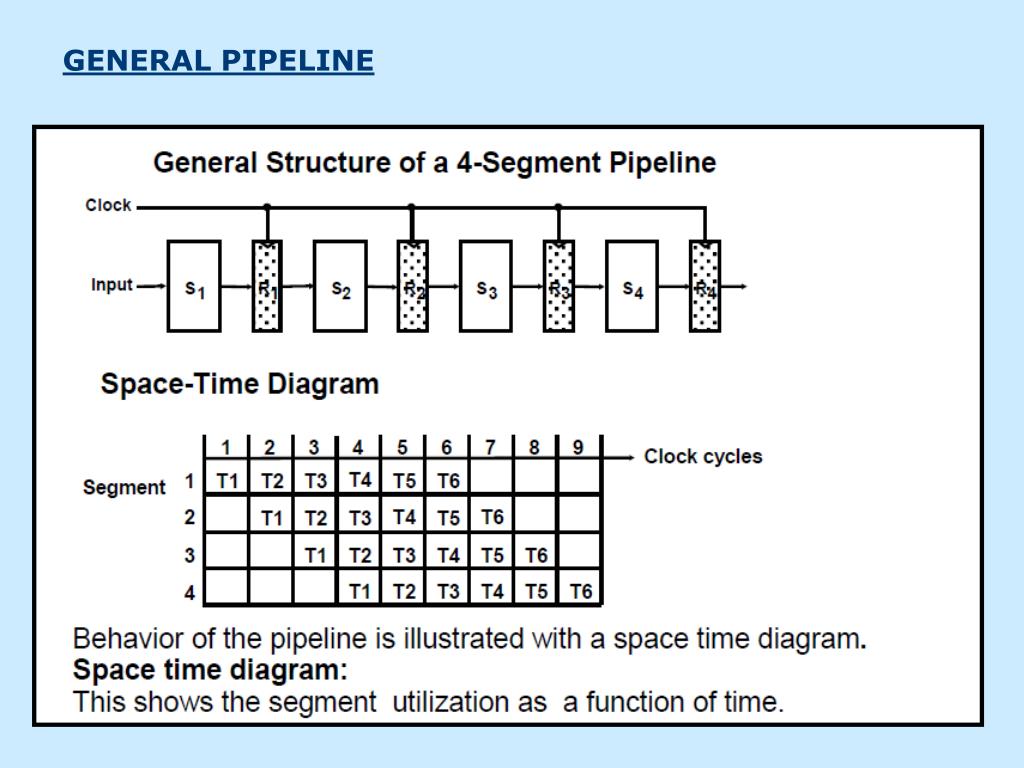

  13. GENERAL PIPELINE

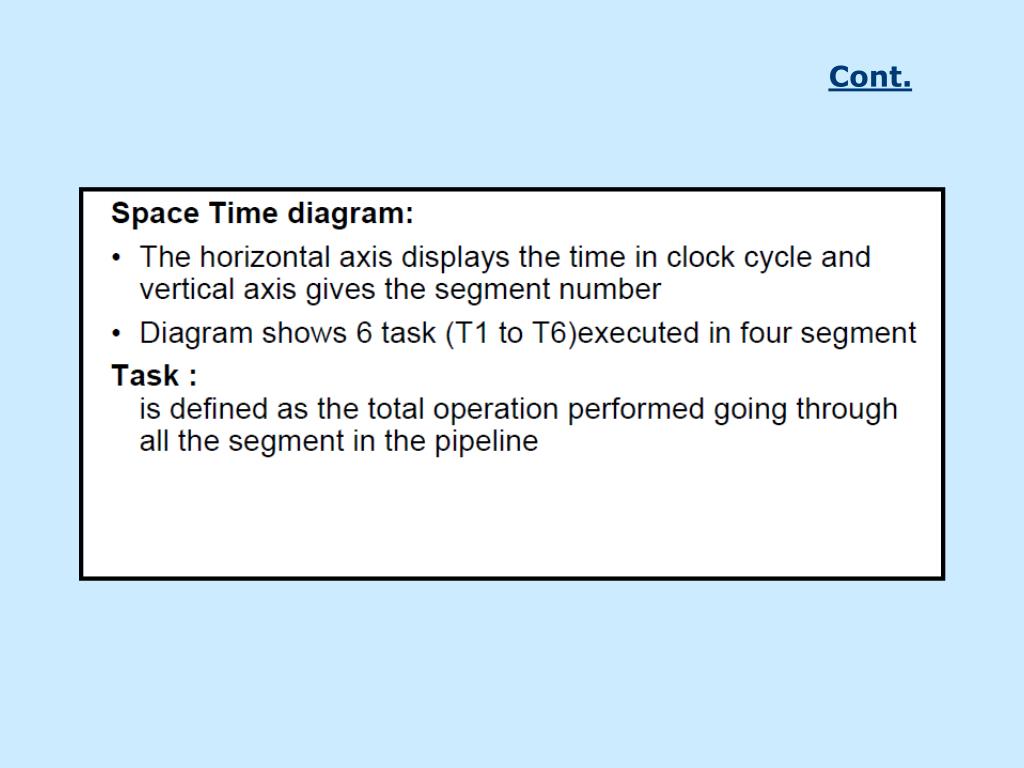

  14. Cont.

  15. Speedup ratio of pipeline

  16. Cont.

  17. PIPELINE AND MULTIPLE FUNCTION UNITS

  18. Cont.

  19. ARITHMETIC PIPELINE

  20. Cont. See the example in P. 310

  21. INSTRUCTION CYCLE

  22. INSTRUCTION PIPELINE

  23. INSTRUCTION EXECUTION IN A 4-STAGE PIPELINE

  24. Pipeline

  25. Space time diagram

  26. MAJOR HAZARDS IN PIPELINED EXECUTION Structural hazards (Resource Conflicts): Hardware resources required by the instructions simultaneous overlapped execution cannot be met. Data hazards (Data Dependency Conflicts): An instruction scheduled to be executed in the pipeline requires the result of a previous instruction, which is not yet available. Control hazards (Branch difficulties): Branches and other instructions that change the PC make the fetch of the next instruction to be delayed.

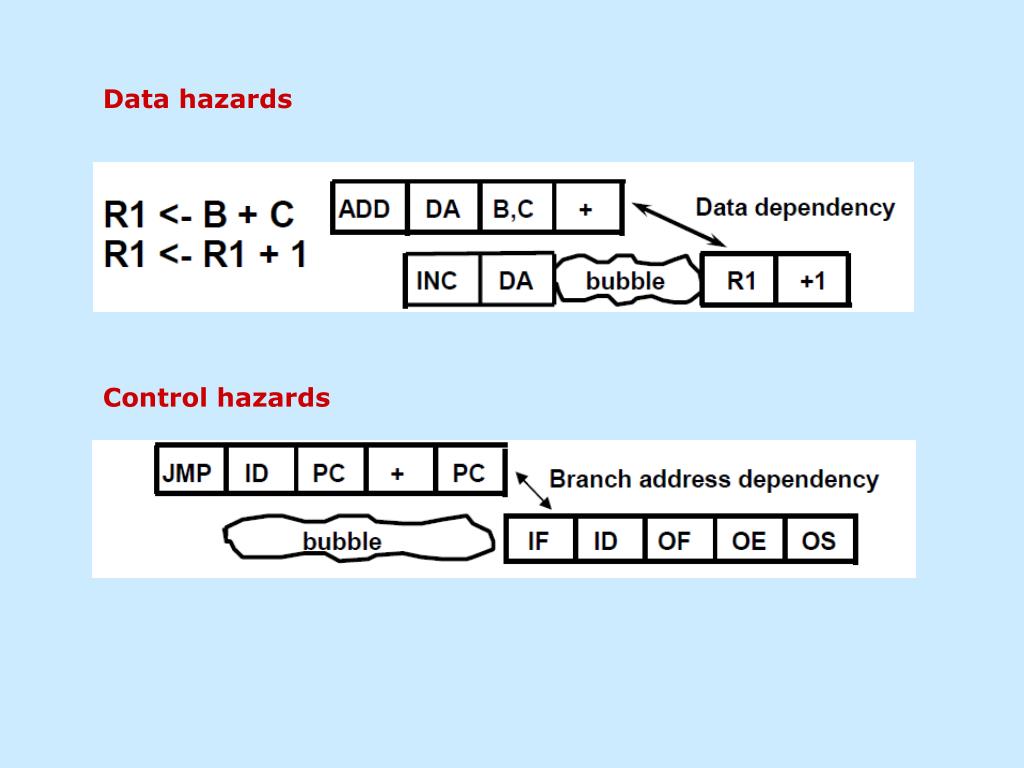

  27. Data hazards Control hazards

  28. STRUCTURAL HAZARDS Occur when some resource has not been duplicated enough to allow all combinations of instructions in the pipeline to execute. Example: With one memory-port, a data and an instruction fetch cannot be initiated in the same clock. The Pipeline is stalled for a structural hazard <- Two Loads with one port memory -> Two-port memory will serve without stall

  29. DATA HAZARDS

  30. FORWARDING HARDWARE

  31. INSTRUCTION SCHEDULING

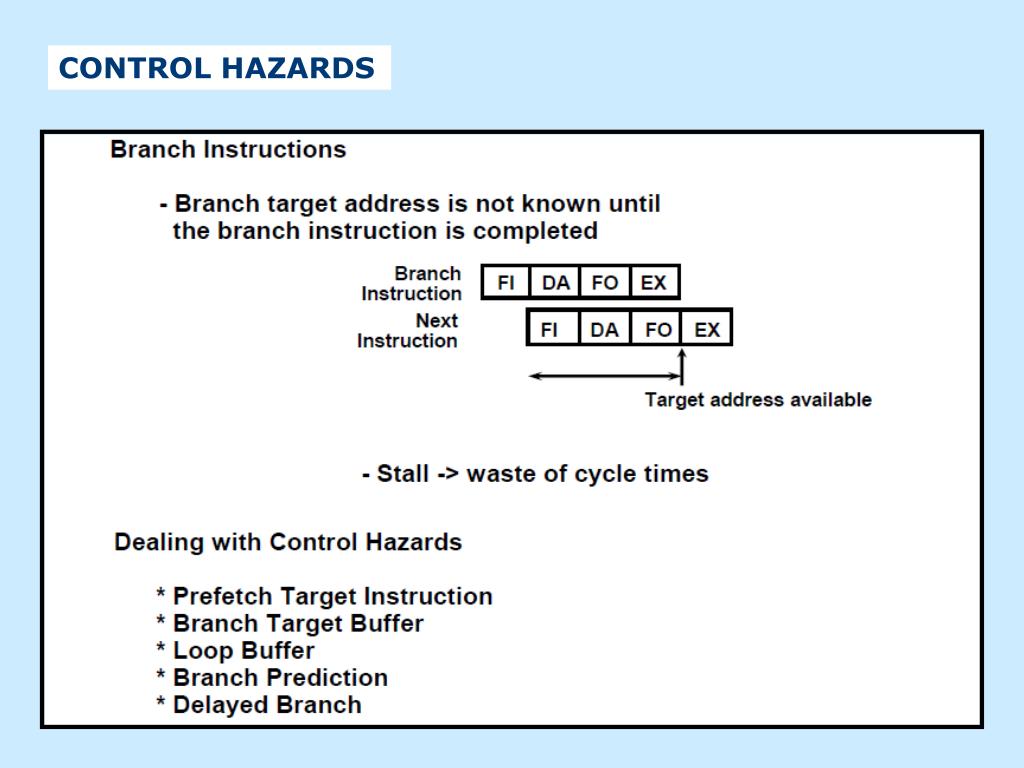

  32. CONTROL HAZARDS

  33. CONTROL HAZARDS

  34. CONTROL HAZARDS

  35. VECTOR PROCESSING There is a class of computational problems that are beyond the capabilities of conventional computer. These problems are characterized by the fact that they require a vast number of computations that will take a conventional computer days or even weeks to complete.

  36. VECTOR PROCESSING

  37. VECTOR PROGRAMMING

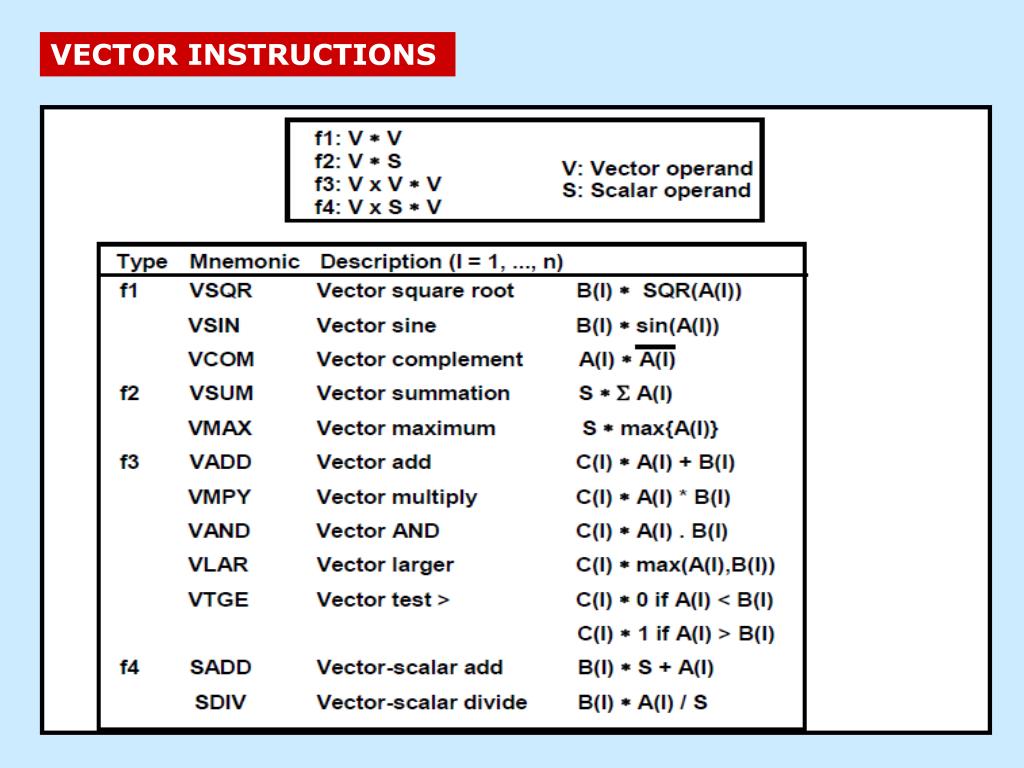

  38. VECTOR INSTRUCTIONS

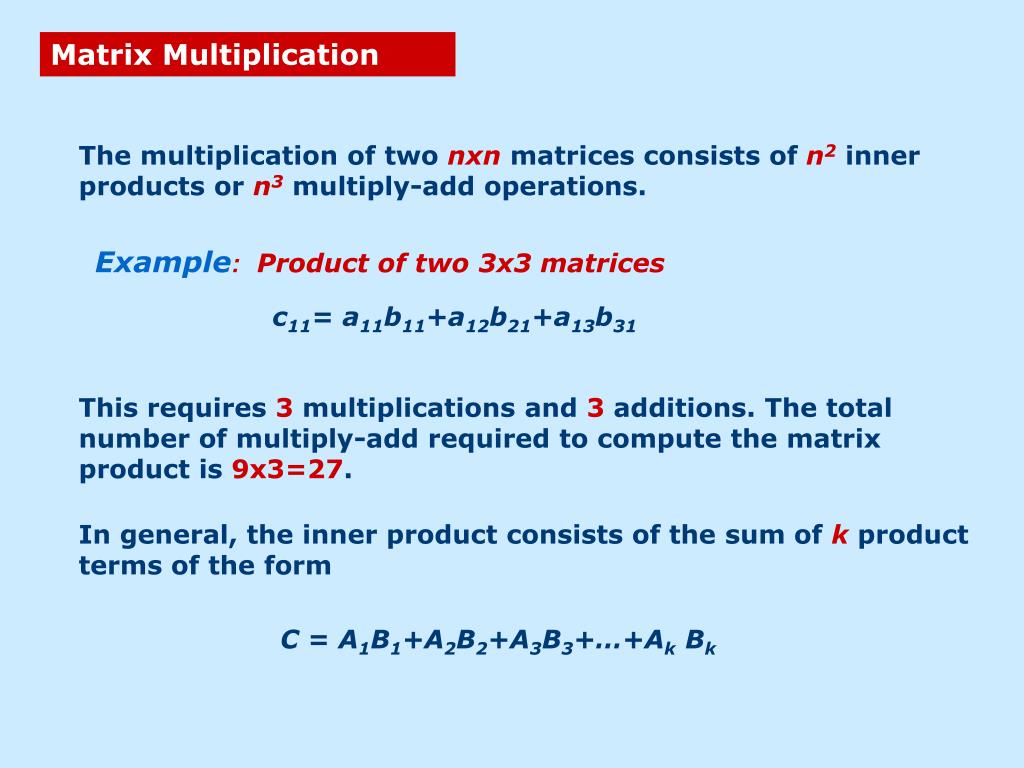

  39. Matrix Multiplication The multiplication of two nxn matrices consists of n2 inner products or n3 multiply-add operations. Example: Product of two 3x3 matrices c11= a11b11+a12b21+a13b31 This requires 3 multiplications and 3 additions. The total number of multiply-add required to compute the matrix product is 9x3=27. In general, the inner product consists of the sum of k product terms of the form C = A1B1+A2B2+A3B3+…+Ak Bk

  40. C = A1B1+A5B5+A9B9+A13 B13+… +A2B2+A6B6+A10B10+A14 B14+… +A3B3+A7B7+A11B11+A15 B15+… +A4B4+A8B8+A12B12+A16 B16+…

  41. VECTOR INSTRUCTION FORMAT

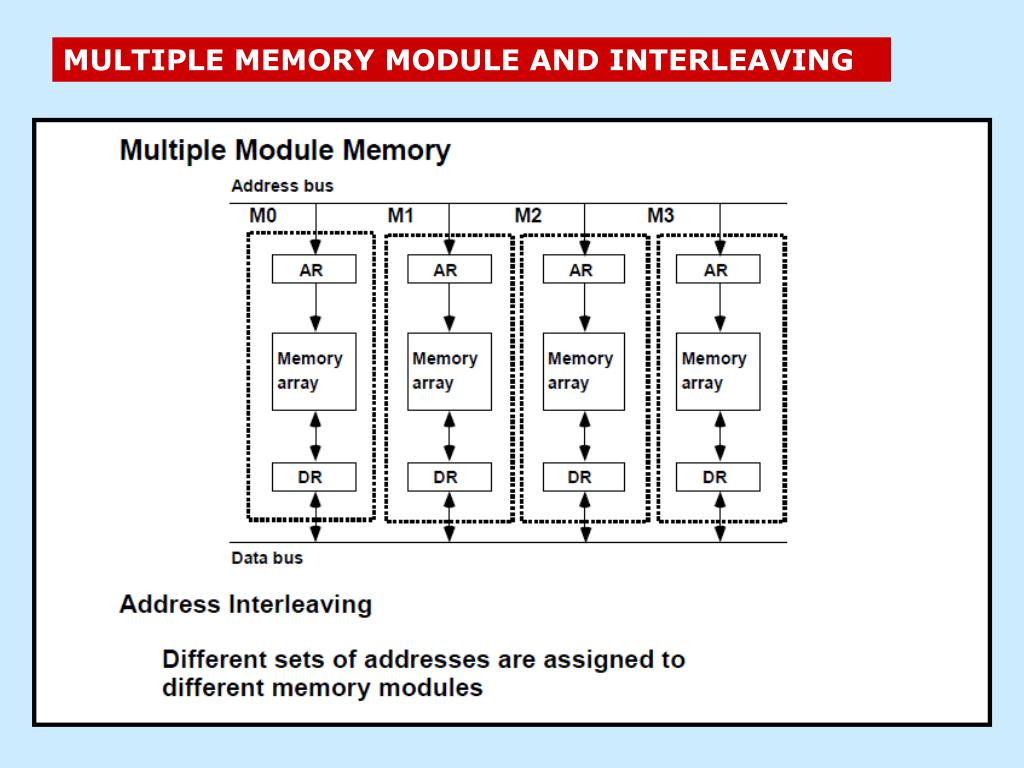

  42. MULTIPLE MEMORY MODULE AND INTERLEAVING

  43. MULTIPLE MEMORY MODULE AND INTERLEAVING

  44. MULTIPLE MEMORY MODULE AND INTERLEAVING

  45. ARRAY PROCESSOR

  46. attached array processor with host computer

  47. SIMD array processor Organization

  48. Don’t forget, try to solve the questions of the chapter
