TEAM 1kDesign overview LBNL group 8/25/09
Sensor • TEAM 1k 1024x1024 • 16 outputs • Vhigh, Vlow

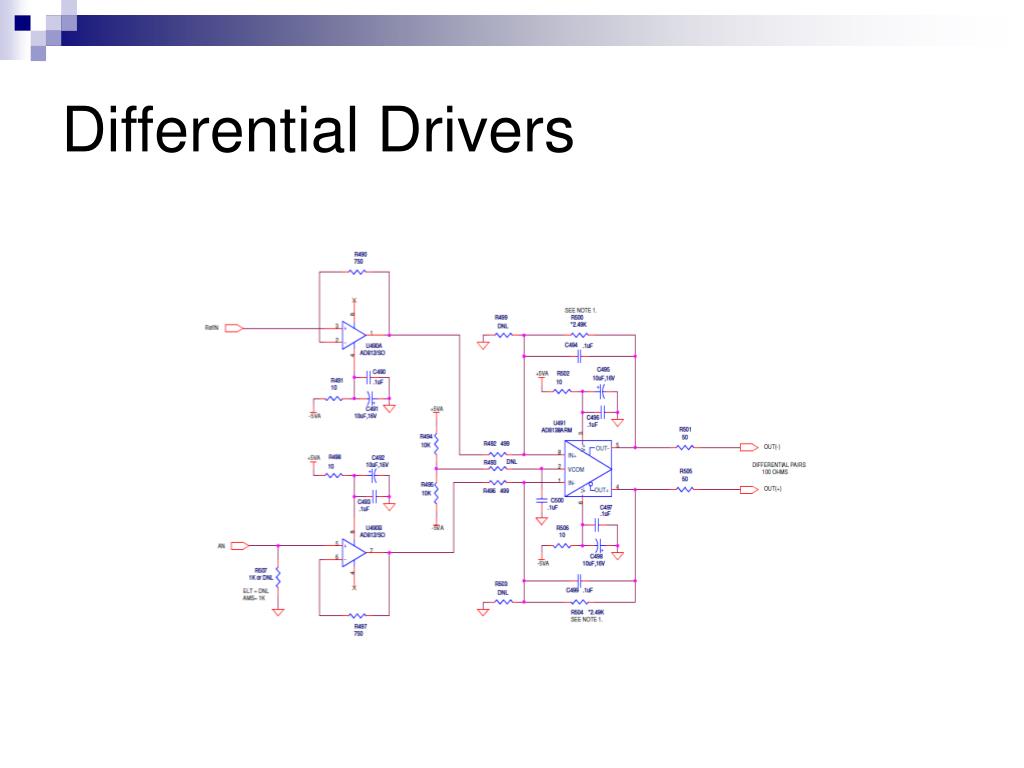

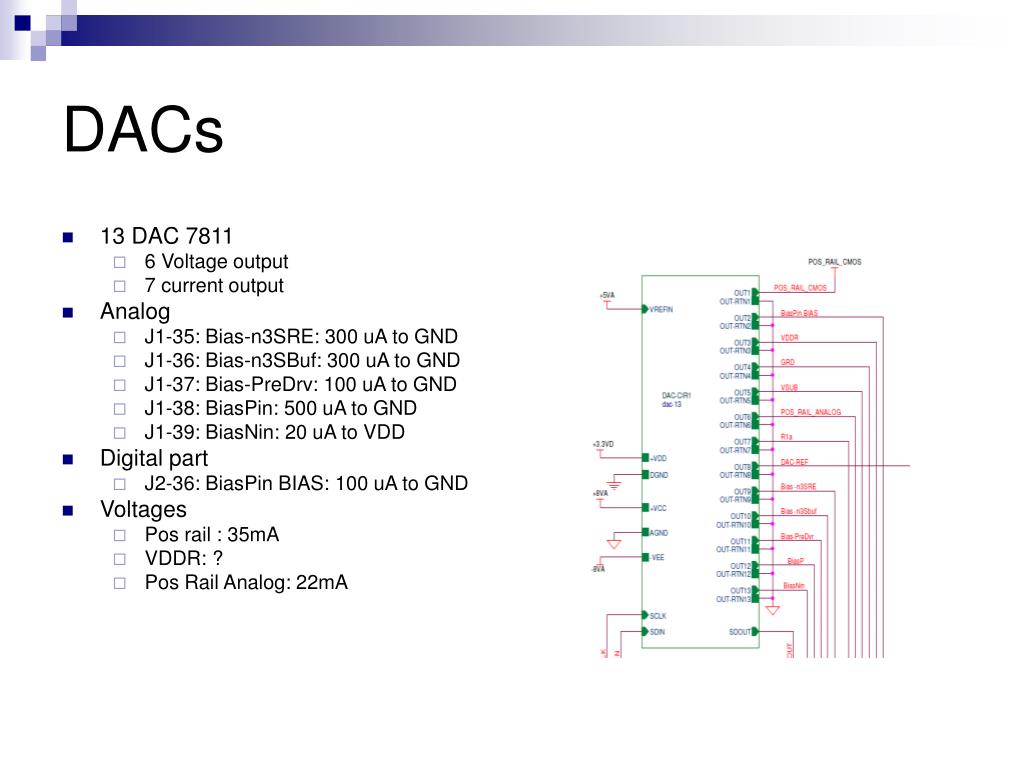

DACs • 13 DAC 7811 • 6 Voltage output • 7 current output • Analog • J1-35: Bias-n3SRE: 300 uA to GND • J1-36: Bias-n3SBuf: 300 uA to GND • J1-37: Bias-PreDrv: 100 uA to GND • J1-38: BiasPin: 500 uA to GND • J1-39: BiasNin: 20 uA to VDD • Digital part • J2-36: BiasPin BIAS: 100 uA to GND • Voltages • Pos rail : 35mA • VDDR: ? • Pos Rail Analog: 22mA
DAC7811 *For voltage buffer OPA277 (U612 in this picture) was substituted by BUF63
Clock wave forms External signals are only Reset (RINIT), CCk1, CCk2
