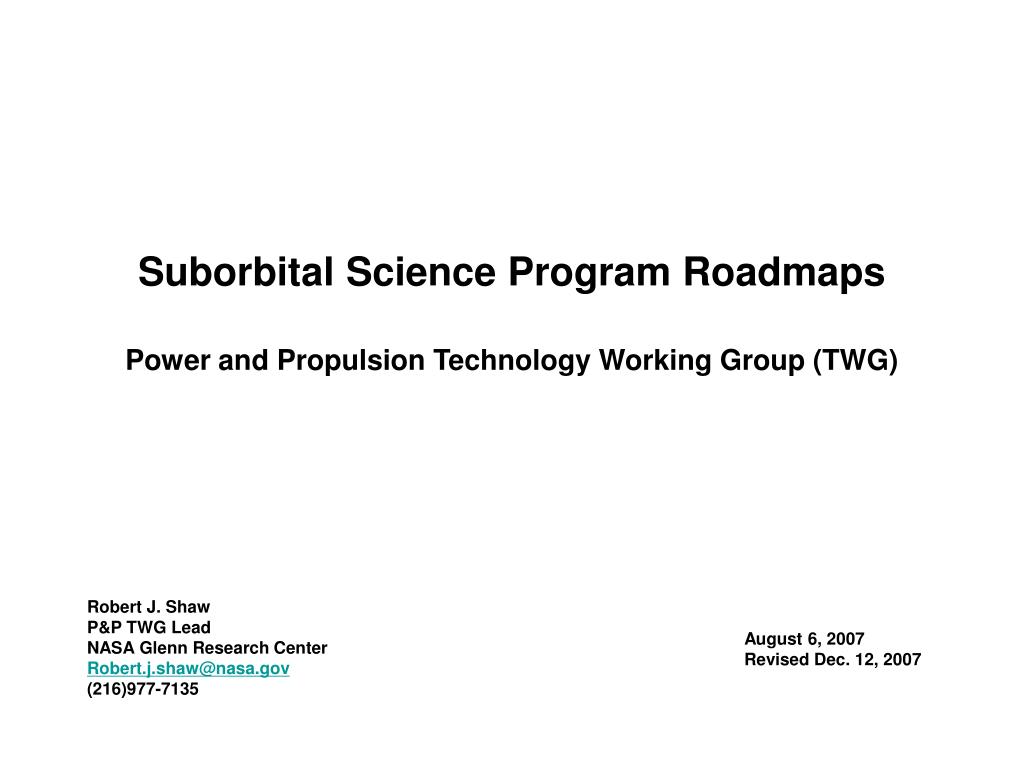

  1. Suborbital Science Program RoadmapsPower and Propulsion Technology Working Group (TWG) Robert J. Shaw P&P TWG Lead NASA Glenn Research Center Robert.j.shaw@nasa.gov (216)977-7135 August 6, 2007 Revised Dec. 12, 2007

  2. So What Charts

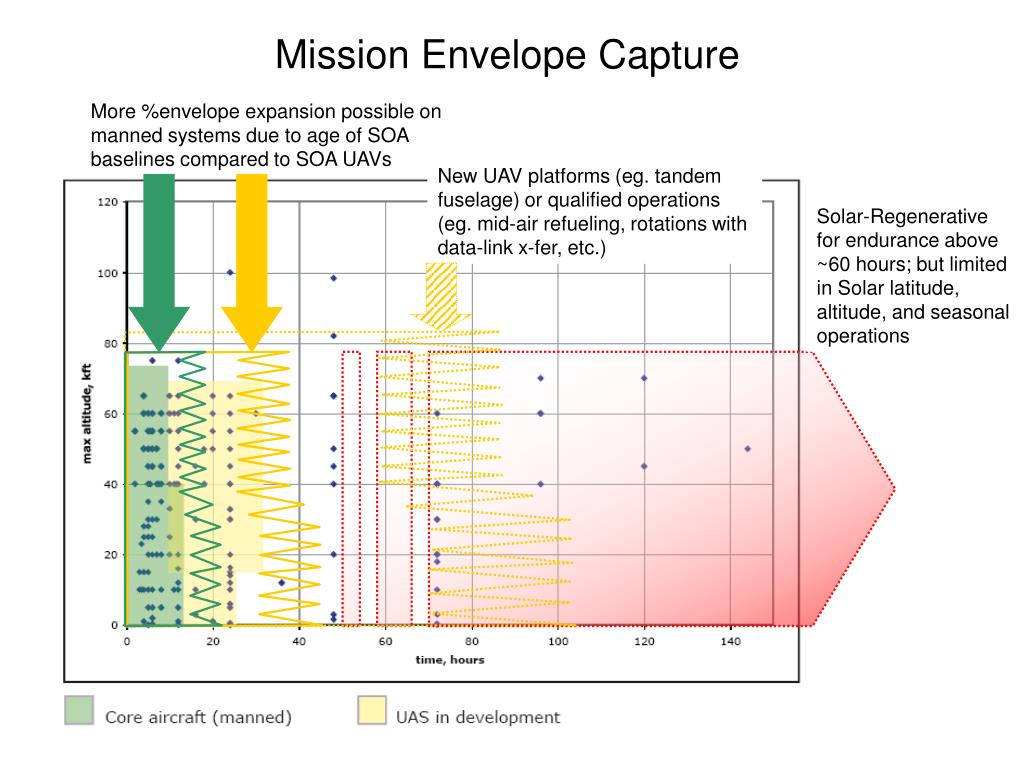

  3. Mission Envelope Capture More %envelope expansion possible on manned systems due to age of SOA baselines compared to SOA UAVs New UAV platforms (eg. tandem fuselage) or qualified operations (eg. mid-air refueling, rotations with data-link x-fer, etc.) Solar-Regenerative for endurance above ~60 hours; but limited in Solar latitude, altitude, and seasonal operations

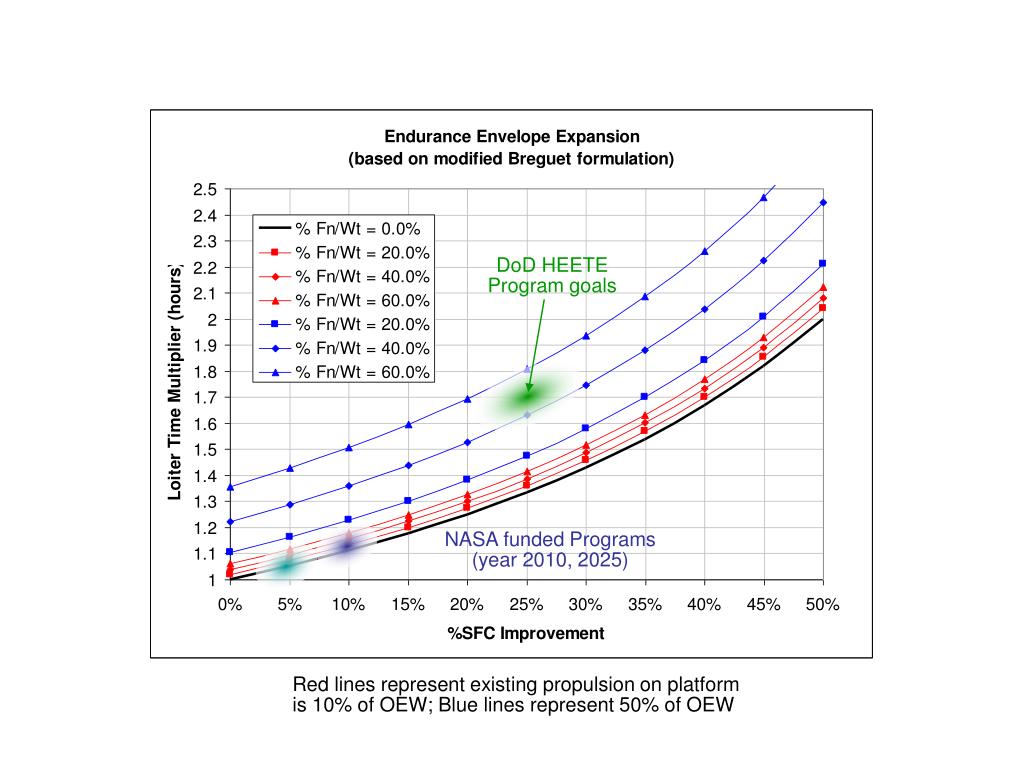

  4. DoD HEETE Program goals NASA funded Programs (year 2010, 2025) Red lines represent existing propulsion on platform is 10% of OEW; Blue lines represent 50% of OEW

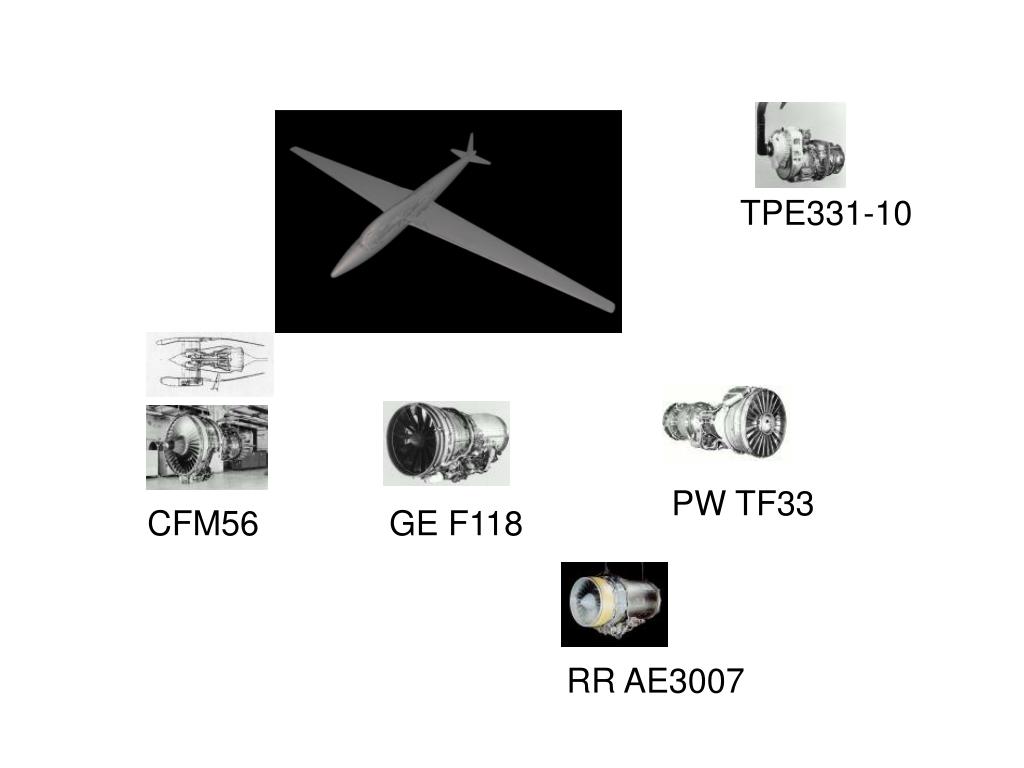

  5. TPE331-10 PW TF33 CFM56 GE F118 RR AE3007

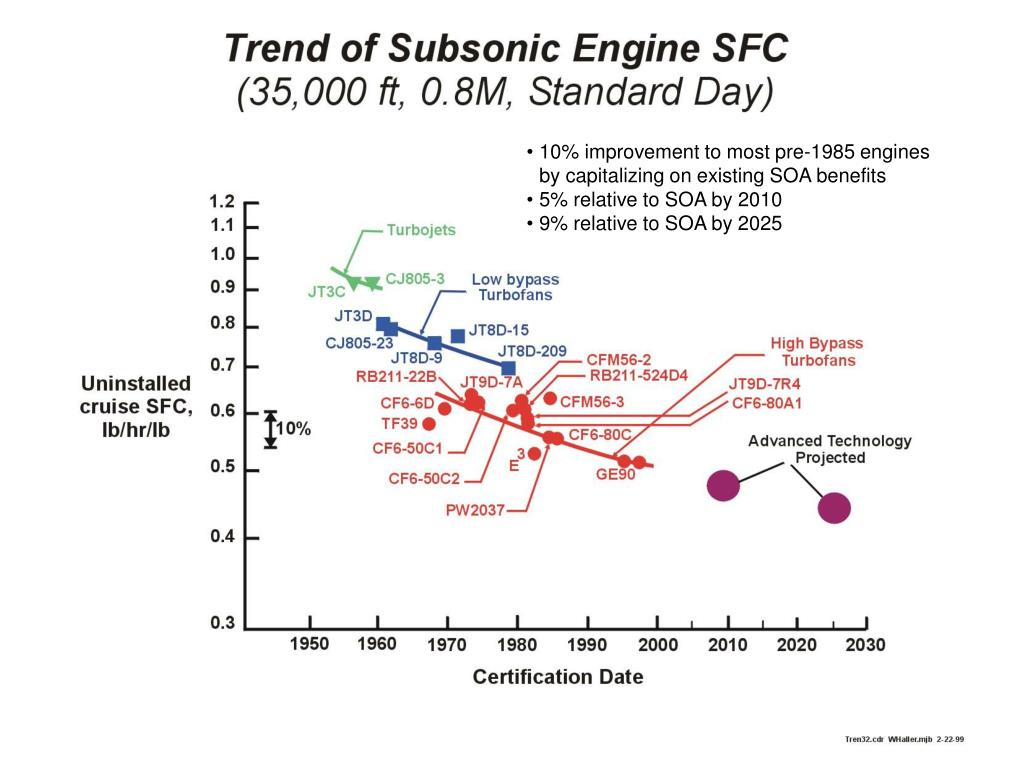

  6. 10% improvement to most pre-1985 engines by capitalizing on existing SOA benefits • 5% relative to SOA by 2010 • 9% relative to SOA by 2025

  7. TWG Roadmap Exercise

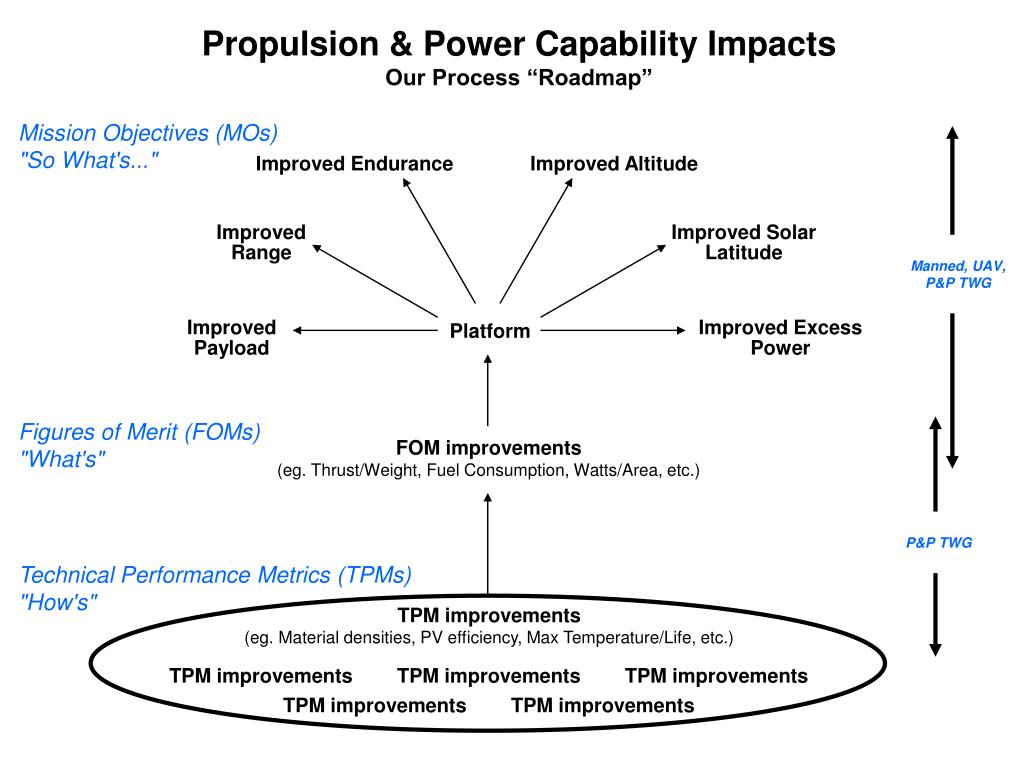

  8. Propulsion & Power Capability Impacts Our Process “Roadmap” Mission Objectives (MOs) "So What's..." Improved Endurance Improved Altitude Improved Range Improved Solar Latitude Manned, UAV, P&P TWG Improved Payload Platform Improved Excess Power Figures of Merit (FOMs) "What's" FOM improvements (eg. Thrust/Weight, Fuel Consumption, Watts/Area, etc.) P&P TWG Technical Performance Metrics (TPMs) "How's" TPM improvements (eg. Material densities, PV efficiency, Max Temperature/Life, etc.) TPM improvements TPM improvements TPM improvements TPM improvements TPM improvements

  9. UAV Platforms ? “Best Achievable per Figures of Merit” Information reconciled using NASA quotes, Websources, and Jane's Manuals

  10. UAV Propulsion & Power Figures of Merit

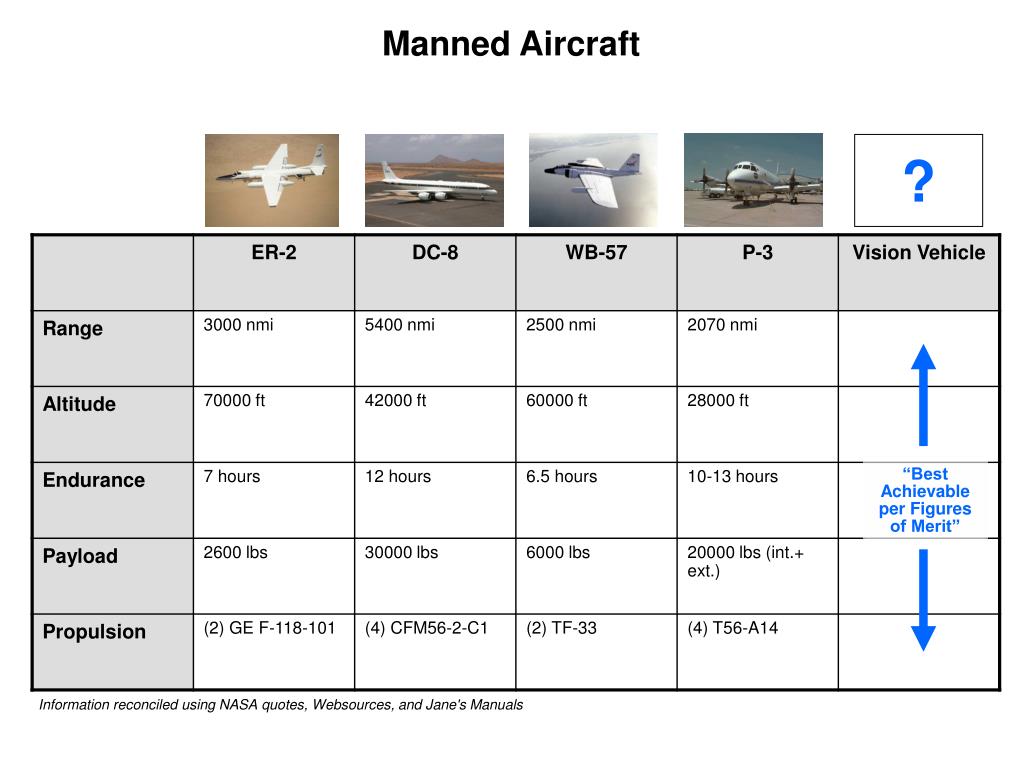

  11. Manned Aircraft ? “Best Achievable per Figures of Merit” Information reconciled using NASA quotes, Websources, and Jane's Manuals

  12. Manned Aircraft Propulsion & Power Figures of Merit

  13. Suborbital Science Program Power and Propulsion Technology Roadmap Turbine Engine Focus DRAFT Future Programs TBD DoD VAATE Program-HEETE element* 25% TSFC reduction relative to baseline turbine engines (TRL6) *VAATE-Versatile Advanced Affordable Turbine Engine HEETE-Highly Efficient Embedded Turbine Engine Sfc reductions (current and new turbine systems) will result in range, endurance, and payload improvements NASA Fundamental Aeronautics relevant technology contributions TSFC Improvement Incremental improvements to current turbine engine systems (Typically 1% sfc improvement per year 2006 2008 2010 2012 2014 2016 2020

  14. Suborbital Science Program Power and Propulsion Technology Roadmap Turbine Engine Focus DRAFT Future Programs TBD DoD VAATE Program-HEETE element* 50% T/W reduction relative to baseline turbine engines (TRL6) *VAATE-Versatile Advanced Affordable Turbine Engine HEETE-Highly Efficient Embedded Turbine Engine T/W reductions (current and new turbine systems) will result in range, endurance, and payload improvements NASA Fundamental Aeronautics relevant technology contributions T/W Improvement Incremental improvements to current turbine engine systems (Typically X% T/W improvement per year 2006 2008 2010 2012 2014 2016 2020

  15. Suborbital Science Program Power and Propulsion Technology Roadmap Turboprop Engine Focus DRAFT TPM Improvement NASA High Altitude Propeller Research TRL5 How can we show external to NASA accomplishments? 2006 2008 2010 2012 2014 2016 2020

  16. Suborbital Science Program Power and Propulsion Technology Roadmap IC Engine Focus DRAFT TPM Improvement NASA High Altitude Propeller Research TRL5 How can we show external to NASA accomplishments? 2006 2008 2010 2012 2014 2016 2020

  17. Suborbital Science Program Power and Propulsion Technology Roadmap Fuel-Cell Focus DRAFT ? NASA H2:O2 Regen Fuel Cell 400 WH/kg 100 WH/kg TRL6 ? NASA H2:O2 PEM Fuel Cell (Primary) TRL6 NASA Bi Electrode Supported Solid Oxide Fuel Cell TPM Improvement TRL4 How can we show external to NASA accomplishments? Need cool graphics!!!!!!!! 2006 2008 2010 2012 2014 2016 2020

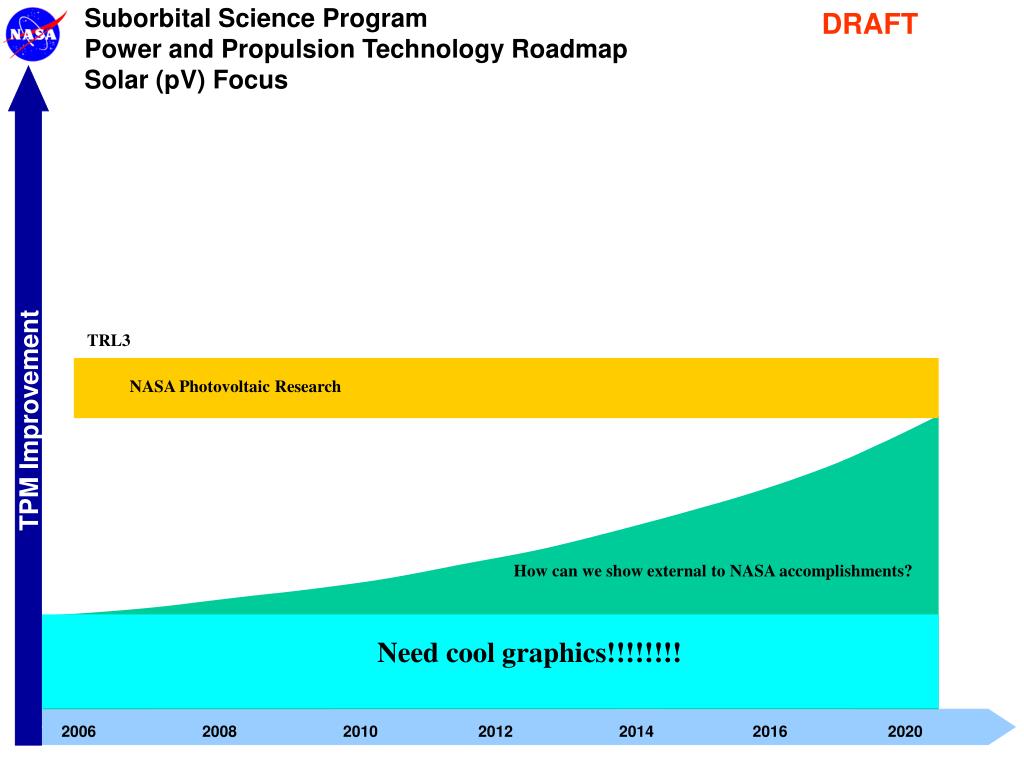

  18. Suborbital Science Program Power and Propulsion Technology Roadmap Solar (pV) Focus DRAFT TRL3 NASA Photovoltaic Research TPM Improvement How can we show external to NASA accomplishments? Need cool graphics!!!!!!!! 2006 2008 2010 2012 2014 2016 2020

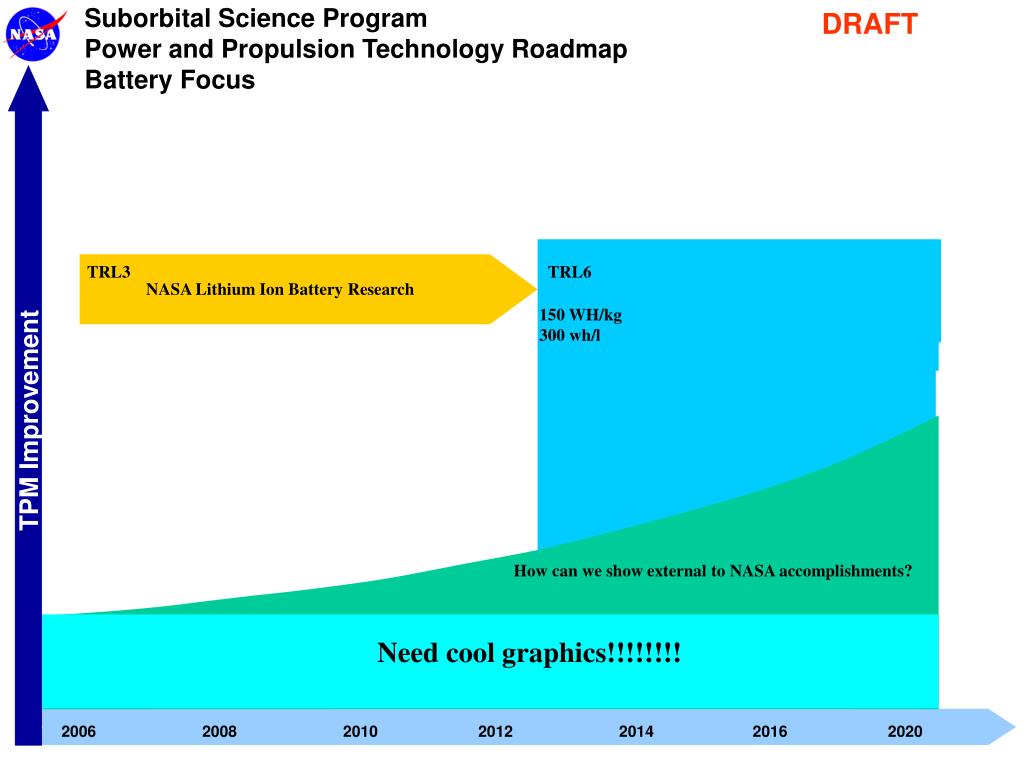

  19. Suborbital Science Program Power and Propulsion Technology Roadmap Battery Focus DRAFT TRL3 TRL6 NASA Lithium Ion Battery Research 150 WH/kg 300 wh/l TPM Improvement How can we show external to NASA accomplishments? Need cool graphics!!!!!!!! 2006 2008 2010 2012 2014 2016 2020

  20. Propulsion & Power Capability Impacts Future Activities • Continue to follow military and other US propulsion developments • Be available to do NASA aero work • Continue on-going fuel cell work (for others) • Survey of European programs (proposed)

  21. Propulsion & Power Capability Impacts Proposal

  22. Propulsion & Power Capability Impacts Proposal
