  1. Light Field Stitchingwith a PlenopticCamera Zhou Xue LCAV - École Polytechnique Fédérale de Lausanne Dec. 2 2013

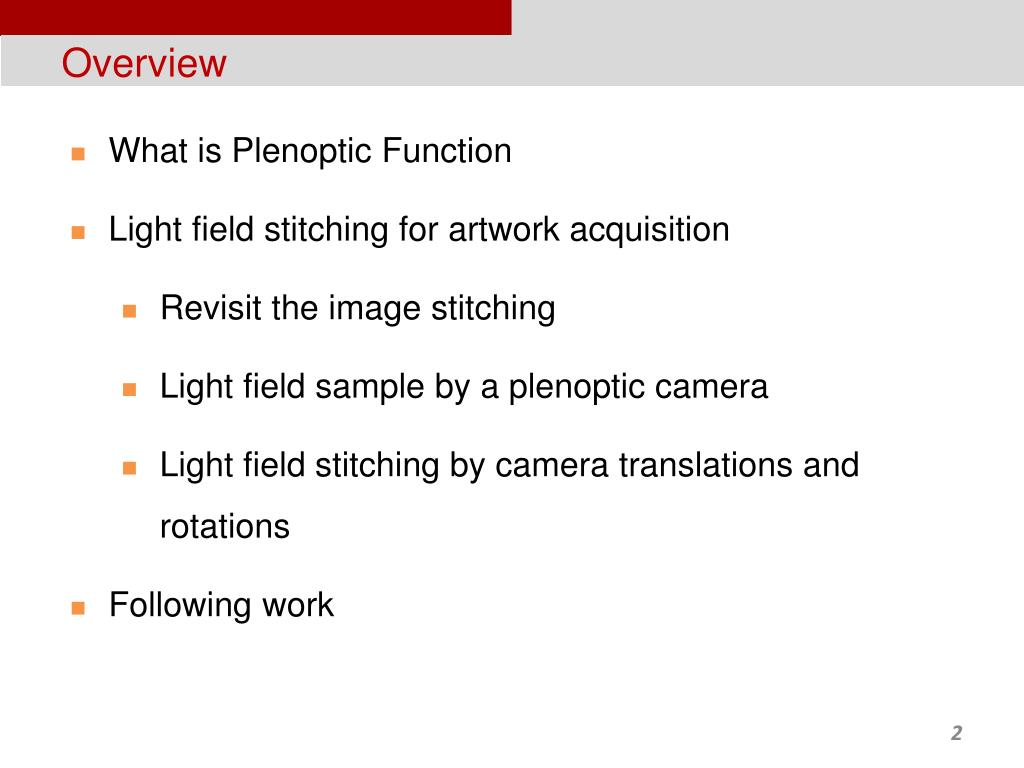

  2. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

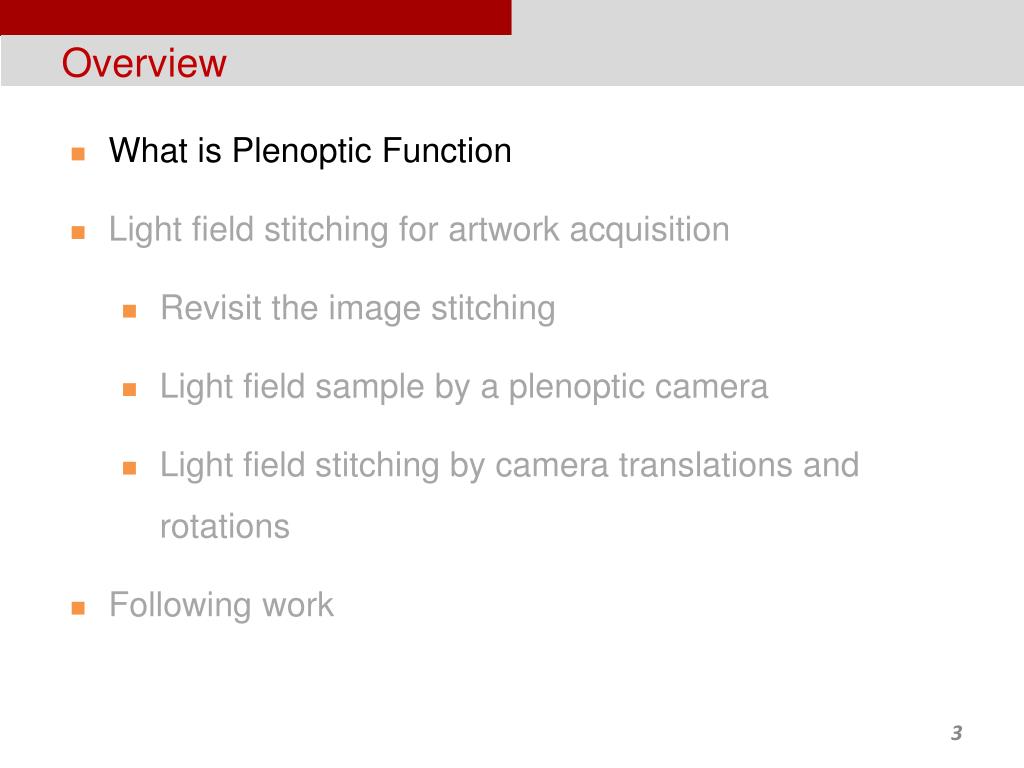

  3. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

  4. The Light Field of an Oil Painting RGB or Multi-spectral image Video or image (θ, Φ) (x, y, z) • Camera location (x, y, z) • View direction (θ, Φ) • Wavelength and time

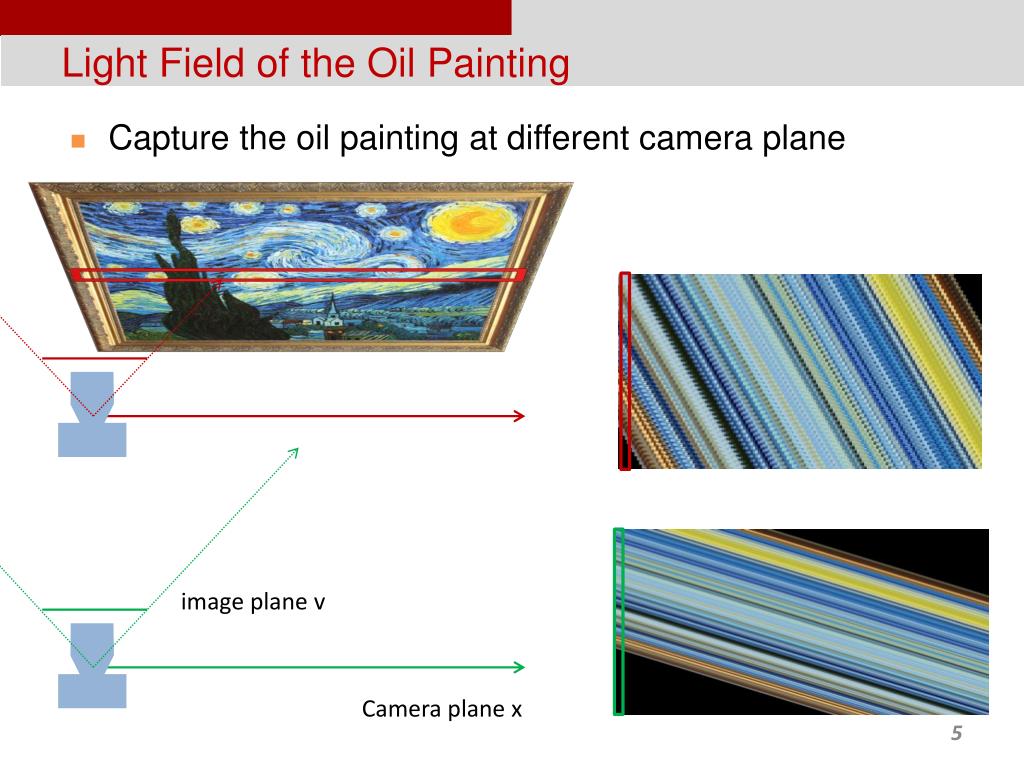

  5. Light Field of the Oil Painting • Capture the oil painting at different camera plane image plane v Camera plane x

  6. Capture the Light Field with Plenoptic Camera

  7. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

  8. Light Field Stitching • Framework: • Set up a X-Y table with accurate translations • Registering the light field from each sample • Stitching and interpolating a new light field • Challenges: • Sampling pattern of POC • Registration problem • How to create the virtual light field

  9. Understand Image Stitching in the Light Field • Image Stitching with camera rotations • Image Stitching with camera translations

  10. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

  11. Light Field Sample of a Plenoptic Camera • A simplified model of the plenoptic camera: • Main lens + moving pinhole camera aL bL tM vM

  12. Light Field Sample of a Plenoptic Camera • Samples from the moving pinhole camera v t = t + v·aL Image on the conjugate plane Light rays propagate to the actual camera plane

  13. Light Field Sample of a Plenoptic Camera • Light field image example

  14. Light Field Sample of a Plenoptic Camera • Light field image example

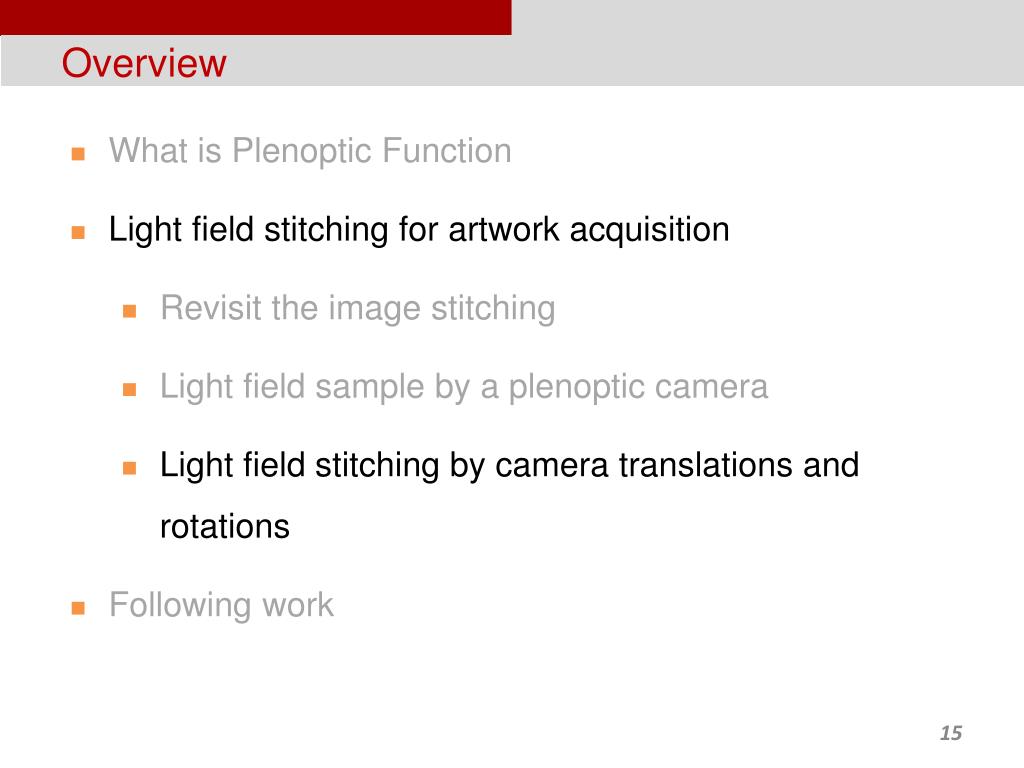

  15. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

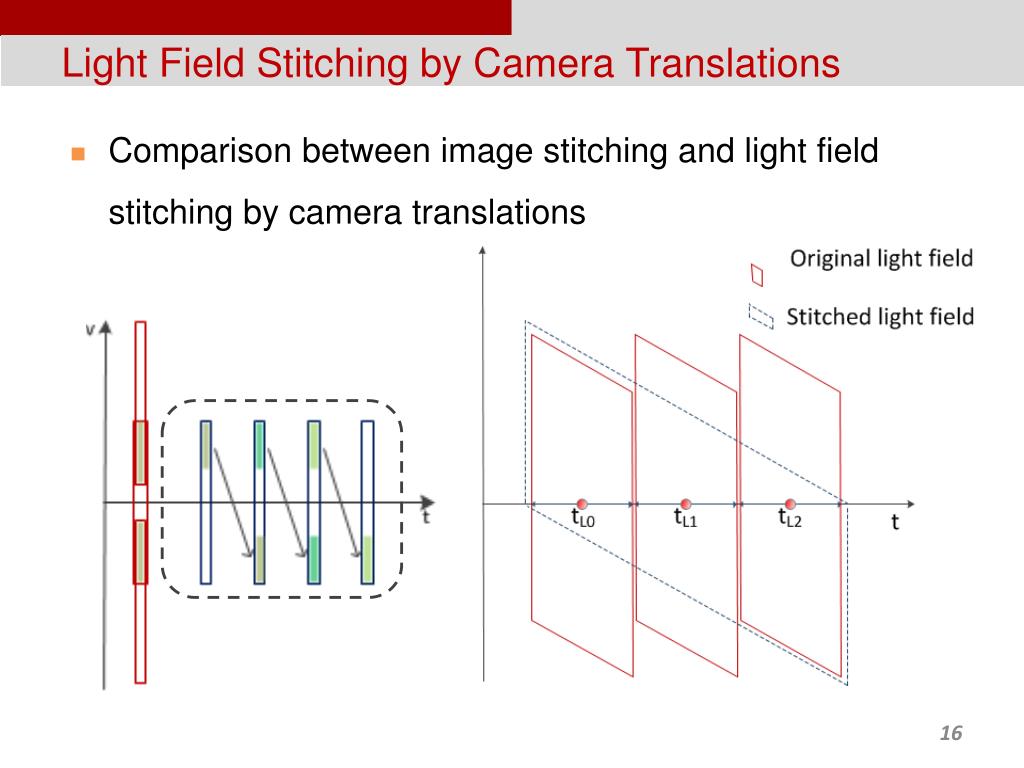

  16. Light Field Stitching by Camera Translations • Comparison between image stitching and light field stitching by camera translations

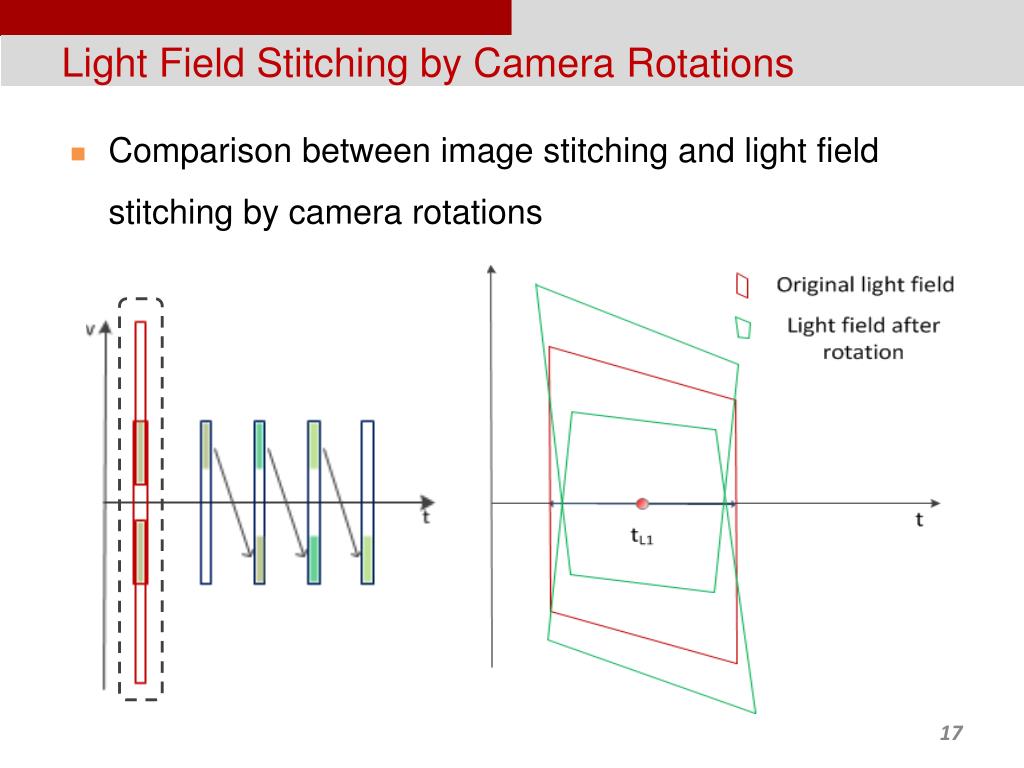

  17. Light Field Stitching by Camera Rotations • Comparison between image stitching and light field stitching by camera rotations

  18. Light Field Stitching by Camera Rotations • Comparison between image stitching and light field stitching by camera rotations

  19. Light Field Stitching for Increasing Angular Range • Light field stitching by combining translation and rotation • Enlarge the main lens of the plenoptic camera • Directly stitch the pinhole camera image

  20. Light Field Stitching for Increasing Angular Range • One example for acquisition of surface light field • Main lens focus on the flat surface • Each pinhole image relates the BRDF of a pigment

  21. Revisit the Light Field of an Oil Painting -1/aL • Vertical line represents the image taken on plane t • Horizontal line represents the image taken at infinity • Green line represents the image taken at plane aL

  22. Light Field Stitching for Increasing Spatial Range • Light field re-sample to generate panorama image from a virtual camera behind the camera plane

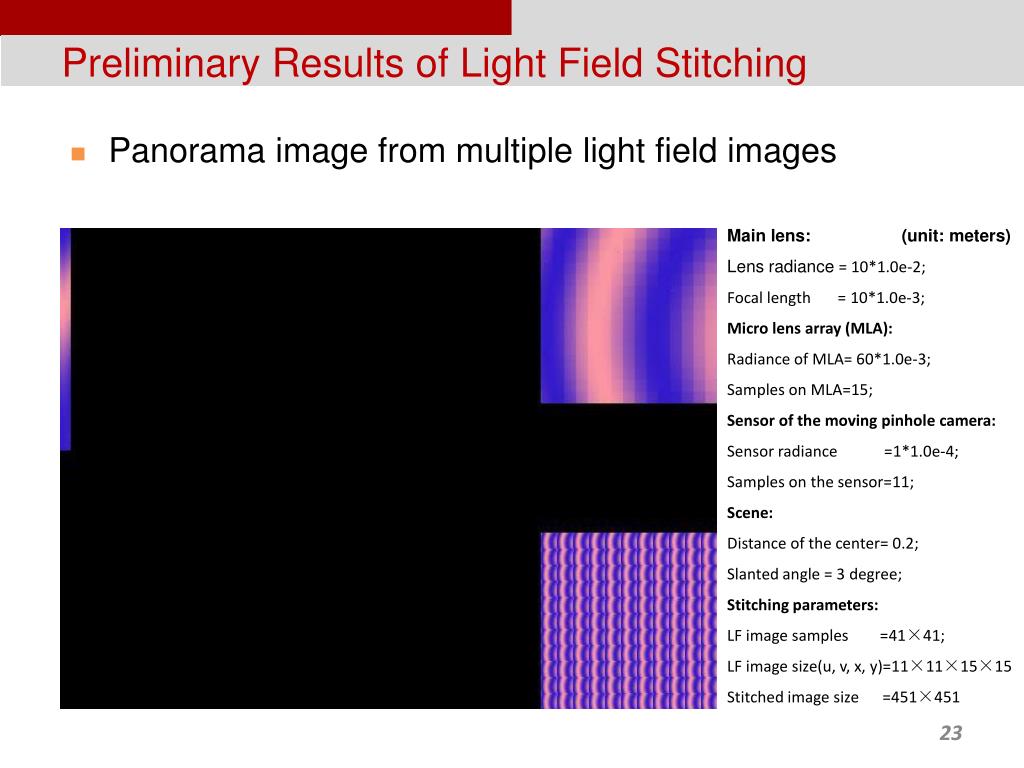

  23. Preliminary Results of Light Field Stitching • Panorama image from multiple light field images Main lens: (unit: meters) Lens radiance = 10*1.0e-2; Focal length = 10*1.0e-3; Micro lens array (MLA): Radiance of MLA= 60*1.0e-3; Samples on MLA=15; Sensor of the moving pinhole camera: Sensor radiance =1*1.0e-4; Samples on the sensor=11; Scene: Distance of the center= 0.2; Slanted angle = 3 degree; Stitching parameters: LF image samples =41×41; LF image size(u, v, x, y)=11×11×15×15 Stitched image size =451×451

  24. Overview • What is Plenoptic Function • Light field stitching for artwork acquisition • Revisit the image stitching • Light field sample by a plenoptic camera • Light field stitching by camera translations and rotations • Following work

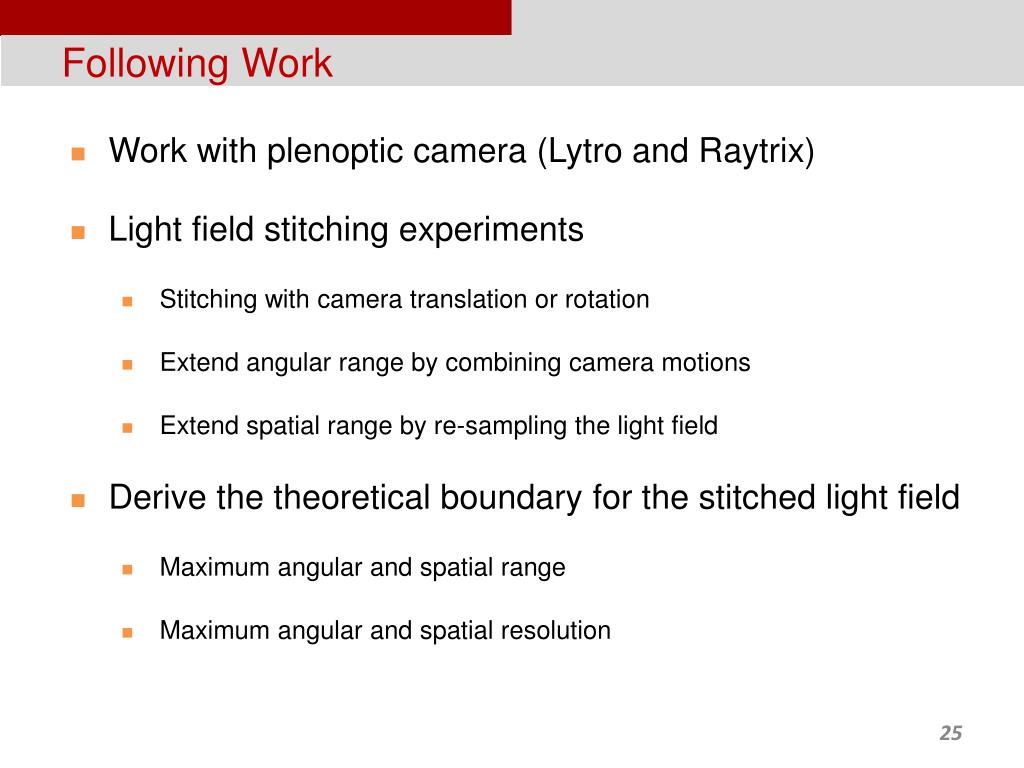

  25. Following Work • Work with plenoptic camera (Lytro and Raytrix) • Light field stitching experiments • Stitching with camera translation or rotation • Extend angular range by combining camera motions • Extend spatial range by re-sampling the light field • Derive the theoretical boundary for the stitched light field • Maximum angular and spatial range • Maximum angular and spatial resolution

  26. Thank you for your attention!Questions?
