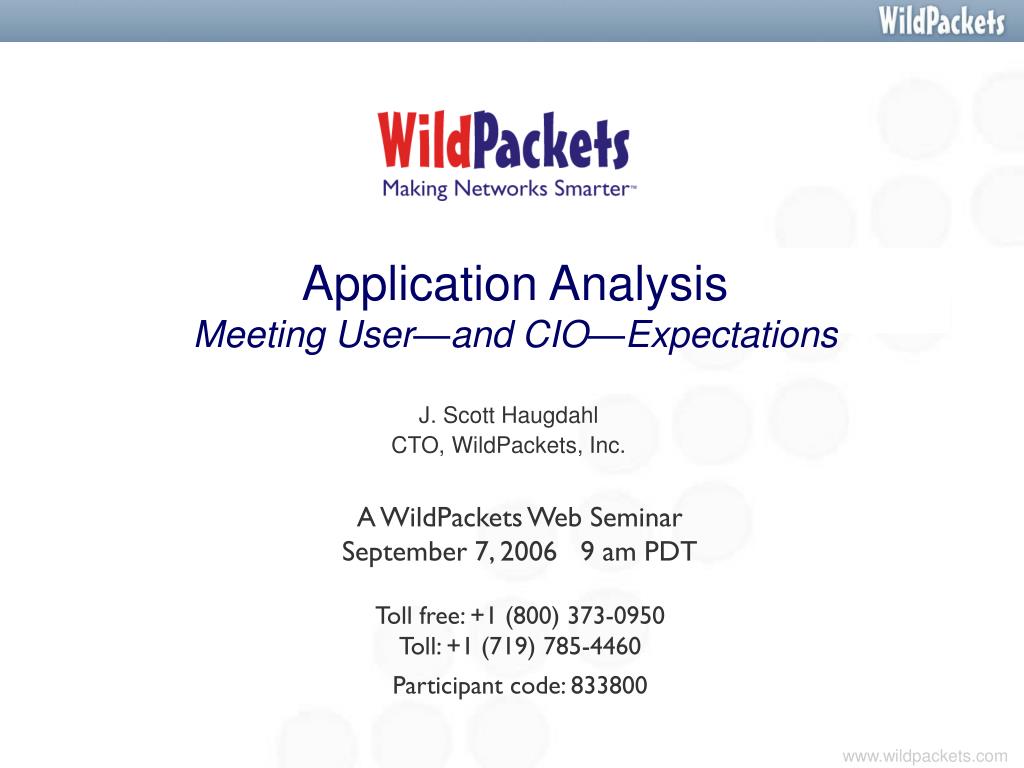

  1. Application AnalysisMeeting User—and CIO—Expectations J. Scott Haugdahl CTO, WildPackets, Inc. A WildPackets Web Seminar September 7, 2006 9 am PDT Toll free: +1 (800) 373-0950Toll: +1 (719) 785-4460Participant code: 833800

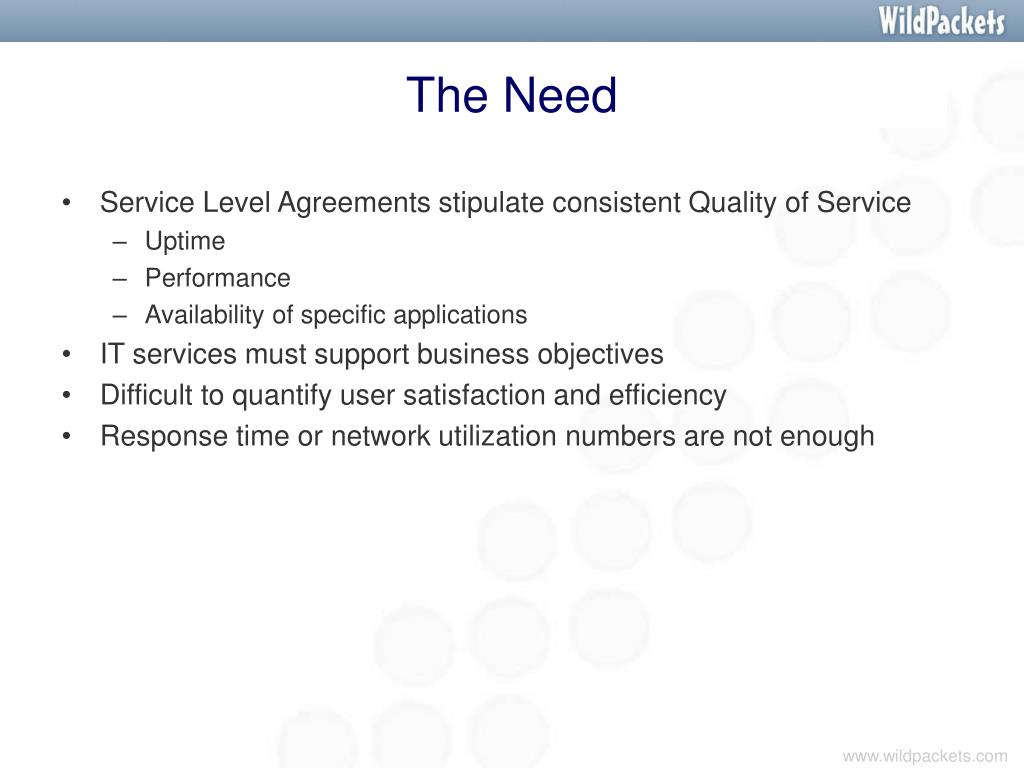

  2. Service Level Agreements stipulate consistent Quality of Service Uptime Performance Availability of specific applications IT services must support business objectives Difficult to quantify user satisfaction and efficiency Response time or network utilization numbers are not enough The Need

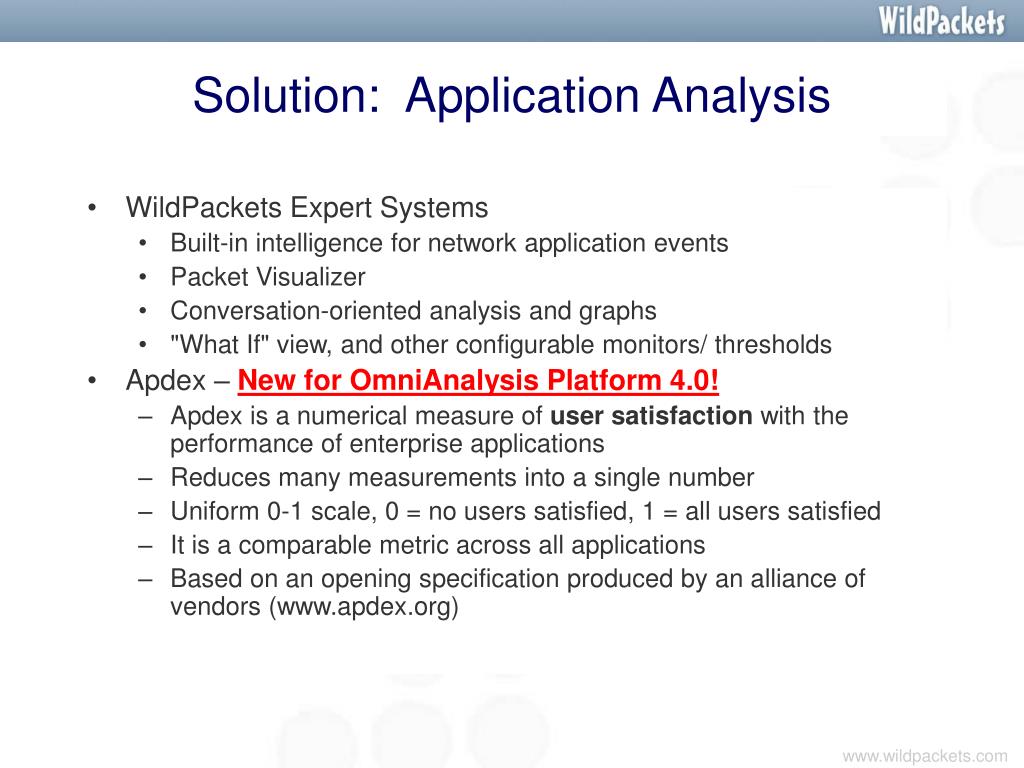

  3. WildPackets Expert Systems Built-in intelligence for network application events Packet Visualizer Conversation-oriented analysis and graphs "What If" view, and other configurable monitors/ thresholds Apdex – New for OmniAnalysis Platform 4.0! Apdex is a numerical measure of user satisfaction with the performance of enterprise applications Reduces many measurements into a single number Uniform 0-1 scale, 0 = no users satisfied, 1 = all users satisfied It is a comparable metric across all applications Based on an opening specification produced by an alliance of vendors (www.apdex.org) Solution: Application Analysis

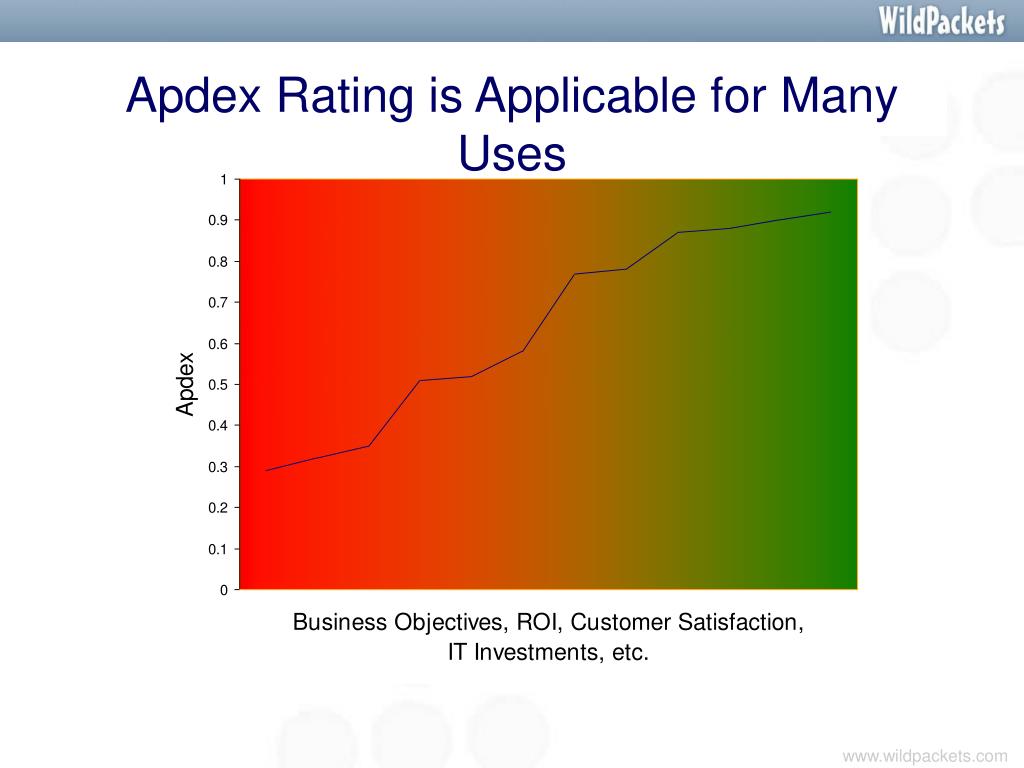

  4. Apdex Rating is Applicable for Many Uses

  5. Satisfied User User can focus on task, process not hindered Tolerating User User notices slowdown, productivity is impaired Frustrated User User unhappy with slow response, may stop working on a task Characterizing Response Time

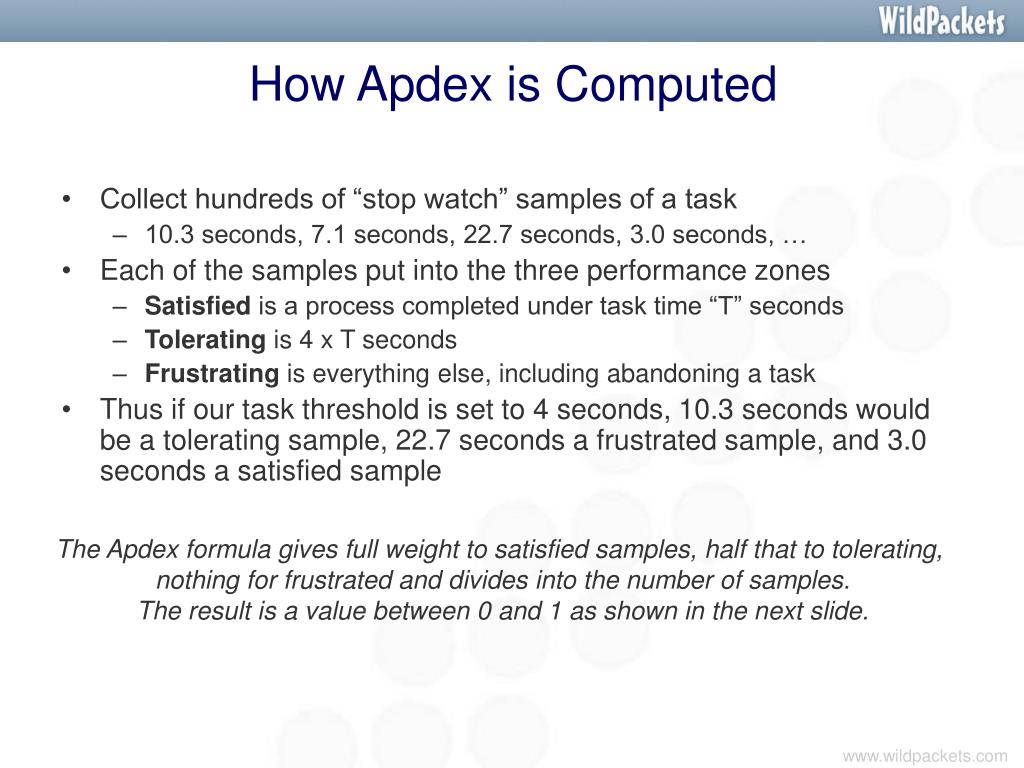

  6. Collect hundreds of “stop watch” samples of a task 10.3 seconds, 7.1 seconds, 22.7 seconds, 3.0 seconds, … Each of the samples put into the three performance zones Satisfied is a process completed under task time “T” seconds Tolerating is 4 x T seconds Frustrating is everything else, including abandoning a task Thus if our task threshold is set to 4 seconds, 10.3 seconds would be a tolerating sample, 22.7 seconds a frustrated sample, and 3.0 seconds a satisfied sample How Apdex is Computed The Apdex formula gives full weight to satisfied samples, half that to tolerating, nothing for frustrated and divides into the number of samples. The result is a value between 0 and 1 as shown in the next slide.

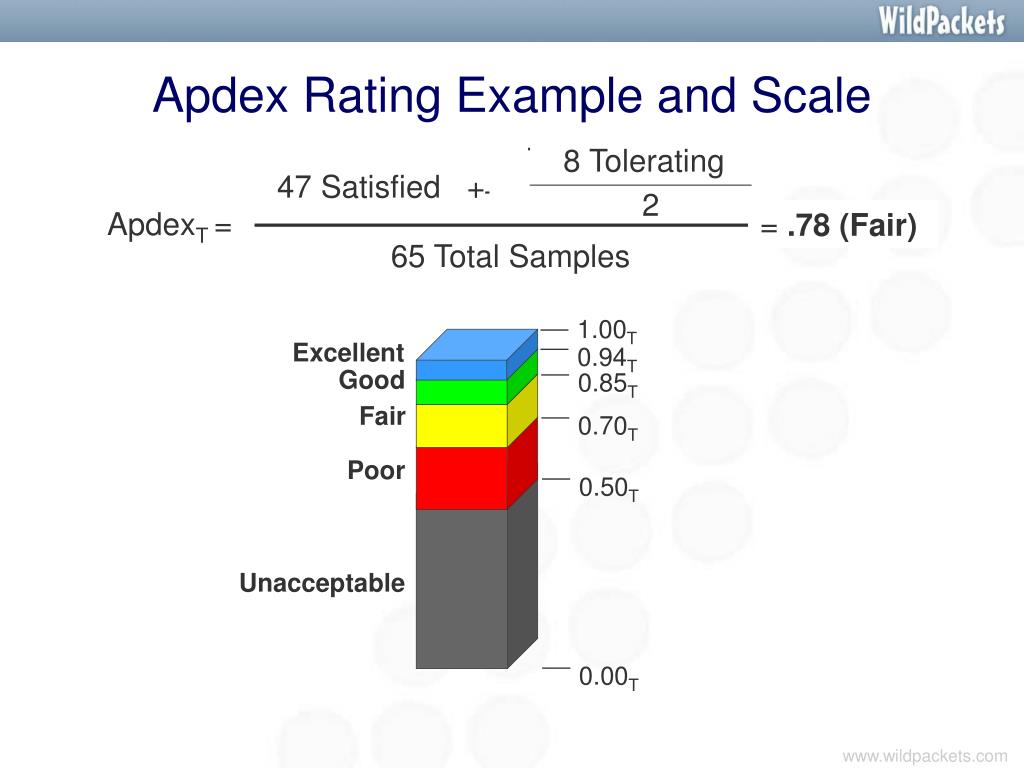

  7. 1.00T 0.94T 0.85T 0.70T 0.50T 0.00T Apdex Rating Example and Scale Tolerating count 8 Tolerating 47 Satisfied + Satisfied count + 2 ApdexT = = .78 (Fair) Total samples 65 Total Samples Excellent Good Fair Poor Unacceptable

  8. WildPackets OmniAnalysis Expert Identifies Cause … The user is experiencing dissatisfaction due to a combination of packet loss and a periodically slow web server

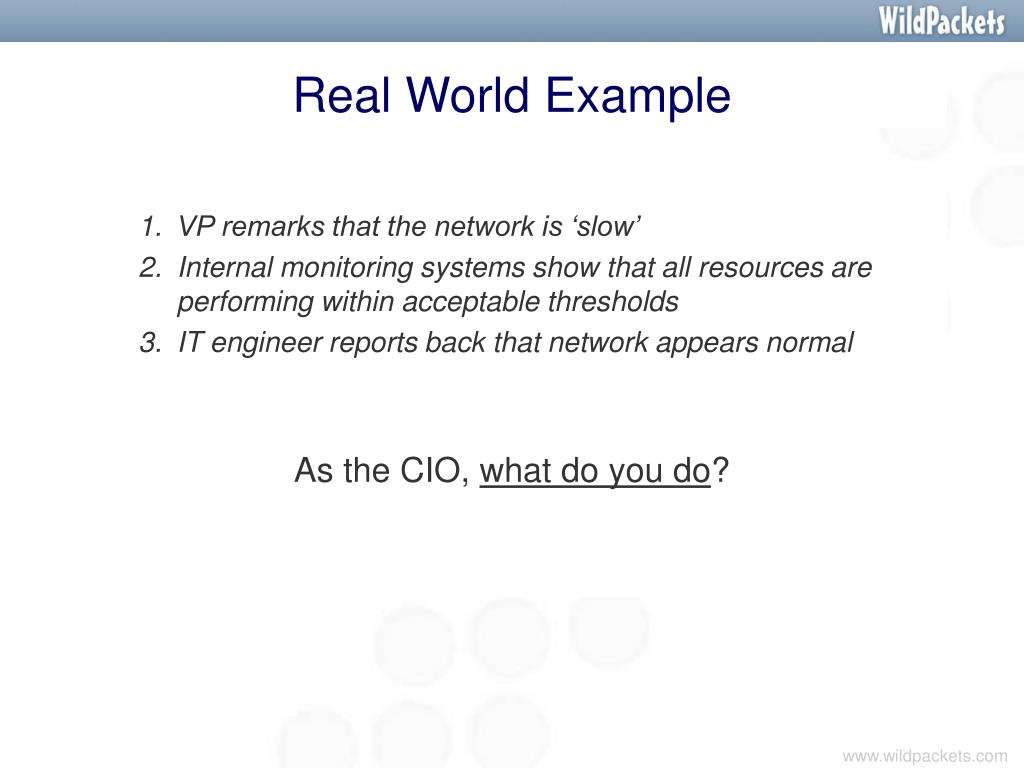

  9. VP remarks that the network is ‘slow’ Internal monitoring systems show that all resources are performing within acceptable thresholds IT engineer reports back that network appears normal As the CIO, what do you do? Real World Example

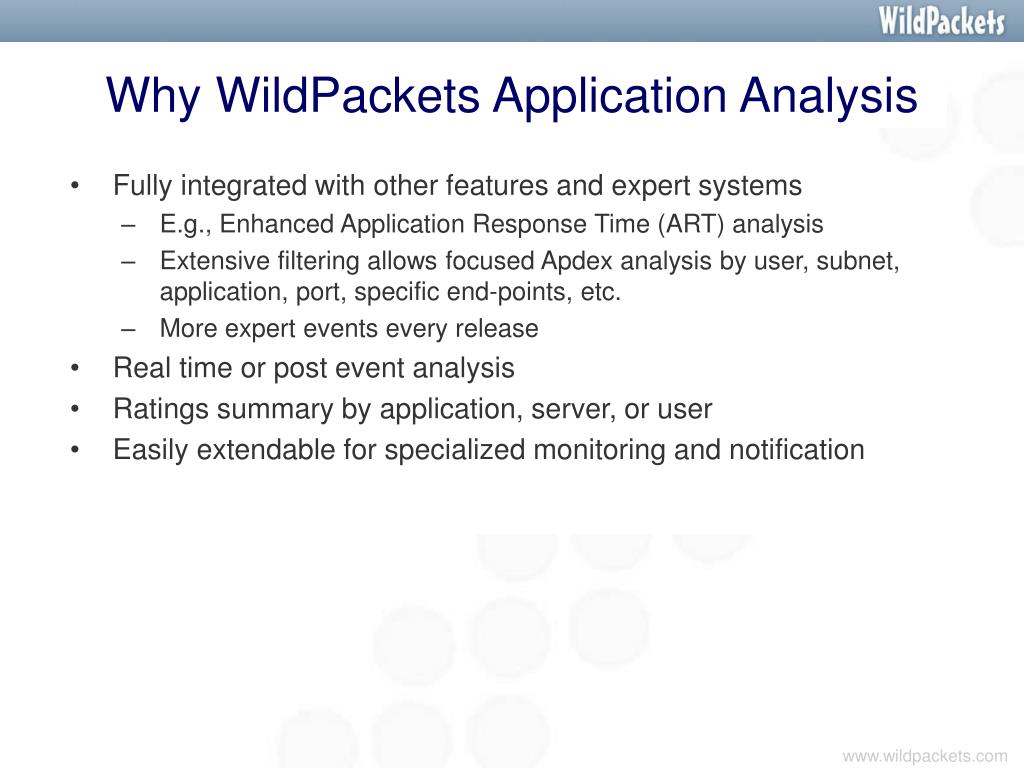

  10. Fully integrated with other features and expert systems E.g., Enhanced Application Response Time (ART) analysis Extensive filtering allows focused Apdex analysis by user, subnet, application, port, specific end-points, etc. More expert events every release Real time or post event analysis Ratings summary by application, server, or user Easily extendable for specialized monitoring and notification Why WildPackets Application Analysis

  11. Thank You! For more information: www.wildpackets.com For other Web seminars: www.wildpackets.com/smarter/
