Move Cryos?

Move Cryos?. Step4 – Field in AIR at beam height (1.67M) Movement options available. Possibly – mezz leg very close. Off platform good access from above. Need to widen platform tight!. Need to widen platform. Off platform v.near mezz leg. Need to widen platform. Need to extend platform.

damian
Télécharger la présentation

Move Cryos?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

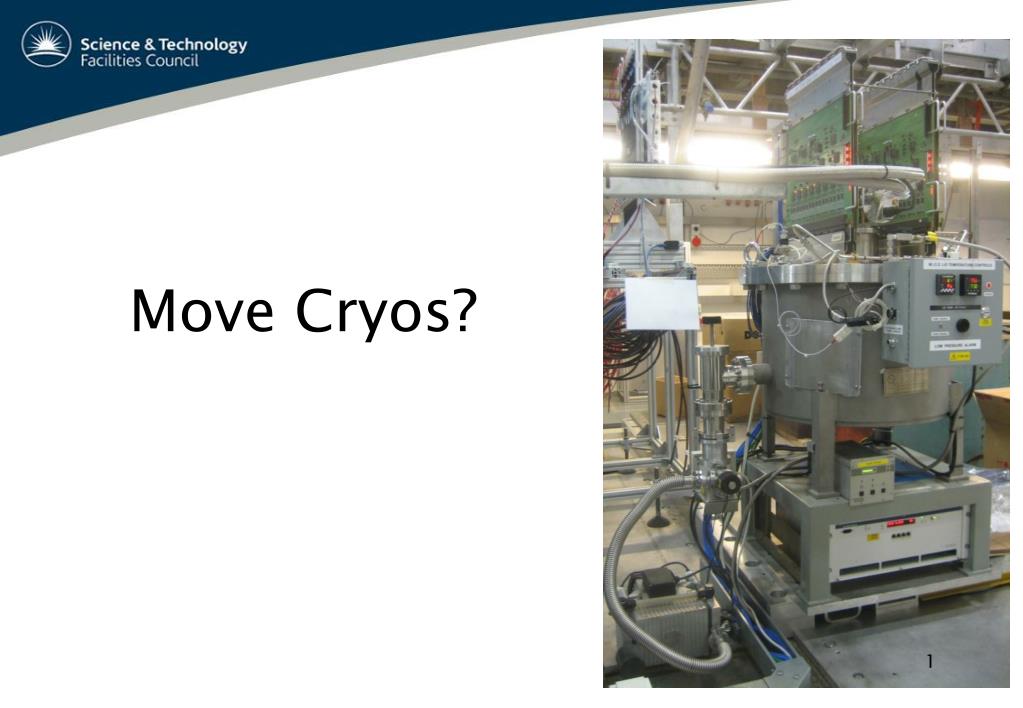

  1. Move Cryos?

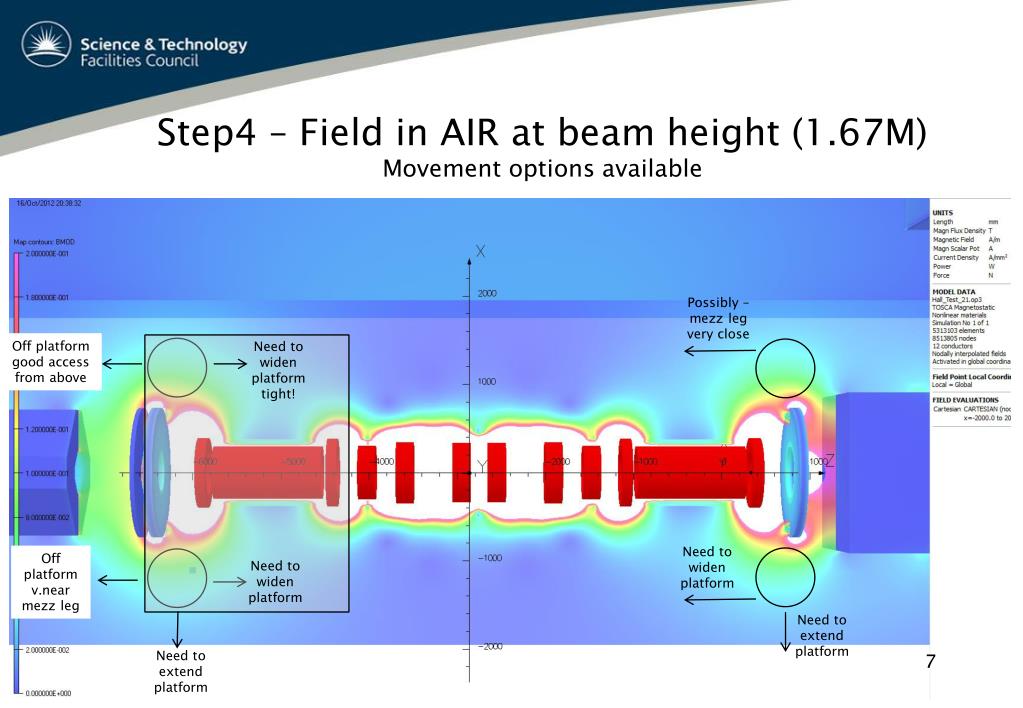

  2. Step4 – Field in AIR at beam height (1.67M)Movement options available Possibly – mezz leg very close Off platform good access from above Need to widen platform tight! Need to widen platform Off platform v.near mezz leg Need to widen platform Need to extend platform Need to extend platform

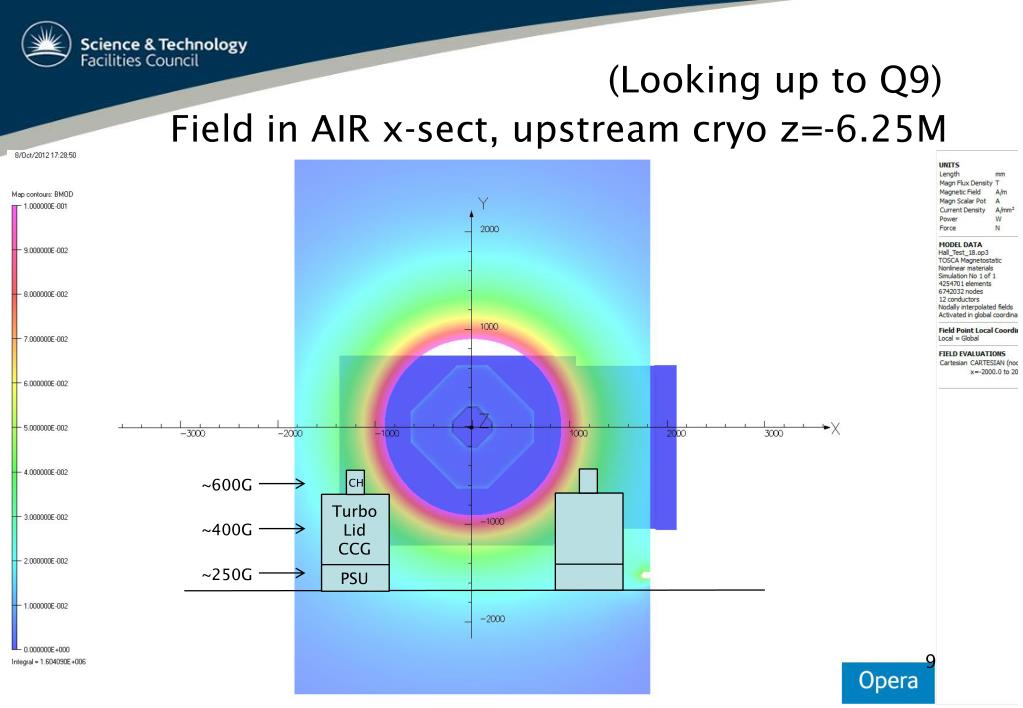

  3. (Looking up to Q9) Field in AIR x-sect, upstream cryo z=-6.25M ~600G CH Turbo Lid CCG ~400G ~250G PSU
