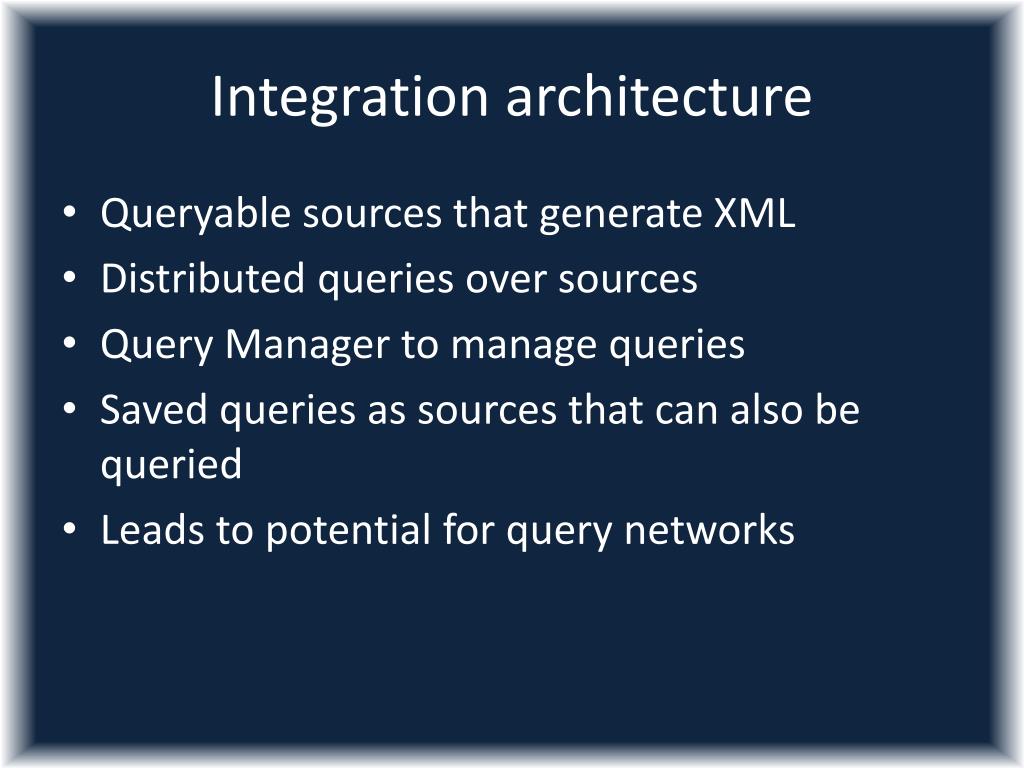

  1. Integration architecture Queryable sources that generate XML Distributed queries over sources Query Manager to manage queries Saved queries as sources that can also be queried Leads to potential for query networks

  2. vSPARQL Service RDF Store

  3. vSPARQL Service RDF Store

  4. vSPARQL Service RDF Store

  5. QM Client QM Server vSPARQL Service RDF Store QM DB

  6. QM Client QM Server vSPARQL Service RDF Store QM DB

  7. BIRN fMRI Study BIRN fMRI Study Extract centers of activation Schizophrenics vs Healthy Controls Label using Talairach Demon XML XML

  8. XML

  9. QM Client RDF/OWL QM Server vSPARQL Service XML RDF Store QM DB

  10. QM Client RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF Store QM DB

  11. QM Client RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF Store QM DB

  12. QM Client QE Service RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF Store QM DB

  13. QM Client QE Service RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF Store QM DB

  14. QM Client QE Service XML RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF Store QM DB

  15. N=1741

  16. QM Client QE Service QM Server DXQuery Service vSPARQL Service RDF Store QM DB

  17. Other Client Other Client QM Client QE Service XML RDF/OWL QM Server DXQuery Service vSPARQL Service XML RDF/OWL RDF Store Other Services QM DB Remote Services Remote Services

  18. Other Client Other Client QM Client XML RDF/OWL Query Manager Core DXQuery Service vSPARQL Service XML RDF/OWL RDF Store Other Services Remote Services Remote Services

  19. Other Client Other Client Query Manager Core with Plugins QM Client XML RDF/OWL Query Manager Core DXQuery Service vSPARQL Service XML RDF/OWL RDF Store Other Services Remote Services Remote Services

  20. Other Client Other Client Query Manager XML RDF/OWL XML RDF/OWL Remote Services Remote Services

  21. Query Manager XML RDF/OWL XML RDF/OWL

  22. BIRN fMRI and FMA Query Manager FMA BIRN fMRI

  23. BIRN fMRI, VBM and FMA Query Manager VBM FMA BIRN fMRI

  24. Electronic Data Capture and Freezer Management Query Manager EDC Freezer Management

  25. Biorepositories Query Manager Biorepository Biorepository

  26. Human Studies Database Query Manager Clinical Trials Metadata Ontology of Clinical Research Clinical Trials Metadata

  27. Ontology Views Query Manager Ontology

  28. Summary Query Manager

  29. Issues • Responsetime • Reliability • Security • Discoverability • Usability • Integrationwith other systems and methods

  30. Future Work Query Manager Query Manager

  31. Query Manager Query Manager Query Manager

  32. BIRN fMRI Brain Imaging View FMA

  33. Clinical View EDC

  34. Imaging Clinical/Imaging View Clinical

  35. Gene Protein Genomic View Others….
