  1. iServTechnical Repeater Manual Base: 8660 Repeater: 4024

  2. Install a Repeater • Firmware has to be done on all devices: (Follow Firmware Procedure) • Handset • Base Station • Repeater Login onto Base • Repeater Tab. • DECT sync Mode - Manually • RPN - Select RPN Where Repeater will be installed. • DECT Sync Source - Point RPN (Base Station) closest to repeater. • If Multi Cell is used, check the Multi cell tab for RPN details. Click Save. Open Repeater Tab again.

  3. Registering a Repeater • Select desired repeater. • Click register. • Repeater will have flashing green LED. • Once registered, LED will be solid Green. • DB level will be provided. DO NOT exceed -80db on the repeaters. Repeater has been setup successfully.

  4. Repeater Firmware Procedure • Place the “Repeater Upgrade” file in root directory. • Install the dongle drivers. • Check Comport in Device Manager. • Go to Root file: Open FL7.cfg with Notepad. • Edit the Comport. • Save & Exit. • Open CMD prompt and type the following: • Fl.bat rota (Press the TAB button, this will auto complete the file name). • C:\Repeater Upgrade>fl.bat Rota.spi_v0026.hex • Insert the Dongle into the Dongle kit and Repeater. • Press and HOLD the Dongle Button. • Insert the Power cable into the Dongle Kit. • Release the Dongle button. • Press enter on the CMD Prompt. • Wait for Success. • FIRMWARE COMPLETE.

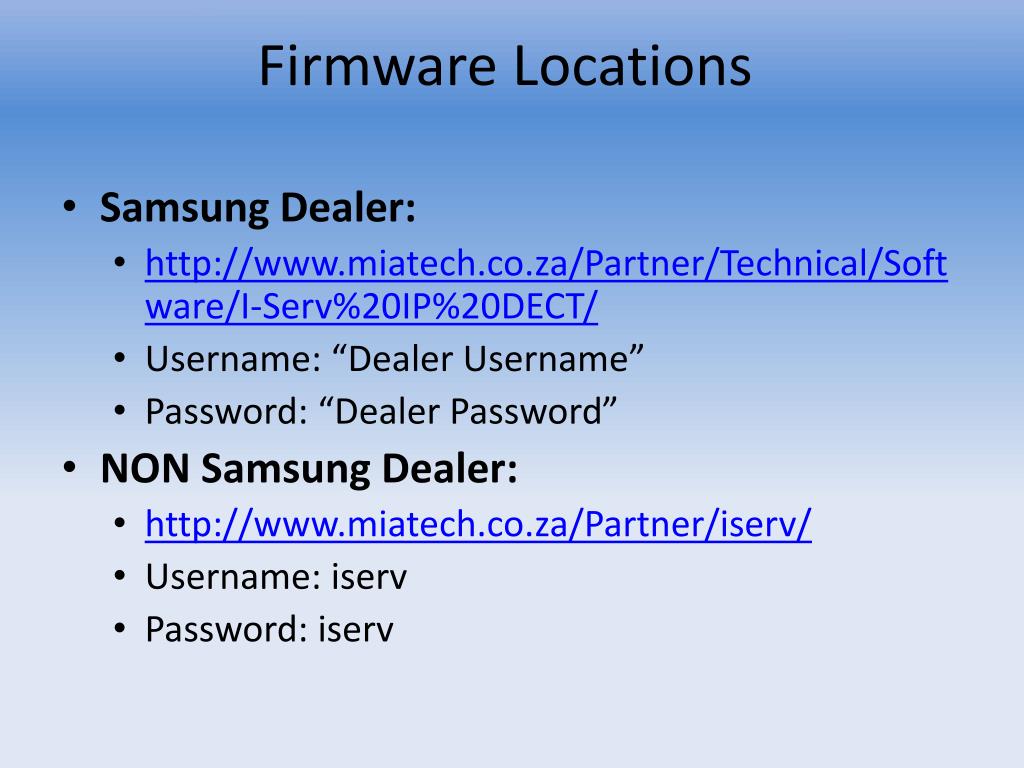

  5. Firmware Locations • Samsung Dealer: • http://www.miatech.co.za/Partner/Technical/Software/I-Serv%20IP%20DECT/ • Username: “Dealer Username” • Password: “Dealer Password” • NON Samsung Dealer: • http://www.miatech.co.za/Partner/iserv/ • Username: iserv • Password: iserv

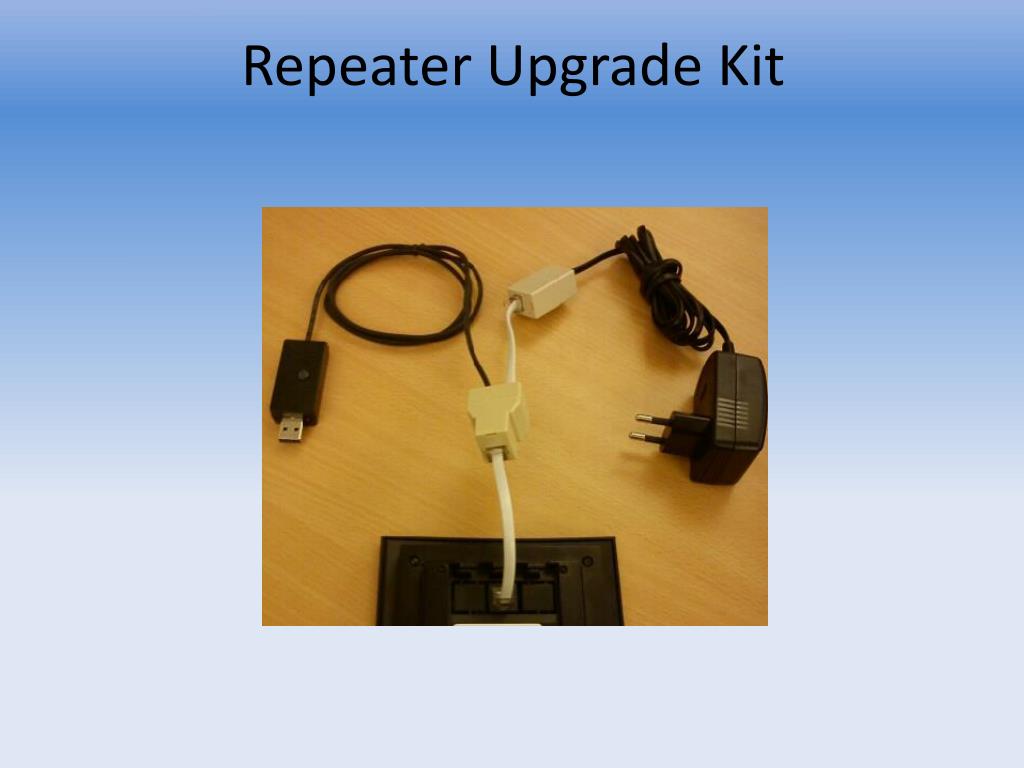

  6. Repeater Upgrade Kit

  7. Repeater Upgrade Video Press Play
