  1. Society of Automotive Engineers (SAE) TAMUQ Student Chapter Orientation Meeting October 8, 2006

  2. What is SAE? • Founded in 1905 • Largest organization in defining aerospace and automotive engineering standards • Sections in over 97 countries • A shared network of engineering knowledge

  3. SAE Categories • Automobiles

  4. SAE Categories • Aerospace

  5. Functions of SAE Student Sections • Arrange technical lectures • Arrange symposiums and contests • Arrange technical field trips • Participate in student competitions: • Aero design • Formula SAE • Baja SAE • Supermilage

  6. TAMU and SAE • TAMU has been joining the Formula SAE competition (FSAE) since 1998 • TAMU has been won official competitions over the past 4 years • TAMU has also developed the Sunracer solar car and taken part in competitions in the US and Canada.

  7. TAMU and SAE • TAMU has been joining the Formula SAE competition (FSAE) since 1998 • The project is designed in the fall and built and tested in the spring semester • TAMU has won official competitions over the past 4 years.

  8. TAMU Solar Car (Sunracer*) http://www.tamu.edu/sunraycer/

  9. Our plans…. • Arrange two technical lectures for the academic year • Arrange a technical field trip • Design and build solar scaled solar vehicle

  10. Vision… • Be able to build a fully operational vehicle to participate in regional contests

  11. Exploded view of a solar car • chassis: • wheels and bearings: • power source: • transmission: • body shell:

  12. The full electrical system Exploded view: Electrical System

  13. Wheels configuration The general mechanical system The steering system Exploded view: Mechanical System

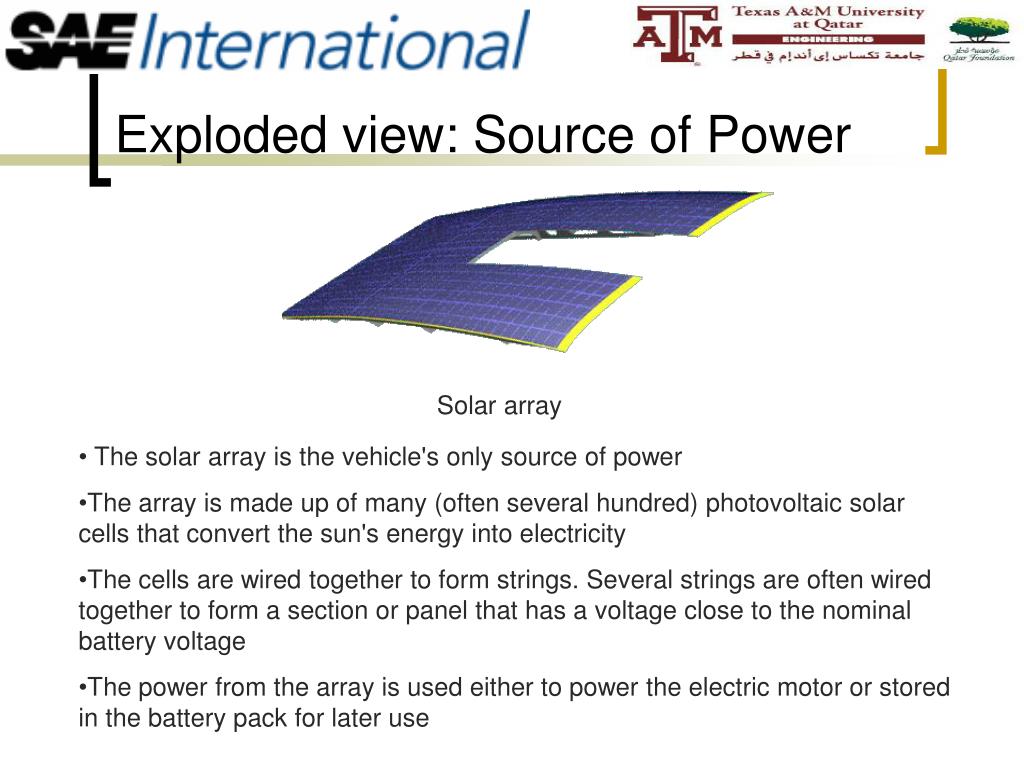

  14. Solar array Exploded view: Source of Power • The solar array is the vehicle's only source of power • The array is made up of many (often several hundred) photovoltaic solar cells that convert the sun's energy into electricity • The cells are wired together to form strings. Several strings are often wired together to form a section or panel that has a voltage close to the nominal battery voltage • The power from the array is used either to power the electric motor or stored in the battery pack for later use

  15. Solar Vehicles…

  16. sources • www.sae.org • www.tamu.edu • http://www.infovisual.info/05/002_en.html • evri.ou.edu/solar/index.php • www.geae.com • auto.howstuffworks.com • www.michaelp.org • www.airliners.net • www.vki.com • www.autoauditorium.com/.../photos_015.html • www.wsc.org.au/2005/competition/our.teams/Soleon/ • tesladownunder.com/Models.htm

  17. Thank You For more information: Contact: Prof Reza Langari, Advisor of the Chapter Ameer Khader, Chair of the Chapter Ibrahim Zein, Treasurer of the Chapter Online: www.sae.org
