1.4 Exercises (cont.). Definiton: A set S of points is said to be affinely (convex) independent if no point of S is an affine combination of the others.

dara
Télécharger la présentation

1.4 Exercises (cont.)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1.4 Exercises (cont.) Definiton: A set S of points is said to be affinely (convex) independent if no point of S is an affine combination of the others. Affine (convex) basisBS of a set S is an affinely (convex) independent subset of S such that every point in S is an affine (convex) combination of points from BS. A set A1, A2,…, Ak is affinely independent if and only if the set of vectors A1A2,…, A1Akis linearly independent. Exercise 7

  2. Therefore... Every set in En has an affine basis of k n+1 points. (easy to prove). It has also a convex basis (not easy to prove), which is not necessarily finite. A number of points in an affine basis of a set S is constant and said to be the dimension of S.

  3. Theorem If S is a finite set of points, then Conv (S) is a polygon with the vertices in S. Proof: 1. There is a convex polygon PS with the vertices in S. (for example, Algorithm1) 2. PS= Conv (S).

  4. Algorithm 1. (Convex Hull) - Pseudo code - Input. A set of points in the plane. Output. A list containing the vertices of Conv(P) . 1. Sort the points by (x,y)-coordinate, resulting in a sequence p1,p2, …,pn. 2. Put the points p1 andp2 in the list Lupperwith p1 in the first position. 3. Fori  3 to n 4. do Append pi to Lupper 5. whileLuppercontains more than two points and the last three points in Lupperdo not make a right turn 6. do delete the middle of the last three points from Lupper. 7-11 the same in the opposite direction: pn to p1: Make Llower 12. Remove the first and the last point from Lupper . 13. Append Lupper and Llower to make L. 14. return L.

  5. pi Algorithm 1, Step 5: pi X X X pi pi X X X

  6. Algorithm 1 (cont.) 1 XPi-2 YPi-2 XPi-2 XPi YPi-2 YPi - - 1 XPi-1 YPi-1 • Left – Right decision • Degeneracy • O, O, • The complexity of Algorithm 1 is O(nlogn) Exercise 8= Implementation of Algorithm 1 > = <0 = XPi-1 XPi YPi YPi-1 - - 1 XPi YPi

  7. Algorithm2. (2-dim) (Exercise 9 = Implementation of algorithm 2) Assumption. The points are ordered in a sequence increasingly with respect to the x coordinate. The vertices having the same x coordinate are ordered with respect to the y coordinate middle ones omitted. The algorithm is incremental (inductive), at the step k+1 the (k+1)st point Ak+1, as well as the convex hull of the previous points, are used to produce the convex hull C k of the first k+1-points.

  8. Algorithm2. (2-dim) • Storing data. -Edges (oriented): origin and the pointer to the “next” edge. -Vertices: a point A and the edge AB originated at A. Step k+1. 1. Find the the two vertices of Ck which divide the “visible” and the “invisible” part of Ck with respect to (“from”) the point Ak+1 .

  9. Algorithm2. (2-dim), Step k+1(cont.) Br B1 Ak+1 B0 Bs B m-1x - A k+1x B m-1y - A k+1y [A k+1B m-1 , A k+1B m ] = B m y - A k+1y B m x - A k+1x

  10. Algorithm2. (2-dim), Step k+1(cont.) Denote B0=A k . The vertices B m are obtained recursively so that B m-1B m is the oriented edge of C k and that the 2X2 determinant [A k+1B m-1 , A k+1B m ] is not positive. In another words, the vertices B m are in the visible part of C k . Let B r be the last one in the sequence having negative determinant, i.e. such that the determinant corresponding to B r and the next vertex of C k is not negative. Hence, the vertex B r is one of the two vertices we are looking for. Similarly, starting with B0 we can inductively obtain a sequence of the vertices B m-1with negative indices having the same property. Let B -s be the last vertex in this sequence.

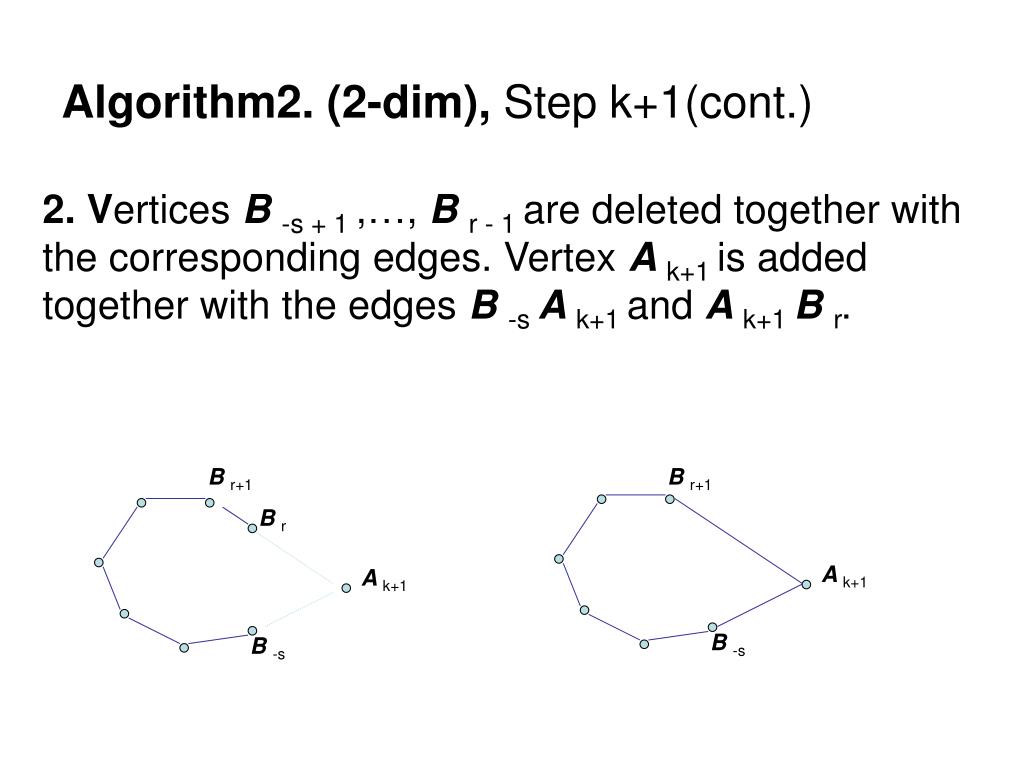

  11. Algorithm2. (2-dim), Step k+1(cont.) 2. Vertices B -s + 1 ,…, B r - 1 are deleted together with the corresponding edges. Vertex A k+1 is added together with the edges B -s A k+1 and A k+1 B r. B r+1 B r+1 B r A k+1 A k+1 B -s B -s

  12. Algorithm2. (2-dim), Step k+1(cont.) 3. If there is the vertex B -s -1 i.e if the points B -s -1 , B -s and A k+1 are collinear, the middle point B -s is omitted and the edges B -s -1 B -s and B -s A k+1 are substituted with B -s -1 A k+1.The same procedure is performed with the vertex B r..
