  1. Internet Geolocation By Brandon Koontz

  2. Outline • What is Internet Geolocation? • How is it useful? • Traditional Location System • IP Address Overview • Geolocation Techniques • Evasion Methods

  3. What is Internet Geolocation? Process of finding the geographical location of device that is connected to the internet.

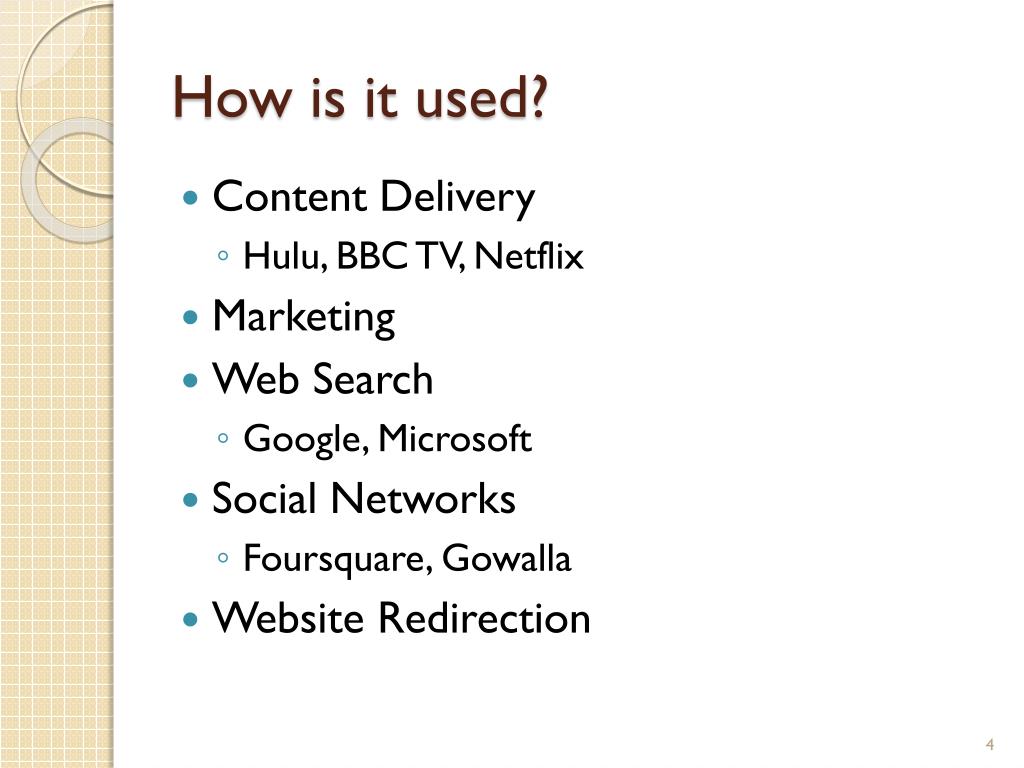

  4. How is it used? • Content Delivery • Hulu, BBC TV, Netflix • Marketing • Web Search • Google, Microsoft • Social Networks • Foursquare, Gowalla • Website Redirection

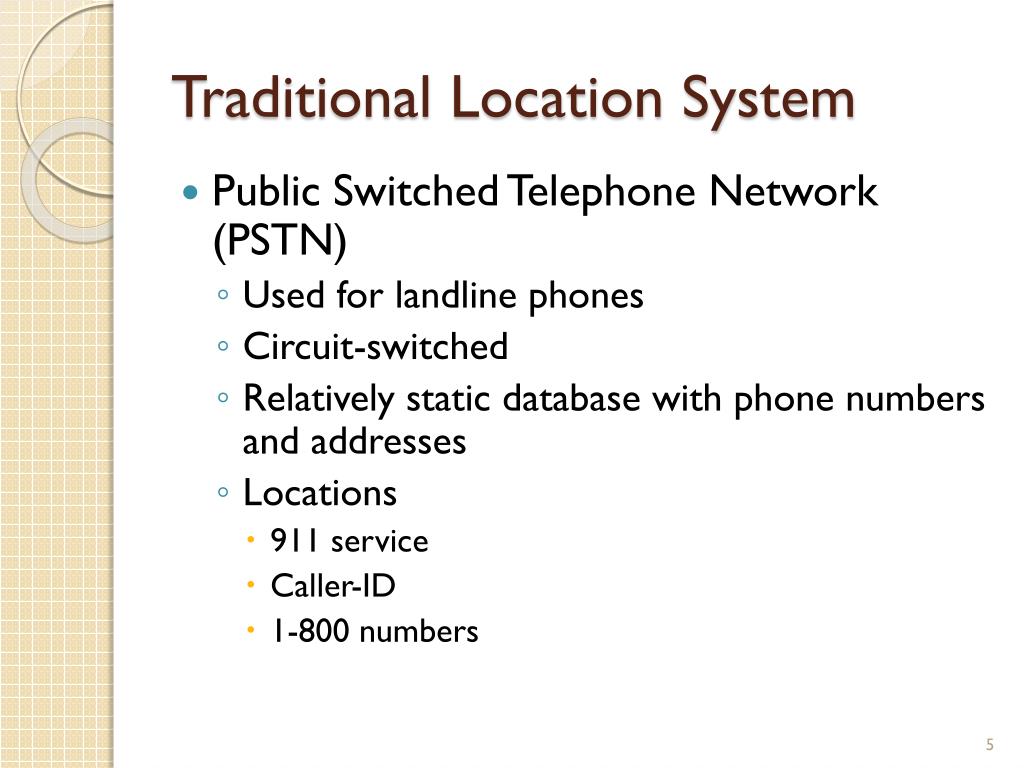

  5. Traditional Location System • Public Switched Telephone Network (PSTN) • Used for landline phones • Circuit-switched • Relatively static database with phone numbers and addresses • Locations • 911 service • Caller-ID • 1-800 numbers

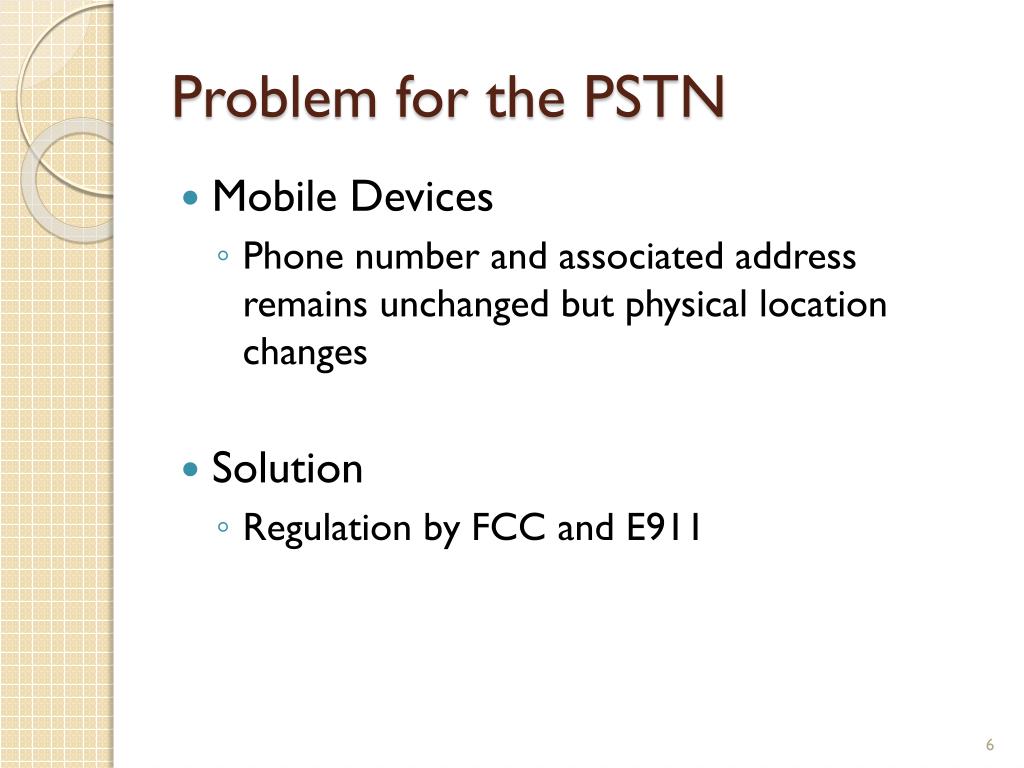

  6. Problem for the PSTN • Mobile Devices • Phone number and associated address remains unchanged but physical location changes • Solution • Regulation by FCC and E911

  7. E911 • Wireless service provider delivers the latitude, longitude, uncertainty, and must have accuracy of 300 meters for 95% of calls Cell Tower 3 Mobile Device Cell Tower 1 Cell Tower 2

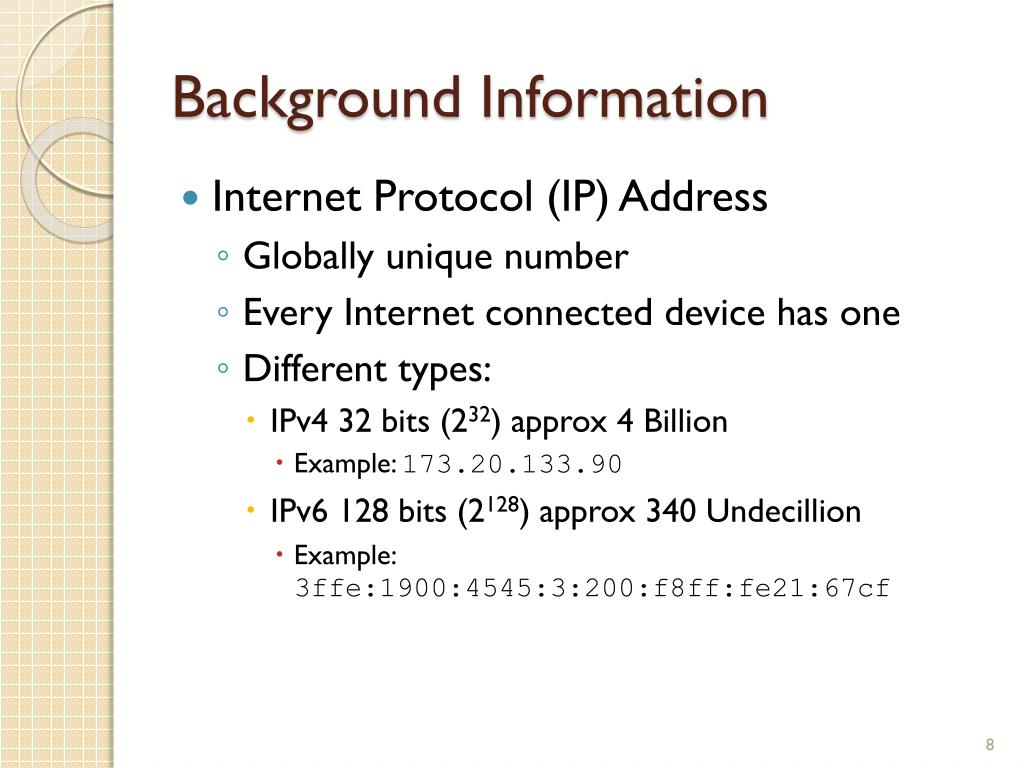

  8. Background Information • Internet Protocol (IP) Address • Globally unique number • Every Internet connected device has one • Different types: • IPv4 32 bits (232) approx 4 Billion • Example: 173.20.133.90 • IPv6 128 bits (2128) approx 340 Undecillion • Example: 3ffe:1900:4545:3:200:f8ff:fe21:67cf

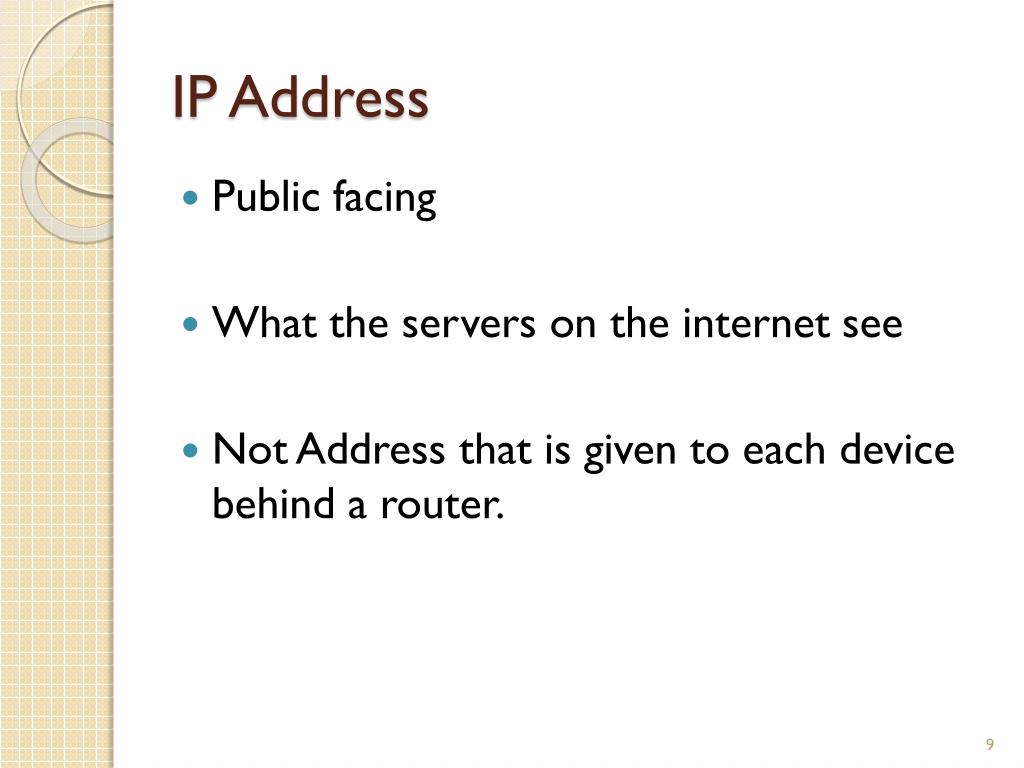

  9. IP Address • Public facing • What the servers on the internet see • Not Address that is given to each device behind a router.

  10. IP Address cont. • Internet Assigned Numbers Authority (IANA) • Operated by Internet Corporation for Assigned Names and Numbers (ICANN) • Globally responsible for allocating blocks of IP addresses • Size a block of addresses • 127.0.0.0/8 includes 127.0.0.0-127.255.255.255

  11. Regional Internet Registries (RIRs) • Like IANA but for specific regions • Receive IP Address blocks from IANA • Distribute smaller blocks of IP Addresses • Internet Service Providers (ISP) • Enterprises • Academic Institutions

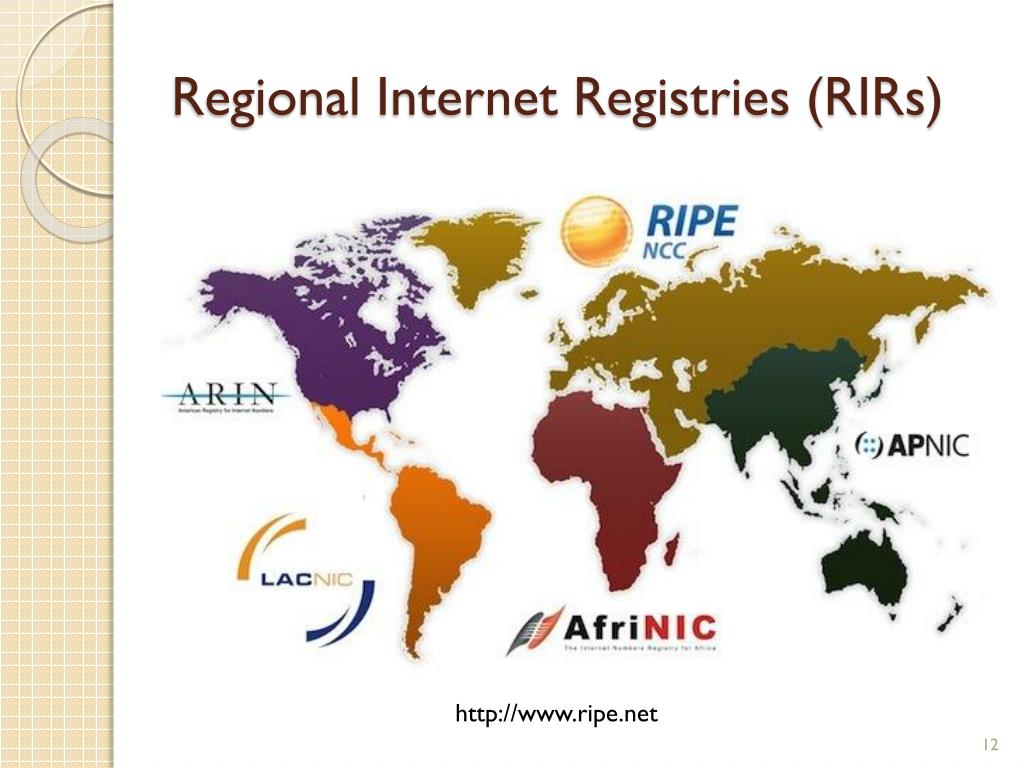

  12. Regional Internet Registries (RIRs) http://www.ripe.net

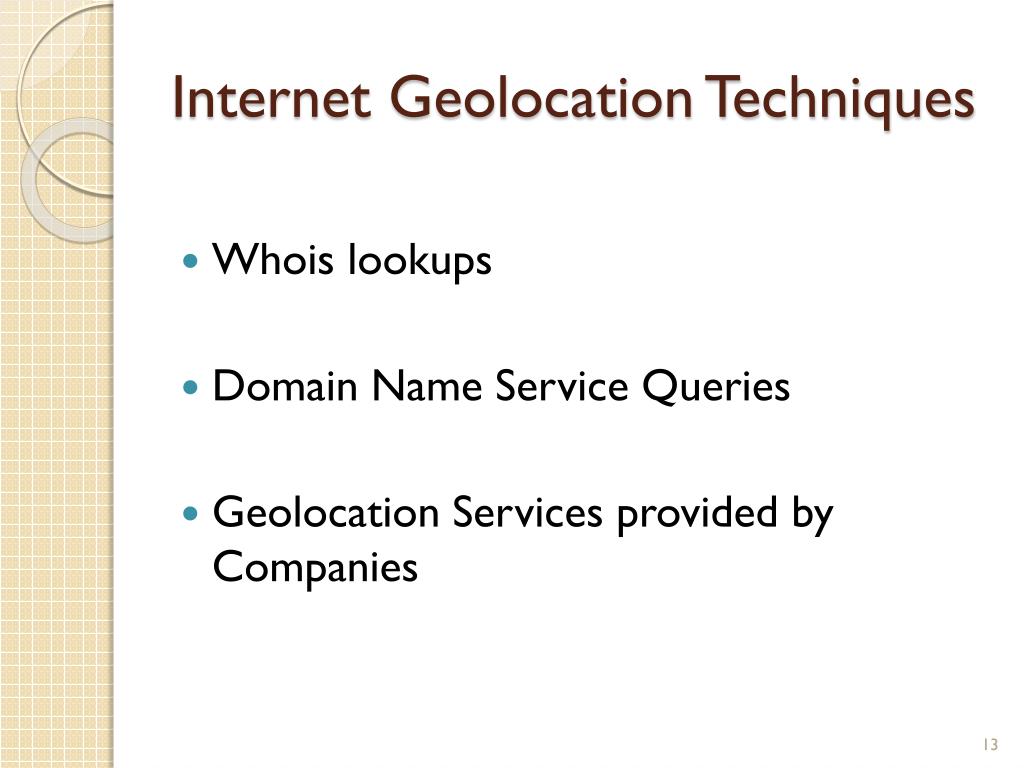

  13. Internet Geolocation Techniques • Whois lookups • Domain Name Service Queries • Geolocation Services provided by Companies

  14. Whois Protocol • Public databases provided by the RIR’s and IANA • Accepts • IP Address • Autonomous System (AS) Routing Number • Domain Name • Returns who and where the information was registered

  15. Whois Databases • Official Databases • Regional Databases • whois.arin.net • whois.afrinic.net • whois.apnic.net • whois.lacnic.net • whois.ripe.net • International Database • whois.iana.org • Third Party Databases

  16. Test Information • Current Location • Dubuque, Iowa, United States • IP Address • 173.20.133.90 • Internet Service Provider (ISP) • Mediacom Communications Corp • Autonomous System (AS) number • AS6478 • Unix command-line application “whois”

  17. Whois with IP Address • Command • whois 173.20.133.90 • Results • NetRange: 173.16.0.0 - 173.31.255.255 • OrgName: Mediacom Communications Corp • Country: US

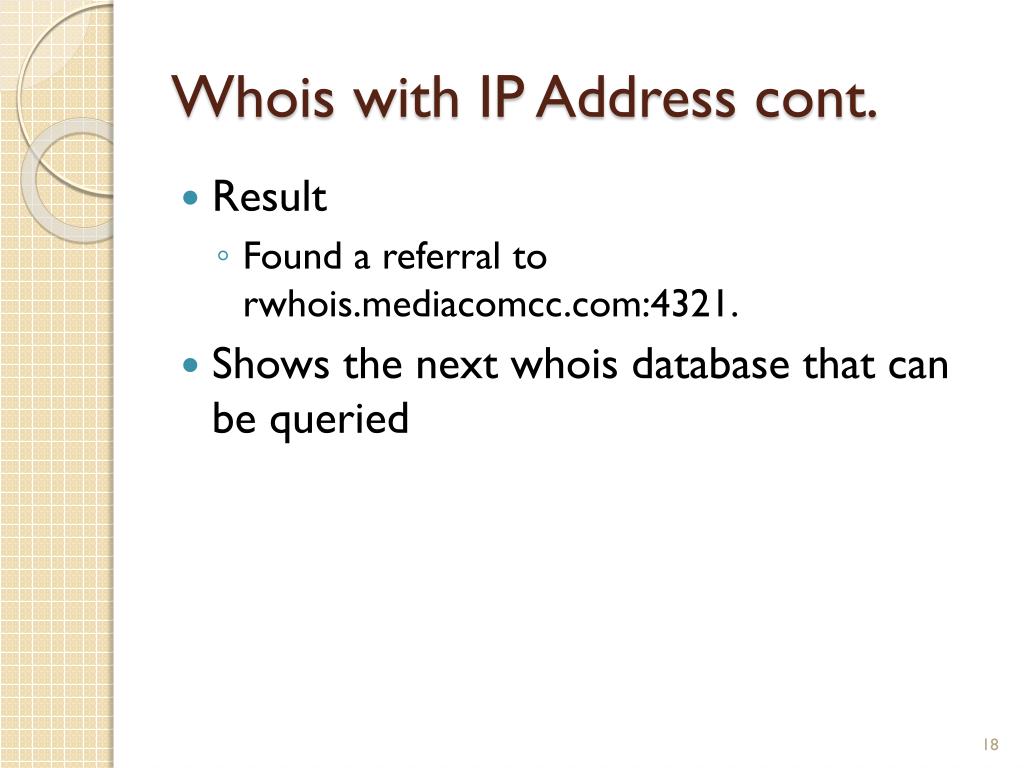

  18. Whois with IP Address cont. • Result • Found a referral to rwhois.mediacomcc.com:4321. • Shows the next whois database that can be queried

  19. Whois with IP Address • Looking closer • Results • network:Network-Name:MEDIACOMCC-173-20-128-0-Dubuque-IA • network:IP-Network:173.20.128.0/21 • network:IP-Network-Block:173.20.128.1 - 173.20.135.254 • network:Organization;I:Mediacom Communications Corp • network:Tech-Contact;I:Atli, Serhat • network:Admin-Contact;I:Selvage, Joe

  20. Whois with IP Address - Alternative • Command • whois –h rwhois.mediacomcc.com 173.20.133.90 • Results • network:Network-Name:MEDIACOMCC-173-20-128-0-Dubuque-IA • network:IP-Network:173.20.128.0/21 • network:IP-Network-Block:173.20.128.1 - 173.20.135.254 • network:Organization;I:Mediacom Communications Corp • network:Tech-Contact;I:Atli, Serhat • network:Admin-Contact;I:Selvage, Joe

  21. Autonomous System (AS) • 16 bit integers • Used by routing protocols • Interior Gateway Protocol (IGP) • Border Gateway Protocol (BGP) • Blocks of AS numbers are given to RIR’s • RIR’s assign them to blocks of IP Addresses

  22. Whois with AS number • Finding AS number from IP Address • whois –h riswhois.ripe.net 173.20.133.90 • Should be under origin • “origin: AS6478” • AS6478 is the AS number for this IP Address

  23. Whois with AS number • Command • whois AS6478 • Results • ASNumber: 6478 • RegDate: 1996-04-26 • OrgName: AT&T Services, Inc. • City: MIDDLETOWN • StateProv: NJ • Country: US

  24. Whois with AS number • Results are correct for • Country • Incorrect for • City • State • IP Addresses are rarely located where the AS number was registered

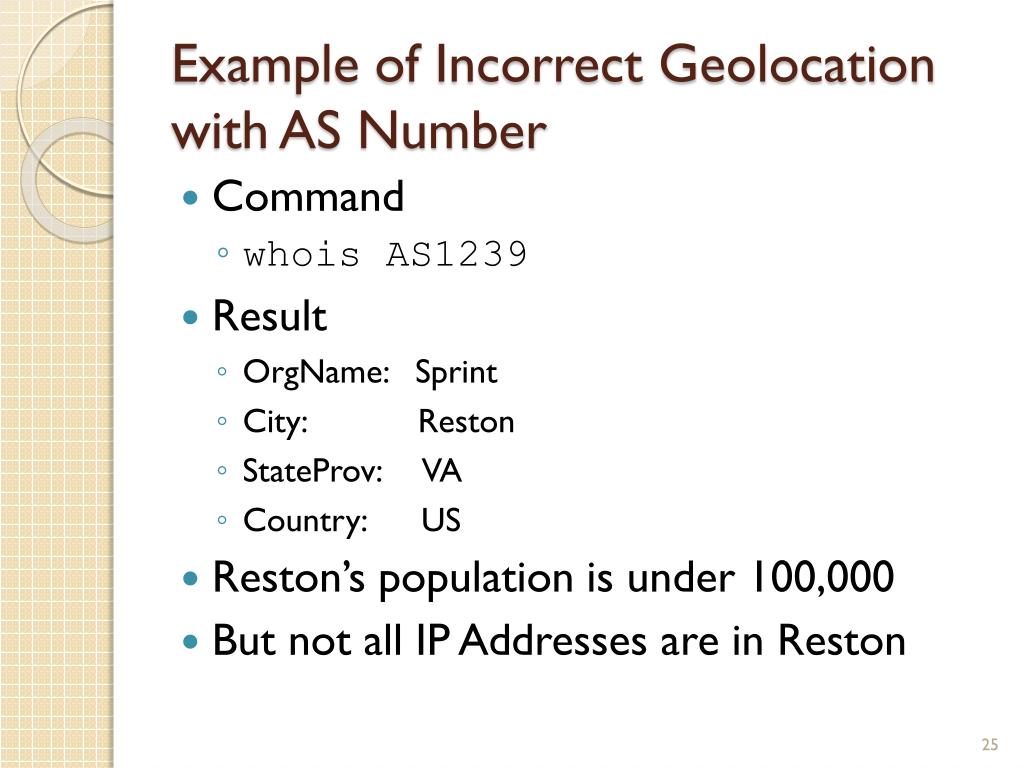

  25. Example of Incorrect Geolocationwith AS Number • Command • whois AS1239 • Result • OrgName: Sprint • City: Reston • StateProv: VA • Country: US • Reston’s population is under 100,000 • But not all IP Addresses are in Reston

  26. Domain Name • Easier for humans to remember a series of letters than a series of digits • Domain Name Servers (DNS) translates domain name to IP Address

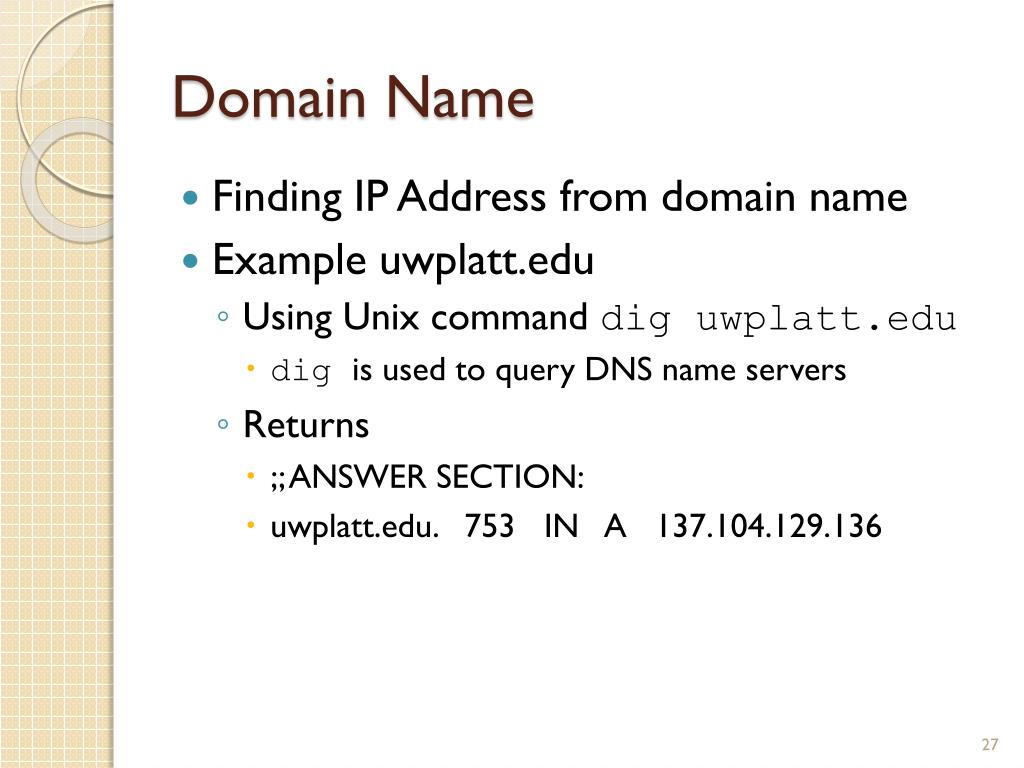

  27. Domain Name • Finding IP Address from domain name • Example uwplatt.edu • Using Unix command dig uwplatt.edu • dig is used to query DNS name servers • Returns • ;; ANSWER SECTION: • uwplatt.edu. 753 IN A 137.104.129.136

  28. Whois with Domain Name • Command • whois uwplatt.edu • Result • Registrant: University of Wisconsin - Platteville Office of Information Technolgy 1 University Plaza Platteville, WI 53818 UNITED STATES

  29. Whois with Domain Name • Results are correct for • Country • State • City • Good for Institutions • .EDU

  30. Domain Name – Geographic Codes • Found in some domains • Google search “site:.ca” • Returns sites with the .ca domain • ca – Top level domain for Canada • Sub domains may also exist • ab.ca - Alberta, Canada • calgary.ab.ca - Calgary, Alberta, Canada

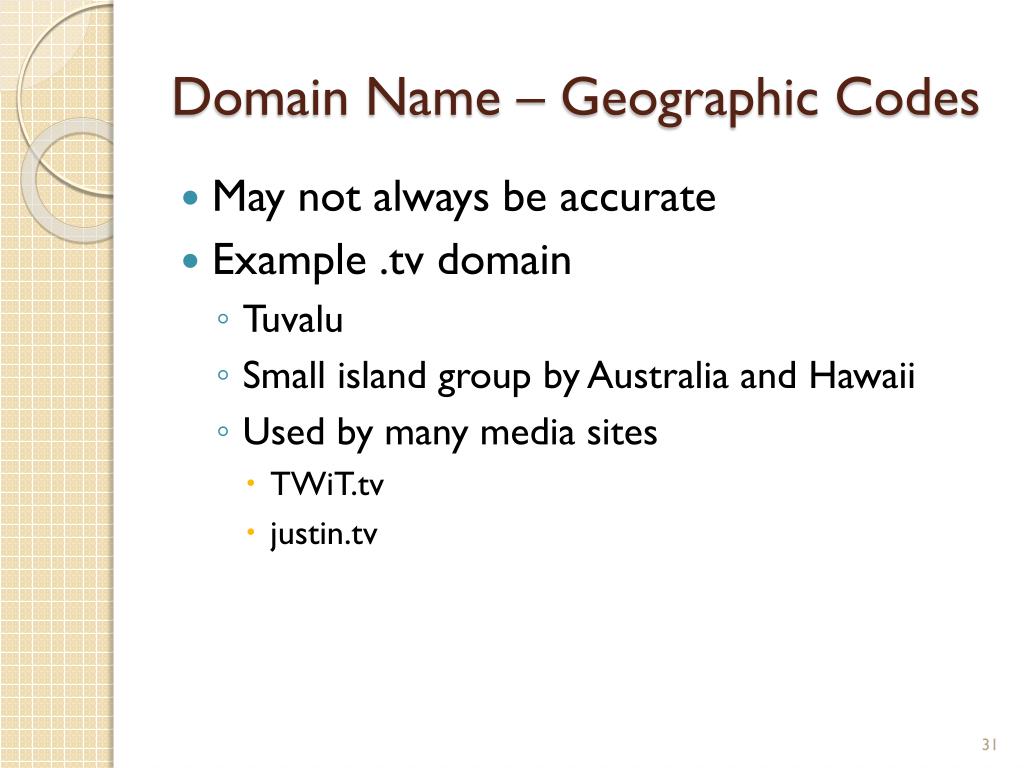

  31. Domain Name – Geographic Codes • May not always be accurate • Example .tv domain • Tuvalu • Small island group by Australia and Hawaii • Used by many media sites • TWiT.tv • justin.tv

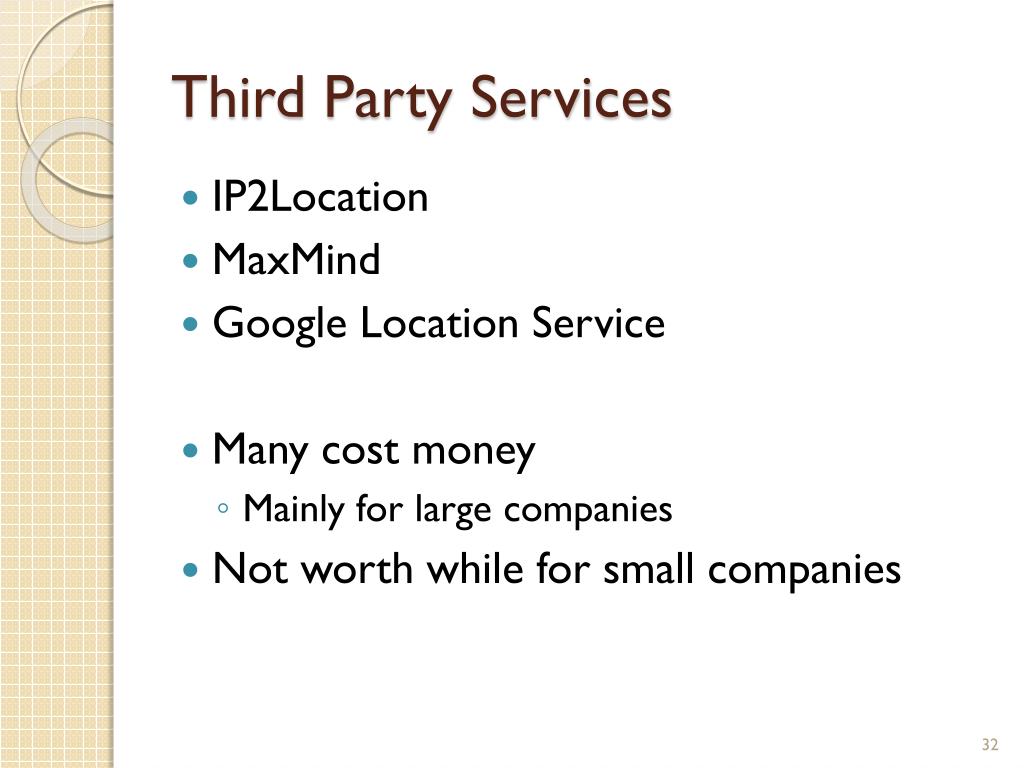

  32. Third Party Services • IP2Location • MaxMind • Google Location Service • Many cost money • Mainly for large companies • Not worth while for small companies

  33. Google Location Service • Uses different techniques for different scenarios • Cell Tower Triangulation • Detected Wifi hotspots • GPS (If available) • IP Address location

  34. W3C Geolocation API • HTML5 • Most newer browsers • Accessible by JavaScript • Uses Google’s Location Services • Separates the geolocation technique from geographic location data • GeoSample.html

  35. Geolocation Privacy

  36. Two PC’s – Same Network Hardwired PC Wireless PC

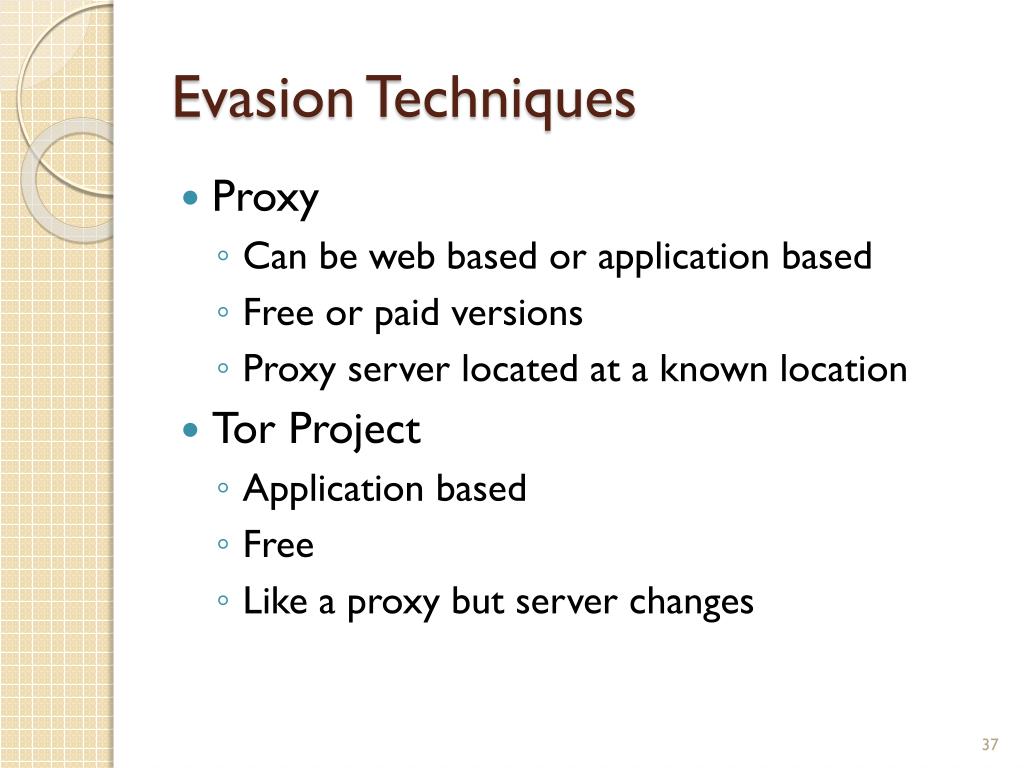

  37. Evasion Techniques • Proxy • Can be web based or application based • Free or paid versions • Proxy server located at a known location • Tor Project • Application based • Free • Like a proxy but server changes

  38. Tor Project https://www.torproject.org/about/overview.html.en

  39. Tor Project – Tor Browser • No installation needed • Includes • Tor client • Vidalia – gui for Tor client • Firefox Portable • JavaScript is off by default • Geolocation is off

  40. Tor Browser

  41. Conclusion • What is Internet Geolocation? • How is it useful? • IP Address Overview • Geolocation Techniques • Evasion Methods

  42. http://www.agent-x.com.au/comic/to-the-batcave/

  43. Questions?

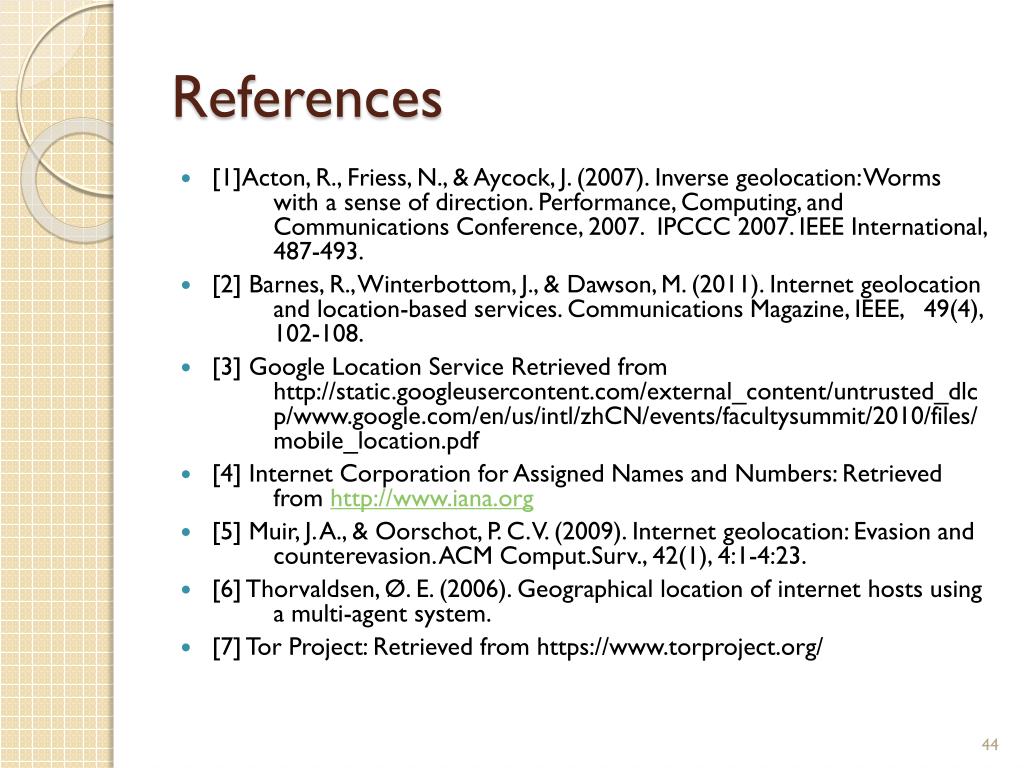

  44. References • [1]Acton, R., Friess, N., & Aycock, J. (2007). Inverse geolocation: Worms with a sense of direction. Performance, Computing, and Communications Conference, 2007. IPCCC 2007. IEEE International, 487-493. • [2] Barnes, R., Winterbottom, J., & Dawson, M. (2011). Internet geolocation and location-based services. Communications Magazine, IEEE, 49(4), 102-108. • [3] Google Location Service Retrieved from http://static.googleusercontent.com/external_content/untrusted_dlc p/www.google.com/en/us/intl/zhCN/events/facultysummit/2010/files/ mobile_location.pdf • [4] Internet Corporation for Assigned Names and Numbers: Retrieved from http://www.iana.org • [5] Muir, J. A., & Oorschot, P. C. V. (2009). Internet geolocation: Evasion and counterevasion. ACM Comput.Surv., 42(1), 4:1-4:23. • [6] Thorvaldsen, Ø. E. (2006). Geographical location of internet hosts using a multi-agent system. • [7] Tor Project: Retrieved from https://www.torproject.org/
