ALMANSOORI PRODUCTION SERVICES

1. ALMANSOORI PRODUCTION SERVICES

2. ALMANSOORI PRODUCTION SERVICES Company History Organization HSE & Quality Geographical Spread & Contacts Client List Awards Services Provided Equipment Engineering Support I N D E X

3. ALMANSOORI PRODUCTION SERVICES COMPANY HISTORY 1985 - MSE became a joint venture with Baker Production Services. The blend of Baker’s specialized resources with the expertise developed by AlMansoori, coupled with its extensive knowledge of the local environment and conditions, made Baker AlMansoori Production Services one of the leaders in the field . 1991 - The company was renamed as AlMansoori Production Services (MPS) with MSE acquiring the interest of its partner, making it 100% owned. Today, MPS is enjoying the status of a respected forerunner in the production testing services.

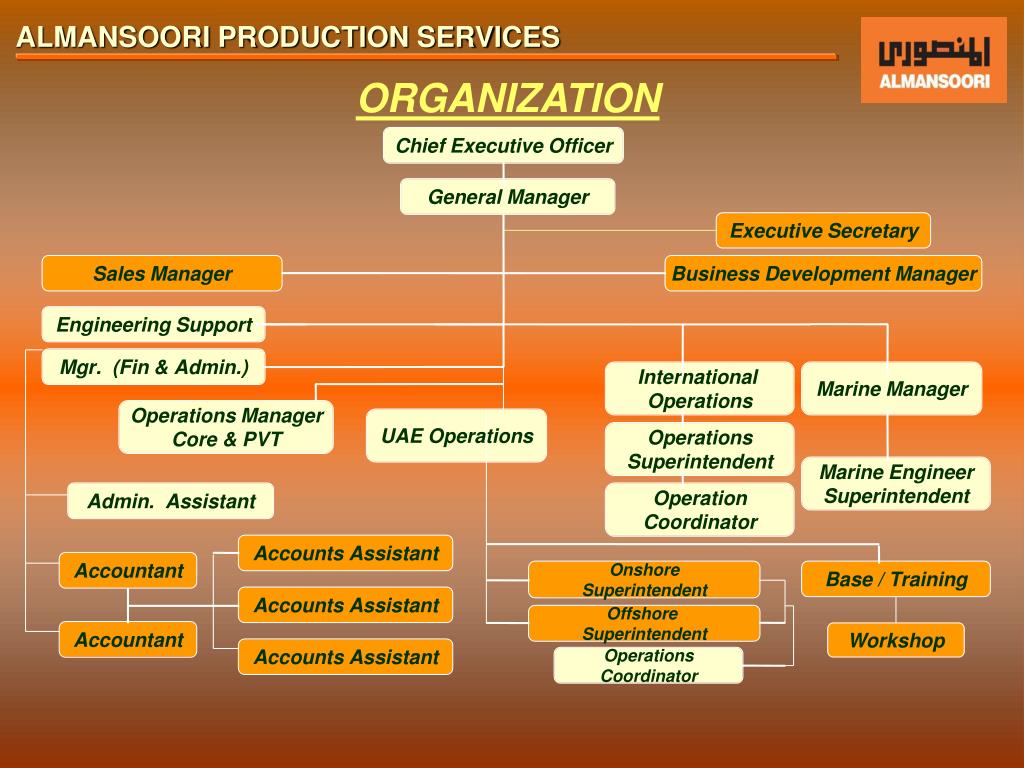

4. ALMANSOORI PRODUCTION SERVICES ORGANIZATION Workshop

5. ALMANSOORI PRODUCTION SERVICES HEALTH, SAFETY, ENVIRONMENT & QUALITY THE ALMANSOORI TEAM IS FULLY TRAINED AND EQUIPPED TO MEET THE RISING NEED FOR QUALITY SERVICE IN THE OILFIELD INDUSTRY. REPUTED TO BE ONE OF THE BEST SERVICE ORGANIZATIONS IN THE INDUSTRY WITH WORLD CLASS STANDARDS OF HEALTH , SAFETY, ENVIROMENT & QUALITY, ALMANSOORI CONTINUES TO PURSUE ITS COMMITMENT TO SERVICE EXCELLENCE. CONSISTENT WITH OUR VISION , MISSION, and VALUES, WE CONDUCT OUR OILFIELD ACTIVITIES & OTHER RELATED OPERATIONS IN SUCH A WAY AS TO MAINTAIN THE SAFETY OF OUR EMPLOYEES AND CONTRACTORS ALIKE WITH THE END GOAL OF SETTING THE HIGHEST STANDARD OF HEALTH, SAFETY, ENVIRONMENT AND QUALITY. OCCUPATIONAL HEALTH, ENVIRONMENTAL PROTECTION & QUALITY IS A WAY OF LIFE CONSCIOUSLY PRACTICED BY ALMANSOORI AND ALL ITS AFFILIATES.

6. ALMANSOORI PRODUCTION SERVICES Integrated Management System 18001: Occupational Health & Safety

7. ALMANSOORI PRODUCTION SERVICES Integrated Management System 9001: Quality

8. ALMANSOORI PRODUCTION SERVICES Integrated Management System 14001: Environment

9. ALMANSOORI PRODUCTION SERVICES GEOGRAPHICAL SPREAD & CONTACTS U.A.E India Libya Qatar Canada UAE Main Offices Iraq Saudi Arabia Egypt Oman Yemen Tanzania Malaysia Bangladesh Kuwait Russia

10. ALMANSOORI PRODUCTION SERVICES UAE Local Client list • Abu Dhabi Co. for Onshore Oil Operations (ADCO) • Abu Dhabi Marine Areas Operating Co. (ADMA-OPCO) • Atlantis Services (Ajman, UAE) • BP (Sharjah, UAE) • Bunduq Operating Company (Abu Dhabi, UAE) • Crescent Petroleum Company (Sharjah, UAE) • Zakum Development Company (ZADCO) (Abu Dhabi ) • AMOCO (Sharjah – U.A.E) • N.P.C.C ( Abu Dhabi – U.A.E) • Dubai Petroleum Est. ( Dubai – U.A.E ) • Conoco Phillips

11. British Gas (India) CalValley Petroleum (Yemen) Petroleum Development Oman (PDO) (Shell) Petroleum Trust of Thailand (PTTEP) (Oman) Qatar Petroleum (QP) Saudi ARAMCO Total Libya Vintage Petroleum (Yemen) Reform Energy Alberta ( Canada ) Dolphin Oil Services ( Qatar ) Total E & P ( Yemen ) Novus Oman Limited ( Oman ) ALMANSOORI PRODUCTION SERVICES International Client List • AGIP Gas - (Libya) • Arabian Oil Company (AOC) - (Saudi Arabia) • Tullow Bangladesh Ltd. - (Bangladesh) • Artumas Group Inc. - (Tanzania) • D.N.O - (Iraq) • Addax Petroleum Corporation - (Iraq) • Dolphin Oilfield Services - (Libya) • Ras Gas Company Ltd - (Qatar) • En Cana International - (Qatar) • SRAK - (Saudi Arabia) • RAK Petroleum – (Oman) • Aminex – (Tanzania) • TAQ-TAQ - (Iraq) • Western Zagros Limited - (Iraq) • CPOC - (Malaysia) • Khalda Petroleum Company - (Egypt)

12. AWARDS

13. AWARDS

14. AWARDS

15. AWARDS

16. AWARDS

17. AWARDS

18. AWARDS

19. SERVICES PROVIDED • OIL & GAS PRODUCTION/EXPLORATION WELL TESTING • MARINE PRODUCTION TESTING & STIMULATION VESSELS • ONSHORE & OFFSHORE EARLY PRODUCTION FACILITIES • PRODUCED WATER TREATMENT • MULTI-PHASE SYSTEMS • INTEGRATED WELL SERVICES • ENVIRONMENTAL SERVICES • DRILL STEM TESTING • PROCESS ENGINEERING AND DESIGN • PVT and CORE ANALYSIS

20. MARINE PRODUCTION TESTING&STIMULATION VESSELS • Ability to perform offshore well testing in fields have been developed using single or multi-well jackets. • Vessels allow full-scale production tests to be performed at remote offshore locations with the minimal rig-up time on location and easy transfer to another location upon completion. • Vessels include: Al Saqr Al Jirnas Al Shaheen Azzam

21. Al SAQR • Service: • Dimensions: • Max. Draft: • Accommodation: • Main Engine: • Bow Thruster: • Stern Thruster: • Speed: • Crane: Well Testing, Pumping and Supply. Length - 50.0m Breadth - 12m 3.6 m 24 Persons. Fully air-conditioned. 2 Wartsila x 1440 Hp each. 500 Hp 500 Hp 12.5 Knots 25 Ton, Plimsoll Crane.

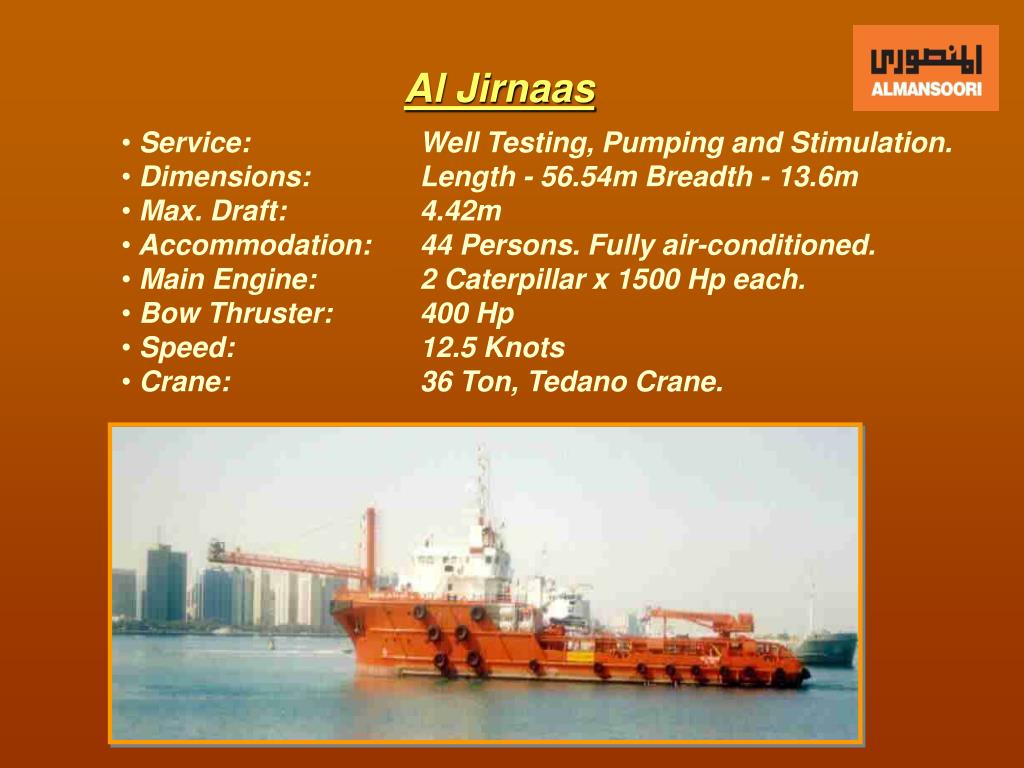

22. Al Jirnaas • Service: • Dimensions: • Max. Draft: • Accommodation: • Main Engine: • Bow Thruster: • Speed: • Crane: Well Testing, Pumping and Stimulation. Length - 56.54m Breadth - 13.6m 4.42m 44 Persons. Fully air-conditioned. 2 Caterpillar x 1500 Hp each. 400 Hp 12.5 Knots 36 Ton, Tedano Crane.

23. Al Shaheen • Service: • Dimensions: • Max. Draft: • Accommodation: • Main Engine: • Bow Thruster: • Stern Thruster: • Propulsion: • Speed: • Dynamic • Positioning System: • Crane: DP Class - 2 Well Testing, Pumping and Supply. Length - 56.0m Breadth - 13.6m 46m 33 Persons. Fully air-conditioned. 2 Wartsila x 1960 Hp each. 2 x 700 Hp 700 Hp 2 Azimuth Propulsion 12.5 Knots Kongsberg, Simrad DP System meets Class - 2 requirements 25 Ton, Plimsoll Crane.

24. Azzam • Service: • Dimensions: • Max. Draft: • Accommodation: • Main Engine: • Bow Thruster: • Speed: • Crane: Well Testing, Stimulation and Pumping Length - 50.0m Breadth - 12.0m 3.80m 31 Persons. Fully air-conditioned 2x6L80 Wartsilla Engines (1040 KW each) 500 Hp 12.5 Knots 25 Ton, Plimsoll Crane.

25. EQUIPMENT Surge Tank Pressure Tank Vertical Flare Stack Water Treatment Unit HT 400 TRIPLEX PUMP Multi-Stage Pump Pressure Test System Air compressor and Generator Acid Neutralization Unit Chemical Injection Pump Duplex Cartridge Filter Unit Hydro cyclone and Accumulator Skid Strainer Package Sand Monitoring System Surface Test Tree Transfer Pump Acid Pumping Unit Test Separator Offshore Burner Boom Onshore Burner Boom Green Burner Head Choke Manifold Oil / Gas Manifold ESD Panel Safety Valve Heater Flexible Hose Lab Cabin SCADA Electronic Data Acquisition Loading Gantry Crude Oil Storage Tank Oil Re-Injection Pump Mobile well Test Packages

26. TEST SEPARATOR Three Phase Test Separator 2160 PSI, 1440 PSI, 720 PSI Equipped with Safety Relief Valves and Necessary Instrumentation Certified for Sour Service NACE MR-01-75

27. BURNER BOOM Offshore Burner Booms 60’ and 90’ lengths Equipped with Electronic ignition. Equipped with Green Burner Heads, each capable of handling 5000 bbls/d

28. ONSHORE BURNER BOOMS Available on 15’ skids Complete with Green Burner Heads for clean and efficient burning Electronic ignition and continuous pilot

29. CHOKE MANIFOLD 3” X 5K, and 10K, and 15 K Choke Manifolds Equipped with Adjustable and Positive Chokes Designed with four gate valves Certified for Sour Service

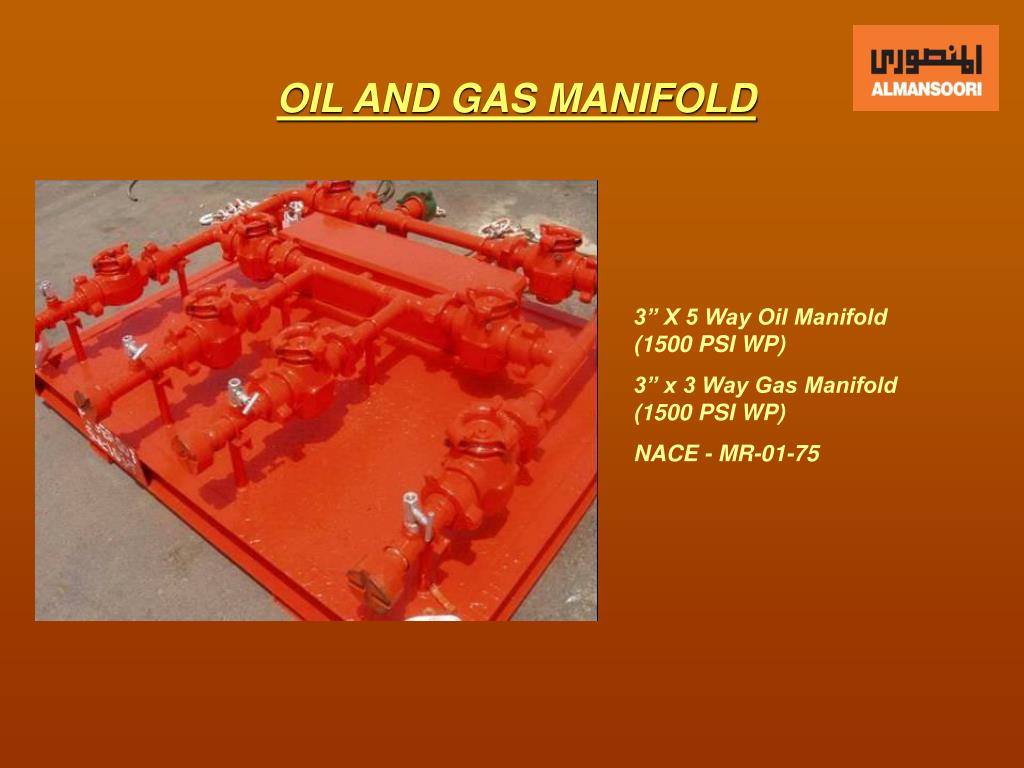

30. OIL AND GAS MANIFOLD 3” X 5 Way Oil Manifold (1500 PSI WP) 3” x 3 Way Gas Manifold (1500 PSI WP) NACE - MR-01-75

31. ESD PANEL HYDRAULIC & PNEUMATIC Equipped with remote shut down stations enabling complete shut down of the well in an emergency

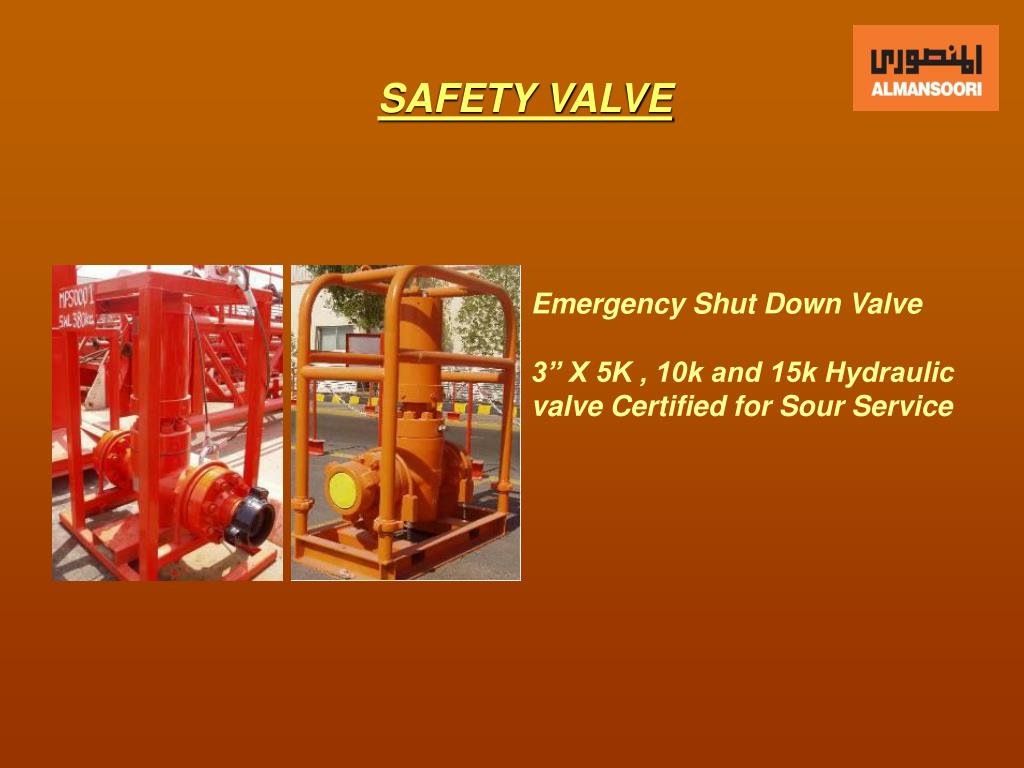

32. SAFETY VALVE Emergency Shut Down Valve 3” X 5K , 10k and 15k Hydraulic valve Certified for Sour Service

33. HEATER 2MM BTU/Hr and 4MM BTU/Hr. Line Heater Diesel / Gas Fired 3” X 5K

34. HEAT EXCHANGER 5 MM BTU/HR. Heat Exchanger 5MM BTU/hr 3” x 10K With adjustable choke & steam generator

35. STEAM GENERATOR The CLAYTON Steam Generator is manufactured in conformance with the American Society of Mechanical Engineering (ASME) Power Boiler Code, Section I Manufactured by : CLAYTON INDUSTRIES Model No. E-200 Steam Heat Generator

36. HP FLEXIBLE HOSE

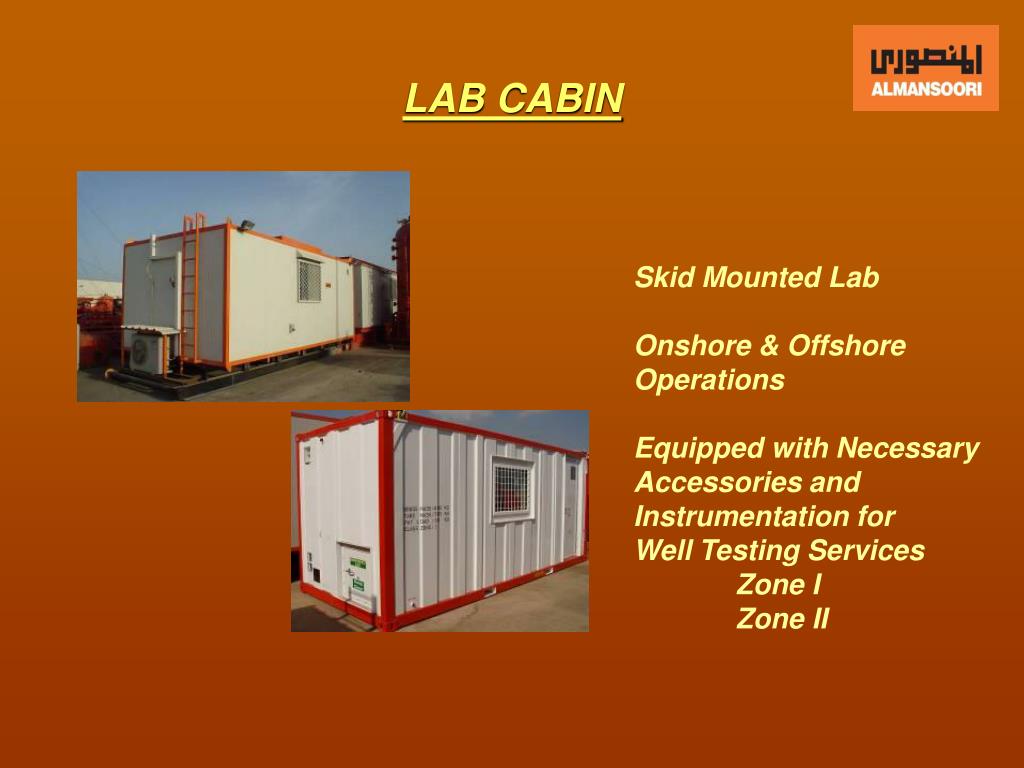

37. LAB CABIN Skid Mounted Lab Onshore & Offshore Operations Equipped with Necessary Accessories and Instrumentation for Well Testing Services Zone I Zone II

38. SCADA SYSTEM Real Time Display Offline Editing and Reporting Facilities Equipped with Pressure, Temperature and Metering Sensors

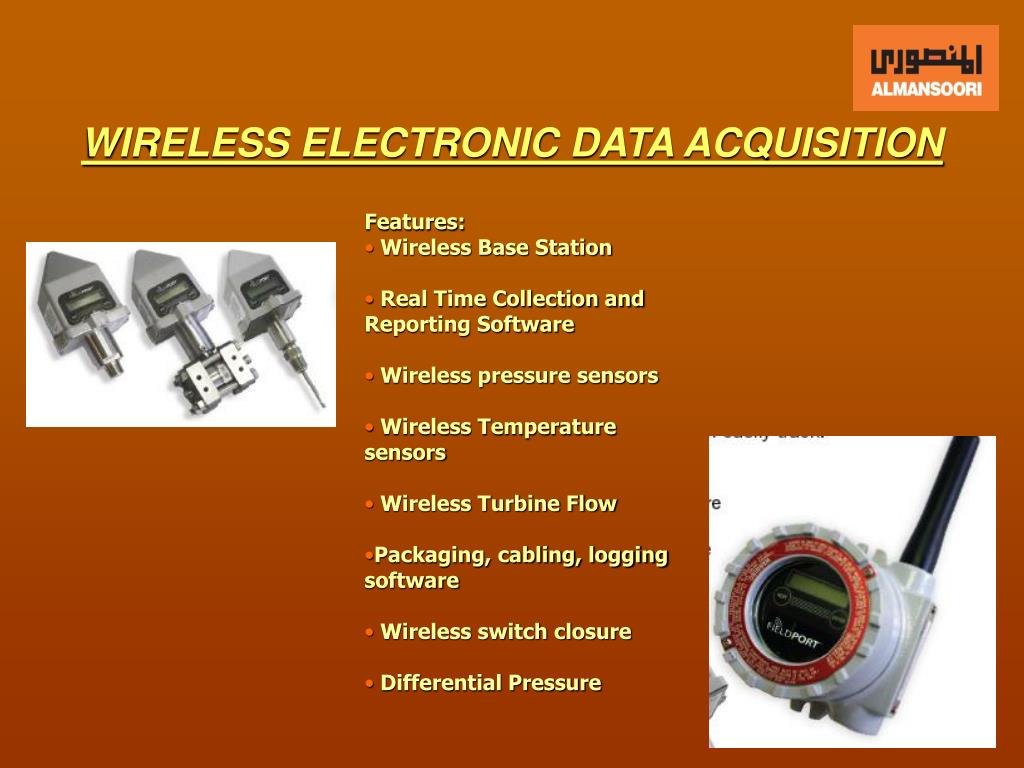

39. WIRELESS ELECTRONIC DATA ACQUISITION • Features: • Wireless Base Station • Real Time Collection and Reporting Software • Wireless pressure sensors • Wireless Temperature sensors • Wireless Turbine Flow • Packaging, cabling, logging software • Wireless switch closure • Differential Pressure

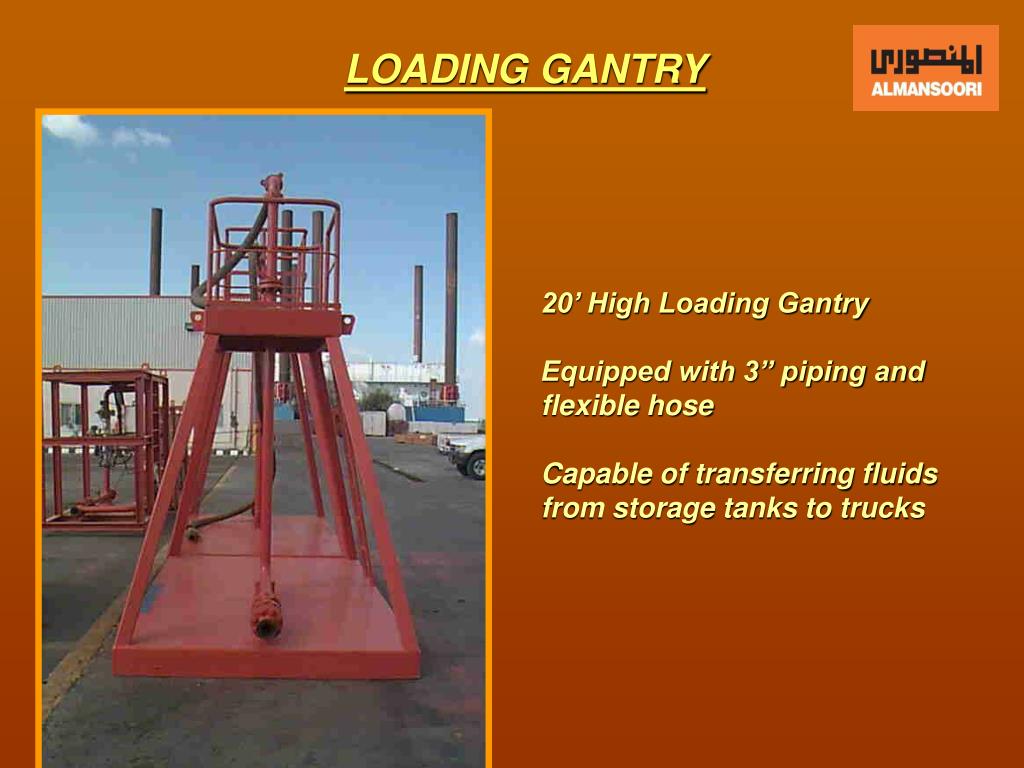

40. LOADING GANTRY 20’ High Loading Gantry Equipped with 3” piping and flexible hose Capable of transferring fluids from storage tanks to trucks

41. CRUDE OIL STORAGE Skid Mounted Tanks 400 BBLS Capacity Equipped with Sight Glasses and Vent Lines

42. OIL RE-INJECTION PUMP High Volume Centrifugal Pump Capacity of 10,000 bbls/d Discharge pressure 800 psi Double mechanical seal Certified for Zone II Certified for Sour Service (H2S)

43. SURGE TANK 100 bbls capacity 100 psi w.p. Equipped with sight glasses Fluid Accumulation and degassing

44. SURGE TANK Skid Mounted 50 bbls Capacity 50 psi W.P. Designed for fluid accumulation and measurement during the testing of low producing wells Useful for Meter Calibration

45. PRESSURE TANK HORIZONTAL PRESSURE TANK 100 PSI, EQUIPPED WITH SAFETY RELIEF VALVE, BACK PRESSURE VALVE AND SIGHT GLASS, CERTIFIED FOR SOUR SERVICES.

46. VERTICAL FLARE STACK 60’ and 100’ High Equipped with electronic ignition 8” gas line 3 - 4” vent lines Certified for sour service

47. WATER TREATMENT Skid Mounted System Capacity of 8000 bbls/d This system is located downstream of the water leg of the Test Separator. The water is treated achieving <5ppm prior to disposal.

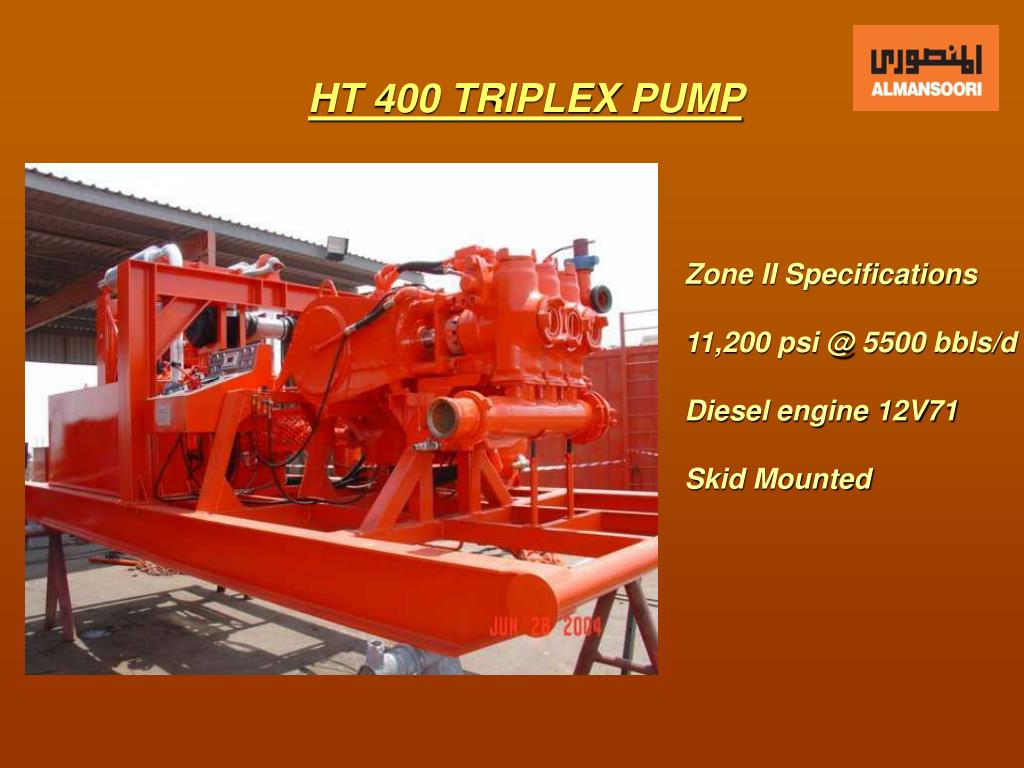

48. HT 400 TRIPLEX PUMP Zone II Specifications 11,200 psi @ 5500 bbls/d Diesel engine 12V71 Skid Mounted

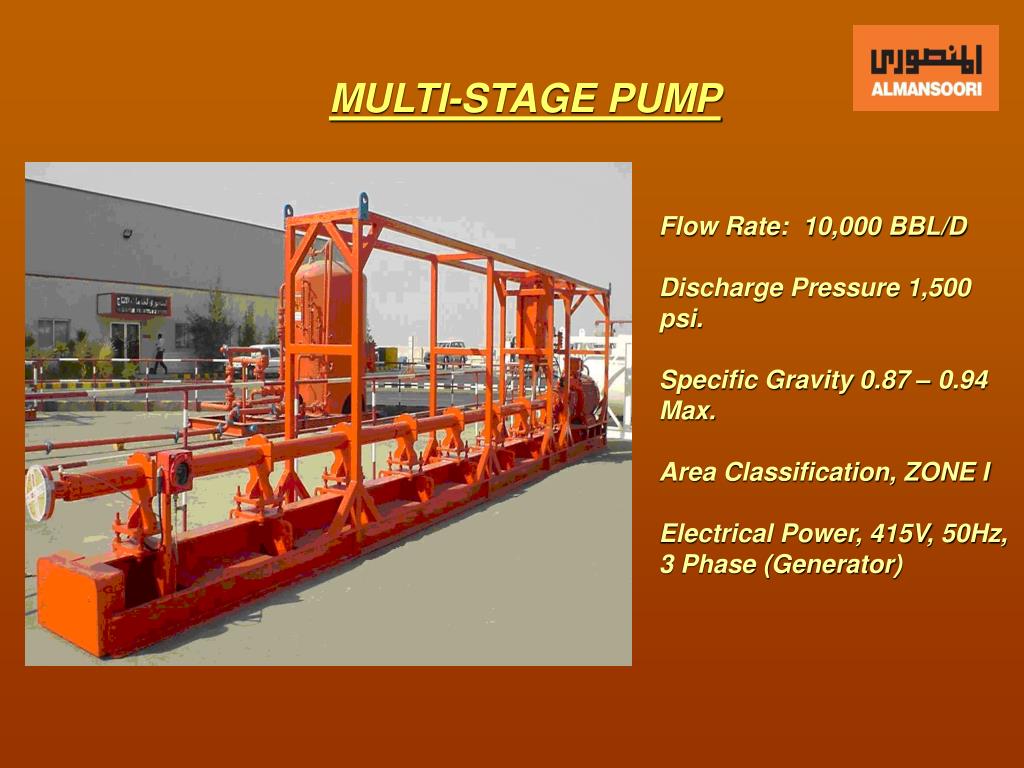

49. MULTI-STAGE PUMP Flow Rate: 10,000 BBL/D Discharge Pressure 1,500 psi. Specific Gravity 0.87 – 0.94 Max. Area Classification, ZONE I Electrical Power, 415V, 50Hz, 3 Phase (Generator)

50. PRESSURE TEST SYSTEM MWP of 20K psig Rate of 15 Gal/min Power 460 Volt Cycle 60 Hz Current 50 Amps
