1 / 13

Graphs of Composite Trig Functions

Graphs of Composite Trig Functions. Objective: Be able to combine trigonometric and algebraic functions together. TS: Demonstrating understanding of concepts. Warm-Up: Graph each of the below on your calculator. Which seem to be periodic?. How can we verify if something is periodic?.

daria
Télécharger la présentation

Graphs of Composite Trig Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

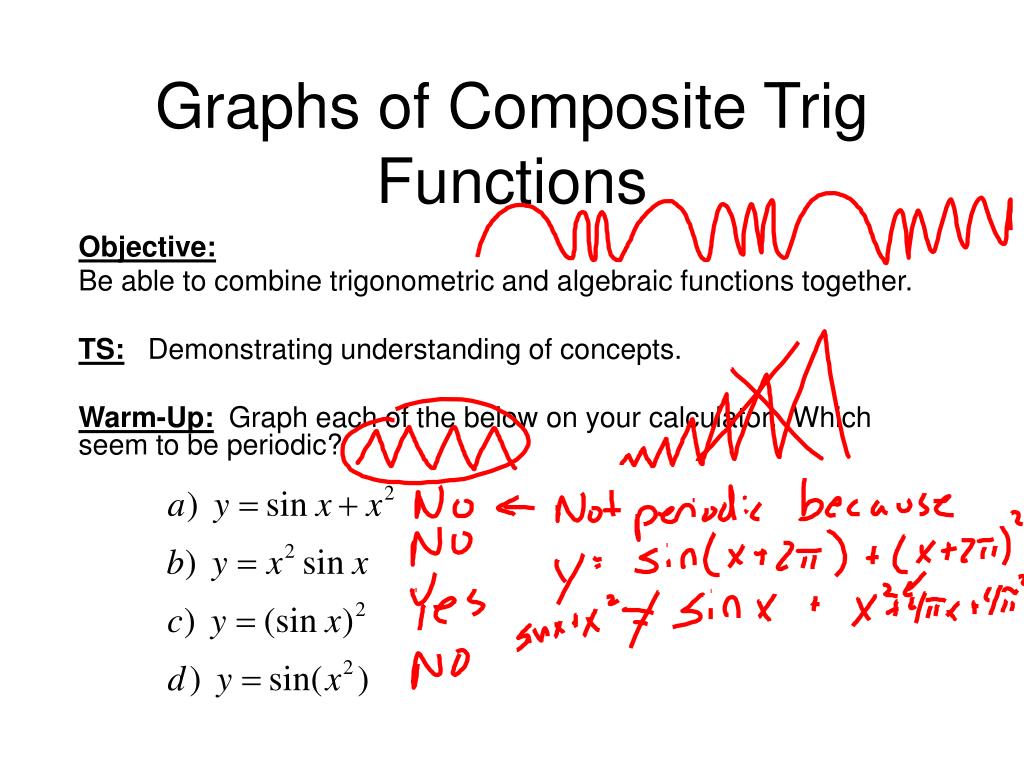

  1. Graphs of Composite Trig Functions Objective: Be able to combine trigonometric and algebraic functions together. TS: Demonstrating understanding of concepts. Warm-Up: Graph each of the below on your calculator. Which seem to be periodic?

  2. How can we verify if something is periodic? If we believe some function f(x) has a period of a, then to verify we need to show f(x+ a) = f(x). Example: Verify y=(sin x)2 is periodic.

  3. You Try: Is y = (sin3x)(cosx) periodic? Use your calculator to figure out what the period is.

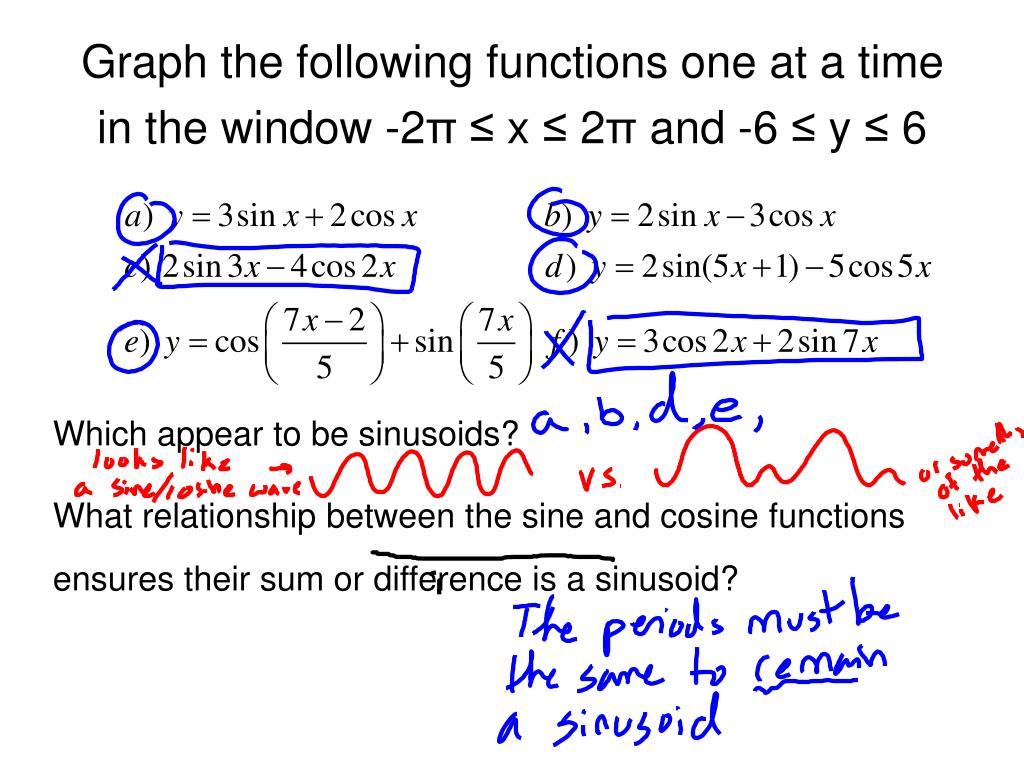

  4. Graph the following functions one at a time in the window -2π≤ x ≤ 2π and -6 ≤ y ≤ 6 Which appear to be sinusoids? What relationship between the sine and cosine functions ensures their sum or difference is a sinusoid?

  5. Sums that are Sinusoid Functions Given the two functions f(x) = a1sin(bx+c1) and g(x) = a2cos(bx+c2) both with the same b value then the sum (f+g)(x) = a1sin(bx+c1) + a2cos(bx+c2) is a sinusoid with period 2π/b

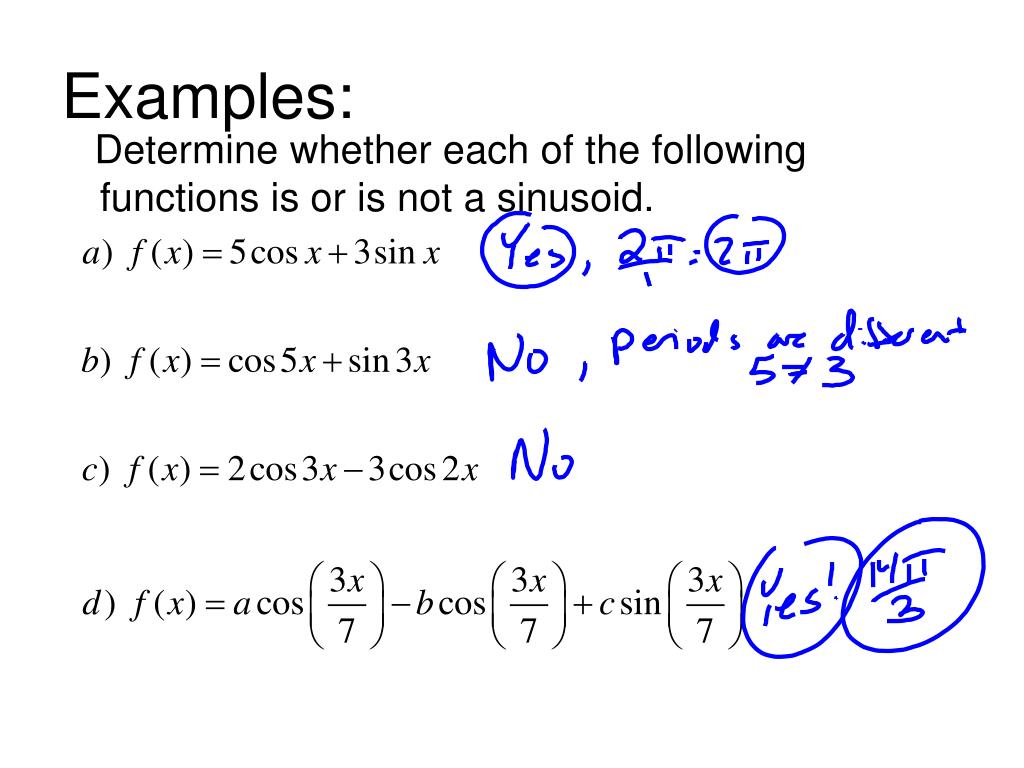

  6. Examples: Determine whether each of the following functions is or is not a sinusoid.

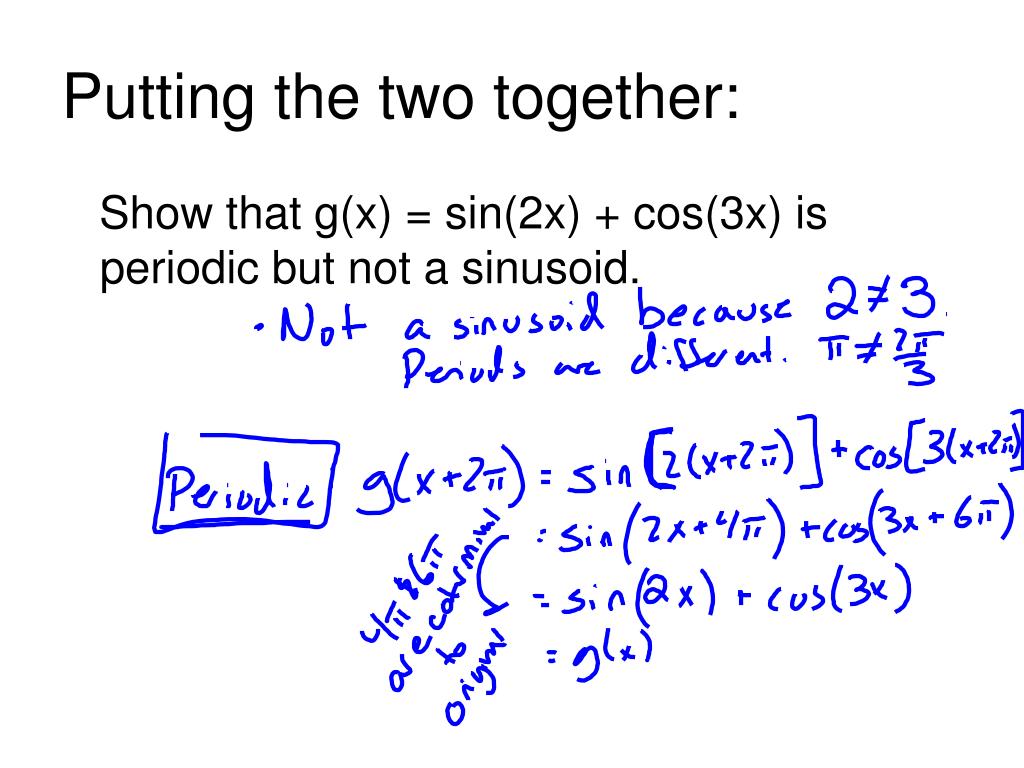

  7. Putting the two together: Show that g(x) = sin(2x) + cos(3x) is periodic but not a sinusoid.

  8. What if I just want to graph some crazy trig functions? (don’t roll your eyes, you know you want to graph crazy trig functions)

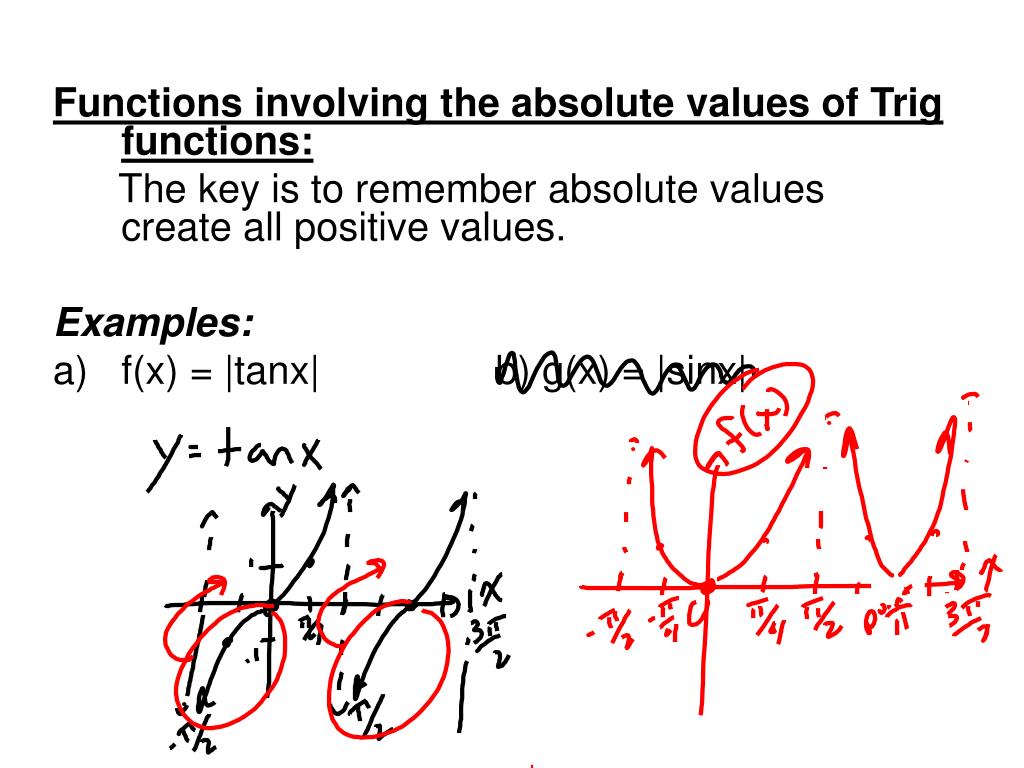

  9. Functions involving the absolute values of Trig functions: The key is to remember absolute values create all positive values. Examples: • f(x) = |tanx| b) g(x) = |sinx|

  10. Functions involving the absolute values of Trig functions: Examples: b) g(x) = |sinx|

  11. Functions involving a sinusoid and a linear function The key is to remember sine and cosine can be at most 1 and at least -1. Examples: • f(x) = 3x + cosx b) g(x) = ½x +cosx

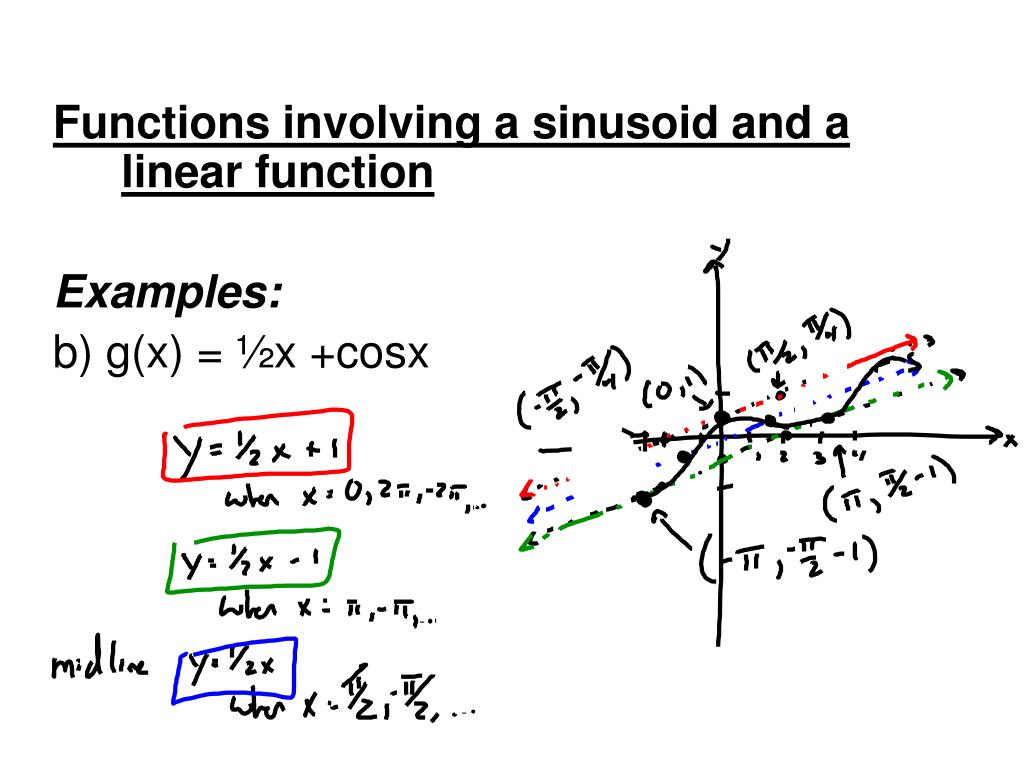

  12. Functions involving a sinusoid and a linear function Examples: b) g(x) = ½x +cosx

  13. Dampened Trig Functions (Trig functions muliplied by a algebraic function) The key is to remember sine and cosine can be at most 1 and at least -1. Example: f(x) = (2x)cosx
