  1. Saia® System CatalogueChapter A2 - HMI Visualisation and Operating

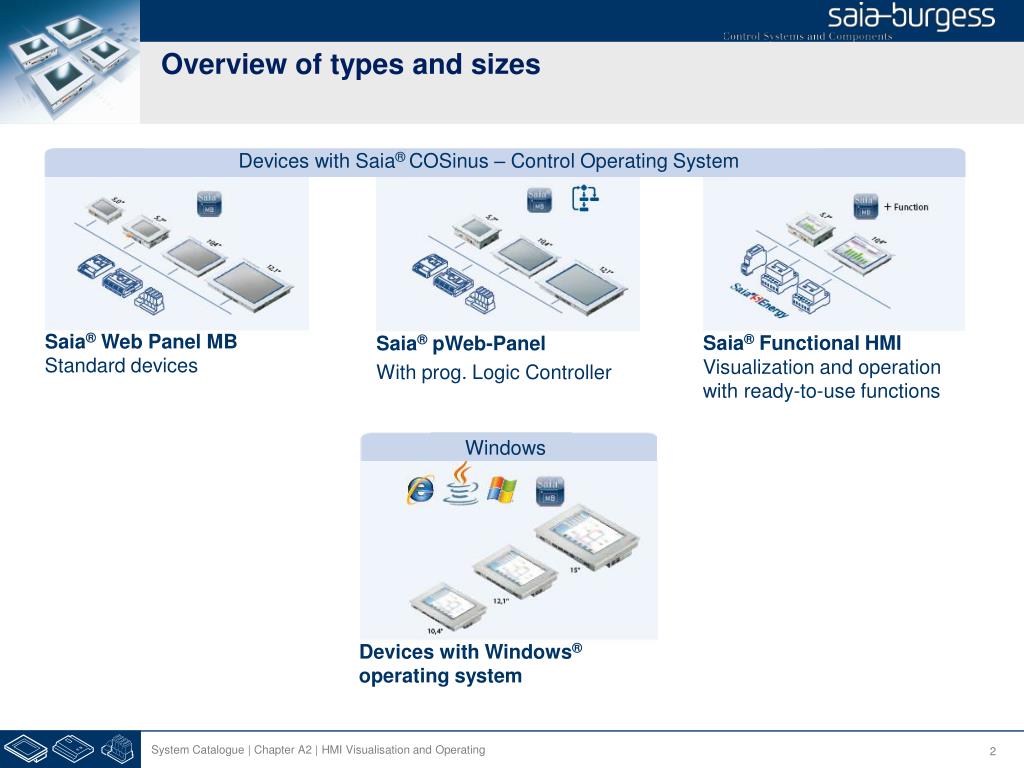

  2. Devices with Saia® COSinus – Control Operating System Saia® Web Panel MB Standard devices Saia® Functional HMI Visualization and operation with ready-to-use functions Saia® pWeb-Panel With prog. Logic Controller Windows Overview of types and sizes Devices with Windows® operating system System Catalogue | Chapter A2 | HMI Visualisation and Operating

  3. Web technologyCombination of openness, world standards and universality The control devices and servers can be connected across the world via any physical connection which the http protocol can transport. Visualization of different parts of the system at one location System Catalogue | Chapter A2 | HMI Visualisation and Operating

  4. Saia®NT.OS 2003 1990 1985 1995 1996 1998 2000 2007 2009 2012 ... 1978 2003 20xx Saia®COSinus on Micro-Browser panels stands for......industrial lifecycle without being pushed by large market-influencing companies. • Industrial lifecycle of Operating Systems makes it easy to replace or change the devices. • No need for adapting the user application part. • No need to change or install new hardware drivers. ... 1978 • All Saia®Micro-Browser Panel series are essentially based on Saia®COSinus expanded with the Micro-Browser application • The top priority for Saia® COSinus is reliable and continuous operation. • Allows the visualization and operation of web projects which have been created with Saia®Web-Editor System Catalogue | Chapter A2 | HMI Visualisation and Operating

  5. Display size Equipment assembly Standard Saia®Web Panel MBDisplay size 5.0” to 12.1” Main characteristics • Large selection of display sizes, color TFT display, in VGA or SVGA resolution • Fast and easy commissioning without additional applications with internal setup menu • Connection to the web server via Ethernet, USB or serial 12.1” 10.4” 5.7” 5.0” PCD7.D450WTPF PCD7.D457VTCF PCD7.D410VTCF PCD7.D412DTPF 12,1“ 5“ 5,7“ / 10,4“ System Catalogue | Chapter A2 | HMI Visualisation and Operating

  6. Display size Saia®pWeb-Panel MB Two functions in one device • Visualisierung von Web Seiten mit Saia®Micro-Browser • Logic controller for included automations • Programmable with Saia®PG5 12.1“ PCD7.D412DT5F • 2 port ethernet switch offers a good connectivity 10.4“ PCD7.D410VT5F 12.1” 10.4” 5.7” 5.7“ PCD7.D457VT5F System Catalogue | Chapter A2 | HMI Visualisation and Operating

  7. Ethernet Use cases for Saia® pWeb Panel MB programmable with PG5 Data concentrator Decentralized automation SCADA System Logic Controller The logic enables the values and status of a large number of connected Saia® PCD automation stations to be collected, linked and then visualized at a higher level. The programmable Web-Panels enable the construction of decentralized automation systems with low space requirements. S-Bus System Catalogue | Chapter A2 | HMI Visualisation and Operating

  8. Function HMI Saia® S-Energy Manager Preconfigured Web pages Applikation Funktion Saia®Functional HMIs with out of the box user application By default, Saia®Functional HMIs, such as the Energy Manager, are supplied with application software which is functional without any additional programming. Functions: Comparison between meters and periods 15 min energy control (Emax load dumping) Saia® S-Energy Manager The basic functionality is already included in this software and significantly shortens the in-house development cycle. Connection of bidirectional meters Automated data and alarm e-mail Anwender Applikation Auto collecting of connected S-Bus counters Collected data's are save into Excel compatible .csv files Saia® COSinus Hardware System Catalogue | Chapter A2 | HMI Visualisation and Operating

  9. Monitoring for everyone, everywhere at anytime with Saia®Micro Browser App The ideal way to fill the gap between stationary and mobile areas of use For Apple iPad, iPod, iPhone • http://itunes.apple.com/de/app/saia-microbrowser/id415611930?mt=8 For Android Systems • https://play.google.com/store/apps/details?id=com.saiaburgess.microbrowser&hl=en System Catalogue | Chapter A2 | HMI Visualisation and Operating

  10. Accessories for Micro-Browser PanelsThe right mounting kit for all Web-HMI devices Consistently mounting kits for all panels • Modern technology • Easily and properly integrated into the area in close proximity • Similar systems for on- and in wall mounting OEM or proprietary design • Room for individual creativity. • Customer-specific front designed in aluminum, black or wood for 5,7” series • Easily and unobtrusively integrated into a sophisticated space. + = System Catalogue | Chapter A2 | HMI Visualisation and Operating
