  1. SOM-5890 Sales Kit Intel® 2nd Generation CoreTMi COM-Express CPU Module EmCore / SOM James Wang James.wang@advantech.com.tw Feb. 20, 2011

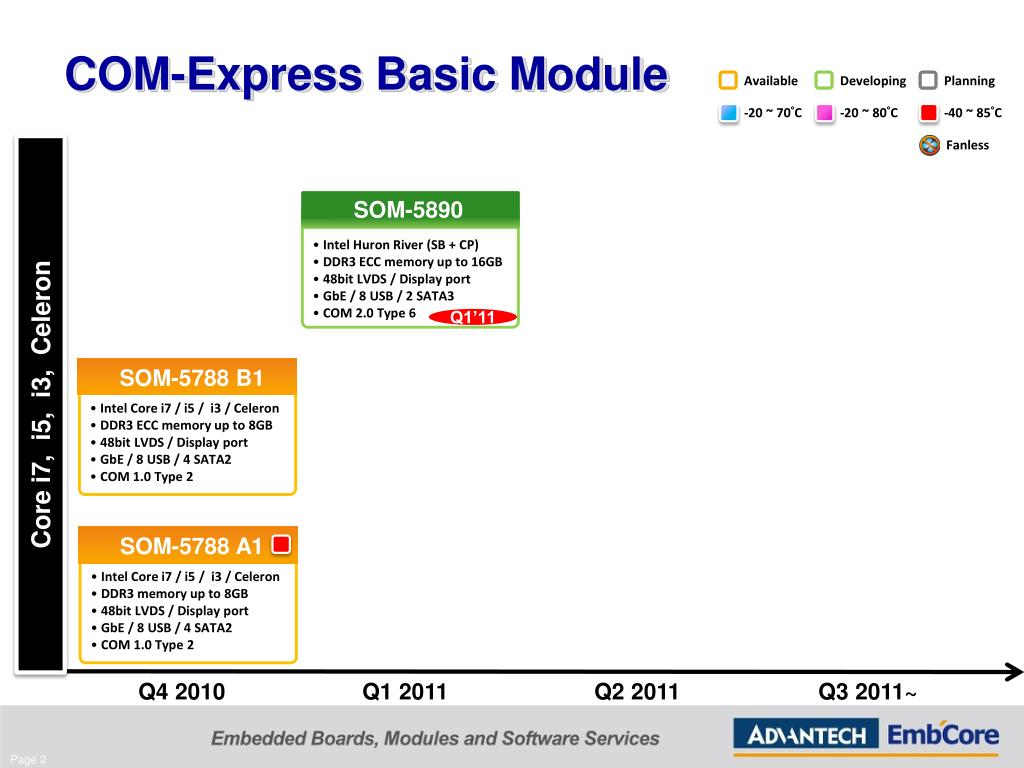

  2. COM-Express Basic Module -20 ~ 70°C -20 ~ 80°C -40 ~ 85°C Core i7, i5, i3, Celeron Fanless SOM-5890 • Intel Huron River (SB + CP) • DDR3 ECC memory up to 16GB • 48bit LVDS / Display port • GbE / 8 USB / 2 SATA3 • COM 2.0 Type 6 Q1’11 SOM-5788 A1 SOM-5788 B1 • Intel Core i7 / i5 / i3 / Celeron • DDR3 memory up to 8GB • 48bit LVDS / Display port • GbE / 8 USB / 4 SATA2 • COM 1.0 Type 2 • Intel Core i7 / i5 / i3 / Celeron • DDR3 ECC memory up to 8GB • 48bit LVDS / Display port • GbE / 8 USB / 4 SATA2 • COM 1.0 Type 2 Q4 2010 Q1 2011 Q2 2011 Q3 2011~ Developing Planning Available

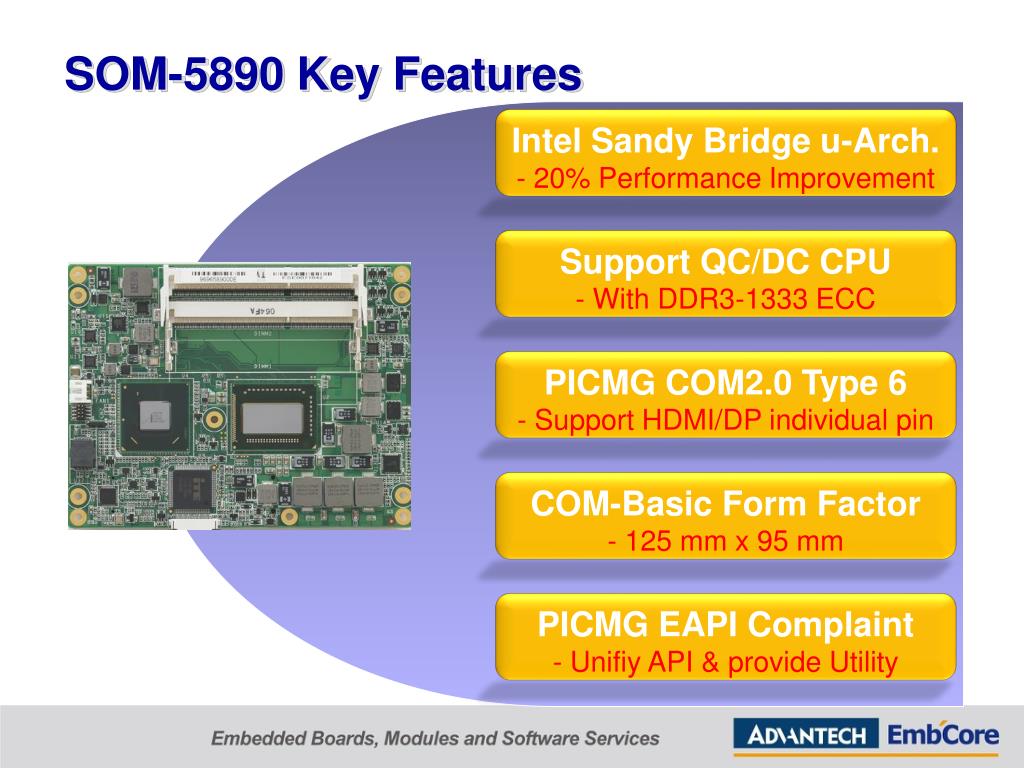

  3. SOM-5890 Key Features • Intel Sandy Bridge u-Arch. - 20% Performance Improvement • Support QC/DC CPU - With DDR3-1333 ECC • PICMG COM2.0 Type 6 - Support HDMI/DP individual pin • COM-Basic Form Factor - 125 mm x 95 mm • PICMG EAPI Complaint - Unifiy API & provide Utility

  4. Intel Huron River Value Proposition • Next Generation Sandy Bridge u-Architecture • ~20 CPU performance improvement • Optimized Turbo Boost reduce power consumption • Higher memory speed DDR3-1333 w/ ECC up to 16GB • Up to 3 PCIe controller (support PCIeGenII 5.0GT/s)

  5. Intel Huron River Value Proposition • 6th Generation Graphic Core • Doubled 3D graphics performance • DirectX10.1 / OpenGL3.0 support • H/W Encode/Decode/Transcode for HD content • 3 x HDMI/DVI/DisplayPort direct output & 1 x SDVO

  6. Intel Huron River Value Proposition • New PCH – Intel QM67 (Cougar Point) • SATA GenIII (6.0Gb/s) • PCIe Gen2 (5.0GT/s) QM67 SATAGen.3 Support QM67 PCIeConfig.

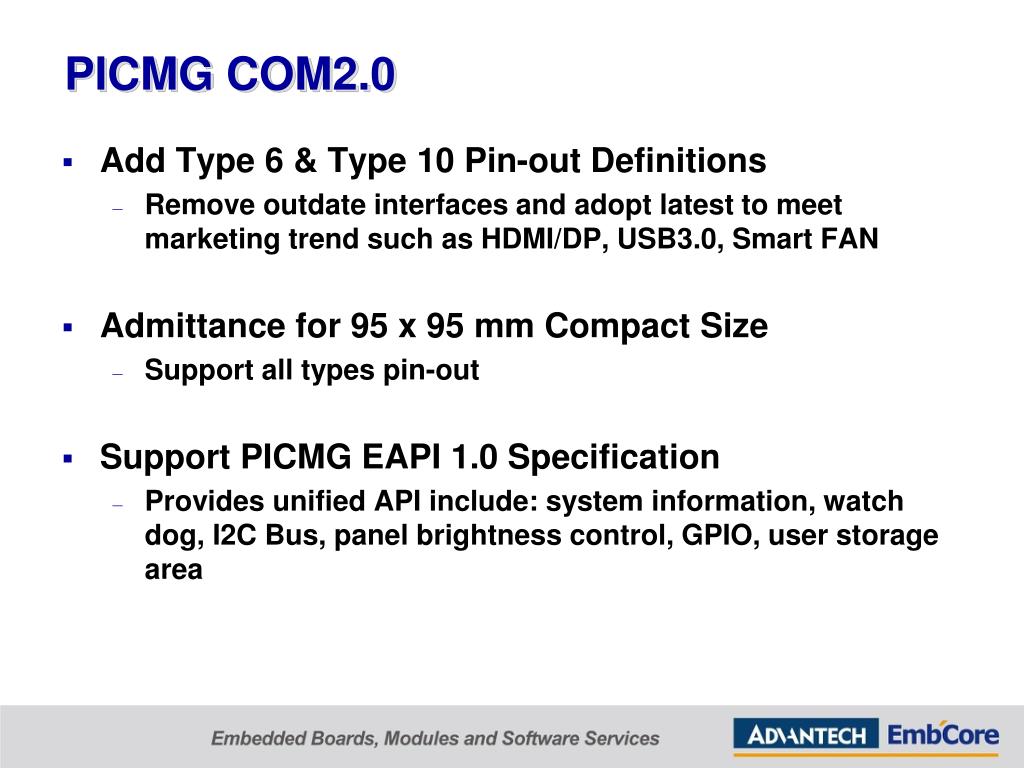

  7. PICMG COM2.0 • Add Type 6 & Type 10 Pin-out Definitions • Remove outdate interfaces and adopt latest to meet marketing trend such as HDMI/DP, USB3.0, Smart FAN • Admittance for 95 x 95 mm Compact Size • Support all types pin-out • Support PICMG EAPI 1.0 Specification • Provides unified API include: system information, watch dog, I2C Bus, panel brightness control, GPIO, user storage area

  8. PICMG COM2.0 Type 6 vs. Type 2 HDMI SDVO PCI Bus DisplayPort DVI IDE UART CANBus Partial Power pins

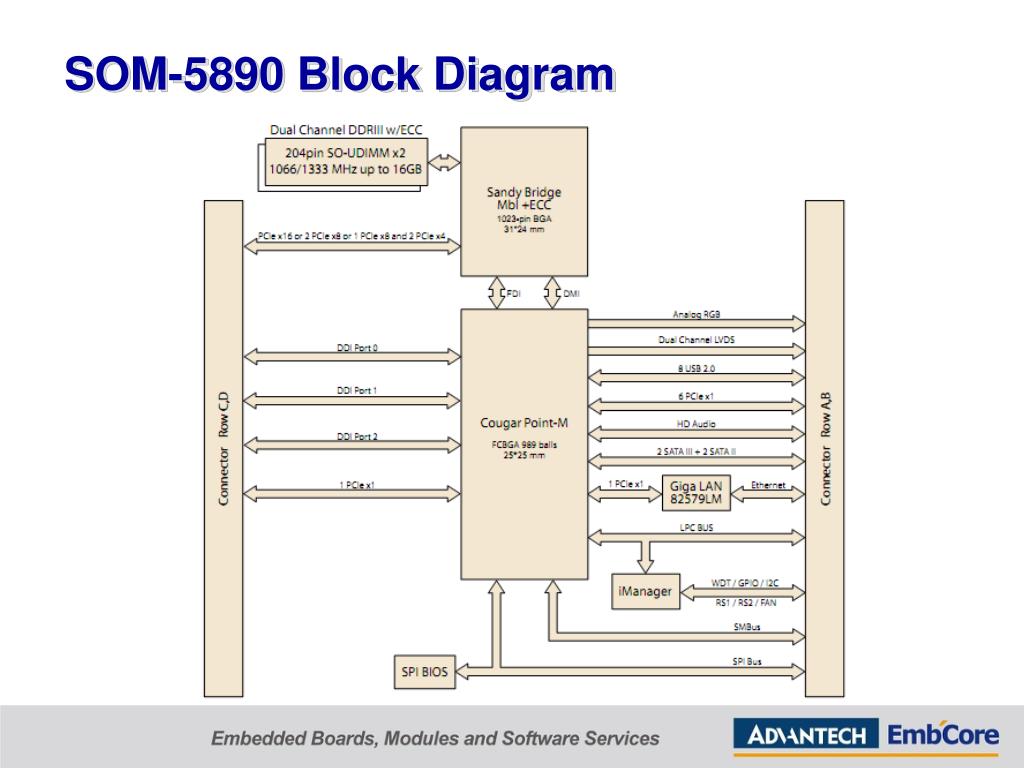

  9. SOM-5890 Block Diagram

  10. SOM-5890 Product Specification

  11. SOM-5890 Board Layout (Comp. Side) DDR3-1333 w/ECC Up to 16GB on 2-CH Intel QM67 (PCH) Intel Sandy Bridge (CPU + GMCH) Intel Giga LAN (82579LM)

  12. SOM-5890 Board Layout (Solder Side) PICMG COM2.0 Type 6 Pin-out Row A/B: VGA, LVDS, PCIEx1, SATA, USB2.0, Giga LAN, HDA, LPC, SPI, I2C, SMBus Row C/D: PCIEx16, PCIEx1, HDMI/DisplayPort, USB3.0

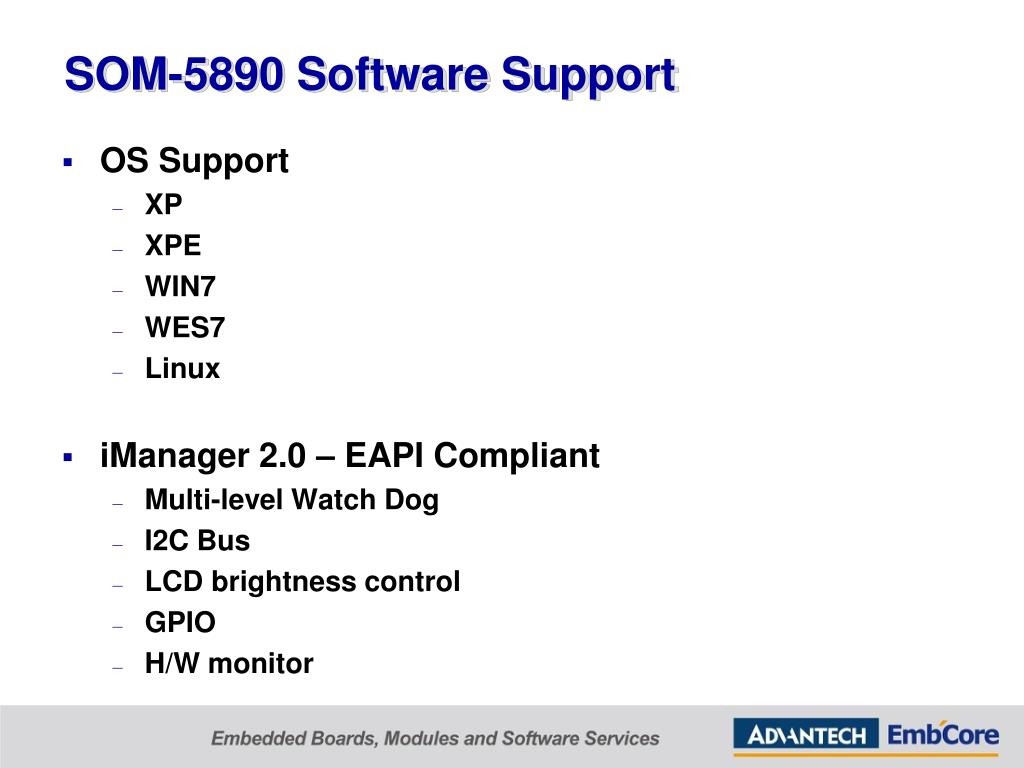

  13. SOM-5890 Software Support • OS Support • XP • XPE • WIN7 • WES7 • Linux • iManager 2.0 – EAPI Compliant • Multi-level Watch Dog • I2C Bus • LCD brightness control • GPIO • H/W monitor

  14. SOM-5890 Selling Point • Intel 2nd Generation Core i Processor • New Sandy Bridge u-Architecture ~20% improvement • Quad Core / Dual Core CPU w/ SV/LV/ULV SKUs • DDR3-1333 w/ ECC up to 16GB • Powerful Graphics Engine w/ Rich Display I/F • HD Content Accelerator for Encode / Decode • 3 x HDMI/DVI/DisplayPort Interface, 1 x SDVO • State-of-the-Art I/O Interfaces and Flexibility • COM2.0 Type 6 Supports Individual pins for PCIex16 & DDI Allow Flexible Functionalities • PCIex16 Gen2 (5.0GT/s) w/ 3 Controller (1 x8 & 2 x4) • PCIex1 Gen2(5.0GT/s), can be programmed to x1, x2, x4 • SATA Gen3 support (2 ports)

  15. SOM-5890 Target Application Digital Signage Gaming Video Conference Data Process

  16. Other Information • Ordering Information • Development Board • Packing List

  17. SOM-5890 Reference Schedule MP May 2011 Pilot Run Mar. 2011

  18. Thank you Click and get more!!
