  1. Automotive Engines Part 1 (Configurations)

  2. Configurations • Based on arrangement and number of Cylinders

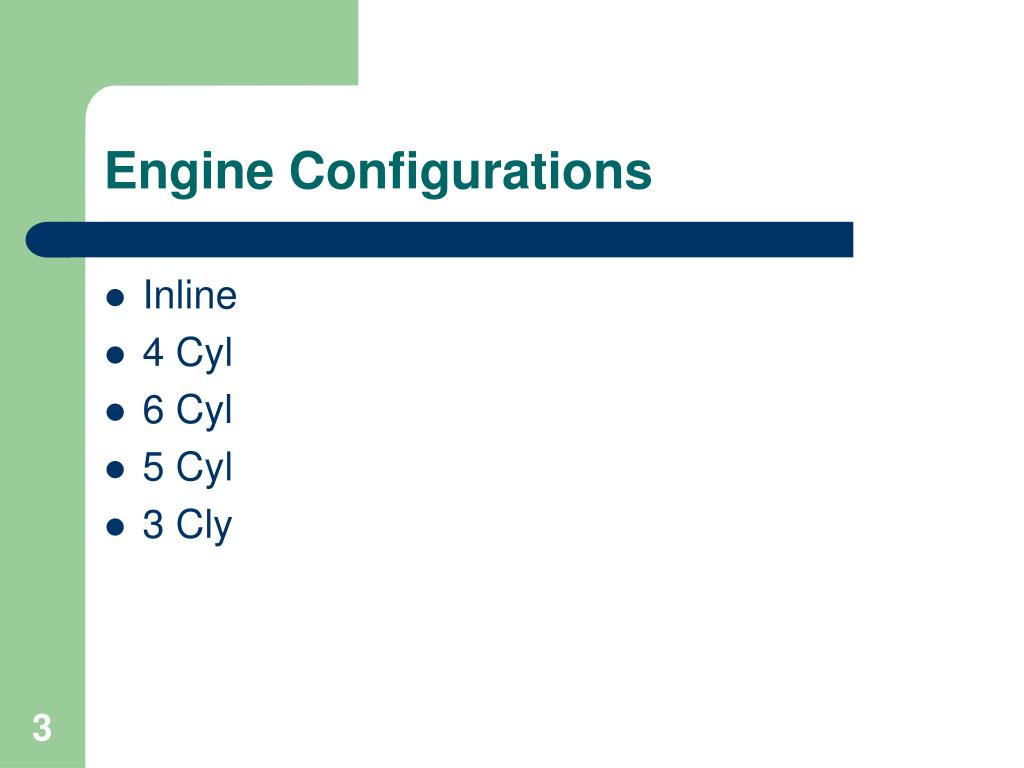

  3. Engine Configurations • Inline • 4 Cyl • 6 Cyl • 5 Cyl • 3 Cly

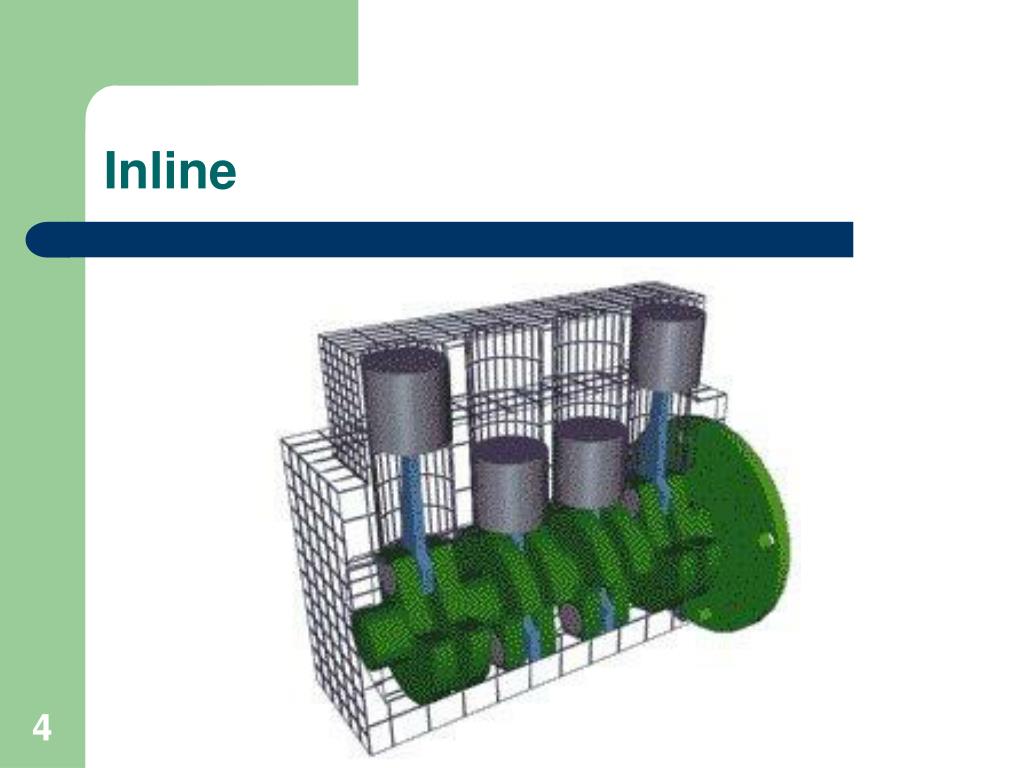

  4. Inline

  5. Engine Configurations • V • 8 Cyl • 6 Cyl • 10 Cyl • 12 Cyl • 16 Cyl • 4 Cyl

  6. V style

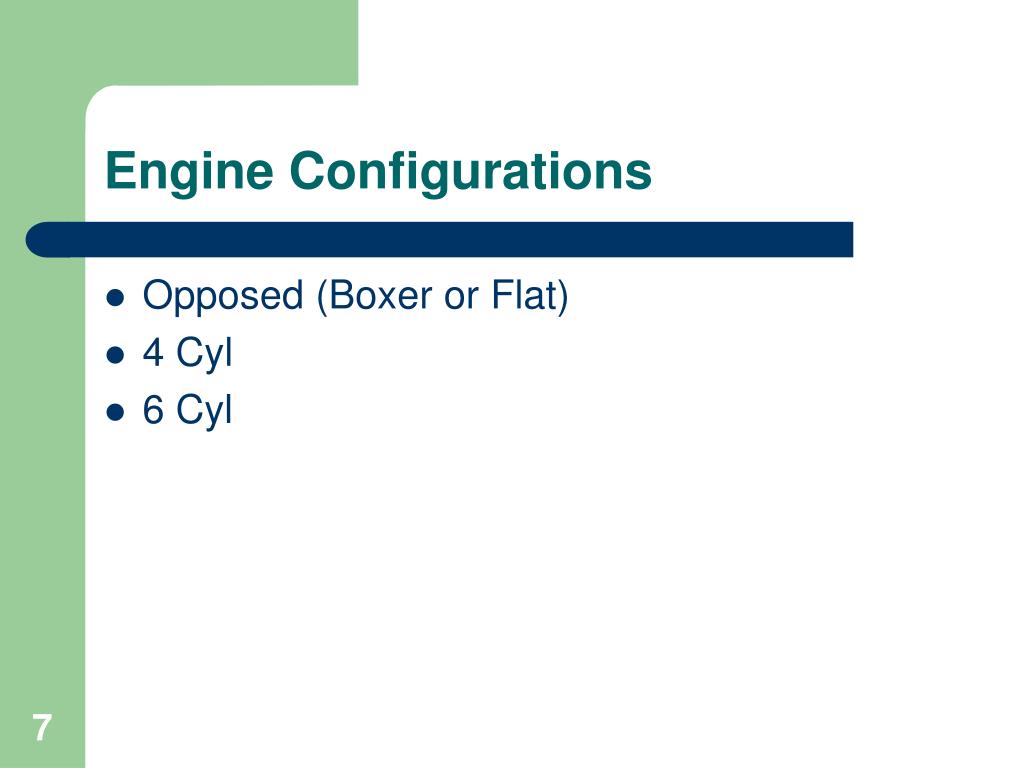

  7. Engine Configurations • Opposed (Boxer or Flat) • 4 Cyl • 6 Cyl

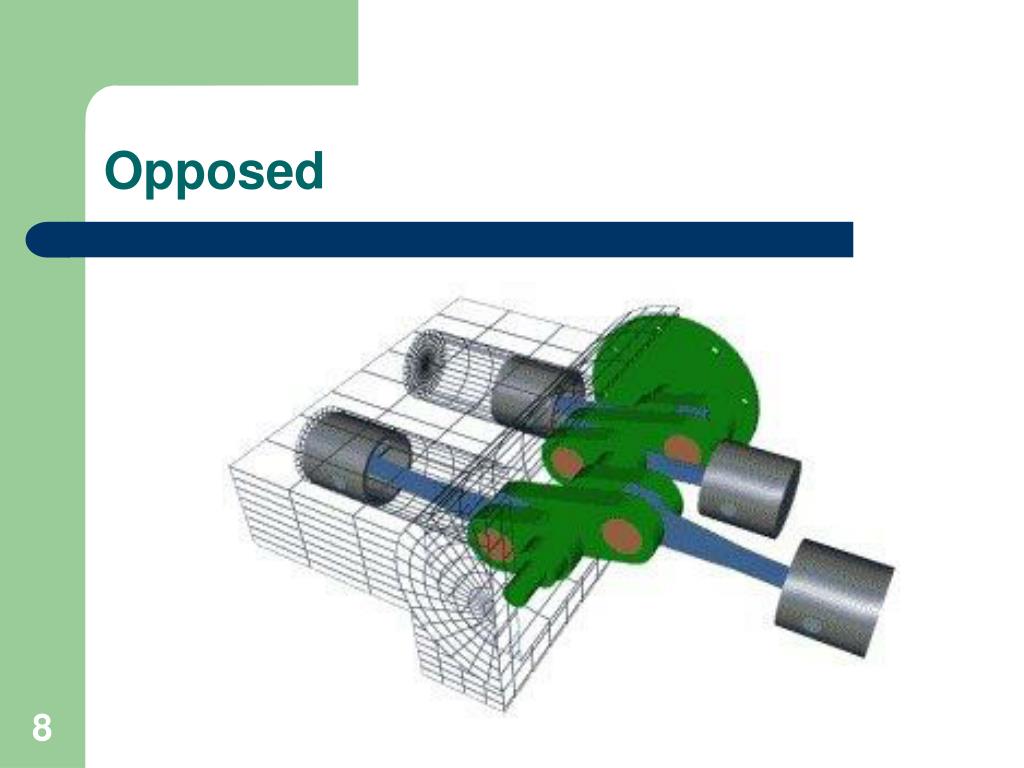

  8. Opposed

  9. Engine Configurations • VR • Cross Between Inline and V • Only in 6 Cyl • Very Shallow Angle (15°)

  10. VR

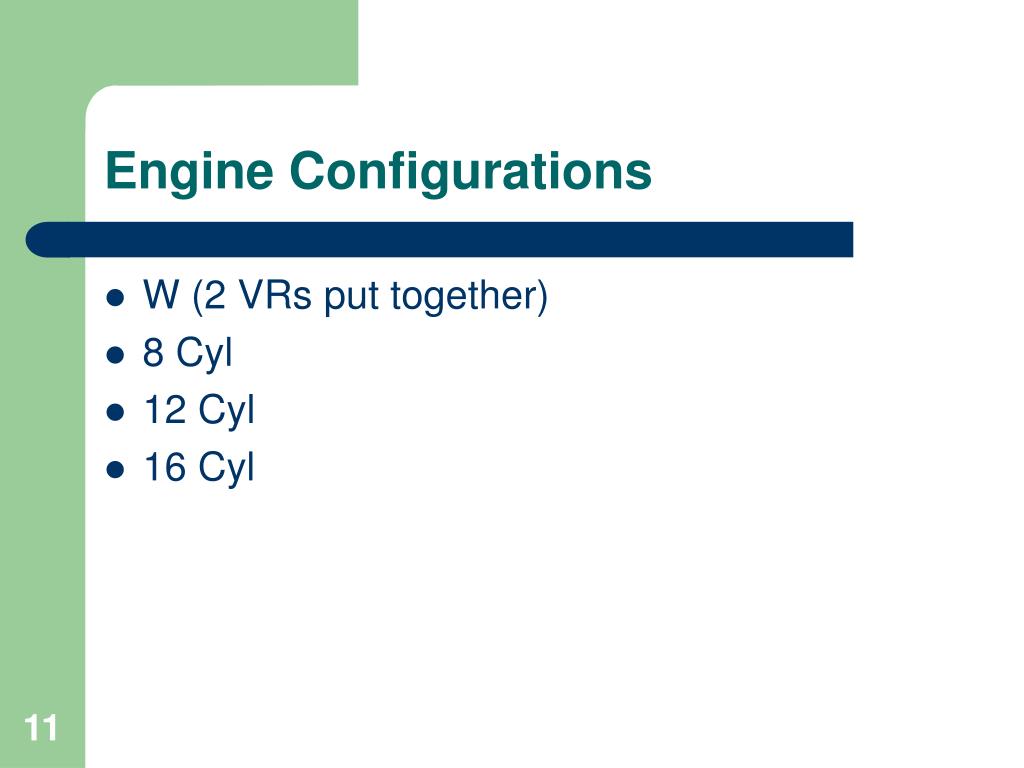

  11. Engine Configurations • W (2 VRs put together) • 8 Cyl • 12 Cyl • 16 Cyl

  12. W

  13. The End
