Iso view of shielding in place.

Iso view of shielding in place. Lifting beam with adjustable pick point Matches the pitch of the shield to the pitch of the hall. slides. Secures pick point to set position. Strength of M20 fasteners. 2xM20. Rx. Ry. Reacts against the 10mm step of the inner ring. 2663. 875.

darryl-aguirre
Télécharger la présentation

Iso view of shielding in place.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Iso view of shielding in place.

  2. Lifting beam with adjustable pick point Matches the pitch of the shield to the pitch of the hall. slides Secures pick point to set position

  3. Strength of M20 fasteners 2xM20 Rx Ry Reacts against the 10mm step of the inner ring 2663 875 2750kg (6050lbs) FS=5.5 w/o 10mm step and nofriction Rx

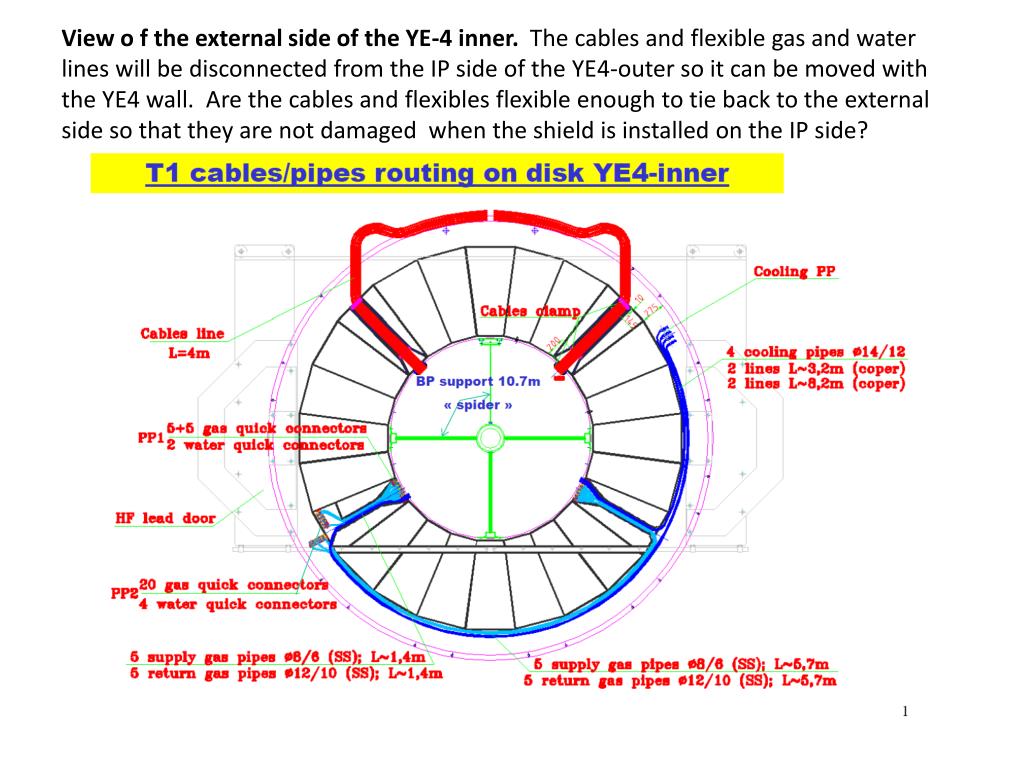

  4. View o f the external side of the YE-4 inner. The cables and flexible gas and water lines will be disconnected from the IP side of the YE4-outer so it can be moved with the YE4 wall. Are the cables and flexibles flexible enough to tie back to the external side so that they are not damaged when the shield is installed on the IP side?

  5. Base for guide is left in place on the disk. The guide post slides into base and is secured with a quick release pin Base Guide Weight is approximately 10 pounds (5 kg) Rated side force is approximately 310 lbs(140kg)

  6. Slides from previous presentation follow this page

  7. ISO view of shielding assembly For guiding into position over beam- pipe Removable third leg for setting on the floor Linear slide for bottom lead plates

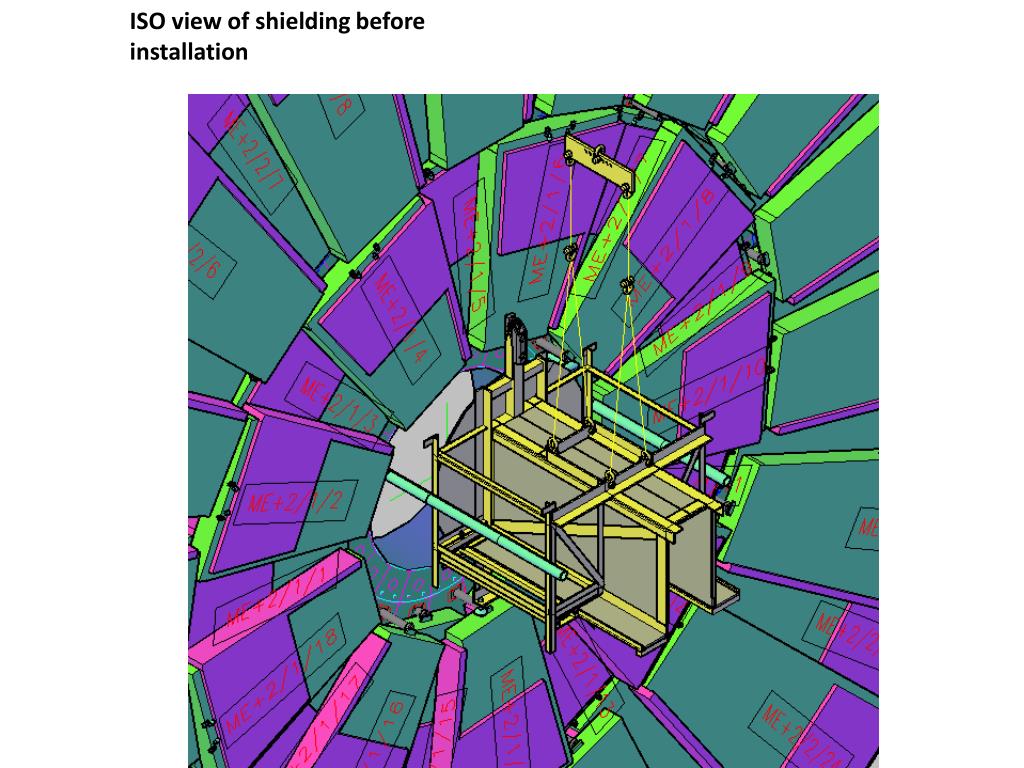

  8. ISO view of shielding before installation

  9. Iso view of shielding in place.

  10. Another ISO view

  11. Side View of shield in place

  12. End view of shielding in place. It will be a challenge to reach the top mount point to secure the shield, but I believe it is doable with the bottom corner of the cherry picker located as indicated. Bottom corner of cherry picker

  13. Top mount can be left in place if a small amount of spacer ring shielding is removed from the YE1 spacer ring Adapter for mounting on YE3 Top mount point on YE2

  14. Base for guide is left in place on the disk. The guide post slides into base and is secured with a quick release pin Base Guide
