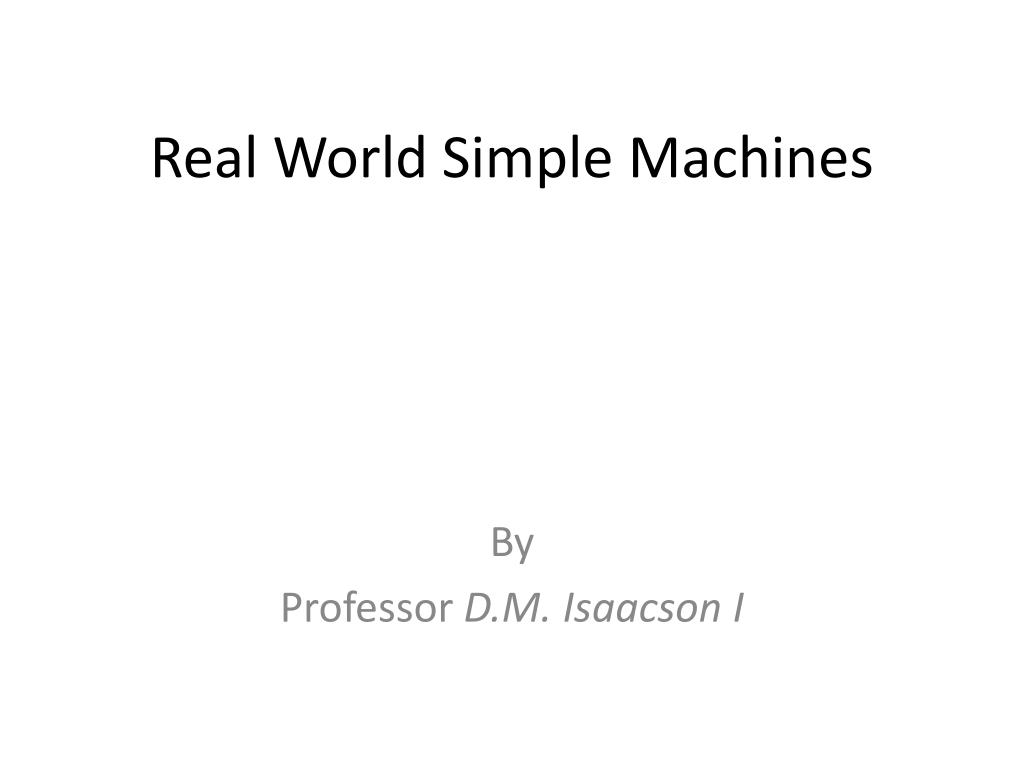

  1. Real World Simple Machines By Professor D.M. Isaacson I

  2. Lever • rigid object and a fulcrum (or pivot) • Applying a force to one end of the rigid object causes it to pivot about the fulcrum. • Magnifies of the force at another point along the rigid object. Here the crane operator uses the levers of the machine to operate the much larger arm,

  3. Wheel & Axle • circular device that is attached to a rigid bar in its center. • force applied to the wheel causes the axle to rotate, which can be used to magnify the force • For example, having a rope wind around the axle. • force applied to provide rotation on the axle translates into rotation of the wheel • A lever that rotates around a center fulcrum… In the coreless impact drill, a ‘large’ gear is driven which rotates the axle-in this case, the chuck

  4. Inclined Plane • a plane surface set at an angle to another surface. • do the same amount of work by applying the force over a longer distance. Because the ladder is a shorter distance, it is more difficult to climb, compare to a stairway with a much longer distance, much easier to climb.

  5. Wedge • a double-inclined plane that moves to exert a force along the lengths of the sides. • The force is perpendicular to the inclined surfaces, so it pushes two objects (or pieces of a single object) apart. The splitting maul uses the basic concept of the wedge to split firewood much more easily than with a smaller axe.

  6. Screw • a shaft that has a in inclined groove along its surface. • rotate the screw • the force is applied perpendicular to the groove, thus translating a rotational force into a linear one. The blades of the ice auger cut, as the auger portion draws the whole tool down into the ice.

  7. Pulley • a wheel with a groove along its edge, where a rope or cable can be placed. • applies force over a longer distance, and also the tension in the rope or cable, to reduce the magnitude of the necessary force. The old-fashioned version of the wire stretcher utilized twp pulleys and a length of rope to greatly reduce the work involved with tightening a wire fence.
