Understanding Compact Bone Structure: Osteons, Osteocytes, and Blood Vessel Integration

DESCRIPTION

This comprehensive overview delves into the structure of compact bone, specifically focusing on osteons, the functional units of this dense tissue. Each osteon consists of concentric layers of mineralized matrix surrounding a central canal, which houses vital blood vessels and nerves essential for bone health. Osteoblasts play a crucial role in forming bone, surrounding themselves with the matrix to become osteocytes, which reside in lacunae. Narrow canaliculi connect these osteocytes, facilitating nutrient exchange throughout the bone.

1 / 8

Télécharger la présentation

Understanding Compact Bone Structure: Osteons, Osteocytes, and Blood Vessel Integration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

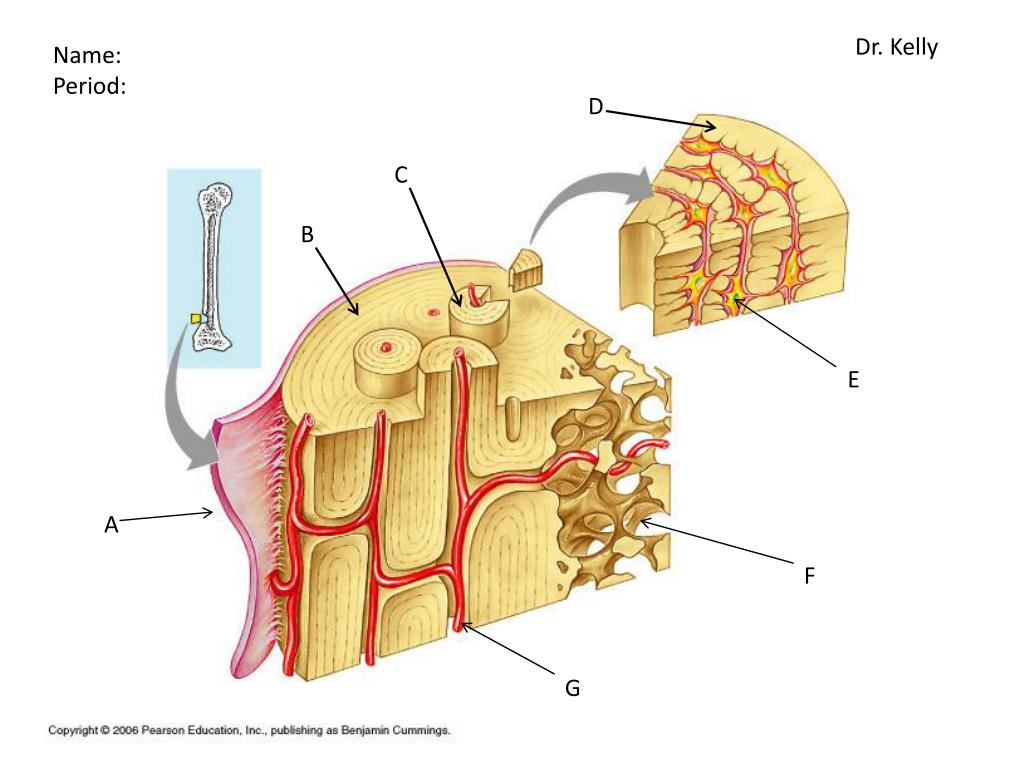

  1. Dr. Kelly Name: Period: D C B E A F G

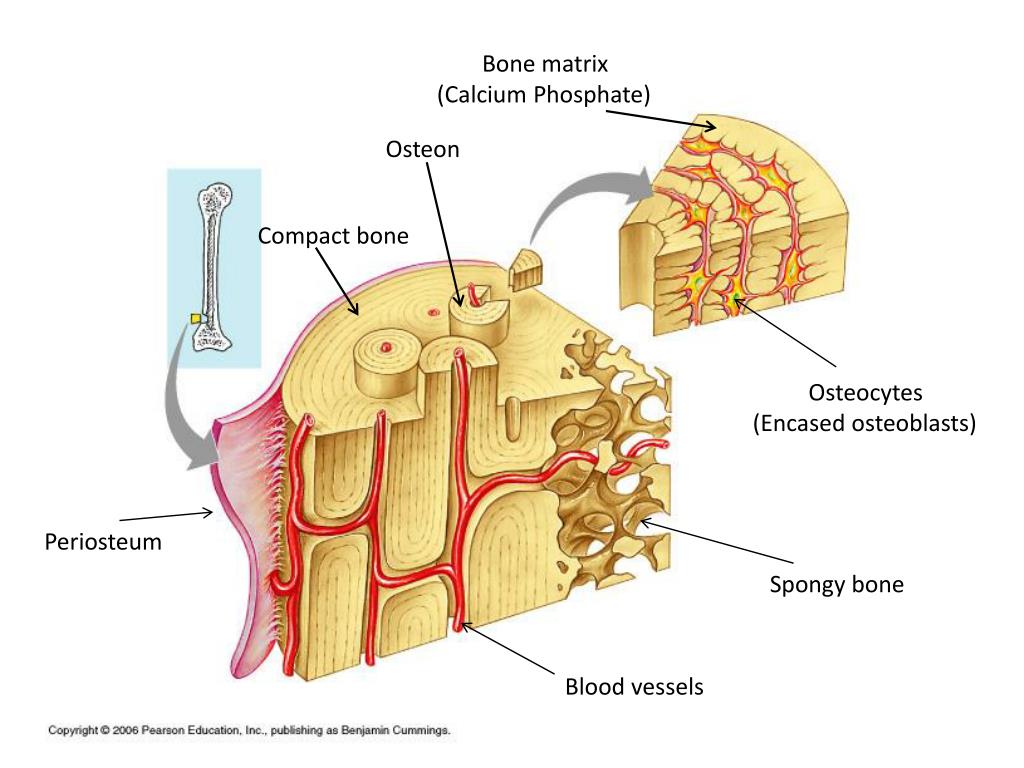

  2. Bone matrix (Calcium Phosphate) Osteon Compact bone Osteocytes (Encased osteoblasts) Periosteum Spongy bone Blood vessels

  3. Compact Bone Compact bone consists of repeating units called osteons. Each osteon has concentric layers of the mineralized matrix deposited around a central canal. The canal contains blood vessels and nerves that serve the bone cells. Bone-forming cells, called osteoblasts, deposit the matrix around the central canal and ultimately surround themselves with the mineralized material, forming a pocket called a lacuna. Once osteoblasts are surrounded by matrix, the cells are called osteocytes. Narrow connections called canaliculi extend from lacunae and connect osteocytes to each other and to the central canal.

  4. Compact Bone cc Compact bone is made up of concentric layers of bone matrix surrounding central canals (CC). A canal and its associated layers make up an osteon. Osteocytes are located within cavities called lacunae.

  5. Osteocytes oc Osteocytes (OC) are connected by cellular extensions called canaliculi. These extensions allow nutrients to pass from cell to cell.
