  1. Sorting

  2. Sorting Keeping data in “order” allows it to be searched more efficiently Example: Phone Book • Sorted by Last Name (“lots” of work to do this) • Easy to look someone up if you know their last name • Tedious (but straightforward) to find by First name or Address Important if data will be searched many times Two algorithms for sorting today • Bubble Sort • Merge Sort Searching: next lecture

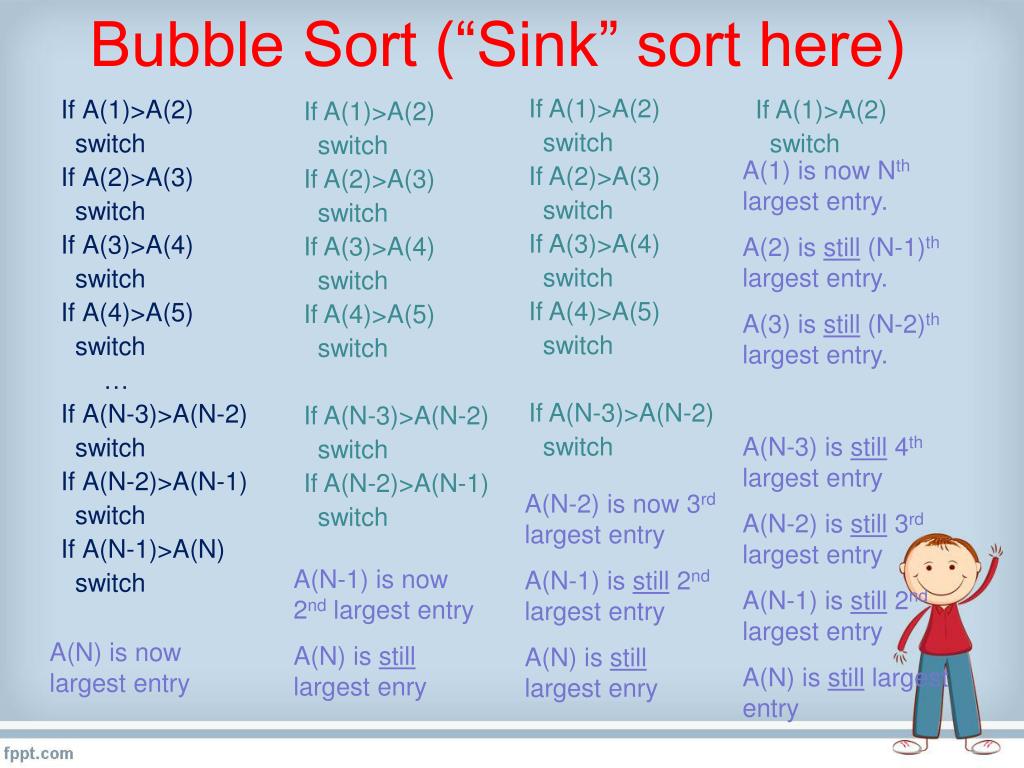

  3. Bubble Sort (“Sink” sort here) If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(1)>A(2) switch If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch A(1) is now Nth largest entry. A(2) is still (N-1)th largest entry. A(3) is still (N-2)th largest entry. A(N-3) is still 4th largest entry A(N-2) is still 3rd largest entry A(N-1) is still 2nd largest entry A(N) is still largest entry If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch … If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch If A(N-1)>A(N) switch A(N-2) is now 3rd largest entry A(N-1) is still 2nd largest entry A(N) is still largest enry A(N-1) is now 2nd largest entry A(N) is still largest enry A(N) is now largest entry

  4. Bubble Sort (“Sink” sort here) If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch If A(1)>A(2) switch 1 step If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch … If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch If A(N-1)>A(N) switch N-3 steps N-2 steps N-1 steps

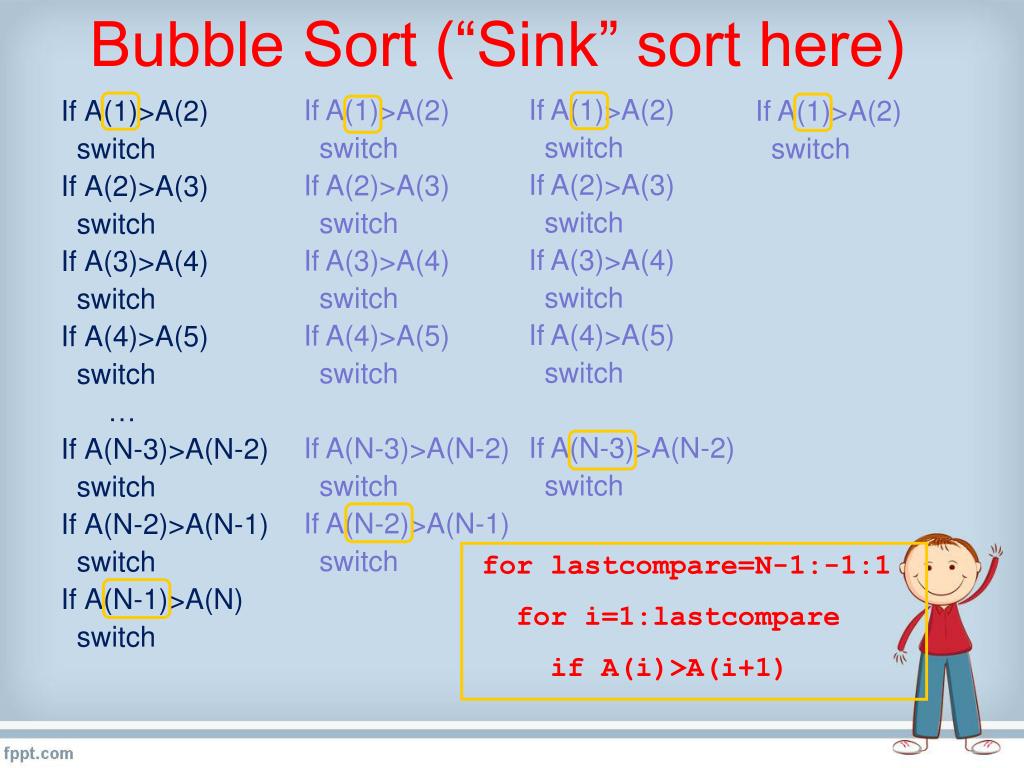

  5. Bubble Sort (“Sink” sort here) If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch If A(1)>A(2) switch If A(1)>A(2) switch If A(2)>A(3) switch If A(3)>A(4) switch If A(4)>A(5) switch … If A(N-3)>A(N-2) switch If A(N-2)>A(N-1) switch If A(N-1)>A(N) switch for lastcompare=N-1:-1:1 for i=1:lastcompare if A(i)>A(i+1)

  6. Matlab code for Bubble Sort function S = bubblesort(A) % Assume A row/column; Copy A to S S = A; N = length(S); for lastcompare=N-1:-1:1 for i=1:lastcompare if S(i)>S(i+1) tmp = S(i); S(i) = S(i+1); S(i+1) = tmp; end end end What about returning an Index vector Idx, with the property that S = A(Idx)?

  7. Matlab code for Bubble Sort function [S,Idx] = bubblesort(A) % Assume A row/column; Copy A to S N = length(A); S = A; Idx = 1:N; % A(Idx) equals S for lastcompare=N-1:-1:1 for i=1:lastcompare if S(i)>S(i+1) tmp = S(i); tmpi = Idx(i); S(i) = S(i+1); Idx(i) = Idx(i+1); S(i+1) = tmp; Idx(i+1) = tmpi; end end end If we switch two entries of S, then exchange the same two entries of Idx. This keeps A(Idx) equaling S

  8. Merging two already sorted arrays Suppose A and B are two sorted arrays (different lengths) How do you “merge” these into a sorted array C? Chalkboard…

  9. Pseudo-code: Merging two already sorted arrays function C = merge(A,B) nA = length(A); nB = length(B); iA = 1; iB = 1; %smallest unused element C = zeros(1,nA+nB); for iC=1:nA+nB if A(iA)<B(iB) %compare smallest unused C(iC) = A(iA); iA = iA+1; %use A else C(iC) = B(iB); iB = iB+1; %use B end end

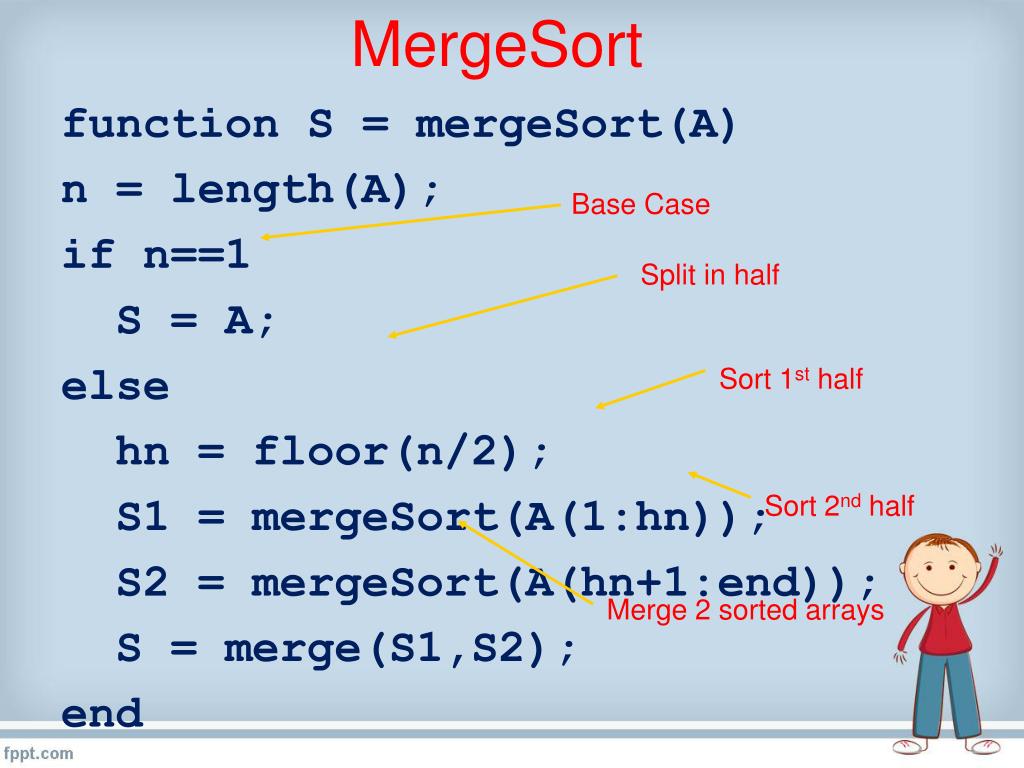

  10. MergeSort function S = mergeSort(A) n = length(A); if n==1 S = A; else hn = floor(n/2); S1 = mergeSort(A(1:hn)); S2 = mergeSort(A(hn+1:end)); S = merge(S1,S2); end Base Case Split in half Sort 1st half Sort 2nd half Merge 2 sorted arrays

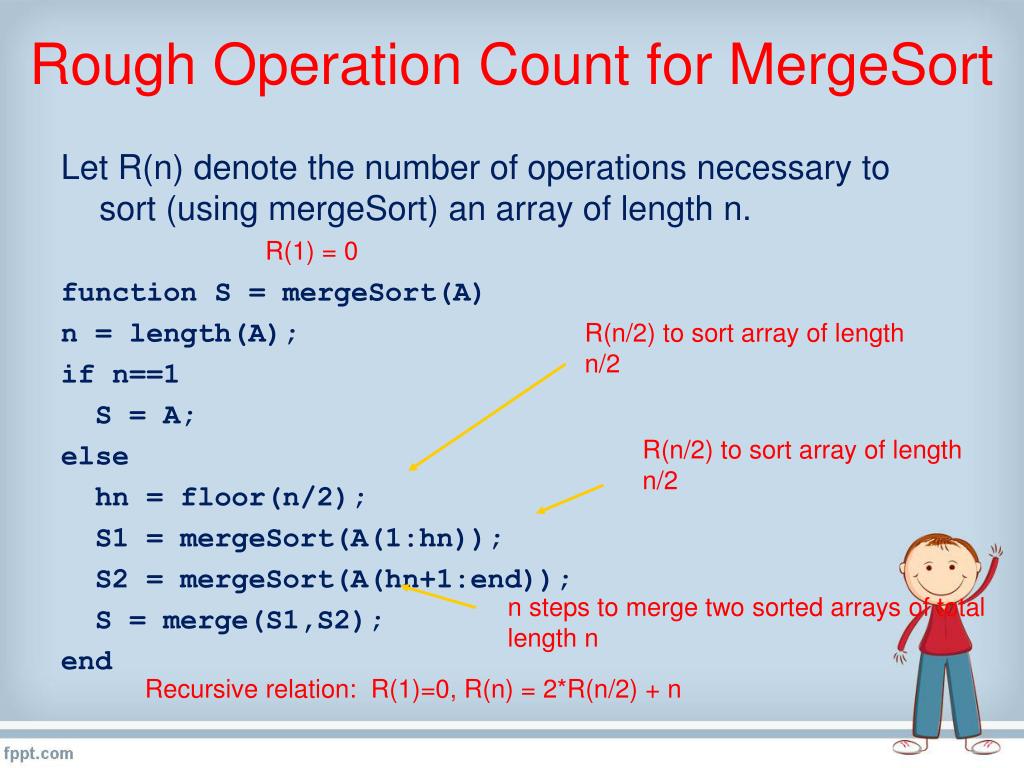

  11. Rough Operation Count for MergeSort Let R(n) denote the number of operations necessary to sort (using mergeSort) an array of length n. function S = mergeSort(A) n = length(A); if n==1 S = A; else hn = floor(n/2); S1 = mergeSort(A(1:hn)); S2 = mergeSort(A(hn+1:end)); S = merge(S1,S2); end R(1) = 0 R(n/2) to sort array of length n/2 R(n/2) to sort array of length n/2 n steps to merge two sorted arrays of total length n Recursive relation: R(1)=0, R(n) = 2*R(n/2) + n

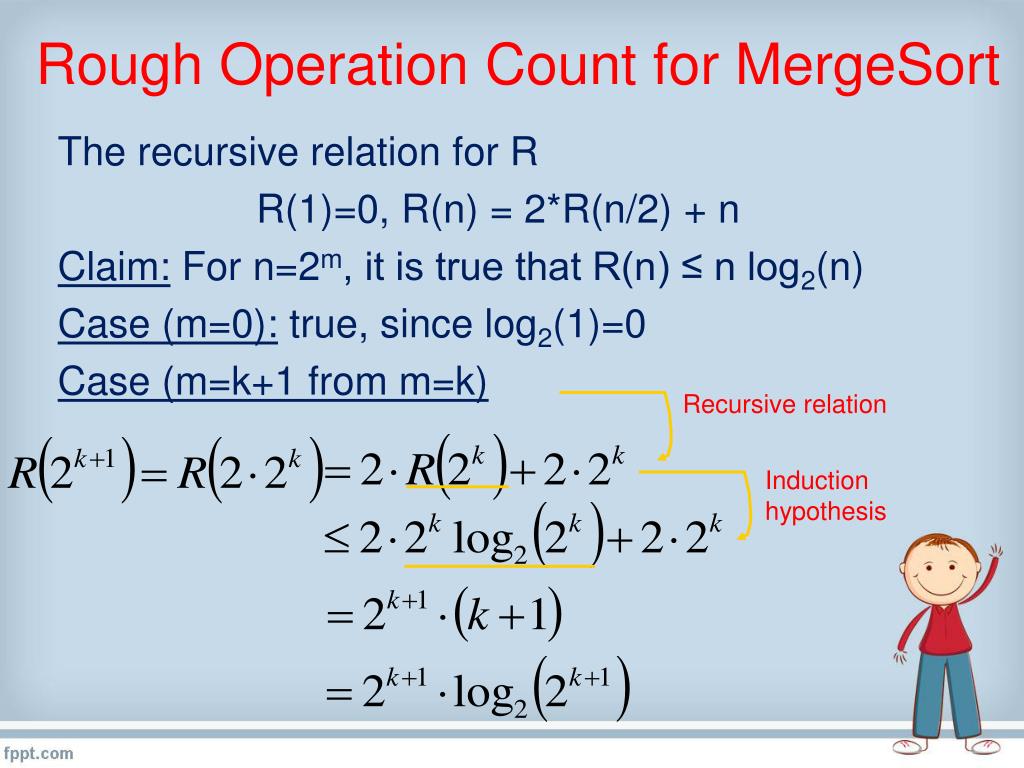

  12. Rough Operation Count for MergeSort The recursive relation for R R(1)=0, R(n) = 2*R(n/2) + n Claim: For n=2m, it is true that R(n) ≤ n log2(n) Case (m=0): true, since log2(1)=0 Case (m=k+1 from m=k) Recursive relation Induction hypothesis

  13. Matlab command: sort Syntax is [S] = sort(A) If A is a vector, then S is a vector in ascending order The indices which rearrange A into S are also available. [S,Idx] = sort(A) S is the sorted values of A, and A(Idx) equals S.
