  1. Materials Group Cait Holcomb Brian Ervin Zach Jaime Blake Presson

  2. Our Group at Nucor

  3. Purpose • Our job was to come up with the main materials that would be required for some of the major attractions. • We focused our efforts on the Rollercoaster and the Waterslide.

  4. Rollercoaster - Materials • 1018 Steel supports, washer plates, nuts, and bolts • Concrete footers • Urethane coated wheels

  5. Why 1018 Steel? • This alloy is relatively affordable, and it has good weldability. • The latter is especially important because the entire frame is welded together. • The maximum yield for this steel is 53,700 psi.

  6. Roller Coaster Cross-Section

  7. Mathematical assumptions • For the rollercoaster, the weight of one car will be approximately 700 pounds. • There will be four passengers per car weighing a combined 1000 pounds. • The force (F) on one wheel is half of the total weight. • The total weight equals 1700 pounds and the force will equal 850 pounds per wheel.

  8. Formula for Reaction Forces F L/2 L/2 1 2 L R1 R2 ∑FY=0 R1-F+R2=0 F=R1+R2 ∑MA=0 F(l/2)-R2(L)=0 FL/2=R2L F/2=R2 F=2R2 F=R1+R2 2R2=R1+R2 R1=2R2-R2 R1=R2 F=R1+R1 F=2R1

  9. Stress Calculations for Rollercoaster Tracks F=850lbs L/2=18” L/2=18” 1 2 L=36” R1 R2 σ=M1(L/2)/I σ=3825 in-lbs(18 in)/28.1 in4 σ=2450.18 lbs/in2 M1=R1(L/2)/2 M1=R1L/4 M1=425lbs(36in)/4 M1= 3825in-lbs F=2R1 850lbs=2R1 R1=850lbs/2=425lbs

  10. Concrete • We will be using a fiberglass and rebar composite concrete for the foundations of both the Water Slide and the Rollercoaster. • Concrete is strong in compression, and the addition of both fiberglass and rebar improve its tensile strength.

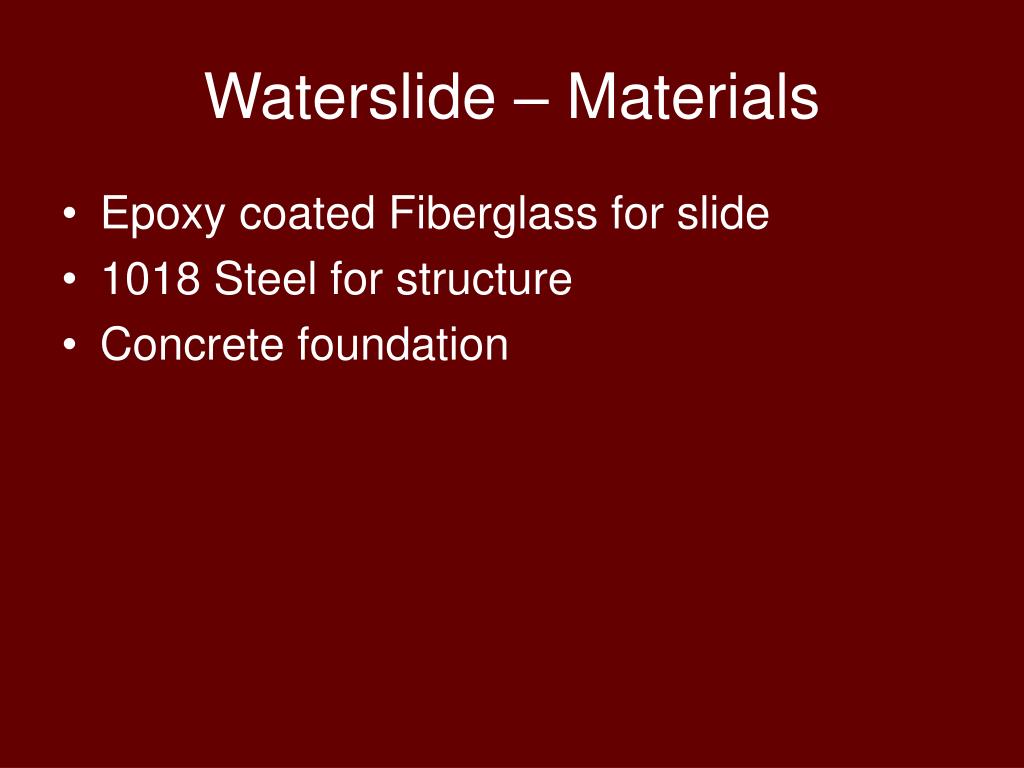

  11. Waterslide – Materials • Epoxy coated Fiberglass for slide • 1018 Steel for structure • Concrete foundation

  12. What's with the coating? • The Epoxy coating is needed to prevent the fiberglass from splintering and harming anyone. • Fiberglass is a light, sturdy material used in water slides for its ability to be molded to just about any shape and for its durability.

  13. Special Thanks to… • Dimos Triantafillu (T.A.) • Daniel Yu (Nucor)

  14. Questions? (come on, I know you didn’t understand a single word of that!)
