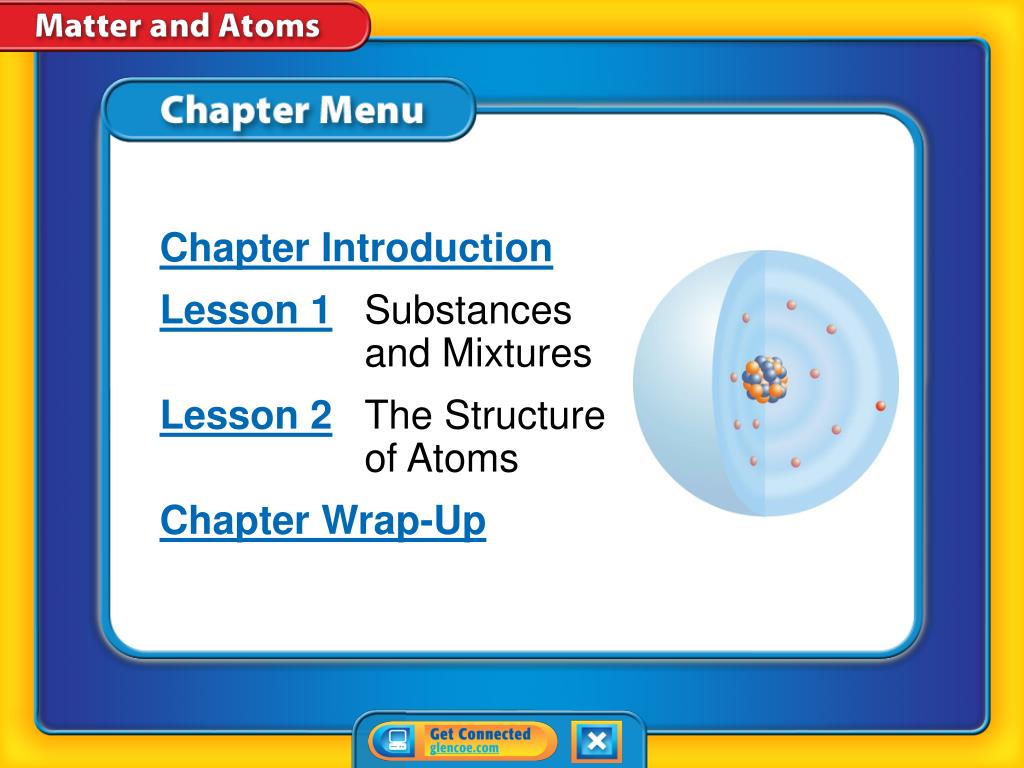

  1. Chapter Introduction Lesson 1 Substances and Mixtures Lesson 2 The Structure of Atoms Chapter Wrap-Up Chapter Menu

  2. How does the classification of matter depend on atoms? Chapter Introduction

  3. What do you think? Before you begin, decide if you agree or disagree with each of these statements. As you view this presentation, see if you change your mind about any of the statements. Chapter Introduction

  4. 1. Things that have no mass are not matter. 2. The arrangement of particles is the same throughout a mixture. 3. An atom that makes up gold is exactly the same as an atom that makes up aluminum. Do you agree or disagree? Chapter Introduction

  5. 4. An atom is mostly empty space. 5. If an atom gains electrons, the atom will have a positive charge. 6. Each electron is a cloud of charge that surrounds the center of an atom. Do you agree or disagree? Chapter Introduction

  6. Substances and Mixtures • What is the relationship among atoms, elements, and compounds? • How are some mixtures different from solutions? • How do mixtures and compounds differ? Lesson 1 Reading Guide - KC

  7. Substances and Mixtures • compound • mixture • heterogeneous mixture • homogeneous mixture • matter • atom • substance • element • molecule Lesson 1 Reading Guide - Vocab

  8. What is matter? • Matter is anything that has mass and takes up space. • Anything that does not have mass or volume is not matter. Lesson 1-1

  9. What is matter made of? • Anatom is a small particle that is the building block of matter. • It is the many kinds of atoms and the ways they combine that form the different types of matter. atom from Greek atomos, means “uncut” Lesson 1-2

  10. Classifying Matter Scientists place matter into one of two groups—substances and mixtures. Lesson 1-3

  11. What is a substance? • A substance is matter with a composition that is always the same. • A certain substance always contains the same kinds of atoms in the same combination. Lesson 1-4

  12. What is a substance?(cont.) • An element is a substance made of only one kind of atom. • For example, the element gold is made of only gold atoms, and all gold atoms are alike. • Sodium chloride (salt) is also a substance. Lesson 1-4

  13. Element symbols have either one or two letters. Temporary symbols have three letters. Lesson 1-4

  14. What is a substance?(cont.) How are atoms and elements related? Lesson 1-4

  15. What is a substance?(cont.) • A molecule is two or more atoms that are held together by chemical bonds and act as a unit. • In some elements, the atoms are grouped into molecules. Lesson 1-4

  16. What is a substance?(cont.) • A compound is a substance made of two or more elements that are chemically joined in a specific combination. • Because each compound is made of atoms in a specific combination, a compound is a substance. Lesson 1-4

  17. What is a substance?(cont.) • Many compounds exist as molecules, but some, such as table salt, do not. • Sugar particles are molecules because they always travel together as a unit. Salt particles do not travel together as a unit. Lesson 1-4

  18. What is a substance?(cont.) How do elements and compounds differ? Lesson 1-4

  19. What is a substance?(cont.) • A chemical formula includes the symbols of each element in the compound and small numbers, called subscripts, that show the ratio of the elements in the compound. • Sometimes the same elements combine to form different compounds. Lesson 1-4

  20. Lesson 1-4

  21. What is a mixture? • A mixture is matter that can vary in composition. • A mixture is made of two or more substances that are blended but are not chemically bonded. Lesson 1-5

  22. Types of Mixtures • A heterogeneous mixtureis a mixture in which the substances are not evenly mixed. • A homogeneous mixtureis a mixture in which two or more substances are evenly mixed, but not bonded together. Lesson 1-6

  23. Types of Mixtures (cont.) • A solution is another name for a homogeneous mixture and is made of two parts—a solvent and one or more solutes. • The solvent is the substance that is present in the largest amount, and the solutes dissolve, or break apart, and mix evenly in the solvent. Lesson 1-6

  24. Types of Mixtures (cont.) How are some mixtures different from solutions? Lesson 1-6

  25. Compounds v. Mixtures • Compounds and solutions are alike in that they both look like pure substances. • The atoms that make up a given compound are bonded together, which means the composition of a given compound is always the same. Lesson 1-6

  26. Compounds v. Mixtures (cont.) • The substances that make up a mixture are not bonded together. • Adding more of one substance to a mixture does not change the identity of the mixture. Lesson 1-6

  27. Lesson 1-6

  28. Compounds v. Mixtures (cont.) How do mixtures and compounds differ? Lesson 1-6

  29. Compounds v. Mixtures (cont.) • The substances that make up a mixture are not chemically combined. • The substances that make up a mixture can easily be separated by physical processes. • The elements that make up a compound can be separated only by chemical processes. Lesson 1-6

  30. Compounds v. Mixtures (cont.) To separate a heterogeneous mixture, you use differences in the physical properties of the parts. The McGraw-Hill Companies, Inc./Stephen Frisch, photographer Lesson 1-6

  31. Compounds v. Mixtures (cont.) You can separate some homogeneous mixtures by boiling or evaporation. The McGraw-Hill Companies, Inc./Stephen Frisch, photographer Lesson 1-6

  32. Visualizing Classification of Matter • Matter can be classified as either a substance or a mixture. • Matter is classified according to the types of atoms and the arrangement of atoms in matter. Lesson 1-6

  33. Lesson 1-6

  34. An element is a substance made of only one kind of atom. Lesson 1 - VS

  35. The substances that make up a mixture are blended but not chemically bonded. • Homogeneous mixtures have the same makeup of substances throughout a given sample. Lesson 1 - VS

  36. Which term describes two or more atoms that are held together by chemical bonds and act as a unit? A. atom B. compound C. molecule D. substance Lesson 1 – LR1

  37. Which term refers to two or more substances that are blended but are not chemically bonded? A. compound B. element C. mixture D. molecule Lesson 1 – LR2

  38. Which term describes the substance in a solution that is present in the largest amount? A. solvent B. solute C. mixture D. element Lesson 1 – LR3

  39. 1.Things that have no mass are not matter. 2.The arrangement of particles is the same throughout a mixture. 3.An atom that makes up gold is exactly the same as an atom that makes up aluminum. Do you agree or disagree? Lesson 1 - Now

  40. The Structure of Atoms • Where are protons, neutrons, and electrons located in an atom? • How is the atomic number related to the number of protons in an atom? • What effect does changing the number of particles in an atom have on the atom’s identity? Lesson 2 Reading Guide - KC

  41. The Structure of Atoms • electron cloud • atomic number • isotope • ion • nucleus • proton • neutron • electron Lesson 2 Reading Guide - Vocab

  42. The Parts of an Atom • Atoms are made of several types of tiny particles. • The number of each of these particles in an atom is what makes atoms different from each other. Lesson 2-1

  43. The Parts of an Atom(cont.) Lesson 2-1

  44. The Parts of an Atom(cont.) An atom has a center region with a positive charge. charge Science Use an electrical property of some objects that determines whether the object is positive, negative, or neutral Common Use buying something with a credit card Lesson 2-1

  45. The Parts of an Atom(cont.) • Thenucleus is the region at the center of an atom that contains most of the mass of the atom. • Two kinds of particles make up the nucleus—protons and neutrons. • A protonis a positively charged particle in the nucleus of an atom. • A neutron is an uncharged particle in the nucleus of an atom. Lesson 2-1

  46. The Parts of an Atom(cont.) An electron is a negatively charged particle that occupies the space in an atom outside the nucleus. Where are protons, neutrons, and electrons located in an atom? Lesson 2-1

  47. The Parts of an Atom(cont.) • An electron cloud is the region surrounding an atom’s nucleus where one or more electrons are most likely to be found. • Electrons occupy certain areas around the nucleus according to their energy. Lesson 2-1

  48. The Parts of an Atom(cont.) • Electrons close to the nucleus are strongly attracted to it and have less energy. • Electrons farther from the nucleus are less attracted to it and have more energy. Lesson 2-1

  49. The Size of Atoms • Every solid, liquid, and gas is made of millions and millions of atoms. • If you could multiply the width of an atom by 100 million, it would be the size of an orange. Lesson 2-2

  50. Differences in Atoms The atomic number is the number of protons in the nucleus of an atom of an element. Lesson 2-3
