CMA LVL1 Barrel status

1. CMA LVL1 Barrel status ATLAS TDAQ week July 2003 S.Veneziano – INFN Roma July 2003 TDAQ week

2. History • CMA ASIC submitted 20th November 2001 • 49 dies packaged by March 15th with four-pin bonding following preliminary specs (package 0208).New wafers had to selected for packaging with final Bonding. • Loadboard arrived 10th March to test site (Milano), following specifications (package 0219), had to be fixed to package 0208. • Industry tests started 21st March on 49 packages 0208 with scan tests. S.Veneziano – INFN Roma July 2003 TDAQ week

3. History 2 • 7th April functional tests sent by Rome to industry • 15th April 5 0208 tested devices (no RAM tests) and loadboard sent to Rome. • 20th April RAM test vectors sent by Rome to industry. • 29th April 44 fully tested 0208 package devices at Microtech. • 23rd May 37 devices with package 0219 tested at Microtech. S.Veneziano – INFN Roma July 2003 TDAQ week

4. CM ASIC layout and architecture • 430 kgates UMC 0.18 mm, 320 MHz PLL (X8), 24 double-port RAMs. S.Veneziano – INFN Roma July 2003 TDAQ week

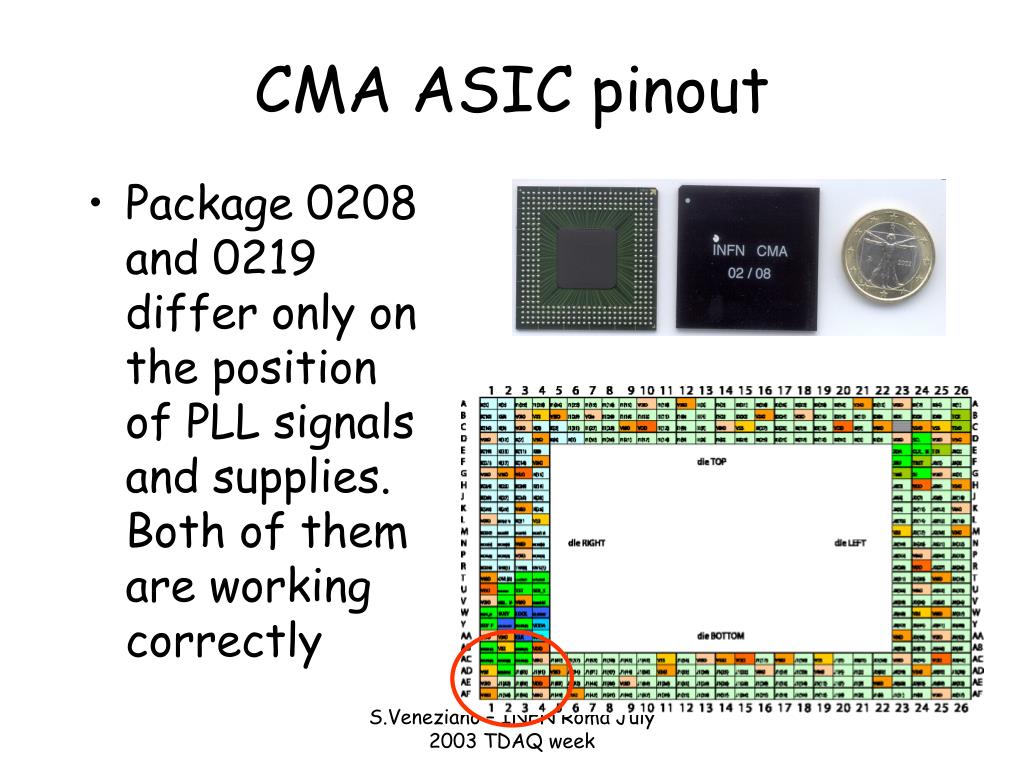

5. CMA ASIC pinout • Package 0208 and 0219 differ only on the position of PLL signals and supplies. Both of them are working correctly S.Veneziano – INFN Roma July 2003 TDAQ week

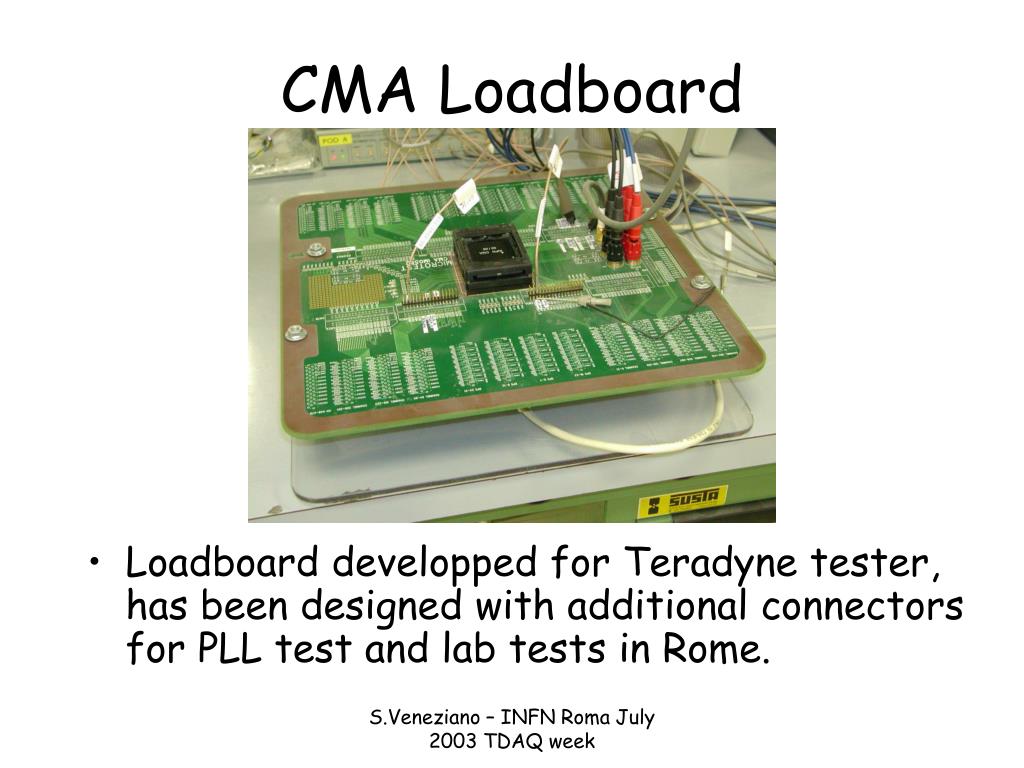

6. CMA Loadboard • Loadboard developped for Teradyne tester, has been designed with additional connectors for PLL test and lab tests in Rome. S.Veneziano – INFN Roma July 2003 TDAQ week

7. Test patterns • Scan and functional tests were performed on Teradyne machine at 1 Mhz, 40 Mhz, at room and at 125C temperatures. PLL lock was also tested. • SCAN tests: 32 scan chains, maximum of 900 cells, generated with Synopsys Test Compiler. • RAM tests: using single dedicated scan chain (23,743,440 cycles), generated from RTL model adn converted to compressed ATP format. • Functional tests 105576 vectors, to test I2C interface and start PLL, generated from full netlist+timing simulation, converted to ATP format. S.Veneziano – INFN Roma July 2003 TDAQ week

8. Industrial test results • 49 0208 packages tested: • 7 failing on GND • 1 RAM fail • 1 SCAN fail • 40 OK (81.6% yield) • 37 1219 packages tested: • No GND fails (already discarded?) • 4 RAM fails • 3 SCAN fails • 30 OK (81.1% yield) • 70 ASICs good, to be used for further tests and irradiation. S.Veneziano – INFN Roma July 2003 TDAQ week

9. LAB setup 36x64K T=6.125ns Pattern generator Clock jitter Waveform Analyser T=10ns GPIB LAN Generator PODs loadboard S.Veneziano – INFN Roma July 2003 TDAQ week I2C on RJ45

10. Tests done in Rome • LAB setup with limited capability has been used to do preliminary tests. • I2C on parallel port interface and C++ linux application has been used to initialize ASIC on all tests shown here. • Four CM ASICs mounted on CM boards will be used for further tests. S.Veneziano – INFN Roma July 2003 TDAQ week

11. PLL tests • 160 MHz derived clock output has been used to check PLL stability (320 MHz) 40 MHz input 160 MHz on dedicated IO S.Veneziano – INFN Roma July 2003 TDAQ week

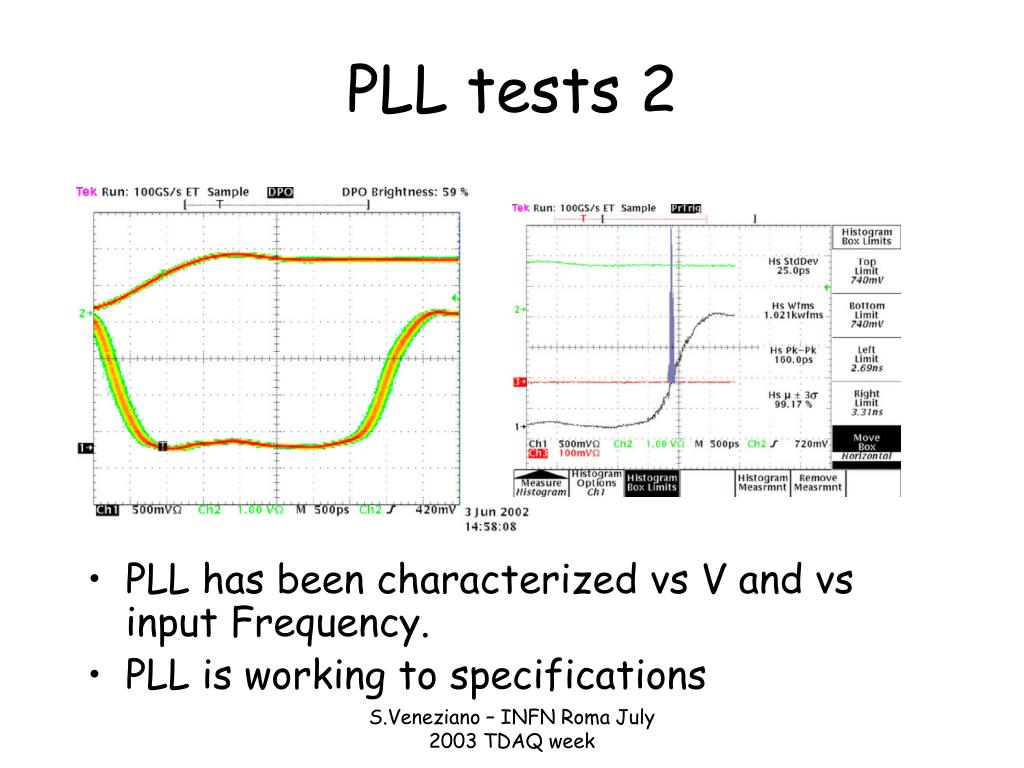

12. PLL tests 2 • PLL has been characterized vs V and vs input Frequency. • PLL is working to specifications S.Veneziano – INFN Roma July 2003 TDAQ week

13. PLL vs Voltage S.Veneziano – INFN Roma July 2003 TDAQ week

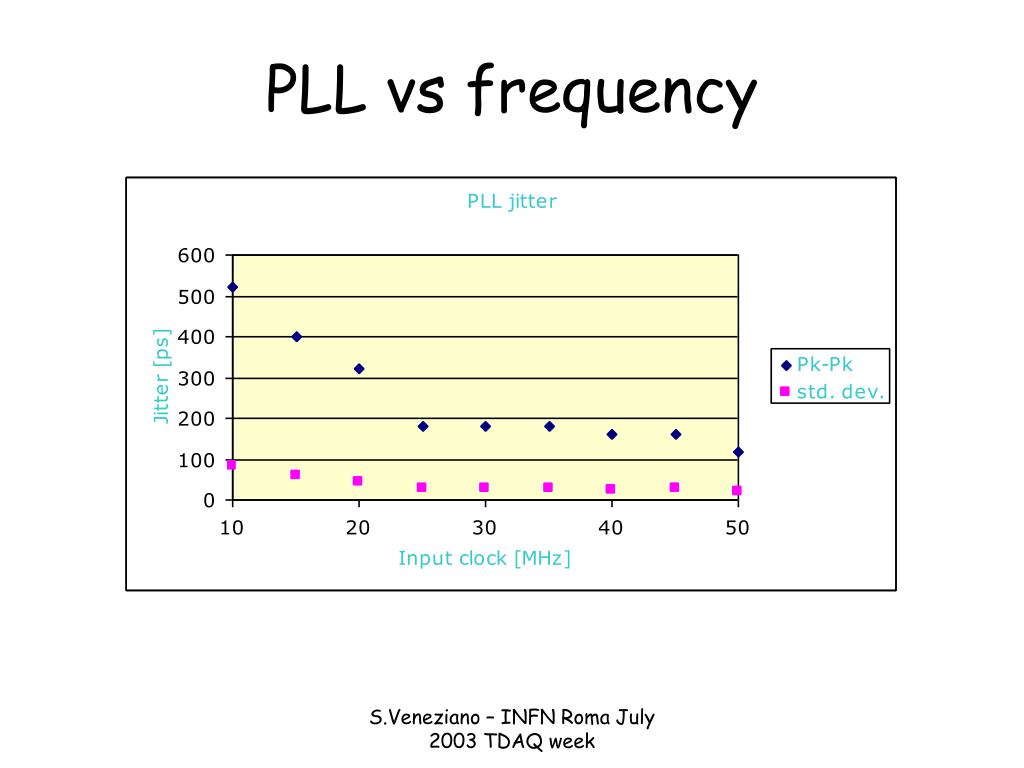

14. PLL vs frequency S.Veneziano – INFN Roma July 2003 TDAQ week

15. Trigger tests • Trigger tests have been done so far on a limited number of input channels, due to limitations on the laboratory setup. • Minimum pulse width measurement • Twmin > 6.126 ns (12 ns in specs) • Dead timer, pulse shaping and pipeline delay working according to specs. S.Veneziano – INFN Roma July 2003 TDAQ week

16. Trigger output latency • Input to K-pattern delay • Tlatkpat = 59 +- 1 ns • Input to THReshold/OVerLap delay • Tlatthr = 63-88 +-1 ns • Skew between THR and OVL signals • Toutskew = 2 +- 0.5 ns. S.Veneziano – INFN Roma July 2003 TDAQ week

17. Readout tests • Readout link is a two-wire Dslink protocol working at 80-40-20-10-5-2.5-1.125 Mbit/s • Readout tests done at 40 Mbit/s using: • 10ns period sampling with waveform analyser • GPIB LAN box connected to waveform analyser 8-bitCRC CMID L1ID … BCID + 16-bit hits … S.Veneziano – INFN Roma July 2003 TDAQ week

18. Readout tests 2 • VISA-GPIB library (linux) in deserializer program has been used to convert waveform vectors to readout data fragments. c151 -- CMID 0 FEL1ID 337 87d8 -- FEBCID 2008 0700 -- BC 0 TIME 7 IJK 0 STRIP 0 0745 -- BC 0 TIME 7 IJK 2 STRIP 5 0685 -- BC 0 TIME 6 IJK 4 STRIP 5 07c0 -- BC 0 TIME 7 IJK 6 STRIP 0 07e3 -- BC 0 TIME 7 OVL 0 THR 3 4075 -- CRC 75 S.Veneziano – INFN Roma July 2003 TDAQ week

19. Time interpolator linearity • Hits on four channels have been generated, in 1 ns steps, within a range of 4 BCs (CH 1-4), also trigger output time is measured (K). Very preliminary S.Veneziano – INFN Roma July 2003 TDAQ week

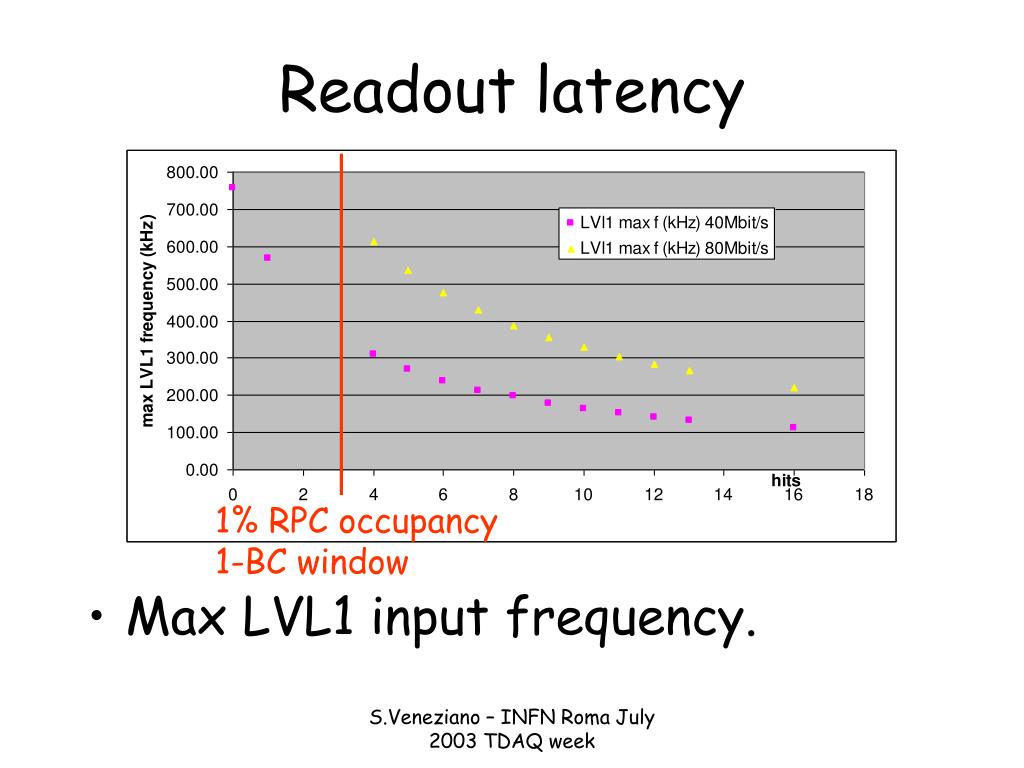

20. Readout latency • Max LVL1 input frequency. 1% RPC occupancy 1-BC window S.Veneziano – INFN Roma July 2003 TDAQ week

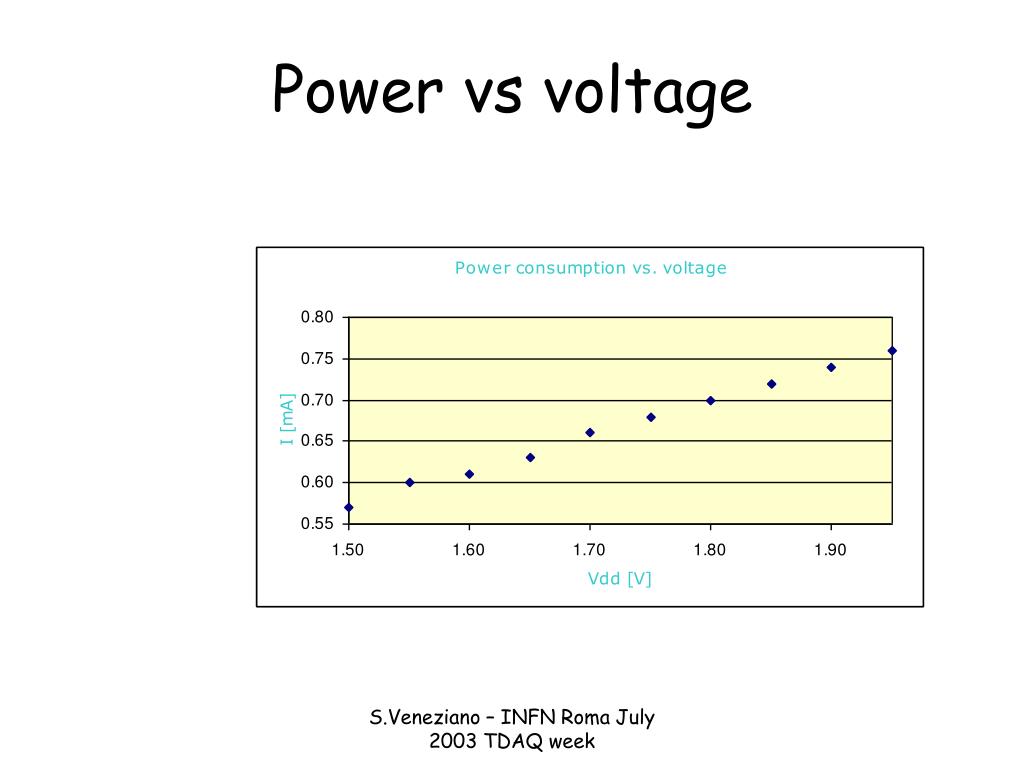

21. Power vs voltage S.Veneziano – INFN Roma July 2003 TDAQ week

22. Power vs frequency S.Veneziano – INFN Roma July 2003 TDAQ week

23. CM board Eta RJ45 (from splitters) • PCBs to be mounted on PAD prototype are ready LVDS receivers CMA PAD Motherboard connections S.Veneziano – INFN Roma July 2003 TDAQ week

24. CM board Phi RN connectors (from wired-OR) • Four ASICs mounted on two eta and two phi boards by June 21st. FE receivers CMA S.Veneziano – INFN Roma July 2003 TDAQ week
