  1. Selecting the Right Network Access Protection Architecture Infrastructure Planning and Design Series

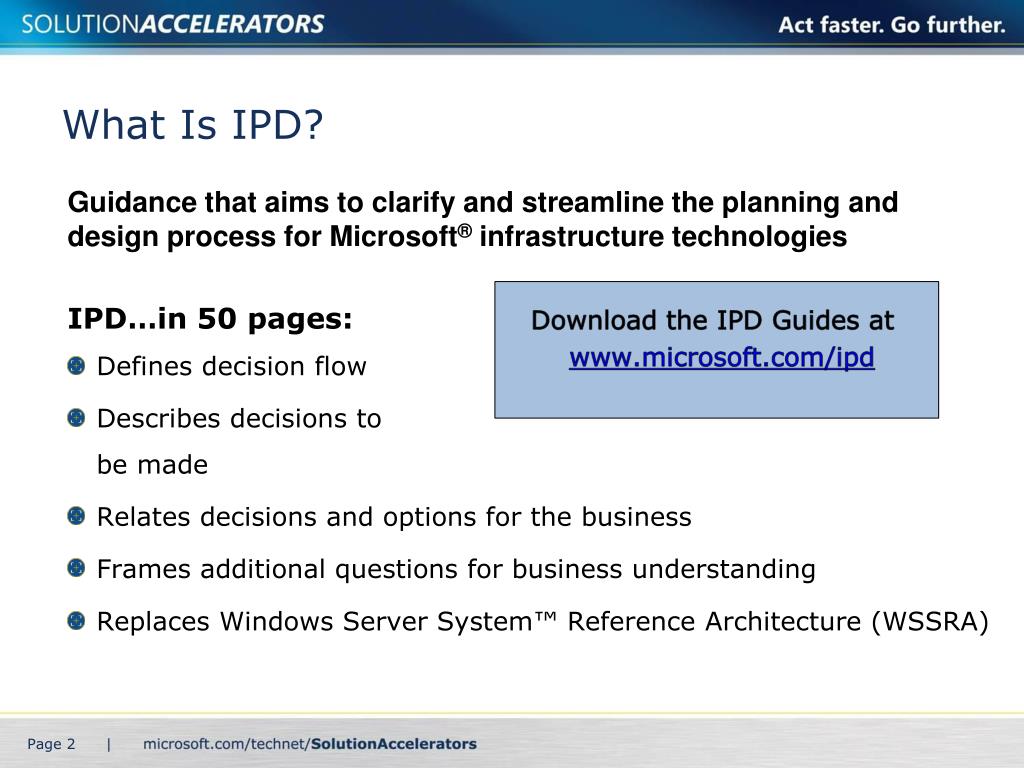

  2. What Is IPD? Guidance that aims to clarify and streamline the planning and design process for Microsoft® infrastructure technologies IPD…in 50 pages: • Defines decision flow • Describes decisions to be made • Relates decisions and options for the business • Frames additional questions for business understanding • Replaces Windows Server System™ Reference Architecture (WSSRA) Download the IPD Guides at www.microsoft.com/ipd

  3. Getting Started Selecting the Right nAP Architecture

  4. Purpose and Agenda • Purpose • To assist in the decision-making process regarding which enforcement methods to use in conjunction with Network Access Protection (NAP) to meet business and technical requirements • Agenda • Determine which components to use in a NAP architecture

  5. What Is NAP? • Network Access Protection is a policy-based solution that: • Validates whether computers meet health policies • Can limit access for noncompliant computers • Automatically remediates noncompliant computers • Continuously updates compliant computers to maintain health state • Offers administrators a wide range of choice and deployment flexibility to better secure their Windows networks

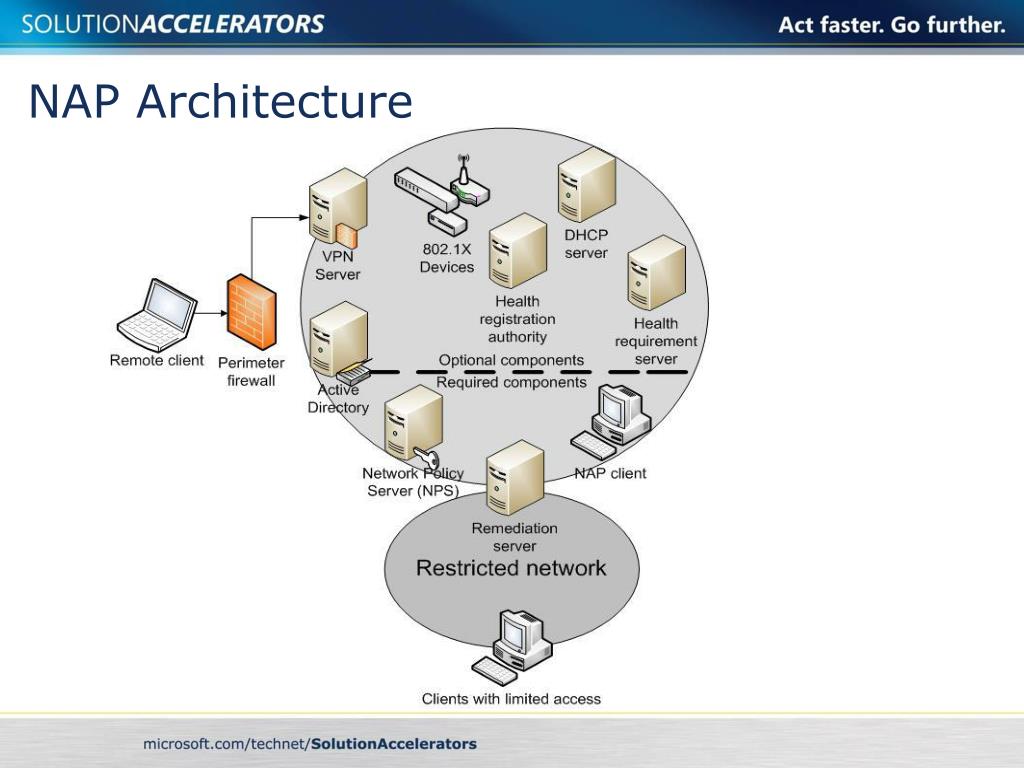

  6. NAP Architecture

  7. Why Implement NAP? • Controlled access for guests, vendors, partners • Improved resilience to malware as network health increases • More robust update infrastructure • Managed compliance

  8. Key Messages for NAP • The NAP client can be Windows Server® 2008, Windows Vista®, Windows® XP SP3, or third-party (Linux + Macintosh) • NAP is built into Windows that you enable via GP/script • NAP requires a minimum of one Windows Server 2008 machine to get started

  9. NAP Enforcement Options

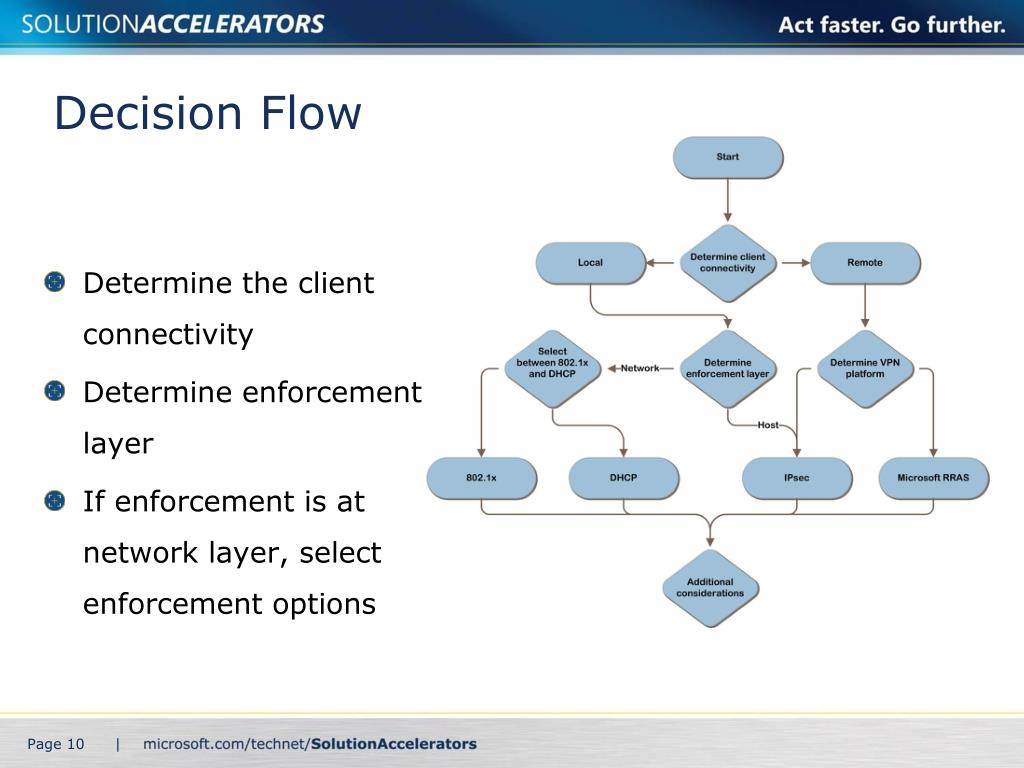

  10. Decision Flow • Determine the client connectivity • Determine enforcement layer • If enforcement is at network layer, select enforcement options

  11. Determine Client Connectivity • Type of network connectivity dictates appropriate enforcement methods. Client devices connect two ways: • Locally—via wired or wireless • Remotely—such as VPN

  12. Determine VPN Platform • Will the VPN platform be Microsoft or third-party? • Microsoft VPN selected: • If IT selects RRAS to provide remote access, VPN server must run Windows Server 2008 • Low level of complexity and cost to implement • Third-party VPN selected: • If IT selects a third-party VPN, IPsec can be used to restrict client device access • High level of complexity and medium cost to implement

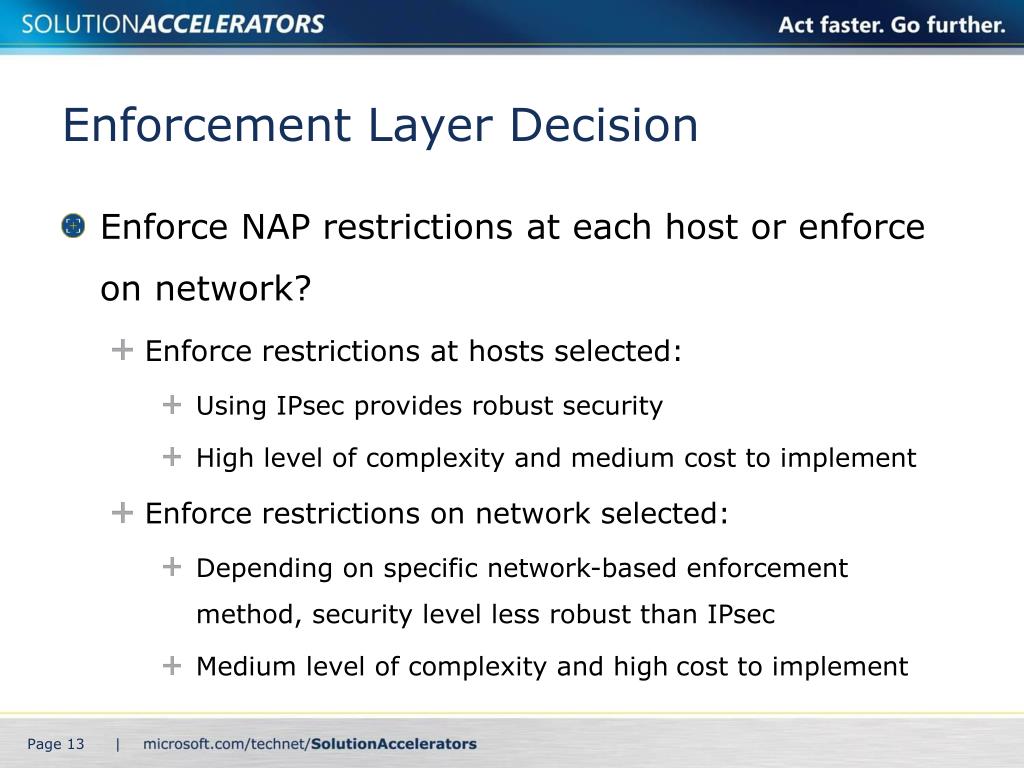

  13. Enforcement Layer Decision • Enforce NAP restrictions at each host or enforce on network? • Enforce restrictions at hosts selected: • Using IPsec provides robust security • High level of complexity and medium cost to implement • Enforce restrictions on network selected: • Depending on specific network-based enforcement method, security level less robust than IPsec • Medium level of complexity and highcost to implement

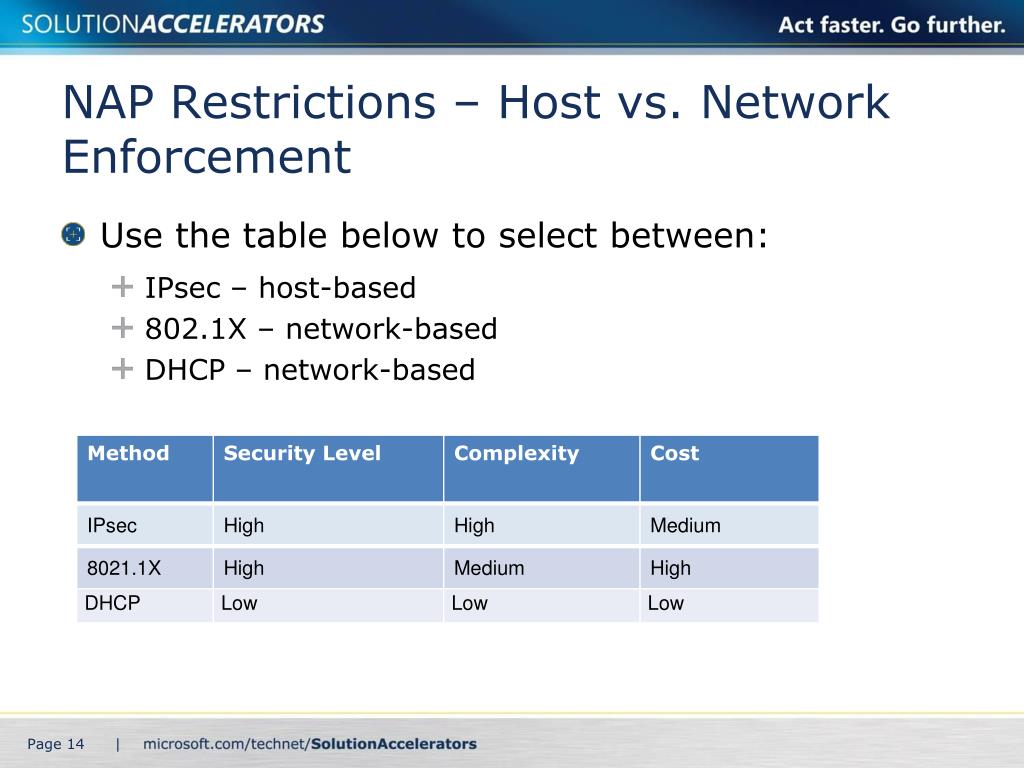

  14. NAP Restrictions – Host vs. Network Enforcement • Use the table below to select between: • IPsec – host-based • 802.1X – network-based • DHCP – network-based

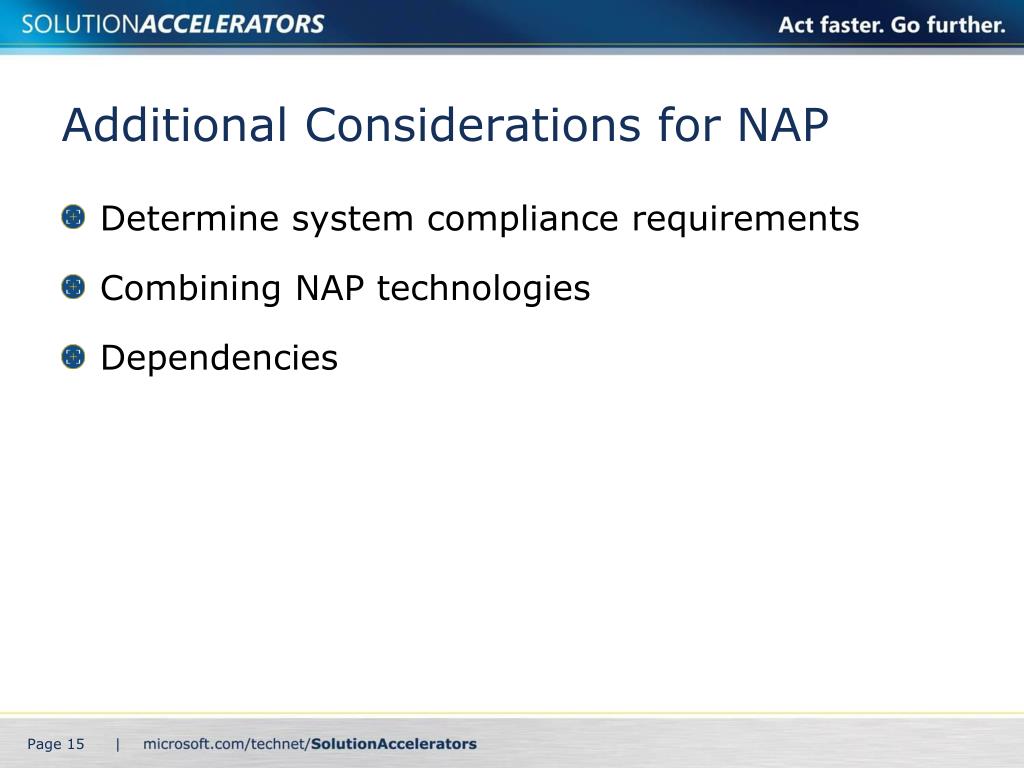

  15. Additional Considerations for NAP • Determine system compliance requirements • Combining NAP technologies • Dependencies

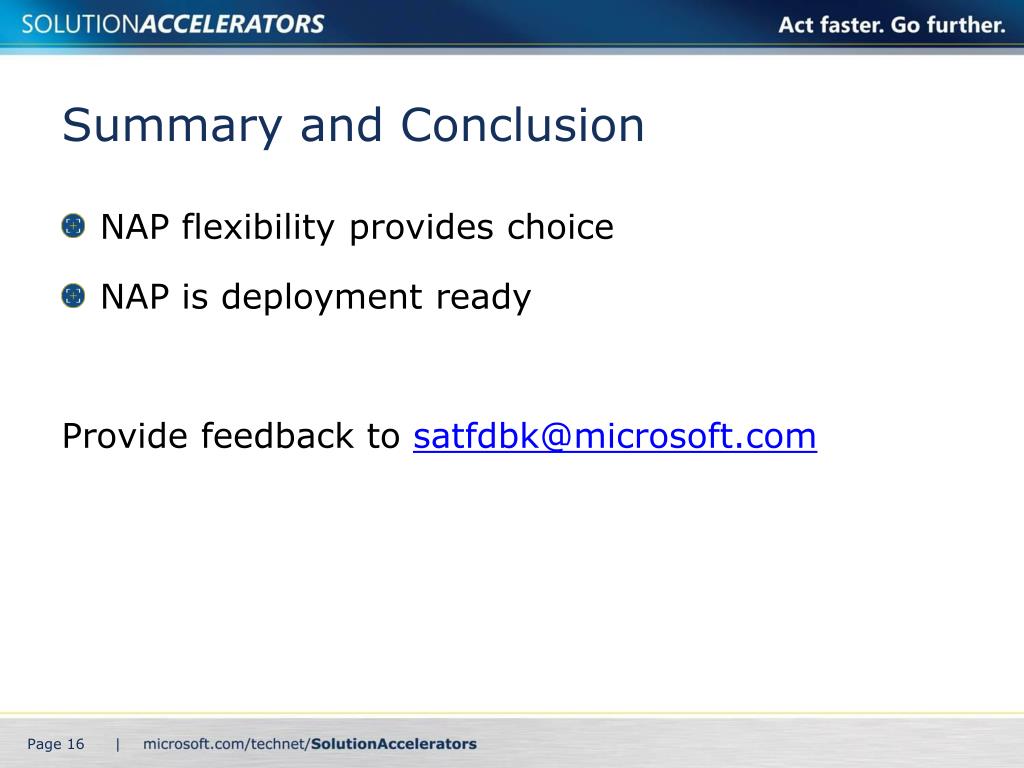

  16. Summary and Conclusion • NAP flexibility provides choice • NAP is deployment ready Provide feedback to satfdbk@microsoft.com

  17. Find More Information • Download the full document and other IPD guides: • www.microsoft.com/ipd • Contact the IPD team: • satfdbk@microsoft.com • Visit the Microsoft Solution Accelerators Web site: • www.microsoft.com/technet/SolutionAccelerators
