High-Confidence, Low-Probability-of-Failure Screening

High-Confidence, Low-Probability-of-Failure Screening. January 11, 2014. P[P[ Failure|Eq ]<0.05] 95%. RLGM?. Magnitude. HCLPF depends on whom you believe. Which components need seismic safety improvements? If HCLPF < RLGM (Review Level Ground Motion), improve them

deanne
Télécharger la présentation

High-Confidence, Low-Probability-of-Failure Screening

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. High-Confidence, Low-Probability-of-Failure Screening January 11, 2014 P[P[Failure|Eq]<0.05]95% RLGM? Magnitude

  2. HCLPF depends on whom you believe • Which components need seismic safety improvements? • If HCLPF < RLGM (Review Level Ground Motion), improve them • “HCLPF is defined as the earthquake [ground] motion level at which there is a high (95 percent) confidence of a low (at most 5 percent) probability of failure” Interim Staff Guidance, DC/COL-ISG-020 • HCLPF: SoV vs. CDFM • AmExp[-2.32bC] “CDFM” (Conservative Deterministic Failure Margin, “because engineers understand it”) [Kennedy et al.] • AmExp[-1.65(bR+bU)] [“SoV” (Separation of Variables), (EPRI TR-103959, Ravindra, and others] • Am should be the a “High-Confidence” limit on the natural logarithm of median strength • -1.65 and -2.32 are the number of 5% and 1% standard deviations below the normal distribution [log] mean Am • The b-parameters represent randomness or aleatory variability (R), epistemic uncertainty (U), or combined uncertainty (C) • Notice any sample uncertainty?

  3. Objective of Seismic Screening: Component HCLPF < RLGM? • Guidance unspecific, encourages industry initiative, abhors statistics? • ASCE/SEI 41-06 and -13, FEMA E-74 Chapter 4.1, and IEAE NS-G-1.6 • RG 1.208, “A Performance-based Approach to Define the Site-specific Earthquake Ground Motion” (NRC, 2007b) “The desired performance being expressed as the target value of 10-5 for the mean annual probability of exceedance (frequency) of the onset of significant inelastic deformation “ • Plants with higher seismic risk are already shut down • Vallecitos, Humboldt Bay, Zion, Fukushima Daiichi, San Onofre • Older plants have little time left, except for 20-or-30-year extensions!

  4. Alternative Uncertainty Model Q = P[f < f’ | a]; i.e., the subjective probability (confidence) that the conditional probability of failure, f, is less than f’ for a peak ground acceleration a (e.g., RLGM) -1(.)= the inverse of the standard Gaussian cumulative distribution function.

  5. How about some Rational Economic Resource Allocation? • Cost-benefit analysisand budget constrained resource allocation is not under current consideration • Cost of alternatives? Fix some? Shut down plant? • How to allocate resources to aleatory (random) or epistemic (unknown) uncertainty? • Is reducing epistemic uncertainty [unknown unknowns] a scam?Quants use scenarios. Elizabeth Paté-Cornell says insure or hedge (Allin’s wife) • Price-Anderson act provides insurance to nuclear utility industry • NRC insures industry for costs incurred by delays caused by NRC • How to allocate to high confidence vs. low probability of failure • “The public appears to heavily value confidence and places a much smaller, although still positive, emphasis on accuracy.” [Smith and Wooten]

  6. Legal, Precautionary Principle, and Social Equity • “…if an action or policy has a suspected risk of causing harm to the public or to the environment, in the absence of scientific consensus that the action or policy is harmful, the burden of proof that it is not harmful falls on those taking an action.” http://en.wikipedia.org/wiki/Precautionary_principle • Search for “Kip Viscusi and Risk Equity” for guidance • ISO 26000 Social Responsibility, ISO 16269-6 “Determination of Statistical Tolerance Intervals”

  7. HCLPF BorrowsCredibility • To statisticians, HCLPF is a tolerance limit or a confidence limit on a sample percentile (ISO 16269-6 and http://en.wikipedia.org/wiki/Tolerance_limit • The “High-Confidence” part of HCLPF corresponds to the statistical confidence limit, typically 95% • The “Low-Probability-of-Failure” part of HCLPF corresponds to the percentile, typically 5-th percentile of the fragility function • Tolerance limits are supposed to be estimated from data, perhaps censored, perhaps extrapolated • To reliability engineers, HCLPF is a R95C95 reliability demonstration test: 95% confidence that reliability > 95% • RnnCmmdemonstration uses sample test or field (observed) data • HCLPF uses subjective opinions or response analysis to relate component fragility to RLGM instead of local component response • Awkwardly related to material strength distributions [ASME et al.]

  8. Methods: Economics • Minimize seismic risk subject to budget constraint • Allocate resources to biggest bang-per-buck = Seismic Risk/$$$(component fragility parameter) • Seismic risk = E[Discounted future costs due to earthquakes] • = exp(-dt)*P[Eq of magnitude m at age t]*E[Cost|Eq of magnitude m at age t]dF(m,t) • integrate from now to license expiration • Conditional on components to be improved • $$$(component fragility parameter) = cost per unit change in component fragility parameter • Use chain rule (next slide) • Use law of diminishing marginal returns: the more you spend on one component, the less you get

  9. Chain Rule •  Seismic Risk /  $$$(component fragility parameter) = •  Seismic Risk /  Subsystem Risk* Subsystem Risk /  $$$(component fragility parameter) •  Subsystem Risk /  $$$(component fragility parameter) =  Subsystem Risk /  Component type risk *  Component Type Risk /  $$$(component fragility parameter) •  Component Type Risk /  $$$(component fragility parameter) =  P[Component Failure|Eq] /  $$$(component fragility parameter) • Where component parameters include fragility correlations!

  10. Why is HCLPF = AmExp[-1.65b]? • Assume strength at failure RV is AmeReU • Where Am is lower 5-th confidence limit on median component strength at failure and • ln(eR)and ln(eU)are normally distributed, independent random variables with means 0 and (logarithmic) standard deviations bR and bU • Then P[Stress > Strength] = [ln(Stress/Am)/(bR2+bU2)] and • Screen is P[RLGM > HCLPF?] = 5%  • HCLPF? = -1[0.05, ln(Am), (bR2 + bU2)] or • AmExp[1.64485(bR2+bU2)] where standard normal z(0.05) = 1.64485 • i.e., P[Stress/(AmeReU)> 1] = [ln(Stress/Am)> 0] = 0.05

  11. Methods: Data and Subjective Opinions to Obtain HCLPF • Data: ASME and other material strength distributions, component test data, and post-earthquake failure observations • Maximum likelihood, Bayes, and method of moments • “The seismic capacity of such equipment in regard of their functionality during and after an earthquake is impossible, difficult or unreliable to evaluate by other methods” [Other than seismic test, Tengler] • Subjective opinions on median, percentiles, (logarithmic) standard deviations, and Y1|Y2 [NUREG/CR-3558 and others] • Least squares and weighted least squares • Output Am and b from “High-Confidence” fragility function, and r

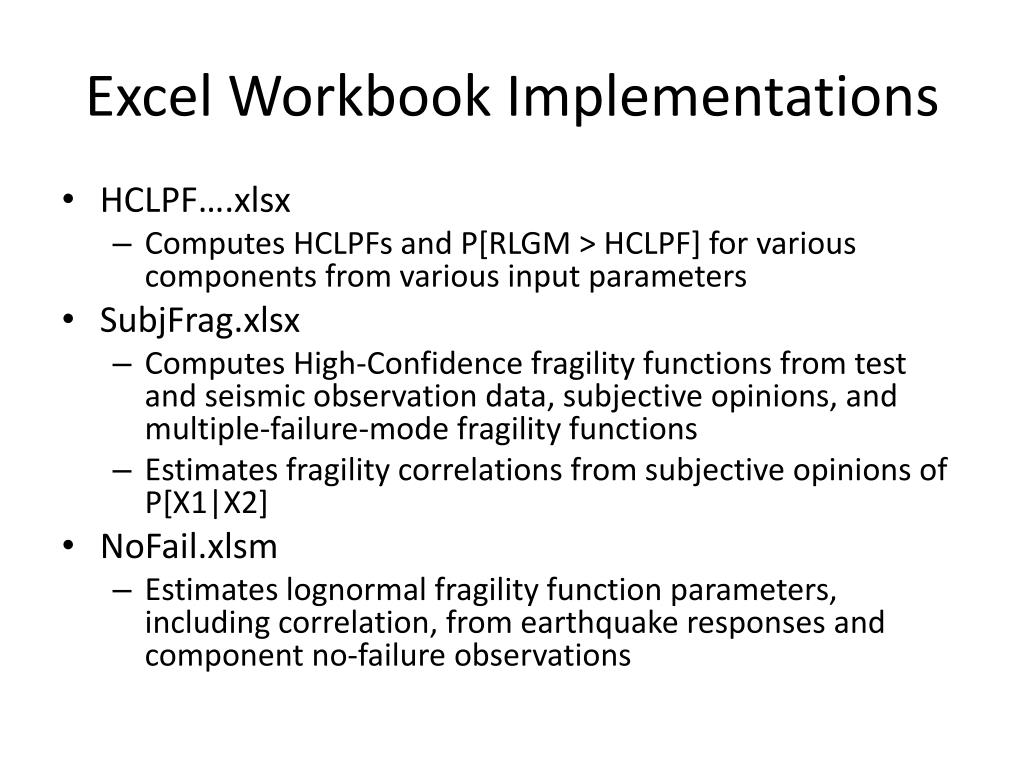

  12. Excel Workbook Implementations • HCLPF….xlsx • Computes HCLPFs and P[RLGM > HCLPF] for various components from various input parameters • SubjFrag.xlsx • Computes High-Confidence fragility functions from test and seismic observation data, subjective opinions, and multiple-failure-mode fragility functions • Estimates fragility correlations from subjective opinions of P[X1|X2] • NoFail.xlsm • Estimates lognormal fragility function parameters, including correlation, from earthquake responses and component no-failure observations

  13. HCLPF…xlsx Spreadsheets

  14. HCLPF Inputs • List of component candidates for screening, QPA, structure function (series, parallel, RBD, fault tree) • Design basis and RLGM and their units • Method(s) (CDFM or SoV?) • Component “fragility” parameters Am and b • Strength-at-failure distributions for materials and some components or “High-Confidence” Am (median) and bR (logarithmic) standard deviation assuming lognormal strength • Uncertainties due to components’ strength and responses to seismic ground motions, bU • Safety and other fudge factors for CDFM computation of structure and equipment fragility parameters

  15. HCLPF…xlsx:HCLPF Spreadsheet • HCLPF spreadsheet does the HCLPF and P[RLGM>HCLPF]? and other computations • From component lists, parameter lists, and parameter computations in other spreadsheets • Table 1 contains notes • Table 2 originated from AREVA proposal form • Added QPA, Units, Method, Factors, Am, b, and computation columns • Computations include: z(p)Amb, RLGM>HCLPF?, (ln(RLGM/Am)/b), ({ln(RLGM/Am)+bU-1(Q(RLGM)))/bR), and P[All QPA components survive] • Could use VLOOKUP() function or links to enter parameters from other spreadsheets

  16. HCLPF Spreadsheet Table 2

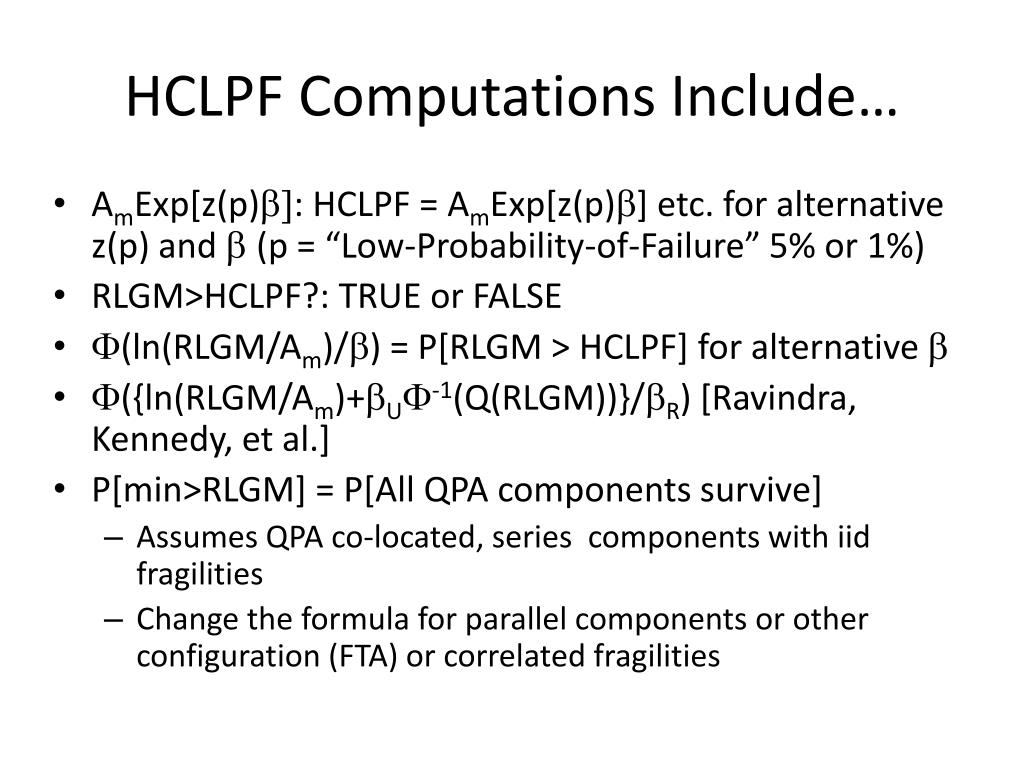

  17. HCLPF Computations Include… • AmExp[z(p)b]: HCLPF = AmExp[z(p)b] etc. for alternative z(p) and b (p = “Low-Probability-of-Failure” 5% or 1%) • RLGM>HCLPF?: TRUE or FALSE • (ln(RLGM/Am)/b) = P[RLGM > HCLPF] for alternative b • ({ln(RLGM/Am)+bU-1(Q(RLGM))}/bR) [Ravindra, Kennedy, et al.] • P[min>RLGM] = P[All QPA components survive] • Assumes QPA co-located, series components with iid fragilities • Change the formula for parallel components or other configuration (FTA) or correlated fragilities

  18. SubjFrag.xlsx Spreadsheets

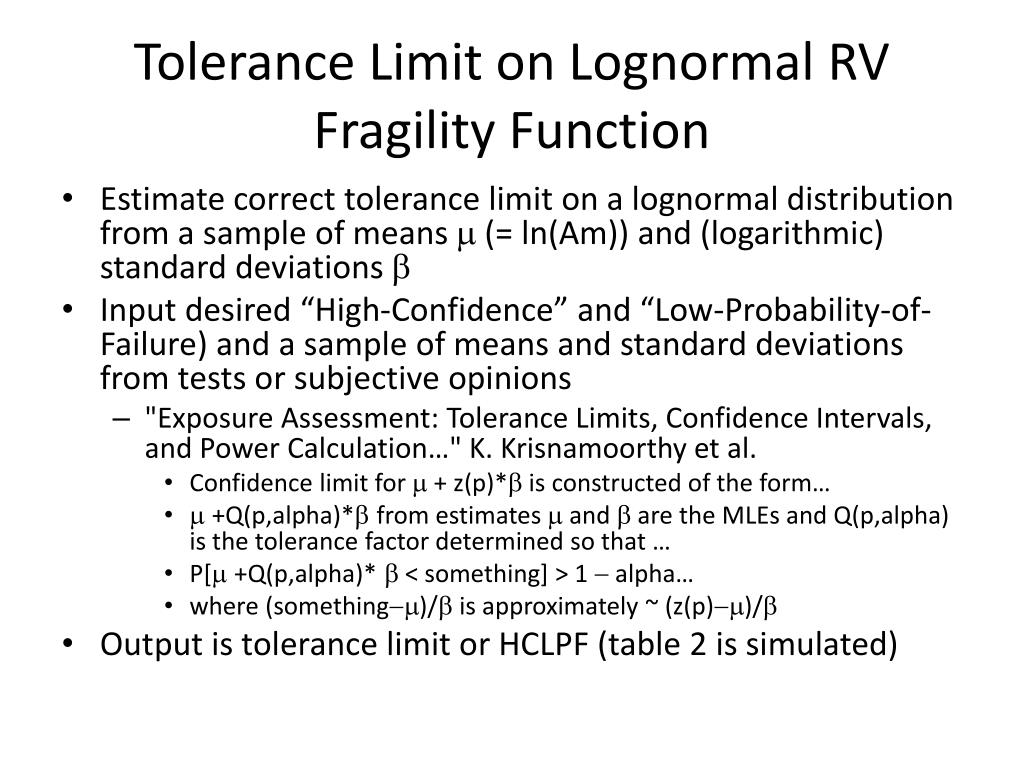

  19. Tolerance Limit on Lognormal RV Fragility Function • Estimate correct tolerance limit on a lognormal distribution from a sample of means m (= ln(Am)) and (logarithmic) standard deviations b • Input desired “High-Confidence” and “Low-Probability-of-Failure) and a sample of means and standard deviations from tests or subjective opinions • "Exposure Assessment: Tolerance Limits, Confidence Intervals, and Power Calculation…" K. Krisnamoorthy et al. • Confidence limit for m+ z(p)*bis constructed of the form… • m +Q(p,alpha)*b from estimates mand bare the MLEs and Q(p,alpha) is the tolerance factor determined so that … • P[m +Q(p,alpha)* b< something] > 1  alpha… • where (somethingm)/bis approximately ~ (z(p)m)/b • Output is tolerance limit or HCLPF (table 2 is simulated)

  20. “High-Confidence” Subjective Fragility Function Estimation • Suppose 19 experts give 19 opinions on fragility median Am and (logarithmic) standard deviation • For each (discrete) value of strength y, find maximum of 19 cdfs and connectwith a curve Fmax(y) • P[Strength < y|Expert Am and b], (or Am and some percentile) and • Assume each represents the upper 95% confidence limit (“High-Confidence”) • Fit a lognormal distribution to minimum curve to represent a 95% “High-Confidence” fragility function using (weighted) least squares • Note that P[F(y) ≤ Fmax(y) for all y]  0.95

  21. Lognormal Fit to Lower 5-th Percentiles

  22. By Weighted Least Squares

  23. What if there aren’t 19 experts? • Bootstrap • Correlation estimate requires at least one subjective opinion of distribution of X1|X2 • Use least squares to combine experts’ subjective distribution information • Sum of squared errors indicted magnitude of experts’ deviation from lognormal distribution

  24. Bootstrap 10 experts

  25. Imagine inspections after earthquakes indicate component responses and failure or non-failure NoFail.xlsm Spreadsheets

  26. Freq Spreadsheet • Input iid responses for which no failures occurred • 19 responses were simulated for example and convenient interpretation of mean and standard deviation estimates as “High-Confidence” • Assume ln[Stress]-ln[Strength} ~ N[muX-muY, Sqrt(sigmaX^2+sigmaY^2)] • Use Solver to maximize log likelihood of PP[Non-failure|Response] subject to constraint • Either constrain CV or P[Failure] • Output is ln(Am) and b

  27. Bayes Spreadsheets • Bayes estimate of reliability r = P{ln[Stress]-ln{strength] > 0] • Non-informative prior distribution of r • Same inputs as Freq: responses and non-failures • Use MoMto find ln(Am) and b to match posterior E[r] = n/n+1 and Var[r] = n/((n+1)^2*(n+2)) • Ditto to find correlation r from third moment of a-posteriori distribution of r • Bayes posterior P[ESEL component life > 72 hours|Eq and plant test data]

  28. Parameter Estimates from 19 Non-Failure Responses • Given 19 earthquake responses with ln(Median) = 0.5 and b = 0.1 and reliability P[ln(Stress) < ln(strength)] ~ 95% • Bayes non-informative prior on reliability P[Response < strength] => posterior distribution • Use Method of Moments to estimate parameters for a-posteriori distribution of reliability

  29. What is the correlation of fragilities? • See SubjFrag.xlsx:SubjCorr and NoFail.xlsm:BayesCorr spreadsheets to estimate correlations from subjective opinions on Y1|Y2 or from no-failure response observation • HCLPF ignores fragility correlation • Risk doesn’t ignore it

  30. What if multiple, co-located components? • Responses are same (Refer to work for Howard last year) • In series? Parallel? RBD? Fault tree? • Using event trees, Jim Moody argues that HCLPF for one component is representative of all like, co-located components

  31. What if like-components are dependent? • Fragilities could be dependent too! • But not necessarily all fail if one fails • True, P[Response > strength] may be same for all like, co-located components • But what is P[g(Stress, strength) = failure] for system structure function g(.,.)?

  32. More References • NAP, “Review of Recommendations for Probabilistic Seismic Hazard Analysis: Guidance on Uncertainty and the Use of Experts (1997) / Treatment of Uncertainty,” National Academies Press,http://en.wikipedia.org/wiki/Quantification_of_margins_and_uncertainties • Viscusi, W. Kip, “Risk Equity,” ISSN 1045-6333, (2000) http://www.law.harvard.edu/programs/olin_center/papers/pdf/294.pdf • Der Khiureghian, Armen and OveDitlevsen, “Aleatory or Epistemic? Does It Matter?” (2007), Risk Acceptance and Communication Workshop, Stanford • Mannes, Albert and Don Moore, “I Know I’m Right, A Behaviourial View of Overconfidence,” Significance, vol. 10, issue 4, August 2013 • Smith, Ben and Jadrian Wooten, “Pundits: The Confidence Trick,” Significance, vol. 10, issue 4, August 2013 • Tengler, Marek, “Seismic Qualification of NPP Structures, Systems and Other Components,” Seminar, Nov. 2011 • Smith, Ben and Jadrian Wooten, “Pundits: The Confidence Trick,” Significance, vol. 10, issue 4, August 2013
