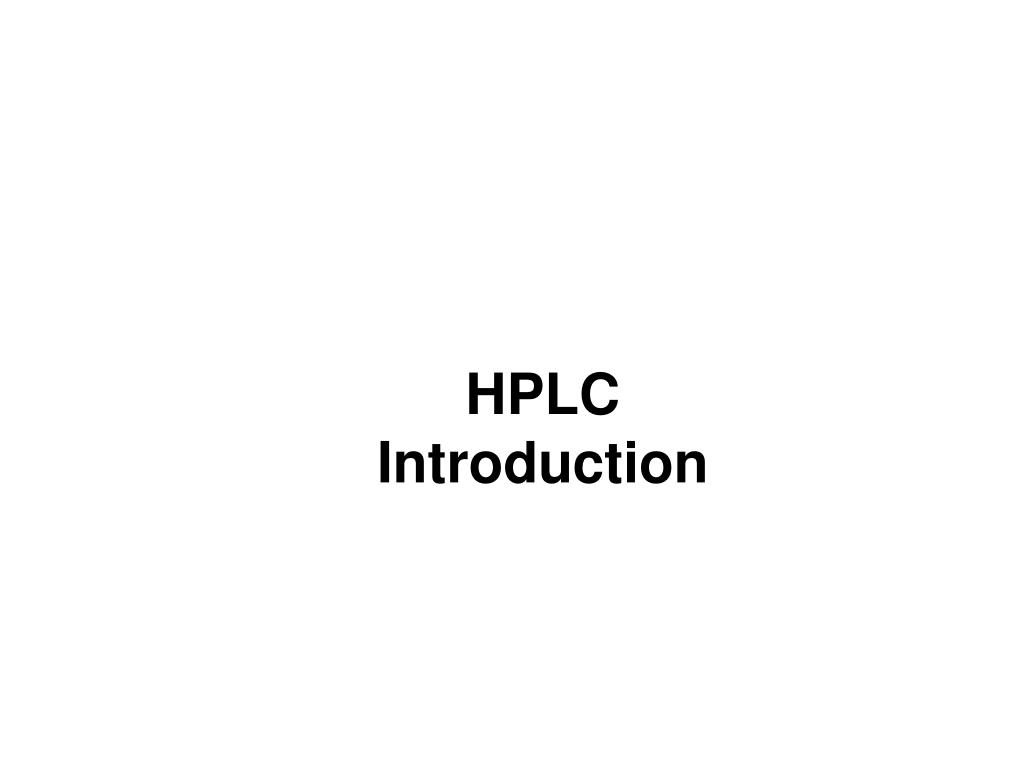

  1. HPLCIntroduction

  2. DISCOVERY • M.S. Tswett, 1903, Warsaw Polytechnic Institute (Separation of the chlorophylls of green leaves extract) Calcium carbonate and non polar eluent

  3. HPLC Introduction

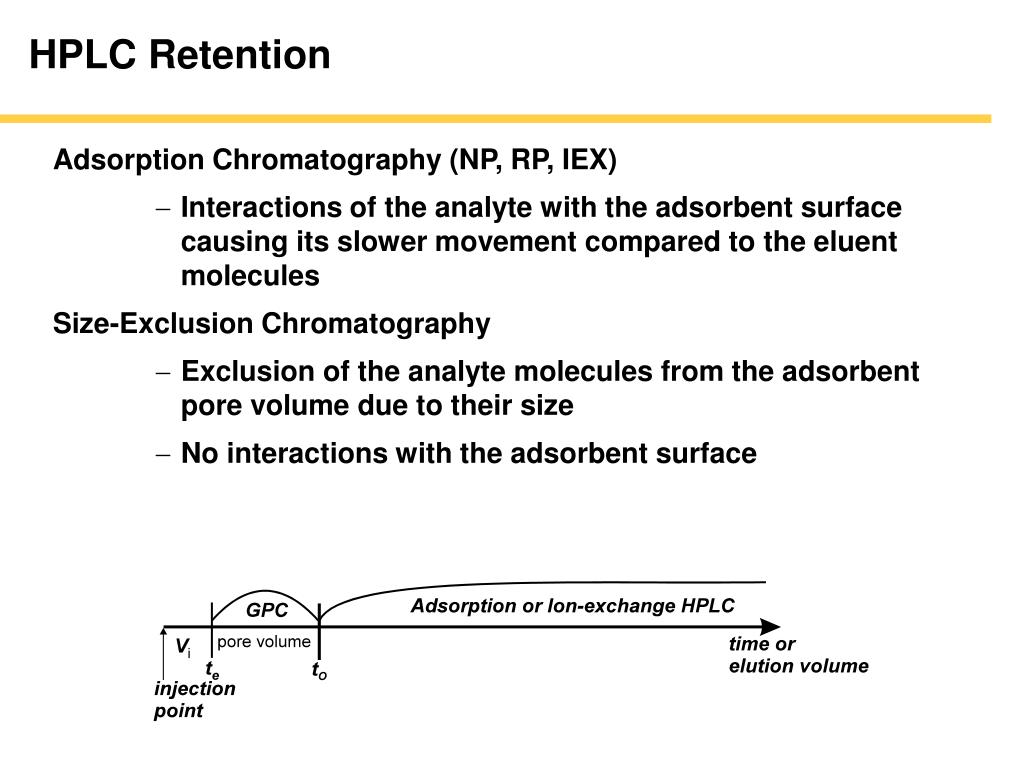

  4. HPLC Retention • Adsorption Chromatography (NP, RP, IEX) • Interactions of the analyte with the adsorbent surface causing its slower movement compared to the eluent molecules • Size-Exclusion Chromatography • Exclusion of the analyte molecules from the adsorbent pore volume due to their size • No interactions with the adsorbent surface

  5. NORMAL PHASE Principle:Adsorption of analytes on the polar, weakly acidic surface of silica gel. Stationary Phase.: Silica (pH 2-8), Alumina (pH 2 - 12), Bonded Diol, and NH2, or CN Mobile Phase: Non-polar solvents (Hexane, CHCl3) Applications: Non-polar and semi-polar samples; hexane soluble; positional isomers. • 1980 2004 • 30% 5% Silica Gel • 47% 44% Silica based bonded phases • Diol • Amino • Cyano • 3% 1% Alumina • 20% 50% Chiral Bonded Phases

  6. NP: SEPARATION PRINCIPLE • Polar (specific but nonionic) interactions of analyte with polar adsorption sites (SiOH, -NH2, -CN, Diol) cause its retention • Different sorption affinities between analytes result in their separation • More polar analytes retained longer • Analytes with larger number of polar functional group are retained longer • Structural isomers are often separated

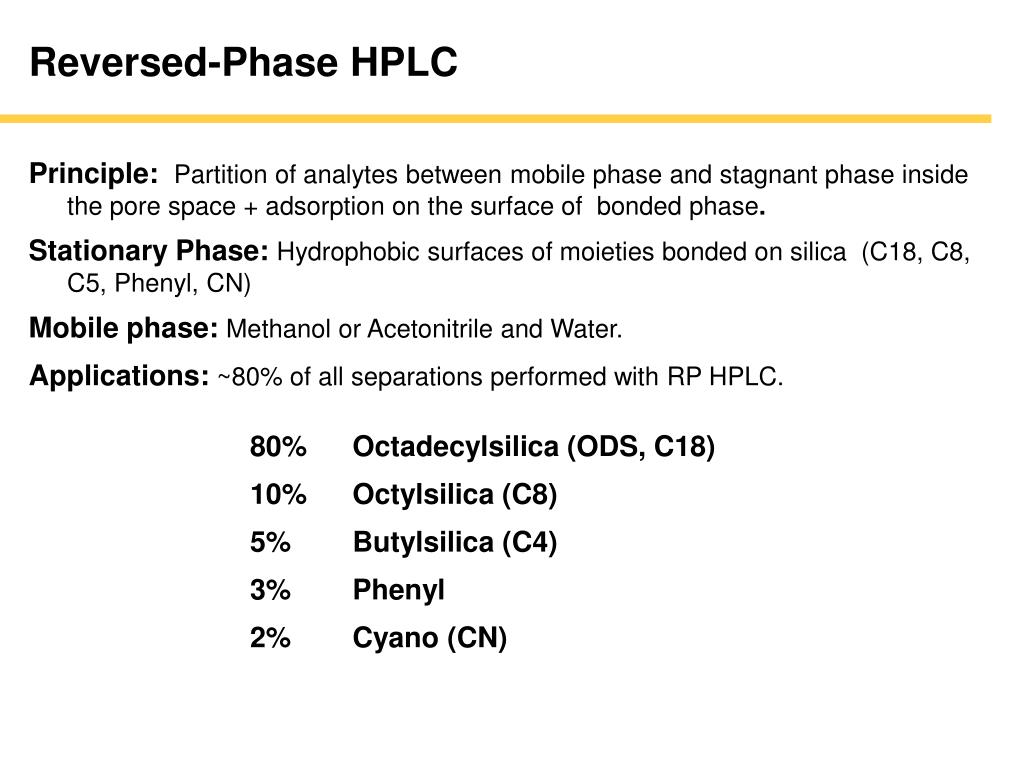

  7. Reversed-Phase HPLC • Principle: Partition of analytes between mobile phase and stagnant phase inside the pore space + adsorption on the surface of bonded phase. • Stationary Phase: Hydrophobic surfaces of moieties bonded on silica (C18, C8, C5, Phenyl, CN) • Mobile phase: Methanol or Acetonitrile and Water. • Applications: ~80% of all separations performed with RP HPLC. 80% Octadecylsilica (ODS, C18) 10% Octylsilica (C8) 5% Butylsilica (C4) 3% Phenyl 2% Cyano (CN)

  8. REVERSED PHASE SEPARATION PRINCIPLE • Nonpolar (nonspecific) interactions of analyte with hydrophobic adsorbent surface (-C18, C8, Phenyl, C4) • Different sorption affinities between analytes results in their separation • More polar analytes retained less • Analytes with larger hydrophobic part are retained longer • structural isomers maybe more challenging in this mode

  9. Reversed-Phase vs. Normal Phase • Nonspecific (hydrophobic) interactions are at least ten times weaker than polar • small differences in component molecular structure could have a significant effect in their retention Separation of 2-Me-Phenol and 4-Me-Phenol in RP and NP Reversed-Phase MeOH/Water, Luna-C18 Normal Phase Hexane/IPA, Luna-Si 95/5 90/10 98/2 60/40

  10. Experimental Comparison of NP and RP HPLC Tocotrienols Tocopherols Tocopherols Tocotrienols R1 R2 a-Tocopherol (a-T)a-Tocotrienol (a-3)_ Me Me b-Tocopherol (b-T)b-Tocotrienol (b-3) Me H g-Tocopherol (g-T)g-Tocotrienol (g-3) H Me d-Tocopherol (d-T)d-Tocotrienol (d-3) H H Separation of synthetic tocopherols by reversed phase HPLC (280 nm) :1) d-tocopherol, 2) g-tocopherol, 3) b-tocopherol, 4) a-tocopherol, 5)a-tocopheryl acetate Genesis silica column (250 x 4.6 mm, 4 m). Mobile phase: Hexane-1,4-dioxane (96:4). . J. Chromatogr. A, 881 (2000) 217-227 Food Chemistry, 76 (2002) 357 – 362.

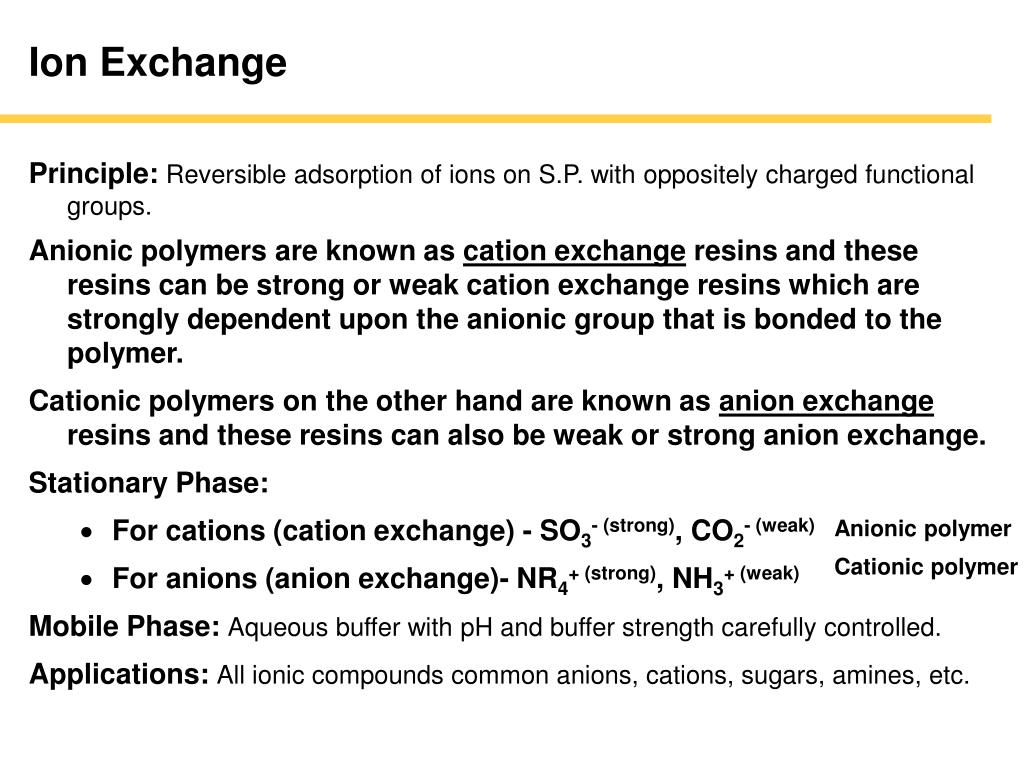

  11. Ion Exchange • Principle: Reversible adsorption of ions on S.P. with oppositely charged functional groups. • Anionic polymers are known as cation exchange resins and these resins can be strong or weak cation exchange resins which are strongly dependent upon the anionic group that is bonded to the polymer. • Cationic polymers on the other hand are known as anion exchange resins and these resins can also be weak or strong anion exchange. • Stationary Phase: • For cations (cation exchange) - SO3- (strong), CO2- (weak) • For anions (anion exchange)- NR4+ (strong), NH3+ (weak) • Mobile Phase: Aqueous buffer with pH and buffer strength carefully controlled. • Applications: All ionic compounds common anions, cations, sugars, amines, etc. Anionic polymer Cationic polymer

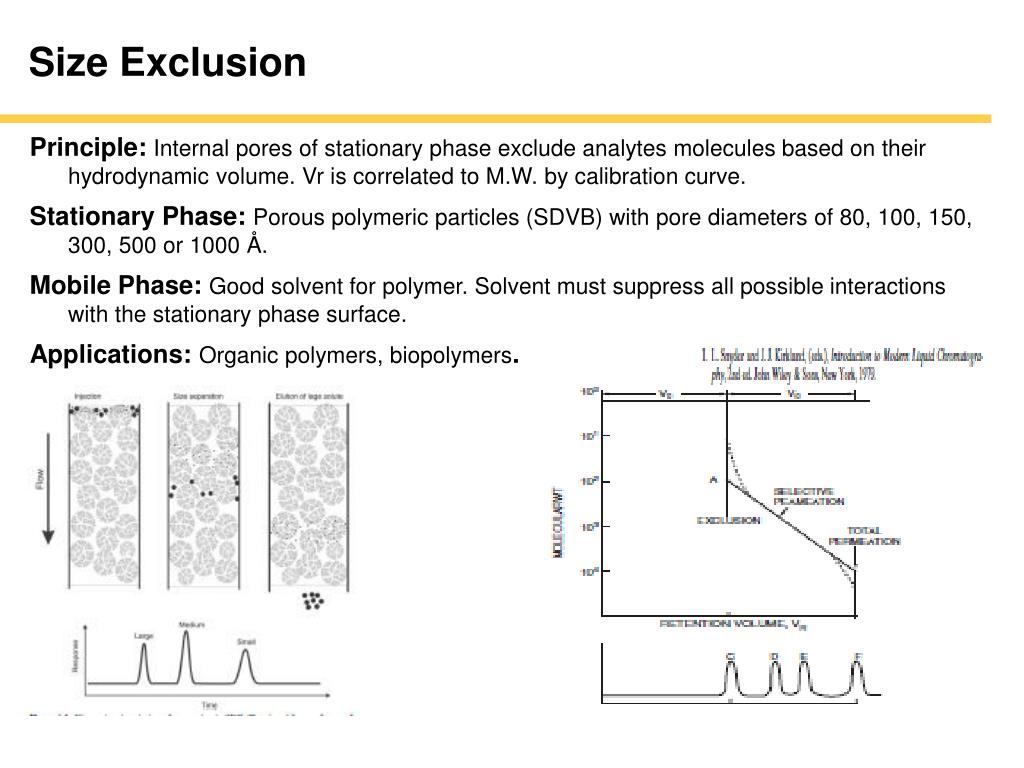

  12. Size Exclusion • Principle: Internal pores of stationary phase exclude analytes molecules based on their hydrodynamic volume. Vr is correlated to M.W. by calibration curve. • Stationary Phase: Porous polymeric particles (SDVB) with pore diameters of 80, 100, 150, 300, 500 or 1000 Å. • Mobile Phase: Good solvent for polymer. Solvent must suppress all possible interactions with the stationary phase surface. • Applications: Organic polymers, biopolymers.

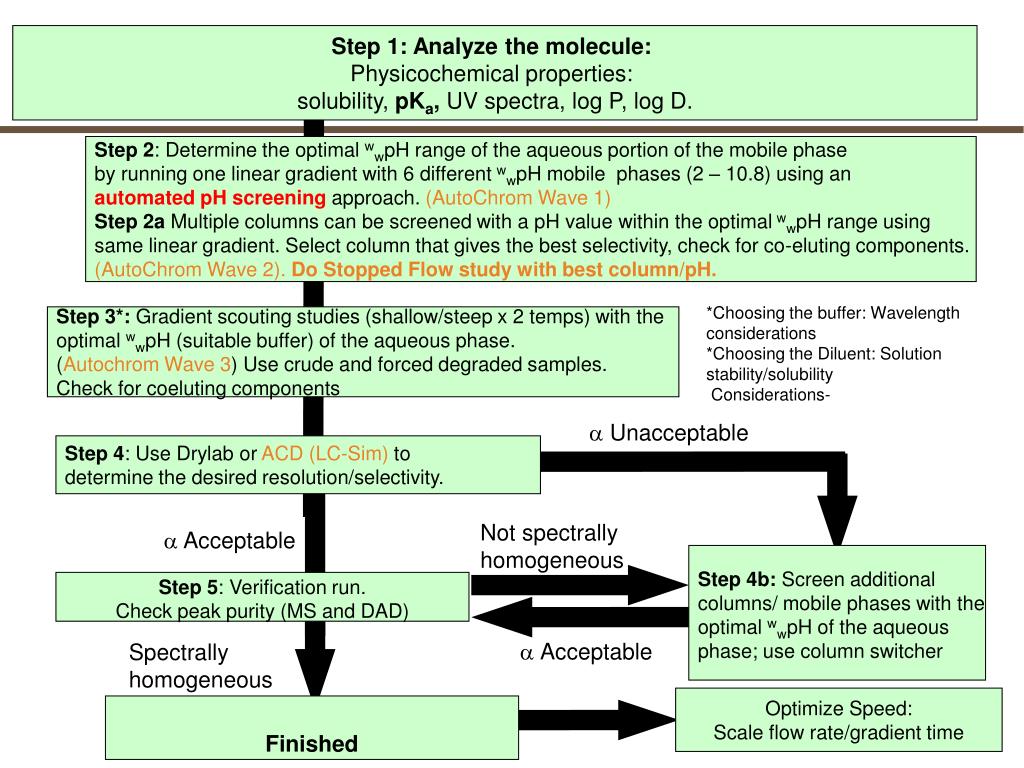

  13. Step 1: Analyze the molecule: Physicochemical properties: solubility, pKa, UV spectra, log P, log D. Step 2: Determine the optimal wwpH range of the aqueous portion of the mobile phase by running one linear gradient with 6 different wwpH mobile phases (2 – 10.8) using an automated pH screening approach. (AutoChrom Wave 1) Step 2a Multiple columns can be screened with a pH value within the optimal wwpH range using same linear gradient. Select column that gives the best selectivity, check for co-eluting components. (AutoChrom Wave 2). Do Stopped Flow study with best column/pH. *Choosing the buffer: Wavelength considerations *Choosing the Diluent: Solution stability/solubility Considerations- Step 3*: Gradient scouting studies (shallow/steep x 2 temps) with the optimal wwpH (suitable buffer) of the aqueous phase. (Autochrom Wave 3) Use crude and forced degraded samples. Check for coeluting components a Unacceptable Step 4: Use Drylab or ACD (LC-Sim) to determine the desired resolution/selectivity. Not spectrally homogeneous a Acceptable Step 4b: Screen additional columns/ mobile phases with the optimal wwpH of the aqueous phase; use column switcher Step 5: Verification run. Check peak purity (MS and DAD) Spectrally homogeneous a Acceptable Optimize Speed: Scale flow rate/gradient time Finished

  14. Published Jan. 2, 2007

  15. PART I HPLC THEORY AND PRACTICE. 1 Introduction (Yuri Kazakevich and Rosario LoBrutto). 2 HPLC Theory (Yuri Kazakevich). 3 Stationary Phases (Yuri Kazakevich and Rosario LoBrutto). 4 Reversed-Phase HPLC (Rosario LoBrutto and Yuri Kazakevich). 5 Normal-Phase HPLC (Yong Liu and Anant Vailaya). 6 Size-Exclusion Chromatography (Yuri Kazakevich and Rosario LoBrutto). 7 LC/MS: Theory, Instrumentation, and Applications to Small Molecules (Guodong Chen, Li-Kang Zhang, and Birendra N. Pramanik). 8 Method Development (Rosario LoBrutto). . 9 Method Validation (Rosario LoBrutto and Tarun Patel). . 10 Computer-Assisted HPLC and Knowledge Management (Yuri Kazakevich, Michael McBrien, and Rosario LoBrutto). PART II HPLC IN THE PHARMACEUTICAL INDUSTRY. 11 The Expanding Role of HPLC in Drug Discovery (Daniel B. Kassel). 12 Role of HPLC in Preformulation (Irina Kazakevich). 13 The Role of Liquid Chromatography–Mass Spectrometry in Pharmacokinetics and Drug Metabolism (Ray Bakhtiar, Tapan K. Majumdar, and Francis L. S. Tse). 14 Role of HPLC in Process Development (Richard Thompson and Rosario LoBrutto). . 15 Role of HPLC During Formulation Development (Tarun S. Patel and Rosario LoBrutto). 16 The Role of HPLC in Technical Transfer and Manufacturing (Joseph Etse). PART III HYPHENATED TECHNIQUES AND SPECIALIZED HPLC SEPARATIONS. 17 Development of Fast HPLC Methods (Anton D. Jerkovich and Richard V. Vivilecchia). 18 Temperature as a Variable in Pharmaceutical Applications (Roger M. Smith). 19 LC/MS Analysis of Proteins and Peptides in Drug Discovery (Guodong Chen, Yan-Hui Liu, and Birendra N. Pramanik). 20 LC-NMR Overview and Pharmaceutical Applications (Maria Victoria Silva Elipe). 21 Trends in Preparative HPLC (Ernst Kuesters). 22 Chiral Separations (Nelu Grinberg, Thomas Burakowski, and Apryll M. Stalcup).
