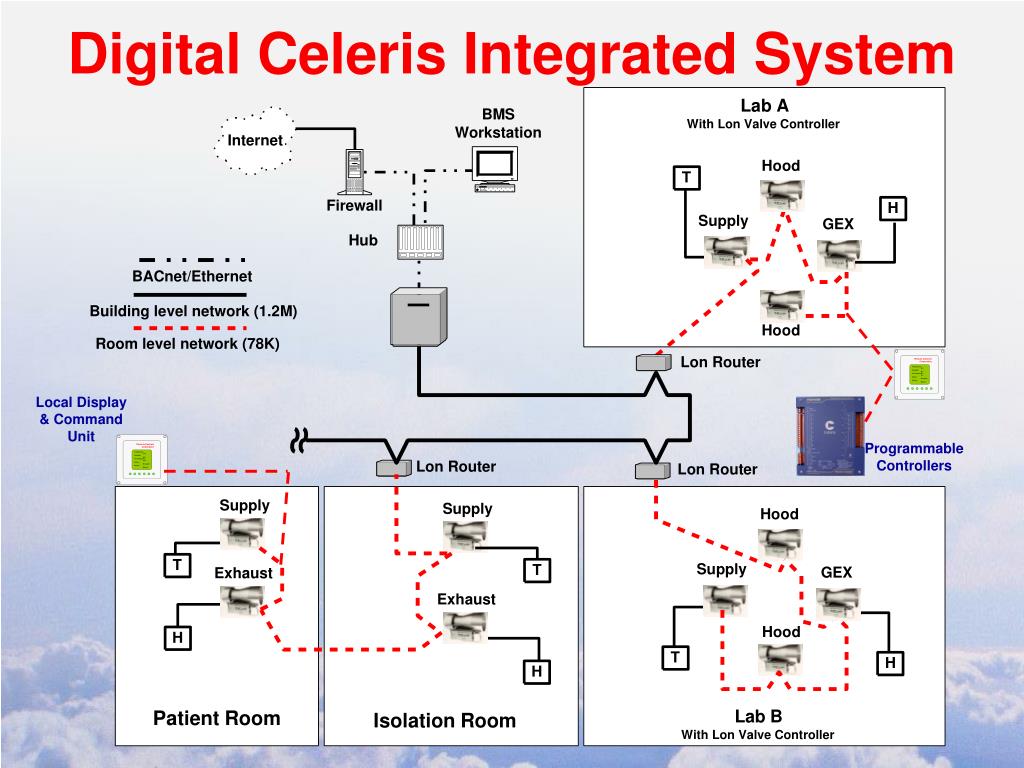

  1. Digital Celeris Integrated System Local Display & Command Unit Programmable Controllers Patient Room Isolation Room

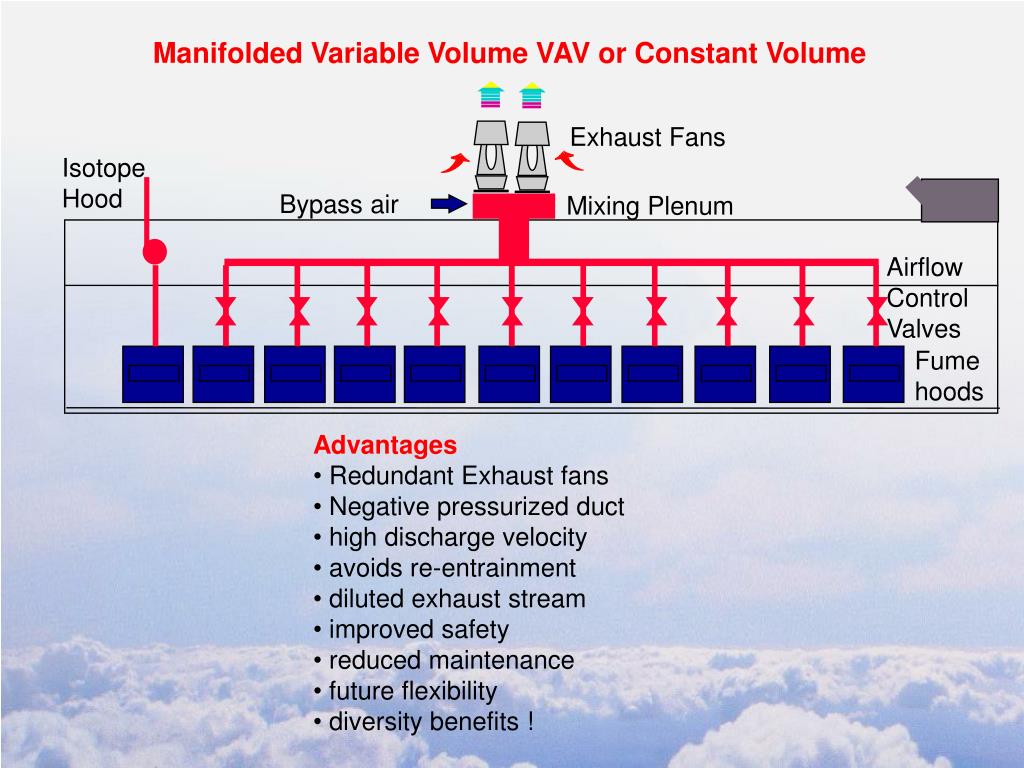

  2. Manifolded Variable Volume VAV or Constant Volume Exhaust Fans Isotope Hood Bypass air Mixing Plenum Airflow Control Valves Fume hoods • Advantages • Redundant Exhaust fans • Negative pressurized duct • high discharge velocity • avoids re-entrainment • diluted exhaust stream • improved safety • reduced maintenance • future flexibility • diversity benefits !

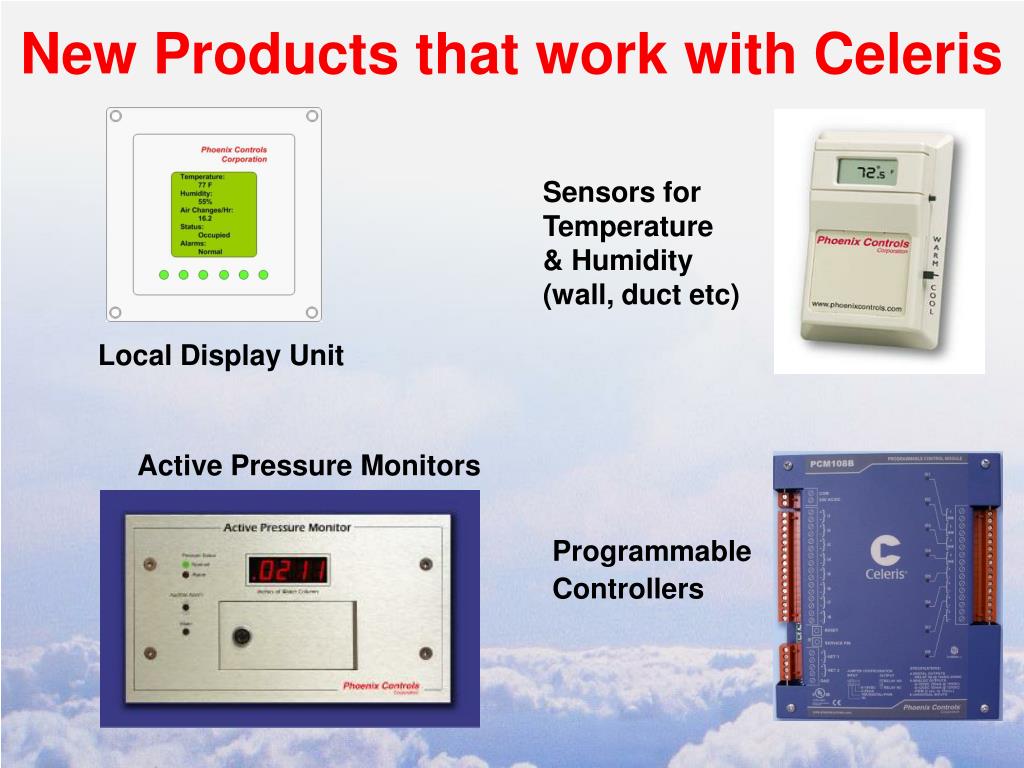

  3. New Products that work with Celeris Sensors for Temperature & Humidity (wall, duct etc) Local Display Unit Active Pressure Monitors Programmable Controllers

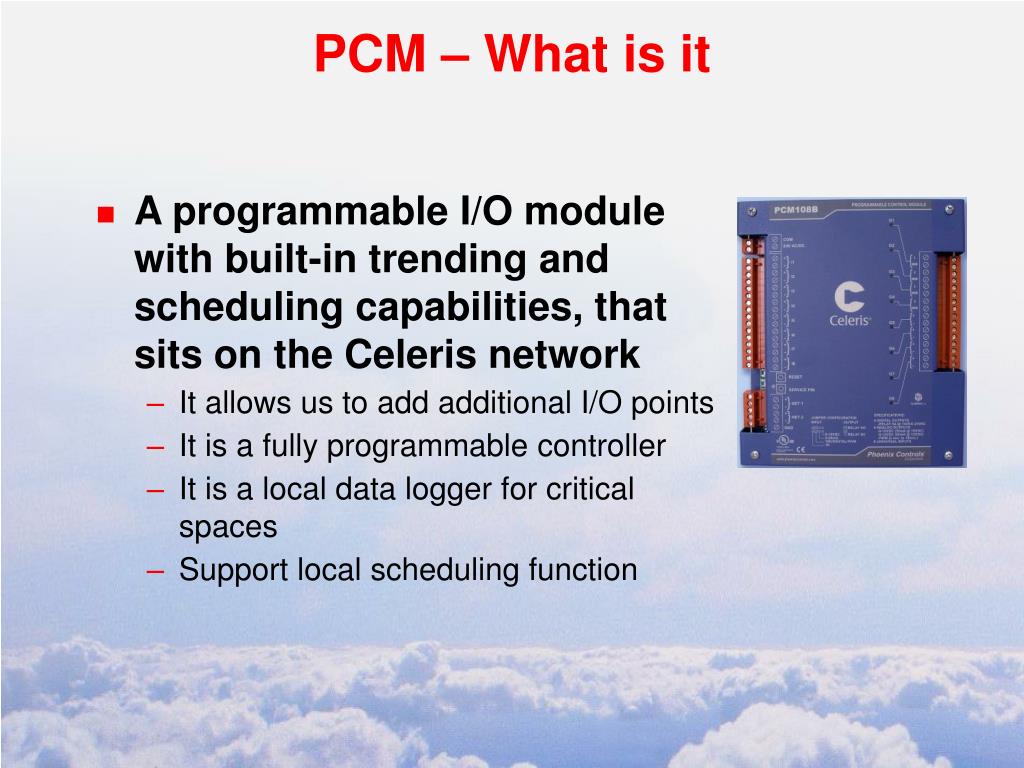

  4. PCM – What is it • A programmable I/O module with built-in trending and scheduling capabilities, that sits on the Celeris network • It allows us to add additional I/O points • It is a fully programmable controller • It is a local data logger for critical spaces • Support local scheduling function

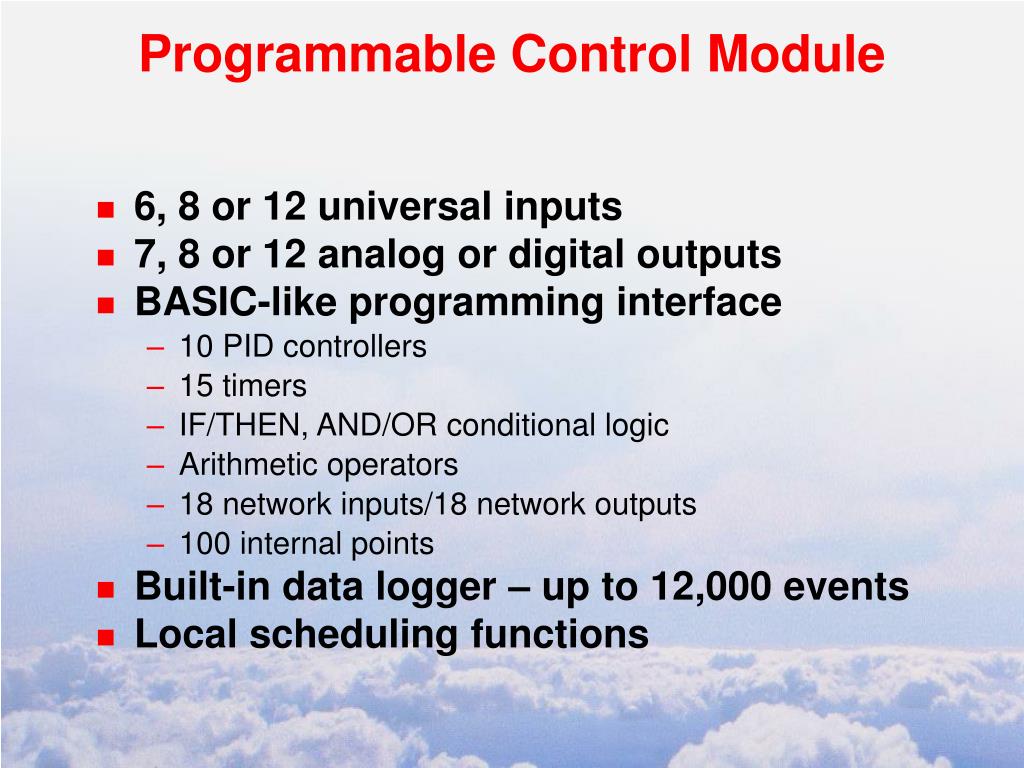

  5. Programmable Control Module • 6, 8 or 12 universal inputs • 7, 8 or 12 analog or digital outputs • BASIC-like programming interface • 10 PID controllers • 15 timers • IF/THEN, AND/OR conditional logic • Arithmetic operators • 18 network inputs/18 network outputs • 100 internal points • Built-in data logger – up to 12,000 events • Local scheduling functions

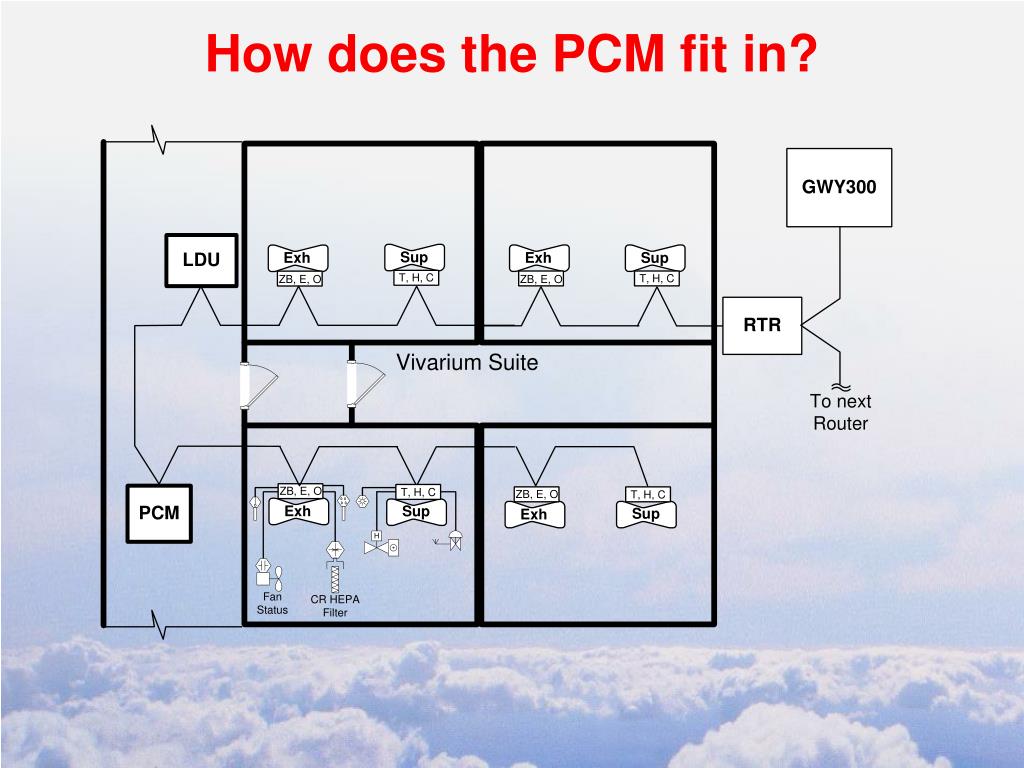

  6. How does the PCM fit in?

  7. Local Display Unit • Read/Write any point on the Celeris system • 24Vac/Vdc operation • Flush or Surface mount options • 3 levels of password protection • None • Read Only • Full Access

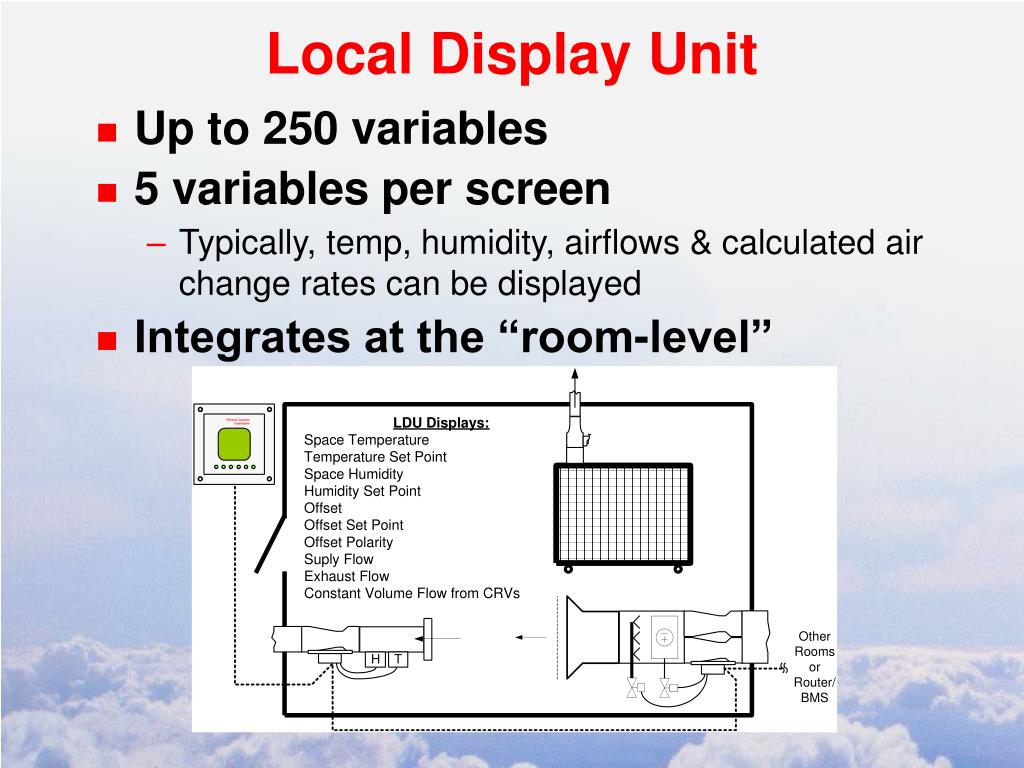

  8. Local Display Unit • Up to 250 variables • 5 variables per screen • Typically, temp, humidity, airflows & calculated air change rates can be displayed • Integrates at the “room-level”

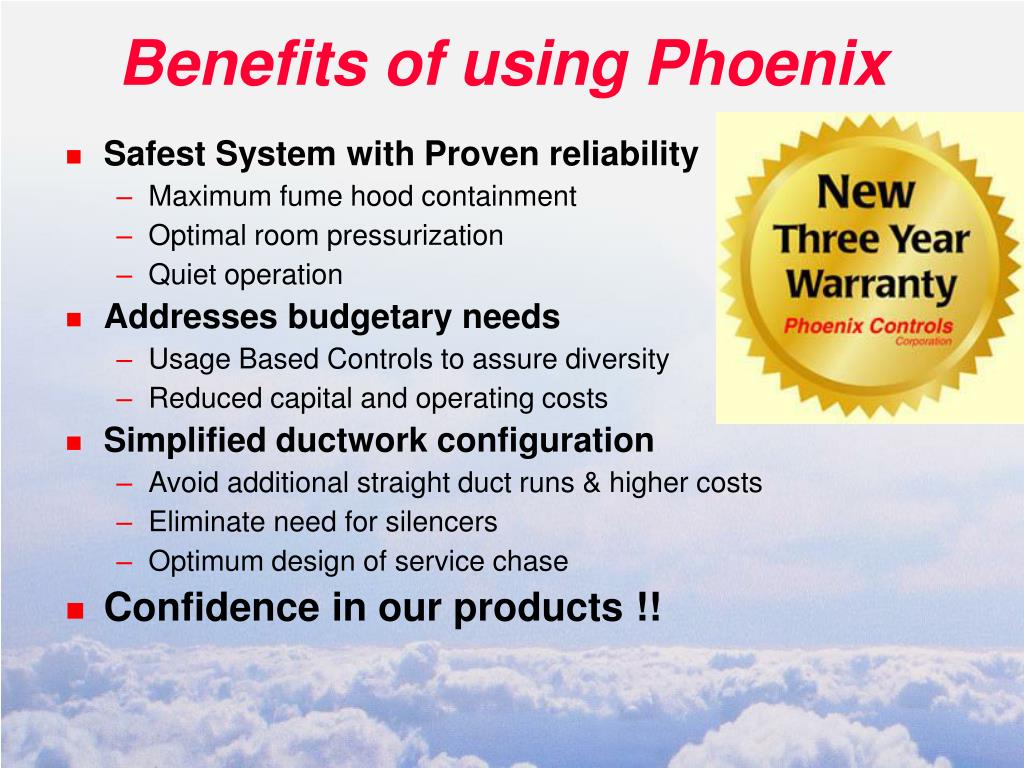

  9. Benefits of using Phoenix • Safest System with Proven reliability • Maximum fume hood containment • Optimal room pressurization • Quiet operation • Addresses budgetary needs • Usage Based Controls to assure diversity • Reduced capital and operating costs • Simplified ductwork configuration • Avoid additional straight duct runs & higher costs • Eliminate need for silencers • Optimum design of service chase • Confidence in our products !!

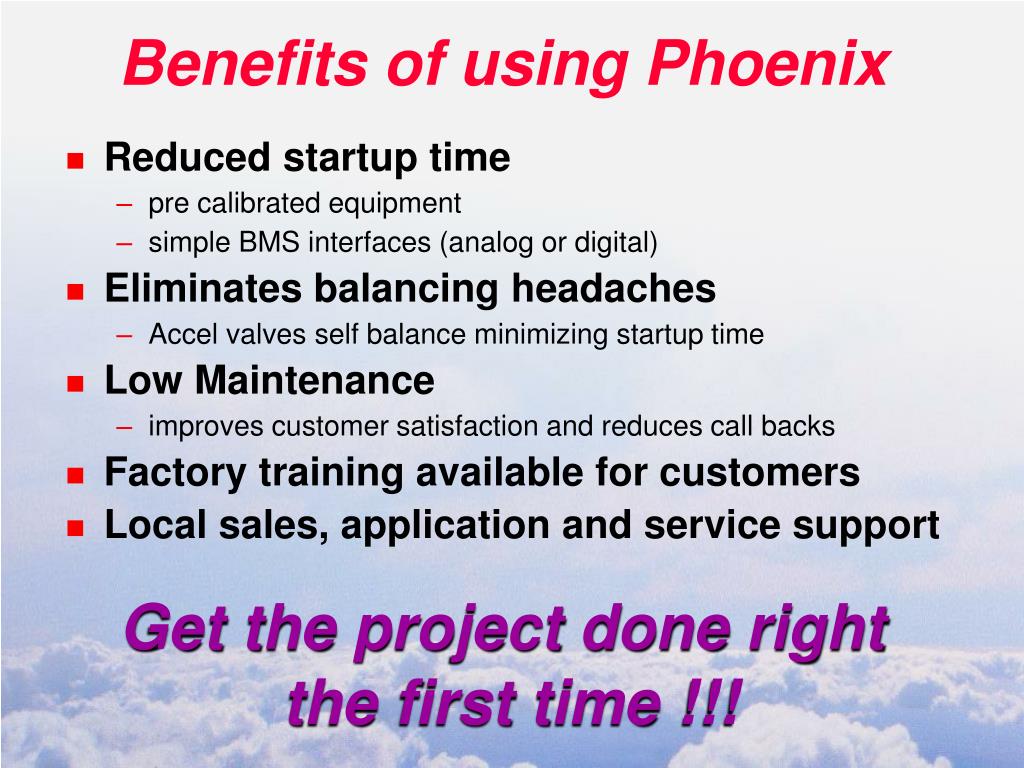

  10. Benefits of using Phoenix • Reduced startup time • pre calibrated equipment • simple BMS interfaces (analog or digital) • Eliminates balancing headaches • Accel valves self balance minimizing startup time • Low Maintenance • improves customer satisfaction and reduces call backs • Factory training available for customers • Local sales, application and service support Get the project done right the first time !!!
