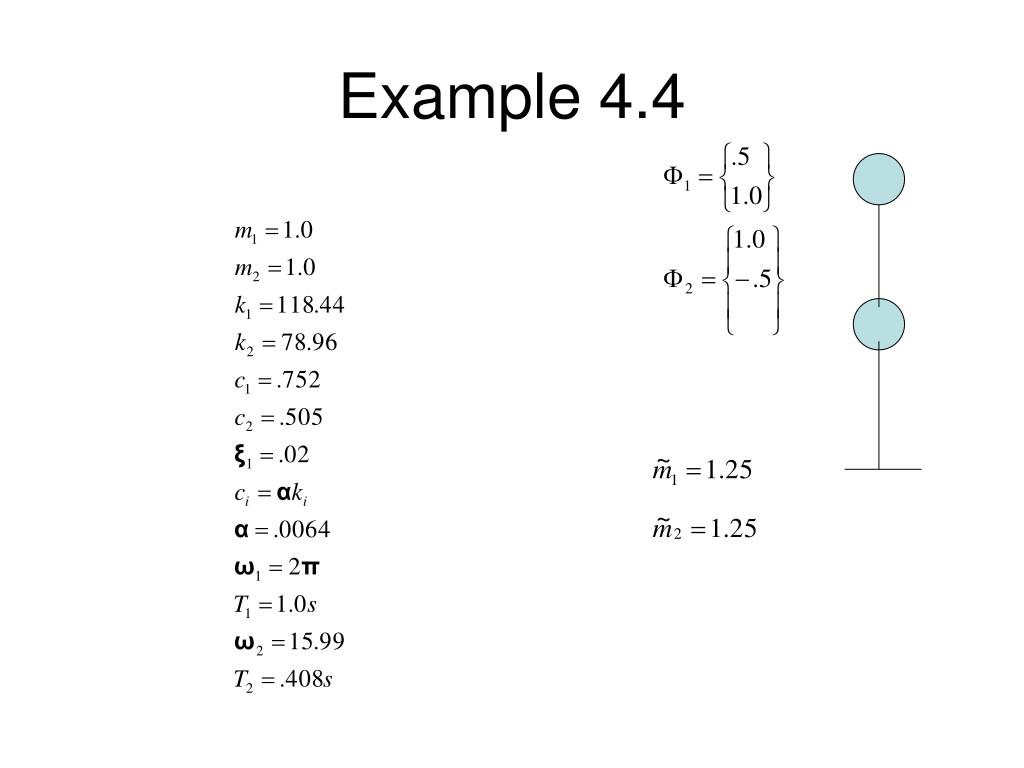

Example 4.4

Example 4.4. No damper. No damper. TMD at node 2 Tune to mode 1. TMD at node 2 Tune to mode 1 modal mass =1.25 modal amplitude =1.0 Want equivalent modal damping = 0.1 Requires mbar =.065 The appropiate damper parameters are f=.91 =.145
