  1. Chapter 2-Cont’ Infrared Spectroscopy

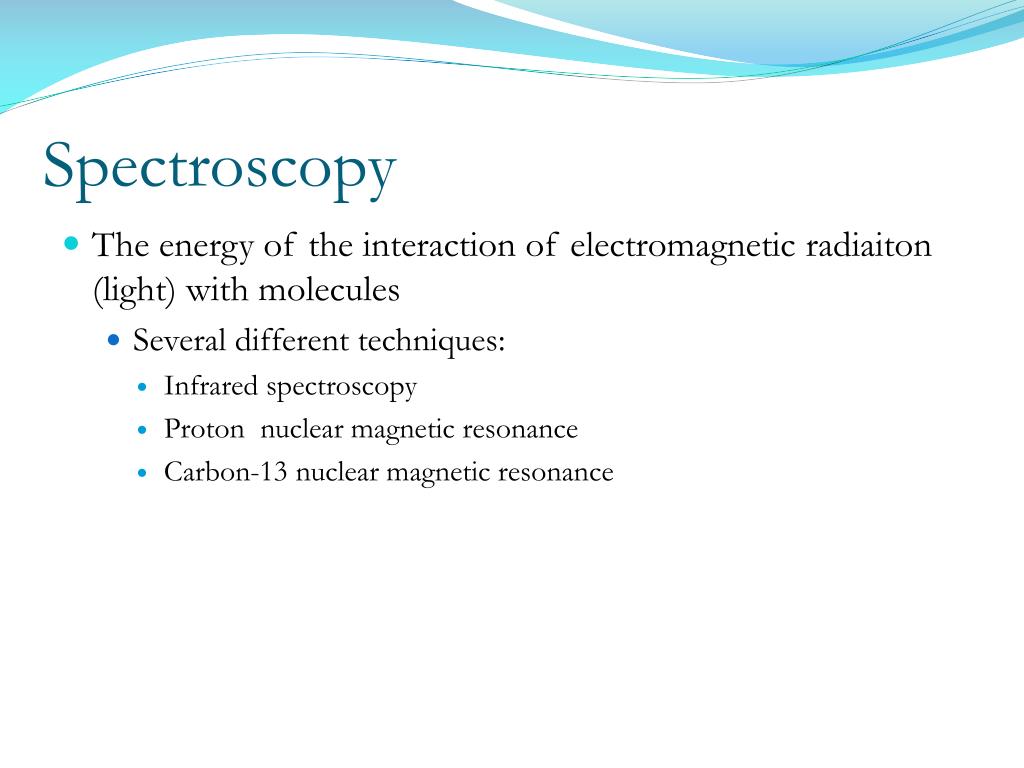

  2. Spectroscopy • The energy of the interaction of electromagnetic radiaiton (light) with molecules • Several different techniques: • Infrared spectroscopy • Proton nuclear magnetic resonance • Carbon-13 nuclear magnetic resonance

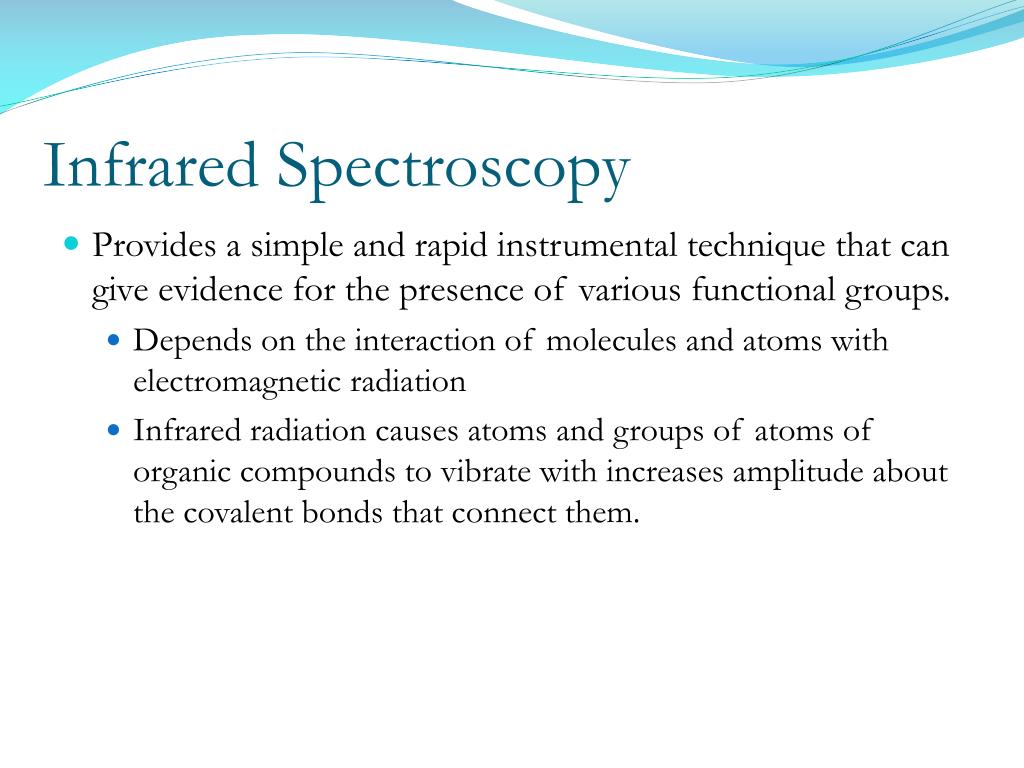

  3. Infrared Spectroscopy • Provides a simple and rapid instrumental technique that can give evidence for the presence of various functional groups. • Depends on the interaction of molecules and atoms with electromagnetic radiation • Infrared radiation causes atoms and groups of atoms of organic compounds to vibrate with increases amplitude about the covalent bonds that connect them.

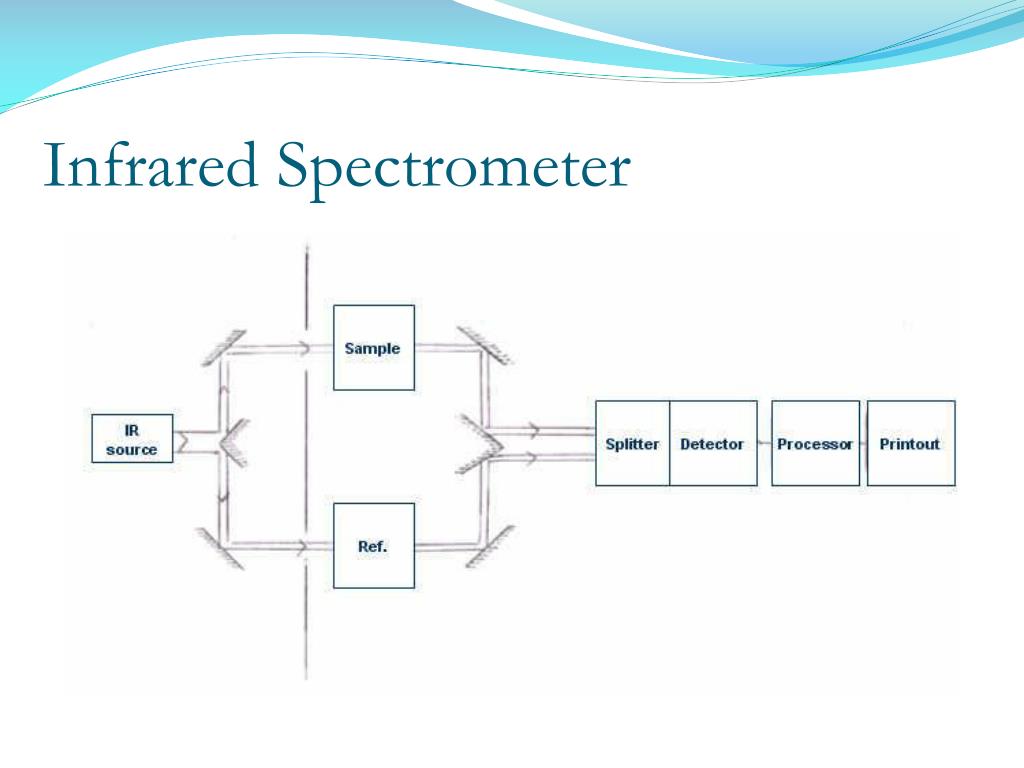

  4. Infrared Spectrometer

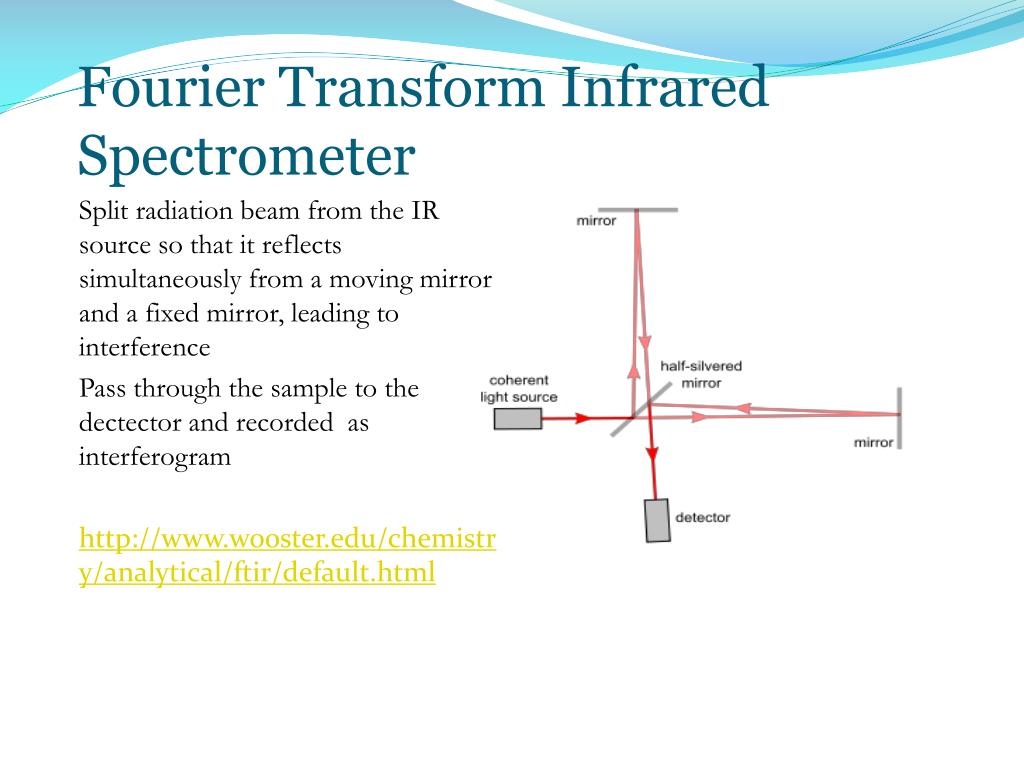

  5. Fourier Transform Infrared Spectrometer Split radiation beam from the IR source so that it reflects simultaneously from a moving mirror and a fixed mirror, leading to interference Pass through the sample to the dectector and recorded as interferogram http://www.wooster.edu/chemistry/analytical/ftir/default.html

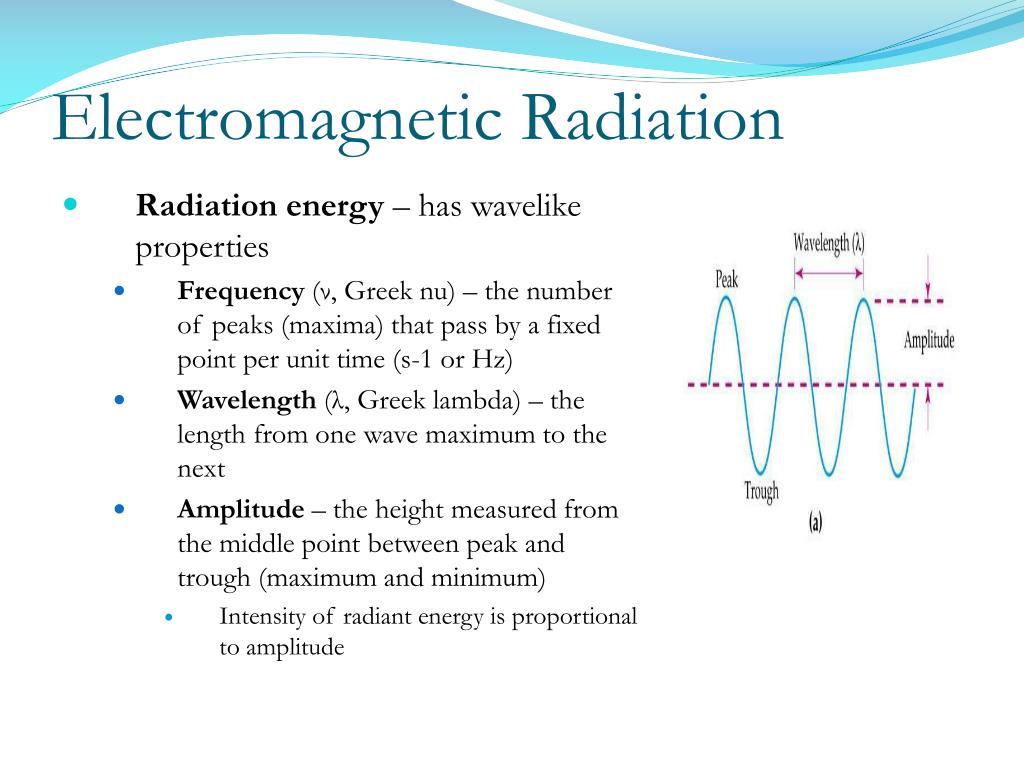

  6. Electromagnetic Radiation • Radiation energy – has wavelike properties • Frequency (ν, Greek nu) – the number of peaks (maxima) that pass by a fixed point per unit time (s-1 or Hz) • Wavelength (λ, Greek lambda) – the length from one wave maximum to the next • Amplitude – the height measured from the middle point between peak and trough (maximum and minimum) • Intensity of radiant energy is proportional to amplitude

  7. Planck Equation • Planck – energy radiated by a heated object is quantized • Radiant energy emitted in discrete units or quanta • The smallest quantity of energy that can be emitted in the form of electromagnetic radiation • E = hν or • h = 6.626 x 10-34 J•s (Planck’s constant) • unit of E is J/proton • high energy radiation – higher ν, shorter λ • low energy radiation – lower ν, higher λ

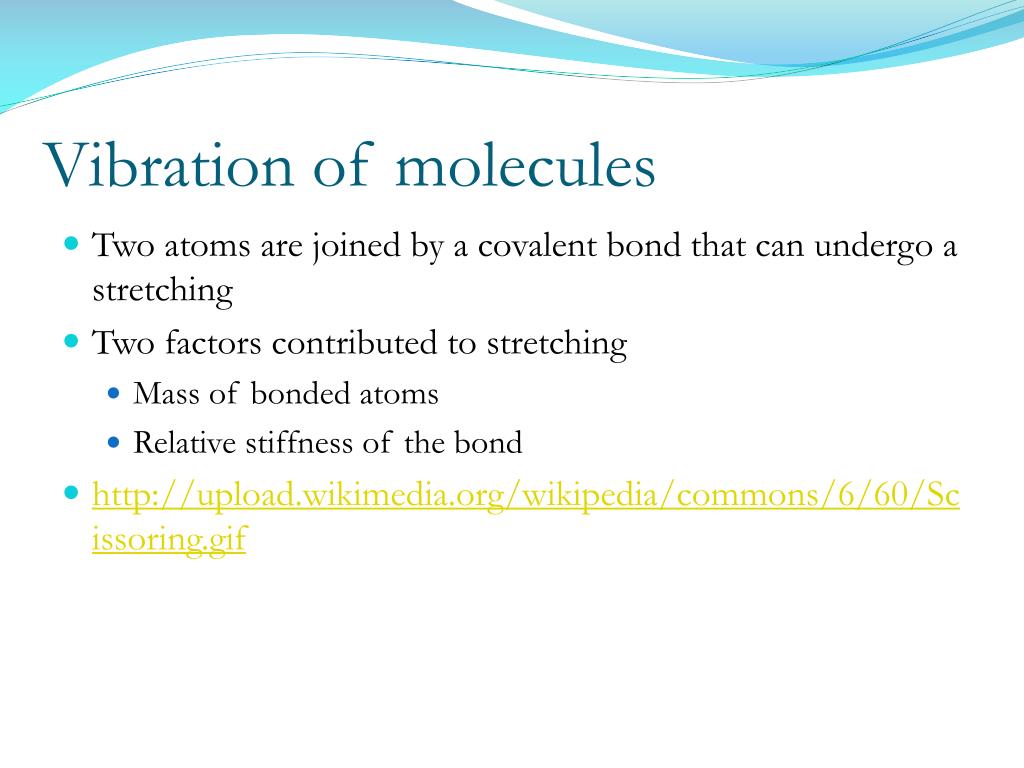

  8. Vibration of molecules • Two atoms are joined by a covalent bond that can undergo a stretching • Two factors contributed to stretching • Mass of bonded atoms • Relative stiffness of the bond • http://upload.wikimedia.org/wikipedia/commons/6/60/Scissoring.gif

  9. Vibration of molecules

  10. Vibrations of atoms • Stretch: the distance between bonded atoms oscillates • Bend: bond angles oscillate

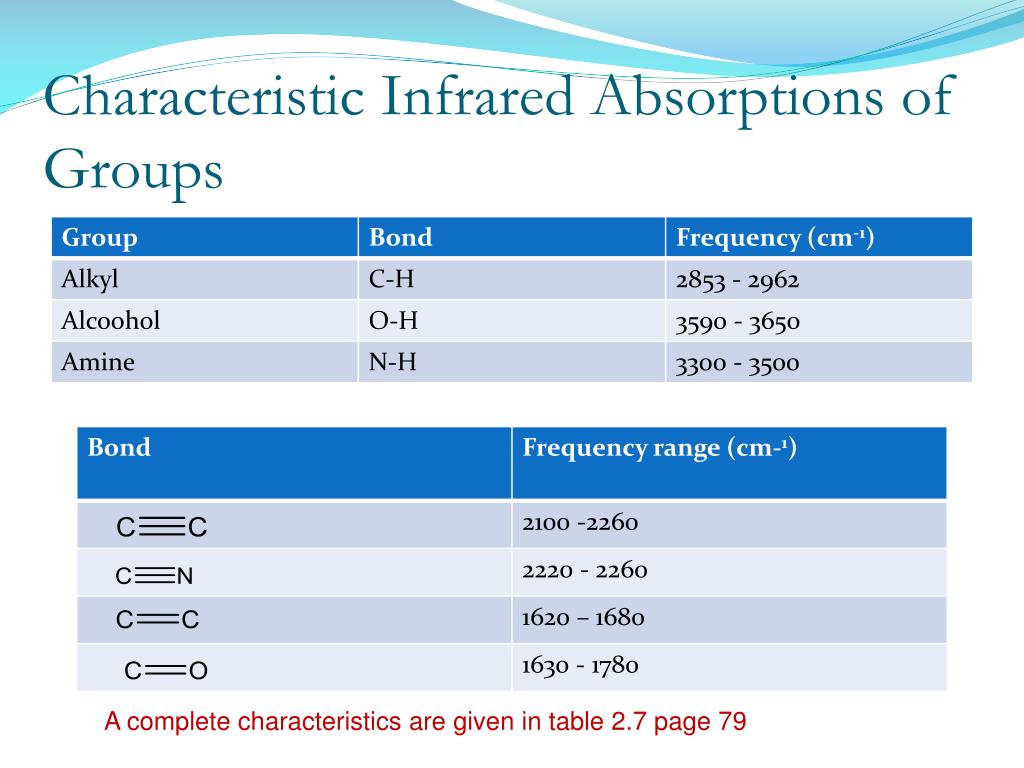

  11. Characteristic Infrared Absorptions of Groups A complete characteristics are given in table 2.7 page 79

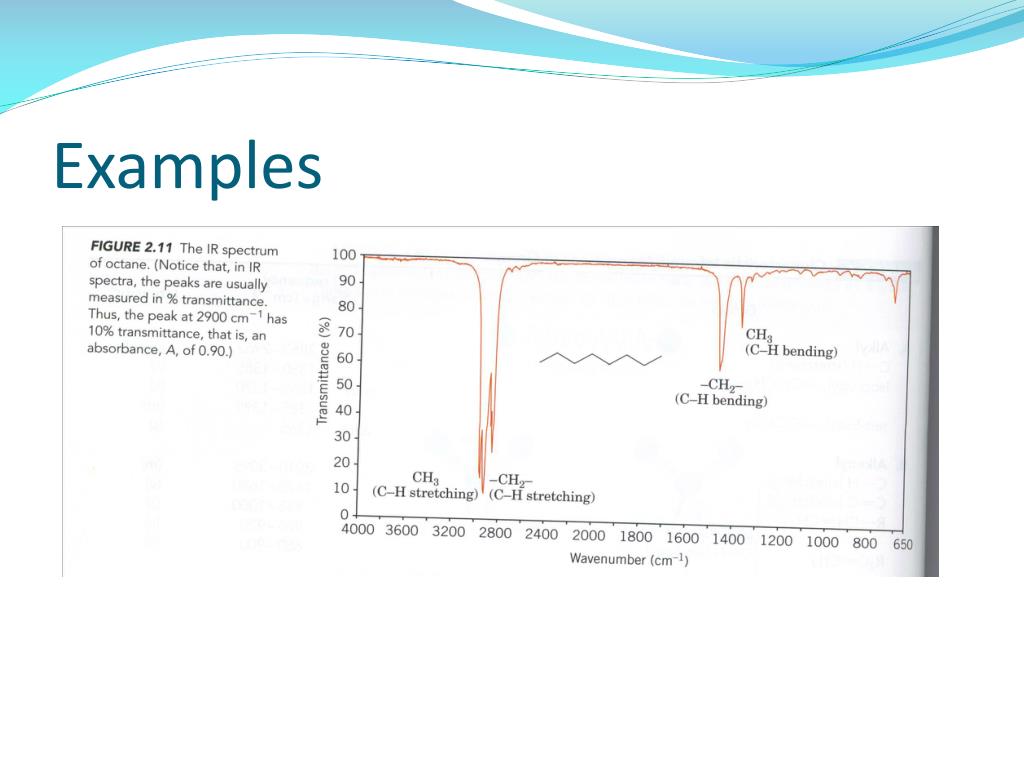

  12. Examples

  13. Examples

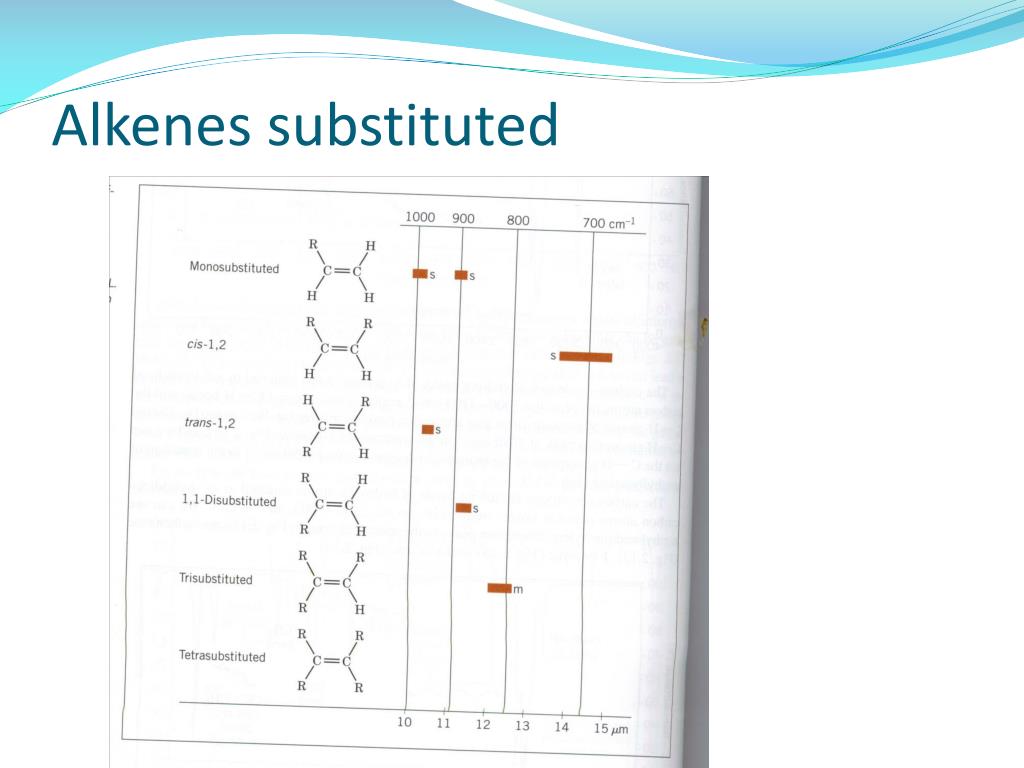

  14. Alkenes substituted
