  1. ArcGIS for Mobile & GPSCohesion & Not Collision York Grow Duncan-Parnell, Inc.

  2. ArcGIS for Mobile & GPSCohesion & Not Collision • Options for integration into various Esri software applications and associated accuracies. • West Va CORS network • Trimble Positions – benefits to accuracy

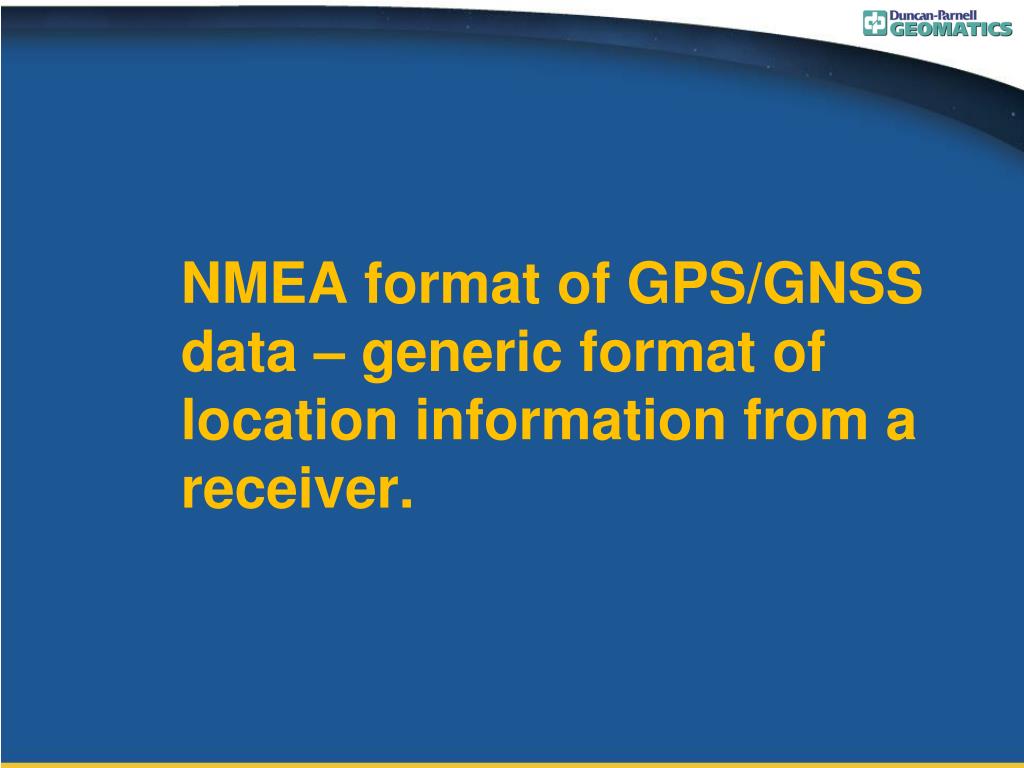

  3. NMEA format of GPS/GNSS data – generic format of location information from a receiver.

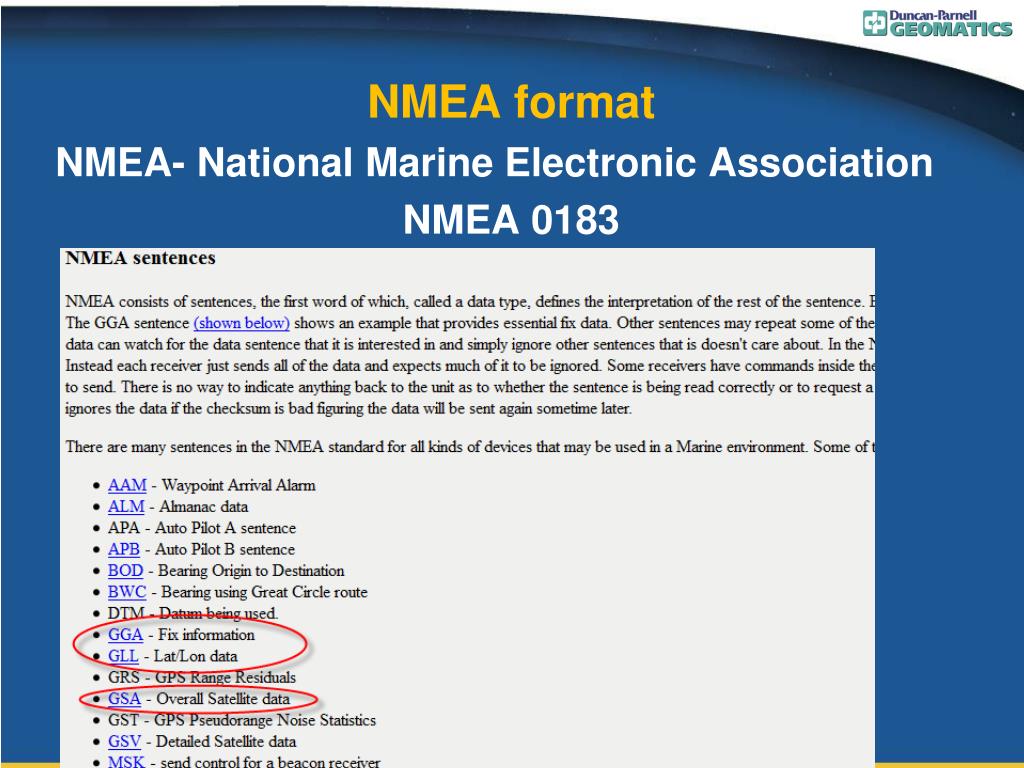

  4. NMEA format NMEA- National Marine Electronic Association NMEA 0183

  5. GPS/GNSS format • GPS – Global Positioning System (United States) • GNSS – Global Navigation Satellite System • GPS • GLONASS • Galileo • Compass • Etc….

  6. Manufacturers of GNSS Technology • “Generic” - OEM • SiRF • U-BLOX • Recognized Manufacturers • Trimble • Topcon • Carlson • Leica • Spectra

  7. Manufacturers of GNSS Technology • “Generic” - OEM • SiRF • U-BLOX • Recognized Manufacturers • Trimble • Topcon • Carlson • Leica • Spectra

  8. NMEA format of GPS/GNSS data – generic format of location information from a receiver.

  9. NMEA Accuracy: required/available • GNSS • Updating/recording attribute information • Recording location • Tree canopy • Terrain limitations • Building shadow Accuracy ranges: • 30 feet • 6-20 ft (2-5 meter) • 3-10 ft (1-3 meter) • < 3 ft (submeter • < 1 ft (30cm) • <4” (decimeter)

  10. NMEA Accuracy: required/available • GNSS • Updating/recording attribute information • Recording location • Tree canopy • Terrain limitations • Building shadow Accuracy ranges: • 30 feet • 6-20 ft (2-5 meter) • 3-10 ft (1-3 meter) • < 3 ft (submeter • < 1 ft (30cm) • <4” (decimeter)

  11. NMEA Accuracy: required/available • GNSS • Updating/recording attribute information • Recording location • Tree canopy • Terrain limitations • Building shadow Accuracy ranges: • 30 feet • 6-20 ft (2-5 meter) • 3-10 ft (1-3 meter) • < 3 ft (submeter • < 1 ft (30cm) • <4” (decimeter)

  12. Accuracy • Autonomous GNSS 3 ft – 50 ft (1-10 meters) • Differentially Corrected • WAAS enabled 2 ft – 18 ft (submeter to 5 m) • VRS <1 inch to 3 ft (1cm to submeter) • Post-processed <1 inch to 3 ft (1cm to submeter)

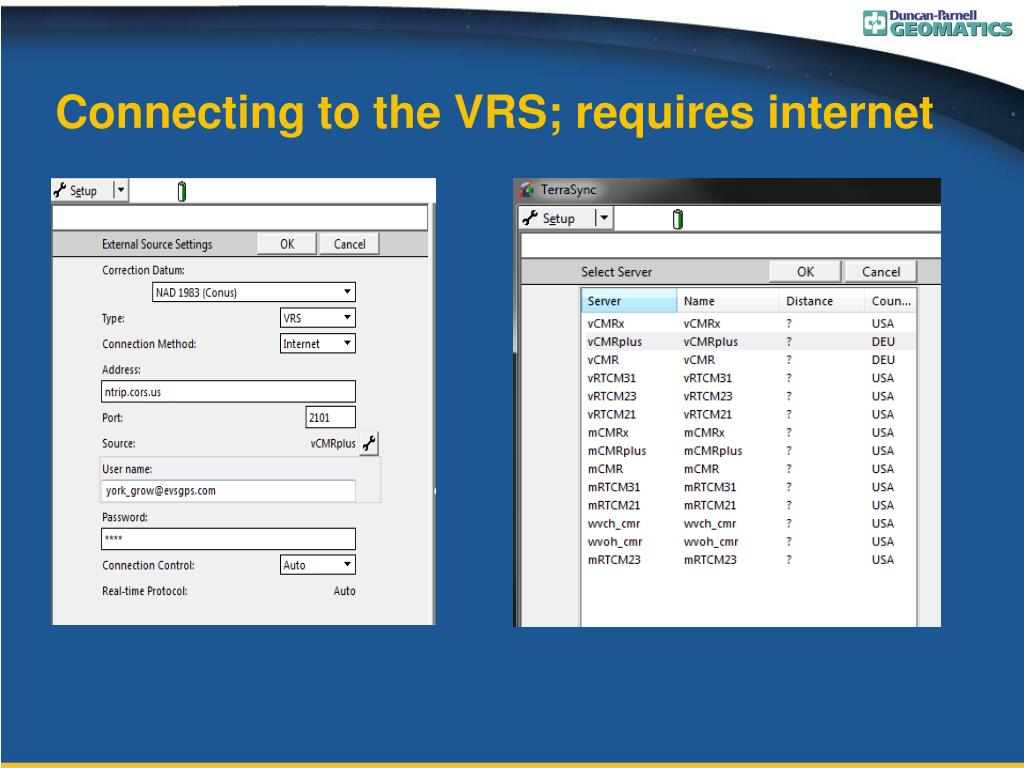

  13. Connecting to the VRS; requires internet

  14. Accuracy - NMEA • Autonomous GNSS 3 ft – 50 ft (1-10 meters) • Differentially Corrected • WAAS enabled 2 ft – 18 ft (submeter to 5 m) Only supports GPS not GLONASS • VRS <1 inch to 3 ft (1cm to submeter) • Post-processed <1 inch to 3 ft (1cm to submeter)

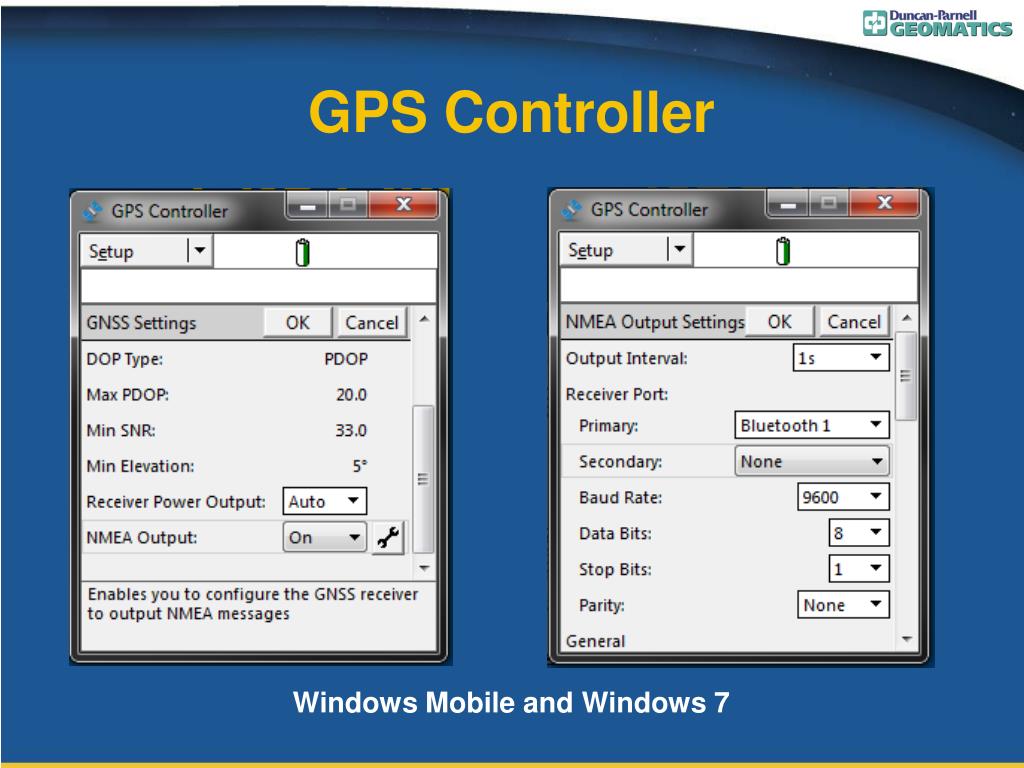

  15. GPS Controller Windows Mobile and Windows 7

  16. GPS Controller Windows Mobile and Windows 7

  17. Conclusion: GPS Controller can be used to output a NMEA format position from a Trimble receiver to use in any software application that uses GPS. • Output Options: • Autonomous GNSS • WAAS corrected GPS • VRS corrected GNSS ** Only works with a receiver that supports multiple ports and a user interface that supports multiple connections.

  18. Post-processed <1 inch to 3 ft (1cm to submeter)

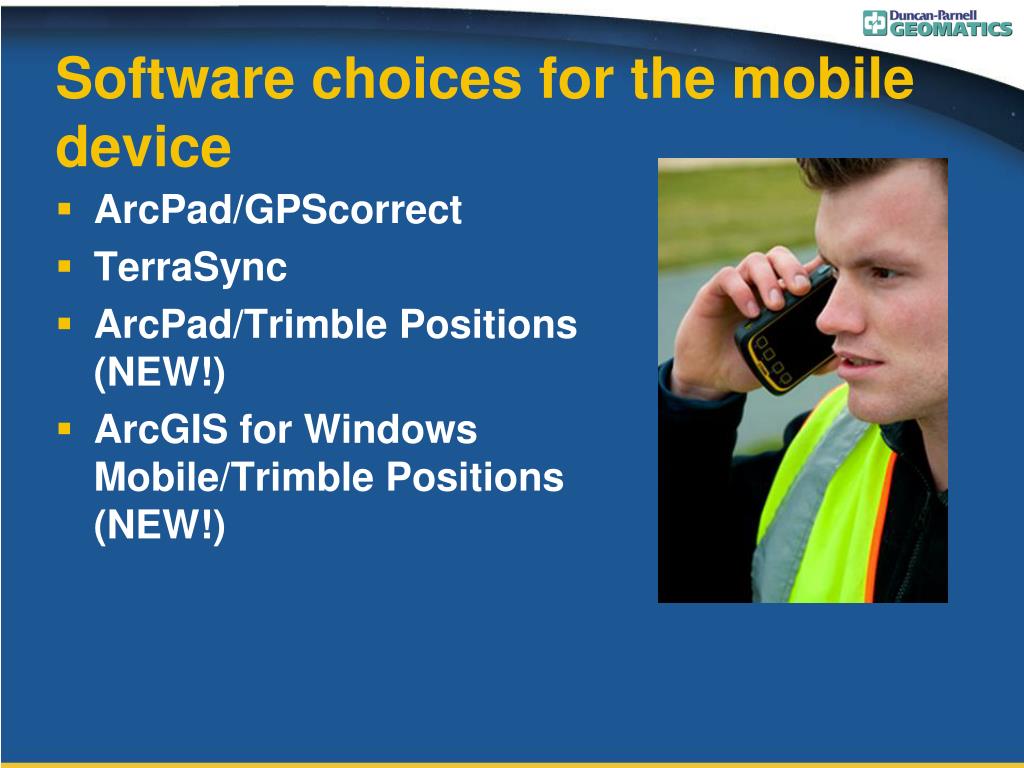

  19. Software choices for the mobile device • ArcPad/GPScorrect • TerraSync • ArcPad/Trimble Positions (NEW!) • ArcGIS for Windows Mobile/Trimble Positions(NEW!)

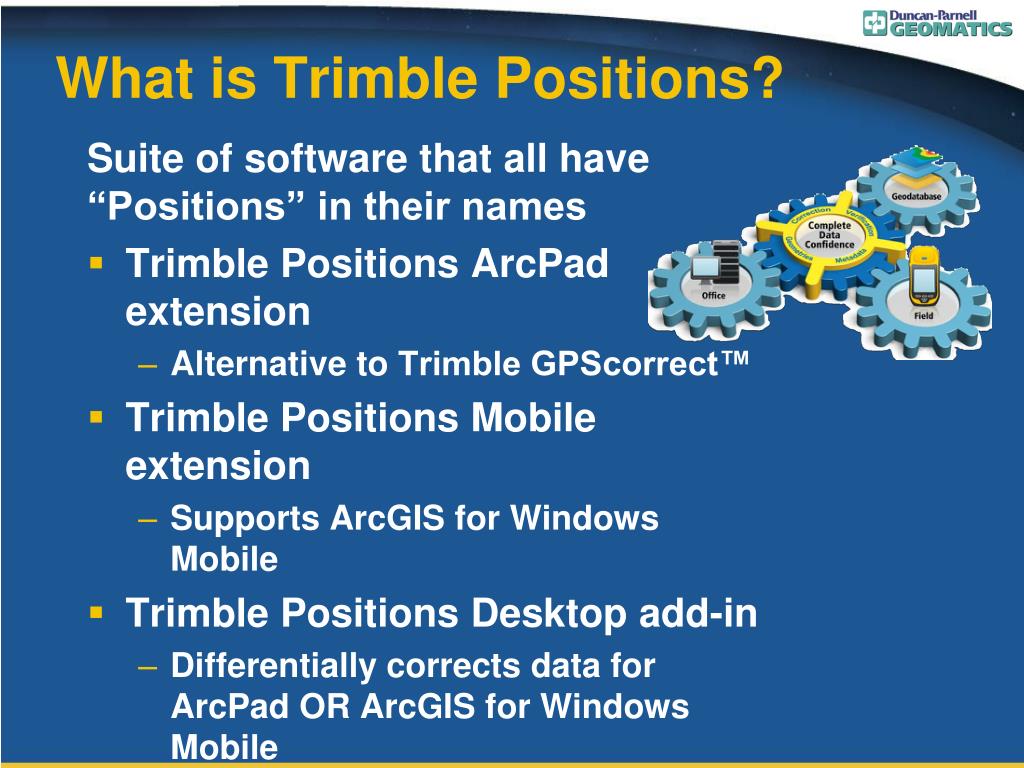

  20. What is Trimble Positions? Suite of software that all have “Positions” in their names • Trimble Positions ArcPad extension • Alternative to Trimble GPScorrect™ • Trimble Positions Mobile extension • Supports ArcGIS for Windows Mobile • Trimble Positions Desktop add-in • Differentially corrects data for ArcPad OR ArcGIS for Windows Mobile

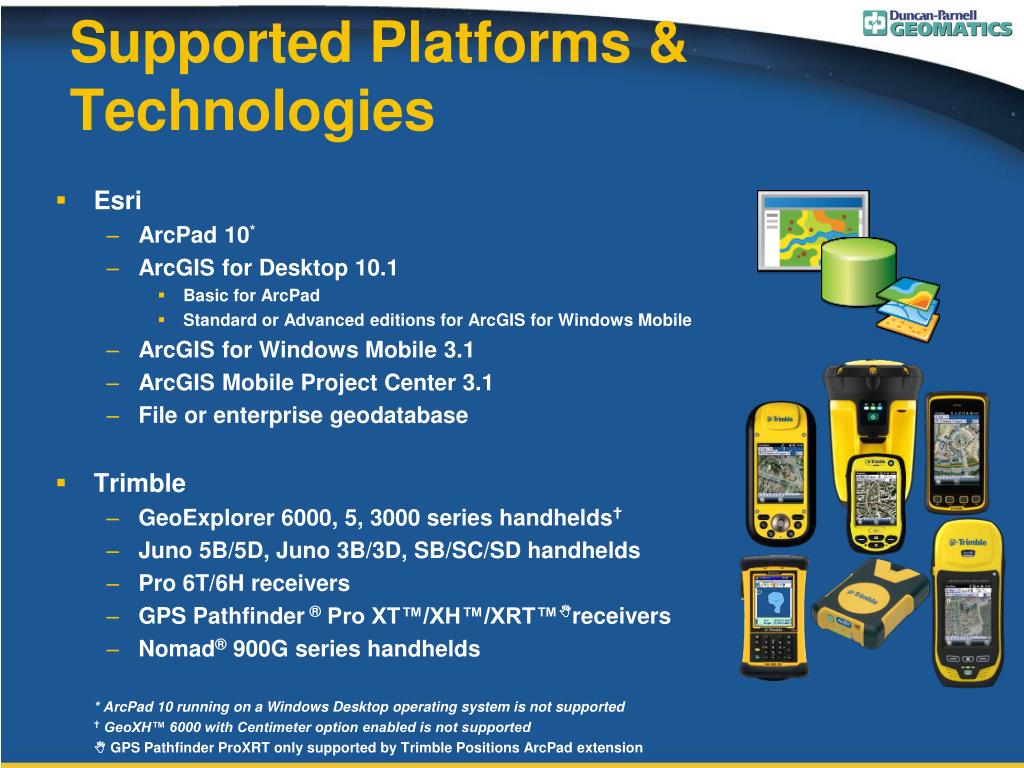

  21. Supported Platforms & Technologies • Esri • ArcPad 10* • ArcGIS for Desktop 10.1 • Basic for ArcPad • Standard or Advanced editions for ArcGIS for Windows Mobile • ArcGIS for Windows Mobile 3.1 • ArcGIS Mobile Project Center 3.1 • File or enterprise geodatabase • Trimble • GeoExplorer 6000, 5, 3000 series handhelds • Juno 5B/5D, Juno 3B/3D, SB/SC/SD handhelds • Pro 6T/6Hreceivers • GPS Pathfinder ® Pro XT™/XH™/XRT™receivers • Nomad® 900G series handhelds * ArcPad10 running on a Windows Desktop operating system is not supported GeoXH™ 6000 with Centimeter option enabled is not supported  GPS Pathfinder ProXRT only supported by Trimble Positions ArcPad extension

  22. DEMO

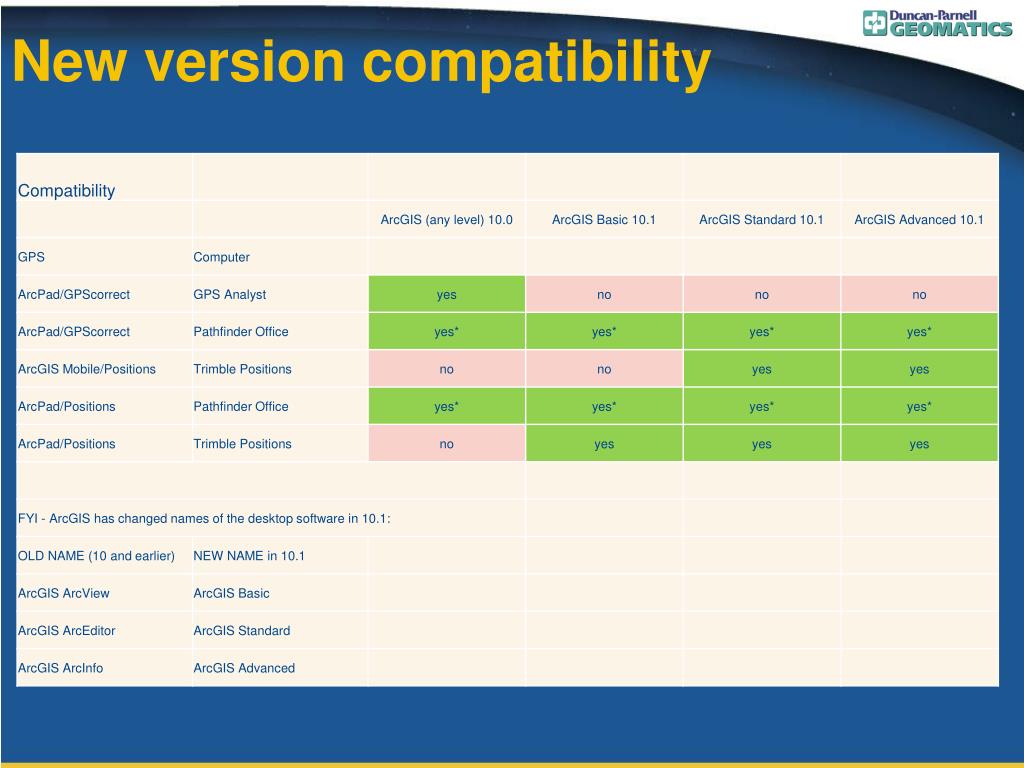

  23. New version compatibility

  24. If you have ArcGIS 10 or 9.X

  25. If you are on 10.1

  26. What if you have… Licensing Options • What if you want to go to ArcGIS 10.1? • We can convert your GPS Analyst license to: • Trimble Positions Desktop OR • Pathfinder Office • We can convert your GPScorrect to Positions for ArcPad

  27. Questions?york.grow@duncan-parnell.com304-993-8945
