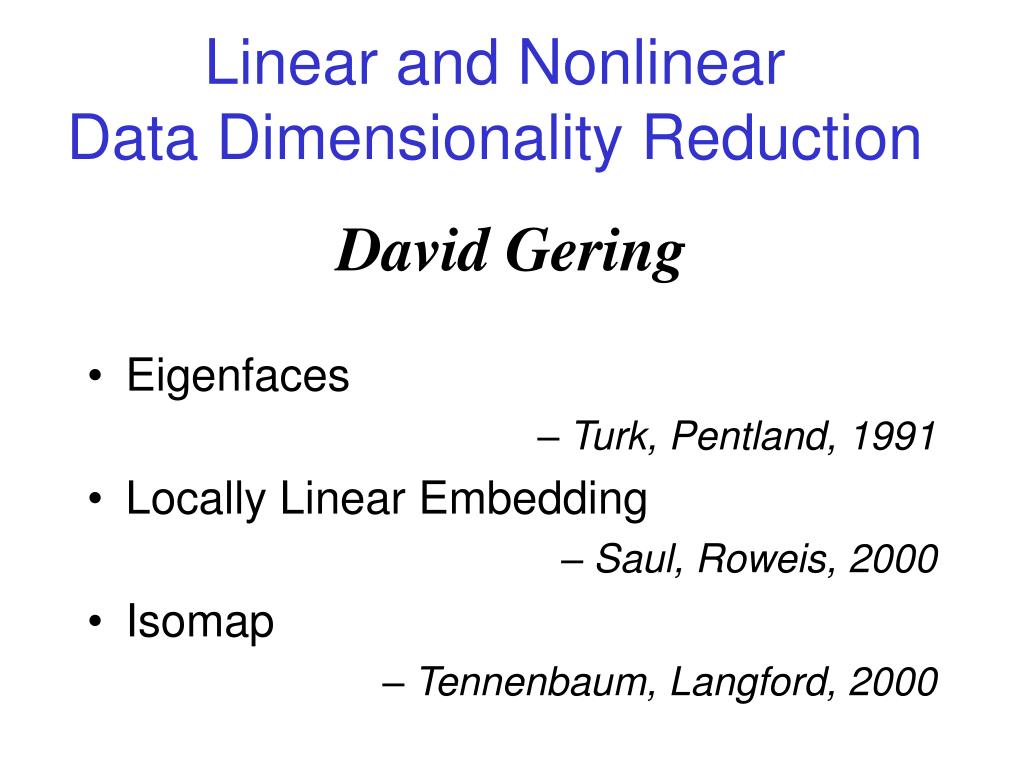

  1. Linear and NonlinearData Dimensionality Reduction David Gering • Eigenfaces • Turk, Pentland, 1991 • Locally Linear Embedding • Saul, Roweis, 2000 • Isomap • Tennenbaum, Langford, 2000

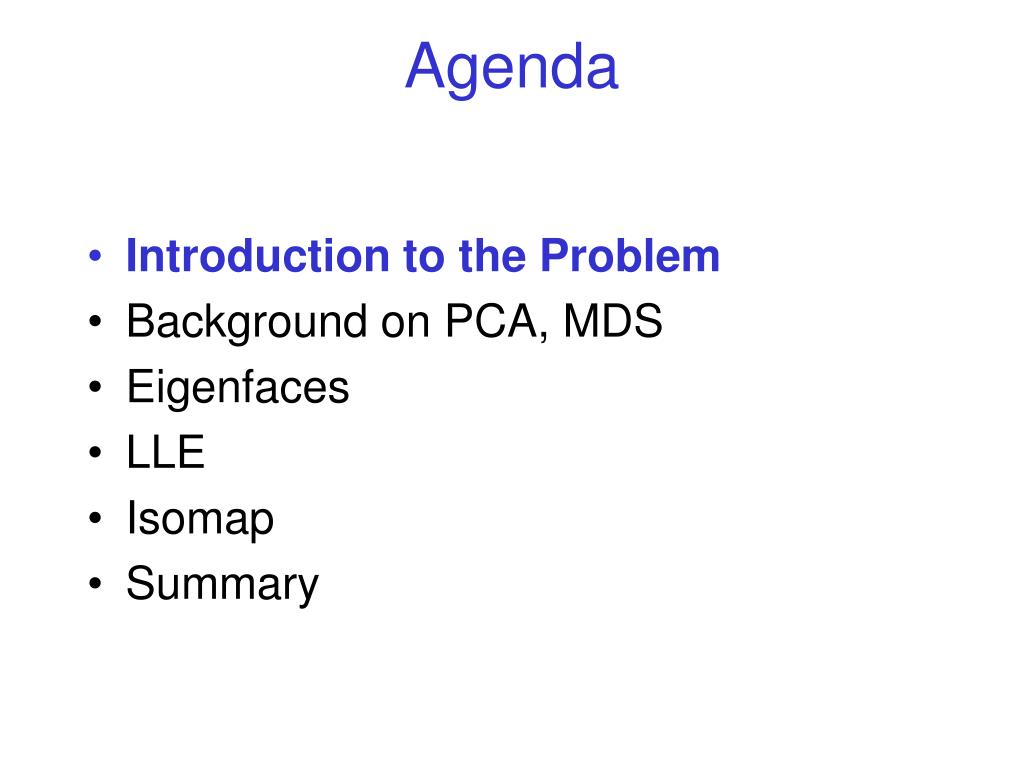

  2. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

  3. Data Dimensionality Reduction for Images D >> d

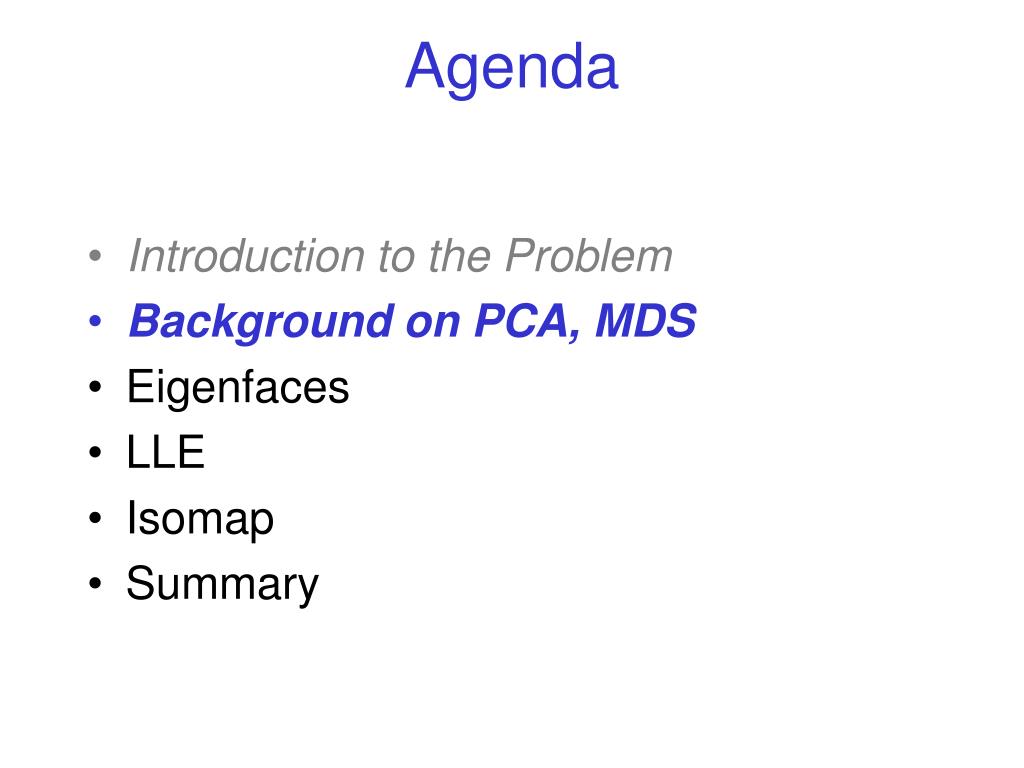

  4. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

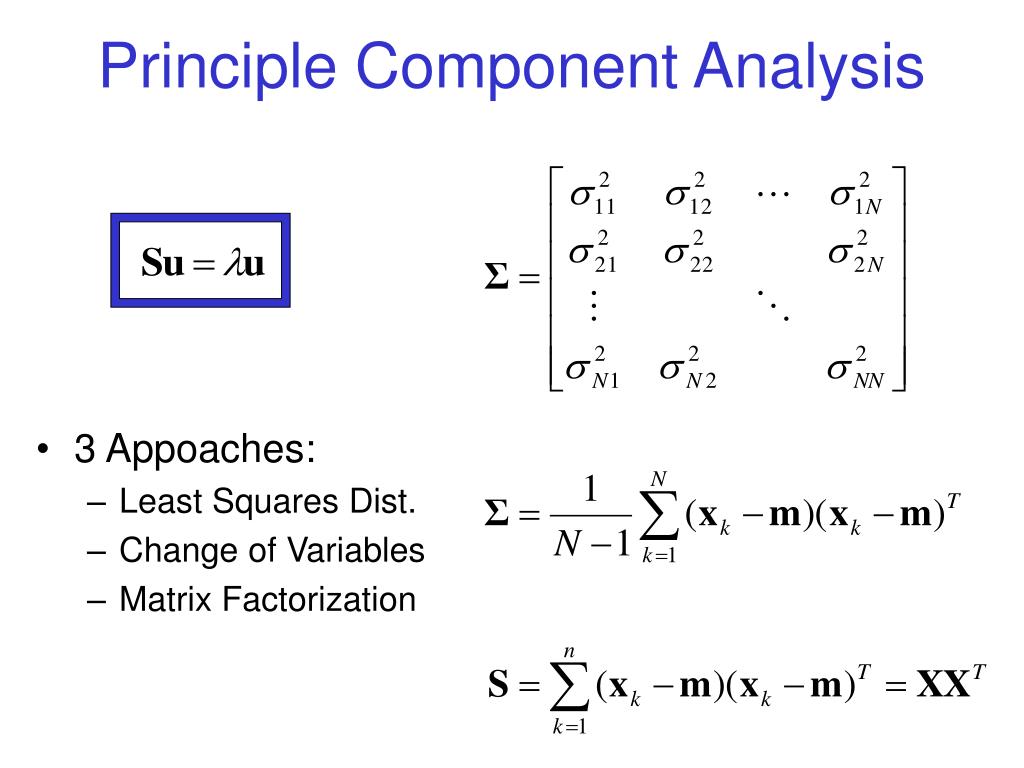

  5. Principle Component Analysis • 3 Appoaches: • Least Squares Dist. • Change of Variables • Matrix Factorization

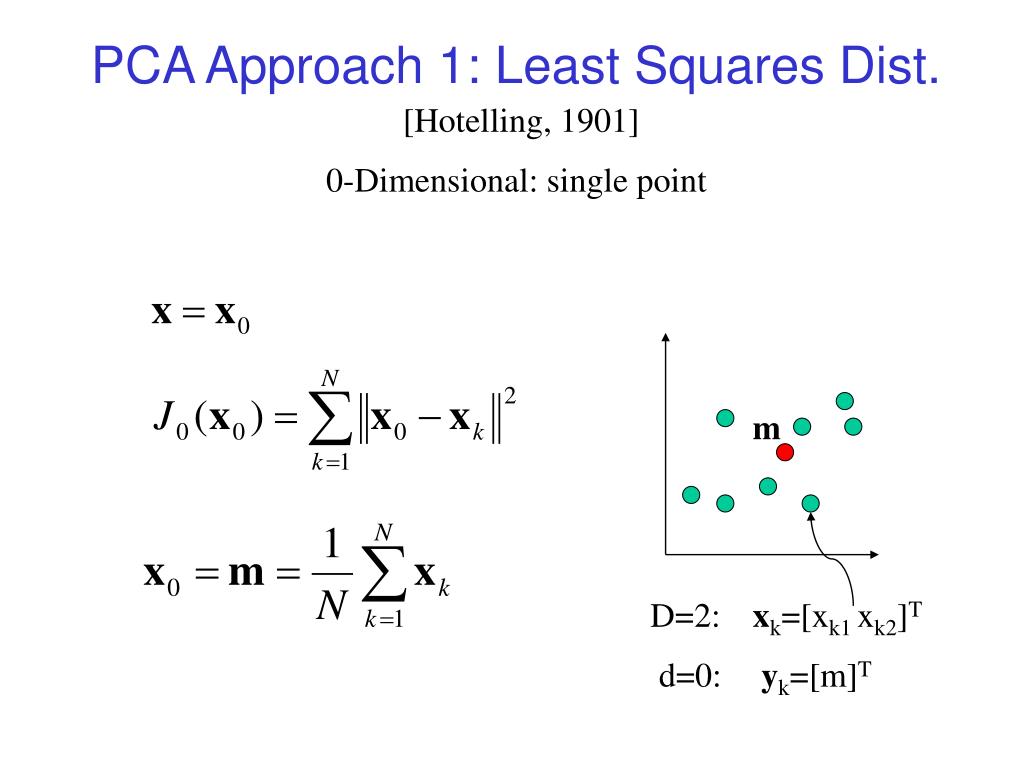

  6. m d=0: yk=[m]T PCA Approach 1: Least Squares Dist. [Hotelling, 1901] 0-Dimensional: single point D=2: xk=[xk1 xk2]T

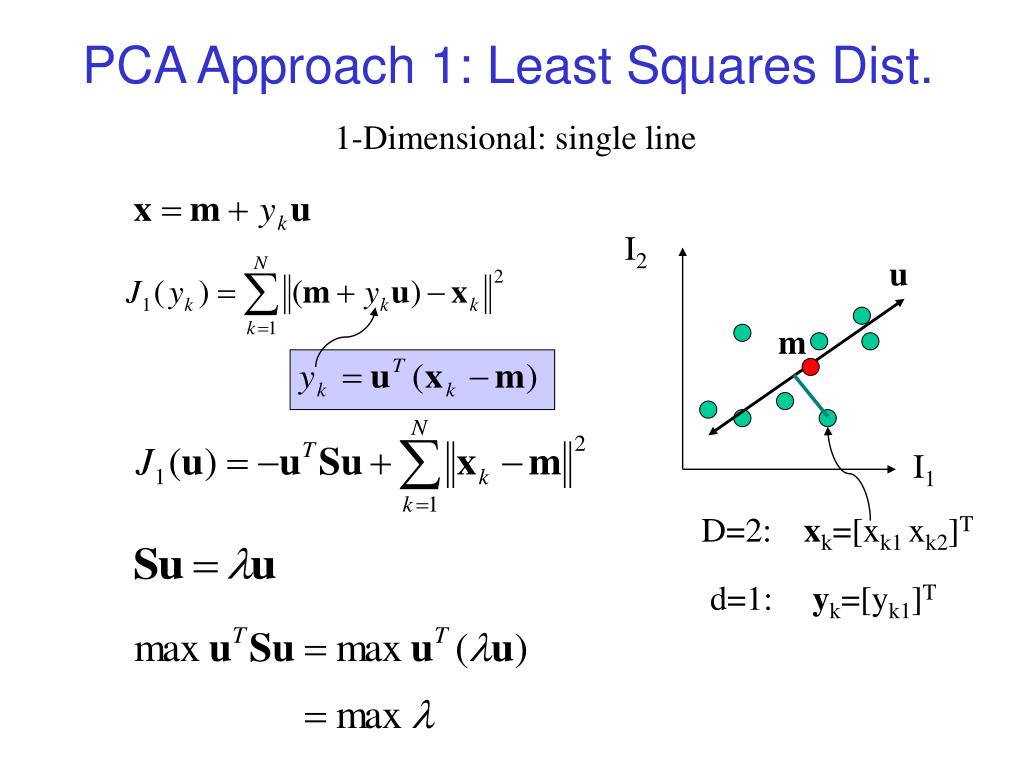

  7. PCA Approach 1: Least Squares Dist. 1-Dimensional: single line I2 u m I1 D=2: xk=[xk1 xk2]T d=1: yk=[yk1]T

  8. PCA Approach 1: Least Squares Dist. d-Dimensional: d lines I2 u2 u1 m I1 Ii = standard basis (axes) xij = standard components ui = principle axes yij = principle components D=2: xk=[xk1 xk2]T d=2: yk=[yk1 yk2]T

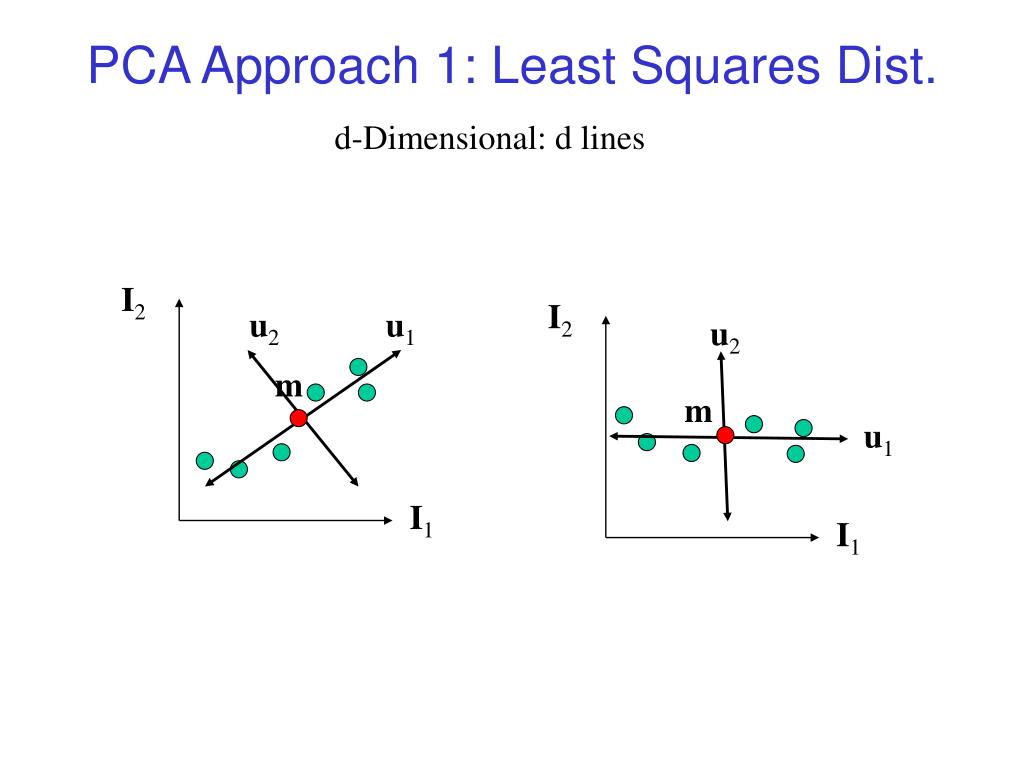

  9. PCA Approach 1: Least Squares Dist. d-Dimensional: d lines I2 I2 u2 u1 u2 m m u1 I1 I1

  10. PCA Approach 2: Change of Variables [Pearson 1933] kTH principle component = linear combination ukTx that maximizes Var(ukTx) subject to uTu=1 & Cov(ukx, ujx) = 0 for k < j

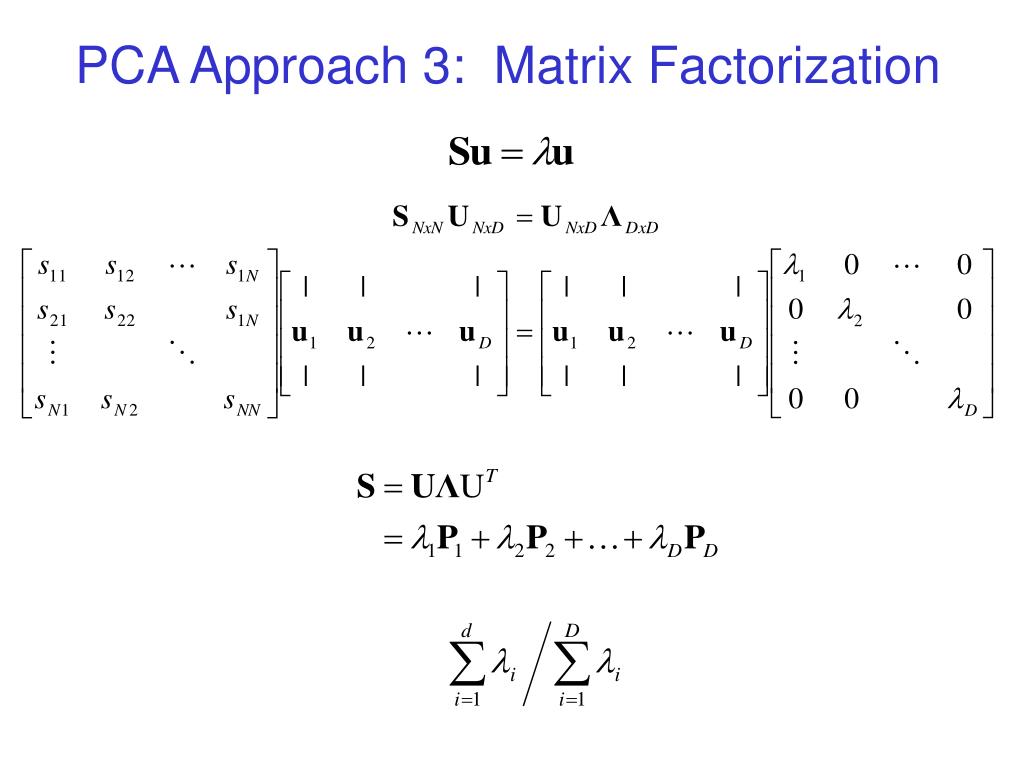

  11. PCA Approach 3: Matrix Factorization

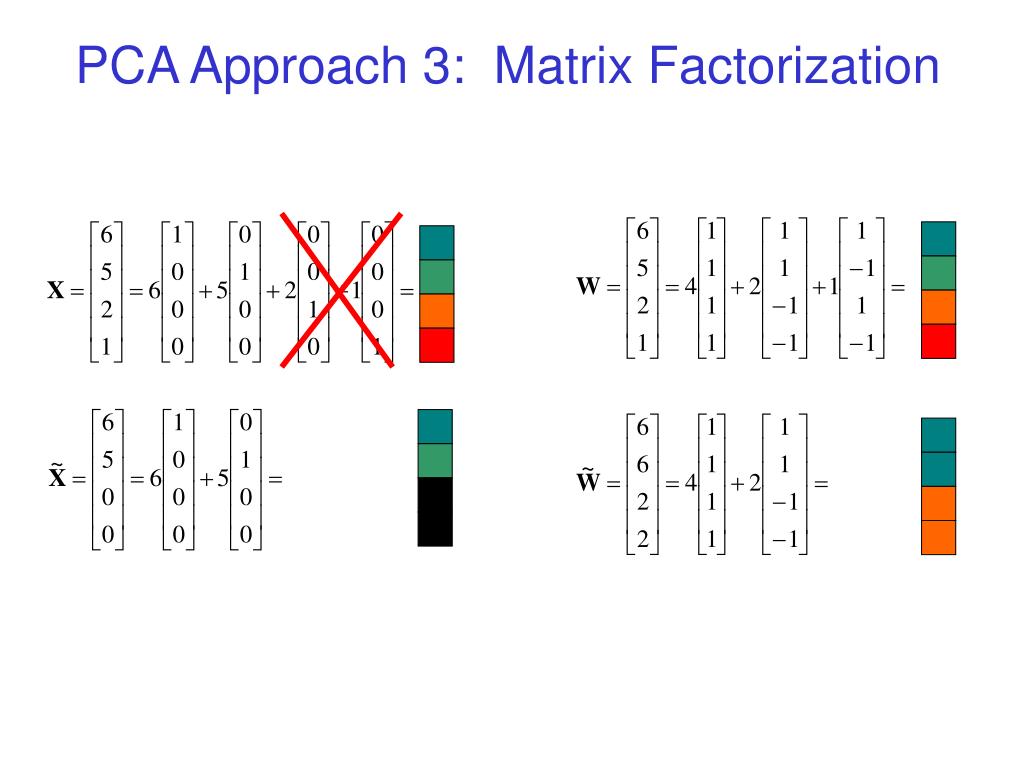

  12. PCA Approach 3: Matrix Factorization

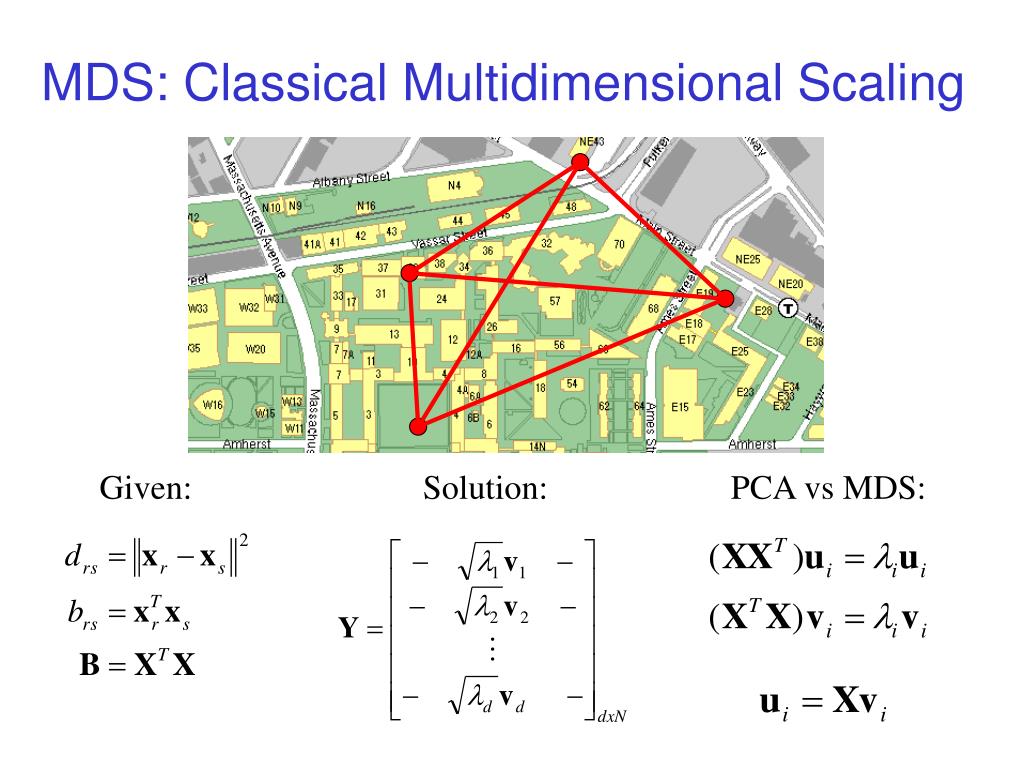

  13. PCA vs MDS: Solution: Given: MDS: Classical Multidimensional Scaling

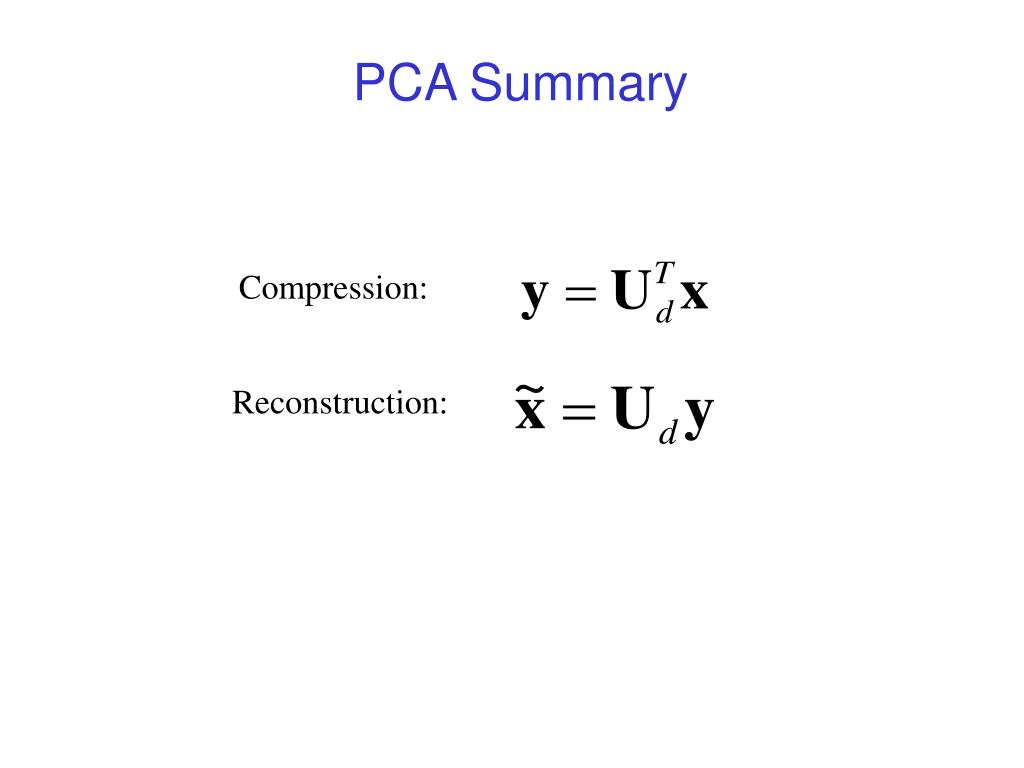

  14. Reconstruction: PCA Summary Compression:

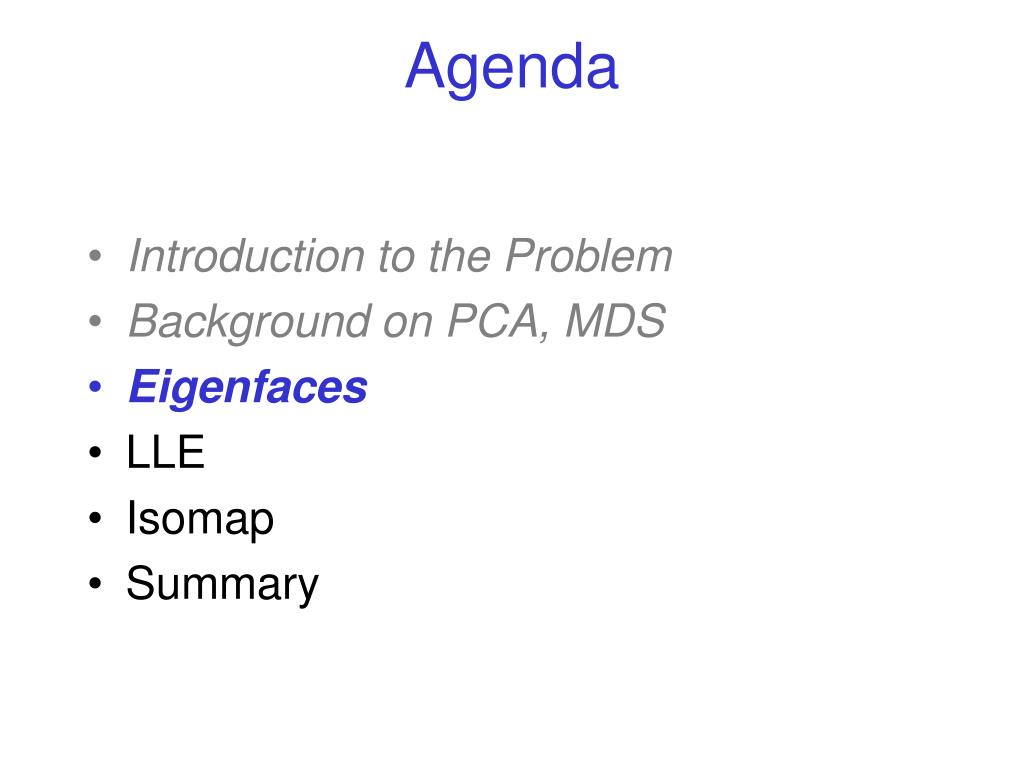

  15. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

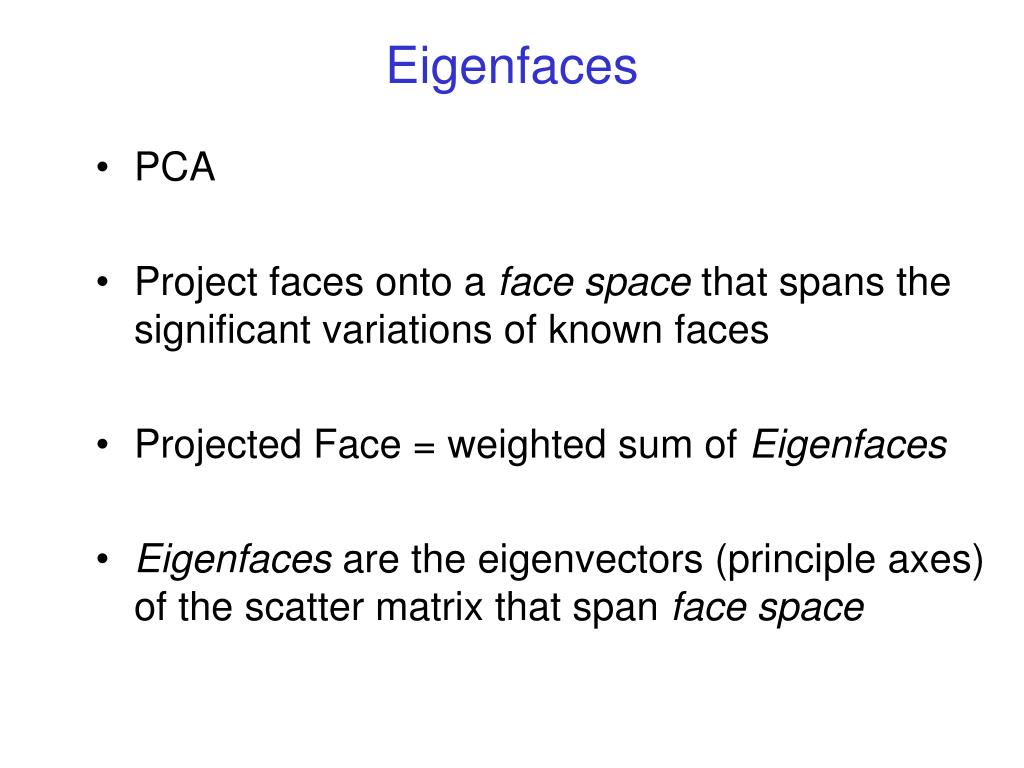

  16. Eigenfaces • PCA • Project faces onto a face space that spans the significant variations of known faces • Projected Face = weighted sum of Eigenfaces • Eigenfaces are the eigenvectors (principle axes) of the scatter matrix that span face space

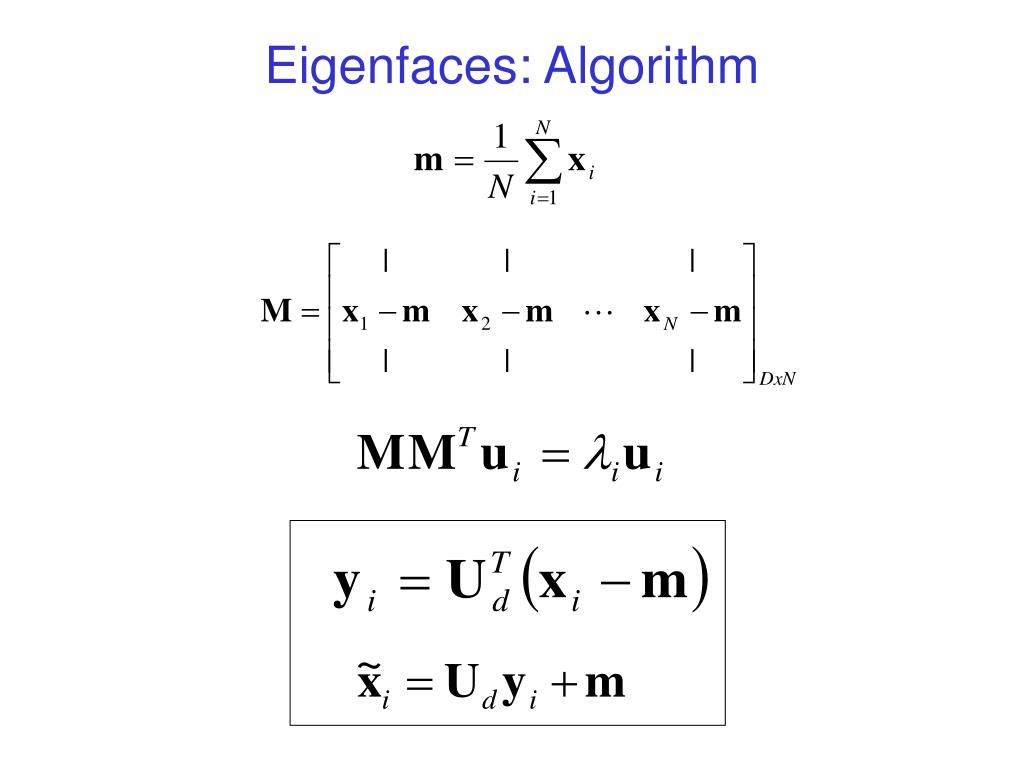

  17. Eigenfaces: Algorithm

  18. Variance Dimensionality Left to right: original, reconstruction from 84, 40, 20, 3, 2, and 1 dimensions. Eigenfaces: Experimental Results

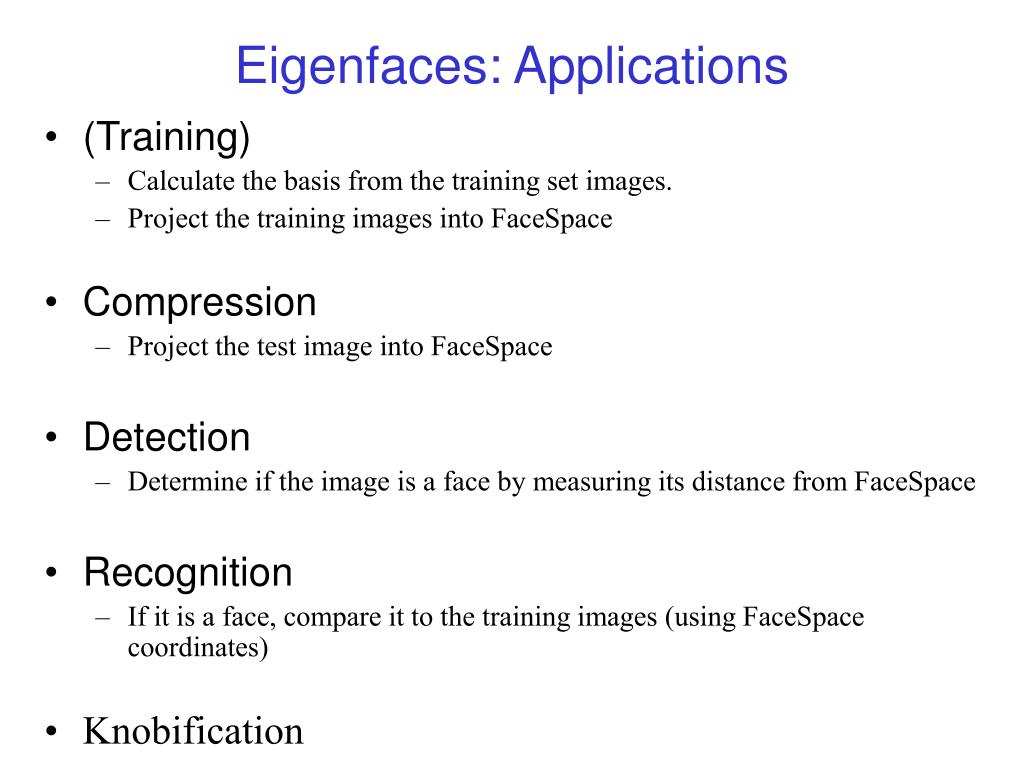

  19. Eigenfaces: Applications • (Training) • Calculate the basis from the training set images. • Project the training images into FaceSpace • Compression • Project the test image into FaceSpace • Detection • Determine if the image is a face by measuring its distance from FaceSpace • Recognition • If it is a face, compare it to the training images (using FaceSpace coordinates) • Knobification

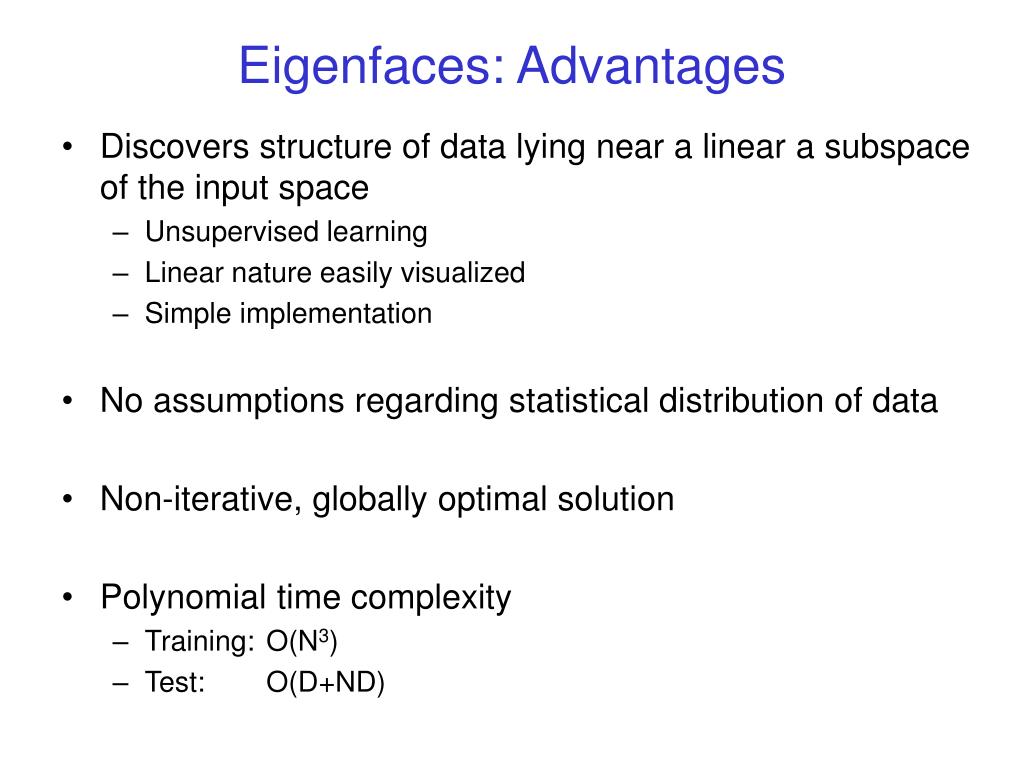

  20. Eigenfaces: Advantages • Discovers structure of data lying near a linear a subspace of the input space • Unsupervised learning • Linear nature easily visualized • Simple implementation • No assumptions regarding statistical distribution of data • Non-iterative, globally optimal solution • Polynomial time complexity • Training: O(N3) • Test: O(D+ND)

  21. Eigenfaces: Disadvantages • Not capable of discovering nonlinear degrees of freedom • Optimal only when xi form a hyperellipsoid cloud • Multi-dimensional Gaussian distribution • Consequence of least-squares derivation • Unable to answer how well new data are fit probabilistically • Registration and scaling issues • Compression >> Detection >> Recognition • Eigenfaces are not logical face components

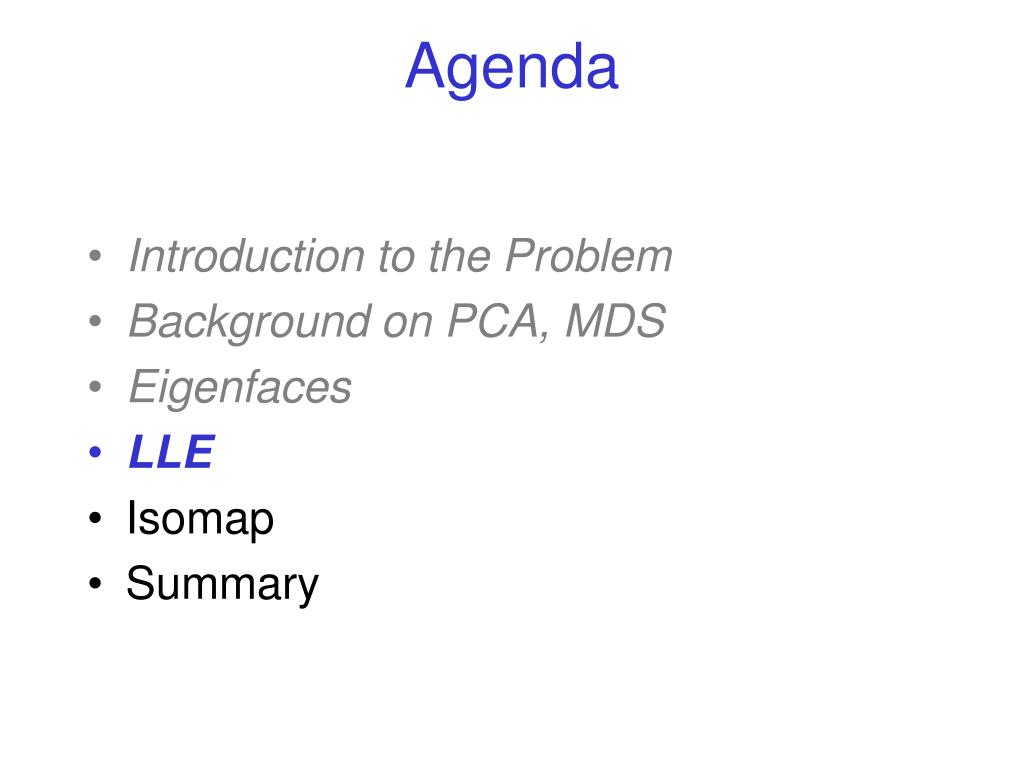

  22. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

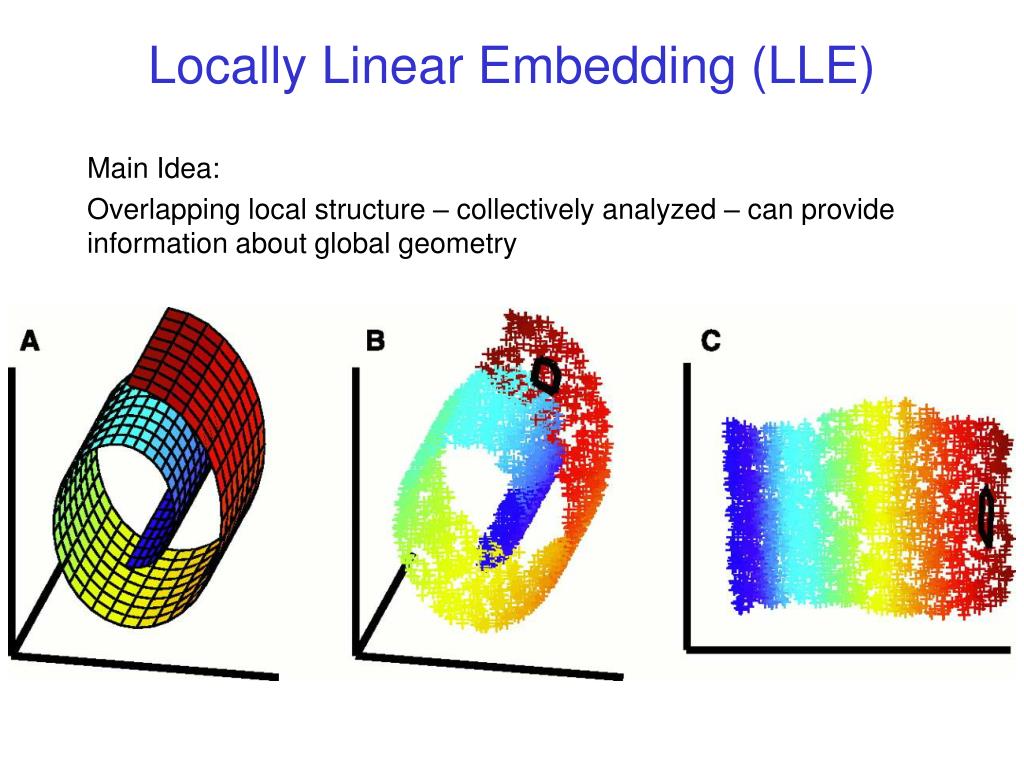

  23. Locally Linear Embedding (LLE) Main Idea: Overlapping local structure – collectively analyzed – can provide information about global geometry

  24. LLE: Algorithm

  25. LLE: Algorithm

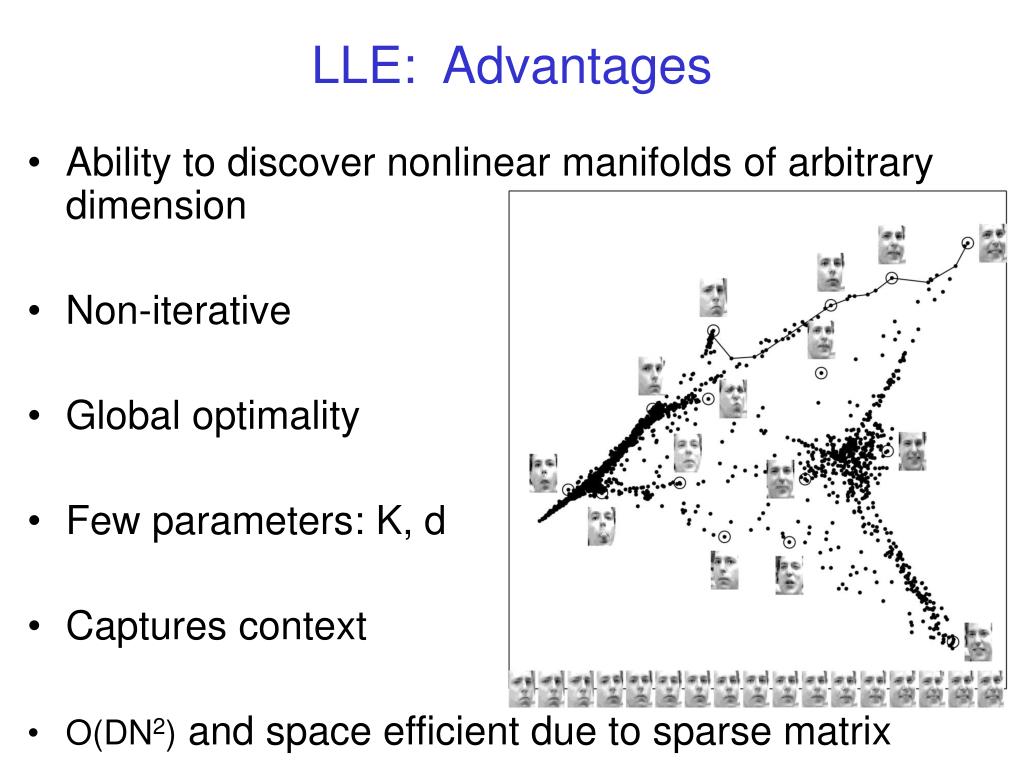

  26. LLE: Advantages • Ability to discover nonlinear manifolds of arbitrary dimension • Non-iterative • Global optimality • Few parameters: K, d • Captures context • O(DN2) and space efficient due to sparse matrix

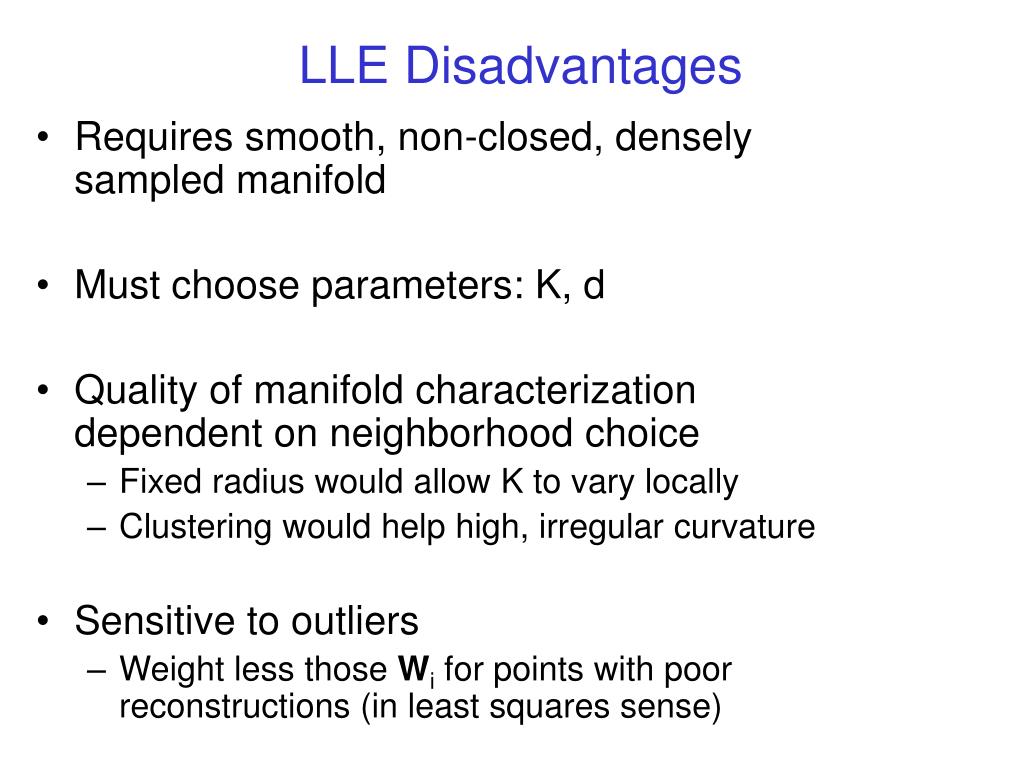

  27. LLE Disadvantages • Requires smooth, non-closed, densely sampled manifold • Must choose parameters: K, d • Quality of manifold characterization dependent on neighborhood choice • Fixed radius would allow K to vary locally • Clustering would help high, irregular curvature • Sensitive to outliers • Weight less those Wi for points with poor reconstructions (in least squares sense)

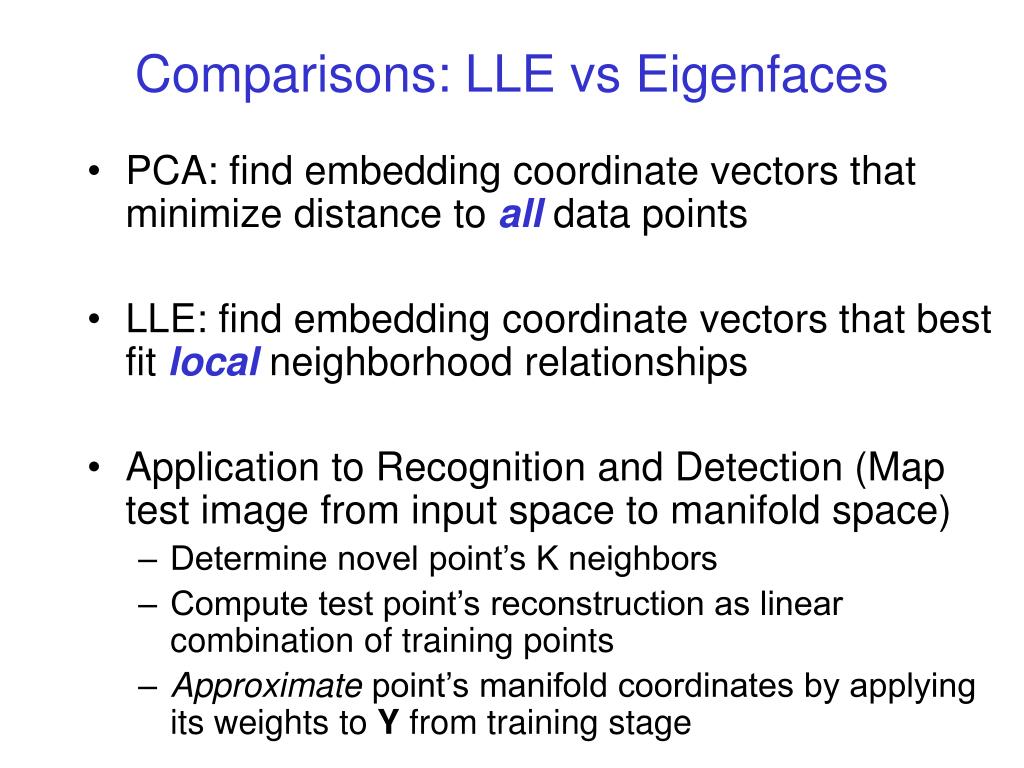

  28. Comparisons: LLE vs Eigenfaces • PCA: find embedding coordinate vectors that minimize distance to all data points • LLE: find embedding coordinate vectors that best fit local neighborhood relationships • Application to Recognition and Detection (Map test image from input space to manifold space) • Determine novel point’s K neighbors • Compute test point’s reconstruction as linear combination of training points • Approximate point’s manifold coordinates by applying its weights to Y from training stage

  29. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

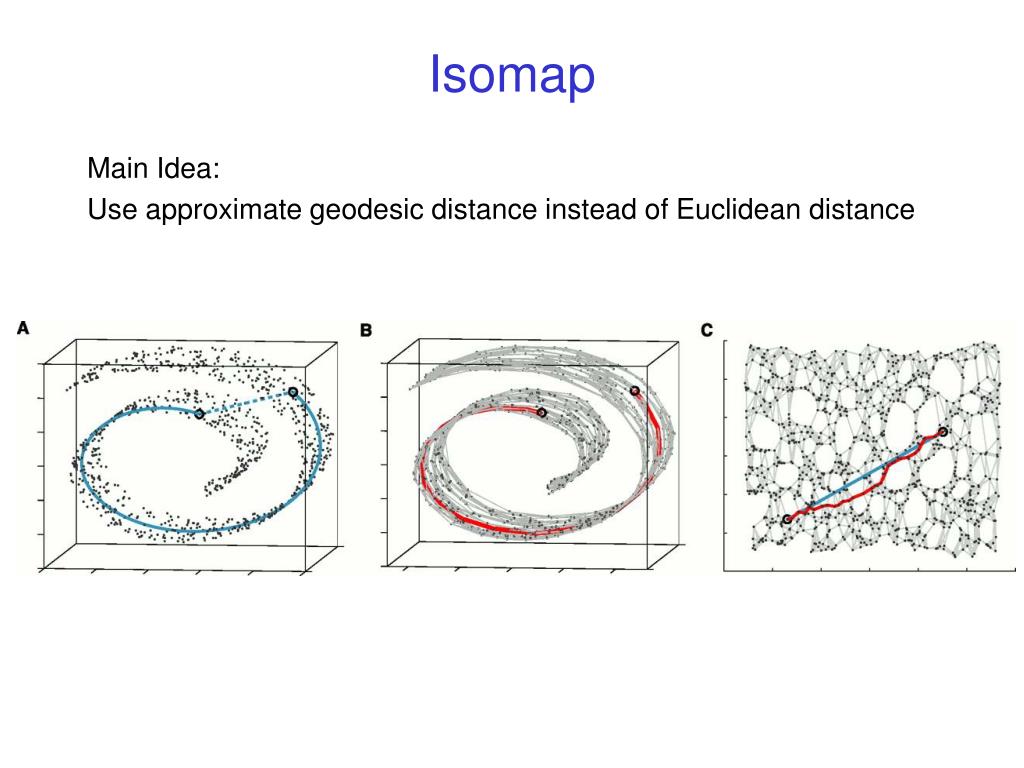

  30. Isomap Main Idea: Use approximate geodesic distance instead of Euclidean distance

  31. Isomap: Algorithm

  32. Isomap: Algorithm

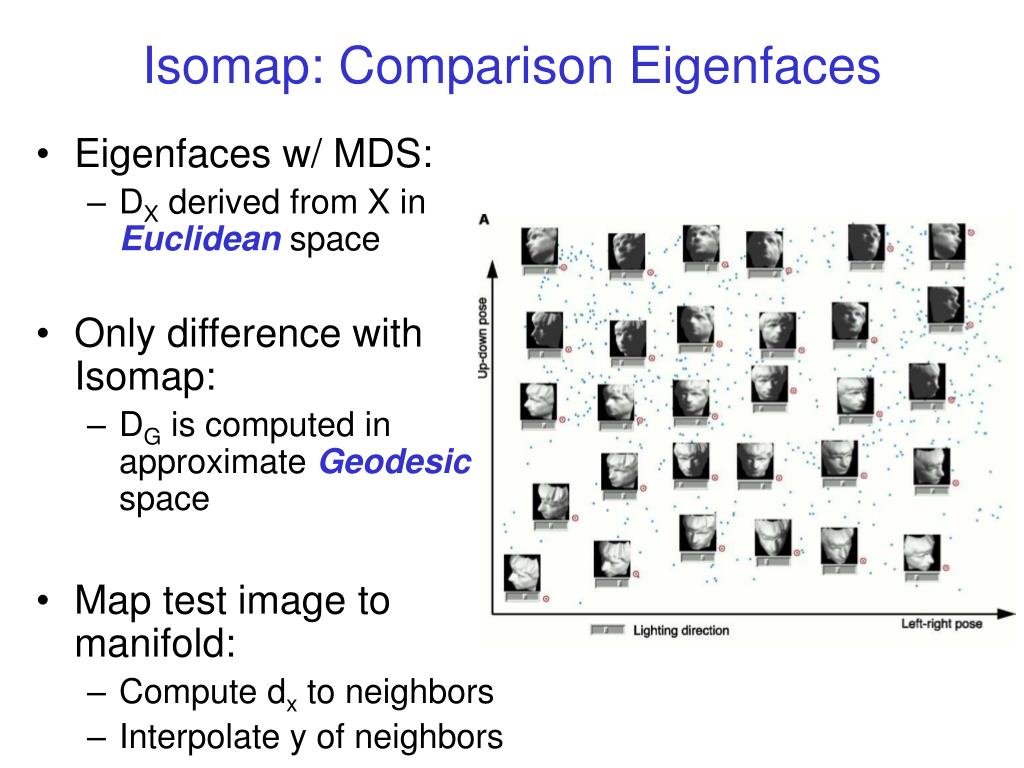

  33. Isomap: Comparison Eigenfaces • Eigenfaces w/ MDS: • DX derived from X in Euclidean space • Only difference with Isomap: • DG is computed in approximate Geodesic space • Map test image to manifold: • Compute dx to neighbors • Interpolate y of neighbors

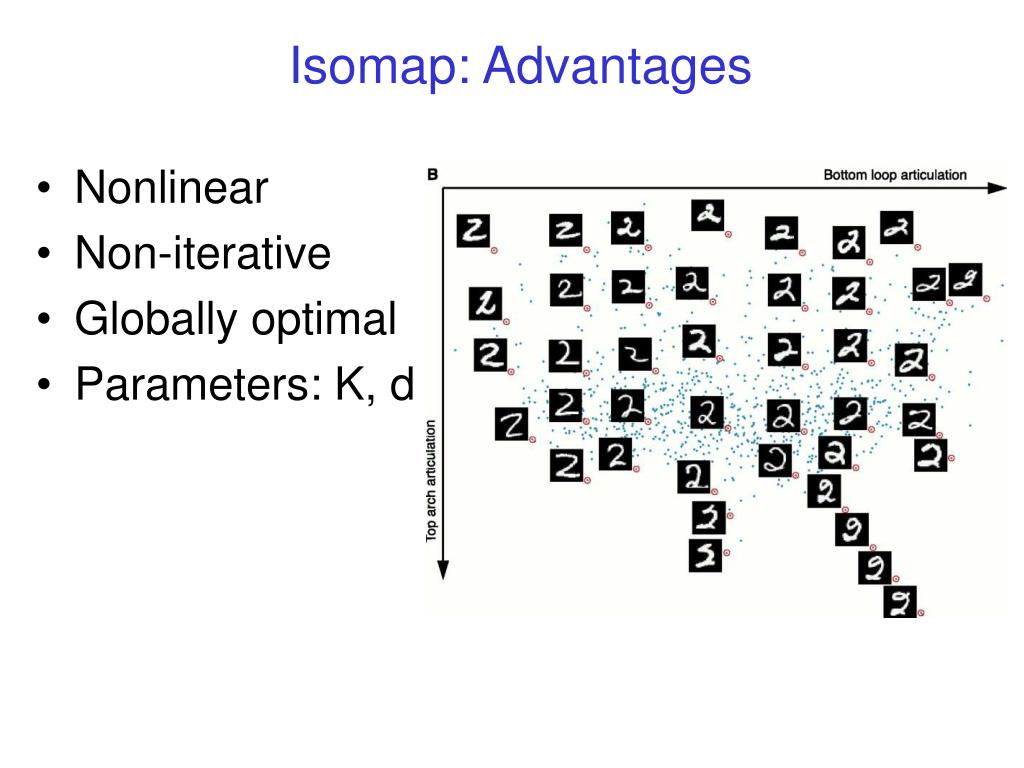

  34. Isomap: Advantages • Nonlinear • Non-iterative • Globally optimal • Parameters: K, d

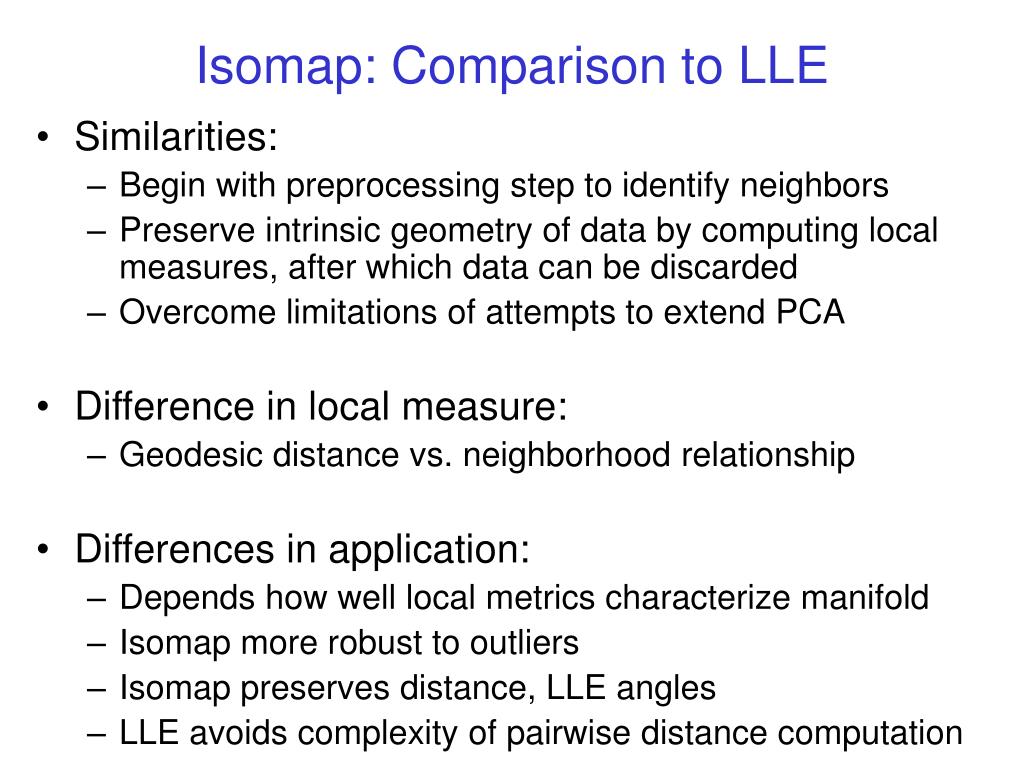

  35. Isomap: Comparison to LLE • Similarities: • Begin with preprocessing step to identify neighbors • Preserve intrinsic geometry of data by computing local measures, after which data can be discarded • Overcome limitations of attempts to extend PCA • Difference in local measure: • Geodesic distance vs. neighborhood relationship • Differences in application: • Depends how well local metrics characterize manifold • Isomap more robust to outliers • Isomap preserves distance, LLE angles • LLE avoids complexity of pairwise distance computation

  36. Choosing the Algorithm for the Application • Smooth manifolds manifest themselves as slightly noticeable changes between an ordered set of examples • Video sequence • Data that could conceptually be organized as an aesthetically pleasing video sequence • Presence of nonlinear structure not known a priori • Run both PCA and manifold learning to inspect results for discrepency • Preservation of gedesic distances

  37. Agenda • Introduction to the Problem • Background on PCA, MDS • Eigenfaces • LLE • Isomap • Summary

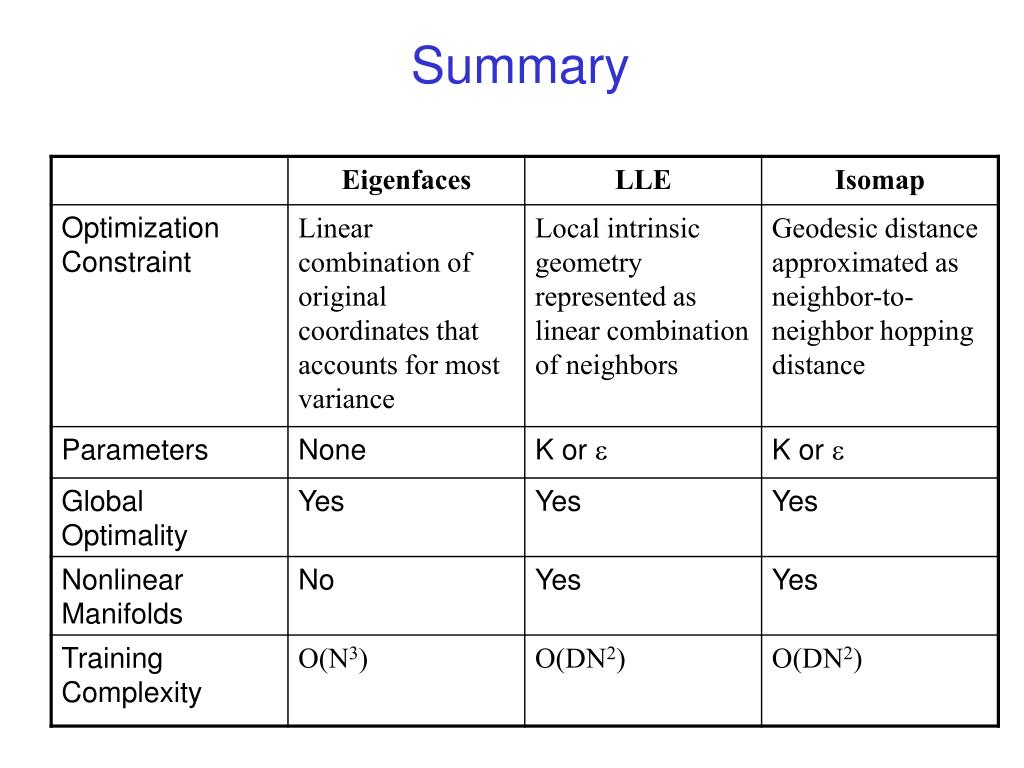

  38. Summary

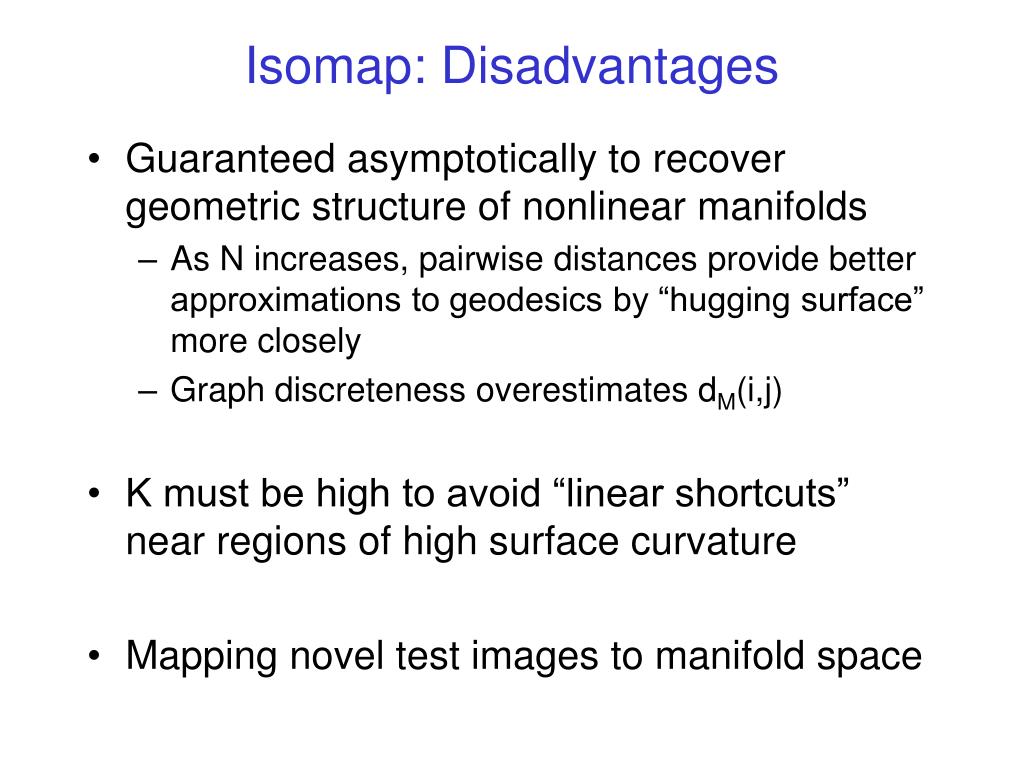

  39. Isomap: Disadvantages • Guaranteed asymptotically to recover geometric structure of nonlinear manifolds • As N increases, pairwise distances provide better approximations to geodesics by “hugging surface” more closely • Graph discreteness overestimates dM(i,j) • K must be high to avoid “linear shortcuts” near regions of high surface curvature • Mapping novel test images to manifold space
