  1. IEPM-BW Warren Matthews (SLAC) Presented at the UCL Monitoring Infrastructure Workshop, London, May 15-16, 2003.

  2. Overview / Goals • IEPM-BW monitoring and results • Other measurements • Publishing • Troubleshooting Tools • Further work

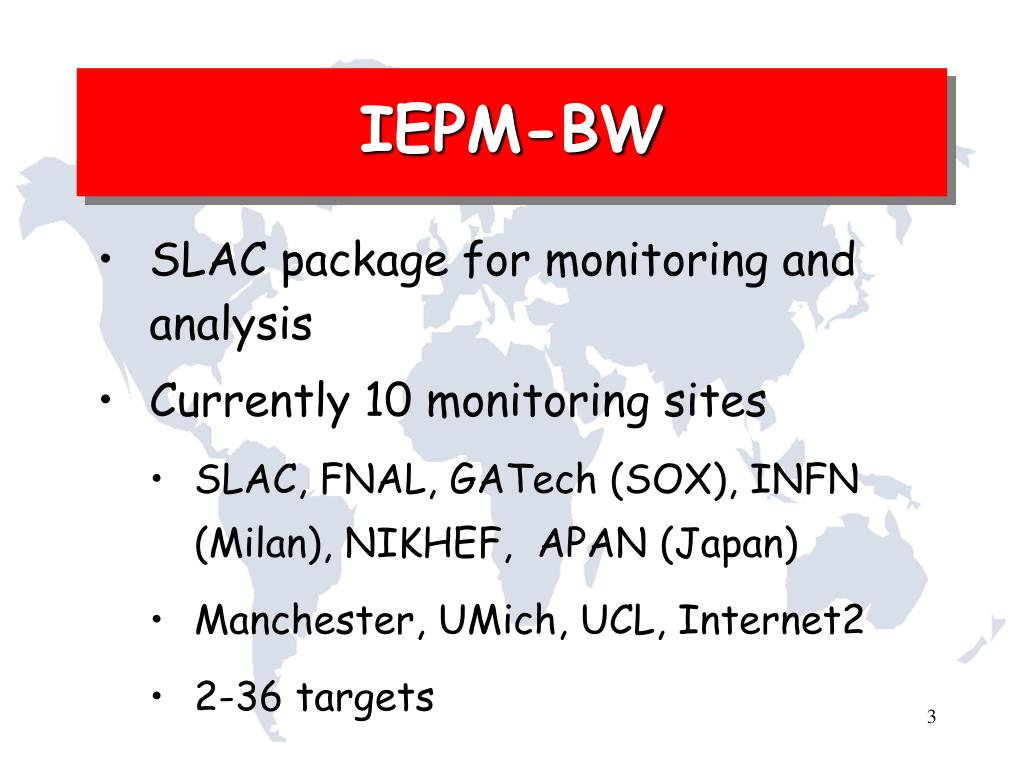

  3. IEPM-BW • SLAC package for monitoring and analysis • Currently 10 monitoring sites • SLAC, FNAL, GATech (SOX), INFN (Milan), NIKHEF, APAN (Japan) • Manchester, UMich, UCL, Internet2 • 2-36 targets

  4. KEK LANL EDG CERN NIKHEF TRIUMF FNAL IN2P3 NERSC ANL PPDG/GriPhyN CHI CERN ORNL RAL SNV ESnet JLAB NY UManc SLAC UCL SLAC JAnet DL NNW BNL APAN RIKEN Stanford INFN-Roma APAN Geant INFN-Milan CalREN Abilene SEA CESnet NY ATL SNV HSTN SOX CLV IPLS Monitoring Site CALTECH SDSC UTDallas I2 UFL UMich Rice NCSA

  5. Measurement Engine • Ping, Traceroute • Iperf, Bbftp, Bbcp (mem and disk) • Abwe • Gridftp, UDPmon • Web100 • Passive (netflow)

  6. Other Projects (U.S.) • PingER (SLAC, FNAL) • eJDS (SLAC, ICTP) • AMP (NLANR) • NIMI (ICIR, PSC) • MAGGIE (ICIR, PSC, SLAC, LBL, ANL) • NASA, SCNM (LBL) • Surveyor (Internet2) • E2e PI and PIPES (Internet2) • Also SLAC has a RIPE-TT box

  7. Publishing • Web Service • SOAP::Lite perl module • Python • Java • NMWG • OGSA

  8. Publishing • NMWG Properties document • Path.delay.roundtrip (Demo) • Hop.bandwidth.capacity (tracespeed) • Guthrie (demo) • Almost 1000 nodes in database • PingER Networks • Arena

  9. Advisor Screenshot taken from the talk by Jim Ferguson at the e2e workshop, Miami Feb 2003.

  10. MonaLisa • Front-end visualization • Vital component for development of the LHC Computing Model • JINI/JAVA and WSDL/SOAP • demo

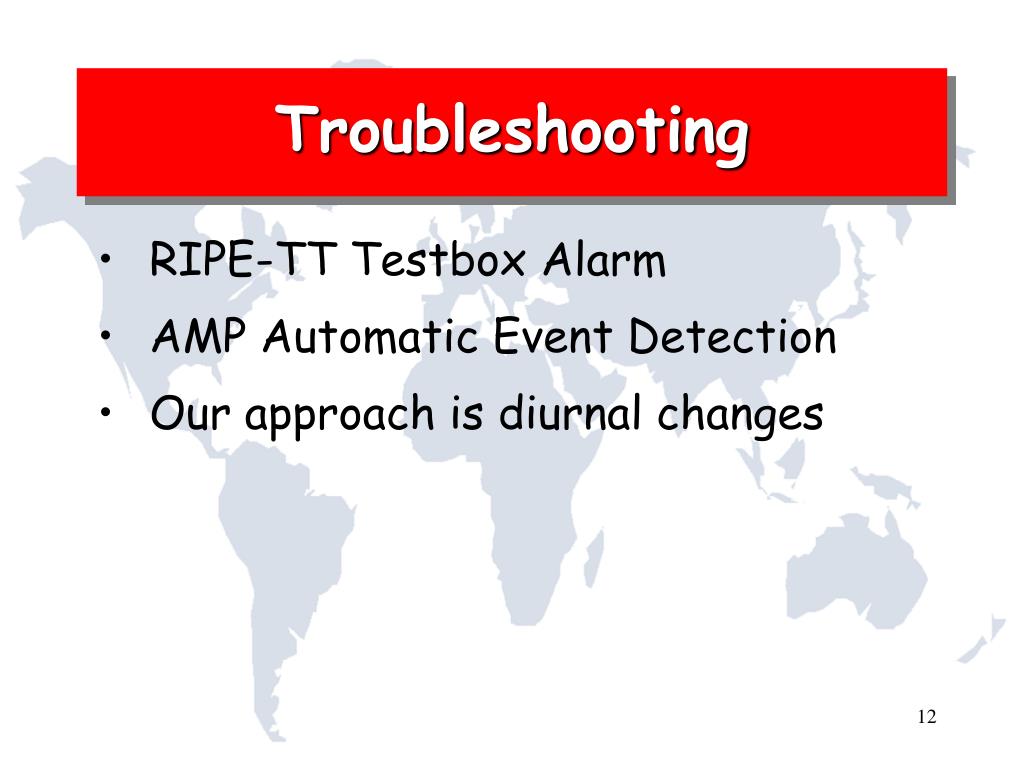

  11. Troubleshooting • RIPE-TT Testbox Alarm • AMP Automatic Event Detection • Our approach is diurnal changes

  12. Diurnal Changes (1/4) • Either Performance varies during the day • Or it doesn’t • No variation is the special case of variation=0

  13. Diurnal Changes (2/4) • Either performance (within the bin) is variable • Or it isn’t • No variation is the special case of variation=0

  14. Diurnal Changes (3/4) • Parameterize performance in terms of hour and variability within that hourly bin • Measurements can be classified in terms of how they differ from historical value • Recent problems are flagged due to difference from historical value • Compare to measurement in previous bin to reduce false-positives

  15. Diurnal Changes (4/4) • Calculate Median and standard deviation of last five measurement in bin • e.g. Monday 7pm-8pm • “Concerned” if latest measurement is more than 1 s.d. from median • “Alarmed” if latest measurement is more than 2 s.d. from median

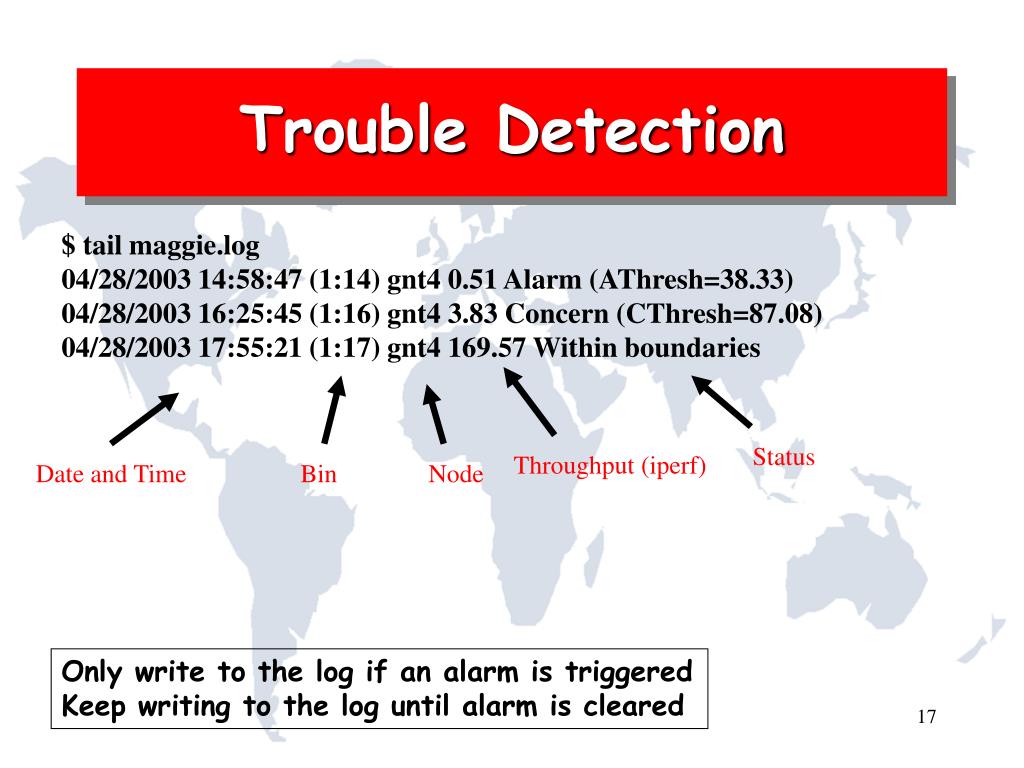

  16. Trouble Detection $ tail maggie.log 04/28/2003 14:58:47 (1:14) gnt4 0.51 Alarm (AThresh=38.33) 04/28/2003 16:25:45 (1:16) gnt4 3.83 Concern (CThresh=87.08) 04/28/2003 17:55:21 (1:17) gnt4 169.57 Within boundaries Status Throughput (iperf) Date and Time Bin Node Only write to the log if an alarm is triggered Keep writing to the log until alarm is cleared

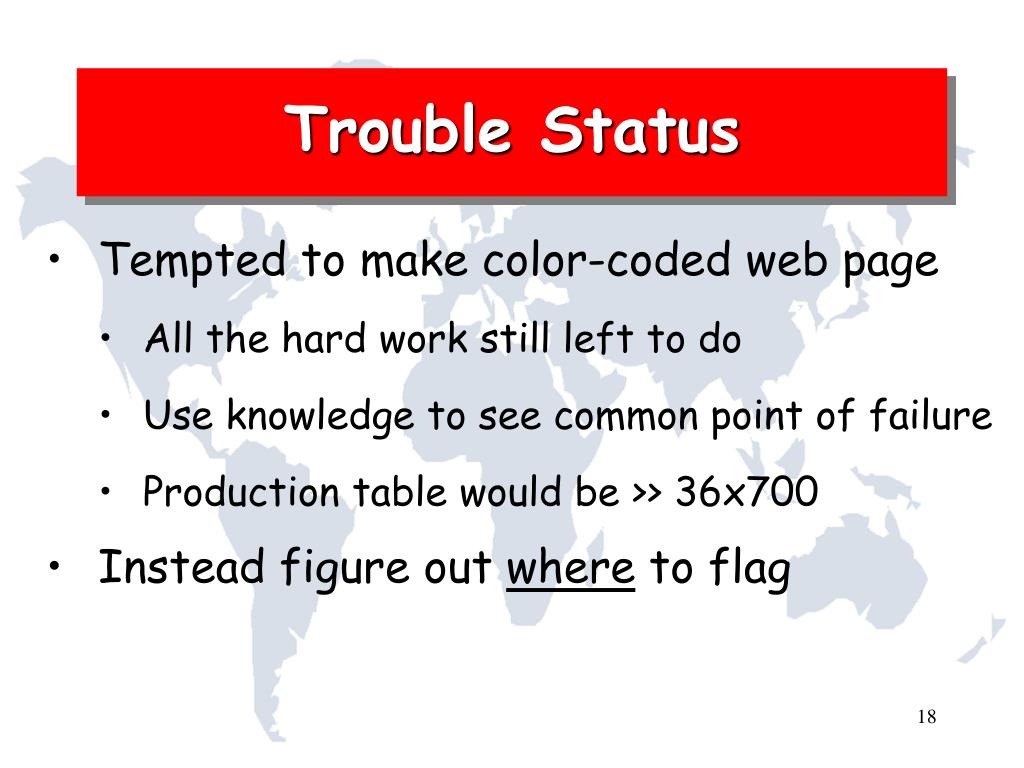

  17. Trouble Status • Tempted to make color-coded web page • All the hard work still left to do • Use knowledge to see common point of failure • Production table would be >> 36x700 • Instead figure out where to flag

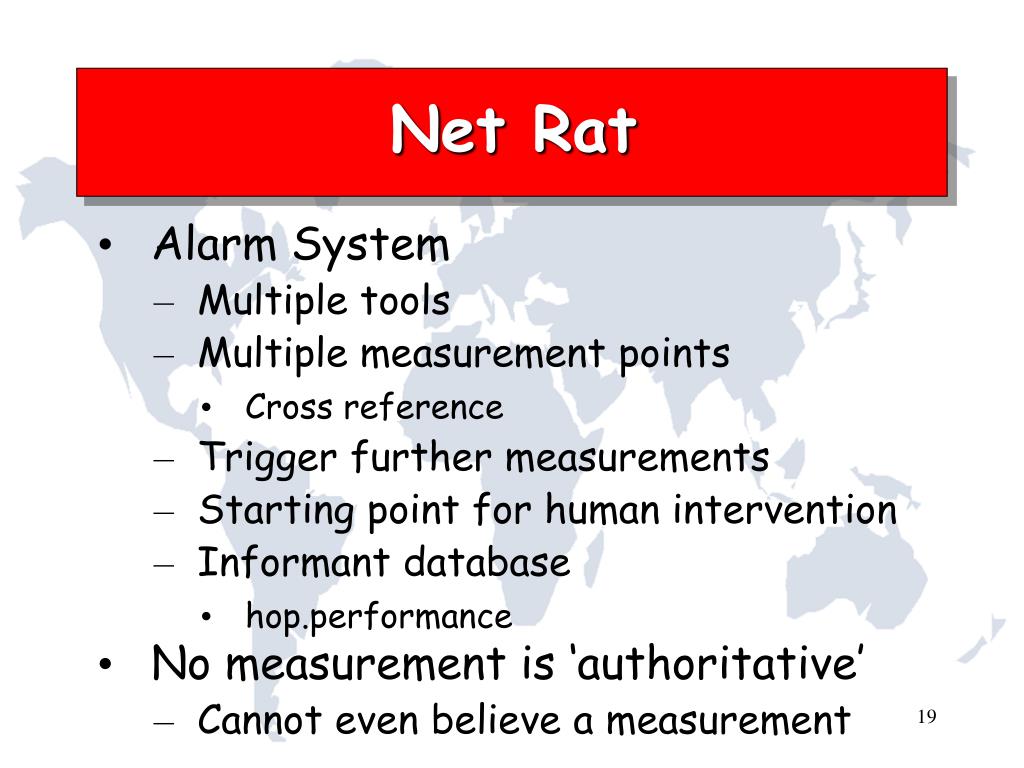

  18. Net Rat • Alarm System • Multiple tools • Multiple measurement points • Cross reference • Trigger further measurements • Starting point for human intervention • Informant database • hop.performance • No measurement is ‘authoritative’ • Cannot even believe a measurement

  19. Limitations • Could be over an hour before alarm is generated • More frequent measurements impact the network and measurements overlap • Low impact tools allow finer grained measurement

  20. Where next ? • GLUE, OGSA, CIM • Work with Other Projects • Publishing and troubleshooting • Discovery • Security

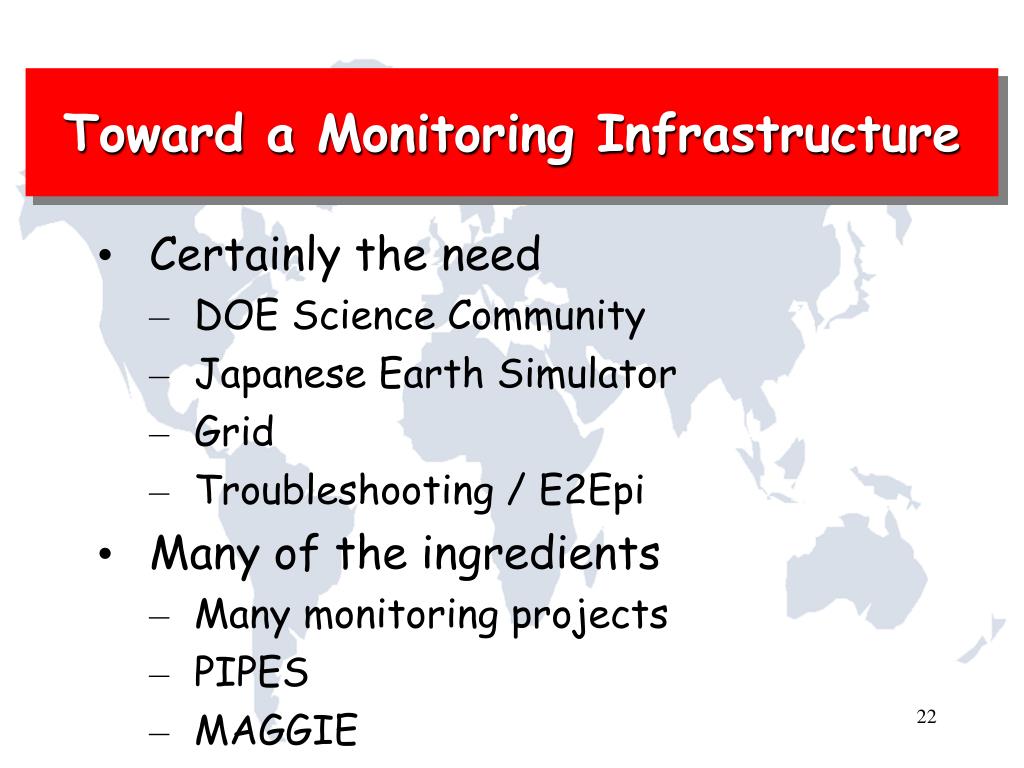

  21. Toward a Monitoring Infrastructure • Certainly the need • DOE Science Community • Japanese Earth Simulator • Grid • Troubleshooting / E2Epi • Many of the ingredients • Many monitoring projects • PIPES • MAGGIE

  22. Summary “It is widely believed that a ubiquitous monitoring infrastructure is required”.

  23. This talk IEPM-BW PingER ABwE AMP NIMI MAGGIE RIPE-TT Surveyor E2E PI SLAC Web Services GGF NMWG Arena Monalisa Advisor TroubleShooting Links

  24. Credits • Les Cottrell • Connie Logg, Jerrod Williams • Jiri Navratil • Fabrizio Coccetti • Brian Tierney • Frank Nagy, Maxim Grigoriev • Eric Boyd, Jeff Boote • Vern Paxson, Andy Adams • Iosif Legrand • Jim Ferguson, Steve Englehart • Local admins and other volunteers • DoE/MICS

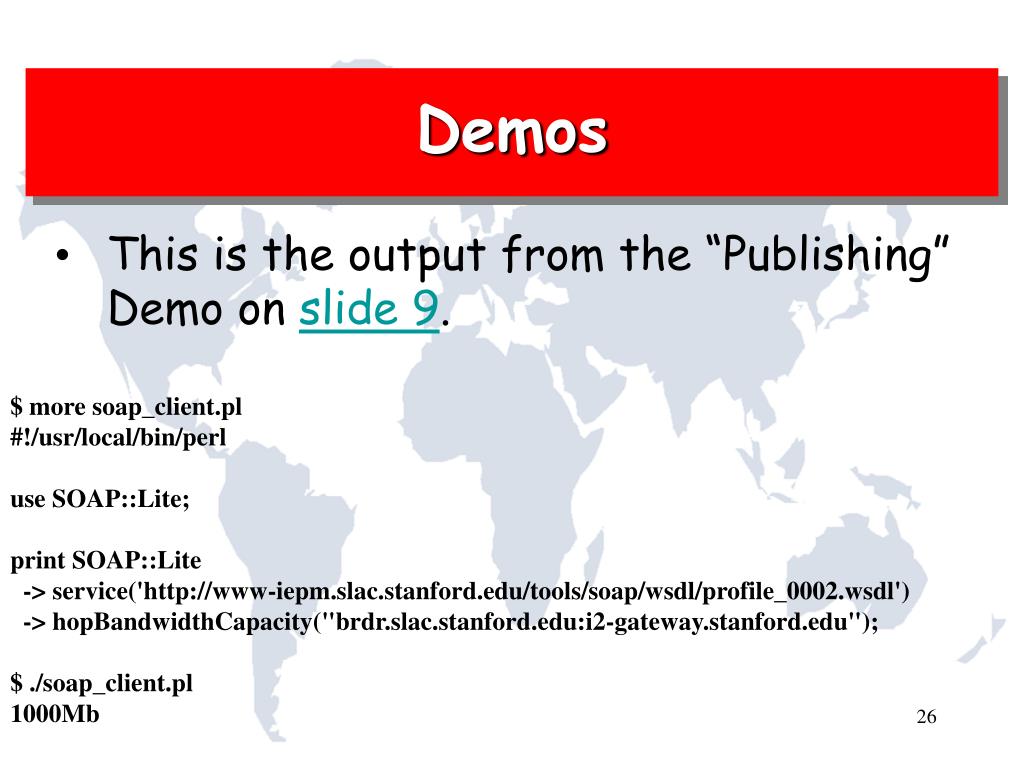

  25. Demos • This is the output from the “Publishing” Demo on slide 9. $ more soap_client.pl #!/usr/local/bin/perl use SOAP::Lite; print SOAP::Lite -> service('http://www-iepm.slac.stanford.edu/tools/soap/wsdl/profile_0002.wsdl') -> hopBandwidthCapacity("brdr.slac.stanford.edu:i2-gateway.stanford.edu"); $ ./soap_client.pl 1000Mb

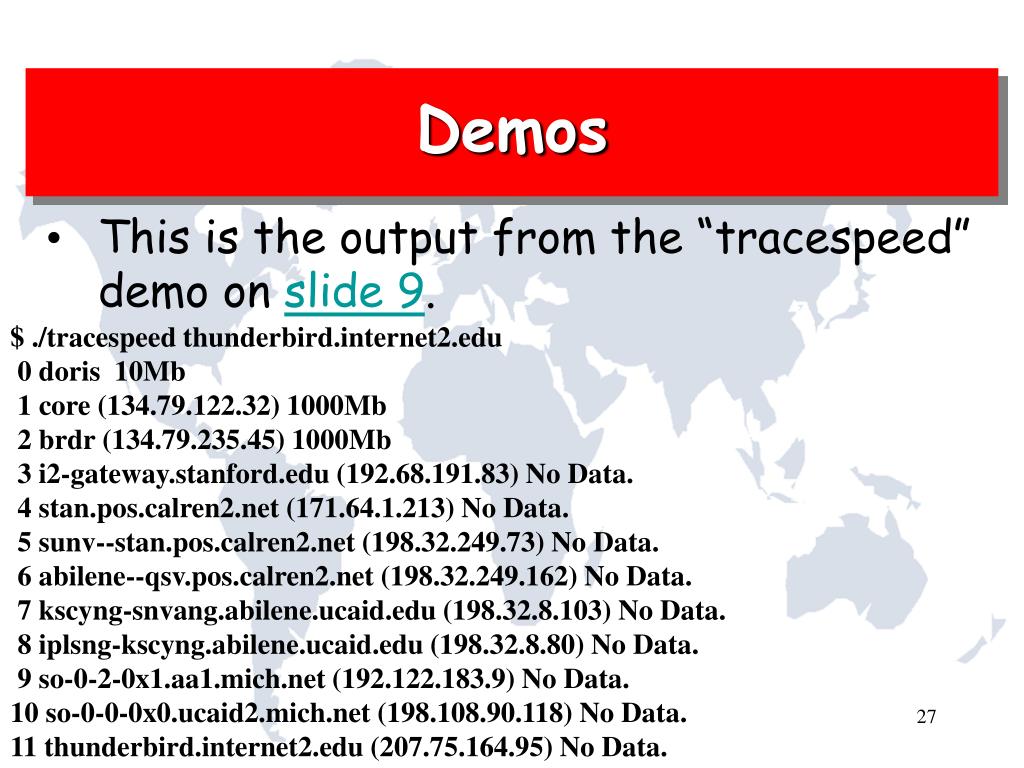

  26. Demos • This is the output from the “tracespeed” demo on slide 9. $ ./tracespeed thunderbird.internet2.edu 0 doris 10Mb 1 core (134.79.122.32) 1000Mb 2 brdr (134.79.235.45) 1000Mb 3 i2-gateway.stanford.edu (192.68.191.83) No Data. 4 stan.pos.calren2.net (171.64.1.213) No Data. 5 sunv--stan.pos.calren2.net (198.32.249.73) No Data. 6 abilene--qsv.pos.calren2.net (198.32.249.162) No Data. 7 kscyng-snvang.abilene.ucaid.edu (198.32.8.103) No Data. 8 iplsng-kscyng.abilene.ucaid.edu (198.32.8.80) No Data. 9 so-0-2-0x1.aa1.mich.net (192.122.183.9) No Data. 10 so-0-0-0x0.ucaid2.mich.net (198.108.90.118) No Data. 11 thunderbird.internet2.edu (207.75.164.95) No Data.

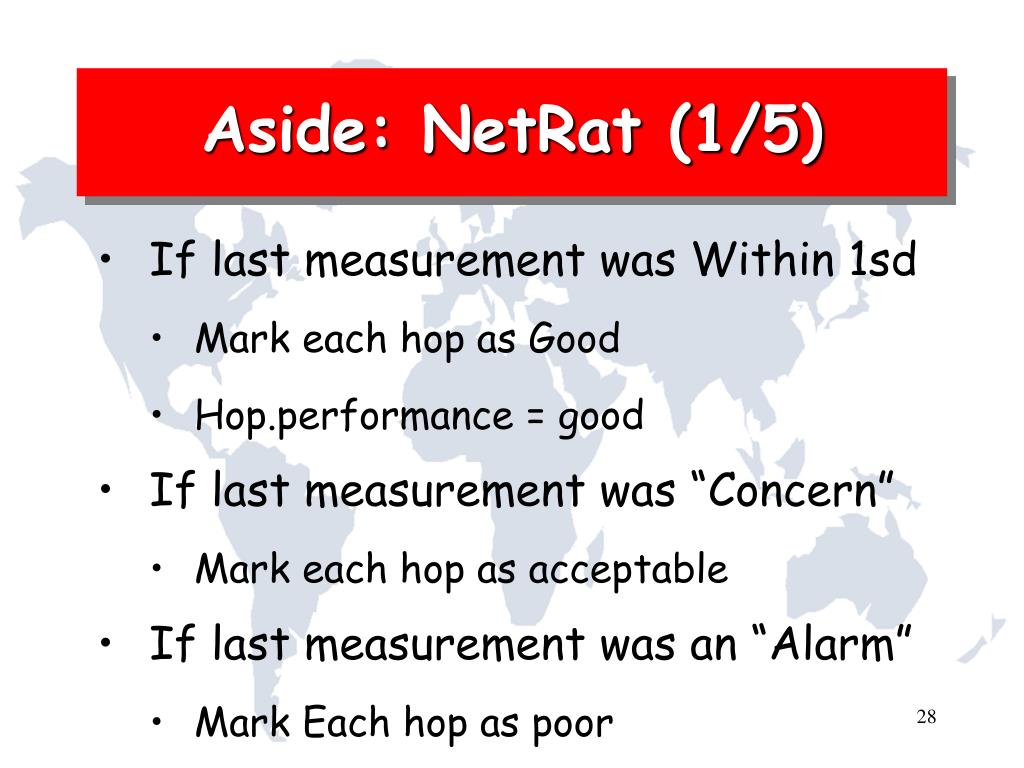

  27. Aside: NetRat (1/5) • If last measurement was Within 1sd • Mark each hop as Good • Hop.performance = good • If last measurement was “Concern” • Mark each hop as acceptable • If last measurement was an “Alarm” • Mark Each hop as poor

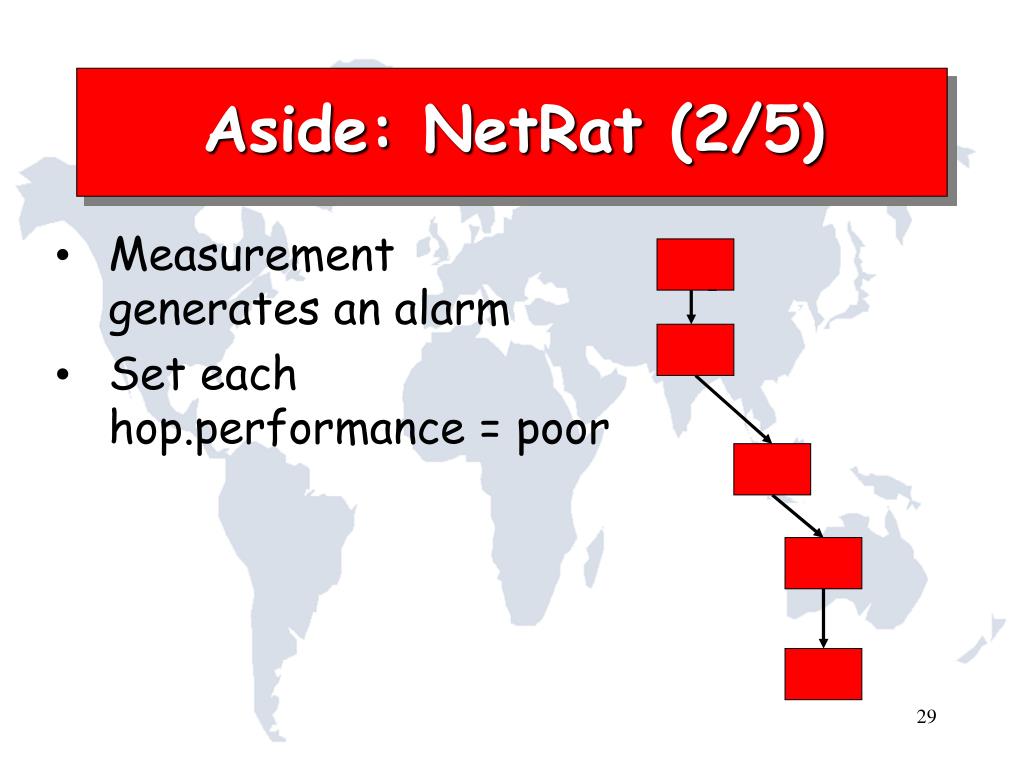

  28. Aside: NetRat (2/5) • Measurement generates an alarm • Set each hop.performance = poor

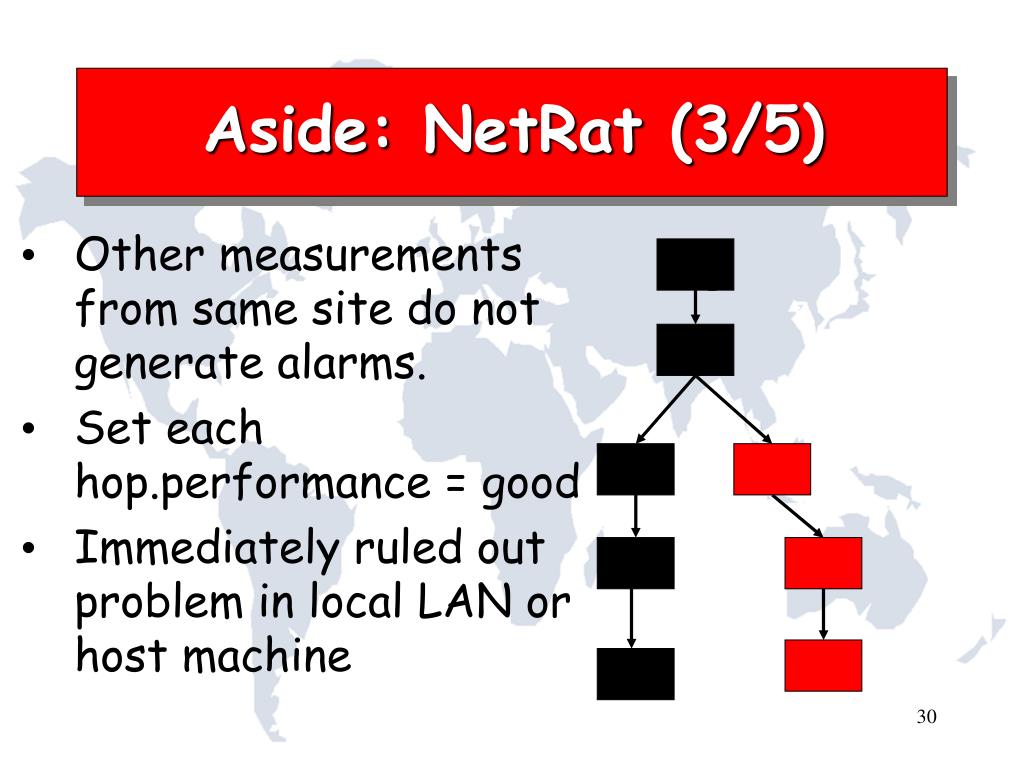

  29. Aside: NetRat (3/5) • Other measurements from same site do not generate alarms. • Set each hop.performance = good • Immediately ruled out problem in local LAN or host machine

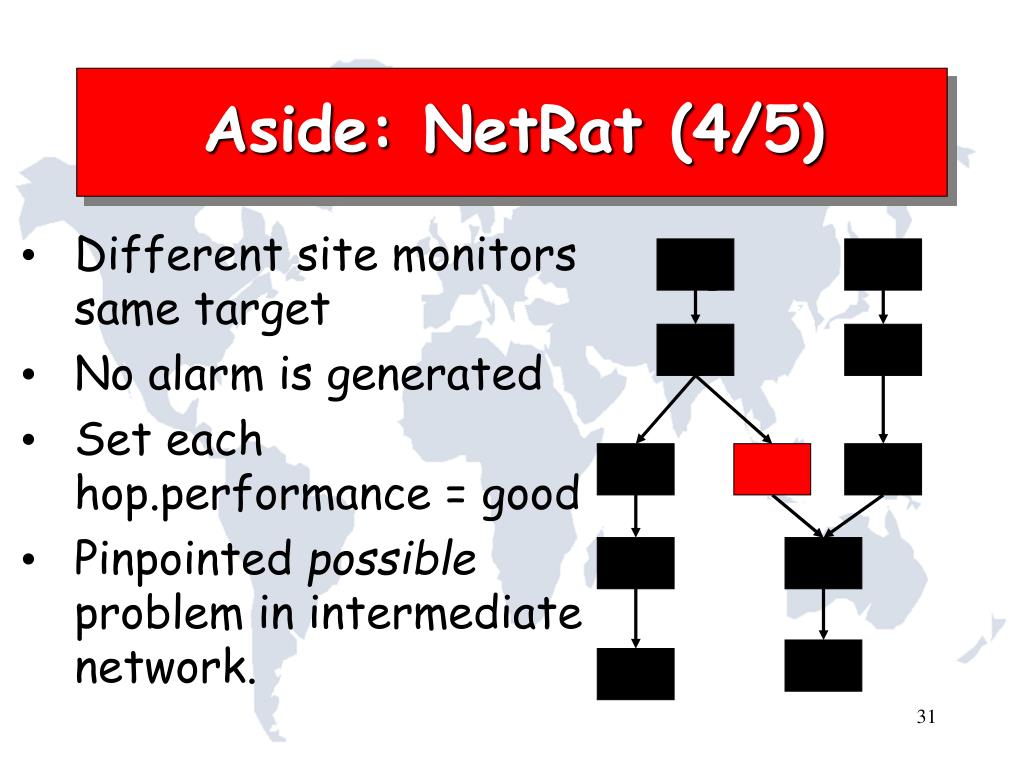

  30. Aside: NetRat (4/5) • Different site monitors same target • No alarm is generated • Set each hop.performance = good • Pinpointed possible problem in intermediate network.
