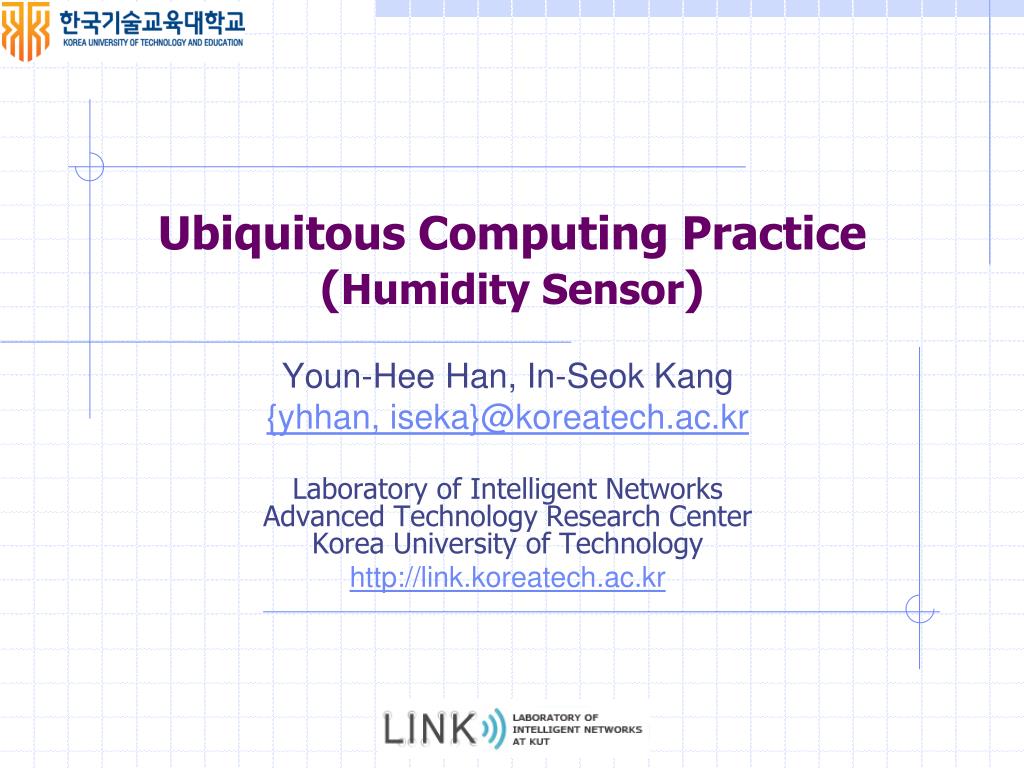

  1. Ubiquitous Computing Practice(Humidity Sensor) Youn-Hee Han, In-Seok Kang {yhhan, iseka}@koreatech.ac.kr Laboratory of Intelligent NetworksAdvanced Technology Research CenterKorea University of Technology http://link.koreatech.ac.kr

  2. . Contents • Introduntion • Humidity Sensor • Print Humidity • TMP36 + Humidity Sensor • Fritzing

  3. Arduino Pin • Digital Pin • 14개의 Digital Input / Output Pin • 6개의 PWM Pin 사용가능 • (3, 5, 6, 9, 10, 11 pin) • digitalWrite() - LED • digitalRead() - pushbutton

  4. analogWrite() • ex) analogWrite(PinNumber, value);

  5. Analog Pin • 6개의 Analog Input Pin • analogRead() • ex) analogRead(PinNumber) • 센서의 값을 읽기 위해 사용

  6. Introduction

  7. Humidity Sensor Features : - Near linear, analog output - 4-5.8VDC voltage supply - All pins broken out to a 0.1" pitch header - Laser trimmed interchangeability - Low power design, typical current draw of only 200μA - Enhanced accuracy - Fast response time - Stable, low drift performance Humidity Sensor - HIH-4030 Breakout

  8. 습도 • 상대습도 • 상대습도는, 특정한 온도의 대기 중에 포함되어 있는 수증기의 압력을 그 온도의 포화 수증기 압력으로 나눈 것을 말한다. 다시 말해, 특정한 온도의 대기 중에 포함되어 있는 수증기의 양(중량 절대습도)을 그 온도의 포화 수증기량(중량 절대습도)으로 나눈 것이다. • 절대습도 • 공기 1㎥ 중에 포함된 수증기의 양을 g으로 나타낸다. 수증기밀도 또는 수증기농도라고도 하는데, 공기 중의 수증기의 포화정도를 나타내는 상대습도와는 의미가 다르다.

  9. schematic

  10. Data sheet

  11. Print humidity

  12. Humidity • Voltage output • Vout＝（Vsupply）0.0062(sensorRH) + 0.16） • sensorRH＝（Vout/Vsupply）×（1/0.0062）－ 0.16 ×（1/0.0062） • 센서의 출력 전압 • Vout = Vsupply × (아날로그 입력 값 /1024） • Vout/ Vsupply= (아날로그 입력 값 / 1024) • SensorRH= (아날로그 입력 값/1024) X (1/0.0062) – 0.16 X (1/0.0062)

  13. Humidity

  14. Humidity

  15. schematic

  16. Sketch float vdd = 5.0; intindata; float sRH; void setup() { Serial.begin(9600); } void loop() { indata= analogRead(0); // pin number 0sRH= (indata/1024.0)/0.0062-0.16/0.0062; Serial.println(sRH); delay(1000); }

  17. Result

  18. Temperature + humidity

  19. Temperature + humidity • Temperature compensation • RH＝ sensorRH/（1.0546 － 0.00216 × T） • T = Temperature

  20. Temperature + humidity

  21. schematic

  22. Sketch float vdd = 5.0; int indata0, indata1; float sRH; float RH; float voltage; float temperatureC; void setup() { Serial.begin(9600); }

  23. Sketch void loop() { indata0 = analogRead(0); // pin number 0 (analog)sRH = (indata0/1024.0)/0.0062-0.16/0.0062; indata1 = analogRead(1); // pin number 1 (analog) voltage = indata1*5.0/1024.0; temperatureC = (voltage - 0.5) * 100; Serial.print(temperatureC); Serial.println(" 'C"); RH=sRH/(1.0546-0.00216*temperatureC); Serial.print(RH); Serial.println(" RH"); Serial.println("----"); delay(1000); }

  24. Result

  25. 도전과제

  26. 도전과제 • 온도, 조도, 습도 센서의 값을 출력해보자.

  27. Fritzing

  28. Fritzing http://fritzing.org/

  29. Thank You
