  1. Introducing New Technology in Air Conditioning Efficiency Click To Continue

  2. Enhances the Efficiency and Dehumidification Capacity of Your Existing Air Conditioning System Click To Continue

  3. 3 In. 4.5 In. What is It? A Control Device that is installed between your thermostat and air handler. Click To Continue

  4. What Does it Do? It controls your air conditioning system to make it reach its peak efficiency and dehumidification capacity in less than 2 minutes. Click To Continue

  5. How Does it Do it? It allows the inside coil to cool down below the dew point temperature before the blower is brought on. This eliminates the Blow-Off of moisture that normally occurs when a system starts. That starts the dehumidification process immediately. Click To Continue

  6. Once the coil is cooled down, The AC-Enhancer stages the blower speed up. This staging-in of the blower keeps the coil from warming back up and enhances the dehumidification capacity of the system. It also allows the compressor to start easier and reach its peak efficiency faster. Click To Continue

  7. Takes 6-10 minutes or more to reach its peak efficiency and dehumidification capacity. • The Blower Starts with the condensing unit and blows on a warm coil that is saturated with moisture. This moisture is re-evaporated back into the living space. • This Re-evaporation or Blow-Off of moisture decreases the dehumidification capacity of the system. • The compressor has to start under a full load situation and requires more power to start and takes much longer to balance out at its peak efficiency. Disadvantages of the Standard A/C System Click To Continue

  8. Advantages • Increases the Dehumidification Capacity of your Air Conditioning System helping you feel more comfortable. • Increases the efficiency of your air conditioner saving you on your electric bill. • Helps the system every cycle. • Reduces the start-up load on your compressor helping it to last longer. • Drastically helps systems that are oversized. Click To Continue

  9. Why Don’t the Manufacturers Do this? The AC-Enhancer™ increases the overall delivered efficiency and dehumidification capacity of the air conditioning system. The SEER ratings of the equipment is based on a unit in a laboratory environment with continuous run time. When rating the equipment the manufacturers do not take start-up inefficiencies into consideration. Therefore, the manufacturers would not increase their SEER rating, but the homeowner can benefit greatly with this technology. Click To Continue

  10. This graph shows the Blow-Off of moisture from the coil when the blower is allowed to start at the same time as the compressor. This is moisture you have already paid to remove from the space, but because of the way systems start it puts that moisture back into your home and makes you pay to remove it again. This also shows that it takes 7 minutes of run time to finally reach the systems peak dehumidification capacity. Click To Continue

  11. This graph shows there is No Blow-Off of moisture from the coil when the system starts. The coil cools down rapidly and starts pulling moisture from the surrounding air and dropping the humidity around it. Then when the blower starts it is already dehumidifying and reaches its peak efficiency right away. Thus holding the moisture that is on the coil on it and removing more moisture from the surrounding air. Once the blower starts the system is already at its peak dehumidification capacity. Click To Continue

  12. This graph shows that the coil temperature reaches its peak efficiency and dehumidification temperature drastically faster with The AC-Enhancer installed than it does without. This makes the system more efficient and causes it to dehumidify better with every start-up. Click To Continue

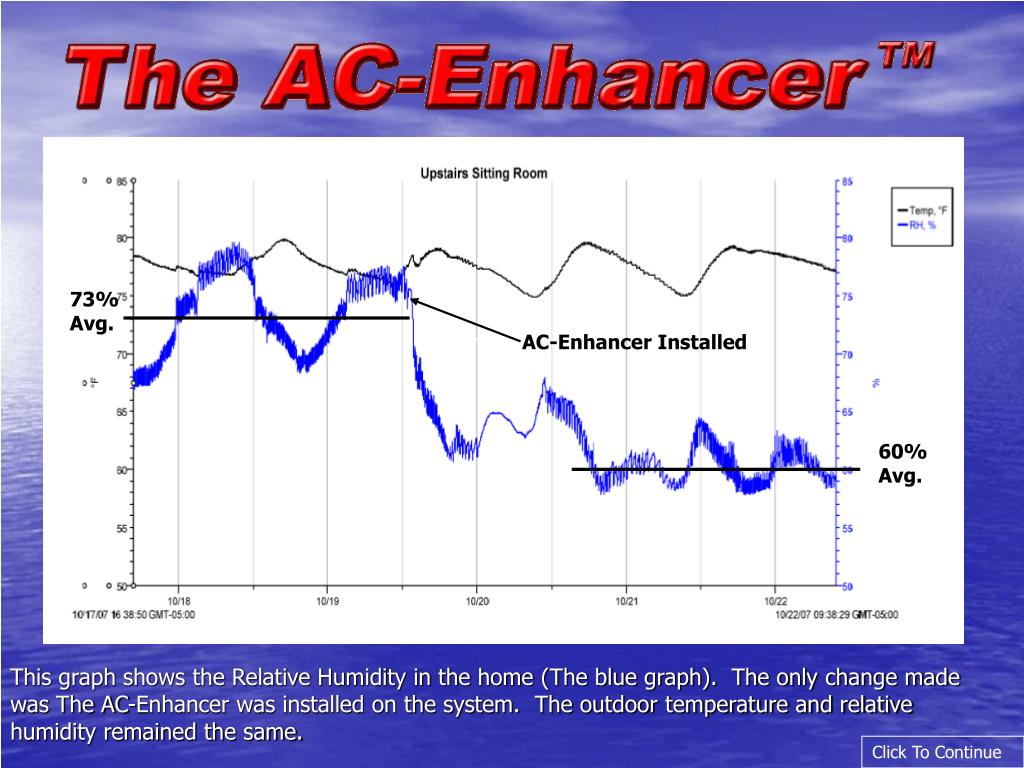

  13. 73% Avg. AC-Enhancer Installed 60% Avg. This graph shows the Relative Humidity in the home (The blue graph). The only change made was The AC-Enhancer was installed on the system. The outdoor temperature and relative humidity remained the same. Click To Continue

  14. Enhances the Efficiency and Dehumidification Capacity of Your Existing Air Conditioning System Click To Continue

  15. Saves Money on Your Cooling Bill and Makes Your Home Feel More Comfortable! Click To Continue

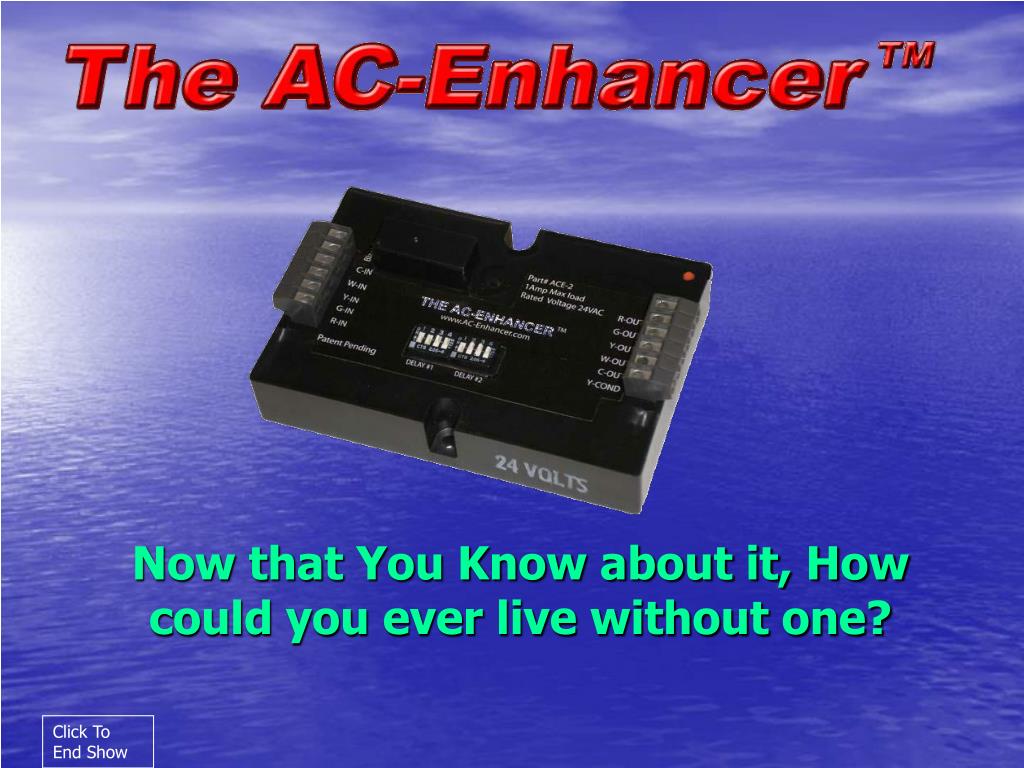

  16. Now that You Know about it, How could you ever live without one? Click To End Show
