  1. Lab 3: Decoders, Mux, ROM and PAL • Implement combinational circuits using • decoders • multiplexers • ROMs • PALs • OrCAD • schematic entry and simulation • Programmer • program logic devices

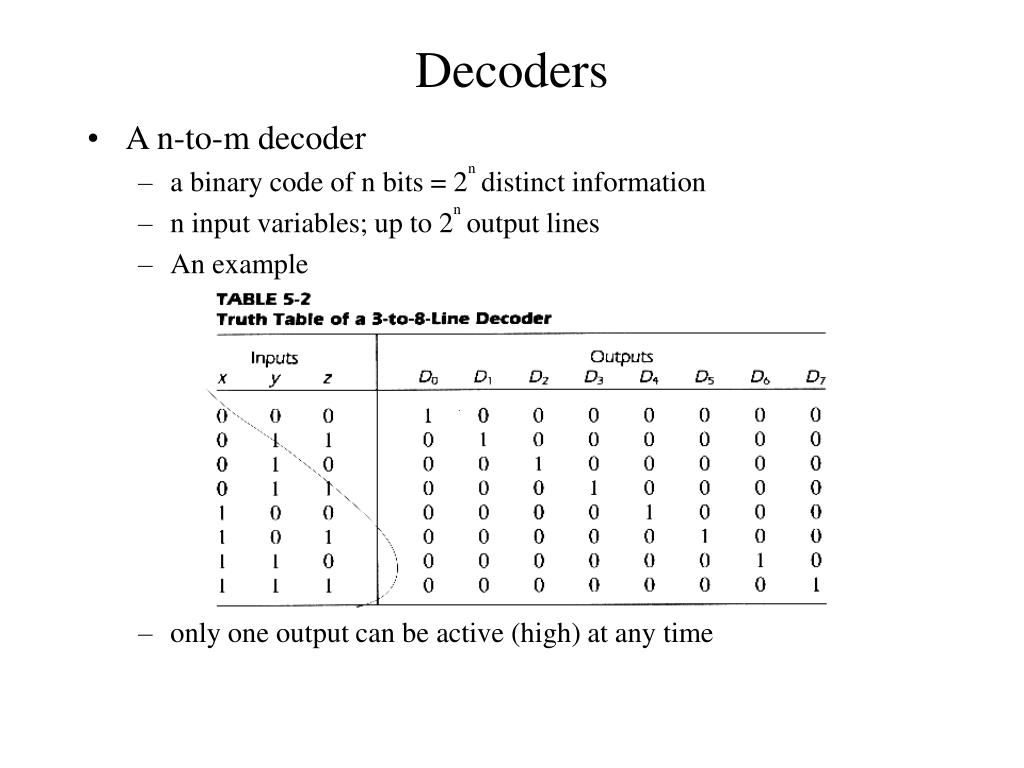

  2. Decoders • A n-to-m decoder • a binary code of n bits = 2ndistinct information • n input variables; up to 2noutput lines • An example • only one output can be active (high) at any time

  3. Combinational logic implementation • each output = a minterm • use a decoder and an external OR gate = sum of minterm • implement any Boolean function of n input variables • 74154: 4x16 decoder • propagation delay: 23 ns • or 18 ns from strobes

  4. Example 5-1 • A full-adder • S(x,y,x)=S(1,2,4,7) • C(x,y,z)= S(3,5,6,7) • two possible approaches using decoder • OR(minterns of F): k inputs • NOR(minterms of F'): 2n- k inputs • In general, it is not a practical implementation

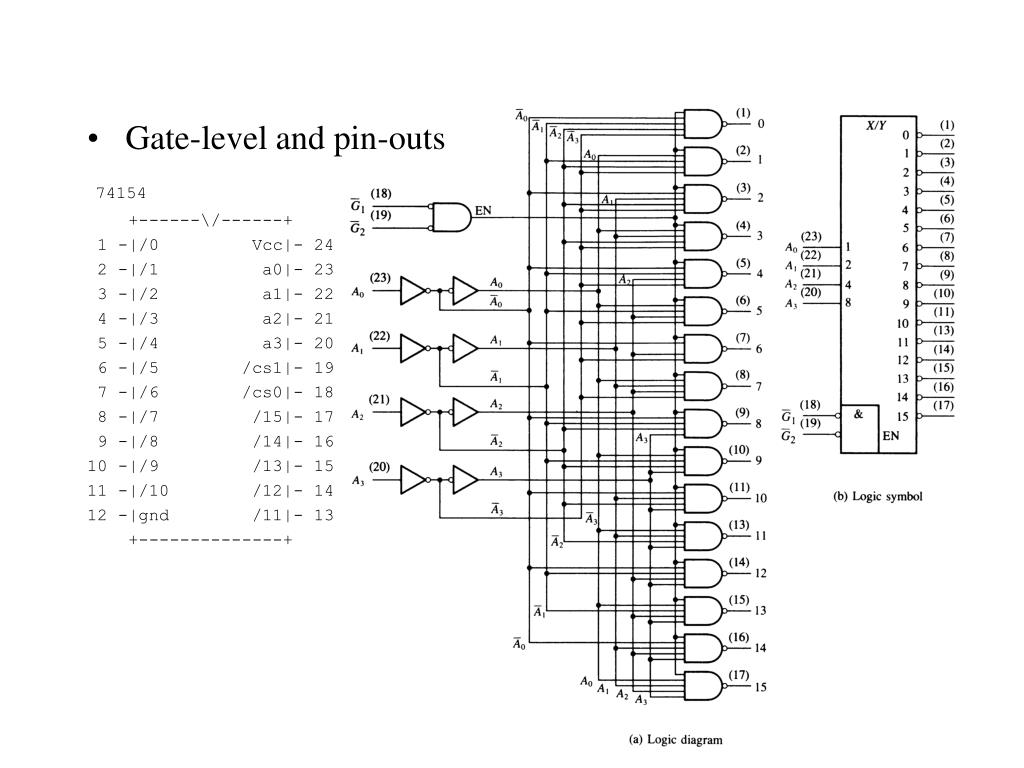

  5. Gate-level and pin-outs 74154 +------\/------+ 1 -|/0 Vcc|- 24 2 -|/1 a0|- 23 3 -|/2 a1|- 22 4 -|/3 a2|- 21 5 -|/4 a3|- 20 6 -|/5 /cs1|- 19 7 -|/6 /cs0|- 18 8 -|/7 /15|- 17 9 -|/8 /14|- 16 10 -|/9 /13|- 15 11 -|/10 /12|- 14 12 -|gnd /11|- 13 +--------------+

  6. Multiplexers • A digital multiplexer • select binary information from one of many input lines and direct it to a single output line • 2ninput lines, n selection lines and one output line • e.g.: 4-to-1 multiplexer • a decoder + OR

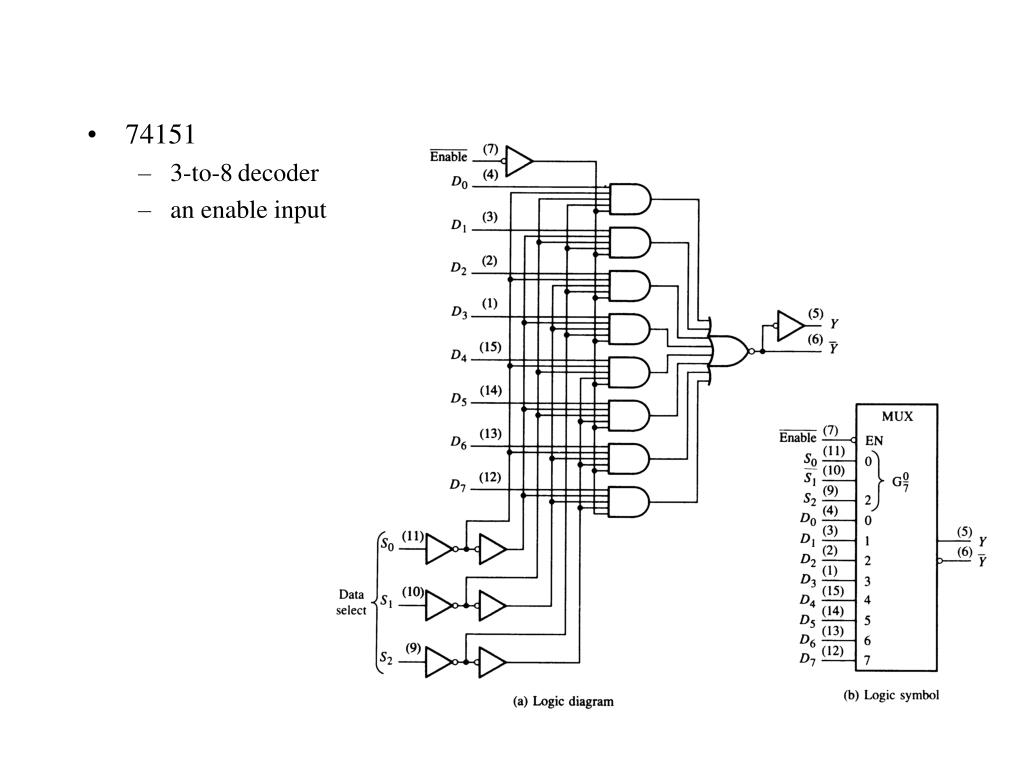

  7. 74151 3-to-8decoder an enable input

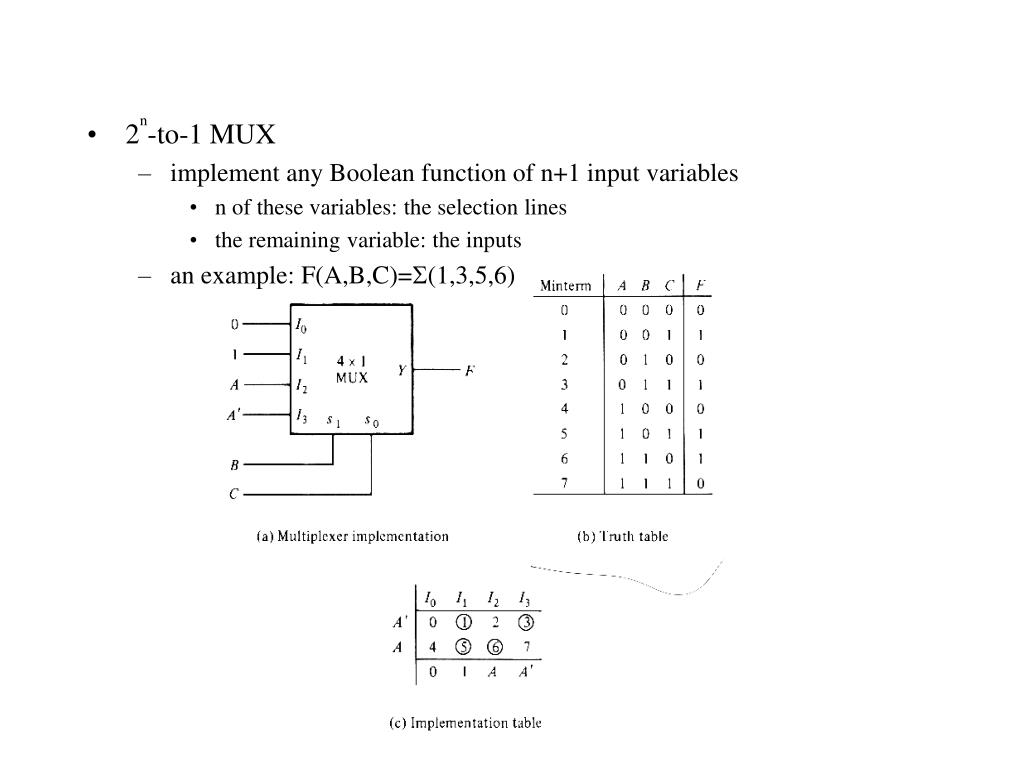

  8. 2n-to-1 MUX implement any Boolean function of n+1 input variables n of these variables: the selection lines the remaining variable: the inputs an example: F(A,B,C)=S(1,3,5,6)

  9. Procedure: assign an ordering sequence of the input variable the leftmost variable (A) will be used for the input lines assign the remaining n-1 variables to the selection lines w.r.t. their corresponding sequence list all the minterms in two rows (A' and A) circle all the minterms of the function determine the input lines An example: F(A,B,C,D)=S(0,1,3,4,8,9,15)

  10. A structural design approach PLD (Programmable Logic Devices)

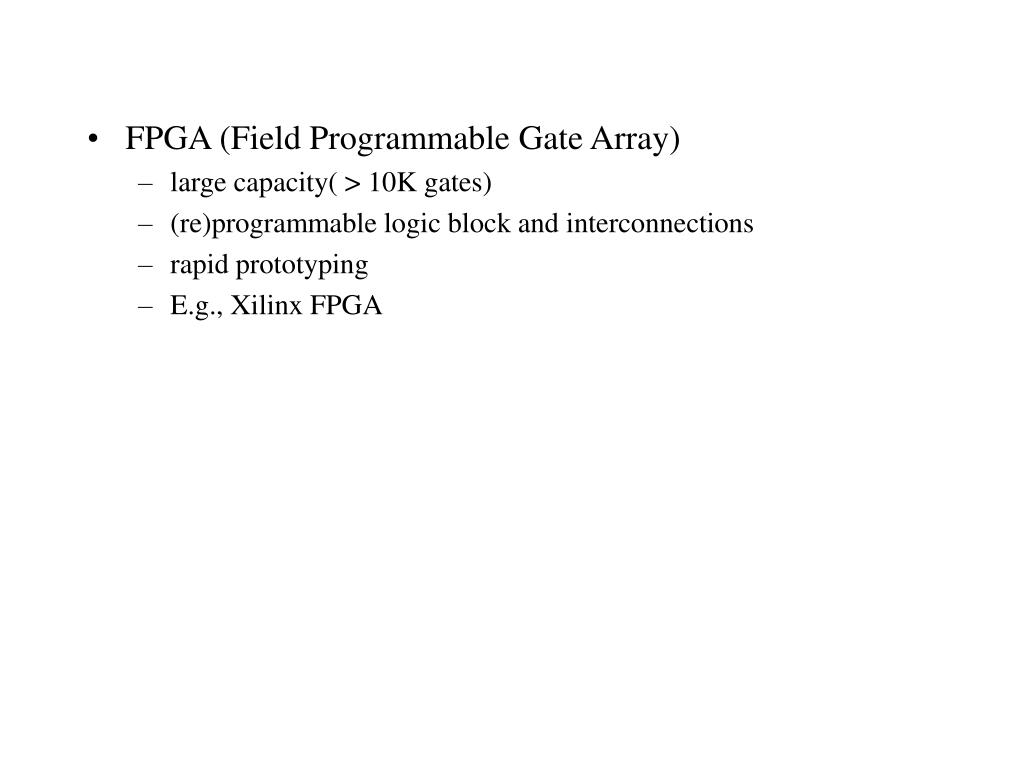

  11. FPGA (Field Programmable Gate Array) • large capacity( > 10K gates) • (re)programmable logic block and interconnections • rapid prototyping • E.g., Xilinx FPGA

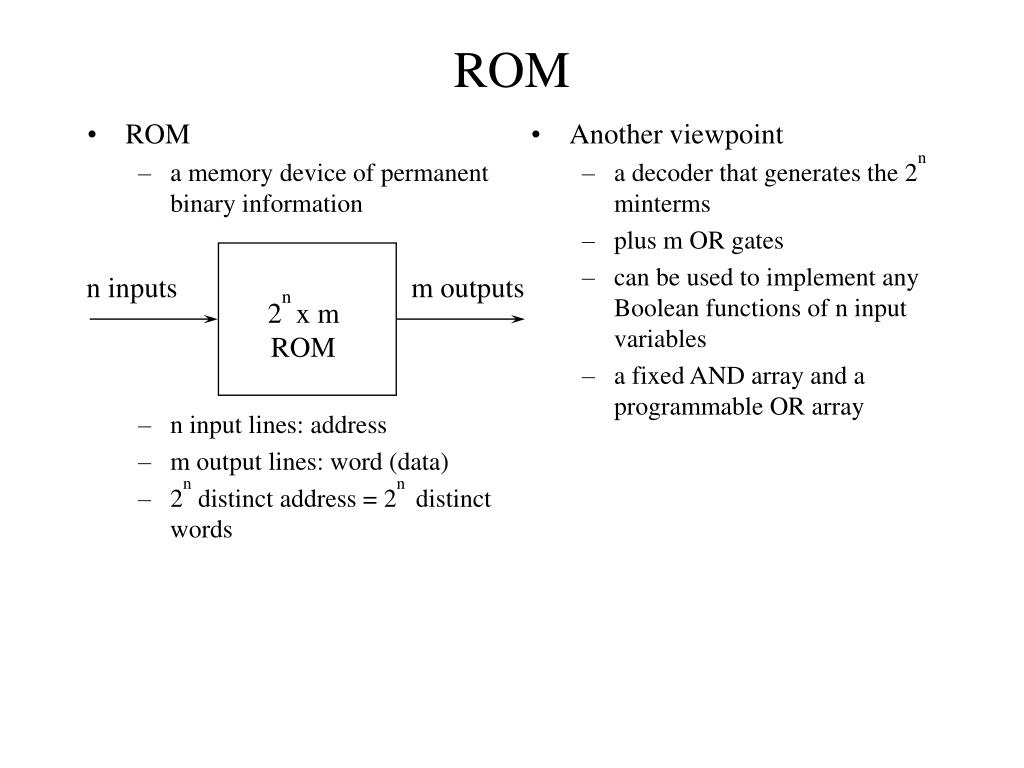

  12. ROM a memory device of permanent binary information n input lines: address m output lines: word (data) 2n distinct address = 2n distinct words Another viewpoint a decoder that generates the 2n minterms plus m OR gates can be used to implement any Boolean functions of n input variables a fixed AND array and a programmable OR array ROM n inputs m outputs 2n x m ROM

  13. A 32x4 ROM applications permanent storage of program/data display character fonts a table-look-up log functions? combination logic implementations code conversion

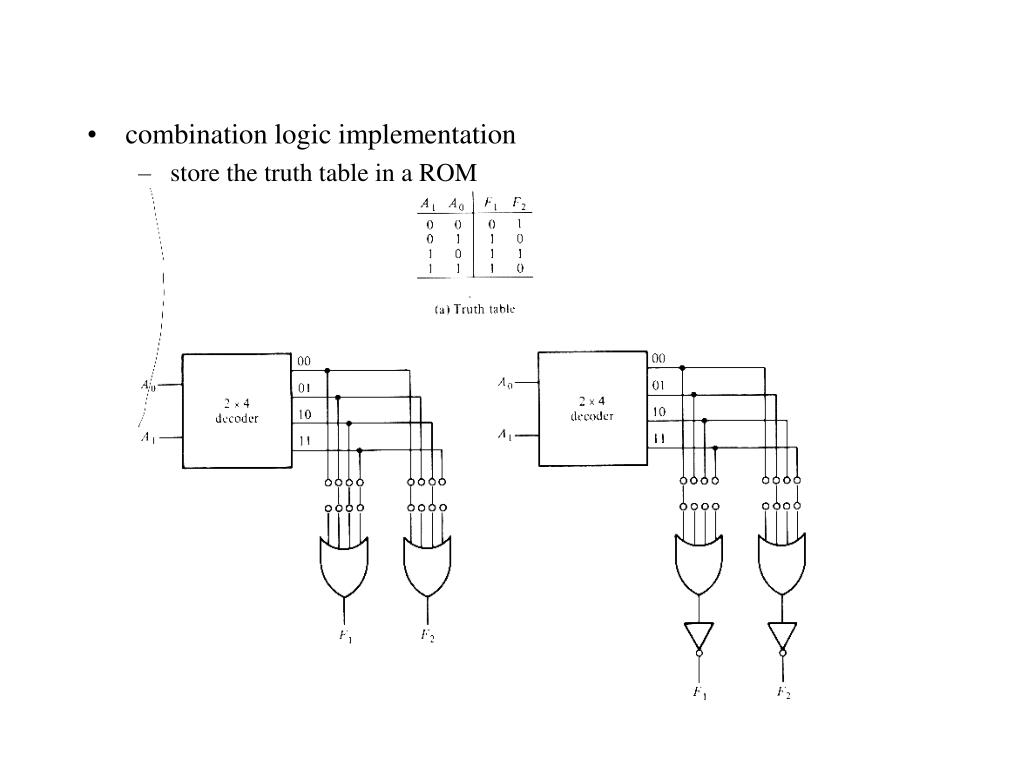

  14. combination logic implementation store the truth table in a ROM

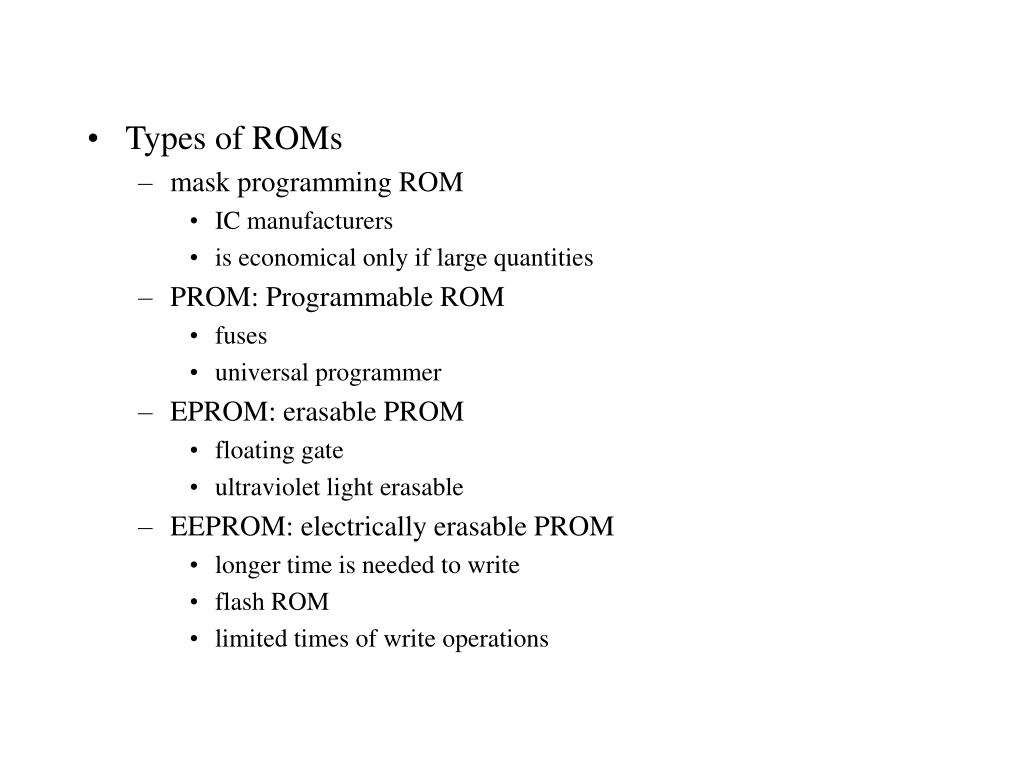

  15. Types of ROMs • mask programming ROM • IC manufacturers • is economical only if large quantities • PROM: Programmable ROM • fuses • universal programmer • EPROM: erasable PROM • floating gate • ultraviolet light erasable • EEPROM: electrically erasable PROM • longer time is needed to write • flash ROM • limited times of write operations

  16. 2764 • 8k * 8 EPROM +------\/------+ 1 -|Vpp Vcc|- 28 2 -|A12 /pgm|- 27 3 -|A7 nc|- 26 4 -|A6 A8|- 25 5 -|A5 A9|- 24 6 -|A4 A11|- 23 7 -|A3 /OE|- 22 8 -|A2 A10|- 21 9 -|A1 /CE|- 20 10 -|A0 D7|- 19 11 -|D0 D6|- 18 12 -|D1 D5|- 17 13 -|D2 D4|- 16 14 -|gnd D3|- 15 +--------------+

  17. 16K * 16 configuration

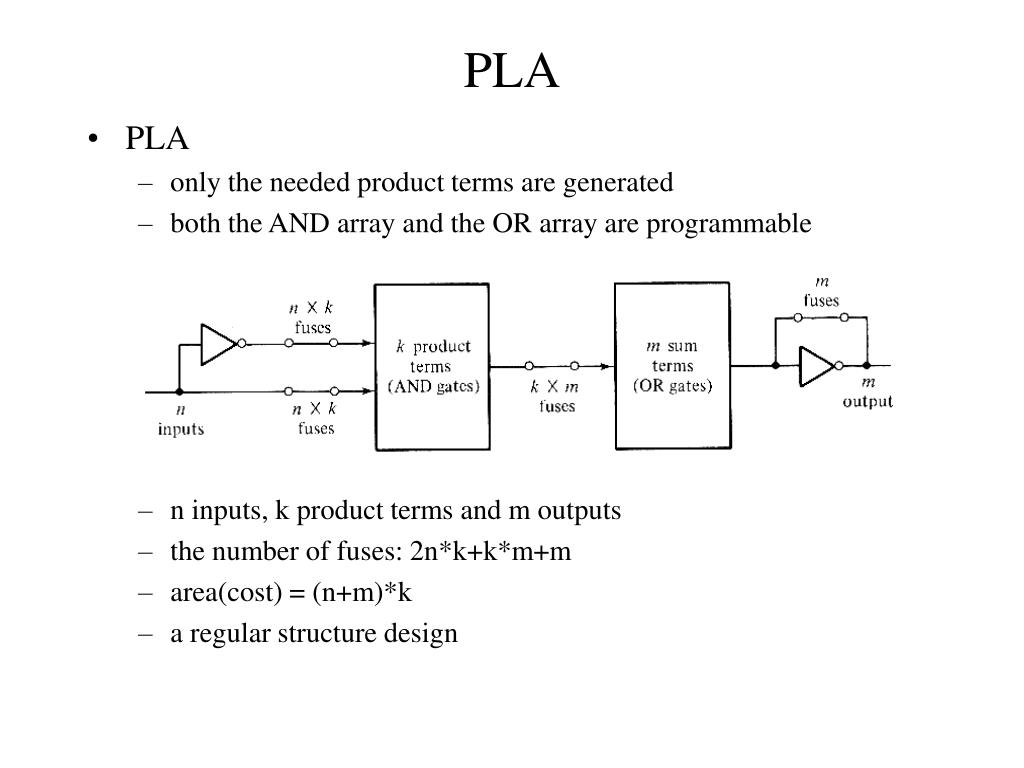

  18. PLA • PLA • only the needed product terms are generated • both the AND array and the OR array are programmable • n inputs, k product terms and m outputs • the number of fuses: 2n*k+k*m+m • area(cost) = (n+m)*k • a regular structure design

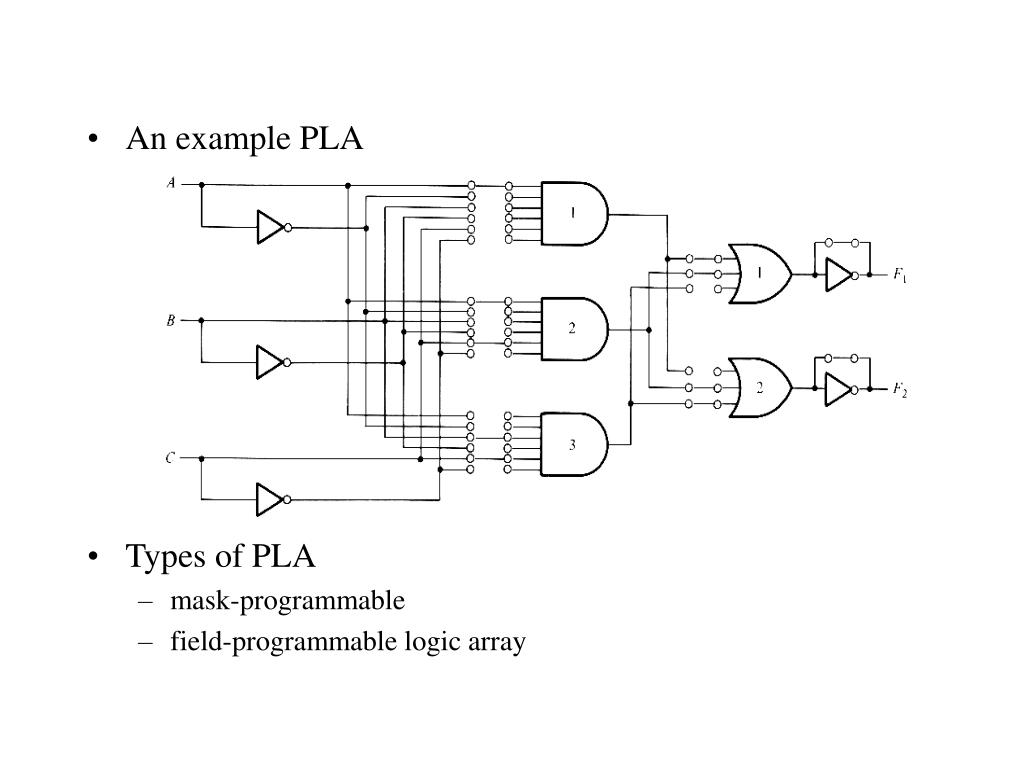

  19. An example PLA • Types of PLA • mask-programmable • field-programmable logic array

  20. PAL • PAL • a programmable AND array and a fixed OR array • can replace 3-10 TTL IC's • is not as flexible as the PLA • can generate any product term • each OR has only three inputs

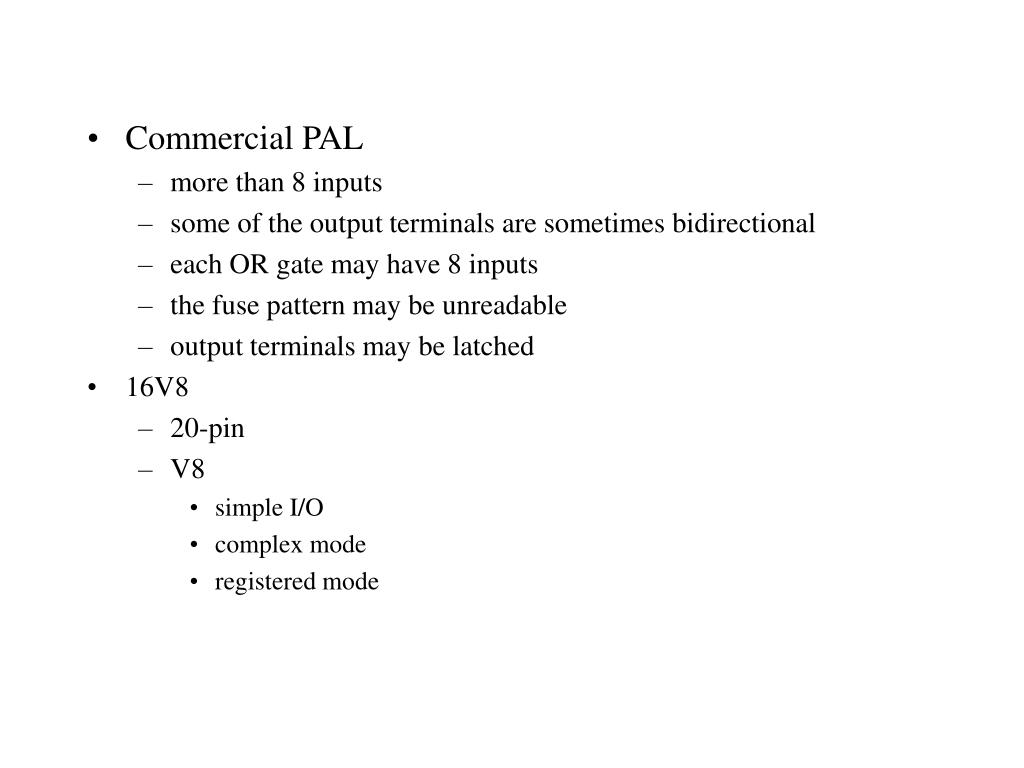

  21. Commercial PAL • more than 8 inputs • some of the output terminals are sometimes bidirectional • each OR gate may have 8 inputs • the fuse pattern may be unreadable • output terminals may be latched • 16V8 • 20-pin • V8 • simple I/O • complex mode • registered mode

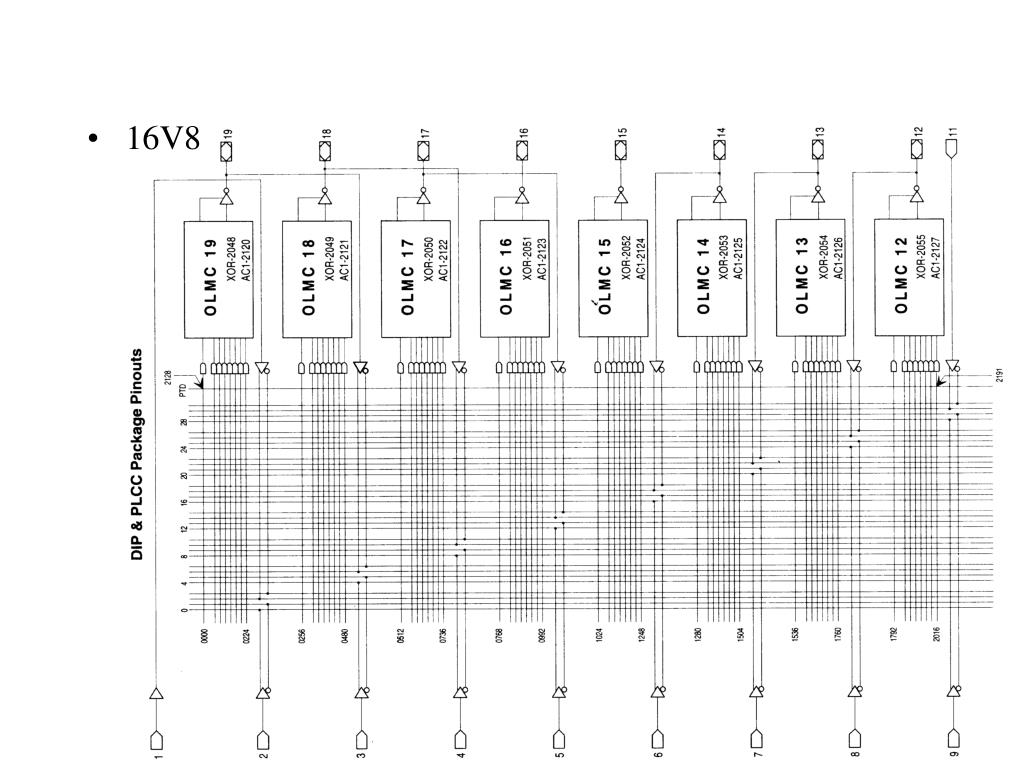

  22. 16V8

  23. Combinational Logic Word Problems BCD to 7 Segment Display Controller C0 = A + B D + C + B' D' C1 = A + C' D' + C D + B' C2 = A + B + C' + D C3 = B' D' + C D' + B C' D + B' C C4 = B' D' + C D C5 = A + C' D' + B D' + B C' C6 = A + C D' + B C' + B' C 14 Unique Product Terms

  24. BCD to 7 Segment Display Controller 16H8PAL Can Implement the function

  25. BCD to 7 Segment Display Controller 14H8PAL Cannot Implement the function

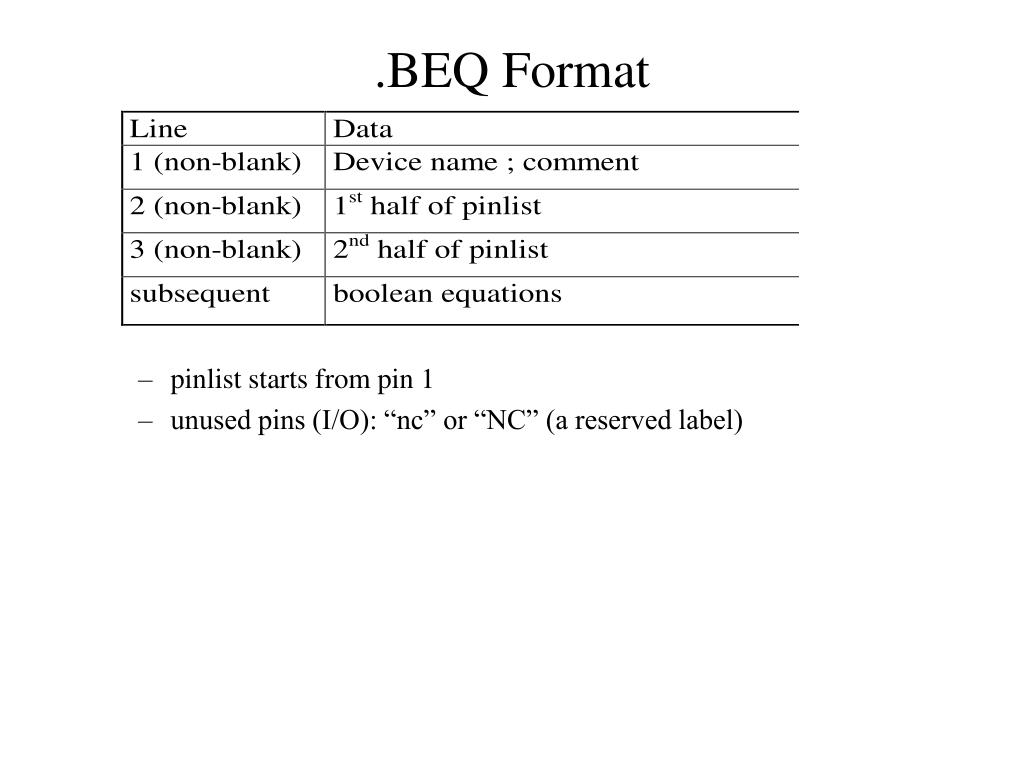

  26. .BEQ Format • pinlist starts from pin 1 • unused pins (I/O): “nc” or “NC” (a reserved label)

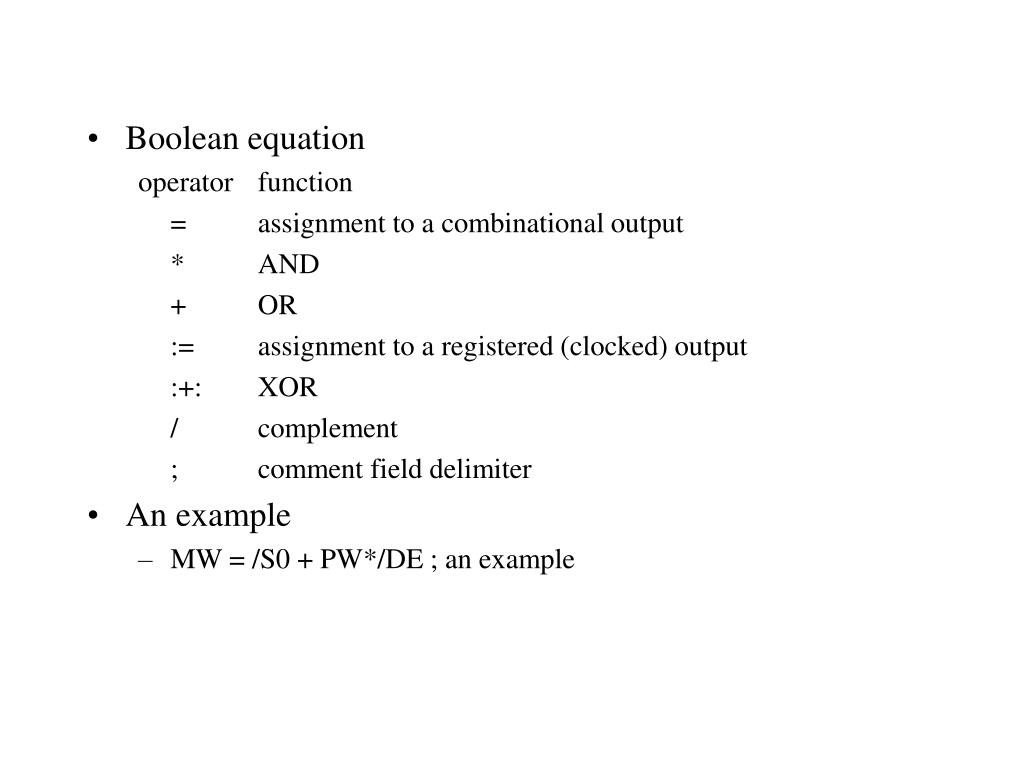

  27. Boolean equation operator function = assignment to a combinational output * AND + OR := assignment to a registered (clocked) output :+: XOR / complement ; comment field delimiter • An example • MW = /S0 + PW*/DE ; an example

  28. An .BEQ Example PAL12H6; an example S0 PW DE DA S0 S1 P9 EA E1 GND E0 EN O3 SS MW LA HA N0 NC VCC MW = /S0 + PW*DE LA = /SA * /D0 SS = S1*P0*/SA HA = S1*P0*/SA*EA*E1 O3 = P0*E0*EA N0 - P0*/EN

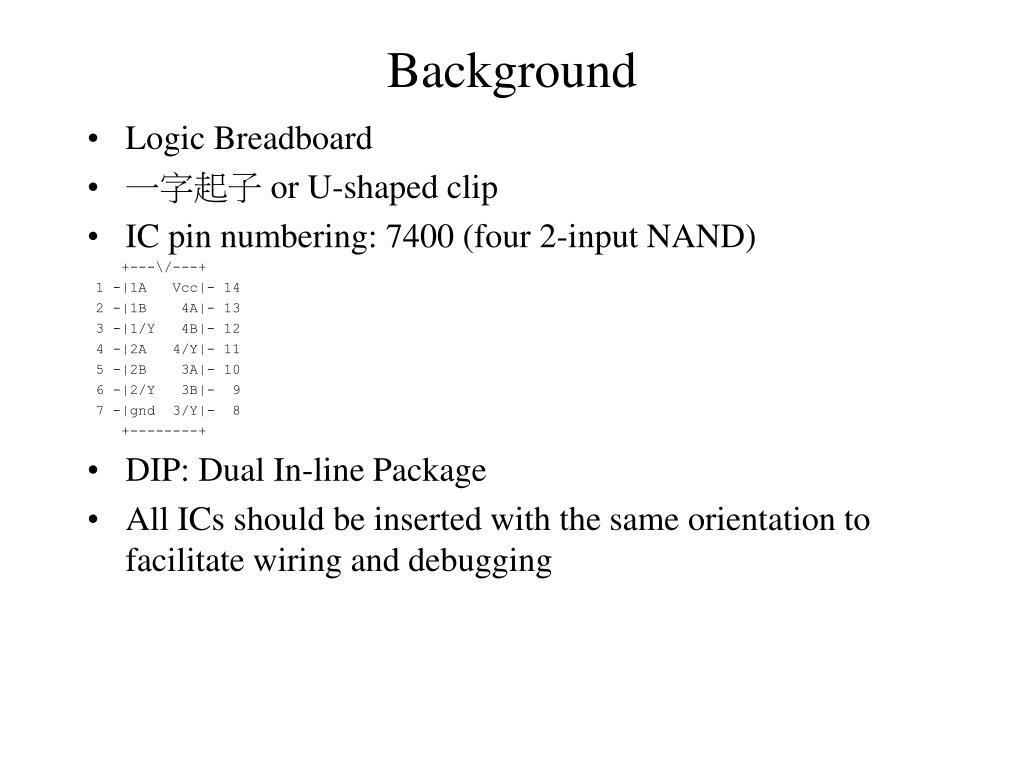

  29. Background • Logic Breadboard • 一字起子 or U-shaped clip • IC pin numbering: 7400 (four 2-input NAND) +---\/---+ 1 -|1A Vcc|- 14 2 -|1B 4A|- 13 3 -|1/Y 4B|- 12 4 -|2A 4/Y|- 11 5 -|2B 3A|- 10 6 -|2/Y 3B|- 9 7 -|gnd 3/Y|- 8 +--------+ • DIP: Dual In-line Package • All ICs should be inserted with the same orientation to facilitate wiring and debugging

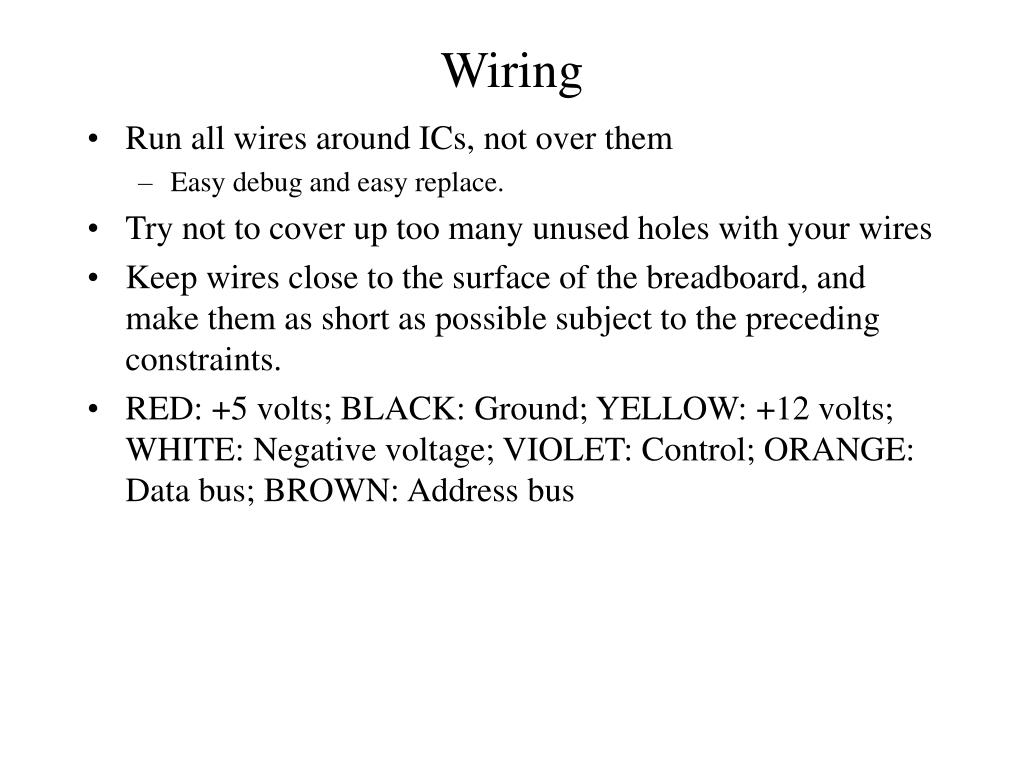

  30. Wiring • Run all wires around ICs, not over them • Easy debug and easy replace. • Try not to cover up too many unused holes with your wires • Keep wires close to the surface of the breadboard, and make them as short as possible subject to the preceding constraints. • RED: +5 volts; BLACK: Ground; YELLOW: +12 volts; WHITE: Negative voltage; VIOLET: Control; ORANGE: Data bus; BROWN: Address bus

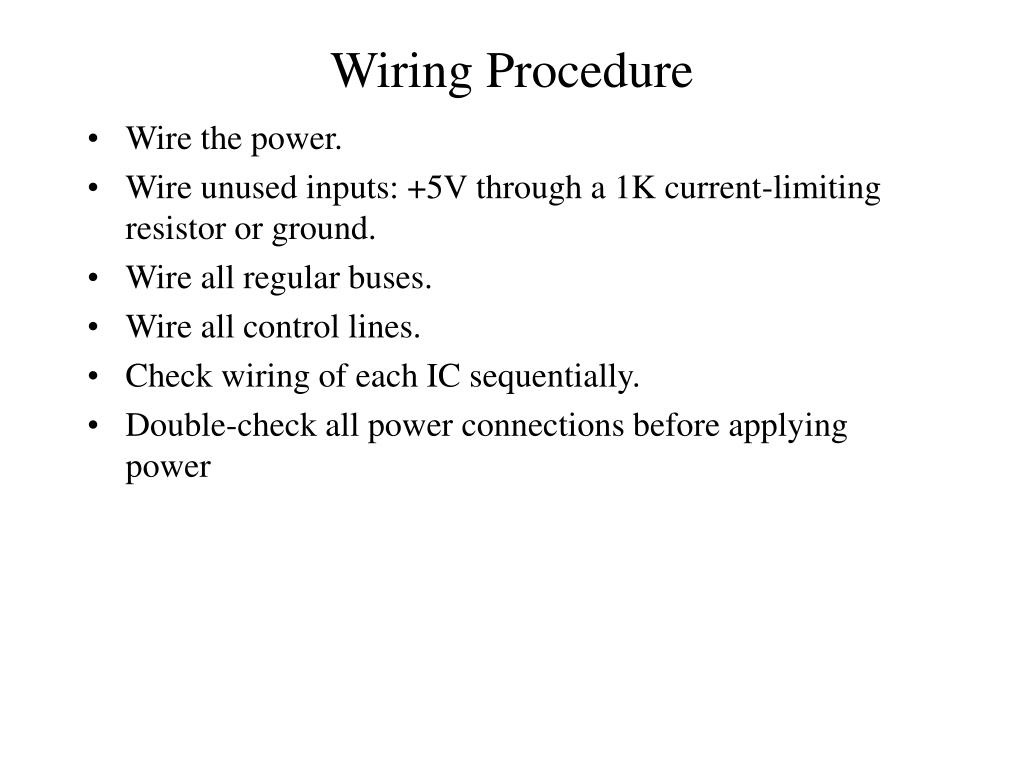

  31. Wiring Procedure • Wire the power. • Wire unused inputs: +5V through a 1K current-limiting resistor or ground. • Wire all regular buses. • Wire all control lines. • Check wiring of each IC sequentially. • Double-check all power connections before applying power

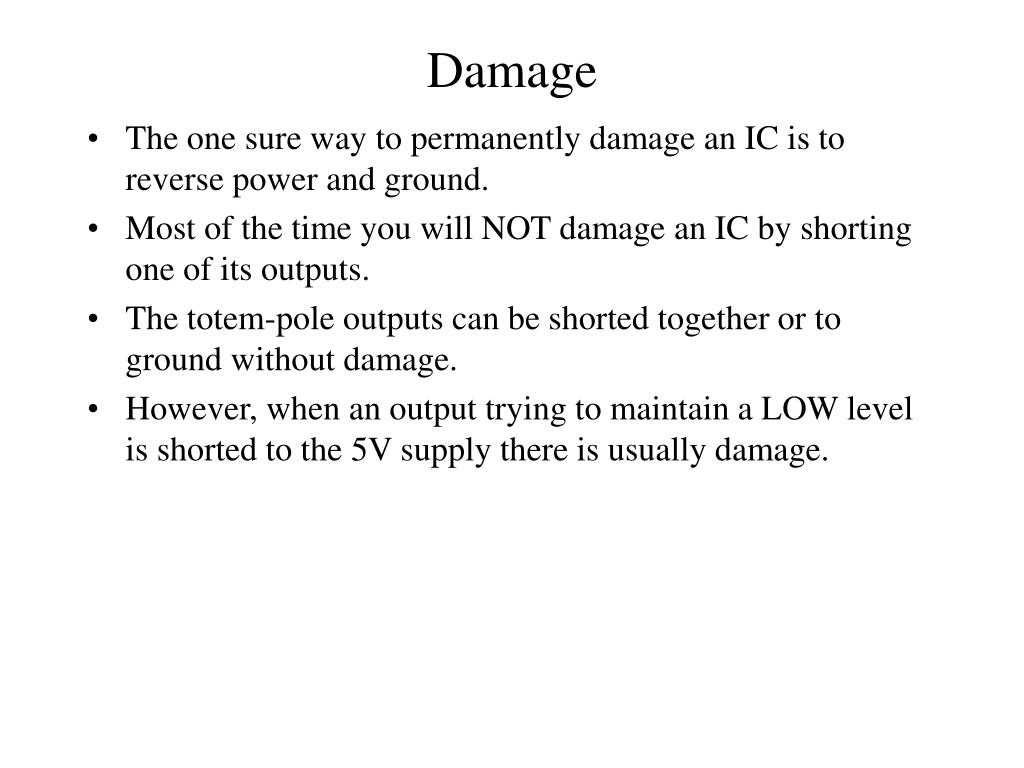

  32. Damage • The one sure way to permanently damage an IC is to reverse power and ground. • Most of the time you will NOT damage an IC by shorting one of its outputs. • The totem-pole outputs can be shorted together or to ground without damage. • However, when an output trying to maintain a LOW level is shorted to the 5V supply there is usually damage.

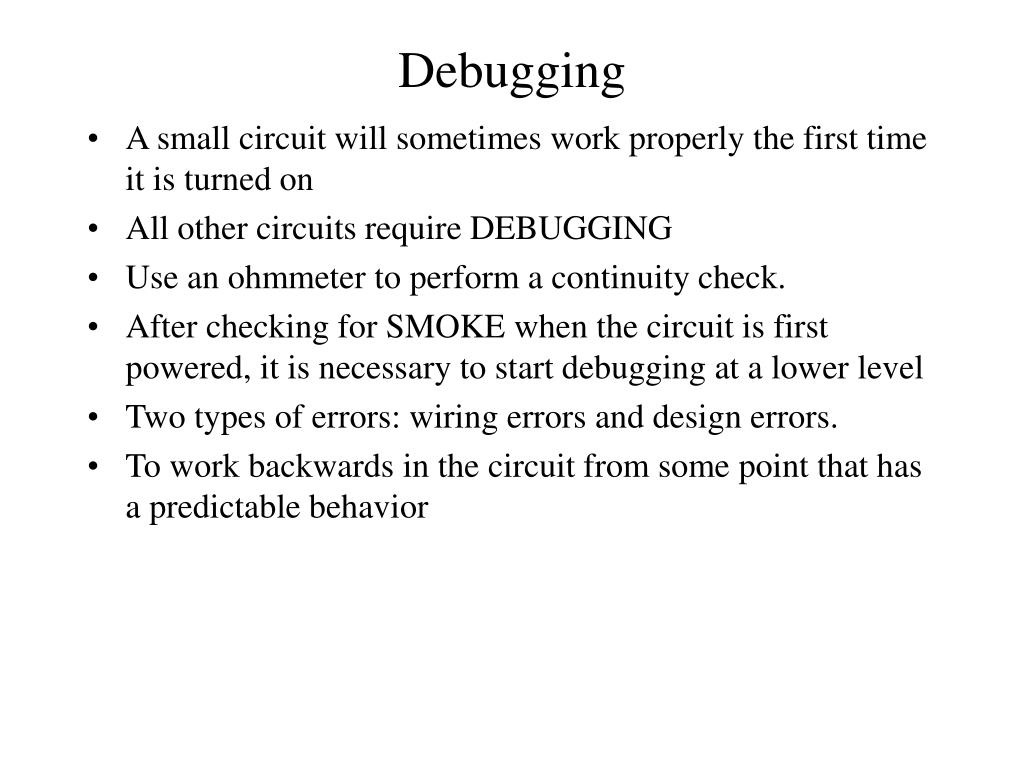

  33. Debugging • A small circuit will sometimes work properly the first time it is turned on • All other circuits require DEBUGGING • Use an ohmmeter to perform a continuity check. • After checking for SMOKE when the circuit is first powered, it is necessary to start debugging at a lower level • Two types of errors: wiring errors and design errors. • To work backwards in the circuit from some point that has a predictable behavior

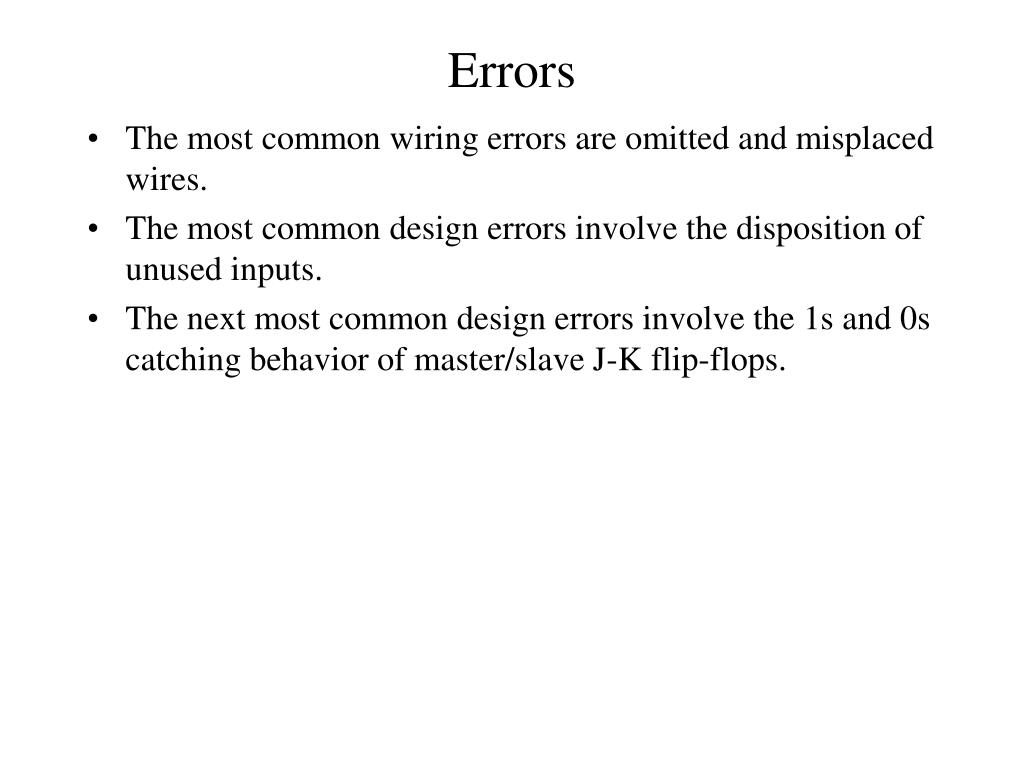

  34. Errors • The most common wiring errors are omitted and misplaced wires. • The most common design errors involve the disposition of unused inputs. • The next most common design errors involve the 1s and 0s catching behavior of master/slave J-K flip-flops.

  35. Operating Characteristics • VCC: Supply voltage • (4.75V, 5V, 5.25V) • VIH: high level input voltage • > 2V • VIL: low level input voltage • < 0.8V • VOH: high level output voltage • (2.5V, 3.4V, ) • VOL: low level output voltage • ( , 0.35V, 0.5V)

  36. Operating Characteristics • IOH: high level output current • > -400 uA • IOL: low level output current • < 8 mA • IIH: high level input current • < 20 uA • IIL: low level input current • > -0.4 mA • ICC: supply current • ( , 6mA, 10 mA)

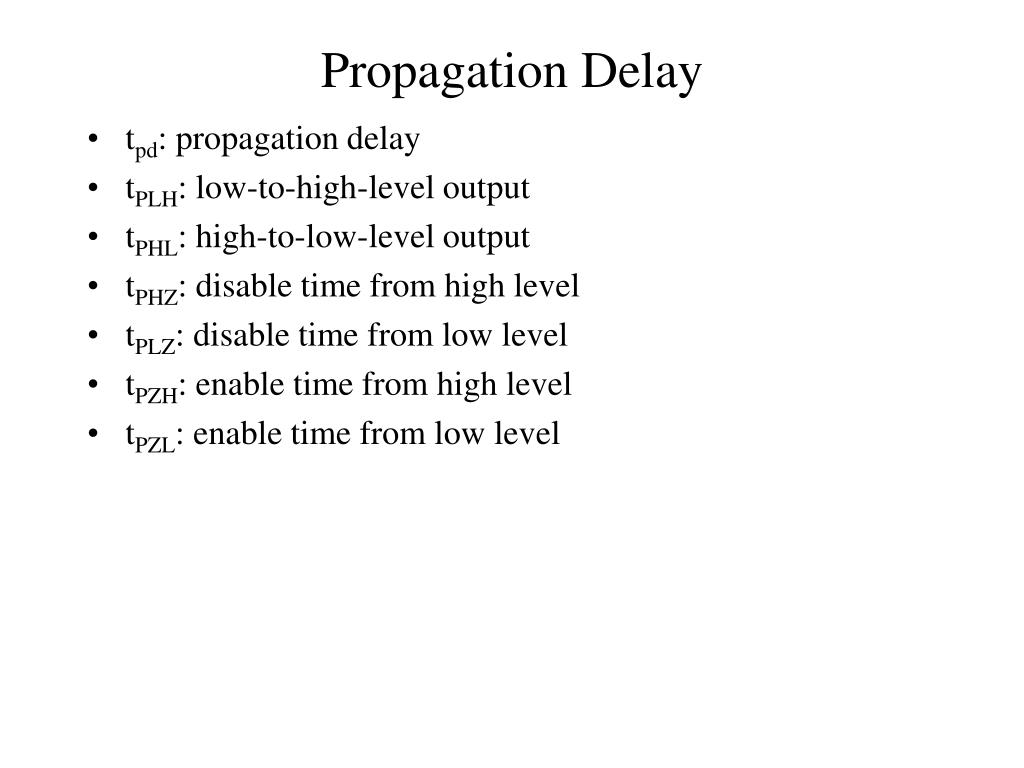

  37. Propagation Delay • tpd: propagation delay • tPLH: low-to-high-level output • tPHL: high-to-low-level output • tPHZ: disable time from high level • tPLZ: disable time from low level • tPZH: enable time from high level • tPZL: enable time from low level

  38. Intel Hex Format : start of record ## record length (two ASCII hexdecimal value) aaaa load address(four ASCII hexdecimal value) tt record type (two ASCII hexdecimal value) 00: data record 01: end of file record dd...dd two ASCII hexdecimal value per byte cc checksum

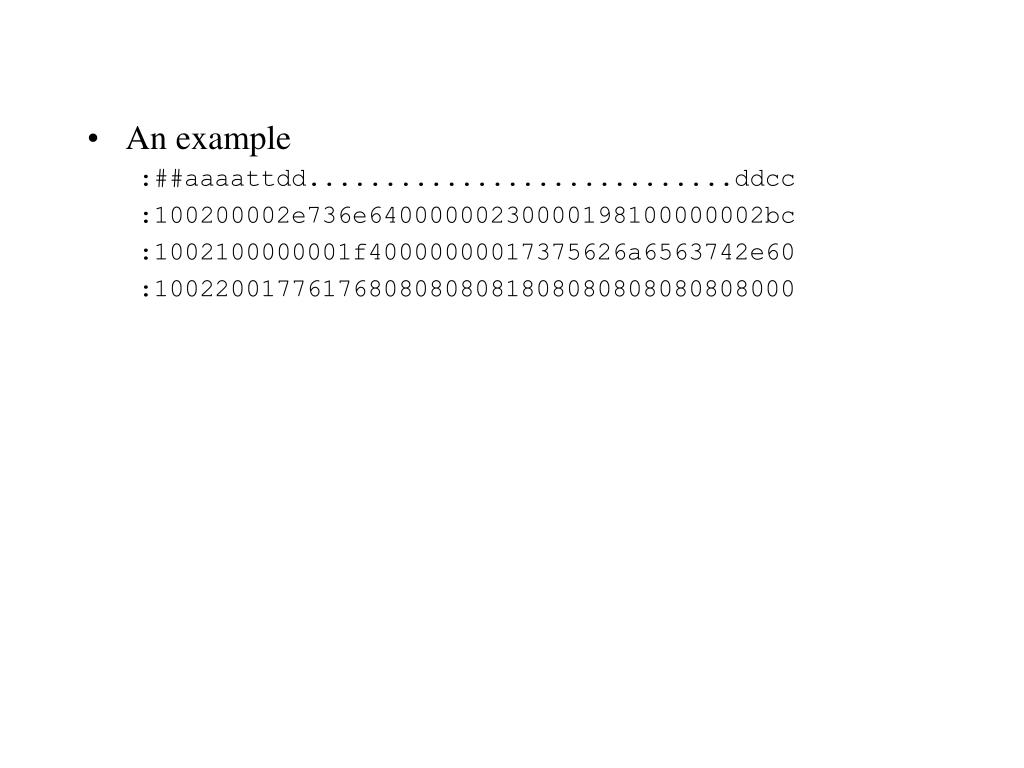

  39. An example :##aaaattdd............................ddcc :100200002e736e64000000230000198100000002bc :1002100000001f40000000017375626a6563742e60 :100220017761768080808081808080808080808000
