  1. Ajaykumar Gupte/Neeraj Kapoor Session D02 IBM Mon 4/23 10:50AM Support of Case Insensitivity in IDS Session D 02

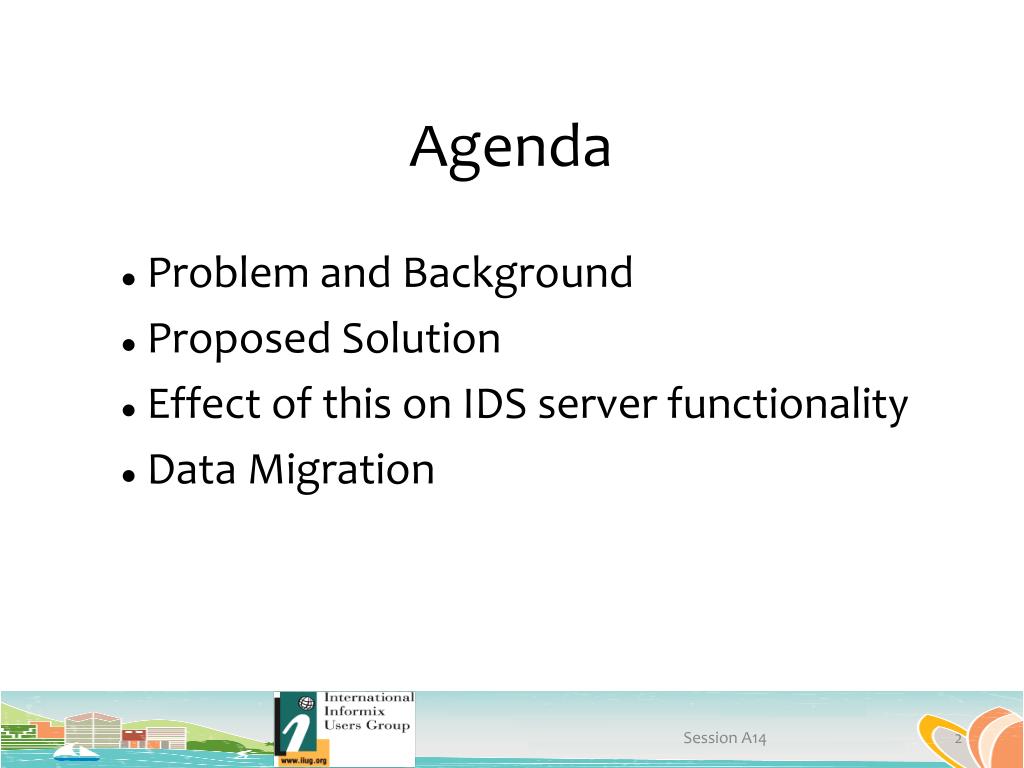

  2. Agenda • Problem and Background • Proposed Solution • Effect of this on IDS server functionality • Data Migration Session A14

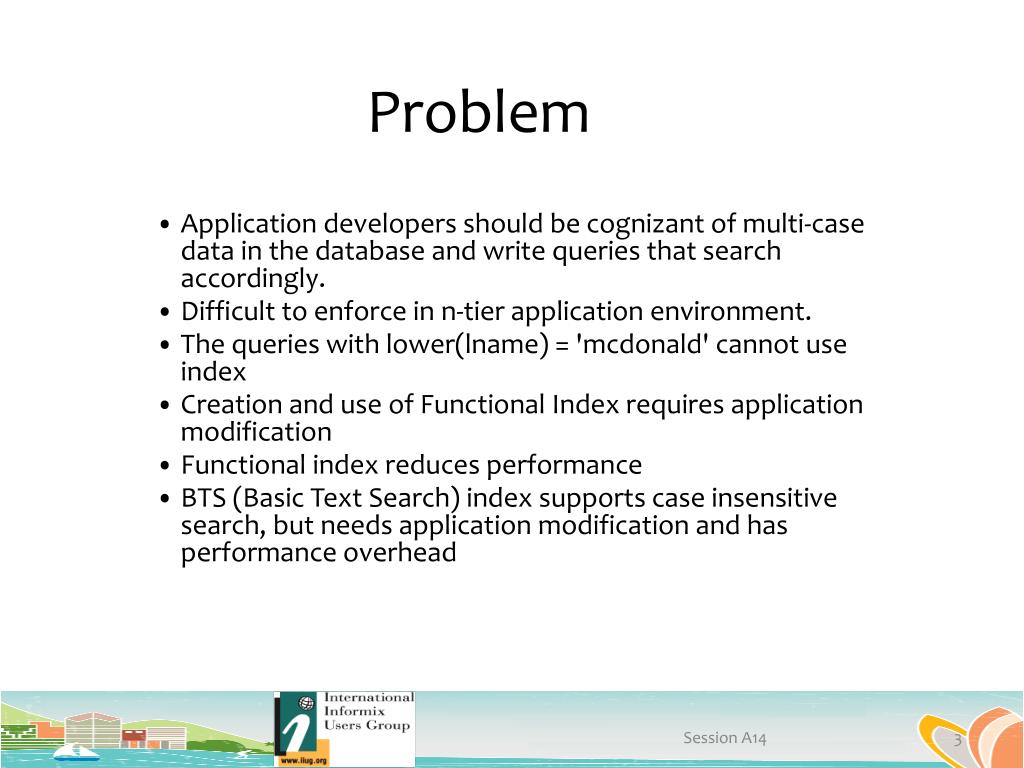

  3. Problem • Application developers should be cognizant of multi-case data in the database and write queries that search accordingly. • Difficult to enforce in n-tier application environment. • The queries with lower(lname) = 'mcdonald' cannot use index • Creation and use of Functional Index requires application modification • Functional index reduces performance • BTS (Basic Text Search) index supports case insensitive search, but needs application modification and has performance overhead Session A14

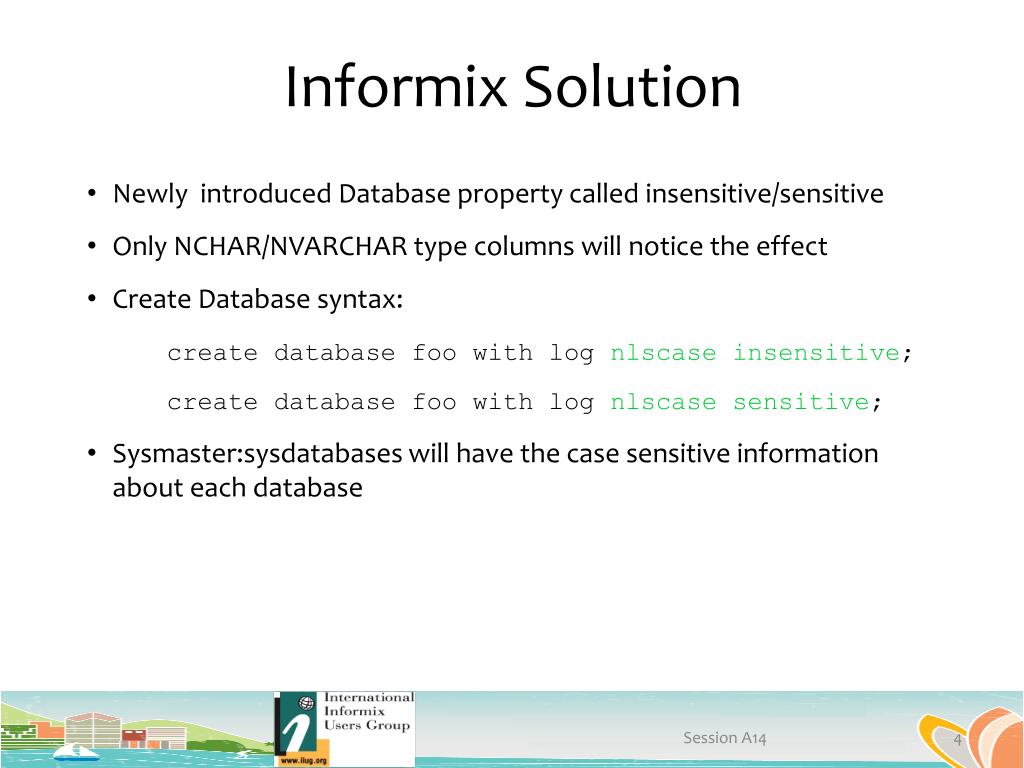

  4. Informix Solution • Newly introduced Database property called insensitive/sensitive • Only NCHAR/NVARCHAR type columns will notice the effect • Create Database syntax: create database foo with log nlscase insensitive; create database foo with log nlscase sensitive; • Sysmaster:sysdatabases will have the case sensitive information about each database Session A14

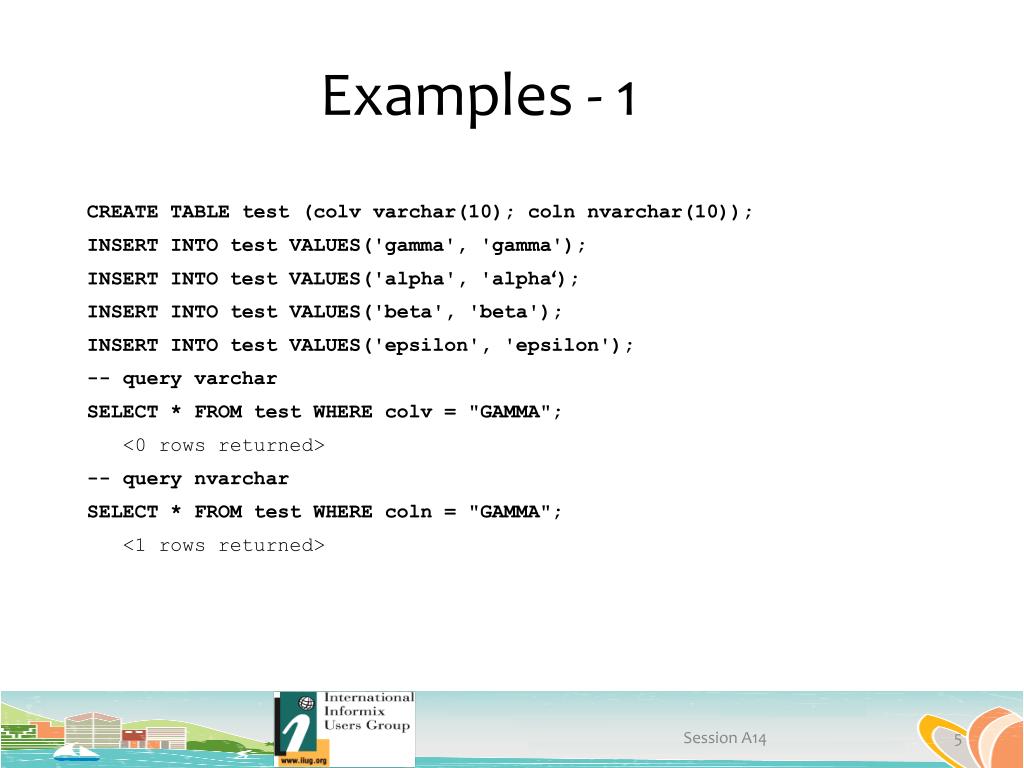

  5. Examples - 1 CREATE TABLE test (colv varchar(10); coln nvarchar(10)); INSERT INTO test VALUES('gamma', 'gamma'); INSERT INTO test VALUES('alpha', 'alpha‘); INSERT INTO test VALUES('beta', 'beta'); INSERT INTO test VALUES('epsilon', 'epsilon'); -- query varchar SELECT * FROM test WHERE colv = "GAMMA"; <0 rows returned> -- query nvarchar SELECT * FROM test WHERE coln = "GAMMA"; <1 rows returned> Session A14

  6. Examples - 2 create table foo (cc char(5), nc nchar(5)); insert into foo values ('IBM', 'IBM'); insert into foo values ('ibm', 'ibm'); insert into foo values ('Ibm', 'Ibm'); select distinct cc from foo; cc IBM Ibm ibm 3 row(s) retrieved select distinct nc from foo; nc IBM 1 row(s) retrieved Session A14

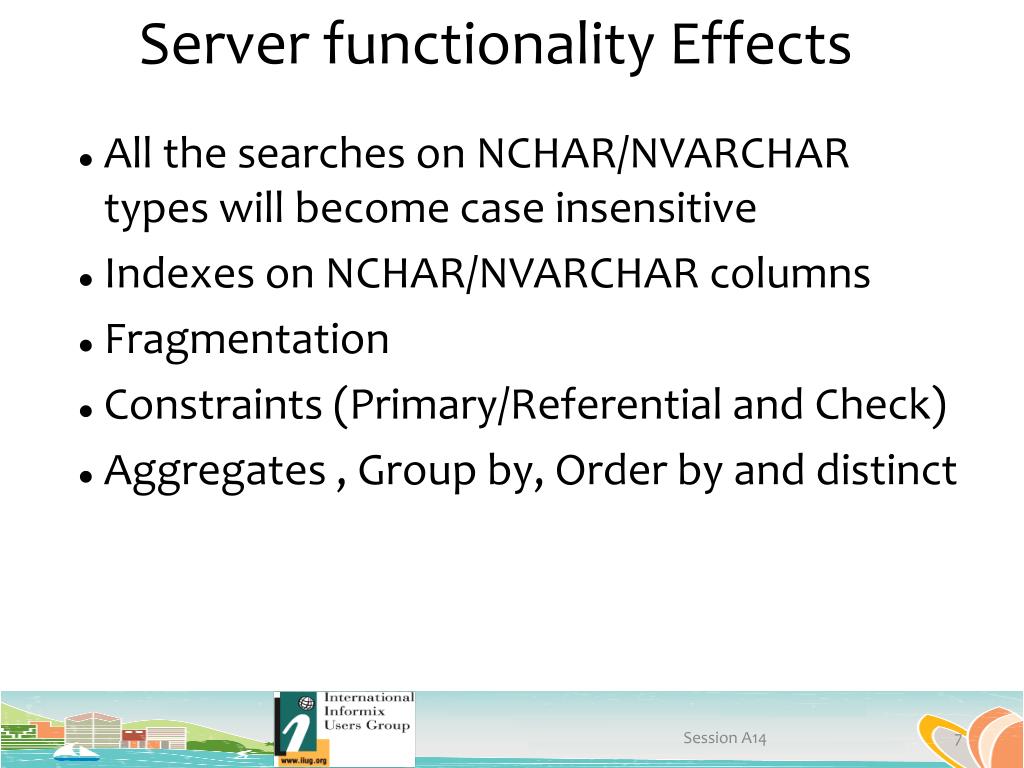

  7. Server functionality Effects • All the searches on NCHAR/NVARCHAR types will become case insensitive • Indexes on NCHAR/NVARCHAR columns • Fragmentation • Constraints (Primary/Referential and Check) • Aggregates , Group by, Order by and distinct Session A14

  8. Effects (cont…) • Statistics • Casting • Cross database/Cross server Query • Dbatools/Dbaccess Session A14

  9. Basic Case Insensitive Search create database testdb with log nlscase insensitive; create table tab1 (col1 nchar(20)); insert into tab1 values ('IBM IDS database'); insert into tab1 values ('IBM ids database'); insert into tab1 values ('ibm ids database'); insert into tab1 values ('ibm ids'); insert into tab1 values ('ibm IDS'); insert into tab1 values ('database'); Session A14

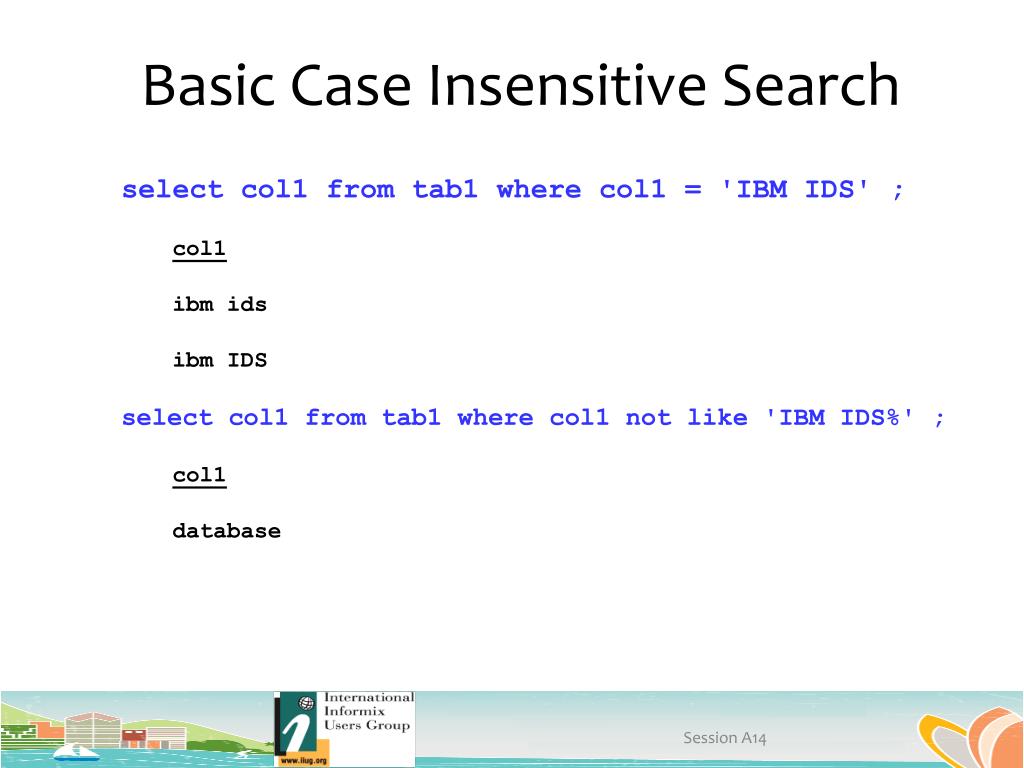

  10. Basic Case Insensitive Search select col1 from tab1 where col1 = 'IBM IDS' ; col1 ibm ids ibm IDS select col1 from tab1 where col1 not like 'IBM IDS%' ; col1 database Session A14

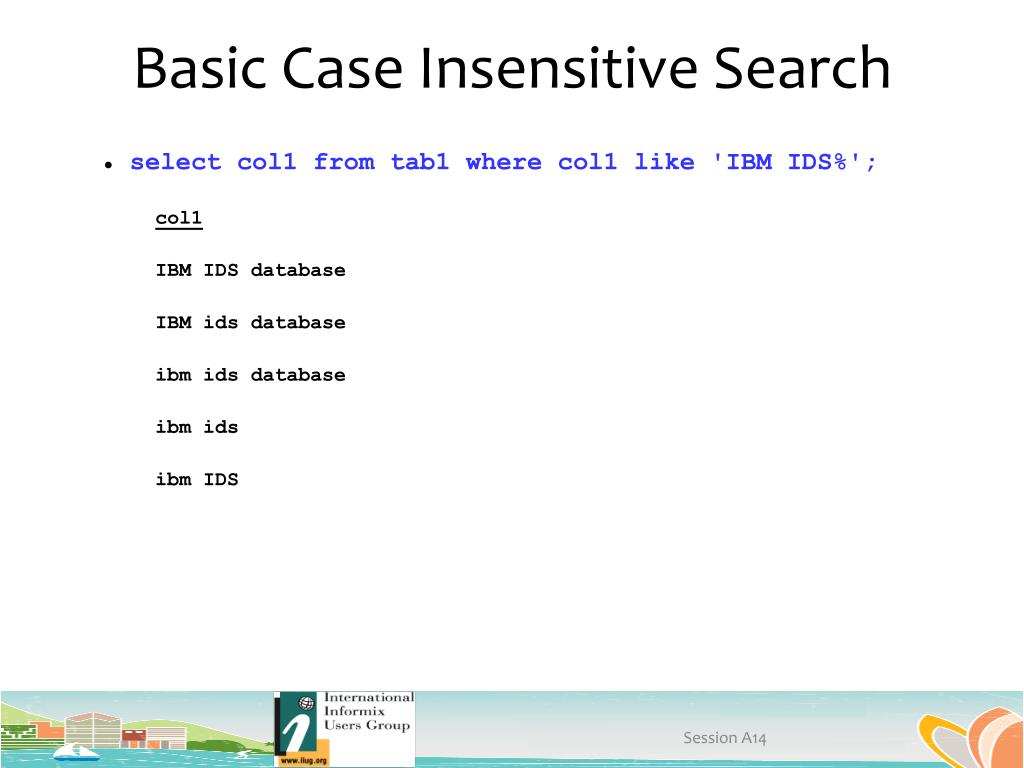

  11. Basic Case Insensitive Search • select col1 from tab1 where col1 like 'IBM IDS%'; col1 IBM IDS database IBM ids database ibm ids database ibm ids ibm IDS Session A14

  12. Basic Case Insensitive Search select col1 from tab1 where col1 matches 'IBM*' ; col1 IBM IDS database IBM ids database ibm ids database ibm ids ibm IDS Session A14

  13. Effect On Indexes • Unique Index create unique index uidx1 on tab1 (col1) ; 371: Cannot create unique index on column with duplicate data. 100: ISAM error: duplicate value for a record with unique key. Error in line 22 Near character position 38 • Duplicate index create index uidx1 on tab1 (col1) ; Index created. Session A14

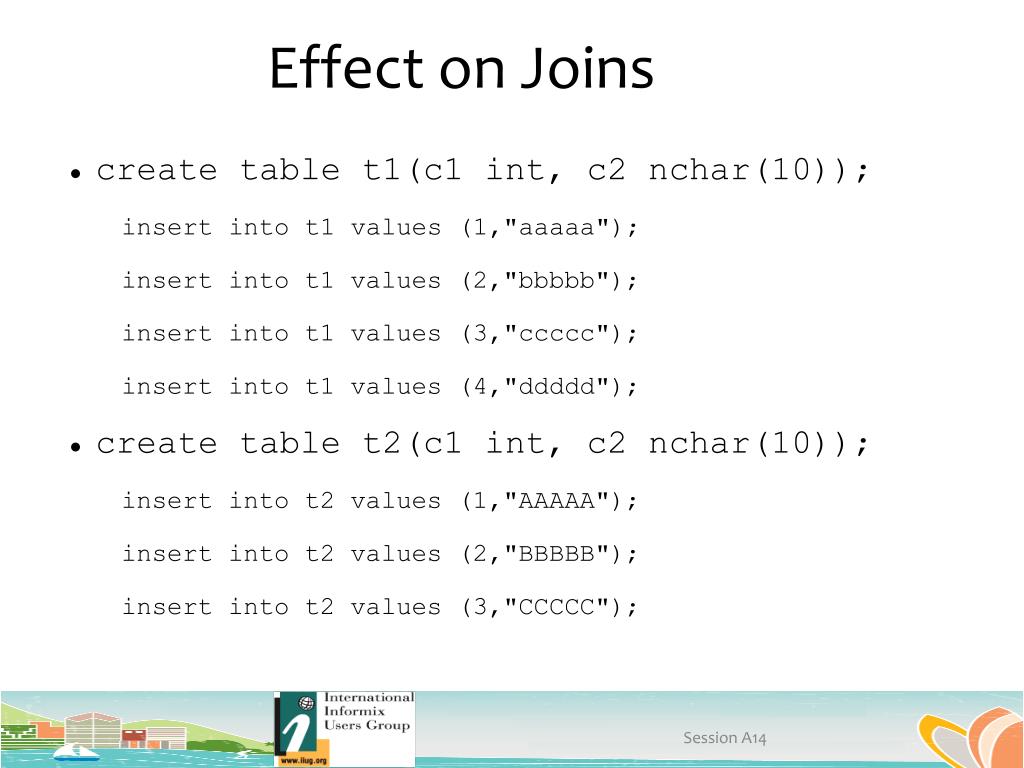

  14. Effect on Joins • create table t1(c1 int, c2 nchar(10)); insert into t1 values (1,"aaaaa"); insert into t1 values (2,"bbbbb"); insert into t1 values (3,"ccccc"); insert into t1 values (4,"ddddd"); • create table t2(c1 int, c2 nchar(10)); insert into t2 values (1,"AAAAA"); insert into t2 values (2,"BBBBB"); insert into t2 values (3,"CCCCC"); Session A14

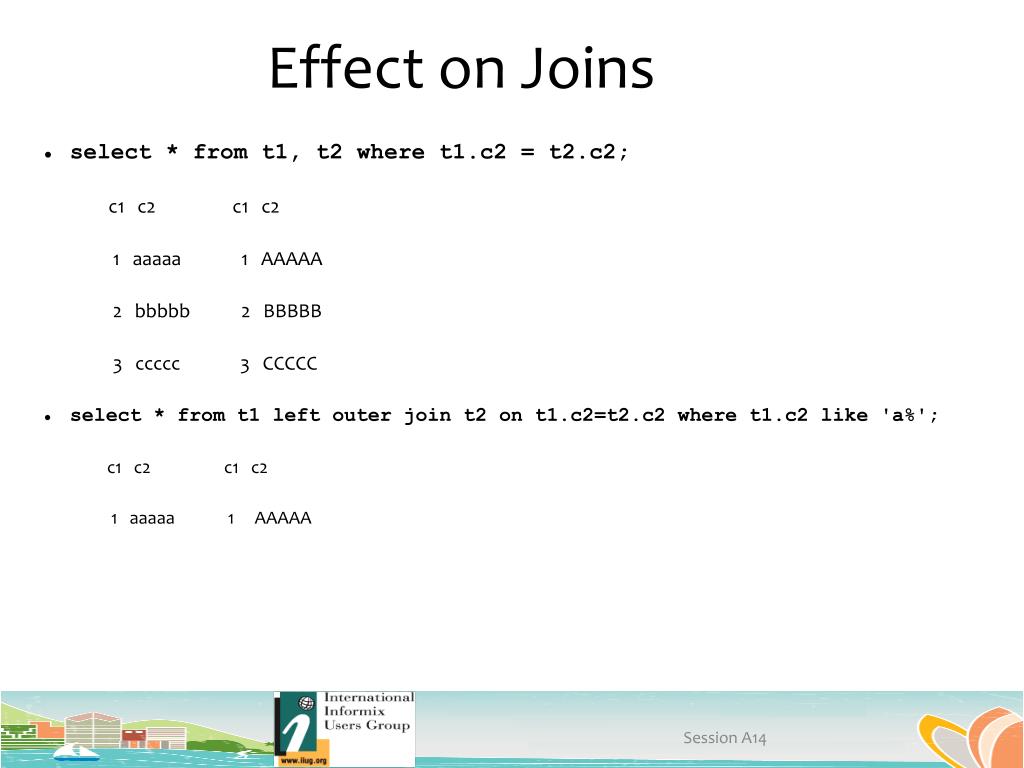

  15. Effect on Joins • select * from t1, t2 where t1.c2 = t2.c2; c1 c2 c1 c2 1 aaaaa 1 AAAAA 2 bbbbb 2 BBBBB 3 ccccc 3 CCCCC • select * from t1 left outer join t2 on t1.c2=t2.c2 where t1.c2 like 'a%'; c1 c2 c1 c2 1 aaaaa 1 AAAAA Session A14

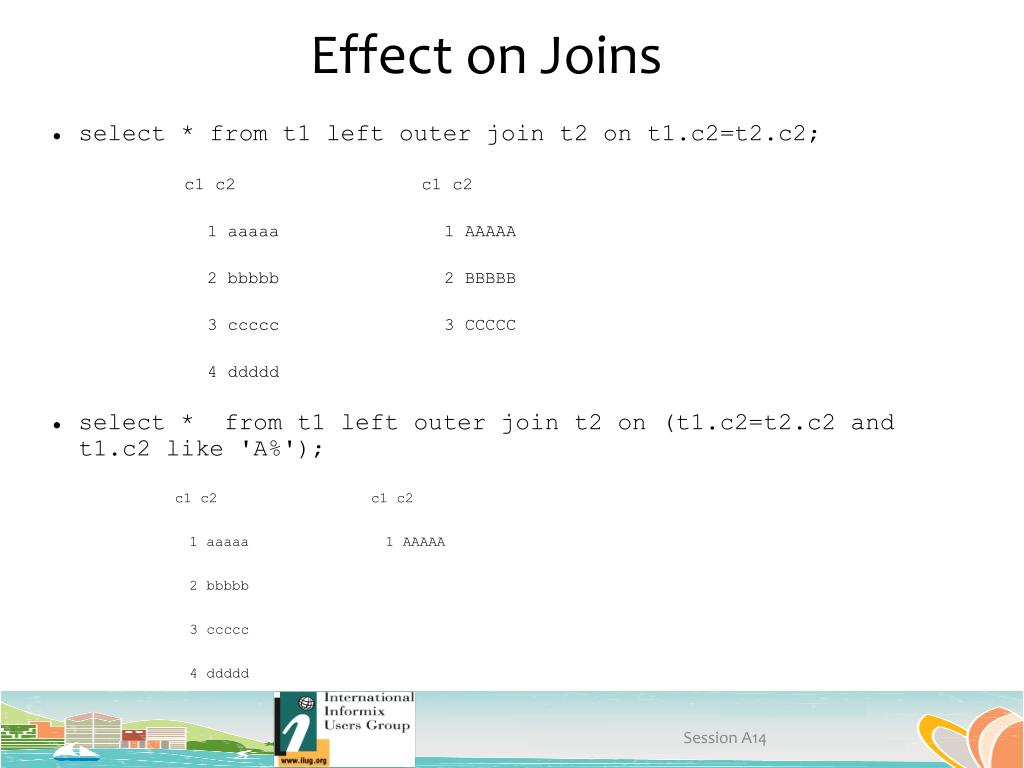

  16. Effect on Joins • select * from t1 left outer join t2 on t1.c2=t2.c2; c1 c2 c1 c2 1 aaaaa 1 AAAAA 2 bbbbb 2 BBBBB 3 ccccc 3 CCCCC 4 ddddd • select * from t1 left outer join t2 on (t1.c2=t2.c2 and t1.c2 like 'A%'); c1 c2 c1 c2 1 aaaaa 1 AAAAA 2 bbbbb 3 ccccc 4 ddddd Session A14

  17. Effect on Grouping create table foo (icol int, cc char(5), nc nchar(5)); insert into foo values (1, 'IBM', 'iBM'); insert into foo values (2, 'ibm', 'ibM'); insert into foo values (3, 'ibm', 'ibM'); insert into foo values (4, 'Ibm', 'Ibm'); insert into foo values (5, 'abc', 'ABC'); insert into foo values (6, 'abc', 'ABc'); insert into foo values (7, 'abc', 'Abc'); Session A14

  18. Effect on Grouping • select distinct nc from foo; nc Abc Ibm • select count(distinct nc) from foo; (count) 2 • select count(unique nc) from foo; (count) 2 Session A14

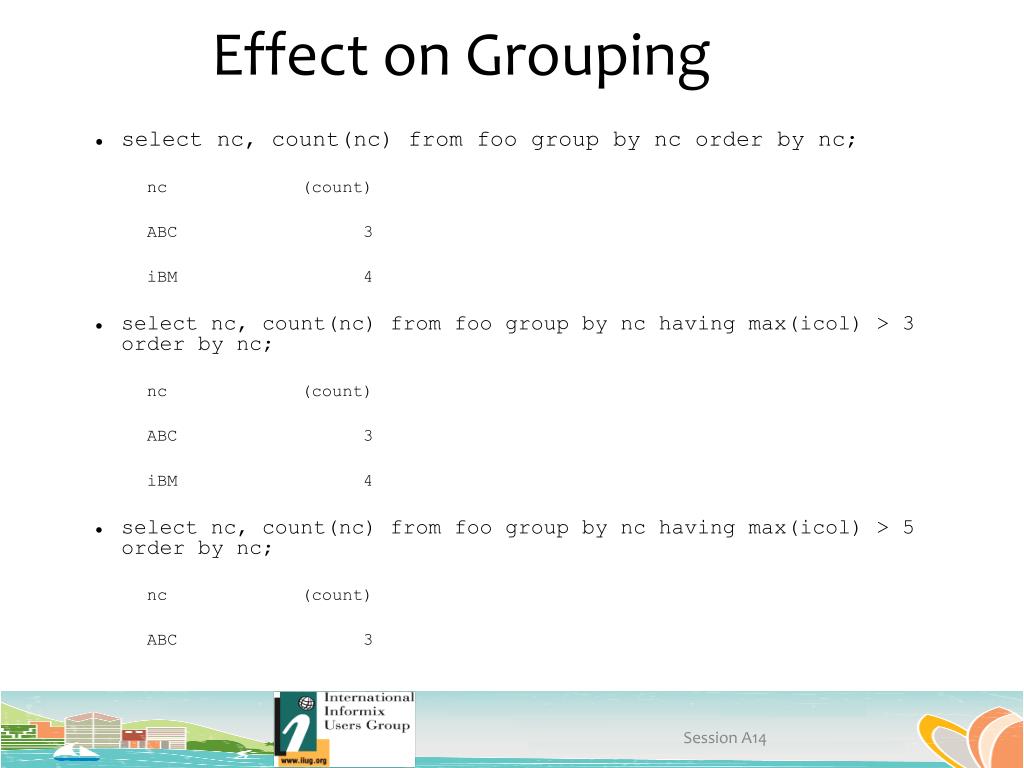

  19. Effect on Grouping • select nc, count(nc) from foo group by nc order by nc; nc (count) ABC 3 iBM 4 • select nc, count(nc) from foo group by nc having max(icol) > 3 order by nc; nc (count) ABC 3 iBM 4 • select nc, count(nc) from foo group by nc having max(icol) > 5 order by nc; nc (count) ABC 3 Session A14

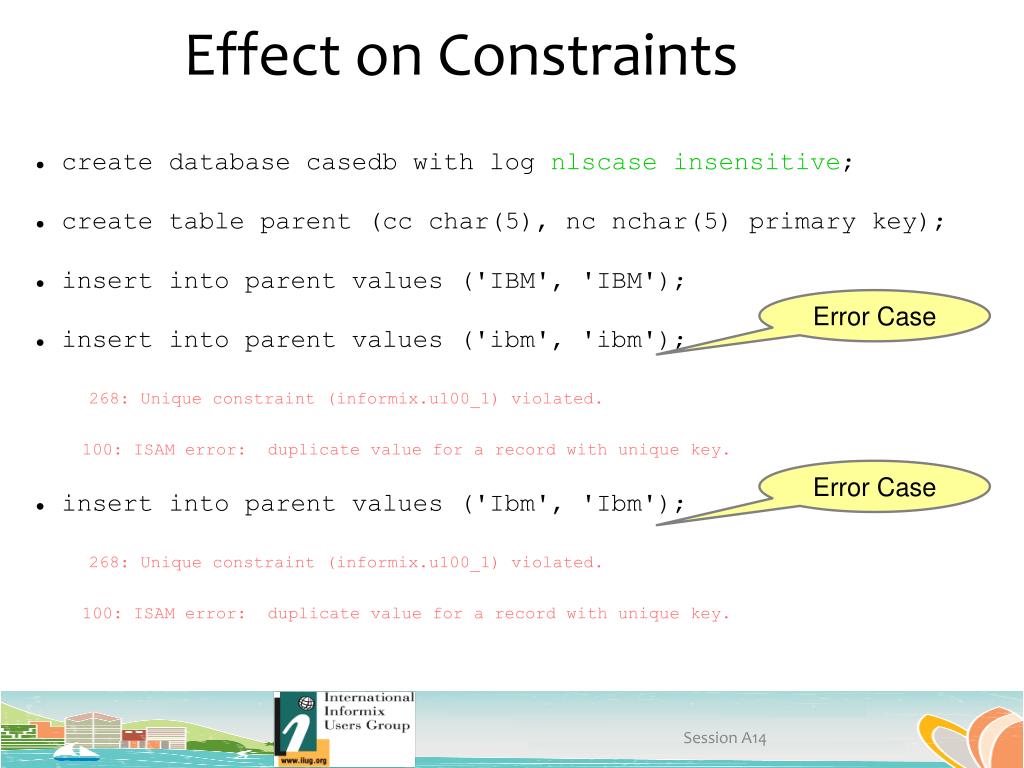

  20. Effect on Constraints • create database casedb with log nlscase insensitive; • create table parent (cc char(5), nc nchar(5) primary key); • insert into parent values ('IBM', 'IBM'); • insert into parent values ('ibm', 'ibm'); 268: Unique constraint (informix.u100_1) violated. 100: ISAM error: duplicate value for a record with unique key. • insert into parent values ('Ibm', 'Ibm'); 268: Unique constraint (informix.u100_1) violated. 100: ISAM error: duplicate value for a record with unique key. Error Case Error Case Session A14

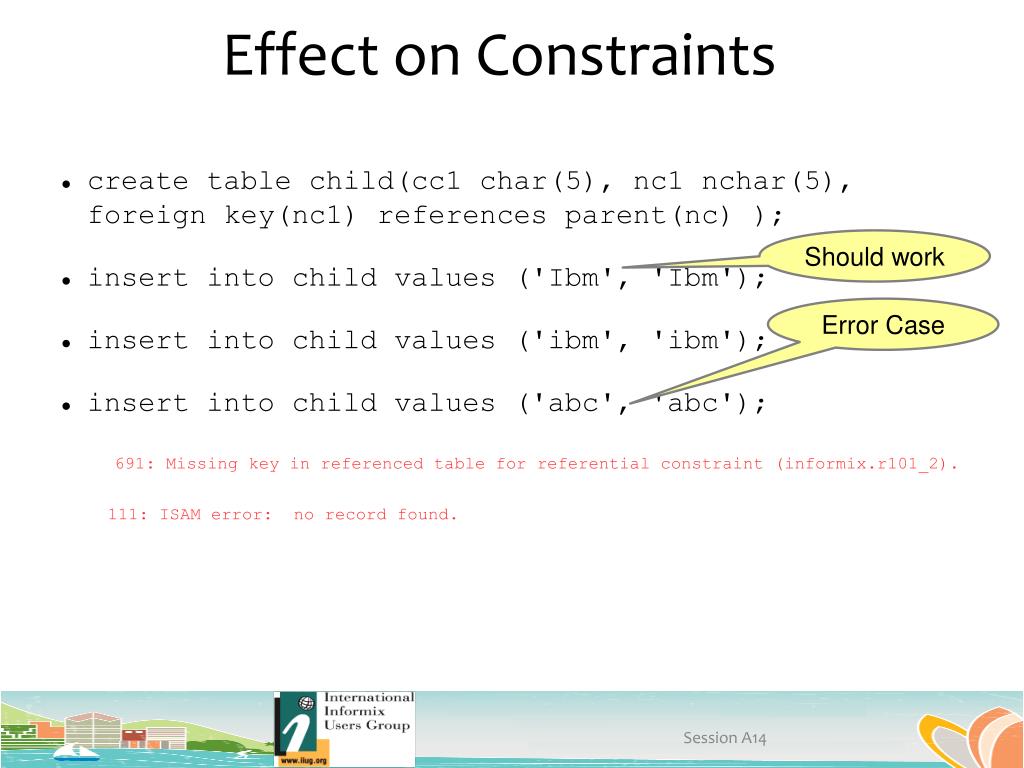

  21. Effect on Constraints • create table child(cc1 char(5), nc1 nchar(5), foreign key(nc1) references parent(nc) ); • insert into child values ('Ibm', 'Ibm'); • insert into child values ('ibm', 'ibm'); • insert into child values ('abc', 'abc'); 691: Missing key in referenced table for referential constraint (informix.r101_2). 111: ISAM error: no record found. Should work Error Case Session A14

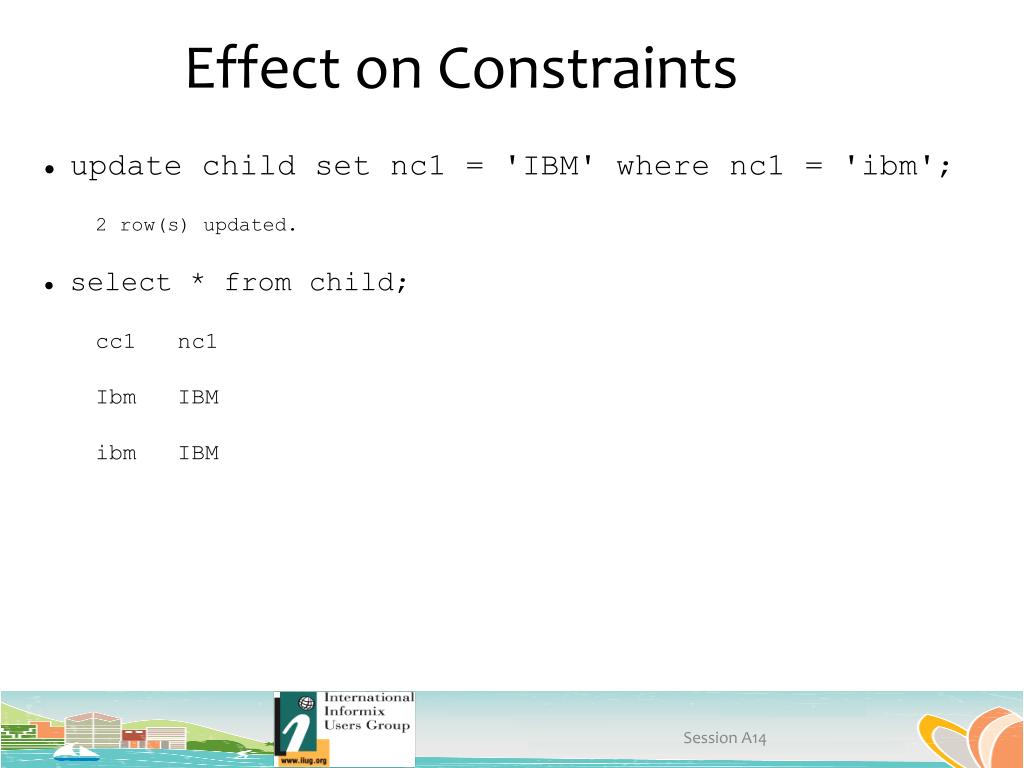

  22. Effect on Constraints • update child set nc1 = 'IBM' where nc1 = 'ibm'; 2 row(s) updated. • select * from child; cc1 nc1 Ibm IBM ibm IBM Session A14

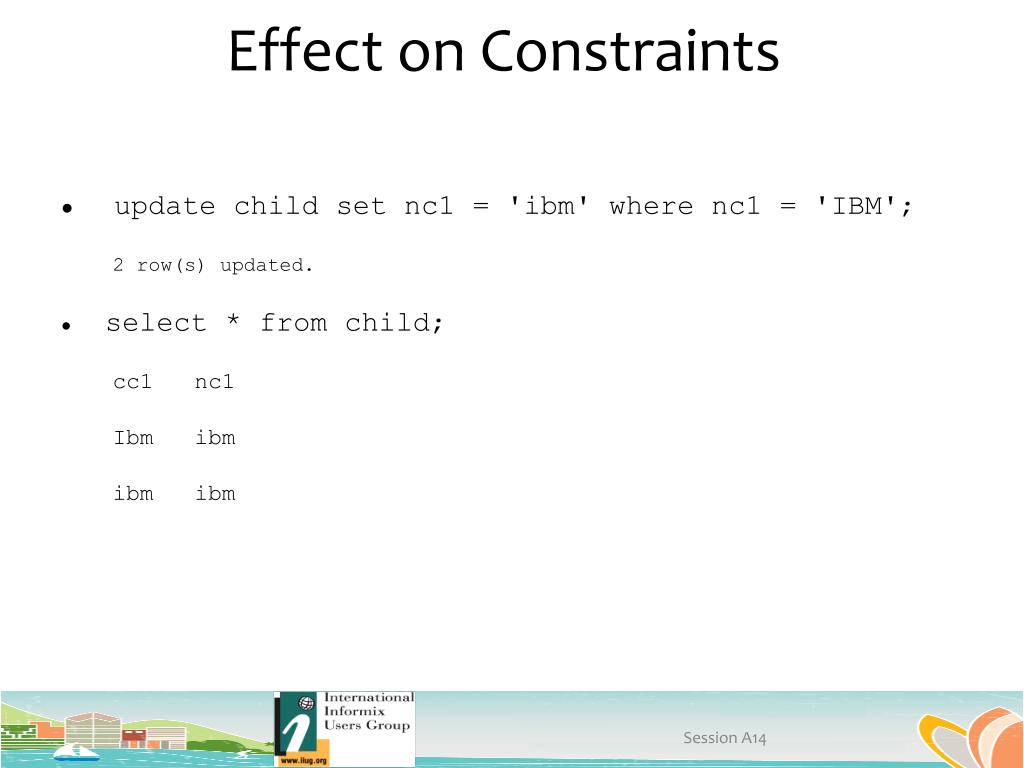

  23. Effect on Constraints • update child set nc1 = 'ibm' where nc1 = 'IBM'; 2 row(s) updated. • select * from child; cc1 nc1 Ibm ibm ibm ibm Session A14

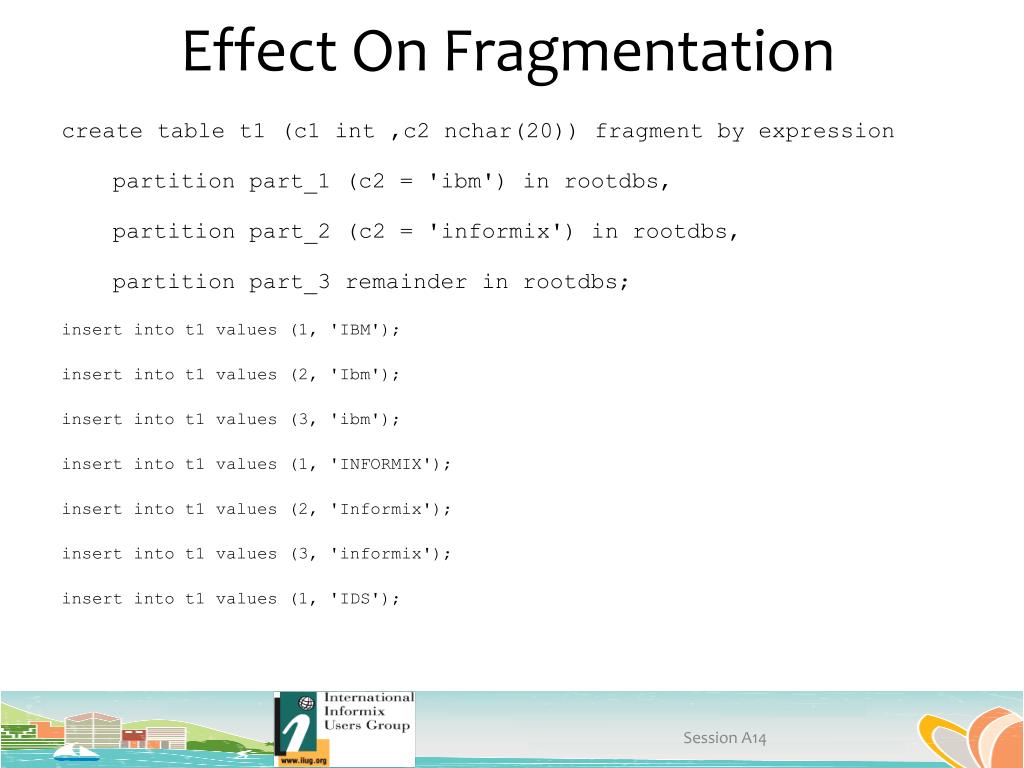

  24. Effect On Fragmentation create table t1 (c1 int ,c2 nchar(20)) fragment by expression partition part_1 (c2 = 'ibm') in rootdbs, partition part_2 (c2 = 'informix') in rootdbs, partition part_3 remainder in rootdbs; insert into t1 values (1, 'IBM'); insert into t1 values (2, 'Ibm'); insert into t1 values (3, 'ibm'); insert into t1 values (1, 'INFORMIX'); insert into t1 values (2, 'Informix'); insert into t1 values (3, 'informix'); insert into t1 values (1, 'IDS'); Session A14

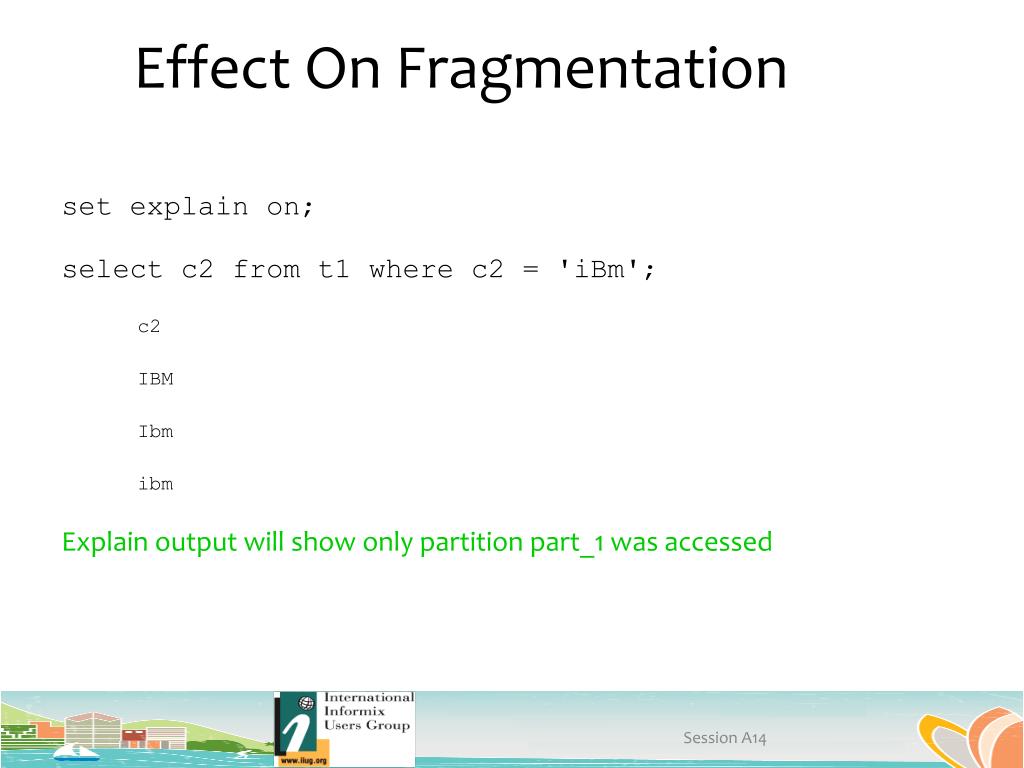

  25. Effect On Fragmentation set explain on; select c2 from t1 where c2 = 'iBm'; c2 IBM Ibm ibm Explain output will show only partition part_1 was accessed Session A14

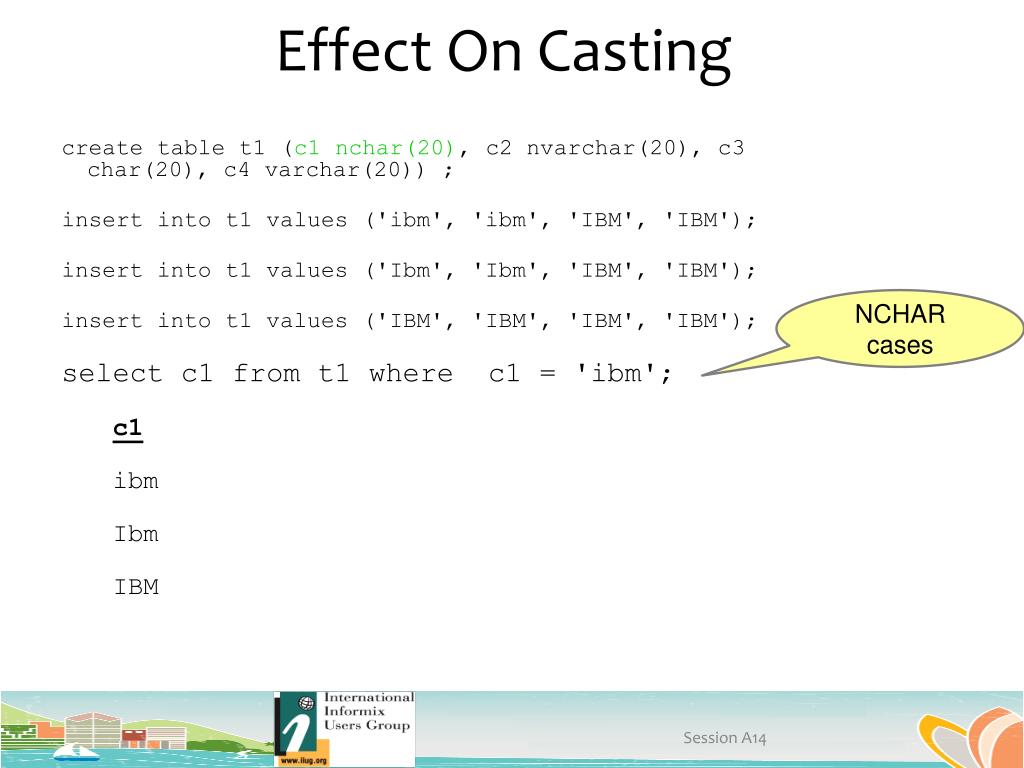

  26. Effect On Casting create table t1 (c1 nchar(20), c2 nvarchar(20), c3 char(20), c4 varchar(20)) ; insert into t1 values ('ibm', 'ibm', 'IBM', 'IBM'); insert into t1 values ('Ibm', 'Ibm', 'IBM', 'IBM'); insert into t1 values ('IBM', 'IBM', 'IBM', 'IBM'); select c1 from t1 where c1 = 'ibm'; c1 ibm Ibm IBM NCHAR cases Session A14

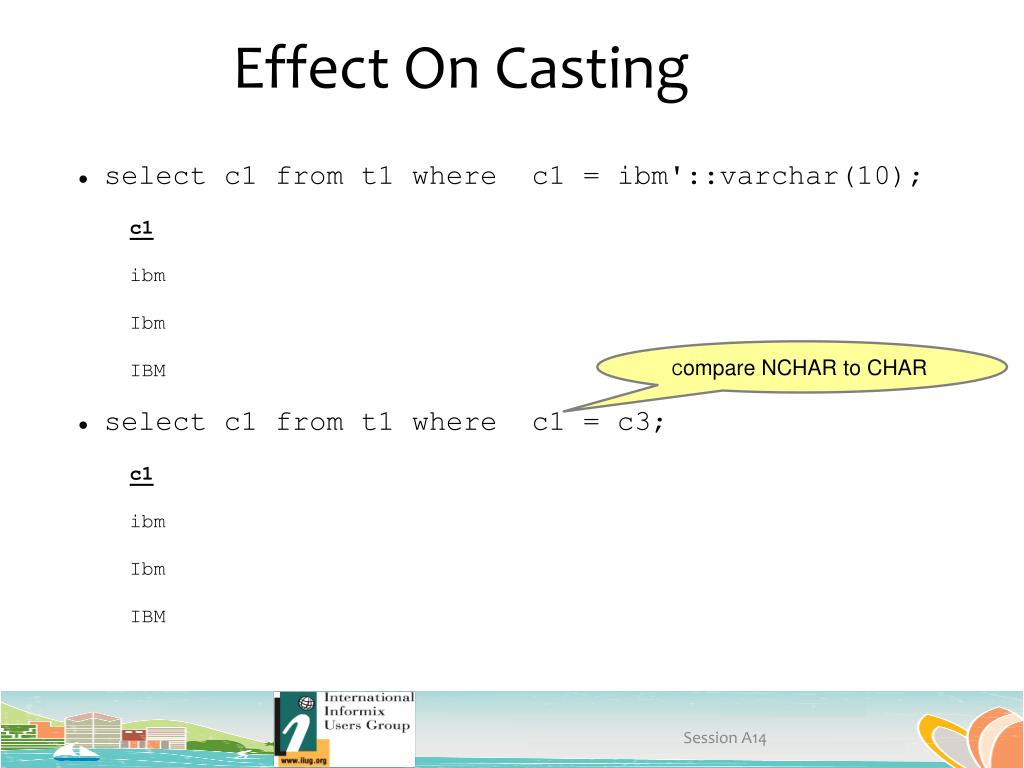

  27. Effect On Casting • select c1 from t1 where c1 = ibm'::varchar(10); c1 ibm Ibm IBM • select c1 from t1 where c1 = c3; c1 ibm Ibm IBM Compare NCHAR to CHAR Session A14

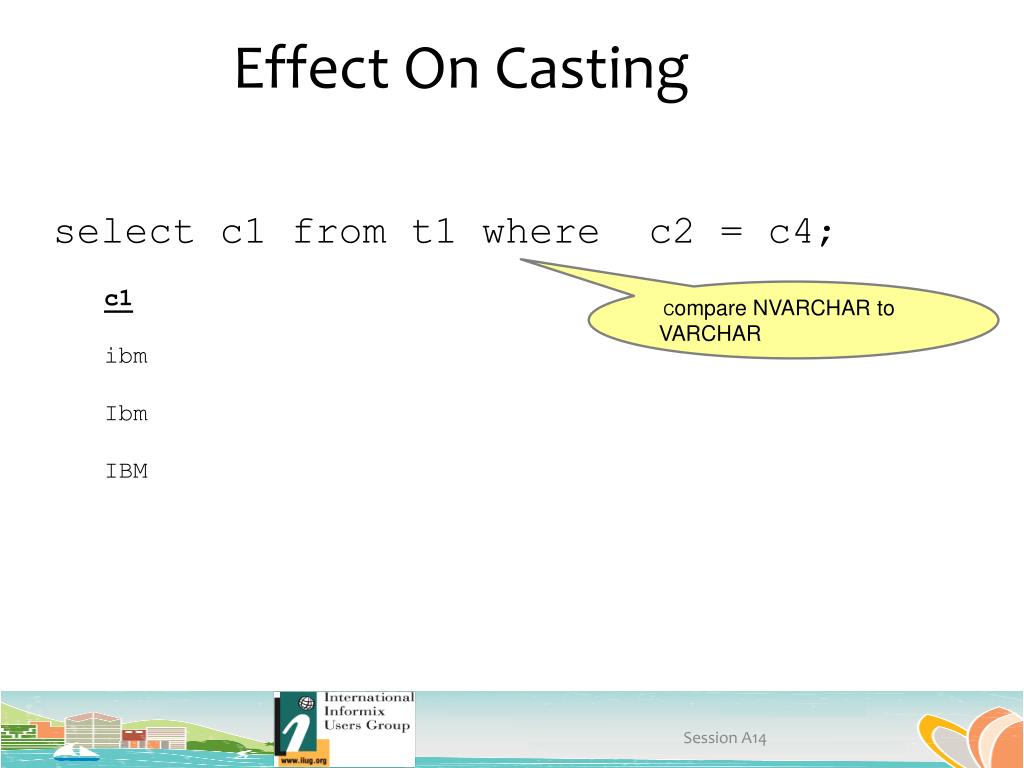

  28. Effect On Casting select c1 from t1 where c2 = c4; c1 ibm Ibm IBM Compare NVARCHAR to VARCHAR Session A14

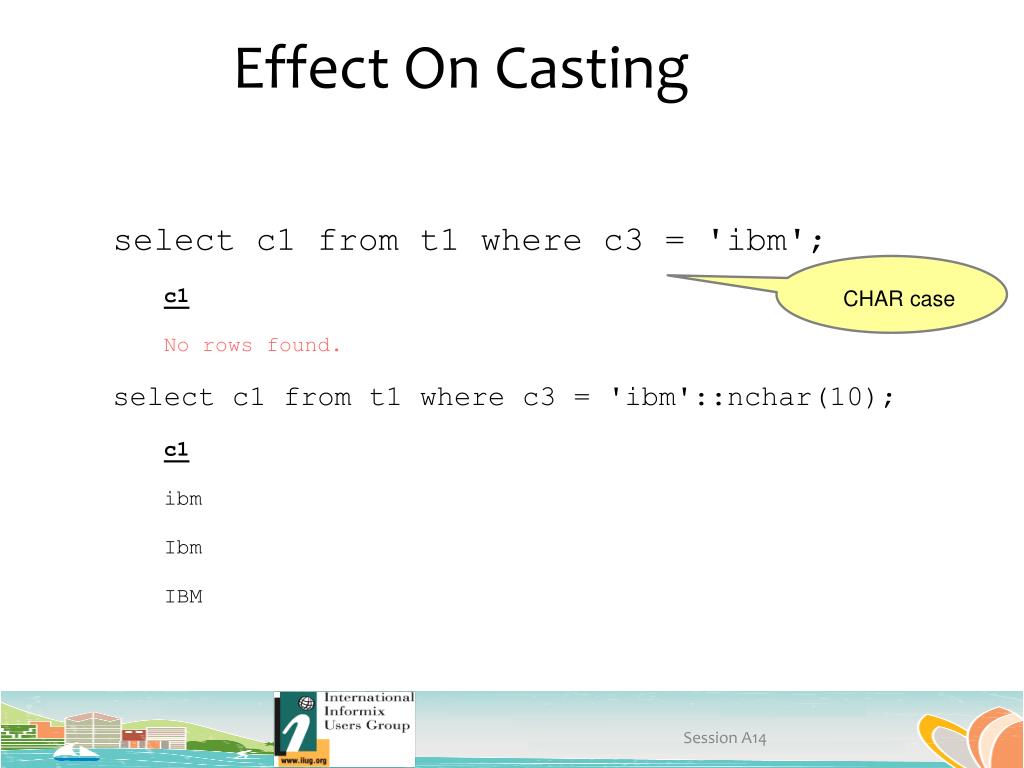

  29. Effect On Casting select c1 from t1 where c3 = 'ibm'; c1 No rows found. select c1 from t1 where c3 = 'ibm'::nchar(10); c1 ibm Ibm IBM CHAR case Session A14

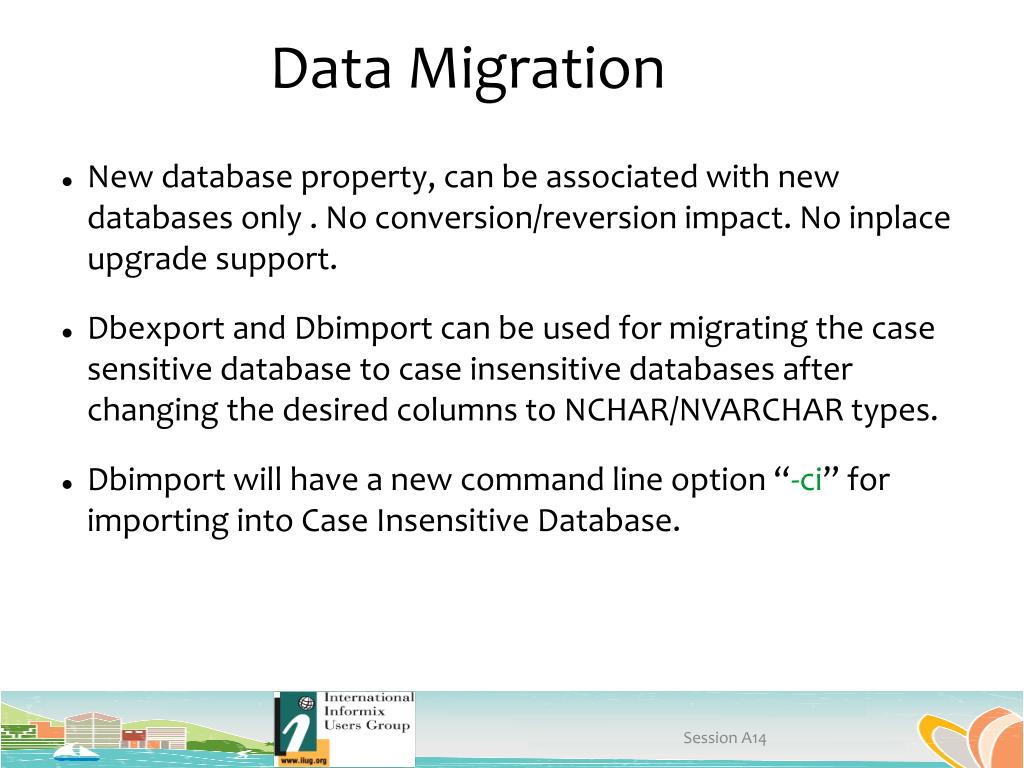

  30. Data Migration • New database property, can be associated with new databases only . No conversion/reversion impact. No inplace upgrade support. • Dbexport and Dbimport can be used for migrating the case sensitive database to case insensitive databases after changing the desired columns to NCHAR/NVARCHAR types. • Dbimport will have a new command line option “-ci” for importing into Case Insensitive Database. Session A14

  31. References • Informix 11.70 Info Center - http://publib.boulder.ibm.com/infocenter/idshelp/v117/index.jsp • DeveloperWorks CI article - http://www.ibm.com/developerworks/data/library/techarticle/dm-1108caseinsensitive/index.html?ca=drs- Session A14

  32. Questions?!? 2/15/12 Template Presentation - Session Z99 Session A14 32
